Regency Fireplace Products Greenfire GFi350LNG-R Quick start guide

Models: GFi350LNG-R
GFi350LLP-R
GFi350LULPG-R
Owners &
Installation
Manual
October 11, 2017
LISTINGS AND CODE APPROVALS
These gas appliances have been tested
in accordance with AS 5263.0, AS/NZS
5263.1.3 and have been certified by the
Australian Gas Association for installation
and operation as described in these Instal-
lation and Operating Instructions.
Your unit should be serviced annually by
an authorised service person.
919-769a
Greenfire®GFi350L Gas Inbuilt
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
ance
Do not touch any electrical
switch:do not use any phone
in your building.
Immediately call your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your gas
supplier, call the fire depart-
ment.
WARNING:
Improper installation,adjustment,alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult
an authorised installer, service agency or
the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
by an authorised installer, service agency or
the gas supplier.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE

REGENCY
GAS FIREPLACE INBUILT FIREPLACE
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by Fireplace Products International Ltd.
The Regency Gas Fireplace Series of hand crafted appliances has been designed to provide you with all the warmth
and charm of a fireplace, at the flick of a switch. The model GFi350L of this series has been approved by Australian
Gas Association for both safety and efficiency. As it also bears our own mark, it promises to provide you with economy,
comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these
instructions and the many features of your Regency Fireplace.
PAIRING THE REMOTE HANDSET AND CONTROL BOX ID CODE
The Remote Control Handset has a set of unique ID codes that is pre-programmed into its memory. This set of ID codes helps to di󰀨erentiate one
Remote Control Handset from another so that only the control box with a matching ID code will respond to the appropriate Remote Control Handset.
To match the control box, the following steps are to be followed:
1. Ensure the Remote is switched OFF.
2. Remove main power to the control box.
3. Reconnect main power to the control box.
4. Press and hold the PROG and FAN buttons simultaneously. The temperature display will show the letters “LC” momentarily indicating the
ID codes have been transmitted
5. The display will revert back to the normal o󰀨 mode display.
6. Release both the PROG and FAN buttons.
The control box will only learn the Remote ID codes during the rst 30 seconds after power is applied and will ignore this special command from
the Remote after the rst 30 seconds
Note: The pairing up process can be carried out by anyone.
Note: In addition; please also go to: www.regency-re.com.au to see the pairing up video.

Regency GFi350L Gas Fireplace Inbuilt 3
table of
contents
Pairing the Remote Handset and Control Box ID Code . 2
Unit Dimensions ............................................................5
For your safety ...............................................................6
Gas pipe testing .............................................................6
Before you start .............................................................6
Installation Checklist ......................................................6

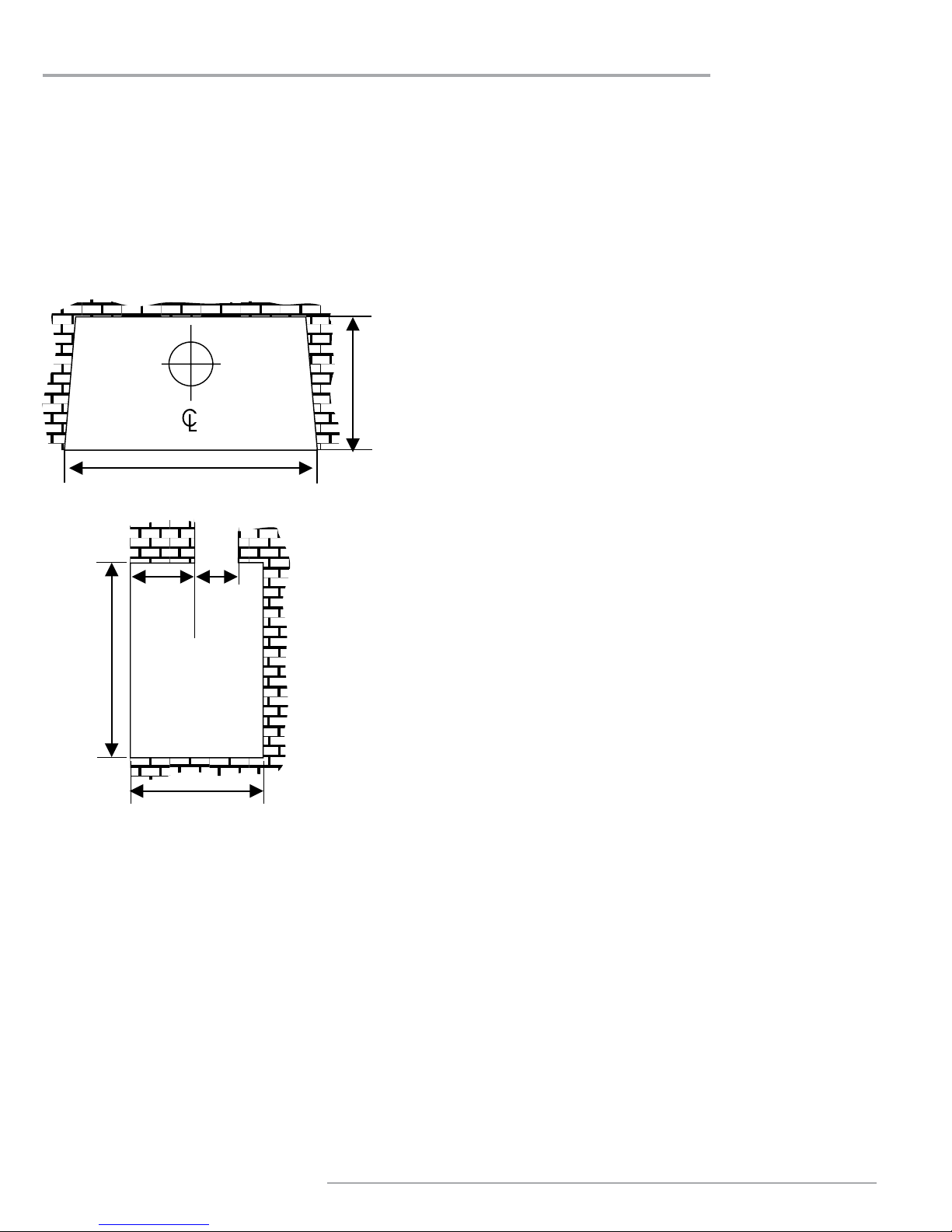

Minimum fireplace dimensions ......................................7
Masonry Installation: ..............................................7
Mantel Leg Clearances ..................................................8
Minimum Clearances to Combustibles ..........................8

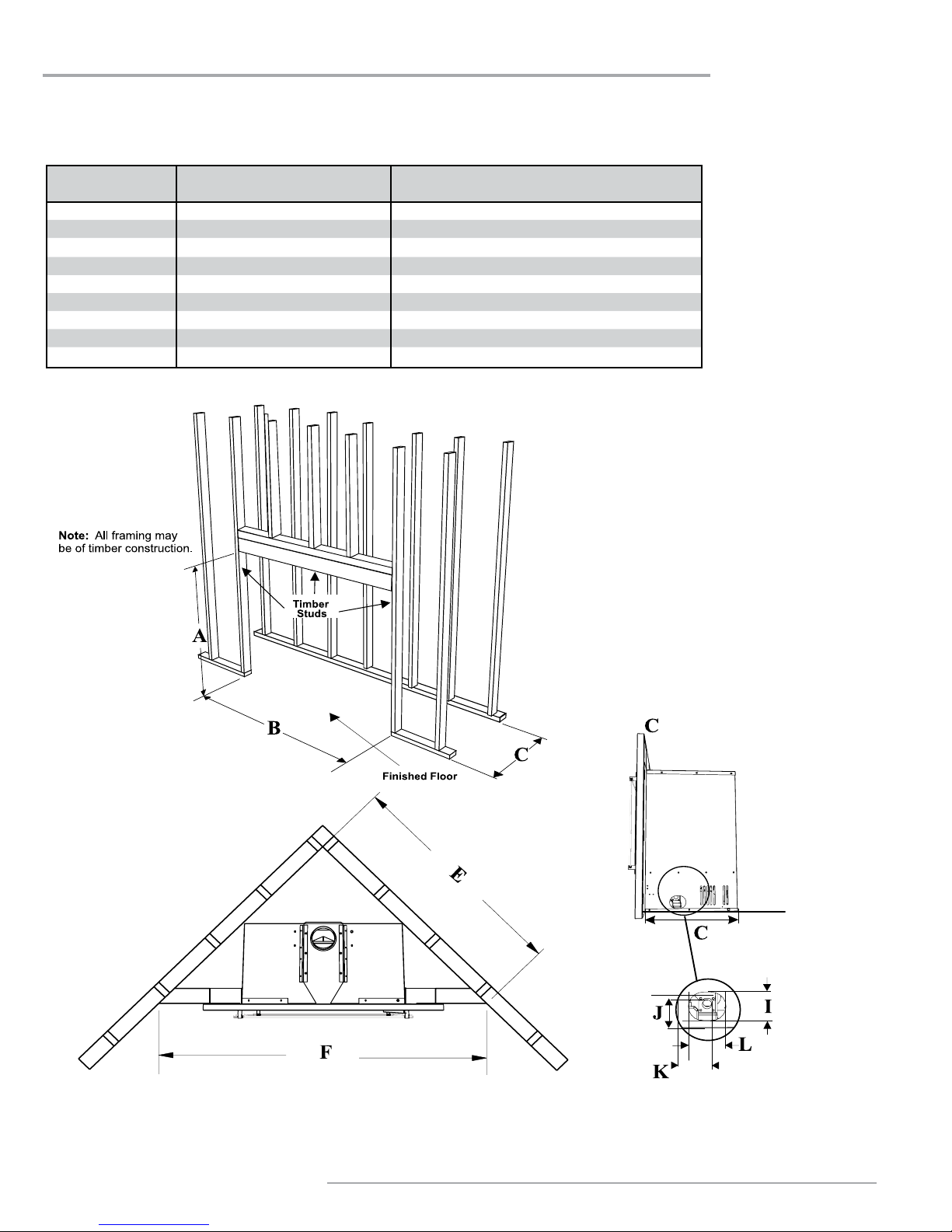

Optional Mock Fireplace (Zero Clearance) dimensions 9
(no masonry chimney) ...................................................9
Optional mock fireplace (zero clearance) Installation . . 10

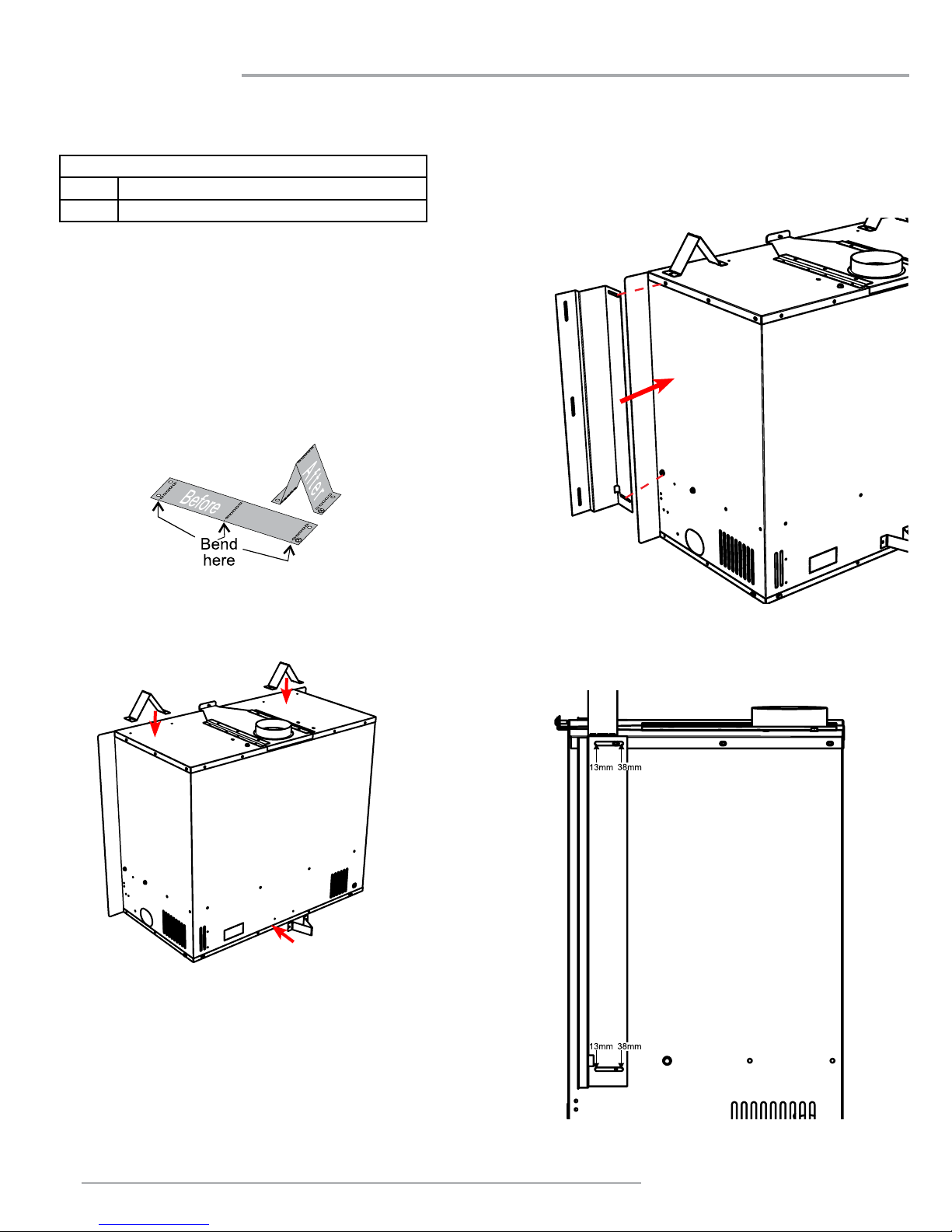

Standoff Assembly ...............................................10

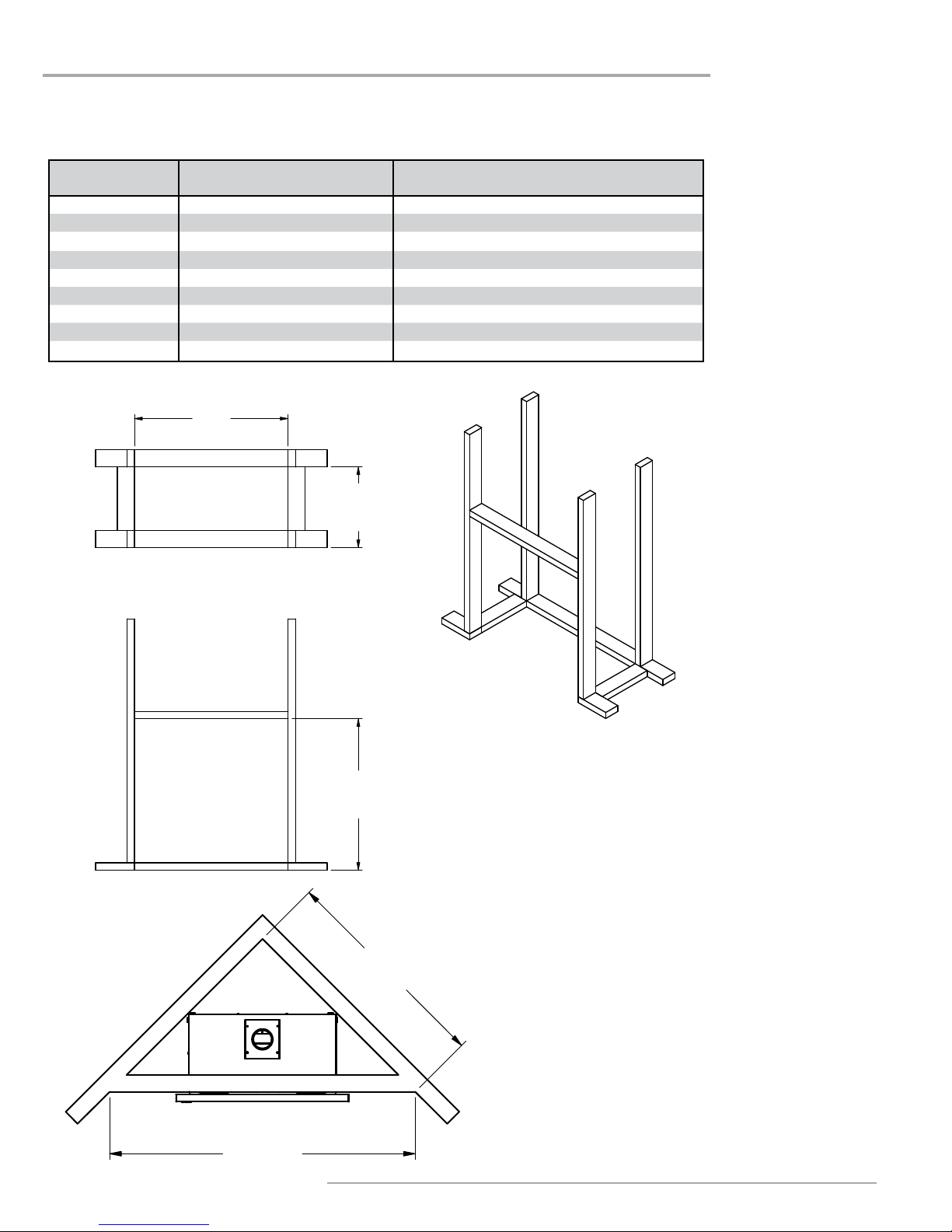

Zero Clearance box dimensions .................................11
(no masonry chimney) .................................................11

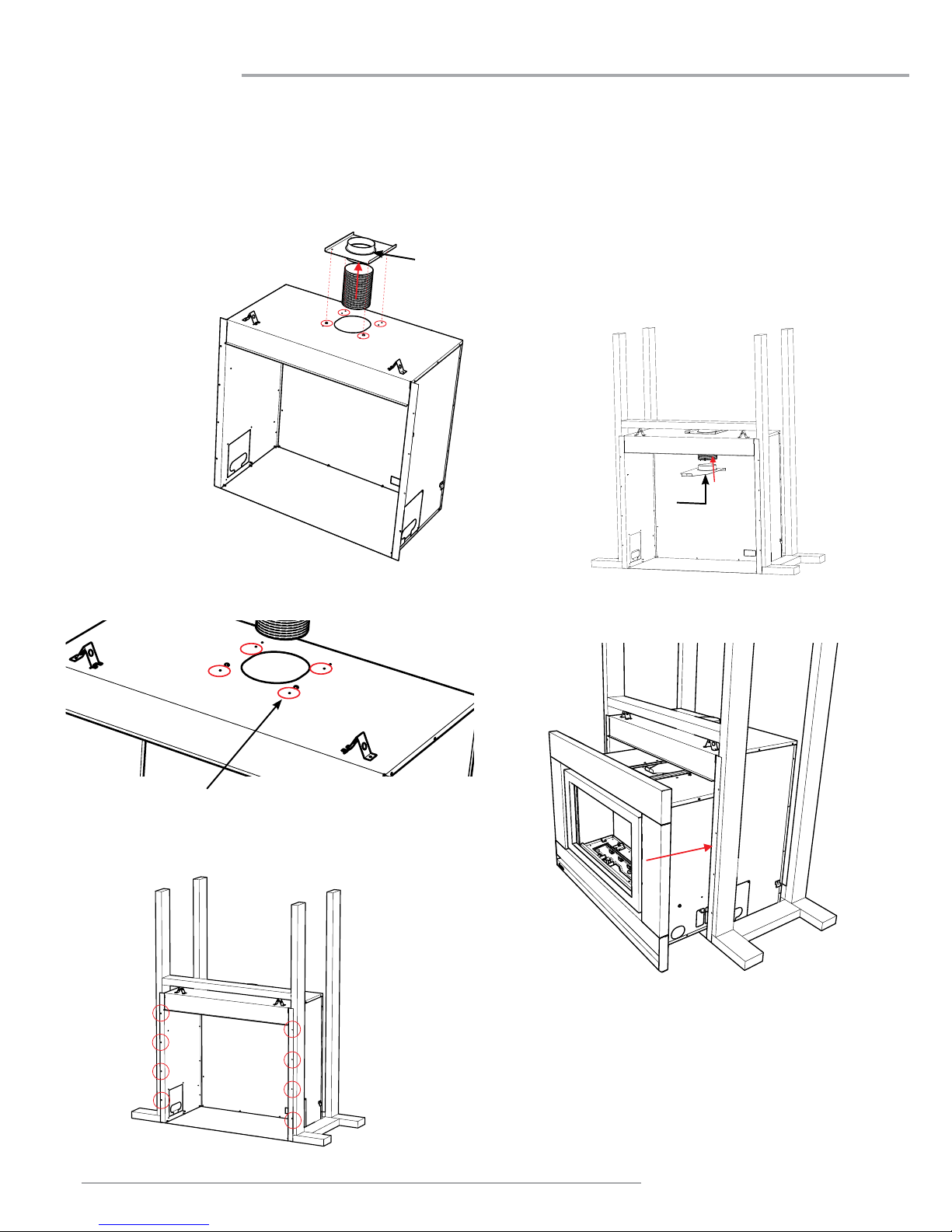

Zero Clearance box installation ...................................12
Framing & Finishing .....................................................13
Gas connection ...........................................................14
Draft diverter ...............................................................15
Connection ..................................................................15
Gas connection ...........................................................15
Flueing .........................................................................15
Test For Flue Spillage ..................................................15
High Elevation ..............................................................16
Gas Line Installation ....................................................16

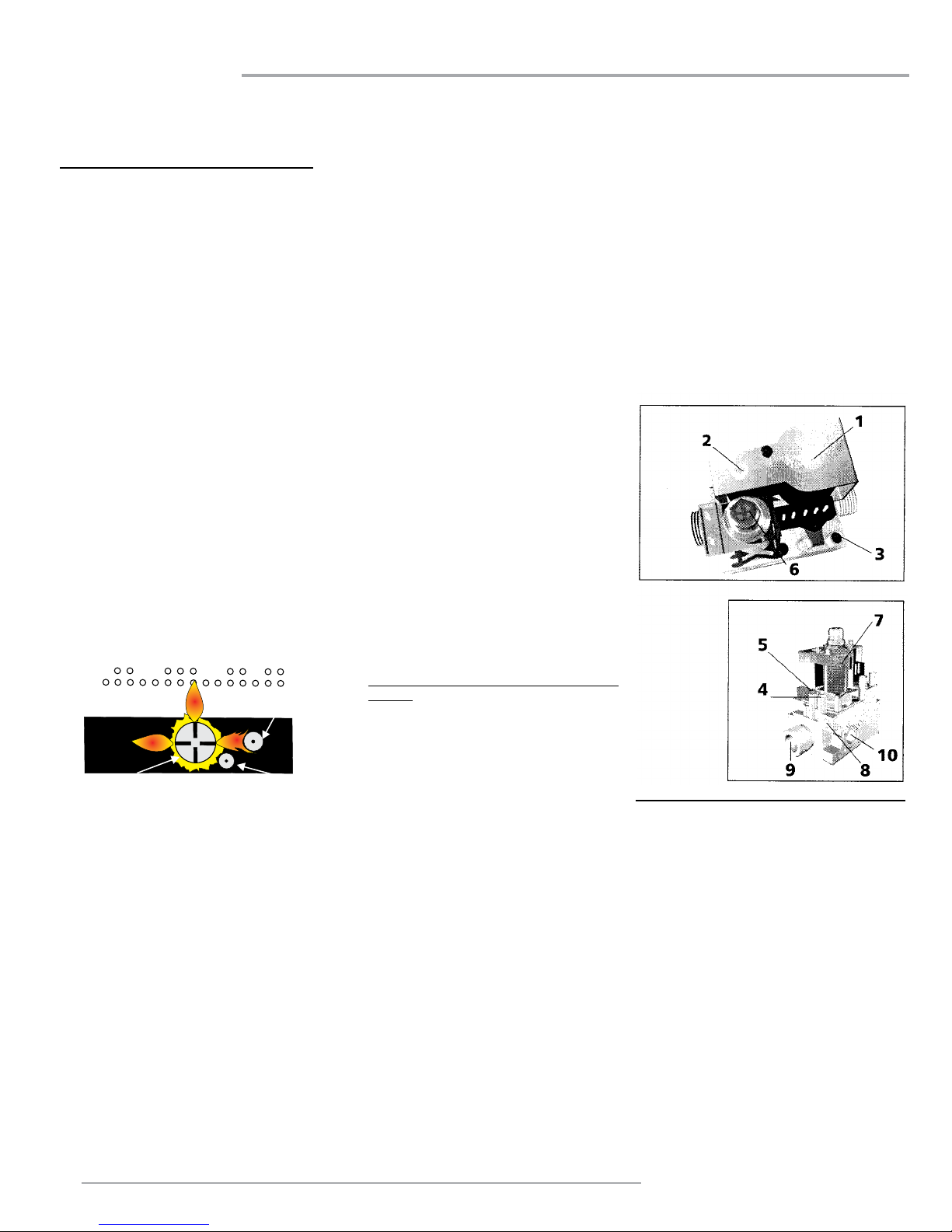

Pilot Adjustment ...........................................................16
Gas Pipe Pressure Testing ..........................................16
845 S.I.T. Valve Description .........................................16
Aeration Adjustment ....................................................16

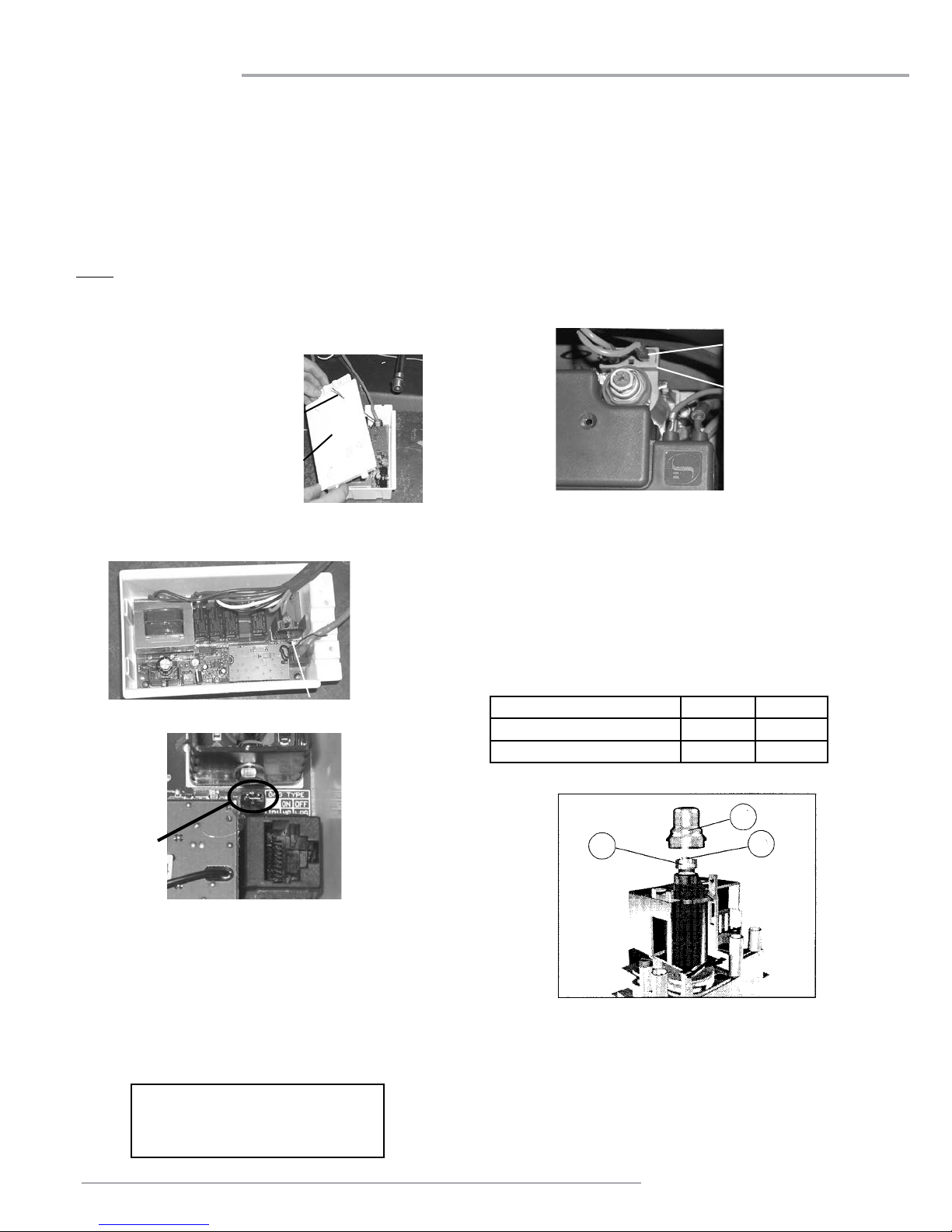

Conversion Kit from NG to LP or ULPG ......................17
Optional Enamel Panels ..............................................19
Log Set installation ......................................................20
Glass door installation .................................................23
Faceplate & trim installation ........................................24
Primary Glass guard installation ..................................25
Optional mesh guard installation .................................25
4 piece faceplate installation .......................................26
Wiring ..........................................................................27
Operating Instructions ................................................28
Lighting Instructions ....................................................28
Shutdown Instructions .................................................28
First Fire ......................................................................28
Remote Control ..........................................................28
Summary Of Controls .................................................28
Fan Operation ..............................................................28
Copy of Lighting Plate Instructions ..............................29
Normal Operating Sounds Of .....................................29
Gas Appliances ...........................................................29
Resetting the unit .........................................................29
Maintenance Instructions ............................................30
General Vent Maintenance ..........................................30
Glass Gasket ...............................................................30
Glass Door ...................................................................30
Glass Replacement .............................................30
Valve Tray replacement ................................................31
Fan maintenance .........................................................32
Pressure switch replacement ......................................32
Electronic components parts list ..................................34
Main Assembly ............................................................35
Faceplate Assembly ....................................................37
Burner and Pilot Assembly ..........................................37
4 Piece Faceplate Assembly .......................................38
Warranty ......................................................................39

4Regency GFi350L Gas Fireplace Inbuilt

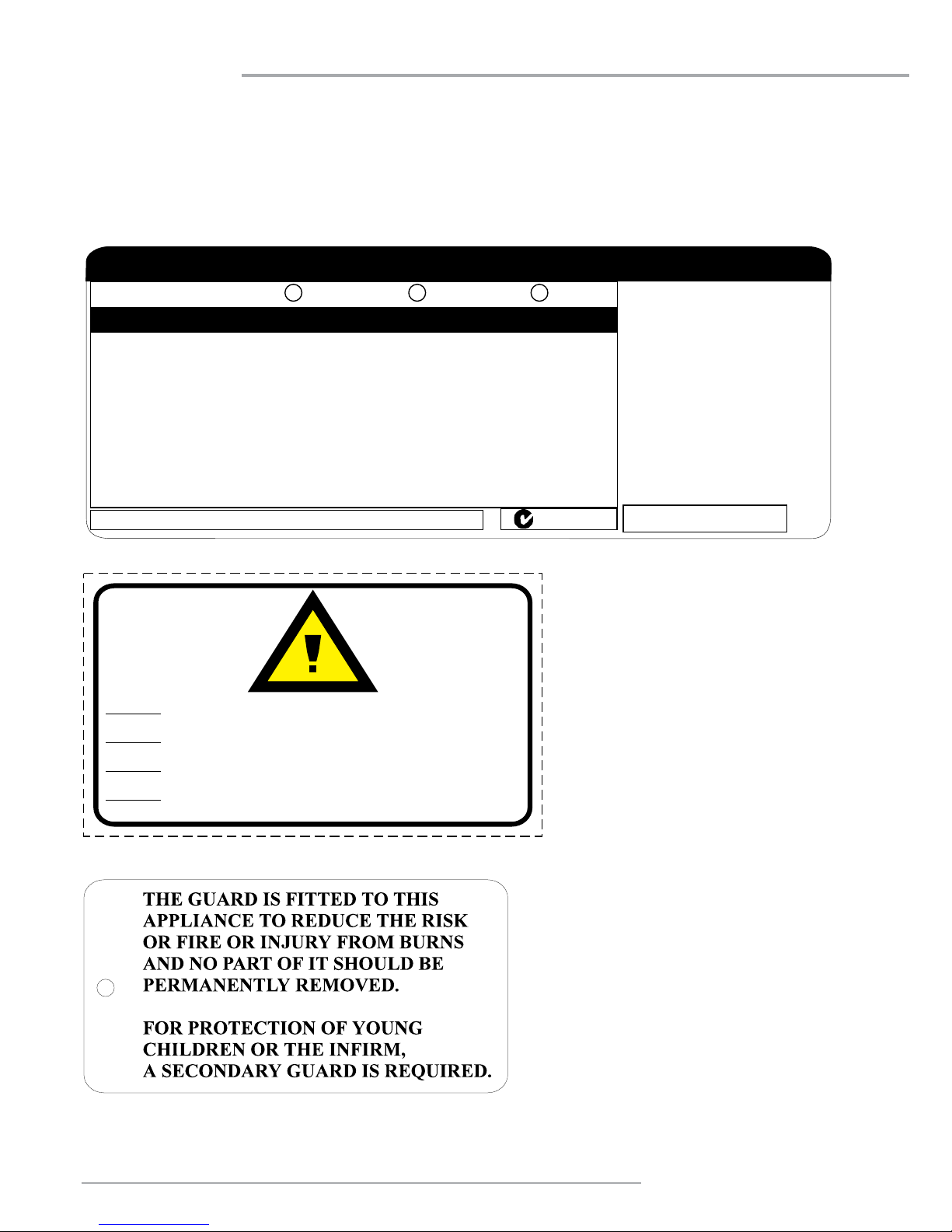

SAFETY LABEL
data badge
This is a copy of the label that accompanies
each Regency GFi350L Gas Inbuilt fireplace.
We have printed a copy of the contents here
for your review.
DATA BADGE NOTE: Regency units are constantly
being improved. Check the label on the unit and
if there is a difference, the label on the unit is the
correct one.
Part #: 908-602c
Colour: Black on White, expect what is indicated in yellow.
Size: printed at 100%
July 18/17: Rev. C - Changed wording on Line 3 as per AGA -
removed Lines 4, 6 and 7 - updated caution
symbol size and font size to 10pt
May 7/14: Changed wording on Line 3 as per AGA
Dec 12/12: Removed redundant ‘do not’ from the last line
Mar. 3/09: Rev. A - added information
Nov. 6/06: no changes to artwork.
DO NOT OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
DO NOT PLACE ARTICLES ON OR AGAINST THIS
APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS
NEAR THIS APPLIANCE.
DO NOT OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.908-602c
Part #: 919-768a
Colour: Black on Grey
Size: 100% 7"W x 2.738H
Mar. 22/17 - created draft
Apr. 12/17 - updated standard
July 18/17 - added info (Gas consumption low/ Manifold pressure low)
919-768a
Regency Gas Fireplace
Electrical: 240VAC 50Hz 1.0 amp
Serial
Number
N2134
Gas Type NG LPG ULPG
Model GFi350LNG-R GFi350LLPG-R GFi350LULPG-R
Gas Consumption High 30MJ/h 27MJ/h 21MJ/h
Gas Consumption Low 20MJ/h 22MJ/h 17MJ/h
Manifold Pressure High 0.9 kPa 2.3 kPa 2.3 kPa
Manifold Pressure Low 0.42kPa 1.5kPa 1.5kPa
Injector Size 1x#40 1x#53 1x#55
Model
AGA 8072 G
AS 5263.0 & AS/NZS 5263.1.3
453
Distributed by:
Western Australia:
Air Group Australia
28 Division St
Welshpool WA 6106
Eastern Australia
Fireplace Products
Australia Pty. Ltd.
1 Conquest Way
Hallam, VIC 3803
New Zealand:
Aber Holdings Ltd.
17 Mainstreet Place,
Te Rapa,
Hamilton, New Zealand
To be installed by an authorised person in
accordance with installation instructions provided
with the appliance.
2.50mm 1.50mm 1.30mm

Regency GFi350L Gas Fireplace Inbuilt 5

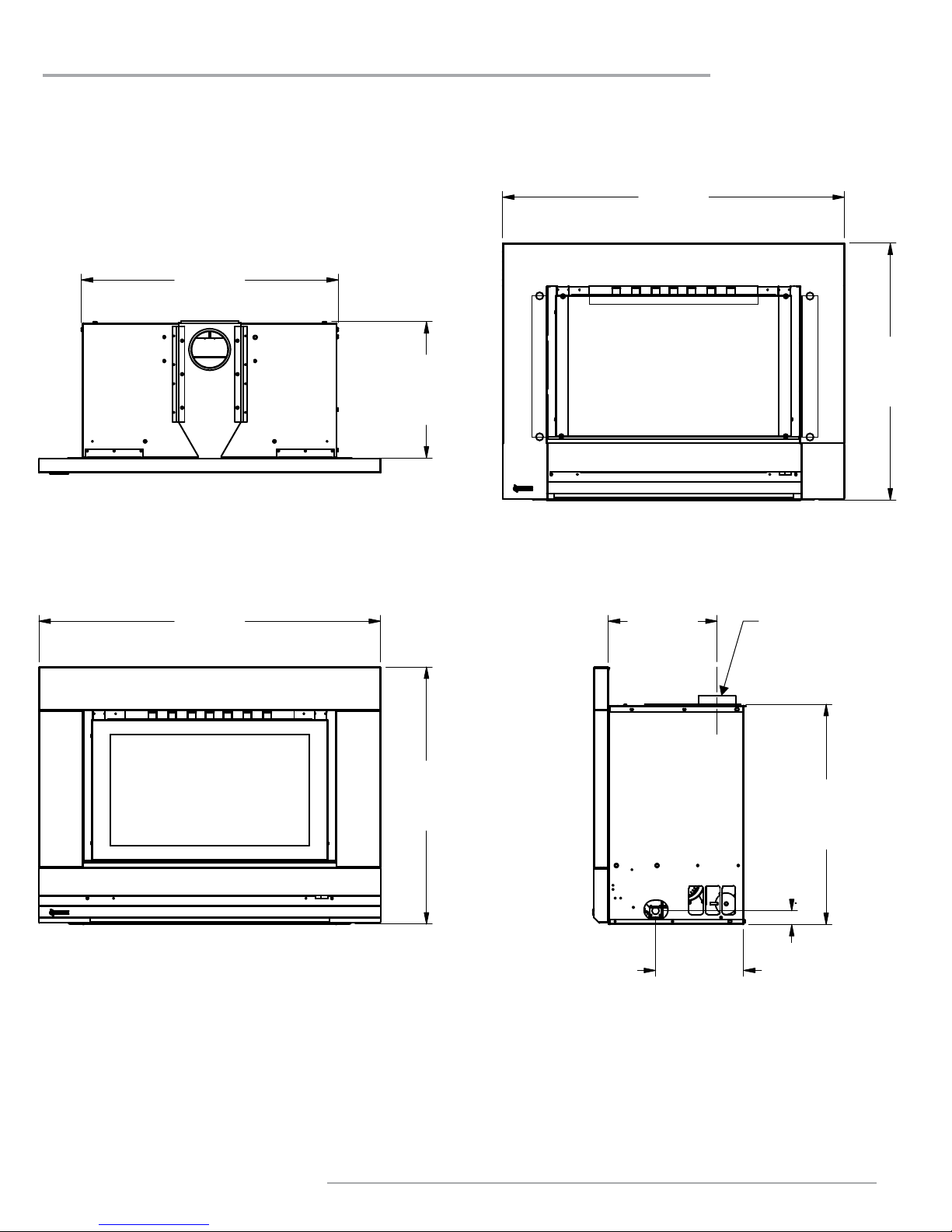

DIMENSIONS
dimensions
UNIT DIMENSIONS
234mm
584mm
289mm
36mm
362mm
683mm
908mm
683mm
100mm Ø
908mm
683mm
Fascia with Glass Guard
Fascia with Mesh Guard

6Regency GFi350L Gas Fireplace Inbuilt
installation
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The Regency Gas Fireplace must be installed in
accordance with these instructions. Carefully read
all the instructions in this manual first.
NOTE: FAILURETOFOLLOWTHESEINSTRUC-
TIONS COULD CAUSE A MALFUNC-
TION OF THE HEATER WHICH COULD
RESULT IN DEATH, SERIOUS BODILY
INJURY,AND/ORPROPERTYDAMAGE.
FAILURETOFOLLOWTHESEINSTRUC-
TIONS MAY ALSO VOID YOUR FIRE
INSURANCE AND/OR WARRANTY.
FOR YOUR SAFETY
This appliance requires air for proper combus-
tion. Always provide adequate combustion and
ventilation air. Follow instructions and information
in the current AS5601-2013, NZS 5261 or local
codes. Consult the "authority having jurisdiction"
to determine the need for a permit prior to starting
the installation.
GAS PIPE TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures
equal to or less than 3.45 kPa.
Specifications:
Fuel: NG, Propane, or ULPG
Electrical: 240 volt 50 hz system
Fan/Blower: 3-speed
Log Sets: Ceramic fibre
BEFORE YOU START
Installation is to be carried out ONLY by an
authorised person.
1. The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions,local gas fitting regulations,
municipal building codes, water supply
regulations,electrical wiring regulations, with
AS/NZS 5601-2013.
2. Installation and repair should be done ONLY
by an authorised person.
3. The appliance should be inspected before
use and at least annually by an authorised
service person. More frequent cleaning may
be required due to excessive lint from carpet-
ing, bedding material, etc. It is imperative that
control compartments, burners and circulating
air passageways of the appliance be kept clean
and free from excessive lint from carpeting.
4. See general construction and assembly instruc-
tions. This appliance may only be installed in a
flued, non-combustible fireplace. The appliance
and flue should be enclosed when installed or
passing through a living area, where children
may come in contact with it.
5. Always connect this space heater to a chimney
and flue to the outside of the building envelope.
Never flue to another room. Make sure that the
flue is properly sized and is of adequate height
to provide the proper draft.
6. Inspect the flueing system annually for blockage
and any signs of deterioration.
7. Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace.
9. Assemble and install the faceplate and trim.
10. Install the glass front.
11. Install bottom louvres and flush front.
12. Install Optional Remote Control.
13. Final check: Before leaving this unit with the
customer, the installer must ensure that the
appliance is firing correctly. This includes:
a) Clocking the appliance to ensure the correct
ring rate.
b) Adjusting the primary air, if required, to en-
sure that the ame does not carbon. See
page 7.
c) Ensuring that the appliance is ueing cor-
rectly.
INSTALLATION
CHECKLIST
The Regency Gas Insert is installed as listed below.
1. Unit Location - check Clearances to Combus-
tibles.
2. Make the gas connections.
3. Install the flue or liner to the sliding draft diverter.
4. Install Flueing. Slide the unit into the fireplace.
Attach draft diverter to the insert.
5. Test gas pressure. Check aeration.
6. Test for flue spillage.
7. Install the optional panels.
8. Install the log set.
WARNING: This fireplace has been converted
for use with a gas fireplace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fireplace re-approved by the authority
having jurisdiction.”.

Regency GFi350L Gas Fireplace Inbuilt 7
installation
MINIMUM FIREPLACE DIMENSIONS
The below minimum cavity requirements are to be maintained to ensure safe
and proper operation of the appliance. Ensure all construction conforms to
local building codes.
MASONRY INSTALLATION:
The minimum fireplace dimensions for a masonry installation are shown in
the diagrams below.
367mm
590mm
688mm
367mm
238mm125mm

8Regency GFi350L Gas Fireplace Inbuilt
installation
12" 6"
(152mm)
12" (305mm)
0
21-1/4"
(540mm)
10"
(254mm)
26"
(660mm)
To pof
Fireplace
Opening
20"
(508mm)
(305mm)
13"
(330mm)
1"
(25mm)
Top of Faceplate
MINIMUM
CLEARANCES TO
COMBUSTIBLES
The minimum fireplace clearances for the Regency gas space heater are
shown in the following diagrams:
From Unit
Sides A 464 mm
Ceiling B 860 mm
Mantle C see Mantel Clearances
Min. Alcove Width E 1924 mm
Max. Alcove Depth F 914 mm
D
E
C
A
B
F
4"
(102mm)
Allowable mantel
leg projection
7-1/8” (181mm)
10”(203mm)
13 ”(279mm)
1.5" (38mm)
MANTEL LEG
7”(178mm)
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
(C) MANTLE CLEARANCES

Regency GFi350L Gas Fireplace Inbuilt 9
installation
Framing
Dimensions Description GFi350L
A Framing Height 25-5/8” (650mm)
B Framing Width 31-1/2" (800mm)
C*Framing Depth 16-1/2" (420mm)
E Corner Wall Depth 39-9/16" (1006mm)
F Corner Facing Wall Width 56" (1422mm)
I Gas Connection Opening Height 2" (51mm)
J Gas Connection Height 2-5/8" (67mm)
K Gas Connection Inset 3-11/16" (99mm)
L Gas Connection Opening Width 2-1/2" (64mm)
OPTIONAL MOCK FIREPLACE (ZERO CLEARANCE) DIMENSIONS
(NO MASONRY CHIMNEY)

10 Regency GFi350L Gas Fireplace Inbuilt
installation
OPTIONAL MOCK FIREPLACE (ZERO CLEARANCE) INSTALLATION
Diagram 1
Diagram 2
Diagram 3
Diagram 4
STANDOFF ASSEMBLY
The top, side, rear and bottom standoffs are shipped in a flat position and
must be folded into shape and attached - see Diagram 1.
1. Remove the standoffs from the mock fireplace packaging.
2. Take each standoff and bend into the correct shape. Bend up at the bend
lines until the screw holes in the standoff and the pre-punched screw holes
on the unit line up.
3. Install left and right nailing brackets. Remove existing screws from the
outside of the unit - line up bracket with holes in the unit and secure with
2 removed screws.
See framing clearance dimensions in the installation manual.
Mock Fireplace (zero clearance) Kit Contents
3 Standoffs
2 Side brackets
Note: Side brackets can be adjusted between 13 mm to 38 mm. This
adjustment must be done before unit is moved into framed opening.

Regency GFi350L Gas Fireplace Inbuilt 11
installation
Framing
Dimensions Description GFi350L
A Framing Height 787mm
B Framing Width 800mm
C*Framing Depth 420mm
E Corner Wall Depth 1136mm
F Corner Facing Wall Width 1607mm
I Gas Connection Opening Height 51mm
J Gas Connection Height 67mm
K Gas Connection Inset 99mm
L Gas Connection Opening Width 64mm
ZERO CLEARANCE BOX DIMENSIONS
(NO MASONRY CHIMNEY)
787mm
800mm
420mm
1607mm
1136mm

12 Regency GFi350L Gas Fireplace Inbuilt
installation
ZERO CLEARANCE BOX INSTALLATION
919-811 07.06.17
1
GFI350L
ZERO CLEARANCE BOX INSTALLATION
1. Remove the flue collar from the zero clearance box by removing 4 screws
in locations shown below. Install the flex pipe, onto the lower collar and
secure with provided clamp.
Note: Determine the thickness of the finishing material before securing the
flue collar to the box. Using the front set of holes to secure the flue
collar will allow an extra 25mm of clearance for thicker materials.
tooltip
tooltip
tooltip
tooltip
tooltip
2. Slide the box into the framed opening, secure the box to the framing with
4 screws on each side.
3. Remove the flue collar assembly from the unit by sliding the collar away
from the unit--and recycle the part.
4. Attach the new flue collar assembly from the zero clearance box (Part No:
627-522) and attach it to the flex pipe using sealant and clamp provided
as in the previous step.
5. Compress the flex pipe with attached flue assembly to allow clearance for
the unit.
6. Slide the unit into place while guiding the unit flue assembly back into
position on top of the unit and secure.
Use front holes for thicker nishing materials.
Flue Collar
Note:
Apply the sealant provided
around the perimeter of the flue
collar prior to joining the two
parts together with the clamp.
Part #: 627-522

Regency GFi350L Gas Fireplace Inbuilt 13
installation
FRAMING & FINISHING
WHEN USING THE ZERO CLEARANCE BOX
1. Frame in the enclosure for the unit with framing material.
Note: When constructing the framed opening, please ensure there
is access to install the gas lines when the unit is installed.
2. The unit does not have to be completely enclosed in a chase. You
must maintain clearances from the vent to combustible materials: See
"Clearances" section. Combustible materials can be laid against the
side and back standoffs and the stove base.
3. Finishing material may be brought to the side and top of the framing.
do not bring combustible material beyond the framed opening. This is
both for safety and servicing of the appliance.
Unit shown with Fascia
800mm
650mm
Finished Wall
Framed Opening

14 Regency GFi350L Gas Fireplace Inbuilt
installation
GAS CONNECTION
3. Locate the center point where the flue will pass through the chimney above
the appliance. Move the appliance into the exact location where it is to be
installed. Ensure that the Insert is level.
4. The installer must provide a valve with a plugged tapping, accessible for
test gauge connection, immediately upstream of the gas supply connection
to the appliance.
CAUTION: If the glass is removed or opened for servicing, it must be
replaced and closed prior to operating the appliance.The glass must be
fixed in the door when operating.
SPECIFICATIONS
NG LP ULPG
Injector
Size
#40
2.50mm
#53
1.50mm
#55
1.30mm
Input
Rating
Max. 30 mj Max. 27 mj Max. 21 mj
Min. 20mj Min. 22 mj Min. 17 mj
Manifold
Pressure
High 0.9 kPa High 2.3 kPa High 2.3 kPa
Low 0.42 kPa Low 1.50 kPa Low 1.50 kPa
Aeration
Setting
5 mm 13 mm Full open
GAS CONNECTION WARNING:
Only persons licensed to work with gas piping may make the
necessary gas connections to this appliance.
1. If the appliance is to be installed into an existing chimney system, thoroughly
clean the masonry or factory built fireplace.
2. The gas connection is 1/2" BSP.

Regency GFi350L Gas Fireplace Inbuilt 15
installation
Diagram 1
Diagram 2
GAS CONNECTION
GAS CONNECTION WARNING:
Only persons licensed to work with gas
piping may make the necessary gas con-
nections to this appliance.
1) If the appliance is to be installed into an exist-
ing chimney system, thoroughly clean the
masonry or factory built fireplace.
2) The gas connection is 1/2" BSP.
3) Locate the center point where the flue will pass
through the chimney above the appliance. Move
the appliance into the exact location where it is
to be installed. Ensure that the Insert is level.
4) The installer must provide a valve with a plugged
tapping, accessible for test gauge connection,
immediately upstream of the gas supply con-
nection to the appliance.
CAUTION: If the glass is removed or opened for
servicing, it must be replaced and closed prior
to operating the appliance. The glass must be
fixed in the door when operating.
FLUEING
THE APPLIANCE MUST NOT BE CONNECTED
TO A CHIMNEY FLUE SERVING A SEPARATE
SOLID FUEL BURNING APPLIANCE.
This appliance is designed to attach to a 100
mm diameter twin skin or listed gas fuel type
flue liner running the full length of the chimney.
A minimum flue height of 0.6 m. is required for
masonry applications. The Regency Inbuilt Fireplace
incorporates its own internal draft diverter, so no
additional external draft diverter is required.
Periodically check that the flue is unrestricted and
an adequate draft is present when the unit is in
operation. (See page 7 for spillage test.)
Before installing flue system ensure that the damper
plate is open and secure to prevent the damper plate
from falling down and crushing the liner.
Install to AS/NZS 5601-2013
Combustion and Ventilation Air
WARNING: This appliance needs fresh air
for safe operation and must be installed
with provisions for adequate combustion
and ventilation air available to the room in
which it is to be operating.
Air for combustion is drawn in through the front of
the unit, therefore, the front of the unit must be kept
clear of any obstructions.
DRAFT DIVERTER
CONNECTION
1) Attach the flue to the flue collar on the detach-
able draft diverter. The flue collar of the appli-
ance will fit inside a standard flue and may be
fastened directly to the flue by sheet metal
screw. Diagram 1.
2) Before pushing the appliance into position inside
the fireplace, align the draft diverter with the
guides on the insert top and push forward. While
pushing the unit back into place keep pulling the
draft diverter forward until the screw hole in the
spill tube aligns with the screw hole in the top
of the firebox. The screw is secured through the
inside top of the firebox into the bottom of the
spill tube. (If screw holes do not line up then
draft diverter is not positioned correctly.)
Diagram 2.
NOTE: Final gas connection should be after unit
is in place to avoid damage to line when
pushing the unit into position.
TEST FOR FLUE
SPILLAGE
A " spillage" test must be made before the
installed unit is left with the customer.Follow
the procedure below:
1) Start all exhaust fans in the home and then
close all external doors and windows in the
house.
2) Light the unit and set controls to maximum.
Turn fan off.
3) After five minutes, test that there is a “pull”
on the flue by placing a smoke match, or
similar device which gives off smoke, in both
sides of the unit. See diagram 1.
Flue spillage
test location area
normal draft
downdraft
or block flue
Diagram 1
For wind turbulent sites, a wind cap may remedy
the problem. These caps are not included with the
standard flue kit and will need to be purchased
separately.
The smoke should be drawn into the unit. If the
smoke is still not drawn into the spill tube, turn the
unit off and check for the cause of the lack of draft.
If necessary, rectify.

16 Regency GFi350L Gas Fireplace Inbuilt
installation
AERATION ADJUSTMENT
The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude. Open the air shutter for a blue flame or
close for a more yellow flame.
Minimum Air Shutter Opening:
NG 3/16" (5mm)
LPG 1/2" (13mm)
ULPG Full Open
Note: Any damage due to carboning resulting
from improperly setting the aeration
controls is NOT covered under warranty.
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut-off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa). Disconnect
piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.
1) Make sure the unit is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure tap(s),
turning counterclockwise with a
1/8" wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT" pressure
tap(s) using a 5/16" ID hose.
4) Turn the unit on with the remote or wall switch
5) The pressure check should be carried out with
the unit burning and the setting should be within
the limits specified on the safety label.
6) When finished reading manometer, turn off
the unit, disconnect the hose and tighten the
screw (clockwise) with a 1/8" flat screwdriver.
Note:Screw should be snug,but do not over
tighten.
Note: Ifyouhaveanincorrectamepattern,
contact your Regency®dealer for further
instructions.
Incorrect flame pattern will have small,probably
yellow flames, not coming into proper contact
with the rear burner or flame sensor.
Burner
Flame Sensor
Pilot Ignitor
PILOT ADJUSTMENT
Periodically check the pilot flames.Correct flame
pattern has three strong blue flames: 1 flowing
around the flame sensor and 1 flowing across
the burner (it does not have to be touching the
burner), and 1 opposite the flame sensor.
845 S.I.T. VALVE
DESCRIPTION
1) On-Off Solenoid Valve EV1
2) On-Off Solenoid Valve EV2
3) Inlet Pressure Test Point
4) Outlet Pressure Test Point
5) Connection for Pressure Regulator/Combustion
Chamber Compensation
6) Pressure Regulator for Minimum and Maximum
Outlet Pressure
7) Gas Outlet Pressure Electric Modulator
8) Pilot Outlet
9) Main Gas Outlet
HIGH ELEVATION
This unit is approved for altitude 0 to 1372m.
GAS LINE
INSTALLATION
Since some municipalities have additional local
codes it is always best to consult with your local
authorities.
When using copper or flex connectors use only
approved fittings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and flex
connectors are usually considered to meet this
requirement.
NOTE: A shutoff / dante valve should be
supplied in or near the unit (or as per local
codes) for ease of servicing this appliance.

Regency GFi350L Gas Fireplace Inbuilt 17
installation
Conversion Kit from NG to LP or ULPG
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
1. Unplug or disconnect the power source to the unit.
2. Shut off the gas supply and remove the gas connection from the valve.
3. Remove the faceplate, door frame, safety glass or screen.
4. Remove the glass door. (See door removal section in this manual).
5. Remove the logs. (See log section in this manual).
6. Remove the panels. (See panel section in this manual).
7. Remove the log tray, by removing 2 screws in locations shown below.
8. Lift log tray up and out to remove.
9. Remove burner - loosen screw on left side, remove screw from right side
- slide to the right and lift up and out to remove and discard
Loosen Remove
10. Remove 2 screws in location shown below to remove front bracket.
11. Remove pilot retainer clip with pliers and pull o󰀨 the pilot cap to expose
the pilot orice.
Pilot retainer clip
12.
Remove burner orifice with a 1/2" wrench and discard. Use another wrench
to hold on to the elbow below the orifice.

18 Regency GFi350L Gas Fireplace Inbuilt
installation
13. Reinstall new burner orifice LPG stamped #53 or ULPG burner orifice
stamped #55 and tighten.
14. Install new LP burner supplied with kit ensuring aeration is set to 13mm
for LPG or fully open for ULPG - prior to install.
15. Replace the yellow "NG" label with the red "ULPG" label.
16. Carefully pull out the control box.
NOTE: The control box is held in place with velcro.
17. Remove the heat shield from the control box by removing the 2 screws.
18. Remove the control box cover by undoing the 3 screws.
Manoeuvre through antenna.
20. Reverse Steps 18, 17,16, 9, 8, 7, 6, and 5.
21. Turn on gas supply and plug in power cord.
22. Adjusting the Outlet Pressure
All the adjustments must be carried out in the following order:
Control Box
Cover
Antenna
Jumper Location
19. Remove the jumper using pliers and discard.
Jumper
After carrying out all adjustments, block the setting screws with
paint, taking care not to obstruct the breather orifice of the pres-
sure.
Put back the modulator plastic cap.
WARNING: To ensure the correct operation of the modulator it is
necessary that the plastic cap (A) is returned to its original loca-
tion.
23. Reverse Steps 10,4,3,2 and 1.
24. At the end of all setting and adjustment operations, check electrical
installation and gas leaks.
24. Check operation of flame control.
25. Check for proper flame appearance and glow on logs.
C
B
A
Cable
Electric
Modulator
Remove the modulator plastic cap (A) using needle nose pliers.
Maximum pressure: Turn the unit ON to its highest input rating. Screw
in the nut (B) to increase the outlet pressure and screw it out to decrease
it. Use a 10 mm wrench.
NOTE: The outlet pressure for LPG or ULPG must be set to maximum 2.3
kPa.
Minimum pressure: Remove one of the cables connected to the electric
modulator. While holding the nut (B) with a wrench, screw in the screw (C)
to increase the pressure and screw it out to decrease it. Use a screwdriver
6 x 1 blade.
NOTE: The outlet pressure for LPG or ULPG must be set to minimum 1.5 kPa.
Installer Notice:
These instructions must be left
with the appliance.
LPG ULPG
Manifold Pressure (High) 2.30 kPa 2.30 kPa
Manifold Pressure (Low) 1.50 kPa 1.50 kPa

Regency GFi350L Gas Fireplace Inbuilt 19
installation
OPTIONAL ENAMEL PANELS
1. Unwrap the panels from the protective wrapping.
2. Remove the glass front if already installed (see manual).
3. Put the rear panel flat against the back of the unit.
4. Before installing the side panels, loosen the screws for the tabs enough
so that you can slide the tabs on to the screws easily but that the tabs are
secure. For the location of the side tab screws see Diagram 2.
5. Slide the side panels into position and tighten the screw to secure the
tab - repeat to install panel on opposite side of unit.
6. Reinstall glass door (see manual).

20 Regency GFi350L Gas Fireplace Inbuilt
installation
LOG SET INSTALLATION
919-332a 02.10.16
1
GFI300L
1
1
3
2
2
Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can
interfere with pilot operation.
Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty.
*For Touch Ups: Dark Brown paint is included.
1. Line up pin holes on the bottom of Log 1 with pins behind burner as
shown below. 2
1
2. Locate pin hole on Log 2 and line up with pin on the right side of the
burner. The left end of Log 2 will rest against a tab in location shown
below.
3. Place Log 3 on the centre of the burner, rest the log against the centre
tabs.
LOG SET INSTALLATION
Logs 1 - fi ts over pins behind
burner
Logs 2 - fi ts over pin on left side
- rests against tab on right
Logs 2 in position
Logs 3 - place in centre of
burner, resting against tabs
Logs 1 - in position
1
3
4
7
6
8
9
5
2
1 Rear Log
2 Right Log
3 Centre Log
4 Left Log
5 Right Upright Cross Log
6 Left Upright Cross Log
7 Left Front Log Piece
8 Centre Front Log Piece
9 Centre Right Log Piece
