Regency Fireplace Products HZ54E-NG1 Quick start guide

WARNING:
Iftheinformationintheseinstructionsarenotfollowedexactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-269
Regency Horizon™HZ54E
Gas Fireplace
09/30/13
Owners &
Installation Manual
www.regency-fire.com
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: HZ54E-NG1 Natural Gas
HZ54E-LP1 Propane
Horizon HZ54E Product Video

2Regency Horizon HZ54E-1 Gas Fireplace 2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ54E has been
designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch.
The model HZ54E has been approved by Warnock Hersey/Intertek for both safety and efficiency.
As it also bears our own mark, it promises to provide you with economy, comfort and security for
many trouble free years to follow. Please take a moment now to acquaint yourself with these
instructions and the many features of your Regency®Fireplace.
Regency Horizon
Gas Inserts Benefits Video Horizon HZ54 Product Video

Regency Horizon HZ54E-1 Gas Fireplace 3
This appliance can only be used with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in
Canada.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency®product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following
standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2009 / CSA 2.33-2009 and GAS-FIRED APPLIANCES FOR
USE AT HIGH ALTITUDES CAN / CGA 2.17-M91.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home,
where not prohibited by local codes.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria
for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home
Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA
70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1
in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as
applicable to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Ensure that structural members are not cut or weakened during installation.

4Regency Horizon HZ54E-1 Gas Fireplace
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Decal.....................................................5
REQUIREMENTS
MA Code - CO Detector.................................................6
DIMENSIONS

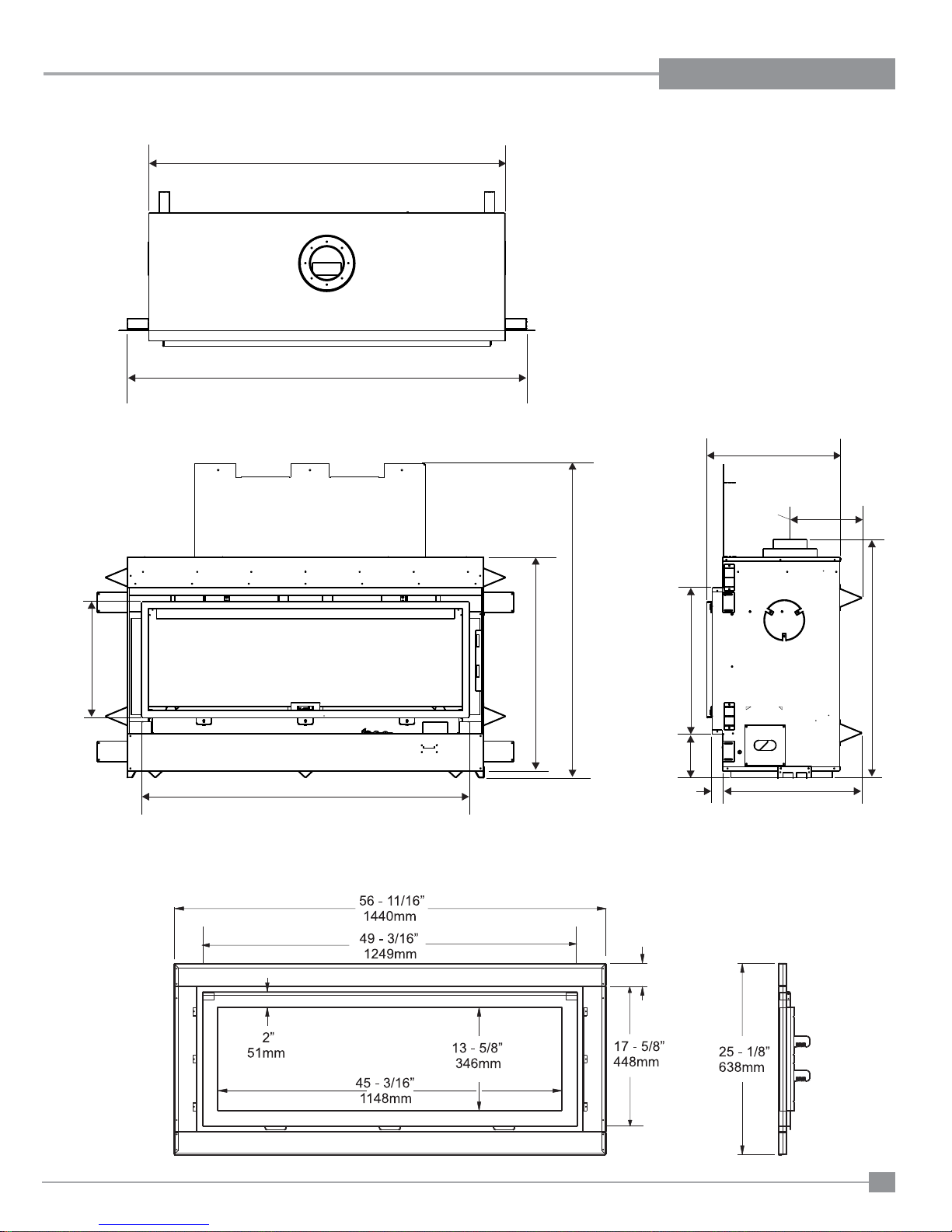

Unit Dimensions ............................................................7
INSTALLATION
Faceplate & Door frame overlay Dimensions................7
Important Message ......................................................8
Before You Start ............................................................8
General Safety Information............................................8
Installation Checklist......................................................9

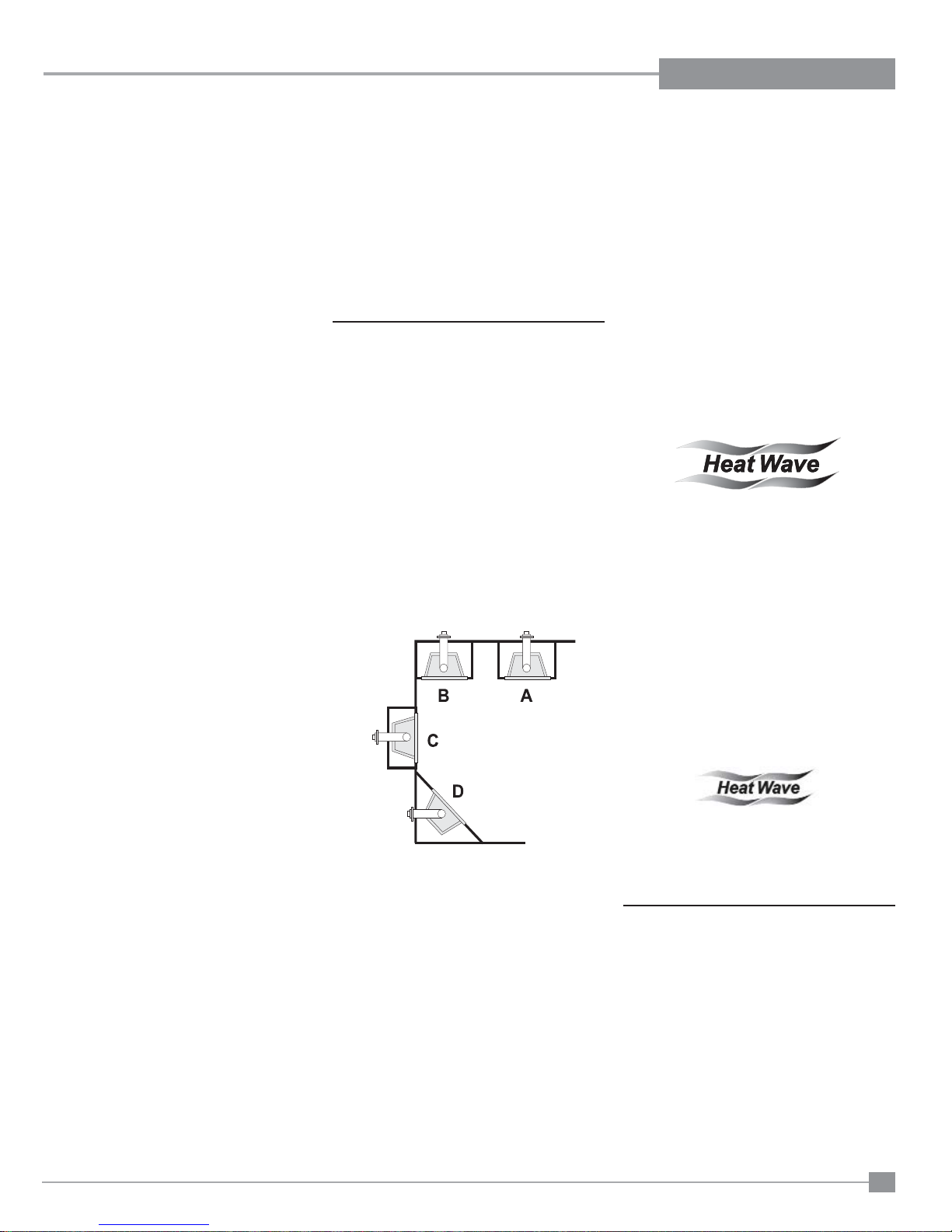

Locating Your Gas Fireplace .........................................9
Heatwave Duct System.................................................9
Heat Release kit............................................................9

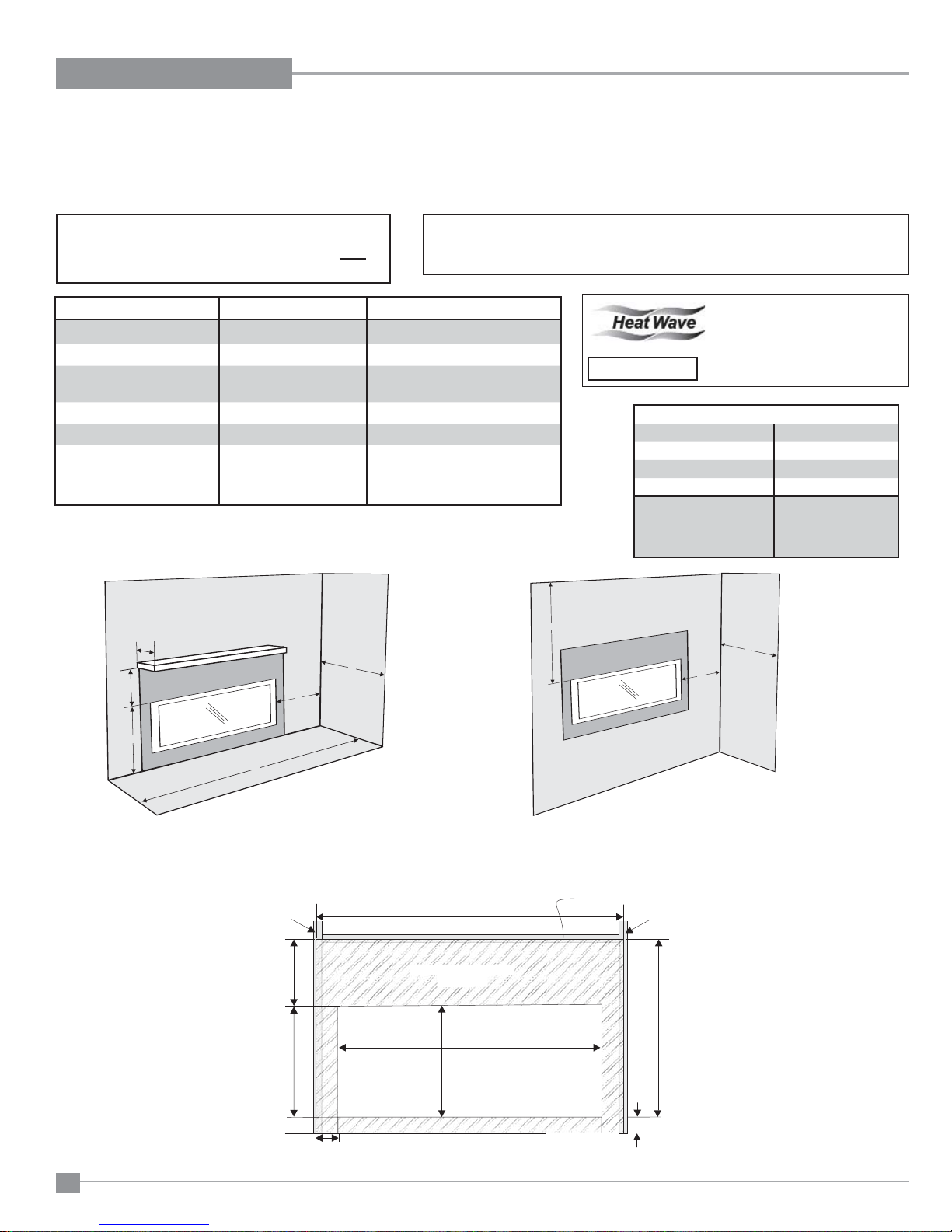

Clearances ..................................................................10
Non-Combustible Requirements .................................10
Non combustible facing board.....................................11
Non combustible facing installation.............................11

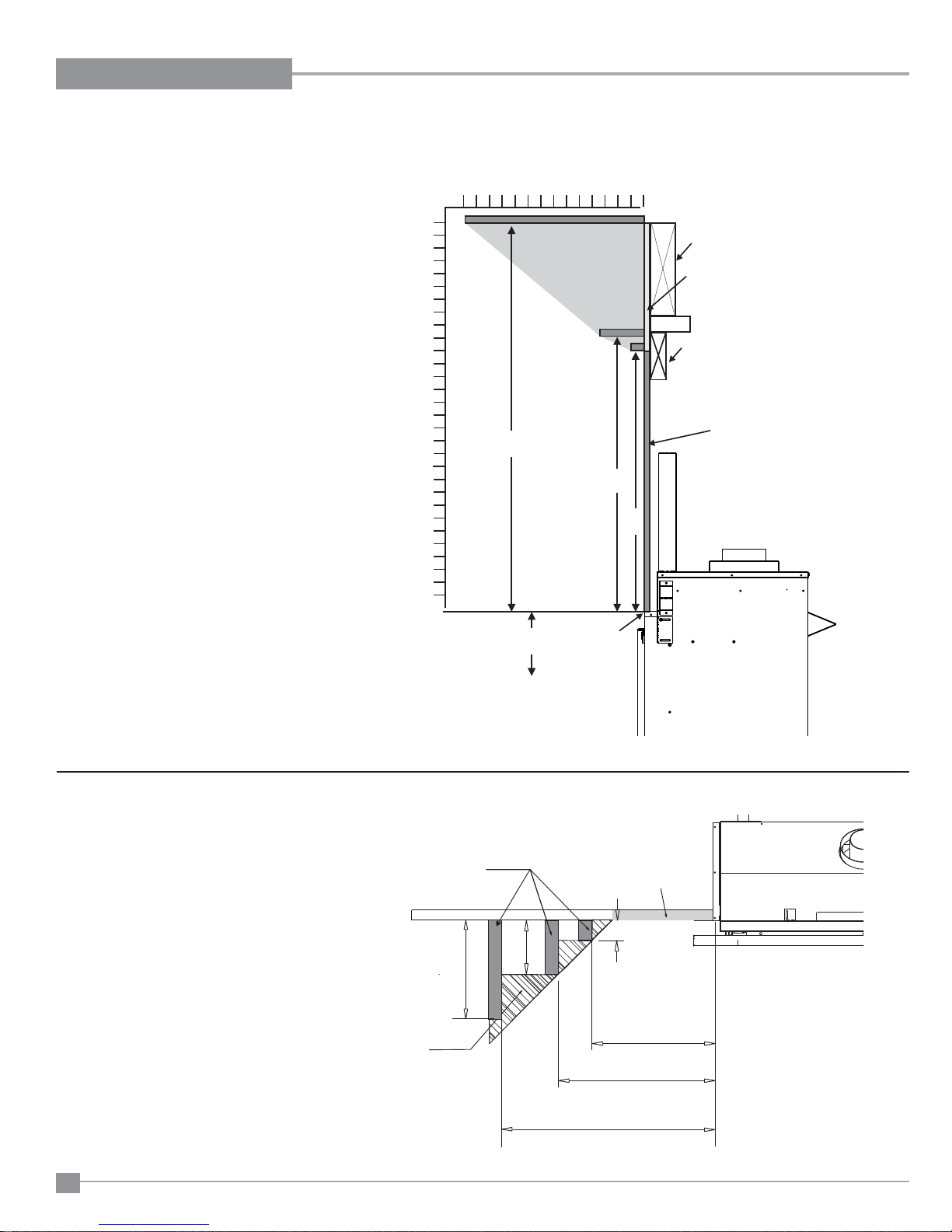

Mantel Clearances.......................................................12
Mantel Leg Clearances................................................12

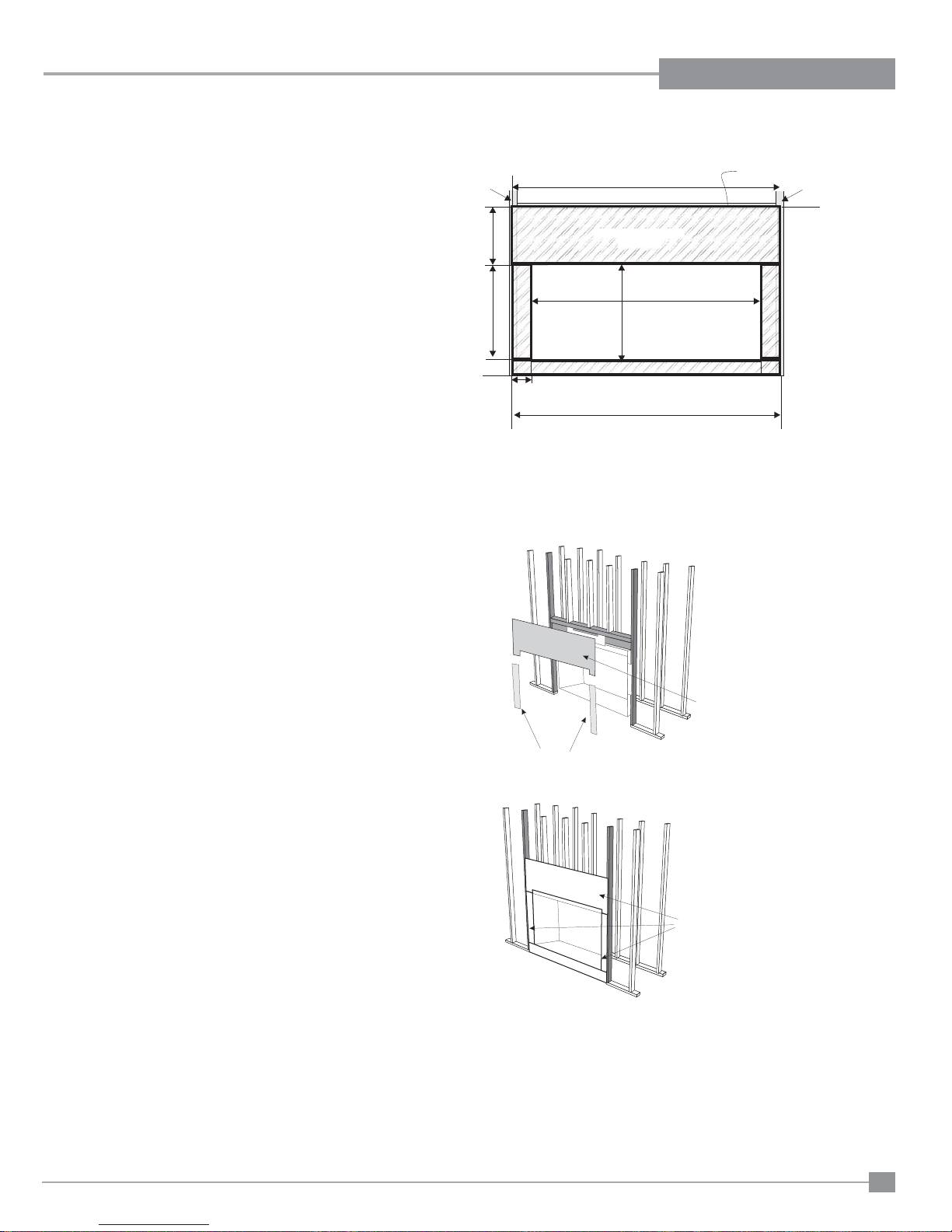

Framing & Finishing.....................................................13
Unit Assembly Prior To Installation..............................15
Standoff Assembly...............................................15
Nailing Strips........................................................15
Venting Introduction.....................................................15
Vent Restrictor Position...............................................16
Exterior Vent Termination Requirements.....................17
Venting Arrangements ................................................18
Horizontal Termination (Flex)...............................18
Rigid Pipe Venting Systems ........................................19
Basic Horizontal & Vertical Terminations.............19
5” x 8” Rigid Pipe Cross Reference Chart...................20
Venting Arrangements ................................................22
Allowable Horizontal Terminations for HZ54E-ng 22
Venting Arrangements ................................................22
Allowable Horizontal Terminations for HZ54E-lp .22
Venting Arrangements ................................................25
Allowable Vertical Terminations for HZ54E-ng.....25
Venting Arrangements ................................................26
Allowable Vertical Terminations for HZ54E-lp......26
Unit Installation with Horizontal Termination..........27
Unit Installation with Vertical Termination....................28
Unit Installation............................................................29
Horizontal Termination.........................................29
with Flex Vent System .........................................29
High Elevation .............................................................30
Gas Line Installation....................................................30
Pilot Adjustment...........................................................30
Gas Pipe Pressure Testing..........................................30
886 S.I.T. Valve Description.........................................30
Valve cover removal....................................................31
Aeration Adjustment ....................................................32
Wiring Diagram............................................................32
AC power adaptor installation (for surefire systems)...33
Proflame system GTMF with optional fan....................34
Optional fan Wiring Diagram ......................................35
Without ProFlame GTMF system................................35
Optional Wall Thermostat ...........................................36
Optional Remote Control.............................................36
Wall Switch..................................................................36
Battery & on | off switch installation............................38
GT remote installation .................................................39
GTM remote installation ..............................................40
GTMF remote installation............................................42
Optional Reflective Panel Installation..........................44
Glass Crystals or optional stones Installation..............45
Optional Driftwood Log set Installation........................47
Optional Log set Installation........................................49
Faceplate & Door frame overlay Installation................52
Optional fan installation...............................................54
OPERATING INSTRUCTIONS
Operating Instructions .................................................57
First Fire ......................................................................57
Lighting Procedure ......................................................57
Shutdown Procedure...................................................57
Normal Operating Sounds of Gas Appliances.............57
Copy of Lighting Plate Instructions..............................58
MAINTENANCE
Maintenance Instructions.............................................59
General Vent Maintenance..........................................59
Glass Gasket...............................................................59
Glass Door...................................................................59
Glass Replacement .............................................59
Glass Door Removal ...................................................60
Valve Tray Replacement..............................................61
HZ54E-NG unit............................................................62
HZ54E-LP unit.............................................................63
PARTS LIST
Main Assembly ............................................................64
Accessories.................................................................65
WARRANTY
The Warranty: Limited Lifetime ...................................67

Regency Horizon HZ54E-1 Gas Fireplace 5
SAFETY LABEL
This is a copy of the label that accompanies
each HZ54E-NG and HZ54E-LP Direct Vent
Gas Fireplace. We have printed a copy of the
contents here for your review.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
COPY OF SAFETY DECAL
FortheState of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
FortheStateofMassachusetts,flexiblecon-
nectorsshallnotexceed36inchesinlength.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordancewithNFPA720and a CO alarm
withbatterybackupinthesameroomwhere
the gas appliance is installed.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
363
363
DOOR SEAL: Please
check that the door is
properly sealed
FPI Fireplace Products International Ltd. Delta, BC, Canada
Minimum Clearances to Combustibles /
Degagement Minimum De Materiaux Combustibles
Serial No./ No de serie
919-268
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed:
Certified for/Certifi e pour:
Tested to:
VENTED GAS FIREPLACE HEATER /
CANADA and U.S.A.
FOYER AU GAZ À ÉVACUATION
é
CAN/CGA-2.17-M91,ANSI Z21.88a-2007/CSA 2.33a-2007
4001172
.
NOT FOR USE WITH SOLID FUEL. / NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.
Made in Canada/ Fabrique au Canada
Duplicate S/N
(See Instruction Manual for
detailed instructions)
ÉÉ
é
QUIP A L'USINE POUR GAZ PROPANE
CONCU POUR CET POELE: Mod le HZ54E-LP1
PROPANE GAS: Model HZ54E-LP1
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR CET POELE: Mod le
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
é
ééé
é
é
é
HZ54E-NG1
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
ééé
é
é
é
D
E
F
A
B
C
Side Walls
A 4” (102mm)
B 40-7/8” (1038mm)
C 20" (508mm)
D 13” (330mm)
E 83" (2108mm)
F 36" (914mm)
Ceiling
Min. Mantel Height
Max. Mantel Depth
Alcove Width
Alcove Depth
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSAZ240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in
the United States, or when such a standard is not applicable,ANSI/NCSBCSA225.1/NFPA501A, Manufactured Home Installations Standard or ANSIA119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installationANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety
Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational
Vehicles.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si
les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements.
POUR UTILISATION UNIQUEMENTAVEC LES PORTES EN VERRE CERTIFIÉESAVEC L'APPAREIL
Min. Supply Pressure 12“WC (2.98 kpa)
Low Setting Man. Pressure 6.4"WC (1.59 kpa)
Max. Manifold Pressure 10"WC (2.49 kpa)
Orifice Size #49 DMS
Minimum Input 30,000Btu/
Maximum Input 37,000Btu/h (10.84 kW)
(8.79 kW)
0-4500 ft/pi (0-1372 m)
Altitude
Min. Supply Pressure 5“ WC (1.25 kpa)
Low Setting Man. Pressure 1.6"WC (0.40 kpa)
Max. Manifold Pressure 3.5"WC (0.87 kpa)
Orifice Size #30DMS
Minimum Input 29,000Btu/h
Maximum Input 41,500 Btu/h (12.16 kW)
(8.50 kW)
0-4500 ft/pi (0-1372 m)
Altitude
NATURAL GAS: Model HZ54E-NG1

6Regency Horizon HZ54E-1 Gas Fireplace
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency Horizon HZ54E-1 Gas Fireplace 7
DIMENSIONS
59” (1499mm)
52-5/8” (1337mm)
48-1/2” (1232mm) 20-1/2” (521mm)
19-3/4” (502mm)
10-5/8”
(270mm)
1-1/2”
(38mm)
31-5/8” (803mm)
46-3/8” (1178mm)
35-1/4” (895mm)
22-3/8” (568mm)
17-1/8” (435mm)
5-11/16”
(144mm)
FACEPLATE & DOOR FRAME OVERLAY DIMENSIONS
UNIT DIMENSIONS

8Regency Horizon HZ54E-1 Gas Fireplace

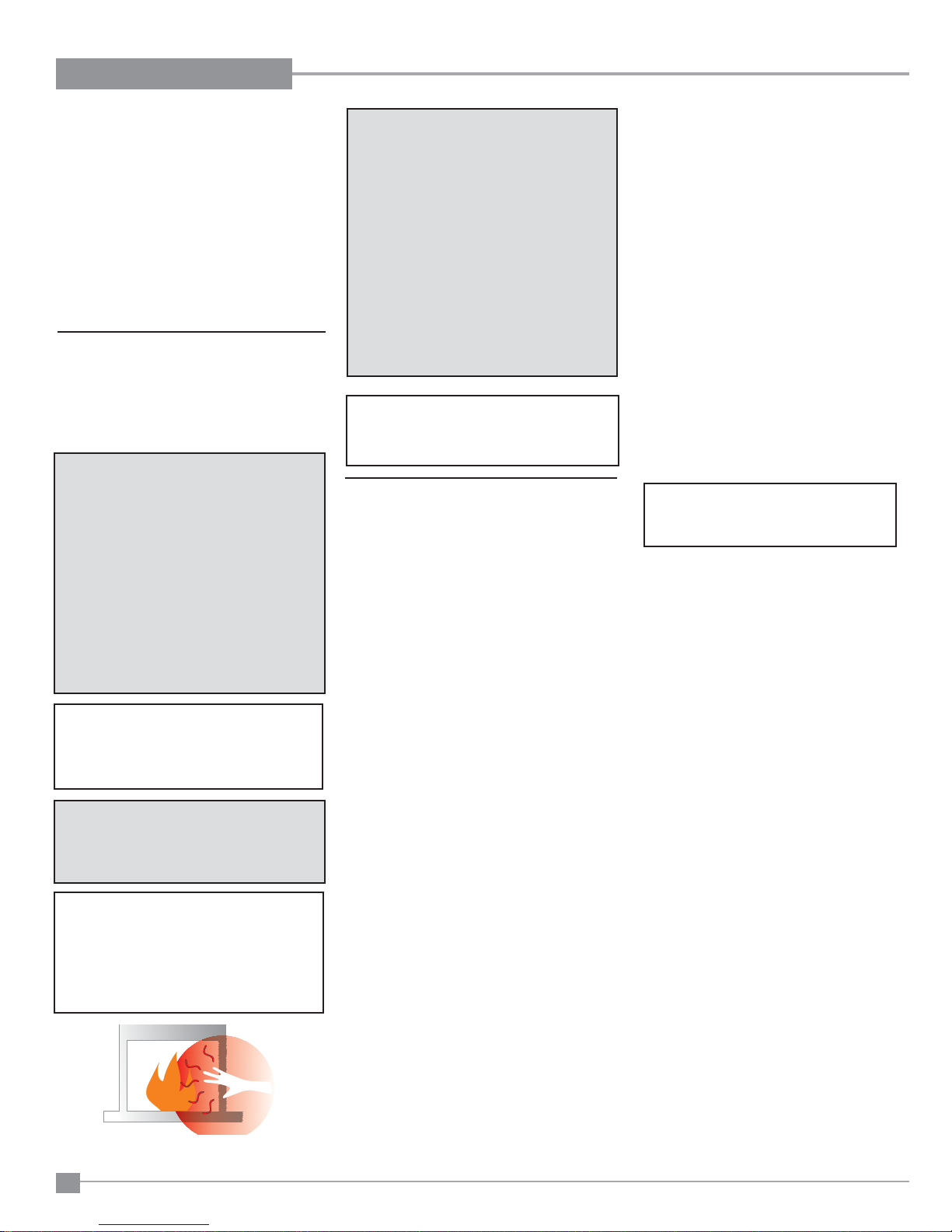

INSTALLATION
10) Be aware of electrical wiring locations in walls
andceilingswhencuttingholesfortermination.
11) Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicingshouldbe replaced prior to operating
this appliance.
12) Installation and any repairs to this appliance
should be done by an authorized service per-
son. A professional service person should be
calledto inspect this applianceannually. Make
it a practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Underno circumstancesshouldanysolidfuels
(wood,paper, cardboard, coal, etc.) be usedin
this appliance.
15) The appliance area must be kept clear and
freeofcombustiblematerials,(gasesandother
flammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
TheHZ54EDirectVentFireplacemustbeinstalled
in accordance with these instructions. Carefully
readalltheinstructionsinthismanualfirst.Consult
the "authority having jurisdiction" to determine the
need for a permit prior to starting the installation.
It is the responsibility of the installer to ensure
this fireplace is installed in compliance with
manufacturersinstructionsandallapplicablecodes.
BEFORE YOU START
Safe installation and operation of this appliance
requirescommonsense,however,wearerequired
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
GENERAL SAFETY
INFORMATION
1) Theapplianceinstallationmustconformwithlo-
calcodesor,intheabsenceoflocalcodes,with
the current Canadian or National Gas Codes,
CAN1-B149orANSIZ223.1InstallationCodes.
2) The appliance when installed, must be electri-
callygroundedin accordance with localcodes,
orintheabsenceoflocalcodeswiththecurrent
NationalElectricalCode,ANSI/NFPA70orCSA
C22.1 Canadian Electrical Code.
3) See general construction and assembly in-
structions. The appliance and vent should be
enclosed.
4) Thisappliancemustbeconnectedtothespeci-
fied vent and termination cap to the outside of
the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5) Inspecttheventingsystemannuallyforblockage
and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliarwiththeoperationtousethefireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.

Regency Horizon HZ54E-1 Gas Fireplace 9
INSTALLATION
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label 41,500 Btu/h
(NG), after burning appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causessootingorcarboningthatresultsindam-
ageisnottheresponsibilityofthemanufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1) When selecting a location for your fireplace,
ensure that the clearances are met.
2) Theappliance mustbeinstalledon aflat,solid,
continuoussurfaceForexampleawood,metal
orconcrete floor orin a raised(on the wall) ap-
plication. The appliance must be installed on
a metal or wood panel extending the full width
and depth of the appliance.
3) The HZ54E Direct Vent Gas Fireplace can be
installed in a recessed position or framed out
into the room as in A, B, C and D.
See Diagram 1.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Roomlocation(Referto"LocatingYourGas
fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
2) Assemble Top and Side Standoffs (Refer to
"Unit Assembly Prior to Installation).
3) Slide unit into place.
4) Install vent (Refer to "Venting Arrangement"
sections).
5) Make gas connections (Refer to "Gas Line
Installation section).
6) Install4AAbatteriesintobatterypackoroptional
AC power adaptor.
7) Test the pilot (Refer to "Pilot Adjustment"
section).
8) TestGasPressure(Referto"GasPipePressure
Testing" section).
9) Installstandardandoptionalfeatures. Refer to
the following sections:
a) Optional Log Set Installation
b) Glass Crystals/ Optional Ceramic
Stones
c) Optional Firebox Base Pebbles
d) Optional Reflective Panels
e) Faceplate / Door Frame Overlay
f) Remote Control
g) Wall Thermostat
h) Wall Switch
10) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
4) This appliance is Listed for bedroom
installations using the standard Remote
(millivoltthermostat system).Someareasmay
have further requirements, check local codes
before installation.
5) The HZ54E Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
6) We recommendthatyou plan your installation
on paper using exact measurements for
clearancesandfloorprotectionbeforeactually
installing this appliance. Have an authorized
inspector, dealer, or installer reviewyourplans
before installation.
Note: For vent terminations refer to "Exterior
Vent Termination Locations" section.
HEATWAVE
DUCT SYSTEM
OPTIONAL KIT #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing warm
airfromthefireplacetoremotelocationsinthesame
room or other rooms in your home.
Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be oper-
ated at one time. This includes the internal blower
option as well.
OPTIONAL
HEAT RELEASE KIT
#946-570
The Heat Release Kit expels warm air from the
fireplace to the outside of the building, allowing
the fireplace to be operated with less heat entering
the room. The kit may be used on either the left
or right side.
The HeatWave Duct Kit has different
clearanceandframingrequirements,check
the HeatWave manual for details.

10 Regency Horizon HZ54E-1 Gas Fireplace
INSTALLATION
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk if these clearances (air space) to combustible materials
are not adhered to. It is of greatest importance that this fireplace and vent system be
installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
Amajorcauseofchimneyrelatedfiresisfailuretomaintainrequired clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
F
B
E
D
A
Installed Close
to Floor
G
Clearance: Dimension Measured From:
A: Mantel Height (min.) 20" (508mm) Top of Fireplace Opening
B: Sidewall (on one side) 4" (102mm) Side of Fireplace Opening
C: Ceiling
(room and/or alcove) 40-7/8" (1038mm) Top of Fireplace Opening
D: Mantel Depth (max.) 13" (330mm) 30" Above Fireplace Opening
E: Alcove Width 83" (2108mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
G: To Floor 28 - 7/8" (733mm) Top of Fireplace Opening
Note 0" No hearth required
F
B
C
Installed Close
to Ceiling
Flue Clearances to Combustibles
Horizontal - Top 3"
Horiztonal - Side 2"
Horiztonal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
firestop is used. 1-1/2"
42-3/8” (
1079mm)
3-7/8"
(99mm) 5-1/2”
(140mm)
22-1/2”
(572mm)
19-7/8"
(505mm)
22-5/8”
52-7/8”
60-1/2" (1537mm)
Non-combustible
Material
Non-combustible Material
Non-combustible Material
Non-combustible Material
Metal Stud (header)
Wood Stud
Wood Stud
NON-COMBUSTIBLE REQUIREMENTS
TheHeatWaveDuctKitandtheHeat
Release Kit have different clearance
and framing requirements, check the
HeatWaveandHeatReleasemanual
for details.
Heat Release Kit

Regency Horizon HZ54E-1 Gas Fireplace 11
INSTALLATION
If finishing the wall above the unit with paint -
the non-combustible board (shipped separately
from the unit) should be installed. Facing board
must be ordered when ordering the unit.
Calcium silicate board is a high - grade material
with cement, quartz, natural and selected
minerals as the main raw materials. It is widely
used for partitions and ceilings in buildings.
It is fire proof and earthquake proof.
If finishing the wall above the unit with materials
such as tile, brick, marble, etc. non-combustible
board available from the building supply store
can be used.
Note: Calcium Silicate is 1/2" thick.
Caution: This non-combustible board can be damaged if
dropped or struck. Handle with care.
4"
(102mm)
22-3/8”
(568mm)
20"
(508mm)
21-3/4”
52-5/8”
61-1/2" (1537mm)
Non-combustible
Facing Board
Non-combustible Facing Board
Non-combustible Facing Board
Metal Stud (header)
Wood Stud
Wood Stud
Non-combustible Facing Board
61-1/2" (1537mm)
5-5/8”
(143mm)
NON COMBUSTIBLE FACING BOARD
All four pieces (top, 2 sides, bottom) are now supplied to meet the non combustible requirements. Previously only the top was supplied.
NON-COMBUSTIBLE FACING INSTALLATION
Non-combustible board
shipped with unit.
Non-combustible board-faces and edges
MUST BE PRIMED.
Non-combustible board
shipped with unit.
Caution: The non-combustible board supplied with this unit can
be damaged if dropped or struck. Handle with care.
1) Using drywall screws - secure non combustible material
around unit, framing and top nailing strip every 6 inches.
Important Note: To avoid cracking the board - pre-drill holes prior to
securing to unit/ framing.
2) Wipe any debris/dust from the non combustible
material and drywall.
3) Prior to securing it is mandatory to prime the facing and edges
using a quality primer. This will ensure proper adhesion of both the
tape and mud. The supplied board is very porous.
Failure to follow this procedure will result in cracked seams.
4) Tape the seams using a mesh type tape.
5) Mud seams as normal. We recommend using a
product called Durabond high strength compound - for the first coat.
This product can be found at any hardware store.
Mud must be cured as per manufacturer’s recommendations.
6) Prime wall for a second time for proper adhesion of paint
7) Paint walls using a high quality paint which will withstand
the high temperatures being emitted from this appliance.

12 Regency Horizon HZ54E-1 Gas Fireplace
INSTALLATION
MANTEL CLEARANCES
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
Note: Ensurethepaintthatisusedonthemantel
andthefacingis"HighQuality"orthepaint
may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
4"
Allowable mantel
leg projection
5-1/2” (140mm)
8” (203mm)
11” (279mm)
1.5" (38mm)
MANTEL LEG 4”(102mm)
Non-Combustible
7”
Drywall
2
0
12 64
810
Top of
Fireplace
Opening
13" (330mm)
3 ½" (89mm)
Standoff
Metal Stud
(On Edge)
0
10
20
14
Non-combustible
Facing
To Unit
Base Legs
1" (25mm)
30”
20”
21”
28-1/8”
Combustible Material
30
the diagram on the right.
Note: A non-combustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with a
non-combustible board.

Regency Horizon HZ54E-1 Gas Fireplace 13
INSTALLATION
6) Determine the total thickness of facing material (eg. hardiboard + ceramic
tile) to ensure the finished surface is flush with the front edge of the
unit (see diagram below). If necessary, side and top nailing strips are
adjustable, loosen the 1/4" screws and adjust.
Total non-combustible facing allowable: Min. = 1/2"
Max. = 1- 1/2"
See diagram below.
FRAMING & FINISHING
1) Frame in the enclosure for the unit with framing material.
IMPORTANT: Header must be metal stud. All other framing may be of
combustible type such as 2x4 / 2x6 framing materials.
ote: When constructing the framed opening, please ensure there is ac-
cess to install the gas lines when the unit is installed.
2) For exterior walls, insulate the enclosure to the same degree as the rest
of the house, apply vapour barrier and drywall, as per local installation
codes. (Do not insulate the fireplace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of
the exterior wall will result in operational and performance problems
including,butnotlimitedto:excessivecondensationonglassdoors,
poor flame package, carbon, blue flames etc. These are not product
related issues.
3) The unit does not have to be completely enclosed in a chase. You must
maintain clearances from the vent to combustible materials: See "Clear-
ances" section. Combustible materials can be laid against the side and
back standoffs and the stove base.
4) The combined total of non-combustible facing materials (ie. hardiboard
+ tile, slate, etc) may be brought up to and overlap the face of the unit
(top and bottom). The minimum thickness = 1/2"
to a maximum thickness = 1-1/2", as shown in the diagram below.
If material is thicker than 1-1/2" - it will not be possible to mount
the faceplace.
5) When finishing around the faceplate, if material such as brick, stone, etc.
extend past the faceplate depth - the minimum opening
dimensions noted below must be adhered to, this is to ensure removal
of the faceplate.
1-1/2”
(38mm)
Max
½”
(13mm)
Min
Important:
Finished
facing
material to
be flush with
edge of unit.
Finished
Material Nailing Strip Position
1/2" 1"
1" 1/2"
1-1/2" 0" (flush)
Unit
Nailing Strip
1” Forward
Unit
Nailing Strip
½” Forward
Unit
Nailing Strip
Flush w/unit
Factory Set
Nailing Strips
Nailing strip/
Standoff bracket
For material such as brick, stone, etc that extends less than 1-1/2" , the
minimum opening dimensions noted below must be adhered to when
finishing around the unit. This is to ensure the removal of the faceplate
and for the safe operation of this appliance.
52-7/8 ”
22-5/8”
Unit shown without faceplate

14 Regency Horizon HZ54E-1 Gas Fireplace
INSTALLATION
A
B
C
D
E
F
G
H
I
J
KL
Non-Combustible
Facing
Metal Stud (Header)
on edge
Metal Stud
(Header)
on edge
(Located on the right side of the fireplace)
Framing
Dimensions Description HZ54E
A Framing Height 46-5/8” (1184mm)
B Framing Width 60” (1524mm)
C*Framing Depth*22” (559mm)
D Minimum Height to Combustibles 51” (1295mm)
E Corner Wall Depth 72" (1829mm)
F Corner Facing Wall Width 101-7/8 (2586mm)
G Vent Centerline Height 44” (1118mm)
H Non-combustible facing height 20” (508mm)
I Gas Connection Opening Height 1-1/2” (38mm)
J Gas Connection Height 4” (102mm)
K Gas Connection Inset 7-1/4” (184mm)
L Gas Connection Opening Width 3-1/4” (83mm)
*Framing depth measurement is noted with the side nailing strips set as far forward on the firebox as possible.
The side nailing strips can be adjusted back up to 1” to allow for varying thicknesses in non-combustible mate-
rial & wall finishes.
Important: The minimum framing dimensions given for height, width and depth must be maintained even if
using non combustible materials.
Dangerous operating conditions will occur if minimum framing dimensions are not adhered to.

Regency Horizon HZ54E-1 Gas Fireplace 15
INSTALLATION
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side,1
on the top, and one on the bottom that can be folded out as required. The
top and side nailing strips are secured to the framing. The bottom nailing
strip is secured to the unfinished floor - if installing the unit directly on the
floor.
Note: The bottom nailing strip will need to be bent on site and
adjusted to accommodate the thickness of the facing material.
The top stand off / nailing strip is shipped attached to the back of the unit as
shown below.
1) Remove one screw in location shown below.
Replace the screw on the back the unit after removing the
standoff / nailing strip.
2) Bend the 3 tabs at the bottom of the stand off / nailing strip to 90°,
bend in the same direction as the top tabs.
3) Install on the top front of the unit as shown in diagram 3. Do not fully
tighten the screws when installing - until the facing thickness has been
determined.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The Top Standoff/ Nailing Strip, side nailing strips and standoffs must be
correctlypositionedandattachedtotheunitbeforeslidingtheunitintoposition.
STANDOFF ASSEMBLY
The top, side, rear and bottom standoffs are shipped in a flat position and
must be folded into shape and attached - see diagram 1.
1) Remove the standoffs from the unit.
2) Take each standoff and bend into the correct shape. Bend up at the bend
linesuntilthescrewholesinthestandoffandthepre-punchedscrewholes
on the unit line up.
VENTING INTRODUCTION
The HZ54E uses the "balanced flue" technology Co Axial system. The
inner liner vents products of combustion to the outside while the outer liner
drawsoutsidecombustionairintothecombustionchambertherebyeliminating
the need to use heated room air for combustion and losing warm room air
up the chimney.
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of
the building, and never be attached to a chimney serving a separate solid fuel
or gas burning appliance. Each direct vent gas appliance must use it's own
separate vent system. Common vent systems are prohibited.
IMPORTANT NOTE
Framing depth measurement is noted with
the side nailing strips set as far forward on
the firebox as possible. The nailing strips can
be adjusted back up to 1” to allow for varying
thicknesses in non-combustible material & wall
finishes.
Remove this screw to
release top standoff / nailing
strip
Standoff
Nailing Strips
Standoff
Diagram 1
Diagram 2
Diagram 3
Standoff
Standoff

16 Regency Horizon HZ54E-1 Gas Fireplace
INSTALLATION
Vent restriction is required for certain venting installations, see the diagrams in the "Venting
Arrangements" section to determine if they are required for your installation.
The Vent Restrictor plate is located on the inside top of the firebox.
To set the vent restriction as indicated in the venting arrangements diagrams, refer to the following instructions;
1) Remove the glass door.
2) Remove the screws that hold the vent restrictor plate in place.
3) Adjust the vent restrictor plate to the required vent restrictor position as per the diagrams shown.
4) Once the vent restrictor plate is in the required position, secure with screws.
VENT RESTRICTOR POSITION
Vent Restrictor Settings for HZ54E-NG Vent Restrictor Settings for HZ54E-LP
4.25”
3”
2”
Vent Restrictor Set 1
Factory Set Vent Restrictor
(No adjustment required)
Vent Restrictor Set 2
Vent Restrictor Set 4
SET 2
THIS HOLE SETS THE
VENTR ESTRICTOR
AT 3”
SET 1
THIS HOLE SETS THE
VENTR ESTRICTOR
(factory setting)
AT 4.25”
SET 4
THIS HOLE SETS THE
VENTR ESTRICTOR
AT 2”
Vent Restrictor Set 3
SET 3
THIS HOLE SETS THE
VENTR ESTRICTOR
AT 2-1/2”
2.5”
4.25”
2”
1”
Vent Restrictor Set 1
Factory Set Vent Restrictor
(No adjustment required)
Vent Restrictor Set 4
Vent Restrictor Set 5
SET 1
THIS HOLE SETS THE
VENT RESTRICTOR
(factory setting)
AT 4.25”
SET 4
THIS HOLE SETS THE
VENT RESTRICTOR
AT 2”
SET 5
THIS HOLE SETS THE
VENT RESTRICTOR
AT 1”

Regency Horizon HZ54E-1 Gas Fireplace 17
INSTALLATION
EXTERIOR VENT TERMINATION REQUIREMENTS
Minimum Clearance Requirements Canada1USA2
AClearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
BClearance to window or door that may be opened 12"(30cm) 9" (23cm)
CClearance to permanently closed window **
DVertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
24"(60cm) 24"(60cm)
EClearance to unventilated soffit 24"(60cm) 24"(60cm)
FClearance to outside corner: with AstroCap Termination Cap. 13"(33cm) 13"(33cm)
Clearance to outside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)
GClearance to inside corner: with AstroCap Termination Cap 13"(33cm) 13"(33cm)
Clearance to inside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)
HClearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
JClearance to service regulator vent outlet 36"(90cm) *
KClearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
LClearance to a mechanical air supply inlet 72"(1.8m) 36"(90cm)b
MClearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
NClearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor
*Clearance in accordance with local installation codes and the requirements of the gas supplier
a3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b3 feet (91cm) above - if within 10 feet (3m) horizontally

18 Regency Horizon HZ54E-1 Gas Fireplace
INSTALLATION
8” dia.
Flue pipe
5” dia. flue pipe
spring spacer
Termination Cap
AstroCap XLTM
(Part #946-623/P)
Vent Guard - if required*
(Part #946-506/P)
Wall Thimble
(Mandatory in all
Horizontal Terminations)
Vinyl Siding
Standoff
VENTING ARRANGEMENTS
HORIZONTAL TERMINATION (FLEX)
Regency®Direct Vent System
These venting systems, in combination with the HZ54E, have been tested and listed as a direct vent system by Warnock Hersey/Intertek. The location of the
termination cap must conform to the requirements in the Vent Terminal Locations diagram from the "Exterior Vent Termination Locations" section.
FPI Direct Vent (Flex) System Termination Kits include all the parts needed to install the HZ54E using a flexible vent.
Notes:
1) Liner sections should be continuous without any joints or
seams.
2) OnlyFlex pipe purchasedfromFPI may beusedfor Flex
installations.
3) Horizontal vent must be supported every 3 feet.
4) Awallthimbleismandatoryforallhorizontalterminations
due to high temperatures.
FPI Kit # Length Contains:
#946-615 4 Feet 1) 8” flexible liner (Kit length)
2) 5” flexible liner (Kit length)
3) spring spacers
4) thimble
5) AstroCap termination cap
6) screws
7) tube of Mill Pac
8) plated screws
9) S.S. screws #8 x 1-1/2” drill point
10) vinyl siding standoff
#946-618 6 Feet
#946-616 10 Feet

Regency Horizon HZ54E-1 Gas Fireplace 19
INSTALLATION
RIGID PIPE VENTING SYSTEMS
BASIC HORIZONTAL & VERTICAL TERMINATIONS
Rigid Pipe Vent Systems offer a complete line of
componentpartsforinstallationofbothhorizontal
and vertical installations. Many items are offered
in decorative black, as well as galvanized finish.
Theminimumcomponentsrequiredforabasic
Horizontal Termination are:
1 AstroCap XLTermination Cap
1 90oElbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of rigid pipe to suit wall thickness
Theminimumcomponentsrequiredforabasic
Vertical Termination are:
1 Vertical Termination Cap
1 Rigid Pipe Adaptor
1 Lengths of pipe to adequately
penetrate roof
1 Ceiling Firestop
1 Flashing
1 Storm Collar
Wall thickness is measured from the back
standoffs to the inside mounting surface of
terminationcap.Forsidingotherthanvinyl,furring
strips may be used, instead of a vinyl siding
standoff, to create a level surface to mount the
ventterminal.TheTerminalmustnotberecessed
into siding. Measure the wall thickness including
furring strips.
If a Vinyl Siding Standoff is required (it must be
usedwithvinylsiding),measuretooutsidesurface
of wall without siding and add 2 inches.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
The FPI AstroCap XLTM is certified for installations using FPI venting systems as well as Simpson Dura-Vent®Direct Vent Pro, ICC Excel and Selkirk
Direct-Temp. AstroCap XLTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or
proprietary trademarks of Simpson Dura-Vent Co. Inc.
ThisproducthasbeenevaluatedbyIntertekfor
using a Rigid PipeAdaptor in conjunction with
Simpson DV Pro, Metal-Fab Sure-Seal, ICC
Excel and Selkirk Direct-Temp systems. Use
of these systems with the Rigid Pipe adaptor
is deemed acceptable and does not affect the
WarnockHersey/Interteklistingofcomponents.
WARNING:
Do not combine venting components from
different venting systems.
Exception: However, use of the the AstroCap
XLTM is acceptable with all systems.
Alternate Snorkel
Termination Cap
HOT
Alternate
Horizontal Termination
Caps
Rigid Pipe
Adaptor (770-994)
Pipe Length
Vertical Terminal
Storm Collar
Flashing
Ceiling Firestop
Pipe
Length
Pipe Length
90 Elbow
o
AstroCap XL
Termination Cap
(Part #946-623/P)
Wall Thimble
(Mandatory in all
Horizontal Terminations)
Vinyl Siding
Standoff (Optional) Vent Guard - if required*
(Part #946-506/P)

20 Regency Horizon HZ54E-1 Gas Fireplace
INSTALLATION
Adjustable Length 3”-10”-Galvanized N/A N/A 5DAL TC-5DLT
Adjustable Length 3”-10”-Black N/A N/A 5DALB TC-5DLTB
Adjustable Length 11”-14” -Galvanized Disc. - See 58DV-08A 5DT-AJ N/A N/A
Adjustable Length 11”-14” -Black Disc. - See 58DV-08B 5DT-AJB N/A N/A
Extension Pipe 17”-24” -Galvanized Disc. - See 58DV-16A N/A N/A N/A
Extension Pipe 17”-24” -Black Disc. - See 58DV-16AB N/A N/A N/A
Adjustable Length 8-1/2”-Galvanized 58DVA-08A - N/A from FPI N/A N/A N/A
Adjustable Length 8-1/2”-Black 58DVA-08AB N/A N/A N/A
Extension Pipe 16”-Galvanized 58DVA-16A - N/A from FPI N/A N/A N/A
Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A
45ºElbow-Galvanized 58DVA-E45 5DT-EL45 5DT-EL45 TE-5DE45
45ºElbow-Black 58DVA-E45B 5DT-EL45B 5DT-EL45B TE-5DE45B
45ºElbow Swivel-Galvanized Disc. - See 58DVA-E45 N/A N/A N/A
45ºElbow Swivel-Black Disc.-See 58DVA-E45B N/A N/A N/A
90ºElbow-Galvanized 58DVA-E90 5DT-EL90S 5DT-EL90S TE-5DE90
90ºElbow-Black 58DVA-E90B 5DT-EL90SB 5DT-EL90SB TE-5DE90B
90ºElbow, Swivel-Galvanized Disc. - See 46DVA-E45 N/A N/A N/A
90ºElbow, Swivel-Black Disc. - See 46DVA-E45 N/A N/A N/A
90º Starter Elbow, Swivel-Galvanized N/A N/A N/A N/A
Adaptor* N/A N/A N/A N/A
Ceiling Support 58DVA-DC 5DT-CS 5DSP TE-5DE45
Cathedral Support Box 58DVA-CS 5DT-CSS 5DRS TE-5DE45B
Wall Support/Band 58DVA-WS 5DT-WS/B 5DWS N/A
Offset Support 58DVA-ES - N/A from FPI 5DT-OS N/A N/A
Wall Thimble-Black 58DVA-WT 5DT-WT 5DWT TE-5DE90
Wall Thimble Support/Ceiling Support 58DVA-DC - N/A from FPI N/A N/A TE-5DE90B
Firestop Spacer 58DVA-FS 5DT-FS 5DFS N/A
Trim Plate-Black 58DAV-WFS 5DT-TP 5DCP N/A
Description Simpson
Direct Vent Pro®
Selkirk
Direct Temp™
Metal-Fab™
Sure Seal
ICC Excel
Direct
6” Pipe Length-Galvanized 58DVA-06 5DT-6 5D6 TC-5DL6
6” Pipe Length-Black 58DVA-06B 5DT-6B 5D6B TC-5DL6B
9” Pipe Length-Galvanized 58DVA-09 5DT-9 N/A N/A
9” Pipe Length-Black 58DVA-09B 5DT-9B N/A N/A
12” Pipe Length-Galvanized 58DVA-12 5DT-12 5D12 TC-5DL1
12” Pipe Length-Black 58DVA-12B 5DT-12B 5D12B TC-5DL1B
18” Pipe Length-Galvanized 58DVA-18 5DT-18 5D18 TC-5DL18
18” Pipe Length-Black 58DVA-18B - N/A from FPI 5DT-18B 5D18B TC-5DL18B
24” Pipe Length-Galvanized 58DVA-24 5DT-24 5D24 TC-5DL2
24” Pipe Length-Black 58DVA-24B 5DT-24B 5D24B TC-4DL2B
36” Pipe Length-Galvanized 58DVA-36 5DT-36 5D36 TC-5DL3
36” Pipe Length-Black 58DVA-36B 5DT-36B 5D36B TC-5DL3B
48” Pipe Length-Galvanized 58DVA-48 5DT-48 5D48 TC-5DL4
48” Pipe Length-Black 58DVA-48B 5DT-48B 5D48B TC-5DL4B
60” Pipe Length-Galvanized 58DVA-60 N/A N/A N/A
60” Pipe Length-Black 58DVA-60B - N/A from FPI N/A N/A N/A
5” X 8” RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. NotAll Rigid Pipe components are available directly from FPI.
