Regency Fireplace Products P42 Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
908-018b
MODELS: P42-NG2 Natural Gas P42-LP2 Propane
P42 Gas Fireplace
WARNING:
Iftheinformationintheseinstructionsarenotfollowedexactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
Owners &
Installation Manual
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
03/17/05
www.regency-fire.com
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
2
To the New Owner:
Congratulations!
Youaretheownerofastate-of-the-artGasStoveby FIREPLACEPRODUCTSINTERNATIONAL. TheP42
is a hand crafted appliance and has been designed to provide you with all the warmth and charm of a wood
fireplace at the flick of a switch. The model P42 has been approved by Warnock Hersey for both safety and
efficiency. As it also bears our own mark, it promises to provide you with economy, comfort and security for
manytroublefreeyearstofollow. Pleasetakeamomentnowtoacquaintyourselfwiththeseinstructionsand
the many features of your Regency Fireplace.
ThisRegencyMobile/ManufacturedHomeListed appli-
ance comes factory equipped with a means to secure
theunit.
This Regency Mobile/Manufactured Home listed appli-
ancecomesequippedwithadedicated#8groundlugto
which an 18 gauge copper wire from the steel chassis
ground must be attached.
Thisappliancemaybeinstalledinanaftermarketperma-
nentlylocated,manufactured(mobile)home,wherenot
prohibitedbylocalcodes.
Thisapplianceisonlyusewiththetypeofgasindicated
ontherating plate.Thisappliance isnotconvertible for
use with other gases, unless a certified kit is used.
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency product has been tested and listed by Warnock Hersey as a Direct Vent Room Heater to the following standards: UL307B-1995,
CAN/CGA-2.17-M91, ANSI Z21.88b-2003/CSA 2.33b-2003.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home
ConstructionandSafetyStandard,Title24CFR,Part3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations,
Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow
the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA
B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 3
TABLE OF CONTENTS
Brick Panels ............................................................. 23
LogSetInstallation ................................................... 24
FlushDoor ................................................................ 25
FlushLouvers............................................................ 25
DoubleScreenDoor .................................................. 25
Bay Front .................................................................. 26
BayLouvers .............................................................. 26
FullScreenFront ...................................................... 27
WiringDiagram ......................................................... 30
RemoteControl ......................................................... 31
Remote Wall Switch.................................................. 31
WallThermostat........................................................ 31
OperatingInstructions
OperatingInstructions ............................................... 31
LightingProcedure .................................................... 31
LightingPlateInstructions ......................................... 32
ShutdownProcedure ................................................. 33
First Fire ................................................................... 33
NormalOperatingSoundsofGasAppliances............ 33
Maintenance
MaintenanceInstructions .......................................... 33
Gold-PlatedLouvers .................................................. 34
LogReplacement ...................................................... 34
Thermopile/Thermocouple ......................................... 34
GlassReplacement................................................... 34
RemovingFan ........................................................... 35
ReplacingFan ........................................................... 35
RemovingValve ......................................................... 35
InstallingValve .......................................................... 36
Partslist
Replacement/SparePartsList................................... 37
Warranty
Warranty ................................................................... 43
Safety Label
SafetyLabel ................................................................ 4
Installation
ImportantMessage ..................................................... 5
BeforeYouStart ......................................................... 5
GeneralSafetyInformation .......................................... 5
InstallationChecklist ................................................... 5
ManufacturedMobileHomeRequirements .................. 6
UnitSpecifications ...................................................... 6
LocatingYourGasStove............................................. 6
OptionalHeatWaveDuctSystem ................................ 6
OptionalHeat ReleaseKit ........................................... 6
Hearth ...................................................................... 6
Clearances.................................................................. 7
Mantels ...................................................................... 7
MantelLegClearances................................................ 7
FramingandFinishing ................................................. 8
Top Assembly & Nailing Strips.................................... 8
VentingIntroduction .................................................... 8
Vent Restrictors .......................................................... 8
ExteriorVentTerminationRequirements ..................... 9
Venting .................................................................... 10
Regency Direct Vent System (Flex) Horizontal
TerminationKitsonly .......................................... 10
RigidPipeVenting ComponentsList ......................... 11
Rigid Pipe Venting - Horizontal or Vertical
Terminations ....................................................... 12
VentingArrangementsHorizontalTerminations ......... 13
VentingArrangementsVerticalTerminations............. 14
VerticalTerminations-Co-Linear FlexSystem.......... 17
VentingArrangements ........................................ 18
Dura-VentHorizontalTerminationInstallations .......... 19
Dura-VentVerticalTerminationInstallation ................ 20
InstallationProceduresforRegencyDirectVent
System Flex....................................................... 21
System Data............................................................. 22
HighElevation ........................................................... 22
GasLineInstallation.................................................. 22
Gas Pipe Pressure Test ............................................ 22
S.I.T.ValveDescription ............................................. 22
AerationAdjustment.................................................. 23
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
4
This is a copy of the label that accompanies
each P42 Zero Clearance Direct Vent Gas
Fireplace. We have printed a copy of the con-
SAFETY LABEL
tents here for your review. The safety label is
located on the front inside base of the unit,
visible when the bottom louver is open.
NOTE: Regency units are constantly being
improved.Checkthelabelontheunitandifthere
isadifference,thelabelontheunitisthecorrect
one.
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.
Copy of Safety Decal for P42
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE TIQUETTEÉ
215
215
NATURAL GAS: Model P42-NG2
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
L
PROPANE: Model P42-LP2
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
L
DOOR SEAL: Please check that the door is properly sealed
FPI Fireplace Products International Ltd.
Delta, BC, Canada
Minimum Clearances to Combustibles
/Degagement Minimum
De Materiaux Combustibles
Top, sides, bottom and rear of unit
A) Min. 7" (177mm)
Depth 36" (914mm), Width 52" (1321mm),
Height 90" (2286mm)
(
0" clearance to combustibles from:
Mantel Clearances from Louver:
Max. Alcove Clearances:
See Instruction Manual for Detailed Instructions)
DUPLICATE SERIAL NO.
Serial No./ No de serie
908-087a
5" (1.25 kPa)
3.8" (0.94 kPa)
0.9" (0.22 kPa)
# 33 DMS
17500 (5.13 Kwh)
35000 (10.25Kwh)
0-4500 (0-1372 m)
WC
WC
WC
B
B
ft/pi
tu/h
tu/h
11" (2.74 kPa)
10" (2.49 kPa)
2.9" (0.72 kPa)
# 50 DMS
17500 (5.13 Kwh)
35000 (10.25Kwh)
0-4500 (0-1372 m)
WC
WC
WC
B
B
ft/pi
tu/h
tu/h
6" 6"
36"
Ceiling
Wall
Wall
A
The "Bay Louvers" be used with the Bay Glass optionMUST
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR ETRE POELE: Mod le P42-NG2
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit Calorifique - Ventilateur en Marche BTU
D bit - Ventilateur leint BTU
D bit minimum selon
D bit maximum selon
l'altitude
é
ééé
é
é
éÉ
é
é
Calorifique
Calorifique
Calorifique
APPAREIL FONCTIONNANT AU PROPANE
CONCU POUR ETRE POELE: Mod le P42-LP2
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit - Ventilateur en Marche BTU
D bit - Ventilateur leint BTU
D bit minimum selon
D bit maximum selon
l'altitude
é
ééé
é
é
éÉ
é
é
Calorifique
Calorifique
Calorifique
Calorifique
VENTING: This appliance must be installed in accordance with the manufacturer's installation instructions and with local codes,
if any; if not, follow the current ANSI Z223.1 in the USA or the current CAN 1-B149 in Canada.
For Manufactured Home Installation: This Direct Vent System Appliance must be installed in accordance with the
manufacturer's installation instructions and Manufactured Home Construction and Safety Standard Title 24 CFR,
Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities
ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada.
Fan (Part # 600-915) Optional Bay Window (Part # 600-950) Option: HeatWave Kit # 946-556
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed:
Certified for/Certifi e pour:
Tested to:
Report No.
GRAVITY DIRECT VENT WALL FURNACE
CANADA and U.S.A.
CAN/CGA-2.17-M91,
ANSI Z21.88b-2003/CSA 2.33b-2003
476-1319 (Aug 1996)
é
Model/Modele:
P42-NG2
Model/Modele:
P42-LP2
Electrical supply 115VAC, 1.13 A, 60Hz. Not for use with solid fuel.
Made in Canada/ Fabrique au Canada
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 5
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The P42-NG/P42-LP Direct Vent Fireplace must
beinstalledin accordance with theseinstructions.
Carefully read all the instructions in this manual
first. Consult the "authority having jurisdiction" to
determinetheneedforapermitpriortostartingthe
installation.Itistheresponsibilityoftheinstallerto
ensurethisfireplaceisinstalledincompliancewith
manufacturers instructions and all applicable
codes.
BEFORE YOU START
Safeinstallation and operationof this appliance
requires common sense, however, we are
requiredbytheCanadianSafetyStandardsand
ANSI Standards to make you aware of the
following:
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISEDWHEN
THEYAREINTHESAMEROOMAS
THEAPPLIANCE.
CLOTHINGOR OTHER FLAMMA-
BLEMATERIALSHOULDNOTBE
PLACEDONORNEARTHEAPPLI-
ANCE.
INSTALLATION AND REPAIR
SHOULDBEDONEBYANAUTHOR-
IZEDSERVICEPERSON.THEAP-
PLIANCESHOULDBEINSPECTED
BEFOREUSEANDATLEASTAN-
NUALLY BY A PROFESSIONAL
SERVICE PERSON. MORE FRE-
QUENT CLEANING MAY BE RE-
QUIREDDUETOEXCESSIVELINT
FROMCARPETING,BEDDINGMA-
TERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPART-
MENTS,BURNERSANDCIRCULAT-
INGAIRPASSAGEWAYSOFTHE
APPLIANCEBEKEPTCLEAN.
DUE TO HIGH TEMPERATURES,
THEAPPLIANCESHOULDBELO-
CATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING:FAILURETOINSTALL
THIS APPLIANCE CORRECTLY
WILLVOIDYOURWARRANTYAND
MAY CAUSE A SERIOUS HOUSE
FIRE.
CHILDRENANDADULTSSHOULD
BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERA-
TURES, ESPECIALLY THE FIRE-
PLACE GLASS, AND SHOULD
STAYAWAYTOAVOIDBURNSOR
CLOTHINGIGNITION.
annually. Make it a practice to have all of
your gas appliances checked annually.
13)Do not slam shut or strike the glass door.
14)Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
15)The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location, page 6
b) Clearances to Combustibles, page 7
c) Mantle Clearances, page 7
d) Framing & Finishing Requirements,
page 8
e) Venting Requirements, pages 8-18.
2) Assemble Top Facing Support and Side
Nailing Strips, page 8. NOTE: must be
done before installing unit into fire-
place.
3) Install venting, pages 19-21.
4) Make gas and electrical connections. Test
thepilot. Must beas per diagram. Page 22.
5) Test Gas Pressure. Page 22.
6) Install brick panels (optional), page 23.
7) Install Flush Door Front (Standard) and
optional Flush Gold Trim, page 25. Install
Optional Door Screen, page 25.
8) Install Optional Bay Front and optional Bay
Gold Trim, page 26.
9) Install Louvers (Flush or Bay), pages 25-
26.
10)Install optional Wall Switch, Remote Con-
trol, or Wall Thermostat, page 30.
11)Final check.
Before leaving this unit with the customer, the
installermustensurethatthe appliance is firing
correctly and operation fully explained to
customer.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes,with thecurrentCanadianorNation-
alGas Codes, CAN1-B149or ANSI Z223.1
InstallationCodes.
2) Theappliancewheninstalled,mustbeelec-
trically grounded in accordance with local
codes,orin the absence of localcodeswith
the current National Electrical Code, ANSI/
NFPA70orCSAC22.1CanadianElectrical
Code.
3) See general construction and assembly
instructions.Theapplianceandventshould
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outsideofthebuildingenvelope.Nevervent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Ventingterminalsshallnotberecessedinto
a wall or siding.
7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wear gloves and safety glasses for pro-
tection while doing required maintenance.
10)Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11)Under no circumstances should this appli-
ance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
12)Installationandanyrepairstothisappliance
should be done by an authorized service
person. A professional service person
should be called to inspect this appliance
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
6
Diagram 1
INSTALLATION
UNIT SPECIFICATIONS
This includes:
1) Clocking the appliance to ensure the cor-
rect firing rate (rate noted on label 35,000
Btu/h) after burning appliance for 15 min-
utes.
2) If required, adjusting the primary air to
ensure that the flame does not carbon.
First allow the unit to burn for 15-20 min. to
stabilize.
CAUTION: Any alteration to the product
that causes sooting or carboning that
results in damage is not the responsibil-
ity of the manufacturer.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
2) Ensure proper grounding using the #8
ground lug provided. See page 28.
LOCATING YOUR
GAS STOVE
1) When selecting a location for your stove,
ensurethat the clearances outlinedon this
page are met.
2) Provide adequate clearances for servic-
ing.
3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, met-
al, concrete). This may be the floor, or
raised up on a platform to enhance its
visualimpact.Iftheapplianceisgoingtobe
installed on carpeting, combustible linole-
um tile or other combustible material other
than wood flooring, the appliance must be
installed on a metal or wood panel extend-
ing the full width and depth of the appli-
ance.

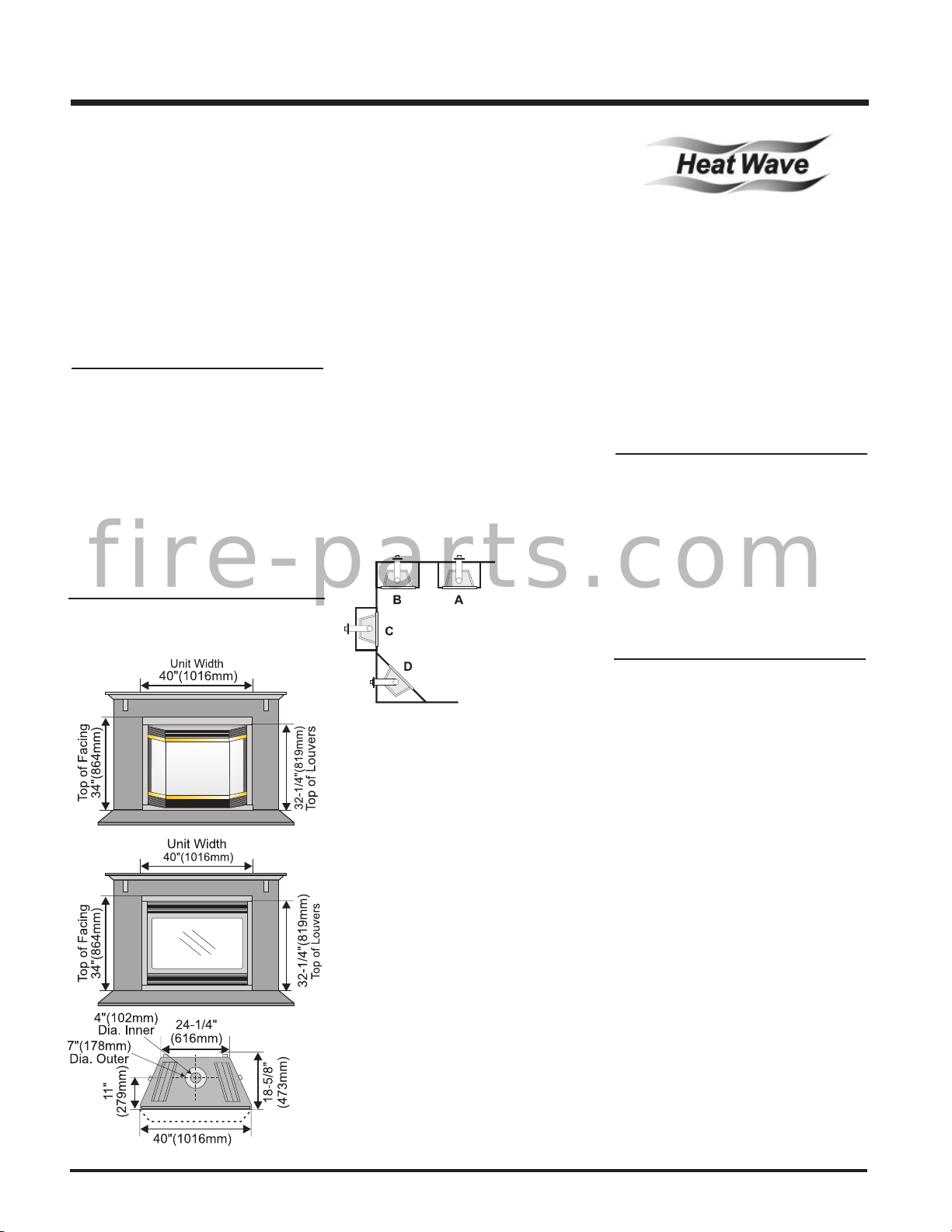

4) The P42 Direct Vent Gas Fireplace can be
installed in a recessed position or framed
out into the room as in A, B, C, D. See
Diagram1.
HEARTH
Ahearthisnotmandatory,butisrecommended
for aesthetics and for added safety.
5) ThisapplianceisListedforbedroom instal-
lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The P42 Direct Vent Gas Fireplace is ap-
proved for alcove installations, which meet
the clearances listed on this page.
7) Werecommendthatyou plan your installa-
tion on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations see page 9
OPTIONAL
DUCT SYSTEM
KIT #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing
warm air from the fireplace to remote locations
inthesameroom or other rooms inyourhome.
Upto twokitsmaybeinstalledonthefireplace.
Please Note: Only 1 HeatWave kit may be
operatedatonetime.This includestheinternal
blower option as well.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into
Wall/Alcove
D) Corner
OPTIONAL
HEAT RELEASE
KIT #946-570
TheHeat ReleaseKitexpelswarmairfrom the
fireplace to the outside of the building, allowing
the fireplace to be operated with less heat
enteringtheroom.Thekitmaybeusedoneither
the left or right side.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 7
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram below:
MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical.
Combustible mantel clearances from louver are shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is
made of metal studs covered with a non-combustible board.
INSTALLATION
This drawing is to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area using the above scale for units with the Flush
Front and with the optional Bay Front.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant"
or the paint may discolour.
Maximum
1-1/2" projection at 2"
minimumclearance.
CLEARANCES
The clearances listed below are Minimum dis-
tances unless otherwise stated:
A major cause of chimney related fires is
failure to maintain required clearances
(air space) to combustible materials. It is
of the greatest importance that this fire-
place and vent system be installed only in
accordance with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
Minimum Clearance from Louver to:
Mantel min.7" (177mm)
Ceiling 36" (914mm) from top
of louvers
Side Wall 6" (152mm)
Vent 1-1/2" (38mm)Flex
1-1/4" (32mm)RigidPipe
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 52" (1321mm)
Min. Height 90" (2286mm)
WARNING
Fire hazard is an extreme risk
if these clearances are
not adhered to.
TheHeatWave DuctKit
and the Heat Release
Kit have different clear-
ance and framing re-
quirements, check the
HeatWave and Heat
Release manual for de-
tails.
Heat Release Kit
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
8

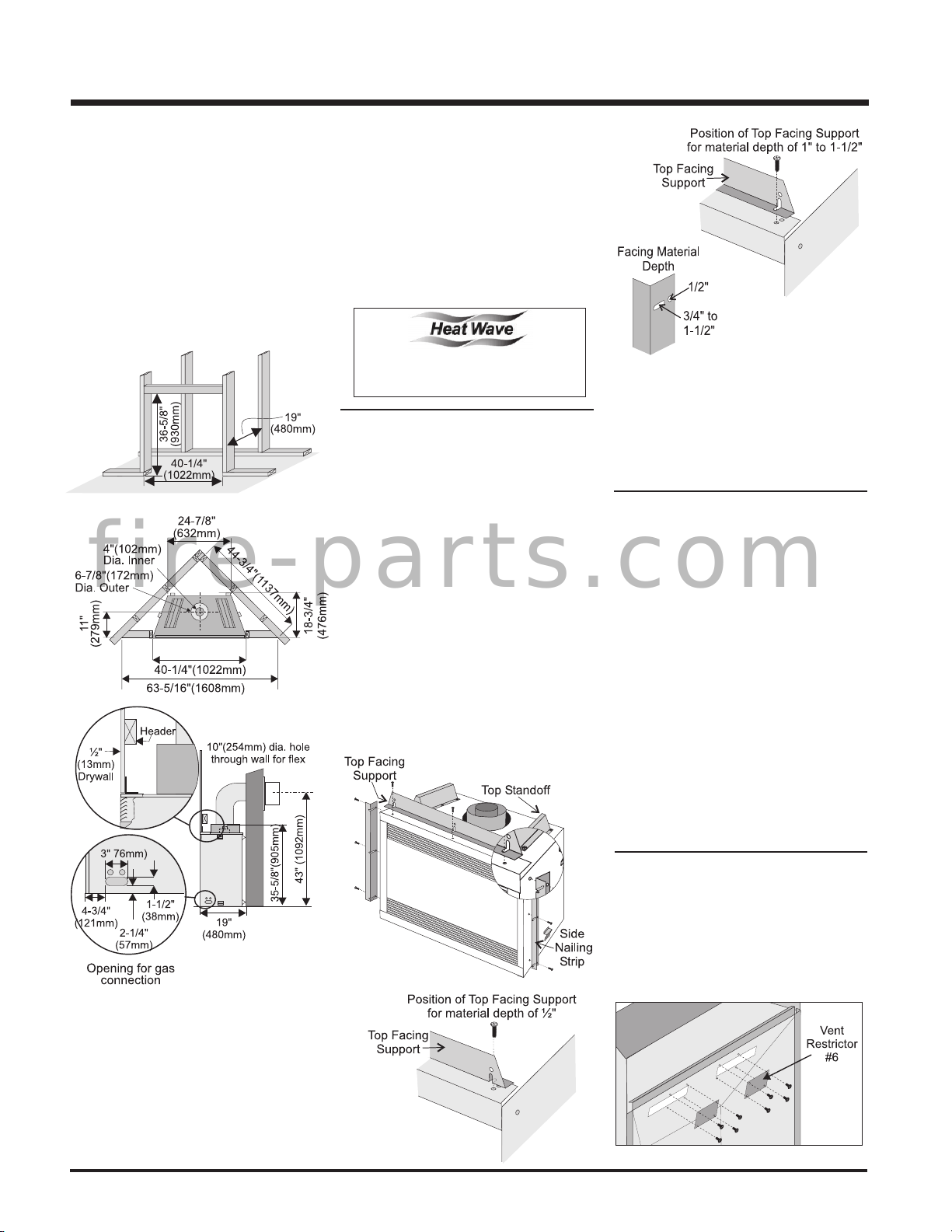

TOP ASSEMBLY &
NAILING STRIPS
TheTopFacingSupportandSideNailingStrips
must be correctly positioned and attached be-
fore the unit is slipped into position.
1) The top standoffs are shipped installed.
2) The Top Facing Support and the 2 Side
Nailing Strips can be installed at different
depths depending on the width of your
facing. Match the depths of the top facing
support and the side nailing strips.
a) Mount Top Facing Support using the 3
suppliedscrewsinto the 3 pre-punched
screw holes on the top front of the unit.
See Diagrams 2 & 3 for the proper
position of the Top Facing Support for
the various material depths.
Diagram 1
Diagram 2
Diagram 3
Diagram 4
INSTALLATION
5) The unit does not have to be completely
enclosed in a chase. The clearance on top
of the unit from the top standoffs is 0" so
combustible building materials can be laid
directly on top of the standoffs. You must
maintain these clearances from the vent to
combustible materials: Flex Termination
clearance 1-1/2" (38mm), Simpson Dura-
Ventclearanceor(1-1/4"(32mm).Combus-
tible materials can be laid against the side
and back standoffs and the stove base.
b) Mount the Side Nailing Strip using the 3
supplied screws into the 3 screw holes
or slots (diagram 4) on the side of the unit
andrepeat fortheotherside.Use thehole
fora1/2"(13mm)thickfacingmaterialand
the slot for a range of thickness from 1"
to 1-1/2" (25mm to 38mm).
VENTING
INTRODUCTION
The P42 uses the "balanced flue" technology
CoAxial system. The innerliner vents products
of combustion to the outside while the outer
liner draws outside combustion air into the
combustion chamber thereby eliminating the
needtouseheatedroomairforcombustionand
losing warm room air up the chimney.
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and vent system must be
venteddirectlytotheoutsideofthebuilding,and
never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's
own separate vent system. Common vent sys-
tems are prohibited.
VENT RESTRICTOR
A vent restrictor may be required. Check the
diagrams on pages 13 to 18 to determine if the
#6 restrictor is needed for your vent configu-
ration. If required, attach the 2 piece #6 restric-
tor using 4 screws per piece to the inside top
of the firebox.
Note: 43" (1092mm) is the minimum
height for flex termination and
Simpson Dura-Vent terminations.
Diagram 1
FRAMING AND
FINISHING
1) The facing allows for 1/2" (13mm) of dry-
wall material. The unit may be installed
directly on/or against standard combusti-
ble building materials.
2) Frame in the enclosure for the unit with
framing material. The framed opening for
the assembled kit is 36-5/8" high x 40-1/4"
wide x 19" deep (930mm H x 1022mm W
x 483mm D). See Diagram 1.
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate
the fireplace itself.)
4) Thetoplouvers must not becloserthan36"
(914mm) to the ceiling.
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 9

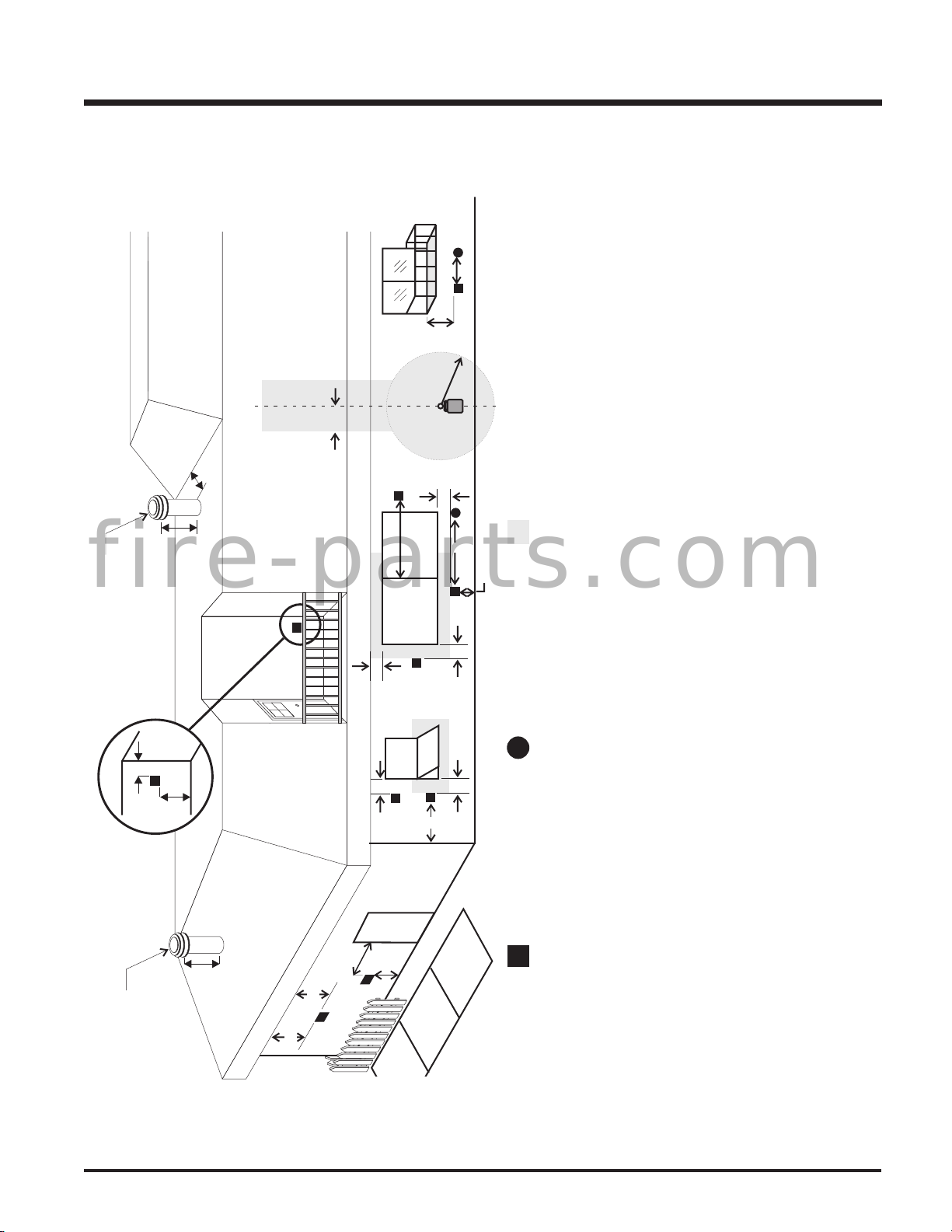

EXTERIOR VENT TERMINATION REQUIREMENTS
INSTALLATION
.
BB
B
B
A
C
V
V
V
V
V
VV
A
A
V
Fixed
Fixed
Openable
Closed Closed
Openable
NL
B
E
B
M
D
F
K
H
j
Vertical
Termination
V
Vent terminal Area where terminal is not permited
A
Air supply outlet
24"
V
A
G
Inside
corner detail
V
24"
18"
Vertical
Termination
A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm) B= Clearance to window or door that may be opened *(12"/30cm) C= Clearance to permanently closed window *(min. 12"/30cm) D= Vertical clearance to ventilated soffit located above the terminal within a horizontal
distance of (24"/60cm) from the centerline of the terminal (min. 18"/46cm) check with local code.
E= Clearance to unventilated soffit (min. 15"/38cm) F= Clearancetooutsidecorner:withAstroCapTerminationCap(min6"/15cm),withDura-
Vent Termination Cap (13"/33cm)
G= Clearance to inside corner: with AstroCap Termination Cap (min 6"/15cm), with Dura-
Vent Termination Cap (12"/30cm)
H= Nottobeinstalledaboveameter/regulatorassemblywithin(3'/90cm)horizontallyfrom
the centerline of the regulator.
J= Clearance to service regulator vent outlet *(min 36"/90cm) K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to
any other appliance *(12"/30cm)
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m) M= Clearance above paved sidewalk or a paved driveway located on public property
*(min. 84"/2.1m)
N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)
Note: - A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings. - Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor. - If the vent termination is accessible, a certified guard shall be installed. * As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
10
INSTALLATION
VENTING
Regency Direct Vent System (Flex) Horizontal Terminations Only
These venting systems, in combination with
the P42 Direct Vent Gas Fireplace, have been
testedandlistedasadirectventheatersystem
by Warnock Hersey. The location of the termi-
nation cap must conform to the requirements
in the Vent Terminal Locations diagram on
page 9.
Regency Direct Vent (Flex) System Ter-
mination Kit (Part # 946-515) includes all
the parts needed to install the P42 with
a maximum run of 4 feet.
1) 6-7/8" dia. flexible liner (4 ft. length)
2) 4" dia. flexible liner (4 ft. length)
3) spring spacers (4)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1/2" Drill Point, stainless steel
(4)
If longer runs are needed, the Regency
Direct Vent system (Flex) # 946-516 in-
cludes all the parts needed to install the
P42 with a maximum 10' run.
1) 6-7/8" dia. flexible liner (10 ft. length)
2) 4" dia. flexible liner (10 ft. length)
3) spring spacers (7)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1/2" Drill Point, stainless steel
(4)
Note:
a) Liner sections should be continuous with-
out any joints or seams.
b) Only Flex pipe purchased from Regency
may be used for Flex Installations.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 11
RIGID PIPE VENTING COMPONENTS LIST
All Simpson Dura-Vent components are available directly from FPI.
946-506/P Vent Guard (Optional)
510-994 Rigid Pipe Adaptor (Must use with all Rigid Piping)
640-994 U37 Rigid Pipe Adaptor
640-530/P Riser Vent Terminal
946-205 Vinyl Siding Shield for Riser Vent Terminal
946-208/P Vent Guard (Optional) - Riser Vent Terminal
946-523/P AstroCap Horizontal Cap
946-206 Vinyl Siding Standoff - AstroCap
INSTALLATION
Description Simpson Dura-Vent Selkirk AmeriventR
Direct VentGSRDirect-TempTM Direct Vent
6" Pipe Length, Galvanized 908 4DT-6 N/A
6" Pipe Length, Black 908B 4DT-6B N/A
7" Pipe Length, Galvanized N/A N/A 4D7
7" Pipe Length, Black N/A N/A 4D7B
9" Pipe Length, Galvanized 907 4DT-9 N/A
9" Pipe Length, Black 907B 4DT-9B N/A
12" Pipe Length, Galvanized 906 4DT-12 4D12
12" Pipe Length, Black 906B 4DT-12B 4D12B
18" Pipe Length, Galvanized N/A 4DT-18 N/A
18" Pipe Length, Black N/A 4DT-18B N/A
24" Pipe Length, Galvanized 904 4DT-24 4D2
24" Pipe Length, Black 904B 4DT-24B 4D2B
36" Pipe Length, Galvanized 903 4DT-36 4D3
36" Pipe Length, Black 903B 4DT-36B 4D3B
48" Pipe Length, Galvanized 902 4DT-48 4D4
48" Pipe Length, Black 902B 4DT-48B 4D4B
Adjustable Length, 11"-14", Galv. 911 4DT-AJ N/A
Adjustable Length, 11"-14", Black 911B 4DT-AJB N/A
Adjustable Length, 17"-24", Black 917B N/A N/A
Adjustable Length, 7" Galvinized N/A N/A 4D7A
Adjustable Length, 7" Black N/A N/A 4D7AB
Adjustable Length, 12" Galvinized N/A N/A 4D12A
Adjustable Length, 12" Black N/A N/A 4D12AB
45OElbow,Galvinized 945 4DT-EL45 4D45L
45OElbow, Black 945B 4DT-EL45B 4D45LB
45OElbow, Swivel, Galvinized 945G N/A N/A
45OElbow, Swivel, Black 945BG N/A N/A
90OElbow,Galvinized 990 4DT-EL90S 4D90LS
90OElbow, Black 990B 4DT-EL90SB 4D90LBS
90OElbow, Swivel, Galvinized 990G N/A N/A
90OElbow, Swivel, Black 990BG N/A N/A
CeilingSupport 949 - n/a from FPI 4DT-CS 4DFSP
Cathedral Support Box 941 4DT-CSS 4DRSB
WallSupport/Band 988 4DT-WS/B 4DWS
Offset Support 989 - n/a from FPI 4DT-OS N/A
Wall Thimble, Black 942 4DT-WT 4DWT
Wall Thimble Support Box/Ceiling Support 940 N/A N/A
Firestop Spacer 963 4DT-FS 4DFSP
Trim Plate, Black N/A 4DT-TP 4DFPB
Brass Trim for Wall Thimble/Ceiling Support 3951 N/A N/A
Attic Insulation Shield 12" N/A N/A 4DAIS12
Attic Insulation Shield - Cold Climates 36" N/A N/A 4DAIS36
Basic Horizontal Termination Kit (A) 970 4DT-HKA 4DHTK2
Horizontal Termination Kit (B) 971 4DT-HKB 4DHTK1
Vertical Termination Kit 978 4DT-VKC 4DVTK
High Wind Vertical Cap 991 N/A N/A
High Wind Horizontal Cap 985 N/A N/A
HorizontalSquareTermination Cap 984 4DT-HHC 4DHC
Verical Termination Cap 980 4DT-HVC 4DVC
Storm Collar 953 4DT-SC 4DSC
Adjustable Flashing, 0/12-6/12 943 4DT-AF6 4DF
Adjustable Flashing, 6/12-12/12 943S 4DT-AF12 4DF12
Vinyl Siding Standoff 950 4DT-VS N/A
Vinyl Siding Shield Plate N/A 4DT-VSP N/A
SnorkelTermination14" 982 4DT-ST14 4D12S
SnorkelTermination36" 981 4DT-ST36 4D36S
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
12
Rigid Pipe Adaptor
(Part# 510-994)
Pipe Length
Vertical
Terminal
Storm Collar
Part # 953
Flashing
943 or 943S
Ceiling Firestop
(Part # 963)
24" Pipe
Length
Adj.Pipe Length
11" - 14-5/8"
90 Elbow
o
Horizontal
Termination
Cap
Wall Thimble
Part # 942
Vinyl Siding
Standoff (Optional)
Part #950

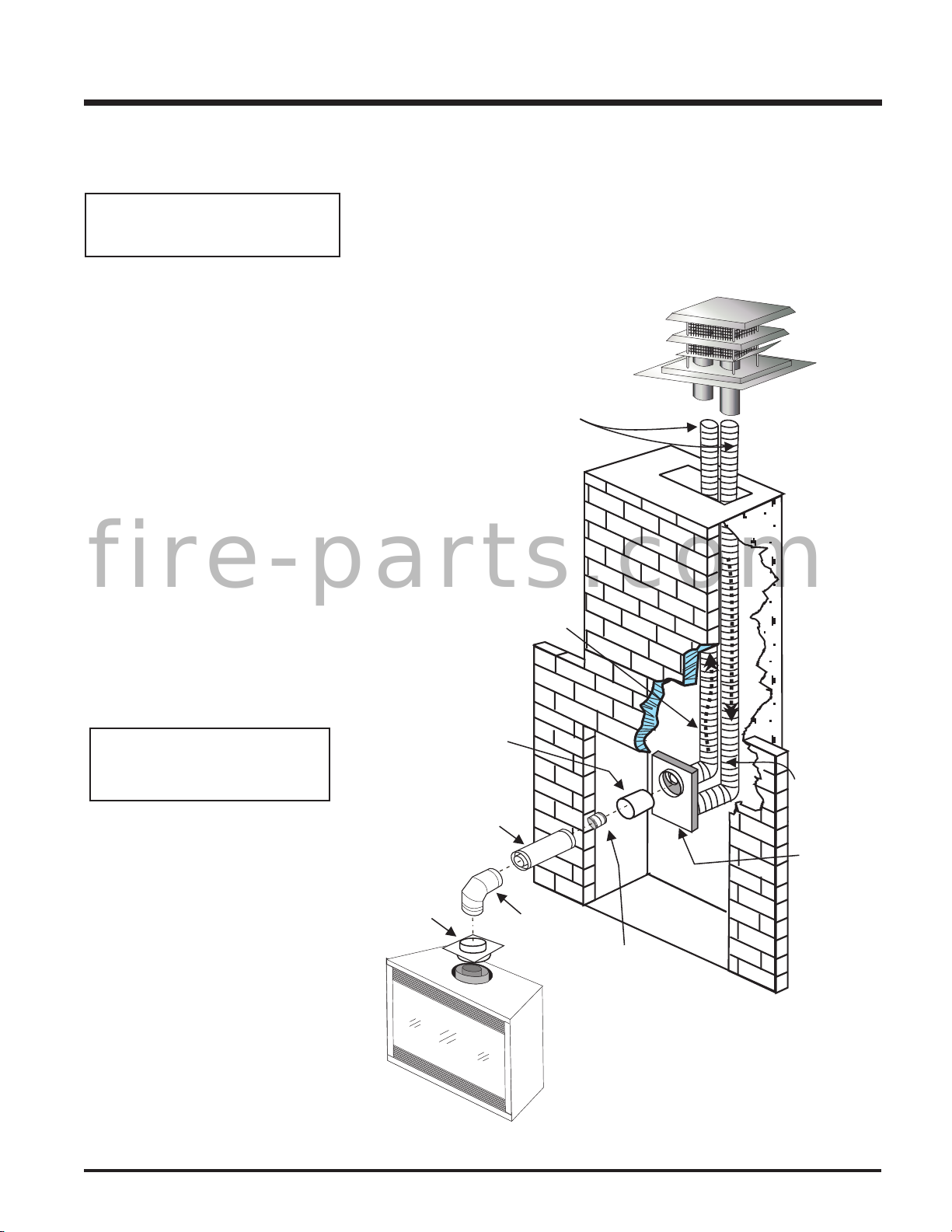

RIGID PIPE VENTING
HorizontalorVerticalTerminations
The Rigid Pipe Venting System offers a complete line of component parts for installation of both horizontal and vertical installations. Many items are
offered in decorative black, as well as galvanized finish. We recommend using the galvanized finish for installation with the P42.
The minimum components required for a basic
horizontal termination are:
1 HorizontalTerminationCap
190
oElbow
1 Flue Adaptor
1 WallThimble
1 Length of pipe to suit wall thickness
(see chart)
Alternate
Horizontal
Termination
Caps
INSTALLATION
When using piping other than Simpson
Dura-Vent, 3 screws must be used to
secure rigid pipe to adaptor.
Flat Wall Installation
Wall Thickness Vent Length
(inches) Required (inches)
4" - 5-1/2" 6"
7" - 8-1/2" 9"
10" - 11-1/2" 12"
9" - 14-1/2" 11" - 14-5/8" Adj. Pipe
15" - 23-1/2" 17" - 24" Adj. Pipe
Corner Installation
Wall Thickness Vent Length
(inches) Required (inches)
3-1/4" - 6-3/4" 11" - 14-5/8" Adj. Pipe
7-3/4" -16-1/4" 17" - 24" Adj. Pipe
7-1/4" - 8-3/4" 6" + 12"
9" + 9"
4-1/4" - 5-3/4" 6" + 9"
The FPI AstroCapTM and FPI Riser Vent terminal is certified for installations using FPI venting systems as well as Simpson Dura-Vent®, Direct Vent
GS, American Metal Products, Ameri Vent Direct vent and Selkirk Direct-Temp. FPITM, and FPI AstroCapTM are the proprietary trademarks of FPI
Fireplace Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
Wall thickness is measured from the back
standoffs to the inside mounting surface of
termination cap. For siding other than vinyl
furring strips may be used, instead of the vinyl
siding standoff, to create a level surface to
mountthevent terminal. TheTerminalmustnot
be recessed into siding. Measure the wall
thickness including furring strips.
If a Vinyl Siding Standoff is required (it must be
used with vinyl siding), measure to outside
surface of wall without siding and add 2 inches.
This product has been evaluated by Intertek for
using a Dura-Vent Flue Adaptor in conjunction
withSelkirkDirect-Temp and Ameri VentDirect
venting systems. Use of these systems with
the Direct Vent GS starting collar is deemed
acceptableanddoesnotaffecttheIntertekWHI
listing of components.
WARNING:
Do not combine venting components from
different venting systems.
However use of the the AstroCapTM and FPI
Riser is acceptable with all systems.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 13
INSTALLATION

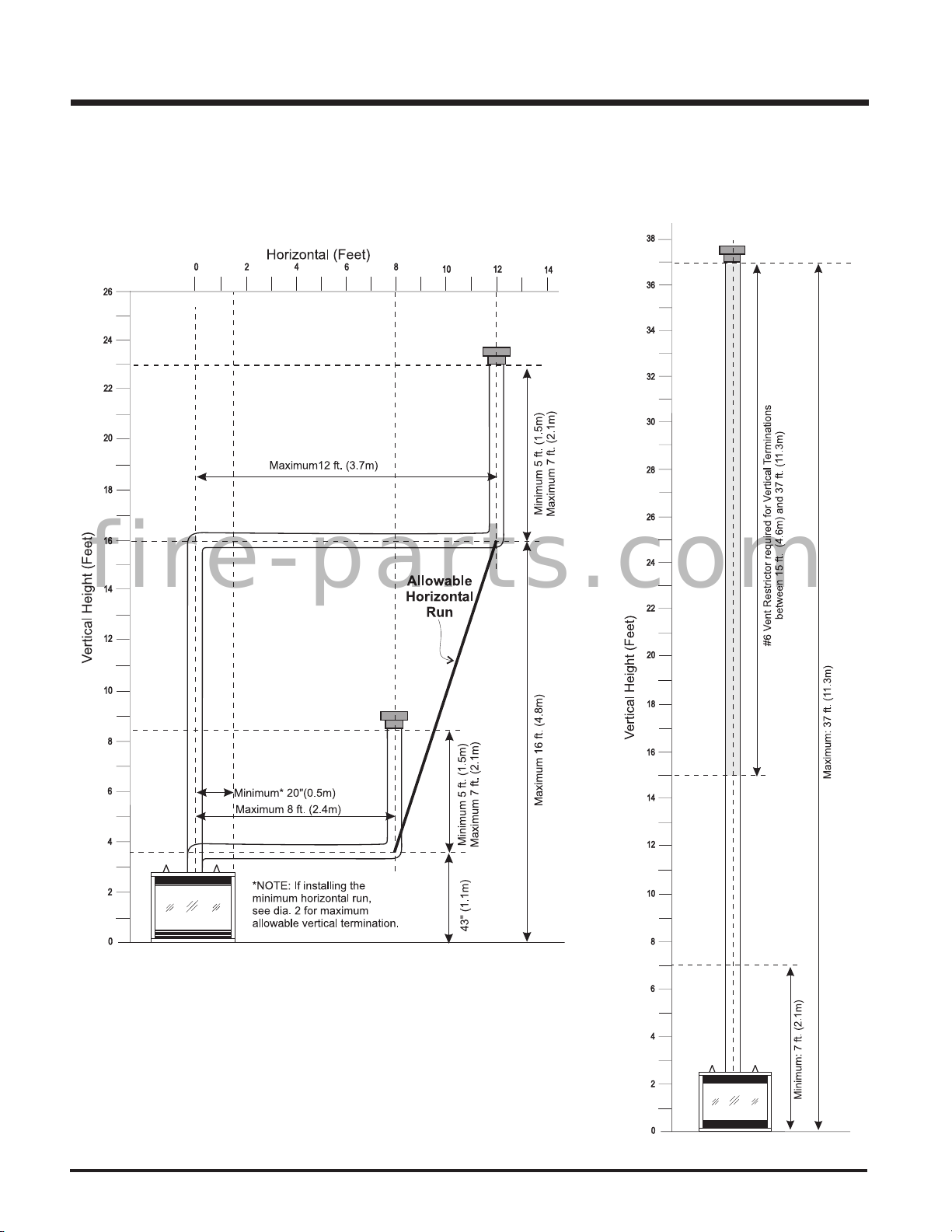

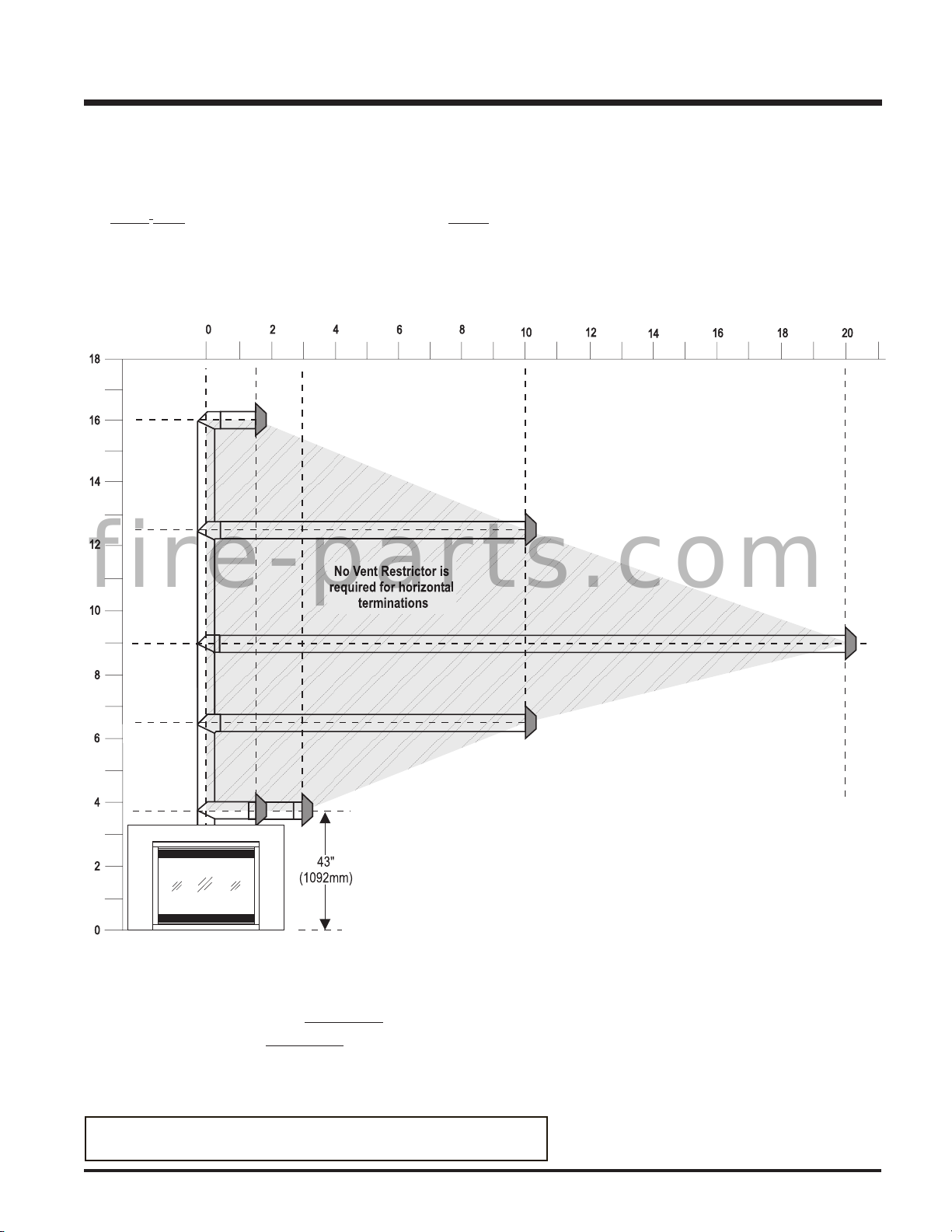

RIGID PIPE VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS
REGENCY DIRECT VENT SYSTEM (FLEX) (Propane & Natural Gas)
The shaded areas in the diagram show all allowable combinations of vertical runs with horizontal terminations. The chart below shows the distances
with one 90obend (two 45o elbows equal one 90oelbow). For a second 90obend, see page 14.
Note: Must use optional rigid pipe adaptor (Part # 510-
994) when using rigid pipe venting systems.
Rigid Pipe Systems:
4"(100mm) inner diameter
6-5/8"(168mm) outer diameter
Regency Flex:
4"(100mm) inner diameter
6-7/8"(175mm) outer diameter
• Rigid Pipe Systems: Maintain a 1-1/4"(32mm) clearance to combustibles
• Regency Flex: Maintain a 1-1/2"(38mm) clearance to combustibles
• Horizontal vent must be supported every 3 feet (0.9 meter)
• Firestops are required at each floor level and whenever passing through a wall
A vent guard may be required, check local codes.
Minimumheight
requirement
Note: Regency Direct Vent System (Flex) is only approved for horizontal
terminations.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
14
INSTALLATION
RIGID PIPE VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS
REGENCY DIRECT VENT SYSTEM (FLEX) - Propane & Natural Gas
The diagram below shows examples of horizontal termination arrangements using two 90oelbows.
All Rigid Pipe Systems
4" inner diameter
6-5/8" outer diameter
Regency Flex Vent
4" inner diameter
6-7/8" outer diameter
•Maintain a 1-1/4" clearance to
combustibles for rigid pipe systems
and 1-1/2" for Regency Flex Vent.
• Horizontalventmustbesupportedevery
3 feet
• Firestops are required at each floor
level and whenever passing through a
wall.
A vent guard may be required, check local codes.
If length "B" is increased, length "A" must be decreased by a corresponding amount.
Note: Regency Direct Vent System (Flex) is
only approved for horizontal termina-
tions.
Note: 1) A maximum of two 90oelbows are permitted (two 45o elbows equal one 90oelbow).
2) A minimum of 6 ft.(1.8m) vertical from base of unit is required if two 90oelbows are used.
3) Minimum distance between elbows is 2 ft. (0.6m).
For All Horizontal Terminations
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 15
INSTALLATION
RIGID PIPE VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
(Propane & Natural Gas)
Note: Must use optional rigid pipe adap-
tor when using rigid pipe vent
systems (Part # 510-994).
Note: Regency Direct Vent System (Flex)
is only approved for horizontal ter-
minations.
Theshadedareainthediagramshowsallallowablecombinationsofstraight
vertical and offset to vertical terminations with rigid pipe vent systems for
Propane and Natural Gas.
Maximum two 45oelbows allowed.
• Vent restrictor #6 must be used in shaded area in diagram
below.
• Vent must be supported at offsets
TheP42isapproved for a
37ft. (11.3m)straightver-
tical,includinga20"(0.5m)
horizontal offset using
two 90oelbow (two 45o
elbows equal one 90oel-
bow) with rigid pipe vent
systems for Propane and
Natural Gas, as per the
diagram to the right.
• Vent restrictor #6
is required for ter-
minations in shad-
ed area.
• Vent must be sup-
ported at offsets
Diagram 1
Diagram 2
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
16
The P42 is approved for a 23 ft. (7.0m) vertical, with a maximum 12 ft (3.7m) horizontal offset
using two 90oelbows (two 45o elbows equal one 90oelbow) with rigid pipe vent systems for
Propane and Natural Gas, as per the diagram below.
• No Vent restrictor is required.
• Vent must be supported at offsets
TheP42isapprovedfora 37ft.(11.3m)straight
vertical, with rigid pipe vent systems for
Propane and Natural Gas, as per the diagram
below.
• Vent restrictor #6 must be used
Diagram 3
Diagram 4
Note: Regency Direct Vent System (Flex) is only approved for
horizontal terminations.
INSTALLATION
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 17
Flex Liner
Exhaust
Flue
A maximum
of two certified
joiner kits
may be used
per length.
#948-305 (35 ft)
Air Intake
Co-linear DV
Vertical Termination
Cap # 946-529
Co-Linear
Flex
Adapter
with Kit#
946-563
Outer
Pipe
with Kit#
946-563
Inner Pipe
Adapter
with Kit#
946-563
Rigid Pipe Adaptor
# 510-994 90 Degree
Elbow
Pipe Length
INSTALLATION
VERTICAL TERMINATION
WITH CO-LINEAR FLEX SYSTEM
THEAPPLIANCEMUSTNOTBE
CONNECTEDTOACHIMNEYFLUE
SERVINGASEPARATESOLIDFUEL
BURNINGAPPLIANCE.
Thisapplianceisdesignedtobeattachedtotwo
3" (76mm) co-linear aluminium flex running the
full length of the chimney. See the Venting
Arrangements on next page for minimum and
maximumheights.
Masonry chimneys may take various contours which the flexible liner will accommodate.
However, keep the flexible liner as straight as possible, avoid unnecessary bending.
The Air Intake pipe must be attached to the inlet air collar of the termination cap.
RequiredParts:
Part # Description
946-529 Co-linear DV Vertical
TerminationCap
948-305 3" Flex - 35 ft.
946-563 Co-Axial to Co-Linear Adapter Kit
which contains the following:
Co-linear Flex Adapter
OuterPipe
Inner Pipe Adapter
510-994 Rigid Pipe Adaptor
Alternate Approved Caps
980 Vertical Termination Cap
991 High WindCap
923GK 3" Co-linear Adapter with flashing
FPI Cabinet and/or Flat Wall Mantles
may be used in these applications
ensuring that clearances to com-
bustibles are maintained.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
18
INSTALLATION
Venting Arrangements - Vertical Terminations
with Co-linear Flex System for both
Residential & Manufactured Homes
into Masonry Fireplaces
The shaded area in the diagrams show
the allowable vertical terminations.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 19
INSTALLATION
Below Grade Installation
If the Snorkel Termination must be installed
belowgrade,i.e.basementapplication,prop-
er drainage must be provided to prevent
water from entering the Snorkel Termination.
Refer to Diagram 4.
Donotattempttoen-
close the Snorkel
within the wall, or
any other
type of en-
closure.
Diagram 4
NOTE: For Snorkel terminations in ABOVE
grade installations, follow nation-
al or local code requirements.
Diagram 3a
Note: Riser
Vent is only for
use in above
grade termina-
tions.
*Diagrams 3, 3a & 4: As
specified in CGA B149
Installation Code. Local
codes or regulations
may require different
clearances.
HORIZONTAL
INSTALLATIONS
1) Settheunitin its desired location. Checkto
determine if wall studs or roof rafters are
in the way when the venting system is
attached. If this is the case, you may want
to adjust the location of the unit. Rough in
the gas preferably on the right side of the
unit and the electrical (junction block is on
the left side) on the left.
2) Direct Vent pipe and fittings are designed
with special twist-lock connections to con-
nect the venting system to the appliance
flue outlet. A twist-lock appliance adaptor
is an available option that must be used in
conjunction with the Simpson Dura-Vent
Direct Vent GS system. Install the adaptor
after the unit is set in its desired location
otherwisetheunit will notfitthroughthe36-
5/8" (930mm) high frame opening.
3) Put a bead of silicone inside the outer
section of the adapter and a bead of Stove
Mate on the inner collar. Slip the adapter
over the existing inner and outer flue collar
and fasten to the outer collar only with the
3 supplied screws (drilling pilot holes will
make this easier). Level the fireplace and
fastenittotheframingusingnailsorscrews
through the nailing strips.
4) Assemble the desired combination of pipe
and elbows to the appliance adaptor and
twist-lock for a solid connection.
Note:
a) Twist-lock procedure: Four indenta-
tions, located on the female ends of
pipesandfittings,aredesignedto slide
straight onto the male ends of adjacent
pipes and fittings, by orienting the four
pipe indentations so they match and
slide in to the four entry slots on the
male ends. (Diagram 1) Push the pipe
sections completely together, then
twist-lock one section clockwise ap-
proximately one-quarter turn, until the
two sections are fully locked. The fe-
malelockinglugswillnotbevisiblefrom
theoutside,ontheBlackPipeorfittings.
They may be located by examining the
inside of the female ends.
Diagram 1
b) Horizontal runs of vent must be sup-
ported every 3 feet (0.9meter). Wall
straps are available for this purpose.
5) Mark the wall for a 10" x 10" (254mm x
254mm) square hole. The center of the
square hole should line up with the center-
lineofthehorizontalpipe.Cutandframethe
10inch (254mm)squareholeintheexterior
wall where the vent will be terminated.
If the wall being penetrated is constructed
of non-combustible material, i.e. masonry
block or concrete, a 7" (178mm) diameter
(7-1/2" (190mm) for flex) hole is accepta-
ble.
Diagram 2
Note:
a) Thehorizontalrunofventmustbelevel,
or have a 1/4 inch rise for every 1 foot
of run towards the termination. Never
allow the vent to run downward. This
could cause high temperatures and
may present the possibility of a fire.
b) The location of the horizontal vent ter-
mination on an exterior wall must meet
alllocalandnationalbuildingcodes,and
must not be blocked or obstructed. For
External Vent Terminal Locations, see
diagram on page 9.
c) Snorkel Terminations:
Forinstallations requiring a vertical rise
on the exterior of the building, 14-inch
and 36-inch tall Snorkel Terminations
(diagram3&4)areavailable,aswellas
the standard Riser Vent, diagram 3a.
Followthesameinstallationprocedures
as used for standard Horizontal Termi-
nation.NEVERinstallthesnorkelupside
down.
Diagram 3
Note: Apply sealant "Mill-Pac" to inner
pipe and high temp silicone seal-
ant to outer pipe on every twist-
lock joint.
fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace
20
6) Continue to assemble pipe lengths.
Note: If an offset is necessary in the attic
to avoid obstructions, it is impor-
tant to support the vent pipe every
3 feet (0.9 meter), to avoid exces-
sive stress on the elbows, and
possible separation. Wall straps
are available for this purpose
(Diagram 2).
Galvanized pipe is desirable above the roof-
line due to its higher corrosion resistance.
Continue to add pipe sections through the
flashinguntilthe height of the ventcapmeets
theminimumheightrequirementsspecifiedin
Diagram5orlocal codes. Note that for steep
roof pitches, the vertical height must be in-
creased.
Diagram 3
4) Assemble the desired lengths of pipe and
elbows. Ensure that all pipes and elbow
connections are in the fully twist-locked
position and sealed.
Diagram 1
Diagram 2
Diagram 7
Note:
Apply sealant
"Mill-Pac" to in-
ner pipe and
high temp sili-
cone sealant to
outer pipe on
every twist-
lock joint.
Diagram 6
9) Install wall thimble in the center of the 10"
(254mm) square and attach with wood
screws (Diagram 6).
Diagram 5
6) The arrow on the vent cap should be
pointing up. Insure that the 1-1/4"(32mm)
clearances to combustible materials are
maintained(Diagram5).Installthetermina-
tion cap.
Note: If installing termination on a siding
covered wall, a vinyl siding stand-
off or furring strips must be used
to ensure that the termination is
not recessed into the siding.
The four wood screws provided should be
replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.
7) Before connecting the horizontal run of
vent pipe to the vent termination, slide the
WallThimble(Part#942)overtheventpipe.
8) Slide the appliance and vent assembly to-
wards the wall carefully inserting the vent
pipeinto thevent cap assembly. It isimpor-
tant that the vent pipe extends into the vent
cap sufficient distance so as to result in a
minimum pipe overlap of 1-1/4 inches
(32mm). Secure the connection between
the vent pipe and the vent cap by attaching
the two sheet metal strips extending from
the vent cap assembly into the outer wall of
the vent pipe. Use the two sheet metal
screws provided to connect the strips to
the pipe section. See Diagram 6.
VERTICAL
TERMINATION
1) Maintainthe1-1/4"(32mm)clear-
ances (air spaces) to com-
bustibles when passing
through ceilings, walls, roofs,
enclosures, attic rafter, or oth-
er nearby combustible surfac-
es. Do not pack air spaces
with insulation. Check pages
13-18 for the maximum verti-
cal rise of the venting system
and the maximum horizontal
offset limitations.
2) Set the gas appliance in its
desired location. Drop a plumb
3) A Firestop spacer must be installed in the
floor or ceiling of every level. To install the
Firestop spacer in a flat ceiling or wall, cut
a 10 inch (254mm) square hole. Frame the
hole as shown in Diagram 3 and install the
firestop.
bob down from the
ceiling to the position
of the appliance flue
exit,andmarktheloca-
tionwheretheventwill
penetrate the ceiling.
Drillasmallholeathispoint.
Next,dropaplumbbobfrom
the roof to the hole previously drilled in the
ceiling, and mark the spot where the vent
will penetrate the roof. Determine if ceiling
joists, roof rafters or other fram-
ing will obstruct the venting sys-
tem.Youmaywish
to relocate the ap-
pliance or to off-
set, as shown in
Diagram2toavoid
cutting load bear-
ing members.
5) Cut a hole in the roof centered on the small
drilledholeplacedintheroofinStep2. The
holeshouldbe of sufficient sizetomeet the
minimum requirements for clearance to
combustibles of 1-1/4"(32mm). Slip the
flashingundertheshingles(shinglesshould
overlaphalftheflashing)asper Diagram 4.
Diagram 4: The upper half of the flashing is
installed under the roofing material and not
nailed down until the chimney is installed.
This allows for small adjustments.
INSTALLATION
fire-parts.com
