Regency Fireplace Products FireGenie FG39-LPG Quick start guide

05/26/06
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appli-
an e
Do not tou h any ele tri al
swit h: do not use any
phone in your building.
Immediately all your gas
supplier from a neighbour's
phone. Follow the gas sup-
plier's instru tions.
If you annot rea h your
gas supplier, all the fire
department.
WARNING:
Improper installation, adjustment, altera-
tion, servi e or maintenan e an ause
injury or property damage. Refer to this
manual. For assistan e or additional infor-
mation onsult an authorized installer, serv-
i e agen y or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flamma-
ble vapours and liquids in the vi inity of this
or any other applian e.
Installation and servi e must be performed
by an authorized installer, servi e agen y or
the gas supplier.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Owners &
Installation
Manual
LISTINGS AND CODE APPROVALS
These gas appliances have een tested
in accordance with AS4553-2000, NZS
5262 and have een certified y the
Australian Gas Association for installation
and operation as descri ed in these
Installation and Operating Instructions.
Your unit should be serviced
annually by an authorised service
person.
918-278a
Models: FG39-NG
FG39-LPG
Freestanding Gas Stove
All manuals and user guides at all-guides.com
all-guides.com

2Regency FG39 FireGenie Freestanding Gas Stove
To the New Owner:
Congratulations! You are the owner of a state-of-the-art Regency Room Sealed Gas Stove by FPI Fire lace
Products International Ltd. The Regency Gas Series of hand crafted a liances has been designed to rovide
you with all the warmth and charm of a woodstove. The models FG39-NG and FG39-LPG of this series has
been a roved by AGA. As it also bears our own mark, it romises to rovide you with economy, comfort and
security for many trouble free years to follow. Please take a moment now to acquaint yourself with these
instructions and the many features of your Regency Room Sealed Freestanding Gas Stove.
FG39-NG & FG39-LPG
UNIT SPECIFICATIONS
All manuals and user guides at all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 3
TABLE OF CONTENTS
Page Page
Operating Instructions
Operating Instructions ............................................ 23
Lighting Instructions ............................................... 23
Resetting the Unit .................................................. 23
Shutdown Instructions ............................................ 23
First Fire ................................................................ 23
Fan Operation ........................................................ 23
Adjusting Flame Height .......................................... 23
Summar of Controls ............................................. 24
Pilot Adjustment .................................................... 24
Normal Operating Sounds of Gas Appliances ........ 24
Cop of Lighting Plate Instructions ......................... 25
Maintenance
Maintenance Instructions ....................................... 26
Gold Plated Doors .................................................. 26
Log Replacement ................................................... 27
Door Gasket ........................................................... 27
Latch Adjustment ................................................... 27
Glass Replacement ................................................ 27
Fan Maintenance ................................................... 28
Removing Valve ...................................................... 29
Parts List
Electronic Components List ................................... 30
Replacement Parts List .......................................... 31
Warranty
Warrant ................................................................ 35
afety Label
Safet Label ............................................................ 4
Installation
Specifications .......................................................... 5
Before You Start ...................................................... 5
General Safet Information ....................................... 5
Installation Checklist ................................................ 6
Clearances to Combustibles .................................... 6
Locating Your Regenc Gas Stove ........................... 6
Combustion and Ventilation Air ................................ 6
Louver Installation ..................................................... 7
Flueing Introduction .................................................. 7
Installation Precautions ............................................ 7
Safet Precautions for the Installer ........................... 7
Exterior Flue Termination Locations ......................... 8
Flueing Arrangements - Horizontal
Terminations: All S stems ................................. 9
Flueing Arrangements - Vertical Terminations .......... 9
- Straight Vertical ............................................... 9
- Offset Vertical .................................................. 9
Flue Restrictor Position ............................................ 9
DV Stove Horizontal Flue Kit .................................. 10
Dura-Flue Termination Kit ....................................... 12
Planning Your Dura-Flue Installation ....................... 12
Dura-Flue Fluing Components Parts List ................ 12
Dura-Flue Horizontal Installation ............................. 13
Dura-Flue Vertical Termination Installation .............. 14
Offset Chart ............................................................ 15
Cathedral Ceiling Installations ................................ 15
Support Extension - Round or Square .................... 15
Gas Connection ..................................................... 16
Gas Pipe Pressure Testing .................................... 16
Valve Description ................................................... 16
Aeration Adjustment............................................... 16
S stem Data Chart ................................................ 16
Conversion from NG to LPG ................................... 17
Conversion to Lower BTU ....................................... 19
Log Installation ....................................................... 19
Front Door Installation ............................................ 21
Optional Remote Control ........................................ 21
Final Check ............................................................ 21
Wiring Diagram ...................................................... 22
All manuals and user guides at all-guides.com

4Regency FG39 FireGenie Freestanding Gas Stove

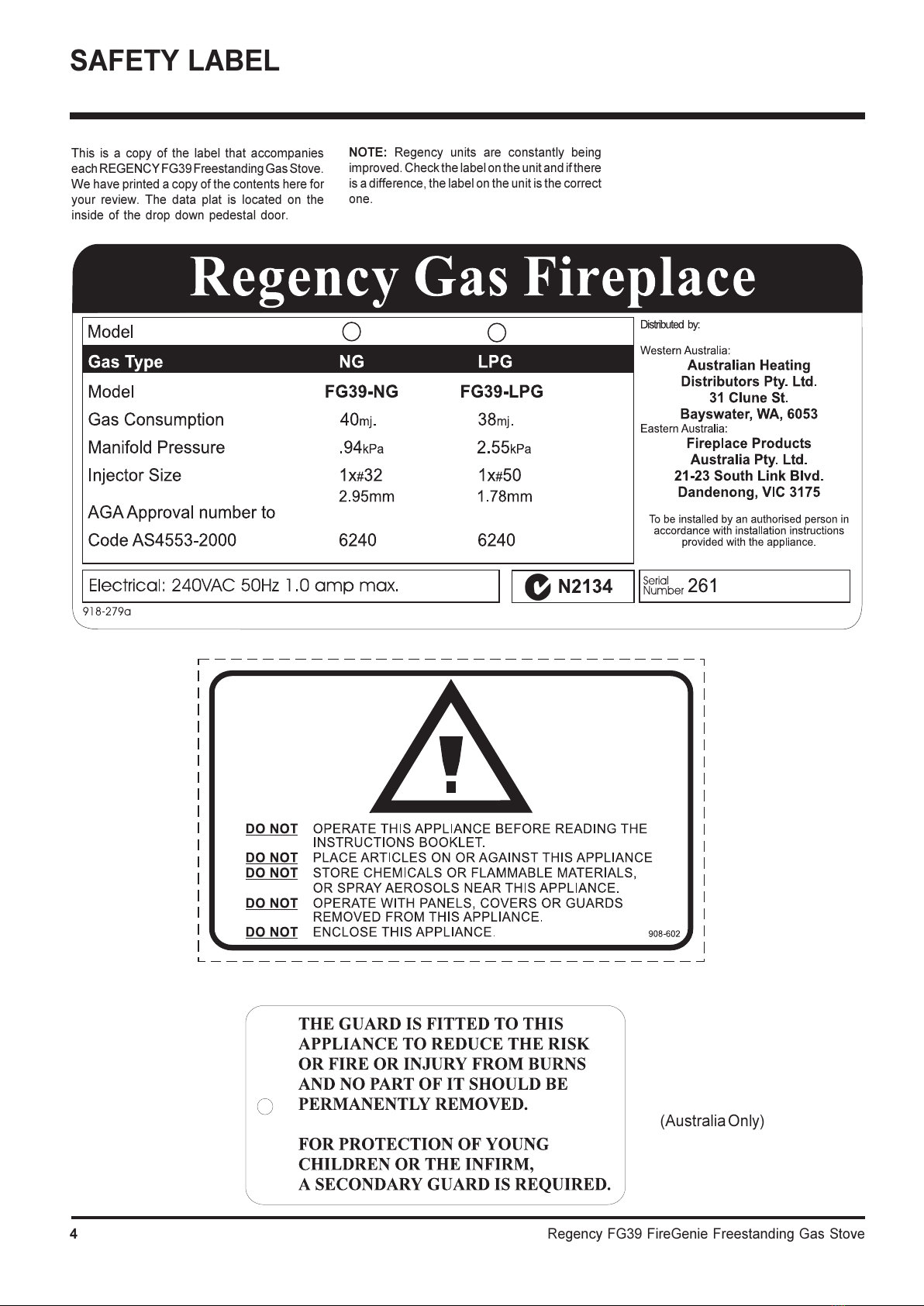

SAFETY LABEL
This is a copy of the la el that accompanies
each REGENCY FG39 Freestanding Gas Stove.
We have printed a copy of the contents here for
your review. The data plat is located on the
inside of the drop down pedestal door.
NOTE: Regency units are constantly eing
improved. Check the la el on the unit and if there
is a difference, the la el on the unit is the correct
one.
(Australia Onl )
All manuals and user guides at all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 5
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The REGENCY Room Sealed Freestanding Gas
Stove must e installed in accordance AG601
and NZS 5261 and with these instructions.
Carefully read all the instructions in this manual
first. Consult the uilding authority having juris-
diction to determine the need for a permit prior
to starting the installation.
Note: Failure to follow the instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and or prop-
erty damage. Failure to follow
these instructions may also void
your fire insurance and or war-
ranty.
Note: These instructions take prece-
dence over Simpson Dura-Flue in-
structions.
SPECIFICATIONS
Fuels: FG39-NG is approved for use with NG.
FG39-LPG is approved for use with
liquefied petroleum gases (LPG).
Electrical: 240V A.C. system.
Circulation Fan: Varia le speed, 125/75.
Log Sets: Ceramic fi re, 7 per set.
Flue System: Coaxial (6-5/8" outer / 4" inner
liner) rigid flue and termination cap.
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are
required y the Canadian Safety Standards
and ANSI Standards to make you aware of the
following:
INSTALLATION
ING, ETC. IT IS IMPERATIVE THAT
THE CONTROL COMPARTMENT,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLI-
ANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES,
THE APPLIANCE SHOULD BE LO-
CATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING: FAILURE TO INSTALL
THIS APPLIANCE CORRECTLY
WILL VOID YOUR WARRANTY AND
MAY CAUSE A SERIOUS HOUSE
FIRE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERA-
TURES, ESPECIALLY THE FIRE-
PLACE GLASS, AND SHOULD
STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CLOTHING OR OTHER FLAMMA-
BLE MATERIAL SHOULD NOT BE
PLACED ON OR NEAR THE APPLI-
ANCE.
INSTALLATION AND REPAIRS
SHOULD BE DONE BY AN AUTHOR-
IZED SERVICE PERSON. THIS AP-
PLIANCE SHOULD BE INSTALLED,
REPAIRED, INSPECTED BEFORE
USE AND AT LEAST ANNUALLY
BY AN AUTHORIZED SERVICE PER-
SON. MORE FREQUENT CLEAN-
ING MAY BE REQUIRED DUE TO
EXCESSIVE LINT FROM CARPET-
page 6. This unit is approved for manufac-
tured home installations, see page 9 for the
required flue arrangements. If installed into
a manufactured home the unit must e
olted down to the floor.
4) This appliance is Listed for edroom instal-
lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes efore
installation.
5) This appliance is Listed for Alcove installa-
tions, maintain minimum Alcove clearances
as follows, m i n i mum width of 48" (1219mm),
a maximum depth of 36" (914mm), and
minimum ceiling height of 64"(1626mm).
6) We recommend that you plan your installa-
tion on paper using exact measurements
for clearances and floor protection efore
actually installing this appliance. Have an
authorized uilding inspector review your
plans efore installation.
GENERAL SAFETY
INFORMATION
1) The appliance shall e installed in accord-
ance with the manufacturer's installation
instructions,local gas fitting regulations, mu-
nicipal uilding codes, water supply regu-
lations, electrical wiring regulations, with
AS5601-2004 (AGA gas installation code)
NZS 5261 (New Zealand)
2) Installation and repair should be done
ONLY by an authorised person.
3) DO NOT CONNECT TO MASONARY FLUE.
4) This appliance must be connected to
the specified flue and termination cap
to the outside of the building enve-
lope. Never flue to another room or
inside a building. Make sure that the
flue is fitted as per Flueing instruc-
tions.
5) Inspect the flueing system annually for
lockage and any signs of deterioration.
6) Flueing terminals shall not e recessed into
a wall or siding.
7) Any safety glass removed for servicing
must e replaced prior to operating the
appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wear gloves and safety glasses for protec-
tion while doing required maintenance.
1) Provide adequate clearances for servicing,
proper operation and around the air open-
ings into the com ustion cham er.
2) The appliance may e installed on a flat,
solid, continuous surface (e.g. wood, met-
al, concrete). This may e the floor, or it can
e raised up on a platform to enhance its
visual impact. The appliance may e in-
stalled on carpeting, tile, wood flooring or
other com usti le material, ecause the
appliance's metal pedestal ase extends
the full width and depth of the appliance.
The Regency Room Sealed Freestanding
Gas Stove can e installed in a wide variety
of ways and will fit nearly any room layout.
It may e installed in a recessed position,
framed out into the room, or across a cor-
ner.
3) The Regency Room Sealed Freestanding
Gas Stove is approved for alcove installa-
tions, which meet the clearances listed on
All manuals and user guides at all-guides.com

6Regency FG39 FireGenie Freestanding Gas Stove
INSTALLATION
2) If required, adjusting the primary air to
ensure that the flame does not car on. First
allow the unit to urn for 15-20 min. to
sta ilize.
CAUTION: Any alteration to the product
that causes sooting or carboning that
results in damage is not the responsibil-
ity of the manufacturer.
CLEARANCES TO
COMBUSTIBLES
The clearances listed are MINIMUM distances.
Measure the clearance to oth the appliance
and the chimney connector. The farthest
distance is correct if the two clearances
do not coincide.
For example, if the appliance is set as indicated
in one of the figures ut the connector is too
close, move the stove until the correct clear-
ance to the connector is o tained.
This appliance may e installed only with the
clearances as shown in the situations pic-
tured. Do not combine clearances from
one type of installation with another in
order to achieve closer clearances.
This unit can e installed on a solid com usti le
surface like a wood floor. This unit can also e
installed directly on carpeting or vinyl when the
ottom pedestal cover plate (provided with
unit) is installed.
Use the minimum clearances shown in the
diagrams elow:
FG39-NG & FG39-LPG Clearances
A Side Wall to Unit 190 mm
B Back Wall to Unit 150 mm
E Side Wall to Unit 50 mm
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11) Under no circumstances should this appli-
ance e modified. Parts that have to e
removed for servicing should e replaced
prior to operating this appliance.
12) Installation and any repairs to this appliance
should e done y an authorised service
person. An authorised service person
should e called to inspect this appliance
annually. Make it a practice to have all of
your gas appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, card oard, coal, etc.)
e used in this appliance.
15) The appliance area must e kept clear and
free of com usti le materials, (gases and
other flamma le vapours and liquids).
INSTALLATION
CHECKLIST
1) Check Clearances to Com usti les (page
6), location of unit (page 6) and fluing
requirements (pages 8 to 10).
2) Install Louvers, page 7.
3) Install fluing, either with the DV Stove Hor-
izontal Flue Kit (page 10) or the Dura-Flue
Termination kits (page 12). Set Flue Restric-
tors, page 9.
4) Make gas connections, page 16. Test the
pilot. Must e as per diagram.
5) If necessary, convert to LPG (page 17) or
convert to lower Btu rating (page 19).
6) Test Gas Pressure, page 16.
7) Install log set, see page 19.
8) Install Front Door Front, page 21.
9) Install optional Remote Control, page 21.
10) Final check, page 21.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on la el) after urning
appliance for 15 minutes.
FG39-NG & FG39-LPG
Reference Dimensions
C Back Wall to Flue Centerline 11" / 280 mm
D Side Wall to Flue Centerline 521 mm
F Side Wall to Flue Centerline 280 mm
Minimum ceiling
height is 914 mm
from top of unit.
LOCATING YOUR
REGENCY GAS STOVE
When selecting a location for your stove,
ensure that the clearances listed a ove are
met as well as ensuring that there is adequate
accessi ility for servicing and proper opera-
tion.
A ) Cross Corner
B) Room Divider
C) Island
D) Flat on Wall
E) Flat on Wall Corner
F) Flush with Wall/ Alcove
For Flue Termination requirements, see page 8.
COMBUSTION AND
VENTILATION AIR
The com ustion air from this appliance is drawn
from outside the uilding through the outer flue.
Extra provision for combustion air inside
the room is not required.
12’ (4m)
A
C
D
E
F
B
12’ (4m)
Max.
Max.
All manuals and user guides at all-guides.com
all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 7
LOUVER
INSTALLATION
1) Attach the top & bottom louvres to the
side stove panel using 2 screws per
side.
INSTALLATION
FLUEING
INTRODUCTION
The DV Stove Horizontal Flue Kit and the Simp-
son Dura-Flue Room Sealed System Model DV-
GS fluing systems, in com ination with the
Regency Room Sealed Freestanding Gas Stove,
FG39-NG, and FG39-LPG, have een tested
and listed as direct flue heater systems y
AGA.
These units use the " alanced flue" technology
Co-Axial system. The inner liner flues products
of com ustion to the outside while the outer
pipe draws outside com ustion air into the
com ustion cham er there y eliminating the
need to use heated room air for com ustion and
losing warm room air up the chimney.
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and flue system must e
flueed directly to the outside of the uilding, and
never e attached to a chimney serving a
separate solid fuel or gas urning appliance.
Each direct flue gas appliance must use it's own
separate flue system. Common flue systems
are prohi ited.
IMPORTANT
Read all instructions carefully efore starting
the installation. Failure to follow these instruc-
tions may create a fire or other safety hazard,
and will void the warranty. Be sure to check the
fluing and clearance to com usti le require-
ments. Consult your local uilding codes efore
eginning installation.
The location of the termination cap must con-
form to the requirements in the Exterior Flue
Termination Locations diagram on page 8.
INSTALLATION
PRECAUTIONS
These fluing systems are engineered products
that have een designed and tested for use
with the FG39-NG, and FG39-LPG. The war-
ranty will e voided and serious fire, health or
other safety hazards may result from any of
the following actions:
1) Installation of any damaged Room Sealed
component
2) Unauthorized modification of the Room
Sealed System
3) Installation of any component part not man-
ufactured or approved y Simpson Dura-
Flue or FPI Fireplace Products International
Ltd.
4) Installation other than as instructed y
Simpson Dura-Flue and FPI Fireplace Prod-
ucts International Ltd.
Warning: Always maintain required
learan es (air spa es) to nearby
ombustibles to prevent a fire haz-
ard. Do not fill air spa es with insu-
lation.
Be sure to check the flue termination clearance
requirements from decks, windows, soffits,
gas regulators, air supply inlets and pu lic
walkways as specified in the Exterior Flue
Terminal Locations on page 8 and in your local
uilding codes.
The gas appliance and flue system must
be flueed directly to the outside of the
building, and never be attached to a chim-
ney serving a separate solid fuel or gas-
burning appliance. Each direct flue gas ap-
pliance must use it's own separate flue sys-
tem. Common flue systems are prohi ited.
SAFETY
PRECAUTIONS FOR
THE INSTALLER
1) ear gloves and safety glasses for
protection.
2) Exercise extreme caution when us-
ing ladders or on roof tops.
3) Be aware of electrical wiring loca-
tions in walls and ceilings.
All manuals and user guides at all-guides.com

8Regency FG39 FireGenie Freestanding Gas Stove
INSTALLATION
EXTERIOR FLUE TERMINATION LOCATIONS
Minimum learan es required for balan ed flue terminals or
the flue terminals of outdoor applian es
a ording to AS5601-2004 (AGA gas installation ode) or NZS 5261 (New Zealand)
Minimum
Clearance (mm)
a Below eaves, alconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
From the ground or a ove a alcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse ox (P) 500
f From a drain or soil pipe 150
g Horizontal from any uilding structure (unless appliance is approved
for closer installation) or o struction facing a terminal 500
h From any other flue terminal, cowl or com ustion air intake 500
j Horizontally from an opena le window, door, or non-mechanical air inlet, or
any other opening into a uilding, with the exception of su -floor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically elow an opena le window, door, or non-mechanical air inlet,
or any other opening into a uilding, with the exception of su -floor ventilation
(see also Note (I)): see ta le elow
Clearan e 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h Up to 50 MJ/h input Over 50 MJ/h input Over 150 MJ/h input
input to 150 MJ/h input
150 500 1000 1500
NOTES:
(I) For mechanical air inlets, including spa lowers, the clearance 'j' and 'k' shall e 1500 mm in all cases.
(II) All distances shall e measured vertically or horizontally along the wall to a point in line with the nearest
par to of the terminal.
(III) Prohi ited area elow electricity meter or fuse ox extends to ground level.
(IV)A flue terminal of this type shall not e located under a roofed area unless the roofed area is fully open on
at least two sides and a free flow of air at the appliance is achieved.
All manuals and user guides at all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 9
INSTALLATION
FLUEING ARRANGEMENTS
Verti al Terminations Using
Dura-Flue Fluing System for
Residential Manufa tured and Mobile Homes
The shaded area in the diagram below shows all allowable
combinations of straight vertical and offset to vertical runs
with vertical terminations. Maximum two 45o elbows.
If the flue is ENCLOSED in a chase (min. size 9" x 9" / 229mm x 229mm)
maintain a 1-1/4" (32mm) clearance to com usti les.
May be installed in Manufactured (Mobile) Homes after first sale.
Horizontal Terminations for All Fluing Systems
The shaded areas in the diagram below show all allowable
combinations of vertical runs with horizontal terminations.
Maximum one 90O elbow (two 45o elbows equal one 90o elbow).
LPG and NG:
Residential, Manufa tured and Mobile Homes
Installations
The fluing arrangements diagrammed elow, have a min. of 75% (flue
loss) efficiency with Fan Off, as required for manufactured homes.
(Actual efficiency may e as high as 85%)
May be installed in Manufactured (Mobile) Homes after first sale.
Flue Restri tor Position
To set the Flue restriction as indicated in the diagram, simply loosen the
screws and push the flue restrictor plate to the correct position. Tighten
the screws.
Flue Restrictor setting at
40 Mj/h
Flue Restrictor setting at
3 Mj/h
All manuals and user guides at all-guides.com

10 Regency FG39 FireGenie Freestanding Gas Stove
INSTALLATION
DV STOVE HORIZONTAL FLUE KIT (#946- 2) INSTALLATION
Minimum Installation Height: FG39: 59-3/4" ( 1518mm)
Review the following sequence of instruc-
tions which are typical of most installations.
The sequence may vary depending on wall
thickness. Refer to flue location and clear-
ance dimensions on pages 8 to 9.
1) Set the unit in its desired location. Check
to determine if wall studs will e in the way
of the fluing system, adjust location until all
clearances are met and there are no
o structions.
Note: A 1-1 2"(38mm) clearance around
the outer pipe must be main-
tained except that only a 1"
(25mm) clearance is needed at
the termination end.
IMPORTANT:
Do not locate termination hood where
excessive snow or ice buildup may oc-
cur. Be sure to check flue termination
area after snow falls, and clear to pre-
vent accidental blockage of fluing sys-
tem. When using snow blowers, make
sure snow is not directed towards flue
termination area.
2) Assem le a trial fit to determine the ver-
tical center-line for the flue termination.
a) Cut a 241mm round hole on oth the
interior and exterior wall.
) Attach the 2 ft. (.6m) pipe section to
the flue terminal and slide into posi-
tion from the exterior. The larger
diameter end of the adjustable
pipe goes to the flue terminal.
c) Install the 90o el ow onto the adjust-
a le pipe to determine the vertical
centerline of the starter collar on the
unit.
Note: if the centerline cannot be
met, the adjustable sections will
have to be cut.
DV STOVE HORIZONTAL FLUE KIT
Horizontal Stove Flue Kit (Part # 946-112) includes all the parts needed to install the FG39
Freestanding Gas unit with minimum horizontal and vertical vent dimensions. For installations that
require longer vertical and/or horizontal vents use the Dura-Vent system as shown in your manual.
Qty. Description
1) 2 Rigid Pipe Section 1.2m length, 165mm inside diameter
2) 1 Flex Liner, compressed aluminium 2 ply liner, 102mm inside diameter
3) 4 spring spacers
4) 1 90 deg. El ow
5) 1 Decorative Wall Trim
6) 1 Adapter
7) 1AstroCap Termination Cap
8) 2 Trim Collar
9) 1 tu e of Mill-Pac, high temperature sealant
10) 12 Screws, #8 x 1/2" (13mm) Self tapping, Stainless Steel
11) 14 Screws, #8 x 1/2" (13mm) Self tapping, Black
12) 4 Screws #8 x 1-1/2" (38mm) Drill Point, Stainless Steel
Optional:
946-206 Vinyl Siding Standoff for AstroCap
Note:
a ) Liner sections should be continuous
without any joints or seams.
b) This is an approved system, therefore
components in this system must not be
substituted for any other manufactur
er's products.
c) Wall Thimble is required when install
ing through a combustible wall.
All manuals and user guides at all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 11
INSTALLATION
d) Cut the 2 ft. (.6m) section of rigid pipe
to length. Ensure that the pipe length
when cut will seat onto oth the start-
er collar and the 90o el ow. Crimped
section of rigid pipe seats into
the 90o elbow. Only cut the un-
crimped side of pipe.
Dismantle all pipe sections including flue
terminal.
3) Attach the 4" (102mm) dia. flex liner to the
flue terminal ensuring that the flex overlaps
the collar of the flue terminal y a minimum
of
1-3/8"(35mm). Use Mill-Pac to seal and
secure with 3 of the #8 x 1/2" (13mm)
screws (stainless steel).
4) Attach the 2 ft. (.6m)pipe section to the flue
terminal using Mill-Pac and/or high temper-
ature silicone and attach with 3 of the #8 x
1/2" (13mm) screws (stainless steel).
siding standoff to prevent water from en-
tering and to make a tight seal etween the
cap and the standoff.
7) Stretch the 4" (102mm) dia. flex liner out
fully and get a trial fit of the liner onto the 4"
(102mm) dia. starter collar.
8) Cut the 4" (102mm) dia. flex liner to the
desired size.
Hint: leave an extra 12" to 16" (305mm to
406mm) of length, this will make the final
assem ly easier to work with.
9) Secure the 4" (102mm) dia. flex liner to the
4" (102mm) adapter with Mill-Pac and 3 of the
#8 x 1/2" (13mm) screws (stainless steel).
10) Slide the Decorative Wall Cover over the
pipe sections.
11) Slide the 90o el ow (crimp end up) and the
2 ft. (.6m) pipe section (crimp end up) over
the 4" dia. flex liner.
12) Slide the trim collar over the pipe section to
cover the joint.
13) Install the spring spacers onto the pipe
sections.
14) Secure the 4" (102mm) dia. flex liner with
adapter onto the stove collar. Put a ead of
Mill-Pac around the appliance adapter and
secure with 3 screws (#8 x 1/2" / 13mm,
stainless steel).
15) Attach the pipe section onto the starter
collar y sealing with Mill-Pac and/or high
temperature silicone and securing with 3 of
the #8 x 1/2" (13mm) ( lack) screws. Pipe
seams should e facing the wall.
16) Attach the 90o el ow onto the pipe section
y sealing with Mill-Pac and/or high temper-
ature silicone and securing with 3 of the #8
x 1/2" (13mm) screws ( lack).
17) Slide the 2 ft. (.6m) pipe section onto the 90o
el ow. The flex may have to e com-
pressed ack in order for the pipe to prop-
erly mate to the el ow. Seal with Mill-Pac
and/or high temperature silicone and se-
cure with 3 of the #8 x 1/2" (13mm) screws
( lack). Pipe seams facing down.
18) Install the trim collar over the starter collar
and secure with a #8 x 1/2" (13mm) screw
( lack).
If the pipe needs to e touched up, use only
Stove Brite High Temperature Metallic Black
Stove Paint.
NOTE: All i nner joints must be sealed
with Mill-Pac.
All outer joints may be sealed with
high temperature silicone.
Note: The pipe seam
should be facing
down.
Note: To make the instal-
lation more aes-
thetically pleasing,
we recommend
framing out a square that the cap
can be mounted on.
Note: If installing termination on a siding
covered wall, a vinyl siding stand-
off or furring strips must be used
to ensure that the termination is
not recessed into the siding. For
vinyl siding standoff installation re-
fer to the Dura-Flue Termination
instructions.
5) Slide the partially connected pipe and flue
terminal assem ly through the wall (from
the exterior into the interior) and secure the
cap to the exterior wall with 4 of the supplied
screws (#8 x 1-1/2" (38mm) drill point,
stainless steel).
Note: The four screws provided for the
flue cap should be replaced with
appropriate fasteners for stucco,
brick, concrete, or other types of
sidings.
6) A ead of non-hardening mastic should e
run around oth the termination and vinyl
Hint: Apply the
sealant (Mill-
Pac and/or high
temperature sil-
icone) to the
outer pipe e-
fore connecting
the inner pipe.
#8 x ½" (13mm) Self Tapping, Stainless Steel
#8 x ½" Self Tapping, Black(13mm)
#8 x 1½" (38mm) Drill Point, Stainless Steel
All manuals and user guides at all-guides.com
all-guides.com

12 Regency FG39 FireGenie Freestanding Gas Stove
Pipe Length
Round Support
Box/Wall Thimble
(Part # 940)
Round
Support Box/
Wall Thimble
(Part # 940)
Vertical
Terminal
Storm Collar
Part # 953
Flashing
943 or 943S
Ceiling Firestop
(Part # 963)
24" (610mm)
Pipe Length
Adj.Pipe Length
11" - 14-5/8"
(279mm - 372mm)
90 Elbow
o
Wall Thimble
Part # 942
Vinyl Siding
Standoff (Optional)
Part #950
AstroCap
Termination Cap
(Part# 946-523)
DURA-FLUE
TERMINATION KIT
Planning Your Dura-Flue
Installation
There are two asic types of Dura-Flue Room
Sealed System installations: horizontal termi-
nation and vertical termination. Confirm the
maximum horizontal run and maximum vertical
rise from the diagrams on page 9.
When planning your installation, it will e nec-
essary to select the proper length of flue pipe
for your particular requirements. For horizontal
installations, determine the minimum clearance
from the rear of the unit to the wall. It is also
important to note the wall thickness. (The wall
thim le is suita le for 2 x 4 or 2 x 6 / .6m x 1m
or .6m x 2m wall construction.) Select the
amount of vertical rise desired for "vertical-to-
horizontal" type installations.
Warning: Always maintain required clear-
ances (air spaces) to nearby combusti-
bles to prevent a fire hazard. Do not fill air
spaces with insulation.
The minimum clearance requirements etween
the outer wall of the flue pipe and near y
com usti le surfaces is 1-1/4 inch. Be sure to
check the flue termination clearance require-
ments from decks, windows, soffits, gas reg-
ulators, air supply inlets and pu lic walkways
as specified in the Exterior Flue Termination
Locations on page 8 and in your local uilding
codes.
To determine the length of flue pipe required for
vertical installations, measure the distance from
the unit flue outlet to the ceiling, the ceiling
thickness, the vertical rise in an attic or second
storey, and allow for sufficient vertical height
a ove the roof line.
For multi-storey applications, fire stops are
required at each floor level. If an offset is
needed, additional pipe, el ows and supports
will e required.
Do not exceed the maximum num er of el ows.
One 90o for horizontal terminations and two 45o
for vertical termination.
DURA-FLUE FLUING
COMPONENTS
You will require the following components with
your new Regency Room Sealed Freestanding
Gas Stove. Please review your product to make
sure you have everything you need. In the eflue
that you are missing any part, contact your
dealer.
Note: These are the minimum pieces
required. Other parts may be re
quired for your particular instal
lation. See below for a list of flue
parts.
If installing termination on a siding covered wall,
a vinyl siding standoff or furring strips can e
used in order to ensure that the termination is not
recessed into siding.
The vinyl siding standoff is required for walls
with vinyl siding.
Minimum components for a Dura-Flue
Horizontal Installation:
A ) Dura-Flue Horizontal Termination Kit
B) Wall Thim le (required for com us-
ti le walls)
Minimum components for a Dura-Flue
Vertical Termination:
C) Dura-Flue Vertical Termination Kit
The Simpson Dura-Flue Room Sealed System
offers a complete line of component parts for
installation of oth horizontal and vertical instal-
lation. Many items are offered in decorative
lack, as well as galvanized finish. The galva-
nized pipe and fittings are used for concealed
INSTALLATION
locations such as attics or where corrosion is
a factor, such as a ove the roof line. Decora-
tive rass trim kits are availa le for oth wall
thim les and ceiling support oxes.
Part # Description
971 Horiz. Termination Kit includes: 90o
lack el ow, wall thim le cover,
horiz. square termination cap, 24"
lack pipe, 11" -14" 5/8" adjusta le
lack pipe
970 Basic Horiz. Termination Kit
includes: 90o lack el ow, wall
thim le cover, horiz. square
termination cap
978 Vert. Termination Kit includes
0/12 - 6/12 pitch adjusta le
flashing, storm collar, low profile
term. cap
908B 6" (152mm) Pipe Length-Black
907B 9" (229mm) Pipe Length-Black
906 12" (304mm) Pipe Length Galv.
906B 12" (304mm) Pipe Length-Black
904 24" (610mm) Pipe Length Galv.
904B 24" (610mm) Pipe Length-Black
903 36" (914mm) Pipe Length Galv.
903B 36" (914mm) Pipe Length-Black
902 48" (1219mm) Pipe Length Galv.
902B 48" (1219mm) Pipe Length-Black
911B 11"-14 5/8" (219mm - 372mm)
Adj. Pipe Length-Black
917B 17"- 24" (432mm - 610mm)
Adj. Pipe Length Black
945 45O El ow Galv.
945B 45O El ow-Black
945G 45O El ow-Swivel Galv.
990G 90O El ow-Swivel Galv.
Dura-Flue Basic
Horizontal Kit # 970
190
o Elbow
1 all Thimble Cover
1 Astro Cap
All manuals and user guides at all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 13
Diagram 5
Note: If installing termination on a siding cov-
ered wall, a vinyl siding standoff or furring
strips must e used to ensure that the
termination is not recessed into the siding.
The four wood screws provided should e
replaced with appropriate fasteners for
stucco, rick, concrete, or other types of
sidings.
5) Before connecting the horizontal run of flue
pipe to the flue termination, slide the lack
decorative wall thim le cover over the flue
pipe, then slide the Wall Thim le (Part # 942)
over the flue pipe.
6) Slide the appliance and flue assem ly to-
wards the wall carefully inserting the flue
pipe into the flue cap assem ly. It is impor-
tant that the flue pipe extends into the flue
cap a sufficient distance so as to result in
a minimum pipe overlap of 1-1/4 inches
(32mm) . Secure the connection etween
the flue pipe and the flue cap using sheet
metal screws provided. See diagram 6.
FG39: 59-3/4" (1518mm)
Diagram 2
b) The location of the horizontal flue ter-
mination on an exterior wall must meet
all local and national uilding codes,
and must not e locked or o structed.
For External Flue Termination Loca-
tions, see diagram on page 8.
4) If installing the flue termination to a wall with
vinyl siding, the Vinyl Siding Standoff must
e used. Attach the Vinyl Siding Standoff
to the Horizontal Flue Termination, ut first
run a ead of non-hardening mastic around
its outside edges, so as to make a seal
etween flue cap and the standoff. Install
the Vinyl Siding Standoff (Part # 950) e-
tween the flue cap and the exterior wall
and attach with the four wood screws
provided. Seal around the Vinyl Siding
Standoff on all four sides. Diagram 5. The
arrow on the flue cap should be point-
ing up. Insure that the 1-1/4" (32mm)
clearances to com usti le materials are
maintained. See diagram 5.
line of the horizontal pipe, as shown in
diagram 2. Cut and frame the 10 inch (254mm)
square hole in the exterior wall where the
flue will e terminated. If the wall eing
penetrated is constructed of non-com us-
ti le material, i.e. masonry lock or con-
crete, a 7" (178mm) diameter hole is accept-
a le.
Note:
a) The horizontal run of flue should have
a 1/4 inch (6mm) rise for every 1 foot
(.3m) of run towards the termination.
Never allow the flue to run downward.
This could cause high temperatures
and may present the possi ility of a fire.
INSTALLATION
DURA-FLUE
HORIZONTAL
INSTALLATIONS
1) Set the unit in its desired location. Check to
determine if wall studs or roof rafters are
in the way when the fluing system is
attached. If this is the case, you may want
to adjust the location of the unit.
2) Room Sealed pipe and fittings are designed
with special twist-lock connections to con-
nect the fluing system to the appliance flue
outlet. A twist-lock appliance adaptor is
installed on the unit at the fac-
tory. Assem le the desired
com ination of pipe and el-
ows to the appliance
adaptor with pipe
seams oriented to-
wards the wall or ceil-
ing, as much out of
view as possi le. The
final positioning of the
pipe and 90o el ow as-
sem ly is deter-
mined y the
mounting orien-
tation of the
adaptor on the
stove and twist-
locked for a sol-
id connection.
Note:
a) Twist-lock procedure: Four indenta-
tions, located on the female ends of
pipes and fittings, are designed to slide
straight onto the male ends of adjacent
pipes and fittings, y orienting the four
Diagram
945BG 45O El ow-Swivel-Black
990 90O El ow Galv.
990B 90O El ow-Black
990G 90O El ow-Swivel Galv.
990BG 90O El ow-Swivel-Black
991 High Wind Term. Cap (Vertical)
980 Vertical Term. Cap
982 Snorkel-14" Rise Term.Cap
981 Snorkel-36" Rise Term.Cap
940 Wall Thim le-Support/Box
941 Cathedral/Ceiling-Support/Box
3951 Brass Trim-Wall Thim le/
Ceiling Support
963 Firestop Spacer
943 Flashing 0/12-6/12
943S Flashing 7/12-12/12
953 Storm Collar
950 Vinyl Siding Standoff
988 Wall Strap
942 Wall Thim le
Parts not supplied by Dura-Flue
946-506/P Flue Guard (Optional)
948-128 Vinyl Siding Shield
Astro Cap (Australian)
pipe indentations so they match and
slide in to the four entry slots on the male
ends (diagram 1). Push the pipe sec-
tions completely together, then twist-
lock one section clockwise approxi-
mately one-quarter turn, until the two
sections are fully locked. The female
locking lugs will not e visi le from the
outside on the Black Pipe or fittings.
They may e located y examining the
inside of the female ends. Apply sealant
"Mill-Pac" to inner pipe and high temp
silicone sealant to outer pipe on every
twist-lock joint.
Hint: Apply silicone to female end.
b) Horizontal runs of flue must e support-
ed every three feet. Wall straps are
availa le for this purpose.
3) With the pipe attached to the stove, slide the
stove into its correct location, and mark the
wall for a 10" x 10" / 254mm x 254mm (inside
dimensions) square hole. The center of the
square hole should line up with the center-
All manuals and user guides at all-guides.com

14 Regency FG39 FireGenie Freestanding Gas Stove
Diagram : The upper half of the flashing is
installed under the roofing material and not
nailed down until the chimney is installed.
This allows for small adjustments.
4) Assem le the desired lengths of lack pipe
and el ows necessary to reach from the
appliance adaptor up though the Round
Support Box. Insure that all pipes and
el ow connections are in the fully twist-
locked position and sealed.
5) Cut a hole in the roof centred on the small
drilled hole placed in the roof in Step 2. The
hole should e of sufficient size to meet the
minimum requirements for clearance to com-
usti les of 1-1/4" (32mm) . Slip the flashing
under the shingles (shingles should overlap
half the flashing) as per diagram 11.
Diagram 2
7) Ensure flue is vertical and secure the ase
of the flashing to the roof with roofing rails,
slide storm collar over the pipe section and
seal with a mastic.
8) Install the vertical termination cap y twist
locking it.
6) Continue to assem le pipe lengths.
Note: If an offset is necessary in the attic
to avoid obstructions, it is impor-
tant to support the flue pipe every
3 feet, to avoid excessive stress
on the elbows, and possible sep-
aration. Wall straps are available
for this purpose. See diagram 7.
Galvanized pipe and el ows may e uti-
lized in the attic as well as a ove the
roofline. The galvanized finish is desira le
a ove the roofline due to its higher corro-
sion resistance.
Continue to add pipe sections through the
flashing until the height of the flue cap
meets the minimum height requirements
specified in diagram 12 or local codes. Note
that for steep roof pitches, the vertical
height must e increased. A poor draft, or
down drafting can result from high wind
conditions near ig trees or adjoining roof
lines, in these cases, increasing the flue
height may solve the pro lem.
Roof Pitch Minimum Flue Height
Feet Meters
flat to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44
Diagram 0
Diagram 9
Diagram 8
Diagram 7
Diagram 6

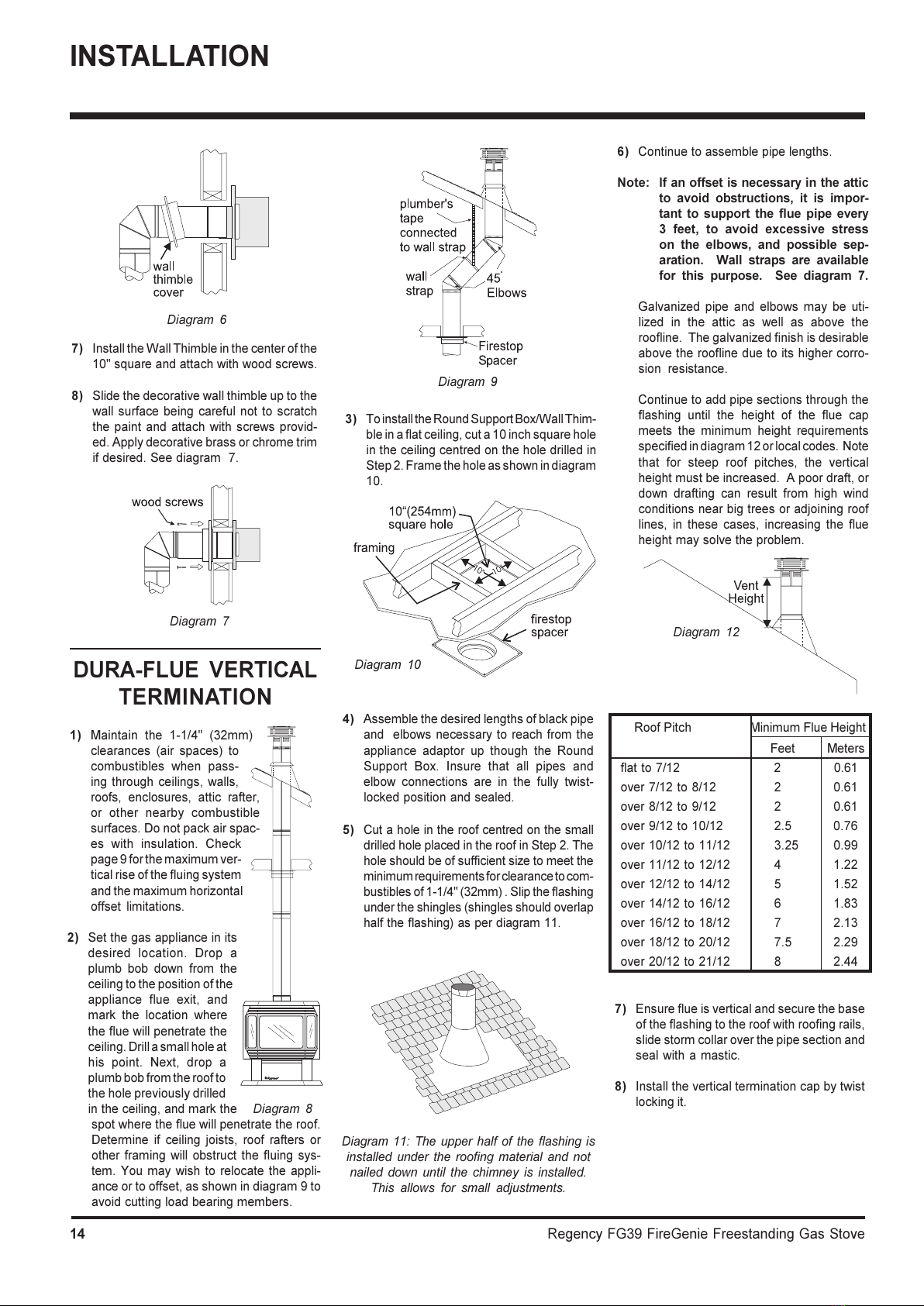

DURA-FLUE VERTICAL
TERMINATION
1) Maintain the 1-1/4" (32mm)
clearances (air spaces) to
com usti les when pass-
ing through ceilings, walls,
roofs, enclosures, attic rafter,
or other near y com usti le
surfaces. Do not pack air spac-
es with insulation. Check
page 9 for the maximum ver-
tical rise of the fluing system
and the maximum horizontal
offset limitations.
3) To install the Round Support Box/Wall Thim-
le in a flat ceiling, cut a 10 inch square hole
in the ceiling centred on the hole drilled in
Step 2. Frame the hole as shown in diagram
10.
INSTALLATION
7) Install the Wall Thim le in the center of the
10" square and attach with wood screws.
8) Slide the decorative wall thim le up to the
wall surface eing careful not to scratch
the paint and attach with screws provid-
ed. Apply decorative rass or chrome trim
if desired. See diagram 7.
2) Set the gas appliance in its
desired location. Drop a
plum o down from the
ceiling to the position of the
appliance flue exit, and
mark the location where
the flue will penetrate the
ceiling. Drill a small hole at
his point. Next, drop a
plum o from the roof to
the hole previously drilled
in the ceiling, and mark the
spot where the flue will penetrate the roof.
Determine if ceiling joists, roof rafters or
other framing will o struct the fluing sys-
tem. You may wish to relocate the appli-
ance or to offset, as shown in diagram 9 to
avoid cutting load earing mem ers.
All manuals and user guides at all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 15
INSTALLATION
Offset Chart
Diagram 3
Notes:
a) For multistorey vertical installations, a
Ceiling Fire stop (Part # 963) is required
at the second floor, and any su se-
quent floor. Diagram 13. The opening
should e framed to 10 " x 10" (254mm
x 254mm) inside dimensions, in the
same manner as shown in diagram 10.
b) Any occupied areas a ove the first floor,
including closets and storage spaces,
through which the vertical flue passes,
must e enclosed.
CATHEDRAL CEILINGS
Round upport (RD ) &
quare upport ( Q )
If your home has a cathedral ceiling (no attic
space etween the ceiling and the roof), install
the chimney and support as follows.
1) Situate the chimney in a convenient loca-
tion as near as possi le to the appliance
outlet. Cut and frame a hole in the roof for
the support. The sides of this hole must e
vertical with 1 1/4" (32mm) clearance.
2) Place the support in the opening. Lower it
to the correct height as determined y the
ta le and diagram elow.
Using a level, make sure the support is
vertical. If the support extends a ove the
roof, cut it flush with the top of the roof. Nail
the support to the frame opening using (8)
3" (76mm) spiral nails or #8 x 1-1/2" (38mm)
screws.
Note: If you are using a 6" square sup-
port you may find it difficult to
screw it in place because it is fairly
small inside.
Simpson Dura-Flue has provided angle
rackets with this support which can e
screwed to the outside of the support ox
and nailed to surrounding framing as re-
quired. Use a minimum of four #8 x 1/2"
(13mm) screws per racket. In some
cases these rackets may need to e
trimmed (e.g.: to fit under a flashing). Place
the Finish Collar around the support and
fasten it to the ceiling using the screws
provided.
3) Use appropriate roof flashing. Place the
flashing under the upper shingles and on
top of the lower shingles approximately half
of the flashing should e under the shin-
gles.
4) Assem le the desired lengths of Black Pipe
and El ows necessary to reach from the
appliance adaptor up through the support
ox and flashing to proper height as per Dia.
12, local codes or page 9. Ensure that all
pipe and el ow connections are in their fully
twist lock position.
5) Ensure flue is vertical and secure flashing
to the roof with roofing nails. Slide the storm
collar over the pipe section and seal with a
mastic.
6) Twist lock the flue cap on to the last section.
Support Extensions - Round
(RDSE) or Square (SQSE)
Steep pitched cathedral ceilings may require
the use of a support extension. This piece fits
down inside the support and can e adjusted
to increase the support's length y up to 22"
(559mm). The extension is attached to the
support using the eight metal screws provided.
Be sure there is at least a 2 inch overlap where
the extension joins the support.
Slope "X"
0/12 - 2/12 4" (102mm)
2/12 - 7/12 5-1/2" (140mm)
7/12 - 12/12 6-3/4" (172mm)
12/12 - 24/12 7-1/2" (191mm)
24/12+ 12-1/2" (378mm)
1-1/4" (32mm) Min.
1-1/4" (32mm) Min.
1-1/4"
(32mm)
Min. 1-1/4" (32mm) Min.
nails
Ceiling Firestop
All manuals and user guides at all-guides.com

16 Regency FG39 FireGenie Freestanding Gas Stove
INSTALLATION
GAS CONNECTION
The gas line should e rigid pipe. Copper may
also e used if approved y AS5601-2004.
The gas connection at the valve is 1/2 male. For
minimum and maximum supply pressure see the
System Data Ta le.
GAS PIPE PRESSURE
TESTING
The appliance must e isolated from the gas
supply piping system y closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
kPa). Disconnect piping from valve at pres-
sures over 3.45 kPa (14" w.c.).
The manifold pressure is controlled y a regu-
lator uilt into the gas control, and should e
checked at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures
should be checked using the valve
pressure ports on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" (# 3) and/or "OUT" (# 4)
pressure tap(s), turning counterclockwise
with a 1/8" (3mm) wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" (8mm) ID
hose.
4) Seal and or check the pilot outlet (# 8)
5) The pressure check should e carried out
with the unit urning and the setting should
e within the limits specified on the safety
la el.
6) When finished reading manometer, turn off
the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"
(3mm) flat screwdriver. Screw should be
snug, but do not over tighten.
S.I.T. Valve Des ription
1) On-Off Solenoid Valve EV1
2) On-Off Solenoid Valve EV2
3) Inlet Pressure Test Point
4) Outlet Pressure Test Point
5) Connection for Pressure Regulator/Com-
ustion Cham er Compensation
6) Pressure Regulator for Minimum and Max-
imum Outlet Pressure
AERATION
ADJUSTMENT
The urner aeration is factory set ut may need
adjusting due to either the local gas supply or
altitude.
FG39 with 40 mj.
FG39-NG Fully Open
FG39-LPG Fully Open
FG39 with 31 mj.
FG39-NG 6 mm Open
FG39-LPG 10 mm Open
Caution: Carbon will be produced if the air
shutter is closed too much.
Note: Any damage due to carboning re-
sulting from improperly setting the
aeration controls is NOT covered
under warranty.
Burner Inlet Orifice Sizes:
NG LPG
Burner #32 #50
2.95mm 1.78mm
Max. Input NG 40 Mj/h
LPG 38 Mj/h
Min. Input NG 20 Mj/h
LPG 19 Mj/h
Supply Pressure
NG min. 1.13 kPa
LPG min. 2.75 kPa
Manifold Pressure
NG .94 kPa
LPG 2.55kPa
Electrical: 240 V. 1.13A 60Hz.
Circulation: 2 speed fan, 125/75 CFM.
Log Set: Ceramic fi er, 7 per set.
System Data
FG39 Converted to 31mj.
Burner Inlet Orifice Sizes:
NG #37 2.65mm
LPG #52 1.6mm
Max. Input - NG/LPG
31 Mj/h
Min. Input - NG/LPG
16 Mj/h
Supply Pressure
NG min. 1.13 kPa
LPG min. 2.75 kPa
Manifold Pressure
NG .89 kPa
LPG 2.55kPa
Electrical: 240 V. 1.13A 60Hz.
Circulation: Varia le speed fan, 125/75 CFM.
Log Set: Ceramic fi er, 7 per set.
System Data
FG39 with 40mj.
7) Gas Outlet Pressure Electric Modulator
8) Pilot Outlet
9) Main Gas Outlet
10) Side Outlet
All manuals and user guides at all-guides.com
all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 17
INSTALLATION
Conversion Kit for NG to LPG Model #736-969
HIS CONVERSION MUS BE DONE BY A QUALIFIED GAS FI ER IF IN DOUB DO NO DO HIS CONVERSION !!
Burner Orifice
Conversion Kit 736-969 Contains:
Qty. Part # Description
1 904-641 Burner Orifice #50
1 908-528 Red "LPG" la el
2 918-590 La el "Converted to LPG"
1 918-335 Instruction Sheet
1 910-920 Pilot Orifice
1) Shut off the gas supply and unplug the
power cord.
2) Open the front door and carefully remove
the logs and lava rock.
3) Remove urner.
4) Remove urner orifice with a 1/2" wrench
and discard. Use a wrench to hold on to the
el ow ehind the orifice.
5) Reinstall new urner orifice LPG stamped
#50 and tighten.
18) Stick the conversion la el "This unit has
een converted to LPG" on the control ox
cover.
19) Reverse steps 16, 15 & 12.
Jumper Location
Jumper
8) Remove the NG orifice and replace it with
the LPG orifice.
9) Install the pilot tu e to the pilot assem ly.
10) Place the pilot assem ly over the pilot extru-
sion tu e and secure it with 2 screws.
11) Adjust the urner areation setting to fully
open and install the urner.
12) Remove the pedestal ack cover y remov-
ing the 4 Philips screws.
Pilot Tube
7) Lift the pilot assem ly and remove the pilot
tu e using an 11mm wrench.
6) Remove the 2 screws which hold the pilot.
Pilot
Orifice
Pilot
Assembly
Pilot
Extrusion
Tube
13) Stick the conversion la el "This unit has
een converted to LPG" over top of the
serial num er decal.
14) Replace the yellow "NG" la el with the red
"LPG" la el.
15) Carefully pull out the control ox.
Note: The control ox is held in place y
velcro.
16) Remove the control ox cover y undoing
the 3 screws. Maneuver through antenna.
Control Box
Cover
Antenna
17) Remove the jumper using a plier.
20) Open the ottom door and remove the front
panel y undoing the 6 screws.
All manuals and user guides at all-guides.com

18 Regency FG39 FireGenie Freestanding Gas Stove
Installer Noti e:
These instru tions must be left with
the applian e.
Minimum pressure: Remove one of the
ca les connected to the electric modulator.
Keeping the nut (B) locked, screw in the
screw (C) to increase the pressure and
screw it out to decrease it. Use a screw-
driver 6 x 1 lade.
NOTE: The outlet pressure must e set to
minimum 0.74 kPa.
After carrying out all adjustments, lock
the setting screws with paint, taking care
not to o struct the reather orifice of the
pressure.
Put ack the modulator plastic cap.
WARNING: To ensure the correct opera-
tion of the modulator it is necessary that the
plastic cap (A) is returned to its original
location.
23) At the end of all setting and adjustment
operations, check electrical insulation and
gas leaks.
24) Reverse step 20.
25) Check operation of fan and flame control.
26) Check for proper flame appearance and
glow on logs.
Cable
Electric
Modulator
22) Adjusting the Outlet Pressure
All the adjustments must e carried out
in the following order:
Remove the modulator plastic cap (A) using
needle nose pliers.
Maximum pressure: Turn the unit ON to its
highest input rating. Screw in the nut (B) to
increase the outlet pressure and screw it
out to decrease it. Use a 10 mm wrench.
NOTE: The outlet pressure must e set to
maximum 2.65 kPa.
21) Turn on the gas supply and plug in the
power cord.
C
B
A
INSTALLATION
All manuals and user guides at all-guides.com

Regency FG39 FireGenie Freestanding Gas Stove 19
LOG SET
INSTALLATION
Read the instructions below carefully
and refer to the diagrams. If logs are
broken do not use the unit until they are
replaced. Broken logs can interfere with
the pilot operation.
The gas log kit contains the following:
a) 02-65 Rear Log
b) 02-56 Middle Left Log
c) 02-44 Front Left Log
d) 02-46 Left Top Log
e) 02-45 Front Right Log
f) 02-47 Center Log
g) 02-48 Middle Right Log
h) Em ers
i) Lava
Note: Install Optional Brick Panels prior
to installing logs.
Embers. Embers
The "02" refer numbers (i.e. 02-65) are
molded into the rear of each log.
1) Carefully remove the logs from the ox and
unwrap them. The logs are fragile, handle
with care - do not force into position.
2) Sprinkle the em ers on the left and right
sides of the fire ox ase.
INSTALLATION
CONVERSION TO LOWER BTU RATING
THI CONVER ION MU T BE DONE BY AN AUTHORIZED
GA FITTER IF IN DOUBT DO NOT DO THI CONVER ION
!!
NG Conversion Kit 730-920
Contains:
Qty. Part # Description
1 904-240 Burner Orifice #37 (NG)
1 918-034 Decal "Converted to 30,000 Btu"
1 918-033 Instruction Sheet
LPG Conversion Kit 730-922
Contains:
Qty. Part # Description
1 904-390 Burner Orifice #52 (LPG)
1 918-034 Decal "Converted to 30,000 Btu"
1 918-033 Instruction Sheet
Additional Piece (pkg. with unit:
1 Log Bracket Restrictor
1) Shut off the gas supply.
2) Open the front door. Carefully remove the
logs and lava rock.
3) Remove urner. See diagram elow.
Burner Orifice
4) Unscrew the 2 Rear
Log Pins and move
to the front hole po-
sition.
5) Remove Rear Log
Bracket and slide the
Log Bracket Re-
strictor etween the
Position the Log Bracket Restrictor between
the Rear Log Bracket and the burner.
6) Remove urner orifice with a 1/2" spanner
and discard.
7) Reinstall new urner orifice (NG stamped
#37 or LPG stamped #52) and tighten.
8) Reverse steps 3) and 2).
9) Adjust Flue restrictor setting: To set the Flue
restriction as indicated in the diagram, sim-
ply loosen the screws and push the flue
restrictor plate to the correct position. Tight-
en the screws.
Unit Btu/h Restrictor Opening
FG3940 Mj/h A 45mm
31 Mj/h B 35mm
Note: Use a
magnetic type
screwdriver if
possible.
Rear Log Bracket and the urner, secure
with the 2 screws.
Flue Restrictor
setting at High Btu/h
Flue Restrictor
setting at Low Btu/h
10) Attach the la el "This unit has een con-
verted to..." on top of the data adge over
the higher Btu information.
11) Check for gas leaks.
12) Check inlet and outlet pressures.
13) Check operation of flame control. Check for
proper flame appearance and glow on logs.
All manuals and user guides at all-guides.com

20 Regency FG39 FireGenie Freestanding Gas Stove
Notch
E)02 45
Bracket
A)02 65
The bottom right edge of Log G)02-48 must
sit snugly against the bracket
Side View
G)02 48
E)02 45
F)02 47
11) Position notch in Front Right Log G)02-48
on Log F)02-47 and push the ottom right
edge against the racket on the urner
tray.
G)02 48
12) Test fire to ensure proper light off (make
sure flame flows smoothly from one end of
urner to the other. If there is any flame
hesitation, check that area for any lock-
age of the urner port.
F)02 47
E)02 45
A)02 65
G)02 48
D)02 46
B)02 56
C)02 44
Cutout
Pin
D)02 46
B)02 56
A)02 65
7) Place the Left Top Log D)02-46 on the pin
on Log B)02-56 and on top of the cutout on
Log A)02-65.
E)02 45
C)02 44
8) Place Front Right Log E)02-45 on the two
pins as shown.
9) Place the lava rock in the area etween the
left and right logs, leaving a space in the
middle for log (F) 02-47.
CutoutNotch
F)02 47
E)02 45
A)02 65
10) Place the notch in Center Log F)02-47 over
Log E)02-45 and across the cutout on Log
A)02-65.
C)02 44
Pins on Rear Log Support
A)02 65
B)02 56
3) Place Rear Log A)02-65 on the two pins on
the rear log support.
4) Place the Middle Left Log B)02-56 on the
two pins as shown.
5) Sprinkle some lava rock just in front of B)
02-56 on the urner holes.
lava rock
B)02 56
6) Place Front Left Log C)02-44 onto the 2
front pins as shown.
INSTALLATION
All manuals and user guides at all-guides.com
