Regency Fireplace Products ULTIMATE U28 Quick start guide

WARNING:
If the information in these instructions are not followed exact-
ly, a re or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your build-
ing.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas sup-
plier, call the re department.
908-728 FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
MODELS: U28-NG2 Natural Gas U28-LP2 Propane U43-NG3 Natural Gas U43-LP3 Propane
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
10/13/00
ULTIMATE U28 & U43 Freestanding Gas Stove
Owners &
Installation Manual

2Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
To the New Owner:
Congratulations! You are the owner of a state-of-the-art ULTIMATE Gas Stove by FIREPLACE
PRODUCTS INTERNATIONAL LTD. The Regency Gas Series of hand crafted appliances has
been designed to provide you with all the warmth and charm of a woodstove, at the ick of a switch.
The models U43-NG3, U43-LP3, U28-NG2, and U28-LP2 of this series has been approved by
Warnock Hersey for both safety and e󰀩ciency. As it also bears our own mark, it promises to pro-
vide you with economy, comfort and security for many trouble free years to follow. Please take a
moment now to acquaint yourself with these instructions and the many features of your Regency
Gas Stove.
U43-NG3 & U43-LP3
U28-NG2 & U28-LP2

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 3
TABLE OF CONTENTS
Page Page
Operating Instructions
Operating Instructions .................................................15
Lighting Instructions.....................................................15
Shutdown Instructions .................................................15
First Fire ......................................................................15
Convection Fan Operation...........................................15
Flame Height Adjustment ............................................15

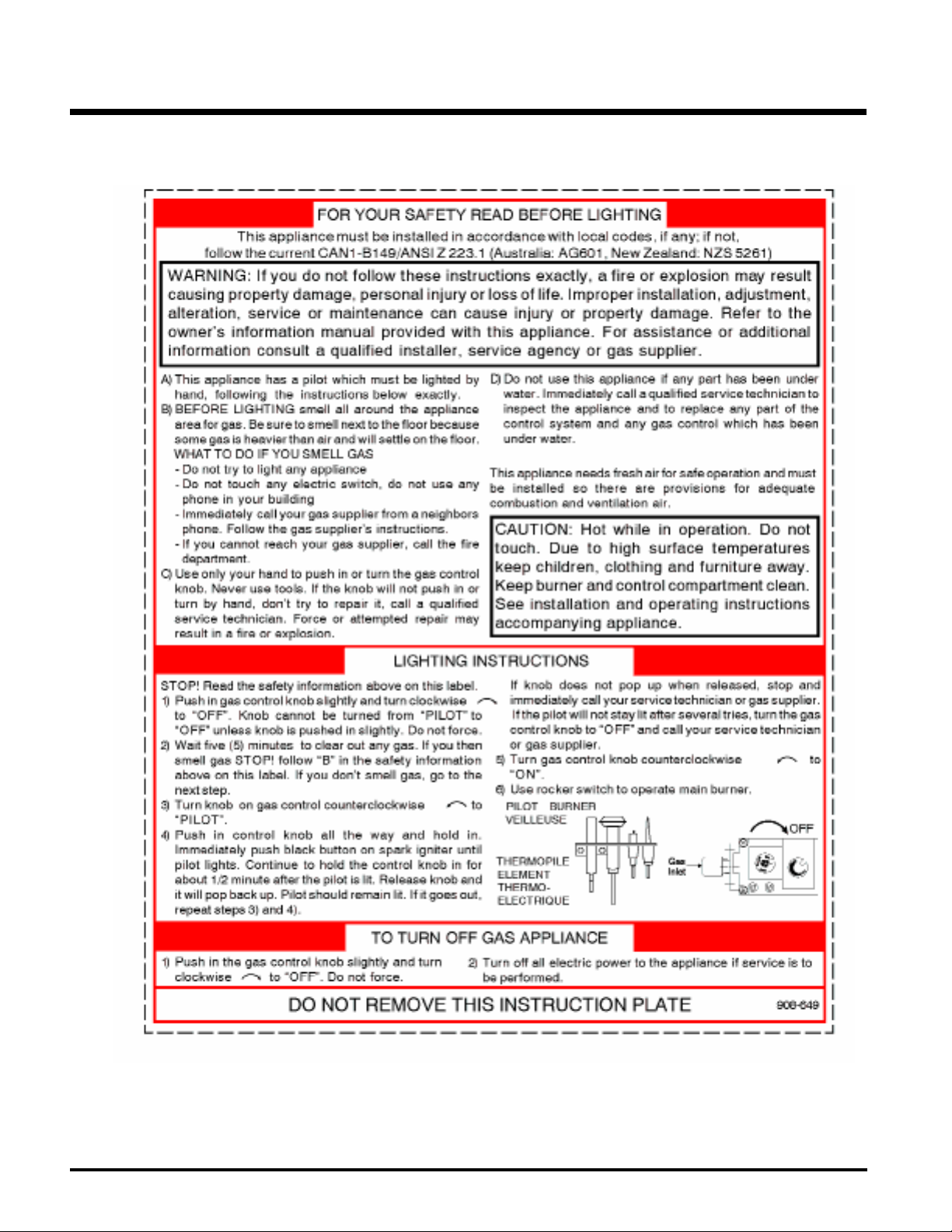

Copy of Lighting Plate Instructions..............................16
Pilot Adjustment.................................................17
Aeration Adjustment ....................................................17
Normal Operating Sounds of Gas Appliances.............17
Maintenance
Maintenance Instructions.............................................18
Log Replacement ........................................................18
Gold Plated Doors .......................................................18
Door and Glass Gasket ...............................................18
Glass Replacement .....................................................18
- Mitred Door..............................................................18
- Panel Door ..............................................................19
Fan Maintenance.........................................................19
- Replacing Fan .........................................................19
Removing Valve...............................................................
20
Parts List - U43............................................................21
Parts List - U28............................................................24
Warranty
Warranty ......................................................................27
Safety Label
Safety Label - U43-NG3 ................................................4
Safety Label - U43-LP3 .................................................5
Safety Label - U28-NG/LP2...........................................6
Installation
General Installation Information.....................................7
Installation Checklist......................................................8
Minimum Clearances to Combustibles..........................8
U28: Optional Long Side Doors.....................................9
Optional Outside Air.......................................................9
- Outside Air through Bottom of Pedestal ....................9
- Outside Air through Rear of Pedestal........................9
Draft Hood .....................................................................9
High Elevation ...............................................................9
Venting...........................................................................9
- Venting Requirements ...............................................9
- Flue Mounting Bracket ..............................................9
- Vent Terminations....................................................10
- Installation into Existing Woodstove Flue System...10
Gas Connection...........................................................10
System Data................................................................10
Gas Pressure Test .......................................................10
Log Installation ...........................................................11
Door Installation and Door Latch.................................12
U28 Louver Installation................................................12
Test for Flue Spillage...................................................12
Wiring Diagram - U43..................................................13
Wiring Diagram - U28..................................................13
Wiring ..........................................................................14
Optional Wall Thermostat ...........................................14
Optional Remote Control Installation...........................14
Final Check..................................................................14

4Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
This is a copy of the label that accompanies
each ULTIMATE Freestanding Gas Stove. We
have printed a copy of the contents here for your
review. The safety label is located on the inside
of the drop down pedestal door.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a di󰀨erence, the label on the unit is the
correct one.
SAFETY LABEL
Copy of the Safety Label for the U43-NG3 Natural Gas

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 5
SAFETY LABEL
Copy of the Safety Label for the U43-LP3 Propane

6Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove

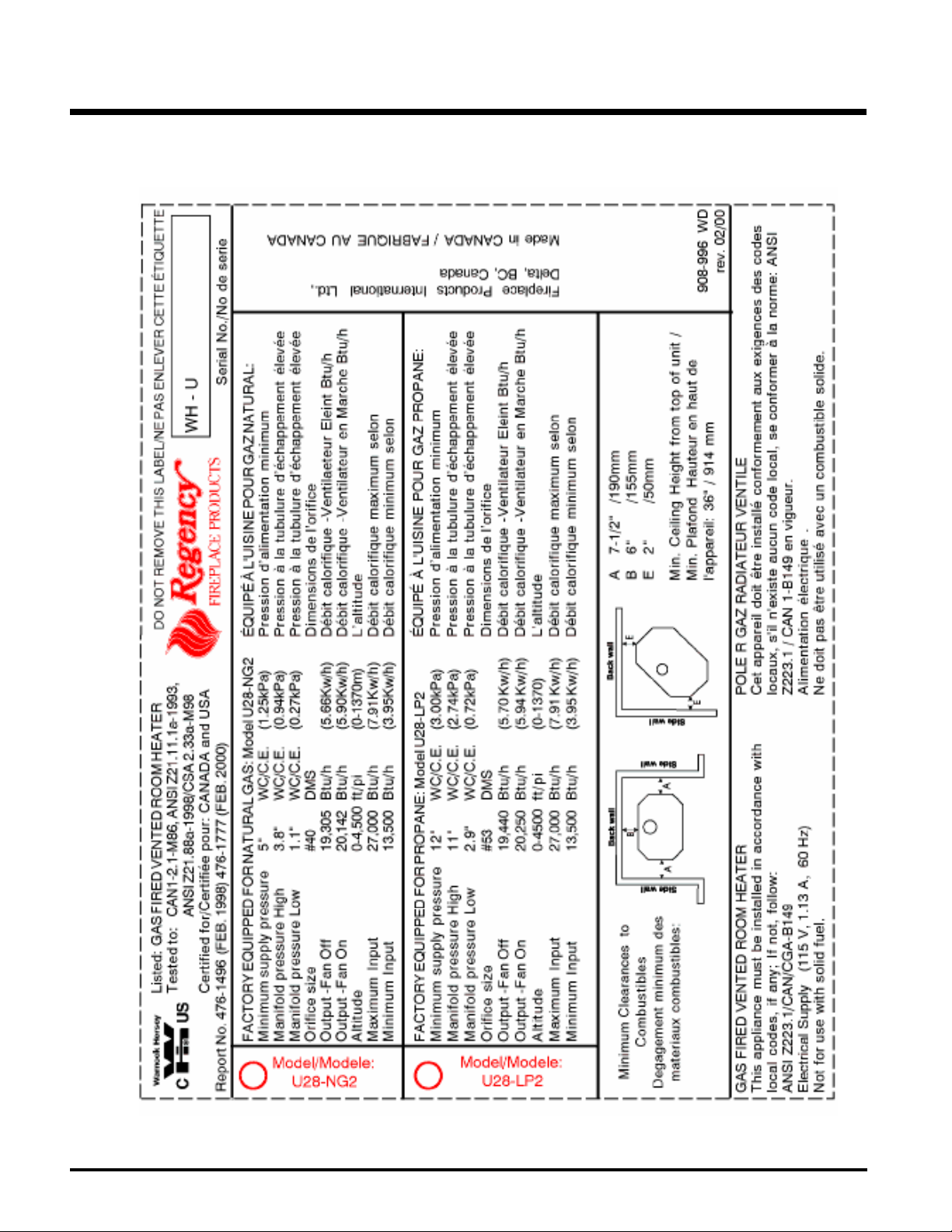

SAFETY LABEL
Copy of the Safety Label for the U28-NG2 & U28-LP2

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 7
INSTALLATION
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The ULTIMATE Freestanding Gas Stove must be
installed in accordance with these instructions.
Carefully read all the instructions in this manual
rst. Consult the "authority having jurisdiction" to
determine the need for a permit prior to starting
the installation.
GENERAL SAFETY IN-
FORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes, with the current Canadian or National
Gas Codes, CAN1-B149 or ANSI-223.1
Installation Codes.
2) The appliance when installed, must be elec-
trically grounded in accordance with local
codes, or in the absence of local codes with
the current National Electrical Code, ANSI/
NFPA 70 or CSA C22.1 Canadian Electrical
Code.
3) This appliance is Listed for bedroom in-
stallations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
4) This appliance is Listed for Alcove installa-
tions, maintain minimumAlcove clearances
as follows, minimum ceiling height of 66",
minimum width of 48" and a maximum depth
of 36".
5) This unit is not approved for installation into
a mobile home.
6) See general construction and assembly
instructions.
7) This appliance must be connected to a vent
and terminate to the outside of the building
envelope. Never vent to another room or
inside a building.
8) Inspect the venting system annually for
blockage and any signs of deterioration.
9) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
10) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
replace.
11) Wear gloves and safety glasses for protec-
tion while doing required maintenance.
INSTALLATION AND REPAIR
SHOULD BE DONE BY A QUAL-
IFIED SERVICE PERSON. THE
APPLIANCE SHOULD BE IN-
SPECTED BEFORE USE AND AT
LEAST ANNUALLY BY A PRO-
FESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING
MAY BE REQUIRED DUE TO
EXCESSIVE LINT FROM CAR-
PETING, BEDDING MATERIAL,
ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING
AIR PASSAGEWAYS OF THE
APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES,
THE APPLIANCE SHOULD BE
LOCATED OUT OF TRAFFICAND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING: FAILURE TO INSTALL
THIS APPLIANCE CORRECTLY
MAY CAUSE A SERIOUS HOUSE
FIRE AND WILL VOID YOUR
WARRANTY.
CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE
TEMPERATURES, ESPECIAL-
LY THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TO
AVOID BURNS OR CLOTHING
IGNITION.
YOUNG CHILDREN SHOULD
BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME
ROOM AS THE APPLIANCE.
CLOTHING OR OTHER FLAM-
MABLE MATERIAL SHOULD
NOT BE PLACED ON OR NEAR
THE APPLIANCE.
12) Under no circumstances should this ap-
pliance be modied. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
13) Installation and any repairs to this appliance
should be done by a qualied service per-
son. A professional service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.
14) Do not strike the glass door.
15) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
16) The appliance area must be kept clear and
free of combustible materials, (gases and
other ammable vapours and liquids).
17) Do not connect this gas appliance to chimney
ue serving a separate sold-fuel burning
appliance.
18) WARNING: Operation of this appliance
when not connected to a properly installed
and maintained venting system or tampering
with the blocked vent shut-o󰀨 system can
result in carbon monoxide (CO) poisoning
and possible death.
19) This appliance needs fresh air for safe op-
eration and must be installed so there are
provisions for adequate combustion and
ventilation air.

8Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
INSTALLATION
CLEARANCES TO COMBUSTIBLES
INSTALLATION
CHECKLIST
1) Check Clearances to Combustibles, page
8.
2) U28: Install Optional Long Side Doors, page
9.
3) If you are using outside air, page 9.
4) Install venting, page 9.
5) Make gas connections, page 10. Test the
pilot. Must be as per diagram, page 15.
6) Test Gas Pressure, page 10.
7) Install logs and embers where indicated on
page 11.
8) Install Front Door, page 12.
9) U28: Install Louvers, page 12.
10) Test for ue spillage (draft test), page 12.
11) Install optional Remote Control, or Wall
Thermostat, page 14.
12) Final check, page 14.
Before leaving this unit with the customer,
the installer must ensure that the appliance is
ring correctly and operation fully explained to
customer.
This includes:
1) Clocking the appliance to ensure the correct
ring rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the ame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning or that results in
damage is not the responsibility of the manu-
facturer.
The clearances listed below are MINIMUM
distances. Measure the clearance to both
the appliance and the chimney connector.
(The farthest distance is correct if the two
clearances do not coincide.) For example,
if the appliance is set as indicated in one of
the gures but the connector is too close,
move the stove until the correct clearance
to the connector is obtained.
This unit can be installed on a solid com-
bustible surface like a wood oor. This unit
can also be installed directly on carpeting or
vinyl when the bottom pedestal cover plate
(provided with unit) is installed.
This appliance may be installed only with
the clearances as shown in the situations
pictured. Do not combine clearances from
one type of installation with another in order
to achieve closer clearances.
Use the minimum clearances shown in the
diagrams below for installation with "B" vent.
U43-NG3 & U43-LP3 Clearances
A Side Wall to Unit 7-1/2" / 190 mm
B Back Wall to Unit 6" / 155 mm
E Side Wall to Unit 2" / 50 mm
U43-NG3 & U43-LP3 Reference
Dimensions
C Back Wall to Flue Centerline 10-1/2" / 265 mm
D Side Wall to Flue Centerline 22-1/8" / 562 mm
F Side Wall to Flue Centerline 11" / 280 mm
U28-NG2 & U28-LP2 Clearances
A Side Wall to Unit 7-1/2" / 190 mm
B Back Wall to Unit 6" / 155 mm
E Side Wall to Unit 2" / 50 mm
U28-NG2 & U28-LP2 REFERENCE
DIMENSIONS
C Back Wall to Flue Centerline 10-3/4" / 273 mm
D Side Wall to Flue Centerline 20-1/2" / 520 mm
F Side Wall to Flue Centerline 11" / 280 mm
Minimum ceiling height is 36" / 914 mm from
top of unit.
If further reduced clearances are needed, obtain
requirements for construction of a protected wall
from your local building authorities and their allow-
able reductions of the listed clearances.

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 9
Side View
1) Remove the screws holding the 2 short
side doors to the unit.
2) Attach the long side doors to the stove body
using the screws provided (4 per door).
OPTIONAL OUTSIDE
AIR
Outside air for combustion can be brought in
either through the bottom of the pedestal or
through the rear plate of the pedestal. Rear View
DRAFT HOOD
This heater has a draft hood built in. It must
not be altered, obstructed, or blocked in any
way, and the unit must be installed so that the
draft hood is in the same atmospheric pressure
zone as the combustion air inlet to the burner.
This heater must be properly connected to a
venting system. This heater is equipped with a
vent safety shuto󰀨 system.
For both bottom and rear "outside air" the Ped-
estal Cover Plate must be installed. Loosen the
4 screws on the rear of the pedestal and slide
the cover plate over them. Slide the plate to the
left to center it and tighten down the 4 screws.
Outside Air Through
Pedestal Bottom
Once you have properly marked the position of
your unit as outlined in "General Information"
and "Clearances to Combustibles", cut a prop-
erly sized hole though the oor directly under
your pedestal base to the outside. Pipe fresh
air into the pedestal area by using appropriate
metallic duct pipe with a mesh grill at the outside
termination. Do not remove the knockout.
WARNING: Operation of this heater when
not connected to a properly installed and
maintained venting system or tampering
with the vent safety shut-o󰀨 system can
result in carbon monoxide (CO) poisoning
and possible death.
HIGH ELEVATION
The U43 is approved in Canada for altitude
2000 ft. to 4500 ft. (CAN/CGA-2.17-M91) with
the orice kit (Part # 591-975). For Natural
Gas installations above 4500 ft. follow current
CAN/CGA-B149.1.
In U.S.A., for installations above 2000 ft. refer
to current ANSI Z223.1 Sc8-8.1.2a appendix F,
for resizing orice.
U28: OPTIONAL
LONG SIDE DOOR
INSTALLATION
INSTALLATION
VENTING
This heater is a vented appliance and must be
connected to a chimney/ue in accordance with
the installation codes.
Note: The rear pedestal cover plate is
only required when outside air is
being used. If using room air for
combustion, remove this plate from
the back of the pedestal.
For your safety this heater is equipped with a
vent safety switch designed to sense incorrect
venting and react by shutting down the gas
supply. This thermally actuated switch is located
within the draft hood and will detect either a
blocked chimney or backdraft condition where
the chimney ow has reversed. If this switch
shuts the unit down, it indicates a drafting
problem that must be identied and rectied
without delay - the thermally activated switch
must never be bypassed or disconnected as
a hazardous or deadly condition can result.
Venting Requirements
A four inch diameter vent is required. B-Vent,
Class A or Masonry with an approved liner
are all acceptable. For cosmetic or aesthetic
purposes 6" outer vent can be used as long as
an approved inner vent is installed. Fasten but
do not penetrate the inner sleeve of the B-Vent
when tightening the screw.
Follow all venting manufacturer’s requirements
and local building codes. In cold climates,
we recommend the use of insulated B-vent,
chase, and liners. For altitudes above 2000
ft. we recommend that a minimum ue height
of 12 ft. is used.
Flue Mounting Bracket
Attach the ue mounting bracket with the en-
closed screw as shown in the diagram.
Outside Air Through
Rear of Pedestal
Remove the blanking plate from the rear of the
pedestal cover plate and bend the two tabs out
90 degrees. Pipe fresh air into the pedestal
area by using duct pipe with a mesh grill at
the outside termination. Attach the pipe to the
tabs with screws.

10 Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-o󰀨 valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
kPa). Disconnect piping from valve at pressures
over 1/2 psig (14" w.c.).
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures
should be checked using the valve
pressure ports on the valve.
INSTALLATION
For 0 to 2000 feet altitude
Burner Inlet Orice Sizes:
Natural Gas Propane
Burner #32 #50
Max. Input - Natural Gas/Propane
38,000 Btu/h
Min. Input - Natural Gas/Propane
20,000 Btu/h
Output Capacity with blower O󰀨
Natural Gas 27,740 Btu/h
Propane 28,200 Btu/h
Output Capacity with blower On
Natural Gas 29,260 Btu/h
Propane 29,640 Btu/h
Supply Pressure
Natural Gas min. 5" w.c.
Propane min. 12" w.c.
Manifold Pressure
Natural Gas 3.8" +/- 0.2" w.c.
Propane 11" +/- 0.2" w.c.
Electrical: 120 V. 1.13A 60Hz.
Circulation: Variable speed fan, 125/75 CFM.
Log Set: Ceramic ber, 3 per set.
System Data:
HIGH ELEVATION - U43-NG3
For 2,000 - 4,500 feet altitude
Burner Inlet Orice Sizes:
Natural Gas Burner #33
Max. Input Rating 34,000 Btu/h
Min. Input Rating 18,000 Btu/h
Output Capacity with blower O󰀨
Natural Gas 24,820 Btu/h
Max. Output Capacity with blower On
Natural Gas 26,180 Btu/h
System Data
U43-NG3 & U43-LP3
GAS CONNECTION
The gas line can be rigid pipe, or to make installation easier, use a listed exible connector if
allowed by local codes. Copper may also be used if approved by local codes.
The gas connection at the valve is 3/8" NPT. For minimum and maximum supply pressure see
the System Data Table.
Vent Terminations
Installation into Existing
Woodstove Flue System
1) Clean existing Chimney system.
2) Run an approved 4" ex liner or "B" vent
into existing chimney.
Note:
See the chimney systems manu-
facturer for detailed installation
instructions.
System Data
U28-NG2 & U28-LP2
For 0 to 4500 feet altitude
Burner Inlet Orice Sizes:
Natural Gas Propane
Burner #40 #53
Max. Input - Natural Gas/Propane
27,000 Btu/h
Min. Input - Natural Gas/Propane
13,500 Btu/h
Output Capacity with blower O󰀨
Natural Gas 19,305 Btu/h
Propane 19,440 Btu/h
Output Capacity with blower On
Natural Gas 20,142 Btu/h
Propane 20,250 Btu/h
Supply Pressure
Natural Gas min. 5" w.c.
Propane min. 12" w.c.
Manifold Pressure
Natural Gas 3.8" +/- 0.2" w.c.
Propane 11" +/- 0.2" w.c.
Electrical: 120 V. 1.13A 60Hz.
Circulation: Variable speed fan, 125/75 CFM.
Log Set: Ceramic ber, 3 per set.

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 11
Diagram 4
Diagram 2
Diagram 1
Diagram 3
LOG INSTALLATION
unwrap them. The logs are fragile, handle
with care - DO NOT FORCE into position.
2) Place the rear log, carefully sliding it down
onto the pins, with the at side of the log
facing the back of the unit. See diagram 1.
3) Place the left front log, carefully sliding it
down onto the left pins of the front burner.
See diagram 2.
WARNING: Dangerous operating conditions
may occur if these logs are not positioned
in their approved locations. Read the in-
structions below carefully and refer to the
diagrams. If logs are broken do not use the
unit until they are replaced. Broken logs can
interfere with the pilot and burner operation.
U28-2: The gas log kit contains the following:
a) Front Right Log - Part # 902-020
b) Front Left Log - Part # 902-021
c) Rear log - Part # 902-022
d) Embers - Part # 902-151 (1 bag)
e) Lava - Part # 902-154 (1 bag)
(Part #: 560-935 for set of three logs)
U43-3: The gas log kit contains the following:
a) Front Right Log - Part # 902-245
b) Front Left Log - Part # 902-244
c) Rear log - Part # 902-246
d) Embers - Part # 902-151 (2 bag)
e) Lava - Part # 902-154 (1 bag)
(Part #: 653-930 for set of 3 logs)
1) Remove the logs from the box and carefully
INSTALLATION
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" (# 7) and/or "OUT" (# 6)
pressure tap(s), turning counterclockwise
with a 1/8" wide at screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON"
position.
5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specied on the safety
label.
6) When nished reading manometer, turn
o󰀨 the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8" at
screwdriver. Screw should be snug, but do
not over tighten.
S.I.T. Valve Description
1) Gas cock knob
2) Manual high/low adjustment
3) Pilot Adjustment
4) Thermocouple Connection
5) Main Operator
6) Outlet Pressure Tap
7) Inlet Pressure Tap
8) Pilot Outlet
9) Main Gas Outlet
10) Flange Securing Screw Holes
11) Alternative TC Connection Point
12) Thermoelectric Unit
13) Additional Valve Mounting Hole
4) Place the right front log, carefully sliding it
down onto the right pins of the front burner.
See diagram 3.
5) Distribute the embers along the front burner
but do not cover the burner ports and around
the logs. Place the embers on the oor of
the rebox. Place the lava on the burner
tray in front of the left and right front logs.
See diagram 4.
Note: Do not
force logs down.

12 Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
TEST FOR FLUE
SPILLAGE
A "spillage" test must be made before the
installed unit is left with the customer. Follow
the procedure below:
1) Start all exhaust fans in the home and any
other gas appliances. Then close all doors
and windows.
2) Light the unit and set controls to maximum.
3) After ve minutes, test that there is a "pull"
on the ue by placing a smoke match,
cigarette or similar device which gives o󰀨
smoke, on the edge of the draft hood. See
diagrams.
The thermally activated safety
switch must be manually reset
before rst startup.
U28: LOUVER
INSTALLATION
1) Attach the top & bottom louvers to the side
stove panel using 2 screws per side.
Diagram 1
FRONT DOOR
INSTALLATION
(packaged separately)
1) Open the two side panels.
2) Slide the door onto the two hinge pins making
sure the two pieces are ush together. See
diagram 1.
3) Close the door. The latch plate must be
centered around the alignment pin. See
diagram 2. If the latch plate interferes with
the corner of the stove you may want to
angle the plate slightly so the door closes
easier.
4) The latches should already be at the proper
setting. If they are too hard or too easy
to close, you may want to adjust them by
loosening the latch catch. See diagram 3.
Diagram 2 - U43
Diagram 3 - U43
Diagram 2 - U28
Diagram 3 - U28
INSTALLATION
5) Remove the blue plastic protective coating
from the glass.
6) Test the seal around the door by placing
a piece of paper between the unit and the
door, close the door and try to pull the paper
out. If it slips out easily, then the door is not
properly sealed. Tighten or loosen the latch.
See diagram 3.
Note: The door latch may require adjust-
ment as the door gasket material
compresses after a few res and
after glass replacement. Turn the
latch catch inward or outward to
loosen or tighten.
The smoke should
be drawn into the
draft hood. If the
smoke is not drawn
into the draft hood,
turn the unit o󰀨 and
check for the cause
of lack of draft.
Note: If the ue is blocked or has a strong
reverse ow, the thermally actuated safety
switch mounted in the draft hood will auto-
matically shut o󰀨 the gas supply within about
10 minutes. If the heater turns o󰀨 because
of this during the spillage test, check for the
cause of the lack of draft.

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 13
WIRING DIAGRAM - U43-3
WIRING DIAGRAM - U28-2
INSTALLATION

14 Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
INSTALLATION
14 GA.
16 GA.
18 GA.
20 GA.
22 GA.
50 Ft.
32 Ft.
20 Ft.
12 Ft.
9 Ft.
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
Thermostat Wire Table
FINAL CHECK
Before leaving this unit with the customer, the
installer must ensure that the appliance is ring
correctly. This includes:
1) Clocking the appliance to ensure the correct
ring rate (rate noted on label) at 15 minutes.
2) If required, adjusting the primary air to ensure
that the ame does not carbon. First allow
the unit to burn for 15 min. to stabilize.
3) Check for proper draft.
CAUTION
Any alteration to the product that causes
sooting or carboning that results in damage
to the exterior facia is not the responsibility
of the manufacturer.
OPTIONAL WALL
THERMOSTAT
A wall thermostat may be installed if desired.
Connect the wires as per the wiring diagrams.
Note that the wires are connected to the "TH"
on the gas valve. Use table below to determine
the maximum wire length:
Note: Preferable if the thermostat is installed
on an interior wall.
Regency o󰀨ers an optional programmable
thermostat but any 250-750 millivolt rated
non-anticipator type thermostat that is CSA,
ULC or UL approved may be used.
CAUTION
Do not connect the millivolt
wall thermostat wires
to the 120V wires.
OPTIONAL REMOTE
CONTROL
Use the Regency Remote Control Kit approved
for this unit. Use of other systems may void
your warranty.
The remote control kit comes with a hand held
transmitter, a receiver and a wall mounting plate.
1) Choose a convenient location on the wall
to install the receiver and the receptacle
box (protection from extreme heat is very
important). Run wires from the replace to
that location, use Thermostat Wire Table.
2) Connect the wires as per the wiring diagram
above.
CAUTION
Do not connect the millivolt
remote control wires to
the 120V wires.
3) Install 3 AAA alkaline batteries in transmitter
and 4 AA alkaline batteries in the receiver.
Install the receiver and its cover in the wall.
Switch the remote receiver to "remote"
mode. The remote control is now ready for
operation.
WIRING
This heater does not require a 120V A.C. supply
for operation. In case of a power failure, the
burner switch and the optional remote control/
thermostat will continue to operate. However, a
120V A.C. power supply is needed for the fan/
blower operation.
Caution: Ensure that the wires do
not touch any hot surfaces and are
away from sharp edges.
CAUTION: Label all wires prior
to disconnection when servicing
controls. Wiring errors can cause
improper and dangerous opera-
tion.
WARNING: Electrical Grounding
Instructions
This appliance is equipped with a three
pronged (grounding) plug for your
protection against shock hazard and
should be plugged directly into a prop-
erly grounded three-prong receptacle.
Do not cut or remove the grounding
prong from this plug.

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 15
OPERATING INSTRUCTIONS
3) Wait ve minutes to allow gas, that may
have accumulated in the main burner
compartment, to escape. If you smell gas,
follow the instructions on the front of this
manual. If you don't smell gas continue on
to the next step.
4) Turn the PILOT knob counterclockwise to
pilot and align it with the arrow as shown
in diagram 1.
5) Push in PILOT knob all the way in and
hold. Immediately push IGNITOR button
until pilot lights. Continue to hold the PILOT
knob in for approximately one minute, then
release the PILOT knob. The pilot ame
should continue to burn. If the pilot does
not remain lit, repeat operation allowing a
longer period before releasing PILOT knob.
6) Turn PILOT knob counter clockwise to on.
7) Use the Burner ON/OFF switch to turn on
the burner.
8) Rotate the HEAT control to adjust the ame
height higher or lower.
SHUTDOWN
INSTRUCTIONS
1) Use the Burner ON/OFF switch, thermostat
or remote control to turn o󰀨 the burner.
2) Push in the PILOT knob slightly and turn
clockwise to o󰀨. Do not force.
3) Turn o󰀨 all electric power to the appliance
if service is to be performed.
FIRST FIRE
The FIRST FIRE in your stove is part of the
paint curing process. To ensure that the paint
is properly cured, it is recommended that you
burn your replace for at least four (4) hours the
rst time you use it with the fan on. When rst
operated, the unit will release an odour caused
by the curing of the paint and the burning o󰀨 of
any oils remaining from manufacturing. Smoke
detectors in the house may go o󰀨 at this time.
Open a few windows to ventilate the room for a
couple of hours. The glass may require cleaning.
OPERATING
INSTRUCTIONS
Before operating this appliance, proceed through
the following check list.
1) Read and understand these Instructions
before operating this appliance.
2) Check to see that all wiring is correct and
enclosed to prevent possible shock.
3) Check to ensure there are no gas leaks.
4) Make sure the three pieces of door glass
are properly positioned. Never operate the
appliance with any of the glass removed or
with the door open.
5) Verify that all venting and the cap is unob-
structed.
6) Verify log placement. If the pilot cannot be
seen when lighting the unit - the logs or the
embers have been incorrectly positioned.
7) The unit should never to turned o󰀨 and on
without a minimum of a 60 second wait.
LIGHTING
INSTRUCTIONS
IMPORTANT: The PILOT knob cannot be
turned from pilot to o unless it is partially
depressed.
Note: Open the pedestal door of the unit
before lighting the pilot. Once the
pilot is lit, close the door. You should
never operate the unit with the door
open.
1) If the PILOT knob is in the o position
proceed to Step 4.
Diagram 1
2) Push in PILOT knob slightly and turn clock-
wise to o. Knob cannot be turned from
pilot to o unless knob is pushed in slightly.
Do not force.
DO NOT ATTEMPT TO CLEAN THE
GLASS WHILE IT IS STILL HOT!
Note: When the glass is cold and the appli-
ance is lit, it may cause condensation
and fog the glass. This condensation
is normal and will disappear in a few
minutes as the glass heats up.
DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.
AUTOMATIC
CONVECTION FAN
OPERATION
The fan operates automatically - turn the knob on
the side of the faceplate to adjust to the desired
speed. The fan will turn on as the stove comes
up to operating temperature. After the unit has
been turned o󰀨 and cools to below a useful heat
output range the fan will shut o󰀨 automatically.
ADJUSTING FLAME
HEIGHT
Your heater has an adjustable ame to tailor the
look and heat output to your specic needs. It
is adjusted by turning the ame adjustment dial
on the gas control valve.
Turn clockwise to
adjust the flame
higher, counter-
clockwise for a
lower ame.

16 Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
COPY OF THE LIGHTING PLATE INSTRUCTIONS
OPERATING INSTRUCTIONS

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 17
NORMAL OPERATING
SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some sounds
from your gas appliance. This is perfectly normal
due to the fact that there are various gauges
and types of steel used within your appliance.
Listed below are some examples.All are normal
operating sounds and should not be considered
as defects in your appliance.
Blower:
Regency gas appliances use high tech blowers
to push heated air farther into the room. It is not
unusual for the fan to make a "whirring" sound
when ON. This sound will increase or decrease
in volume depending on the speed setting of
your fan speed control.
Burner Tray:
The burner tray is positioned directly under the
burner tube(s) and logs and is made of a di󰀨er-
ent gauge material from the rest of the rebox
and body. Therefore, the varying thicknesses of
steel will expand and contract at slightly di󰀨erent
rates which can cause "ticking" and "cracking"
sounds. You should also be aware that as there
are temperature changes within the unit these
sounds will likely re-occur. Again, this is normal
for steel reboxes.
Blower Thermodisc:
When this thermally activated switch turns ON
it will create a small "clicking" sound. This is the
switch contacts closing and is normal.
Pilot Flame:
While the pilot ame is on it can make a very
slight "whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and OFF, a
dull clicking sound may be audible, this is normal
operation of a gas regulator or valve.
Unit Body/Firebox:
Di󰀨erent types and thicknesses of steel will
expand and contract at di󰀨erent rates resulting
in some "cracking" and "ticking" sounds will be
heard throughout the cycling process.
AERATION
ADJUSTMENT
The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude.
U43-NG3 Natural Gas: 3/16" open
U43-LP3 Propane: 1/2" open
U28-NG2 Natural Gas 1/8" open
U28-LP2 Propane 3/8" open
The aeration adjustment gears are located on the
right side of the burner box and can be accessed
from the side or from the front when the louvers
are removed.
To adjust the aeration: use the allen key to turn
the turning gear which will adjust the air shutter.
Open the air shutter for a blue ame or close it for
a yellower ame. This adjustment is performed
by a qualied installer. The factory setting should
be su󰀩cient for most installations.
Top View of pilot ame
Top View of pilot ame
OPERATING INSTRUCTIONS
PILOT ADJUSTMENT
Periodically check the pilot ames. Correct
ame pattern has three strong blue ames: 1
owing around the thermopile and 1 around the
thermocouple, and 1 owing across the rear of
the burner (it does not have to be touching the
burner).
Note: If you have an incorrect ame pat-
tern, contact your Regency dealer
for further instructions.
Incorrect ame pattern will have small, probably
yellow ames, not coming into proper contact
with the rear of the burner or thermopile.
Clockwise to open,
counter-clockwise to close.
Caution: Carbon will be produced if the air
shutter is closed too much.
Note: Any damage due to carboning re-
sulting from improperly setting the
aeration controls is NOT covered
under warranty.

18 Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
MAINTENANCE
4) Remove the door catch plate.
5) Remove glass retainers on sides rst (3 each
side) then remove two center retainers.
Note: Center glass retainers are glued to
center glass.
6) Remove glass from extrusions. When re-
moving center glass, leave white insulation
in place.
CLOTHING OR OTHER FLAMMA-
BLE MATERIAL SHOULD NOT
BE PLACED ON OR NEAR THE
APPLIANCE.
DO NOT USE THIS APPLIANCE
IF ANY PART HAS BEEN UNDER
WATER. IMMEDIATELY CALL A
QUALIFIED SERVICE TECHNI-
CIAN TO INSPECT THE APPLI-
ANCE AND TO REPLACE ANY
PART OF CONTROLSYSTEMAND
ANY GAS CONTROL WHICH HAS
BEEN UNDER WATER.
WARNING: CHILDREN AND
ADULTS SHOULD BE ALERTED
TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM
AS THE APPLIANCE.
CAUTION: ANY SAFETY SCREEN
OR GUARD REMOVED FOR SER-
VICING AN APPLIANCE MUST BE
REPLACED PRIOR TO OPERAT-
ING THE APPLIANCE.
MAINTENANCE
INSTRUCTIONS
1) Always shut the valve o󰀨 before cleaning.
For relighting, refer to lighting instructions.
Keep the burner and control compartment
clean by brushing and vacuuming at least
once a year. When cleaning the logs, use
a soft clean brush as the logs are fragile
and easily damaged.
2) Clean glass (never when unit is hot), appli-
ance, louvers, and door with a damp cloth.
Never use an abrasive cleaner. The gold
louvers (and optional gold door) may be
scratched if abrasives are used to clean
them.
The heater is nished in a heat resistant
paint and should only be renished with
heat resistant paint (not with wall paint).
Regency uses StoveBright Paint - Metallic
Black #6309.
3) Make a periodic check of burner for proper
position and condition. Visually check the
ame of the burner periodically, making sure
the ames are steady; not lifting or oating.
If there is a problem, call a qualied service
person.
4) The appliance and venting system must be
inspected before use, and at least annually,
by a qualied eld service person, to ensure
that the ow of combustion and ventilation
air is not obstructed.
During the annual service call, the burners
should be removed from the burner tray
and cleaned. Replace the embers - do not
block the pilot or burner ports.
5) Keep the area near the appliance clear and
free from combustible materials, gasoline
and other ammable
vapours and liquids.
6) Verify proper operation after servicing.
LOG REPLACEMENT
The unit should never be used with broken logs.
Turn o󰀨 the gas valve and allow the unit to cool
before opening door to carefully remove the logs.
The pilot light generates enough heat to burn
someone. If for any reason a log should need
replacement, you must use the proper replace-
ment log. The position of these logs must be as
shown in the diagram under Log Installation.
Note: Improper positioning of logs may
create carbon build-up and will alter
the unit’s performance which is not
covered under warranty.
DOOR AND GLASS
GASKET
If the door gasket requires replacement use 7/8"
diameter oval door gasket (Part # 650-920). The
glass requires 5/8" at glass gasket. See your
Regency dealer.
GOLD-PLATED DOORS
The 24 carat gold plated nish on the door
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use abrasive
materials or chemical cleaners, as they may
harm the nish and will void the warranty. Clean
any ngerprints o󰀨 before turning the unit on.
GLASS
REPLACEMENT
Your Regency stove is supplied with high tem-
perature, 5 mm Neoceram ceramic glass that
will withstand the highest heat that your unit will
produce. In the event that you break your glass,
purchase your replacement from an authorized
Regency dealer only, and follow the step-by-step
instructions for replacement. Never operate
your unit with broken glass.
WARNING: Do not operate appliance with
the glass front removed, cracked or broken.
Replacement of the glass should be done
by a licensed or qualied service person.
MITRED DOOR
Removing Glass:
Note: Wearing gloves will protect your
hands while handling glass.
1) Remove the door from the unit and place
on a soft surface to prevent scratching.
2) Pull out the door gasket.
3) Remove the 24 nuts holding the glass
retainers in place. Do not remove the nuts
underneath the retainers.

Regency U28-2/U43-3 ULTIMATE Freestanding Gas Heater 19
MAINTENANCE
FAN MAINTENANCE
If your fan requires maintenance or replacement,
access to the fan is through the access panel
on the rear wall of the rebox.
Note: The unit MUST NOT be operated
without the fan access panel securely
in place and correctly sealed.
IMPORTANT: These fans collect a lot
of dust from within your home. En-
sure you maintain these fan motors
on a regular basis by vacuuming
out the fan squirrel cages, around
the motor, and around the grills on
the back of the stove.
IMPORTANT
Disconnect power supply
before servicing
Installing Glass
1) Install both center and side glass onto
extrusions as per diagram.
2) Place glass assembly into door frame.
3) Install retainers by placing 1 drop of glue
where previously glued and put in place.
4) Install side retainers.
5) Install door catch plate.
6) Install the 24 nuts loosely, do not tighten yet.
7) Tighten side panels nuts using the following
procedure:
a. tighten top & bottom outside corner
nuts (2)
b. tighten inside nuts (3)
c. tighten top & bottom inside corners
(2)
8) Tighten the 10 nuts on center glass retainer.
9) Repeat step 7 for other side panel.
10) Replace new gasket by gluing it in place.
11) Install door onto stove and check the seal.
PANEL DOOR
1) Remove the door from the unit and place
on a soft surface to prevent scratching.
2) Pull out the door gasket.
3) Remove the nuts holding the glass retainers
in place.
4) Remove the glass retainers (sides, top and
bottom) and the door catch plate.
5) Replace the glass. The glass must have
gasketing around it.
6) Reverse the previous steps, replace the
retainers and fasten with the nuts but do
not overtighten, as this can break the glass.
Note: the door catch plate ts on top of the
left side retainer.
7) Put gasket glue on the retainers, but do not
put glue on the screws. Replace the door
gasket, the two ends butt tight together on
the bottom edge of the door.
8) Replace door on the stove and check the
seal.
WARNING: Electrical Grounding
Instructions This appliance is
equipped with a three pronged
(grounding) plug for your protection
against shock hazard and should
be plugged directly into a properly
grounded three-prong receptacle.
Do not cut or remove the grounding
prong from this plug.
Diagram 2
4) Lift fan o󰀨 of the 2 pins, tip back and pull
through rebox opening. Disconnect the
green ground wire from the left side of the
fan as soon as you can reach it.
Replacing U38 Fan:
Reverse the above steps (1 - 4). If necessary
install a new gasket before replacing the fan
access panel. Make sure the fan wires and the
ground wire are reattached.
Diagram 1
To remove U38 fan:
1) Unplug or disconnect power source to stove.
2) Remove all logs and the rear log support,
then remove the 10 screws holding the
access panel in place, see Diagram 1. (Fan
is also accessible by opening the right side
door. See Diagram 2).
3) Unclip the black and white wires from the
fan motor.

20 Regency U28-2/U43-3 ULTIMATE Freestanding Gas Stove
MAINTENANCE
Diagram 2
4) Lift fan o󰀨 of the 2 pins, tip back and pull
through rebox opening. Disconnect the
green ground wire from the left side of the
fan as soon as you can reach it.
Replacing U28 Fan:
Reverse the above steps (1 - 4). If necessary
install a new gasket before replacing the fan
access panel. Make sure the fan wires and the
ground wire are reattached.
Diagram 1
To remove U28 fan:
1) Unplug or disconnect power source to stove.
2) Remove all logs and the rear log support,
then remove the 10 screws holding the
access panel in place, see Diagram 1. (Fan
is also accessible by opening the right side
door. See Diagram 2).
3) Unclip the black and white wires from the
fan motor.
4) Remove the two outside frame pieces by
removing two screws per side. See diagram
below.
REMOVING VALVE
If your valve requires maintenance or replace-
ment, follow these instructions:
NOTE: Always shut o󰀨 the gas supply
before removing the valve.
1) Open front pedestal door and unhook chain.
You may want to put a soft cloth on the base
of the unit so that when the pedestal door
is open it doesn't scratch the paint. See
diagram below.
2) Undo the six screws holding the control
panel in place.
3) Disconnect all wires from the back of the
panel and then remove panel. You should
lay the panel on a soft cloth so it doesn't get
marked up. See diagram below.
5) Carefully remove the logs, embers and
rockwool.
6) At this point you should disconnect the gas
at the valve.
7) Remove the burner by removing the two
1/4" hex head screws. See diagram below.
8) Remove eight 1/4" hex head
screws holding the burner tray assembly
in place.
9) Carefully lift the burner tray assembly out.
10) To replace the burner tray assembly, simply
reverse these instructions.
Note: Use a
magnetic type
screwdriver.
