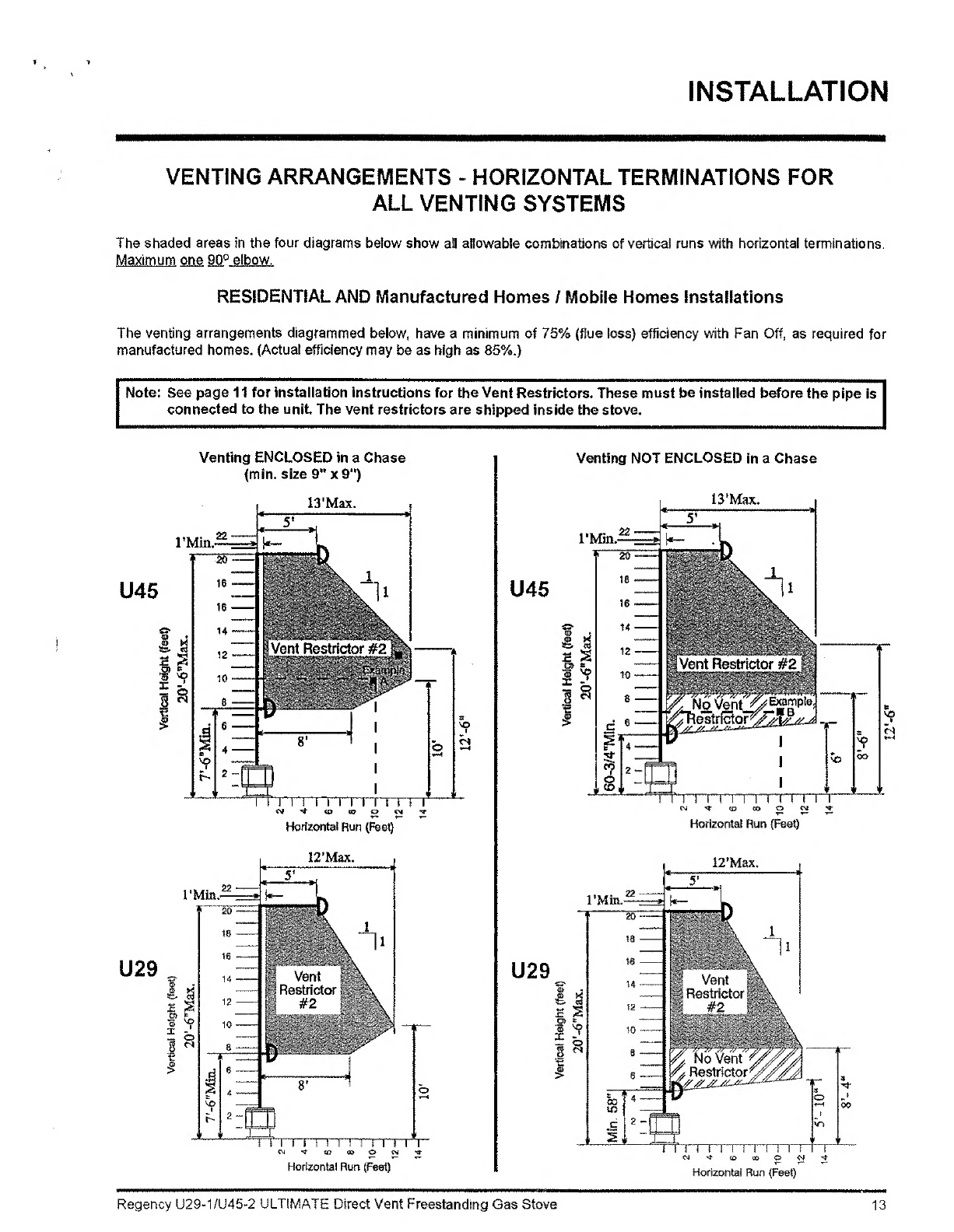

Venting Arrangements- Horizontal
Terminations: All Systems.13
Venting Arrangements-Vertical
Terminations: Dura-Ventonly.14
-Straight Vertical.14
-Offset Vertical.14

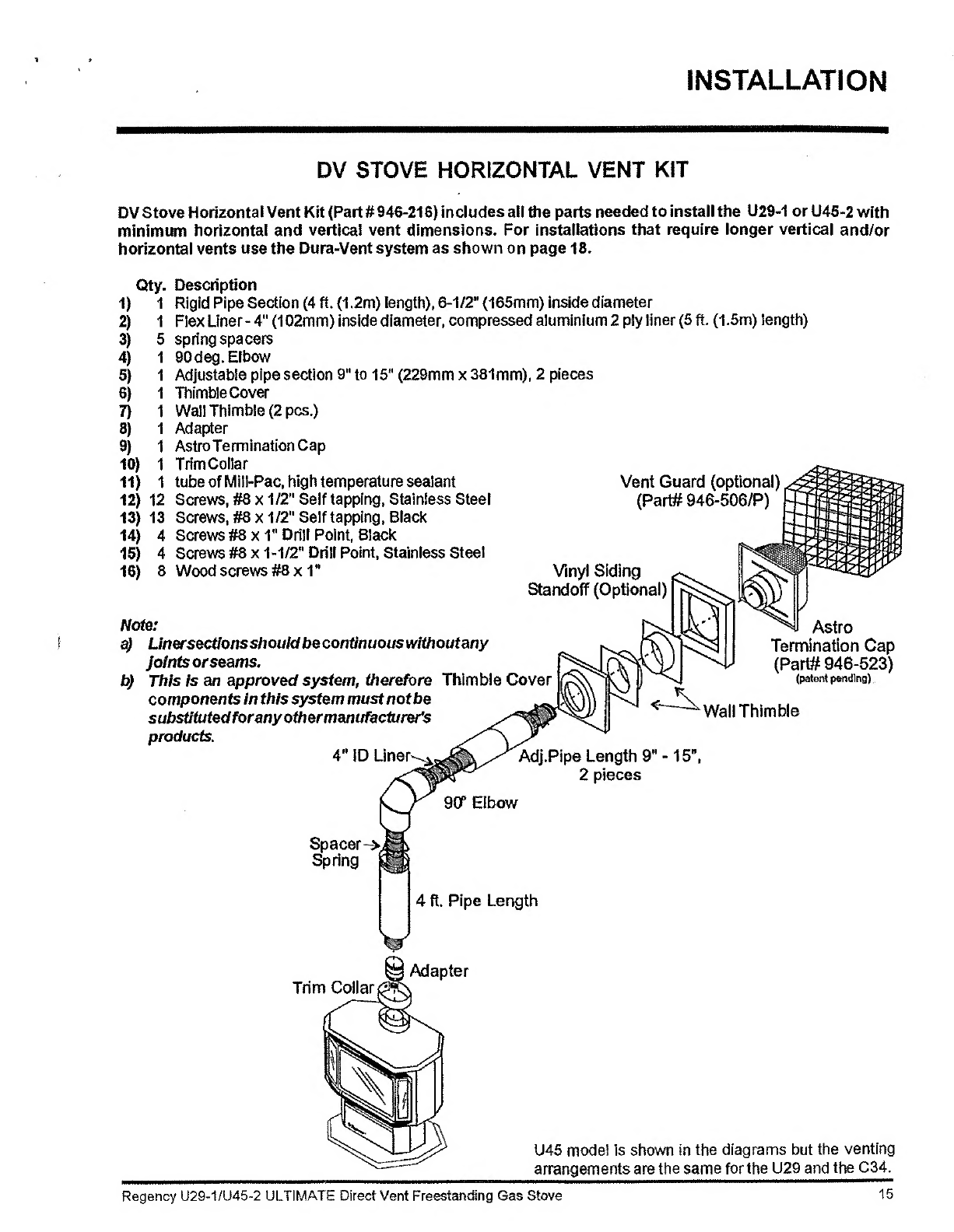

DV Stove Horizontal Vent Kit 946-216.15
Dura-Vent Termination Kits.18
Planning Your Dura-Vent Installation.18
Dura-Vent Venting Components Parts List.18
Dura-Vent Horizontal Installation.20
Dura-Vent Vertical Termination Installation.22
Offset Chart.23
Cathedral Ceiling Installations.23
Support Extension - Round or Square.24
Gas Connection.24
High Elevation.24
System Data Chart - U45.25
System Data Chart - U29.25
Gas Pipe Pressure Testing.26
Valve Description.26
Aeration Adjustment.27
Log Installation.27

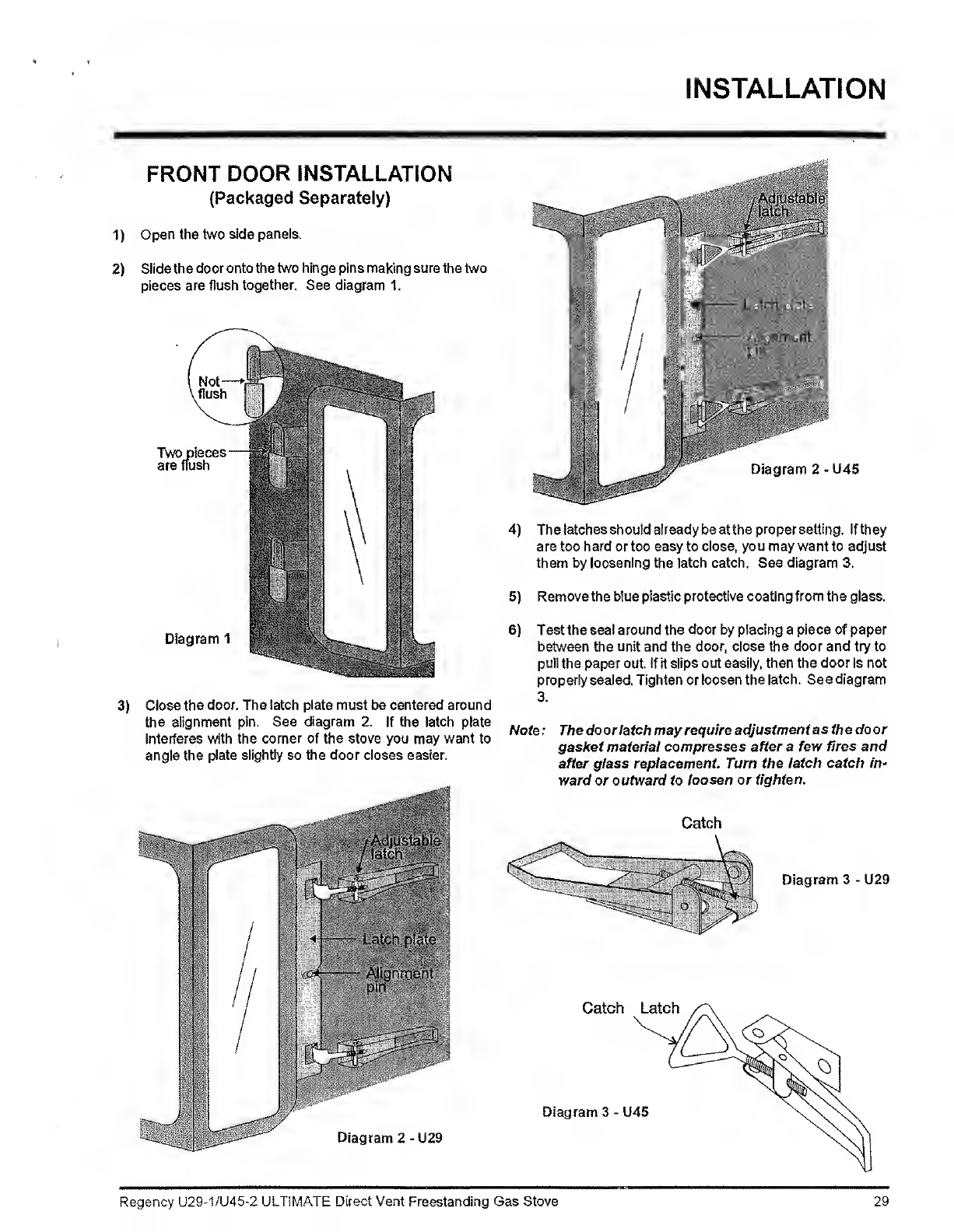

Front Door installation.29
Optional Remote Control installation.30
Optional Wall Thermostat.30
Final Check.30

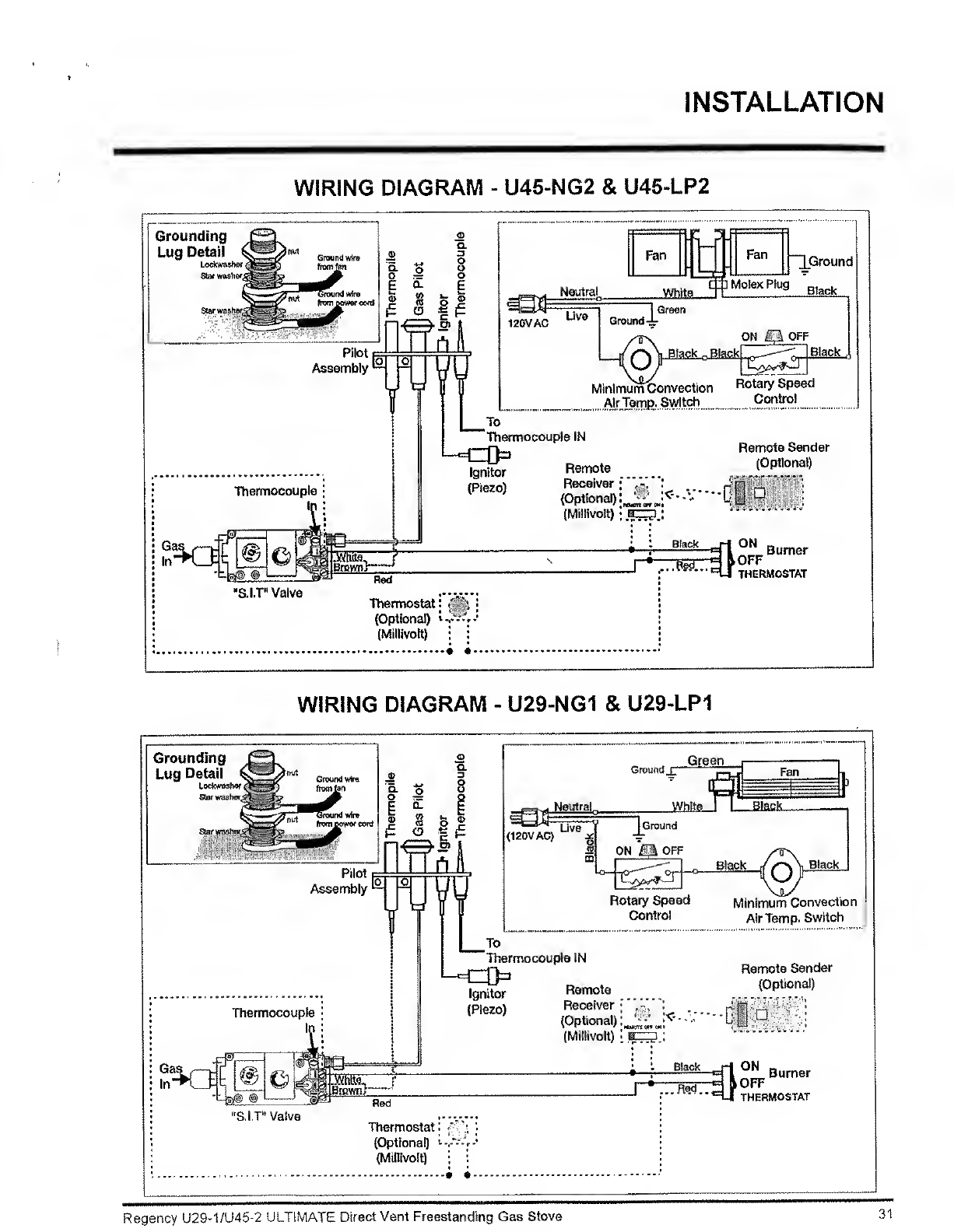

Wiring Diagram.31
Page
Operating Instructions
Operating Instructions.32
Lighting Procedure.32
Shutdown Procedure.32
First Fire.32
CopyofLighting Plate Instructions.33
Convection Fan Operation.34
Normal Operating Sounds of
Gas Appliances.34
Maintenance
Maintenance Instructions.34
General Vent Maintenance.35
Log Replacement.35
Gold Plated Doors..35
Door Gasket.35
LatchAdjustment.36
Glass Replacement.36
FanMalntenance-U45.38
Fan Maintenance-U29.39
Removing Valve.40
Replacement Parts List - U45.41
Replacement Parts List - U29.44
Warranty
Warranty.47
Regency U29-1/U45-2 ULTIMATE Direct VentFreestanding Gas Stove
3

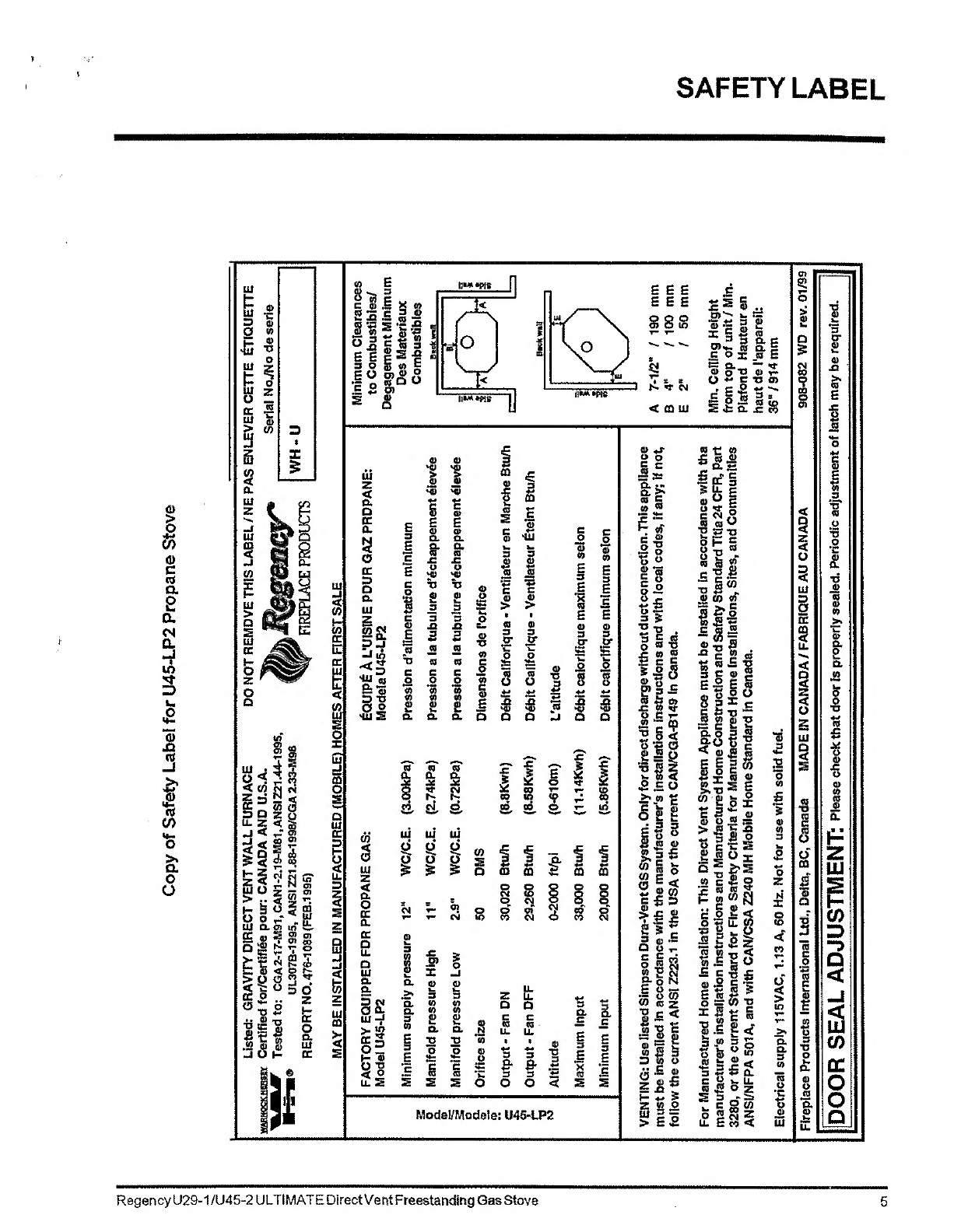

Copy
of
Safety
Label
for
U45-LP2
Propane
Stove
SAFETY LABEL

NSTALLATION
IMPORTANT:
SAVE THESE INSTRUCTIONS
The ULTIMATE Direct Vent Freestanding Gas Stove must be
installed in accordance with these instructions. Carefully read
all the instructions in this manual first. Consult the building
authority having jurisdiction to determine the need for a permit
prior to starting the installation.
Note: Failure to follow the instructions could cause a
malfunction of the heater which could result in
death, serious bodily injury, and/or property dam¬
age. Failure to follow these instructions may also
void your fire insurance and/or warranty.
Note: These instructions take precedence over Simpson
Dura-Vent instructions.
SPECIFICATIONS
Fuels: U45-NG2 and U29-NG1 are approved for use with
natural gas.
U45-LP2 and U29-LP1 are approved for use with
liquefied petroleum gases (propane).
Electrical: 120V A.C. system.
Circulation Fan; Variable speed, 125/75.
Log Sets: Ceramic fibre, 3 per set.
Vent System: Coaxial (6-5/8" outer / 4" Inner liner)
rigid flue and termination cap.
The efficiency rating of the appliance is a product thermal
efficiency rating determined under continuous operating con-
didons and was determined independent of any installed sys¬
tem.
INFORMATION FOR MOBILE/
MANUFACTURED HOMES AFTER
FIRST SALE
This Regency product has been tested and listed by Warnock
Mersey as a Direct Vent Wall Furnace to the following stand¬
ards: UL307B-1995, ANSI Z21.44-1995, CAN1-2.19-M81.
CGA2.22-M96,CAN/CGA-2.17-M91 and ANSIZ21.50-1996.
This Direct Vent System Appliance must be installed in accord¬
ance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety Standard, Titte
24 CFR, Part 3280, or the current Standard of Fire Safety
Criteria for Manufactured Home Installations, Sites, and
Communities ANSI/NFPA 501A, and with CAN/CSA Z240-
MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufactur¬
er's installation instructions and local codes, if any. In the
absence of local codes follow the current National Fuel Gas
Code, ANSI Z223.1 and the current National Electrical Code
ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149
Gas Installation Code and the current Canadian Electrical
Code CSA C22.1 in Canada.
This Regency Moblle/Manufactured Home Listed appliance
comes factory equipped with a means to secure the unit.
This Regency Mobile/Manufactured Home listed appliance
comes equipped with a dedicated #8 ground lug to which an
18gauge copper wire from the steel chassis ground must be
attached.
This appliance may only be installed In an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance Is only use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.
BEFORE YOU START
Safe installation and operation of this appliance requires
common sense, however, we are required by the Canadian
Safety Standards and ANSI Standards to make you aware of
the following:
INSTALLATION AND REPAIRS SHOULD BE DONE BY A
QUALIFIED SERVICE PERSON. THIS APPLIANCE
SHOULD BE INSTALLED, REPAIRED, INSPECTED BE¬
FORE USE AND AT LEAST ANNUALLY BY A QUALIFIED
SERVICE PERSON. MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE LINT FROM CAR¬
PETING, ETC. IT IS IMPERATIVE THAT THE CONTROL
COMPARTMENT, BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE APPLIANCE
SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY
FROM FURNITURE AND DRAPERIES.
WARNING:FAILURETOINSTALLTHISAPPLIANCECOR-|
RECTL Y WILL VOID YOUR WARRANT Y AN D MAY CAUSE:
A SERIOUS HOUSE FIRE.
CHILDRENANDADULTS SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE TEMPERATURES, ESPE¬
CIALLY THE FIREPLACE GLASS, AND SHOULD STAY
AWAY TO AVOID BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPER-
VISED WHEN THEY ARE IN THE SAME ROOM AS THE
APPLIANCE.
CLOTHINGOROTHERFLAMMABLEMATERIALSHOULD
NOT BE PLACED ON OR NEAR THE APPLIANCE.
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
7

NSTALLATION
1) Clocking the appliance to ensure the correct firing rate CAUTION: Any alteration to the product that causes sooting
(rate noted on label) after burning appliance for 15 or cartoning that resuits in damage is not the responsibility of
minutes. the manufacturer.
2) If required, adjusting the primary air to ensure that the
flame does not carbon. First allow the unit to burn for 15-
20 min. to stabilize.
CLEARANCES TO COMBUSTIBLES
The clearances listed are MINIMUM distances. Measure the clearance to both the appliance and the chimney connector. The
farthest distance is correct if the two clearances do not coincide.
For example, if the appliance isset as Indicated in oneofthefiguresbutthe connector Is too close, move the stove until the correct
clearance to the connector is obtained.
This appliance may be installed only with the clearances as shown in the situations pictured. Do not combine clearances from
one type of installation with another in order to achieve closer clearances.
This unit can be installed on a solid combustible surface like a wood floor. This unit can also be installed directly on carpeting
or vinyl when the bottom pedestal cover plate (provided with unit) is Installed.
Use the minimum clearances shown In the diagrams below;
U45-NG2 & U45-LP2 Clearances
A
Side Wali to Unit 7-1/2"/190 mm
B
Back Wali to Unit 4" /100 mm
E
Side Wall to Unit 2" / 50 mm
U45-NG2 & U45>LP2 Reference Dimensions
C
Back Wall to Flue Centerline 11”/280 mm
D
Side Wall to Flue Centerline 22-1/8"/562 mm
F
Side Wali to Flue Centerline 12" / 305 mm
■
U29-NG1 & U29-LP1 Clearances
A Side Wall to Unit
7-1/2"/190 mm
B Back Wali to Unit
6"/150 mm
E Side Wall to Unit
2" / 50 mm
U29-NG1 & U29-LP1 Reference Dimensions
C
Back Wall to Flue Centerline
11"/280 mm
D
Side Wall to Flue Centerline
20-1/2"/521 mm
F
Side Wall to Flue Centerline
11"/280 mm
914 mm/36"
Minimum
Minimum ceiling height is 36" / 914 mm from top of unit.
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
9

INSTALLATION
VENT RESTRICTORS #1 AND #2
Vent restrictors are required for certain venting installations,
see the diagrams on pages 13 and 14 to determine if they are
required for your installation. The two vent restrictors are
supplied with your unit. If a vent restrictor is required it must be
insteiied prior to connecting the pipe to the twist>lock
appliance adaptor.
The gas appliance and vent system must be vented directly to
the outside of the building, and never be attached to a chimney
serving a separate solid fuel or gas burning appliance. Each
direct vent gas appliance must use it's own separate vent
system. Common vent systems are prohibited.
IMPORTANT
Read all instructions carefully before starting the installation.
Failure to follow these instructions may create a fire or other
safety hazard, and will void the warranty. Be sure to check the
venting and clearance to combustible requirements. Consult
your local building codes before beginning installation.
The location of the termination cap must conform to the
requirements in the Exterior Vent Terminal Locations diagram
on page 12.
Slide the restrictor into
the adaptor collar and
push the tabs down
between the inner flue
collar and the inside
pipe of the twist-lock
appliance adaptor. See
the diagram below.
The same procedure is
used for vent restrictor
#2.
VENTING INTRODUCTION
fC]
l2i
.—-Vent ReeWctor
* ■
— Flue Collar
INSTALLATION PRECAUTIONS
These venting systems are engineered products that have
been designed and tested for use with the U45-NG2, U45-LP2,
U29-NG1, and U29-LP1. The warranty will be voided and
serious fire, health or other safety hazards may result from any
of the following actions:
1) Installation of any damaged Direct Vent component
2) Unauthorized modification of the Direct Vent System
3) Installation of any component part not manufactured or
approved by Simpson Dura-Vent or Fireplace Products
International Ltd.
4) Installation other than as Instructed by Simpson Dura-
Vent and Fireplace Products International Ltd.
Warning: Always maintain required clearances (air spac¬
es) to nearby combustibles to preventafire hazard. Do not
fill air spaces with insulation.
Be sure to check the vent termination clearance requirements
from decks, windows, soffits, gas regulators, air supply inlets
and puWic walkways as specified in the Exterior Vent Terminal
Locations on page 12 and in your local building codes.
The DV Stove Horizontal Vent Kit and the Simpson Dura-Vent
Direct Vent System Model DV-GS venting systems, In combi¬
nation with the ULTIMATE Direct Vent Freestanding Gas
Stove, U45-NG2, U45-LP2, U29-NG1. and U29-LP1. have
been tested and listed as direct vent heater systems by
Warnock Mersey.
The gas appliance and vent system must be vented direct¬
ly to the outside of the building, and never be attached to
a chimney serving a separate solid fuel or gas-burning
appliance. Each direct vent gas appliance must use it's own
separate vent system. Common vent systems are prohibited,
These units use the "balanced flue" technology Co-Axial
system. The inner liner vents products of combustion to the
outside while the outer pipe draws outside combustion air into
the combustion chamber thereby eliminating the need to use
heated room air for combustion and losing warm room air up
the chimney.
Note: These flue pipes must not be connected to any
other appliance.
SAFETY PRECAUTIONS FOR
THE INSTALLER
1) Wear gloves and safety glasses for protection.
2) Exercise extreme caution when using ladders or on roof
tops.
3) Be aware of electrical wiring locations in walls and ceil¬
ings.
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove 11

INSTALLATION
VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS FOR
ALL VENTING SYSTEMS
The shaded areas In the four diagrams below show all allowable comWnations of vertical runs with horizontal terminations.
Maximum one 90° elbow.
RESIDENTIAL AND Manufactured Homes / Mobile Homes Installations
The venting arrangements diagrammed below, have a minimum of 75% (flue loss) efficiency with Fan Off. as required for
manufactured homes. (Actual efficiency may be as high as 85%.)
Regency U29'1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove

INSTALLATION
DV STOVE HORIZONTAL VENT KIT
DV Stove Horizontal Vent Kit (Part # 946-216) includes alt the parts needed to install the U29-1 or U45-2 with
minimum horizontal and vertical vent dimensions. For installations that require longer vertical and/or
horizontal vents use the Dura-Vent system as shown on page 18.
Qty. Description
1) 1 Rigid Pipe Section (4 ft. (1.2m) length), 6-1/2” (165mm) inside diameter
2) 1 Flex Liner- 4” (102mm) inside diameter, compressed aluminium 2 ply liner (5 ft. (1.5m) length)
3) 5 spring spacers
4) 1 90 deg. Elbow
5) 1 Adjustable pipe section 9" to 15" (229mm x 381 mm), 2 pieces
6) 1 Thimble Cover
7) 1 Wall Thimble (2 pcs.)
8) 1 Adapter
9) 1 AstroTerminatlonCap
10) 1 TrimColiar
11) 1 tube of Mill-Pac, high temperature sealant Vent Guard (optional) 2 2
12) 12 Screws, #8 X1/2" Selftapping. Stainless Steel (Part# 946-506/P) =
13) 13 Screws, #8x1/2" Self tapping, Black =
14) 4 Screws#8X1" Drill Point, Black ;
15) 4 Screv/s #8 X1-1/2" Drill Point, Stainless Steel
16) 8 Wood screws#8 X1 ” Vinyl Siding
Standoff (Optional)
Linersectionsshouldbe continuous without any
joints or seams.
This is an approved system, therefore Thimble Cover
components in this system must not be
sub^utedforanyothermanufacturer^s
products. \ Jr
Astro
Termination Cap
(Part# 946-523)
(patent pending)
Wall Thimble
4" ID Liner^
Spacer->>
Spring i
Adj.Pipe Length 9" -15",
2 pieces
9(f Elbow
4 ft. Pipe Length
Trim Collar
Adapter
U45 model Is shown in the diagrams but the venting
arrangements are the same for the U29 and the C34.
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove

INSTALLATION
Note: If installing termination on a siding covered
wall, a vinyl siding standoff or furring strips
must be used to ensure that the termination is
not recessed into the siding. For vinyl siding
standoff installation referto the Dura-Vent Ter¬
mination instructions.

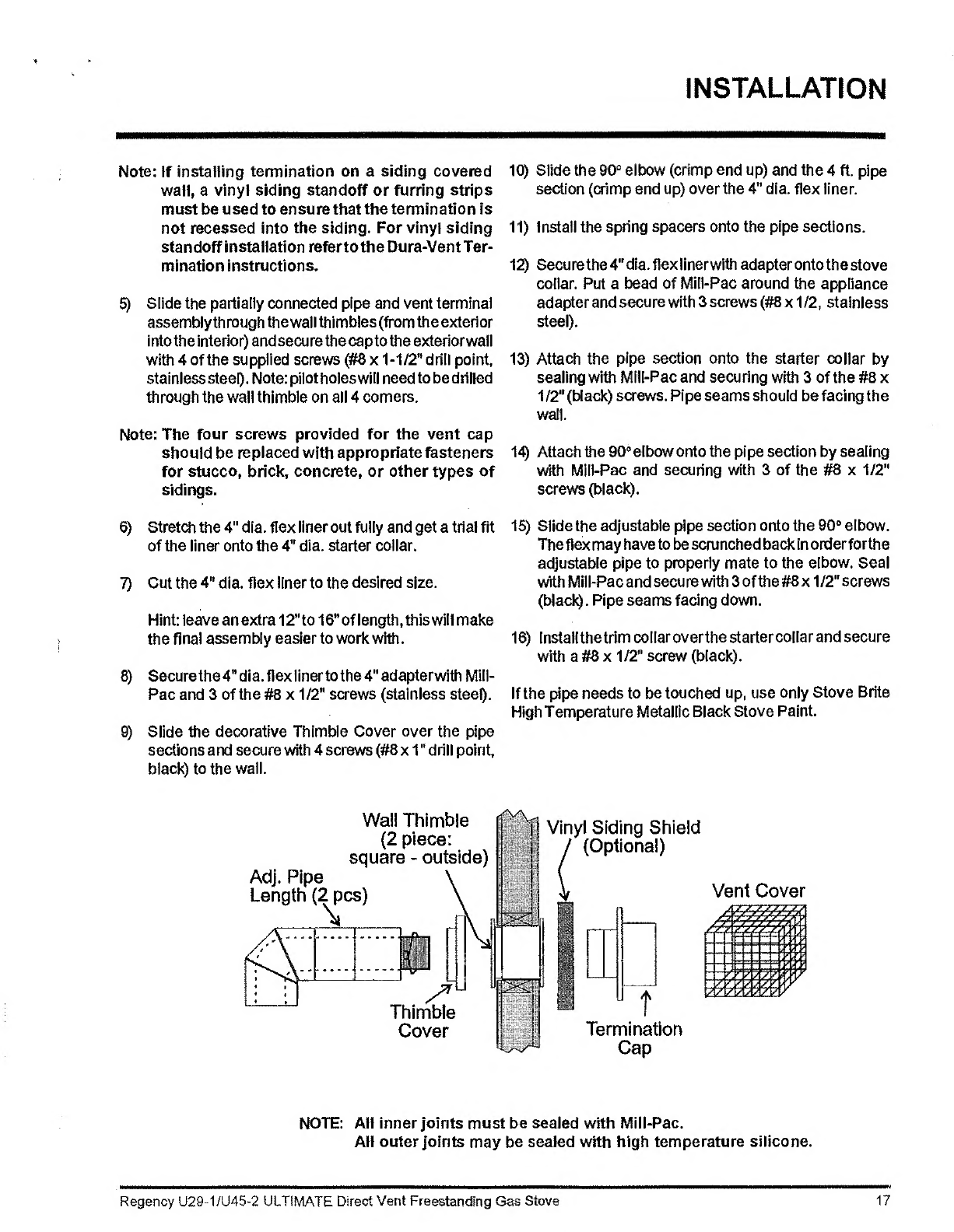

5) Slide the partially connected pipe and vent terminal
assembly through the wall thimbles (from the exterior
into the interior) and secure the capto the exteriorwall
with 4 of the supplied screws (#8 x 1-1/2" drill point,
stainless steel). Note: pilot holes will need to bedrilled
through the wall thimble on ail 4 comers.
Note: The four screws provided for the vent cap
should be replaced with appropriate fasteners
for stucco, brick, concrete, or other types of
sidings.
6) Stretch the 4" dia. flex liner out fully and get a trial fit
of the liner onto the 4" dia. starter collar.
7) Cut the 4" dia. flex liner to the desired size.
Hint: leave an extra 12" to 16" of length, this will make
the final assembly easier to work with.
8) Securethe4"dia.flexllnertothe4"adapterwlthMili-
Pac and 3 of the #8 x 1/2" screws (stainless steel).
9) Slide the decorative Thimble Cover over the pipe
sections and secure with 4 screws (#8x1" drill point,
black) to the wall.
10) Slide the 90° elbow (crimp end up) and the 4 ft. pipe
section (crimp end up) over the 4" dia. flex liner.
11) Install the spring spacers onto the pipe sections.
12) Securethe4"dia.fiexlinerwithadapterontothestove
collar. Put a bead of Mill-Pac around the appliance
adapterandsecure with 3screws(#8x 1/2, stainless
steel).
13) Attach the pipe section onto the starter collar by
sealing with Mlll-Pac and securing with 3 of the #8 x
1/2" (black) screws. Pipe seams should be facing the
wall.
14) Attach the 90° elbow onto the pipe section by sealing
with Mlll-Pac and securing with 3 of the #8 x 1/2"
screws (black).
15) Slide the adjustable pipe section onto the 90° elbow.
The flex may have to be scainched back In onderforthe
adjustable pipe to properly mate to the elbow. Seal
with Mill-Pac and secure with 3 of the #8 x 1 /2" screws
(black). Pipe seams facing down.
16) Installthetrimcollaroverthestartercollarand secure
with a #8 x 1/2" screw (black).
If the pipe needs to be touched up, use only Stove Brite
High Temperature Metallic Black Stove Paint.
Wall Thimble
(2 piece:
square - outside)
Adj. Pipe
Length (2 pcs)
^ fivj
I
\
Thimble
Cover
1
Vinyl Siding Shield
(Optional)
t
Termination
Cap
Vent Cover
*
I
- -
_
—
- *
.
7\‘ r
J >
*
/
z
/
z Z £. 1'
NOTE: All inner joints must be sealed with Mill-Pac.
All outer joints may be sealed with high temperature silicone.
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
17

INSTALLATION
You will require the following components with your new
Regency Direct Vent Freestanding Gas Stove. Please review
your product to make sure you have everything you need. In
the event that you are missing any part, contact your dealer.
Note: These are the minimum pieces required. Other
parts may be required for your particular installa¬
tion. See page 18 for a list of vent parts.
If installing termination on a siding covered wall, a vinyl siding
standoff or furring strips can be used in order to ensure that the
termination is not recessed into siding.
The vinyl siding standoff is required for walls with vinyl siding.
Minimum components for a Dura-Vent Horizontal
Installation:
A) Dura-Vent Horizontal Termination Kit
B) Wall Thimble (required
for combustible walls)
Minimum components for a Dura-Vent Vertical
Termination:
D) Dura-Vent Vertical Termination Kit
See page 18 for pipe lengths.
Dura-Vent Vertical
Termination installation
Teltilirial:
(D)
Vettic^
Termination
Kit Part #978
Cathedral
Ceiling
Support Box
Ceiling
Firestop
Round Support
BoxAVall Thimble
Pipe Length
Dura-Vent Horizontal
Termination Installation
(A)
•Horizontal Termination Kit
Part # 971
Vent Guard (optional) >4
# 946-506/P..''
•Round Support
Box/Wall Thimble
(included In #971)
i
•Horjzdhtal
Teimi nation Cap
.'(included in #971)
Vinyl Siding
Standoff (Optional)
Part #950
Wall Thimble
(B) Part # 942
‘Adj.Pipe Length
11" -14-5/8"
(included in #971)
90® Elbow
(included in #971)
*24" Pipe Length
(included in #971)
Dura-Vent Basic
Horizontal Kit # 970
1 90® Elbow
1 Wall Thimble Cover
1 Horiz. Sq. Term. Cap
Alternate
Horizontal
Termination
Caps
Alternate:
Horizontal
Riser Vent
Terminal
Part# 640-530
Alternate Snorkel
Termination Cap
Part #982 (14")
Part #981 (36")
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
19

INSTALLATION

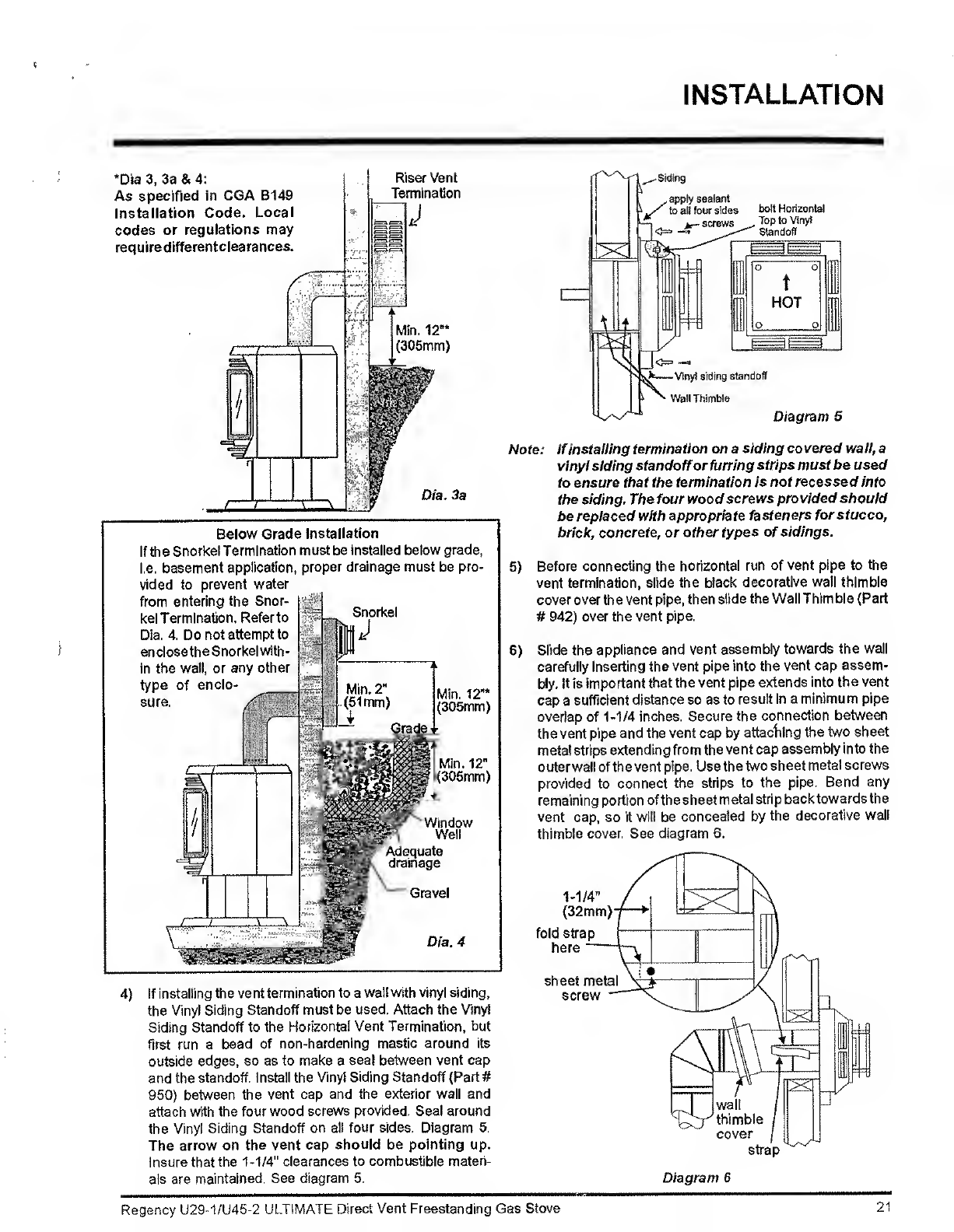

*Dla 3, 3a & 4:
As specified in CGA B149
Installation Code. Local
codes or regulations may
requiredifferentclearances.
Riser Vent
Termination
Min. 12"*
(305mm)
Dia. 3a
Below Grade Installation
if the Snorkel Termination must be installed below grade,
i,e. basement application, proper drainage must be pro¬
vided to prevent water
from entering the Snor¬
kel Termination. Referto
DIa. 4. Do not attempt to
enclose theSnorkel with¬
in the wall, or any other
type of enclo¬
sure.
Snorkel
Min. 12"*
(305mm)
Min. 12"
(305mm)
Window
Well
Adequate
drainage
Gravel
Dm. 4
4) If installing the vent termination to a wall with vinyl siding,
the Vinyl Siding Standoff must be used. Attach the Vln^
Siding Standoff to the Horizontal Vent Termination, but
first run a bead of non-hardening mastic around its
outside edges, so as to make a seal between vent cap
and the standoff. Install the Vinyl Siding Standoff (Part#
950) between the vent cap and the exterior wall and
attach with the four wood screws provided. Seal around
the Vinyl Siding Standoff on all four sides. Diagram 5.
The arrow on the vent cap should be pointing up.
Insure that the 1-1/4" clearances to combustible materi¬
als are maintained. See diagram 5,
Note: If installing termination on a siding covered wall, a
vinyl siding standoff or furring strips must be used
to ensure that the termination is not recessed into
the siding. The four wood screws provided should
be replaced with appropriate fasteners for stucco,
brick, concrete, orothertypes of sidings.
5} Before connecting the horizontal run of vent pipe to the
vent termination, slide the black decorative wall thimble
cover over the vent pipe, then slide the Wall Thimble (Part
# 942) over the vent pipe.
S) Slide the appliance and vent assembly towards the wall
carefully Inserting the vent pipe into the vent cap assem¬
bly. It is important that the vent pipe extends into the vent
cap a sufficient distance so as to result in a minimum pipe
overlap of 1-1/4 inches. Secure the connection between
the vent pipe and the vent cap by attacliing the two sheet
metal strips extending from the vent cap assembly into the
outer wall of the vent pipe. Use the two sheet metal screws
provided to connect the strips to the pipe. Bend any
remaining portion of the sheet metal strip back towards the
vent cap, so it will be concealed by the decorative wall
thimble cover. See diagram 6.
Regency U29'1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
21

INSTALLATION
Galvanized pipe and elbows may be utilized in the attic as framed to 10" x 10" inside dimensions, in the same
well as above the roofiine. The galvanized finish Is manner as shown in diagram 10.
desirable above the roofline due to its higher corro^on
resistance. b) Any occupied areas above the first floor, including
closets and storage spaces, through which the ver-
Continue to add pipe sections through the flashing until tical vent passes, must be enclosed.
the height of the vent cap meets the minimum height
requirements specified in diagram 12 or local codes.
Note that for steep roof pitches, the vertical height must
be increased. A poor draft, or down drafting can result
from high wind conditions near big trees or adjoining roof
lines, in these cases, increasing the vent height may
solve the problem.
Diagram 12
Roof PRch Minimum Vent Height
Feet Meters
flat to 7/12
2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12
2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12to 11/12
3.25 0.99
over11/12to12/12
4
1.22
over 12/12 to 14/12
5
1.52
over 14/12 to 16/12
6
1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44
Ensure vent is vertical
and secure the base nails —
of the flashing to the Ceiling Firestop-
roof with roofing rails,
slide storm collar over j
the pipe section and 1
seal with a mastic.
install the verticali.-}/ 4 - Min.H
termination cap by ^
twist locking it.
1
T\
11
Offset Chart
GS 6'’(152mm) Nominal Diameter ID
Offset Pioe Lenath (L]
Inches mm
4y. 121
9 229
11 1/4 286
131/4 337
21 3/4 552
301/4 768
inches mm
0 0
12 305
24 610
36 914
Height
inches I mirT
131/4 337
17 1/2 445
191/2 495
21 3/4 552
30 1 /4 768
39 991
38
965
48 1219 47
1194
r'''
4
' 1
1
(D
UJ
I »
1-1/4" Min.
Notes:
a)
For multistorey
vertical installa¬
tions, a Ceiling
Fire stop (Part #
963) is required at
the second floor,
and any subse¬
quent floor. Dia¬
gram 13. The
opening should be
1-1/4" Min.
1-1/4" Min.
Diagram 13
OFFSET
\ CATHEDRAL CEILINGS
Round Support (RDS) &
/ Square Support (SQS)
If your home has a cathedral ceiling (no attic space bet//een
the ceiling and the roof), install the chimney and support as
follows.
1) Situate the chimney in a convenient location as near as
possible to the appliance outlet, Cut and frame a hole in
the roof for the support. The sides of this hole must be
vertical with 1 1/4" clearance.
2) Place the support in the opening. Lower it to the correct
height as determined by the table and diagram below.
Using a level, make sure the support is vertical. If the
support extends above the roof, cut it flush with the top of
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
23

INSTALLATION
System Data ■ U45-2
System Data - U29-1
For 0 to 2000 feet altitude
Burner Inlet Orifice Sizes:
Natural Gas
Burner #32
Propane
#50
For 0 to 4500 feet altitude
Burner Inlet Orifice Sizes:
Natural Gas Propane
Burner #40 #53
*Above 2000 ft. see National Fuel Code Orifice Chart. I I Max. Input Rating
Max. Input Rating > Natural Gas 38,000 Btu/h
- Propane 38,000 Btu/h
Min. Input Rating - Natural Gas 20,000 Btu/h
- Propane 20,000 Btu/h
Output Capacity with blower OfT
Natural Gas 28,500 Btu/h
Propane 29,260 Btu/h
Output Capacity with blower On*
Natural Gas 29,260 Btu/h
Propane 30,020 Btu/h
*See page 14 for manufactured home chart.
Supply Pressure Natural Gas min. 5.0" w.c.
Propane min. 12.0" w.c.
Manifold Pressure
Natural Gas 3.8" +/-0.2"w.c.
Propane 11" +/-0.2"w.c.
Min. Input Rating
27,000 Btu/h
13,500 Btu/h
Output Capacity with blower Off*
Natural Gas 20,790 Btu/h
Propane 21,411 Btu/h
Output Capacity with blower On*
Natural Gas 21,330 Btu/h
Propane 21,924 Btu/h
*See page 14 for manufactured home chart.
Supply Pressure Natural Gas min. 5.0" w.c.
Propane min. 12.0" w.c.
Manifold Pressure
Natural Gas 3.8" +/- 0.2" w.c.
Propane 11" +/-0.2"w.c.
System Data - HIGH ELEVATION
For 2,000 - 4,500 feet altitude
Burner Inlet Orifice Sizes:
Natural Gas
Burner #33
Max, Input Rating - Natural Gas 36,100 Btu/h
Min. Input Rating - Natural Gas 19,000 Btu/h
Output Capacity with blower Off
Natural Gas 27,075 Btu/h
Max. Output Capacity with blower On
Natural Gas 27,797 Btu/h
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
25

INSTALLATION
AERATION ADJUSTMENT LOG INSTALLATION
The burner aeration is factory set but may need adjusting due to
either the local gas supply, air supply or altitude.
U45
Natural Gas:
5/16" open
Propane:
wide open
U29
Natural Gas:
1/8" open
Propane:
3/8" open
The aeration adjustment gears are located on the right side of
the burner box and can be accessed from the side or from the
front when the louvers are removed.
WARNING: Dangerous operating conditions may occur if
these logs are not positioned in their approved locations.
Read the instructions below carefully and refer to the
diagrams, if logs are broken do not use the unit until they
are replaced. Broken logs can interfere with the pilot and
burner operation.
U29: The gas log kit contains the following;
a) Front Right Log-Part #902--020
b) Front Left Log - Part # 902-021
c) Rear log - Part # 902-022
d) Embers-Part #902-151 (1 bag)
e) Lava - Part # 902-154 (1 bag)
(Part # 560-935 for the set of three logs)
U45-2: The gas log kit contains the following:
a) Front Right Log - Part # 902-209
b) Front Left Log-Part #902-210
c) Rear log - Part # 902-027
d) Embers - Part # 902-151 (2 bags)
e) Lava - Part# 902-154 (1 bag)
(Part # 650-976 for the set of three logs)
To adjust the aeration: use the alien key to turn theturning gear
which will adjust the air shutter. Open the air shutter for a blue
flame or close it for a yellower flame. This adjustment is
performed by a qualified installer. The factory setting should
be sufficient for most installations.
Closed -Tali yellow flame
Open -Short blue flame
1) Remove the logs from the box and carefully unwrapthem.
The logs are fragile, handle with care - DO NOT FORCE
into position.
2) Place the rear log, carefully sliding it down onto the pins,
with the flat side of the log facing the back of the unit. See
diagram 1.
Burner
Note: Do not force
logs down.
Caution: Carbon will be produced if the air shutter is
closed too much.
Clockwise to open, counter-clockwise to close.
Note: Any damage due to cartoning resulting from im¬
properly setting the aeration controls is NOT cov¬
ered under warranty.
Diagram 1
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
27

INSTALLATION
FRONT DOOR INSTALLATION
{Packaged Separately)
1) open the two side panels.
2) Slide the door onto the two hinge pins making sure the two
pieces are flush together. See diagram 1.
3) C lose the door. The latch plate must be centered around
the alignment pin. See diagram 2. If the latch plate
interferes with the corner of the stove you may want to
angle the plate slightly so the door closes easier.
4) Thelatchesshouldalreadybeatthepropersetting. Ifthey
are too hard or too easy to close, you may want to adjust
them by loosening the latch catch. See diagram 3.
5) Remove the blue plastic protective coating from the glass.
6) Test the seal around the door by placing a piece of paper
between the unit and the door, close the door and try to
pull the paper out. if it slips out easily, then the door is not
properly sealed. Tighten or loosen the latch. See diagram
3.
Note: The door latch may require adjustment as the door
gasket material compresses after a few fires and
after glass replacement Turn the latch catch in¬
ward or outward to loosen or tighten.
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove 29

INSTALLATION
WIRING DIAGRAM - U45-NG2 & U45-LP2
I Ground
o
E
. Neutral
u-uuza
White ^
:]M 0 iexP!ug
t
120VAC
1 Green
Ground -1:
k /r\aa£LoJ
ON OFF
iiackl
Minimum Convection Rotary Speed
AlrTemp.Swltch...
Jo
’Thermocouple IN
Ignitor
(Piezo)
Remote
Receiver
(Optional)
(Millivolt) • E=p
Remote Sender
(Optional)
Thermostat l •
(Optional)
Black
...Ppjl...
Burner
► OFF
THERMOSTAT
WIRING DIAGRAM - U29-NG1 & U29-LP1
Grounding
Lug Detail
l.ocfcwashor<
S(srwssh«u
CrMind wfre ^ q
fran^ 'tt T? O
O := O
2^*** o 12 te ®
(romDow*f eori ^ <8 0^
: ^ O ^ P
^ I
Uve t
(120V AC) ^
5 ON OFF
Assembly
Thermocouple
In
"8.1.1" Valve
Rotary Speed
Control
To
’Thermocouple IN
Ignitor
(Piezo)
Thermostat [ {A:'\ j
(Optional)
(Millivolt) i i
Remote
Receiver
(Optional)
(Millivolt)
Minimum Convection
Air Temp. Switch
Remote Sender
(Optional)
Black
..Red'.::
Burner
► OFF
THERMOSTAT
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
31

OPERATING INSTRUCTIONS
Copy of the Lighting Plate Instructions
FOR YOUR SAFETY READ BEFORE LIGHTING
This appliance must be installed in accordance with local codes, if any; if not,
follow the current CAN1-B149/ANSI Z 223.1 (Australia: AG601, New Zealand: NZS 5261)
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For assistance or additional
information consult a qualified installer, service agency or gas supplier.
/^Thls appliance has a pilot which must be lighted by
hand, following the Instructions below exactly.
B) BEFORE LIGHTING smell all around the appliance
area for gas. Besure to smell next to the floor because
some gas Is heavlerthanalrandwii! settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electric switch, do not use any
phone in your building
- Immediately call your gas supplier from a neighbors
phone. Follow the gas supplier's Instructions.
- if you cannot reach your gas supplier, call the fire
department
Q Use only your hand to push In or turn the gas control
knob. Never use tools. If the knob will not push In or
turn by hand, don’t try to repair it, call a qualified
service technician. Force or attempted repair may
result in a fire or explosion.
D)Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
underwater.
This appliance needs fresh air for safe operation and must
be installed so there are provisions for adequate
combustion and ventilation air.
CAUTION: Hot while in operation. Do not
touch. Due to high surface temperatures
keep children, clothing and furniture away.
Keep burner and control compartment clean.
See installation and operating Instructions
accompanying appliance.
LIGHTING INSTRUCTIONS
STOP! Read the safety Information above on this label.
1) Pushlngascontrolknobslightlyandtumclockwise ^
to "OFF". Knob cannot be turned from ‘‘PILOT’to
"OFF” unless knob is pushed in slightly. Do not force.
2) Wait five (5) minutes to clear out any gas. if you then
smell gas STOP! follow "B” in the safety Information
above on this label. If you don’t smell gas, go to the
next step.
^ Turn knob on gas control counterclockwise to
"PILOT”.
4) P ush in control knob all the way and hold in.
Immediately push black button on spark igniter until
pilot lights. Continue to hold the control knob in for
about 1/2 minute after the pilot is lit Release knob and
ItwIllpopbackup.Piiotshould remain lit If it goes out
repeat steps 3) and 4).
If knob does not pop up when released, stop and
Immediately call your service technician or gas supplier.
If the pilot will notstaylitafter several tries,turn the gas
control knob to “OFF” and call your service technician
or gas supplier.
5) Turn gas control knob counterclockwise to
“ON”.
6) Use rocker switch to operate main burner.
PILOT BURNER
VEILLEUSE
THERMOPILE
ELEMENT
THERMO-
ELECTRIQUE
TO TURN OFF GAS APPLIANCE
1) Push in the gas control knob slightly and turn
clockwise to “OFF”. Do not force.
2) Turn off all electric power to the appliance if service is to
be performed.
DO NOT REMOVE THIS INSTRUCTION PLATE
908^649
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
33

MAINTENANCE
DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN
UNDER WATER. IMMEDIATELY CALL A QUALIFIED
SERVICE TECHNICIAN TO INSPECT THE APPLIANCE
AND TO REPLACE ANY PART OF CONTROL SYSTEM
AND ANY GAS CONTROL WHICH HAS BEEN UNDER
WATER._
CAUTION: ANY SAFETY SCREEN OR GUARD REMOVED
FOR SERVICING AN APPLIANCE MUST BE REPLACED
PRIOR TO OPERATING THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD
NOT BE PLACED ON OR NEAR THE APPLIANCE.
7) Each time the appliance is lit. it may cause condensation
and fog the glass. This condensation and fog is normal
and will disappear in a few minutes as the glass heats up.
Never operate the appliance without the g lass proper¬
ly secured in place or with the door open.
8) Periodically check the pilot flames. Correct flame pattern
has three strong blue flames: 1 flowing around the ther¬
mopile and 1 around the thermocouple, and 1 flowing
across the rear of the burner (it does not have to be
touching the burner).

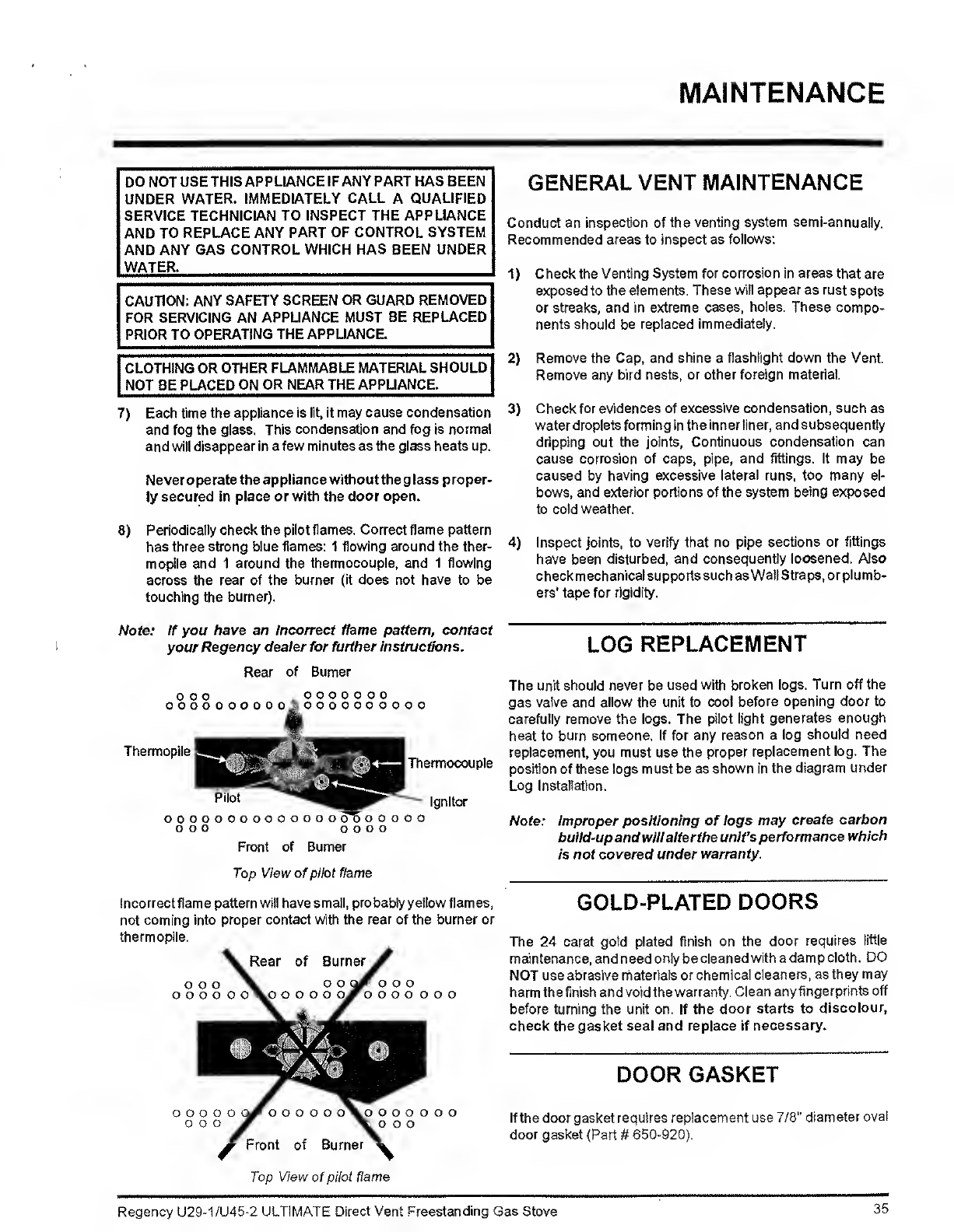

GENERAL VENT MAINTENANCE
Conduct an inspection of the venting system semi-annually.
Recommended areas to inspect as follows:
1) Check the Venting System for corrosion in areas that are
exposed to the elements. These will appear as rust spots
or streaks, and in extreme cases, holes. These compo¬
nents should be replaced immediately.
2) Remove the Cap, and shine a flashlight down the Vent.
Remove any bird nests, or other foreign material.
3) Check for evidences of excessive condensation, such as
water droplets forming in the inner liner, and subsequently
dripping out the joints. Continuous condensation can
cause corrosion of caps, pipe, and fittings. It may be
caused by having excessive lateral runs, too many el¬
bows, and exterior portions of the system being exposed
to cold weather.
4) Inspect joints, to verify that no pipe sections or fittings
have been disturbed, and consequently loosened. Also
check mechanical supports such as Wall Straps, or plumb¬
ers* tape for rigidity,
Not 0 : If you have an incorrect flame pattern, contact
your Regency dealer for further instructions. LOG REPLACEMENT
Rear of Burner
o o o
ooooooooo
o o o o o o o
oooooooooo
Thermopile
Thermocouple
Ignitor
ooooooooooooooooooooo
o o o o o o o
Front of Burner
Top View of pilot flame
Incorrect flame pattern will have small, probably yellow flames,
not coming into proper contact with the rear of the burner or
thermopile.
The unit should never be used with broken logs. Turn off the
gas valve and allow the unit to cool before opening door to
carefully remove the logs. The pilot light generates enough
heat to burn someone. If for any reason a log should need
replacement, you must use the proper replacement log. The
position of these logs must be as shown in the diagram under
Log Installation.
Note: Improper positioning of logs may create carbon
build’UpandwillalterlheuniVsperformancewhich
is not covered under warranty.
GOLD-PLATED DOORS
The 24 carat gold plated finish on the door requires tittle
maintenance, and need only be cleaned with a damp cloth. DO
NOT use abrasive materials or chemical cleaners, as they may
harm the finish and void the warranty. Clean any fingerprints off
before turning the unit on. If the door starts to discolour,
check the gasket seal and replace If necessary.
DOOR GASKET
If the door gasket requires replacement use 7/8” diameter oval
door gasket (Part # 650-920).
Top View of pilot flame
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
35

MAINTENANCE
Mitred Glass Replacement
Removing Glass
1) Remove the door from the unit and place on a soft surface
to prevent scratching.
2) Puli out the door gasket.
3) Remove the 24 nuts holding the glass retainers In place.
Do not remove the nuts underneath the retainers.
4) Remove the door catch plate.
5) Remove glass retainers on sides first (3 each side) then
remove two center retainers.
Note: Center glass retainers are glued to center glass.
6) Remove glass from extrusions. When removing center
glass, leave white insulation in place.
Installing Glass
1) I nstall both center and side giass onto extrusions as per
diagram.
2) Place glass assembly into door frame.
3) Install retainers by placing 1 drop of glue where previously
glued and put in place.
4) Install side retainers.
5) Install door catch plate.
6} Install the 24 nuts loosely, do not tighten yet.
7) Tighten side panels nuts using the following procedure:
a. tighten top & bottom outside corner nuts (2)
b. tighten inside nuts (3)
c. tighten top & bottom inside corners (2)
8) Tighten the 10 nuts on center glass retainer.
9) Repeat step 7 for other side panel.
10) Replace new gasket by gluing it in place.
11) Install door onto stove and check the seal.
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove
37

MAINTENANCE

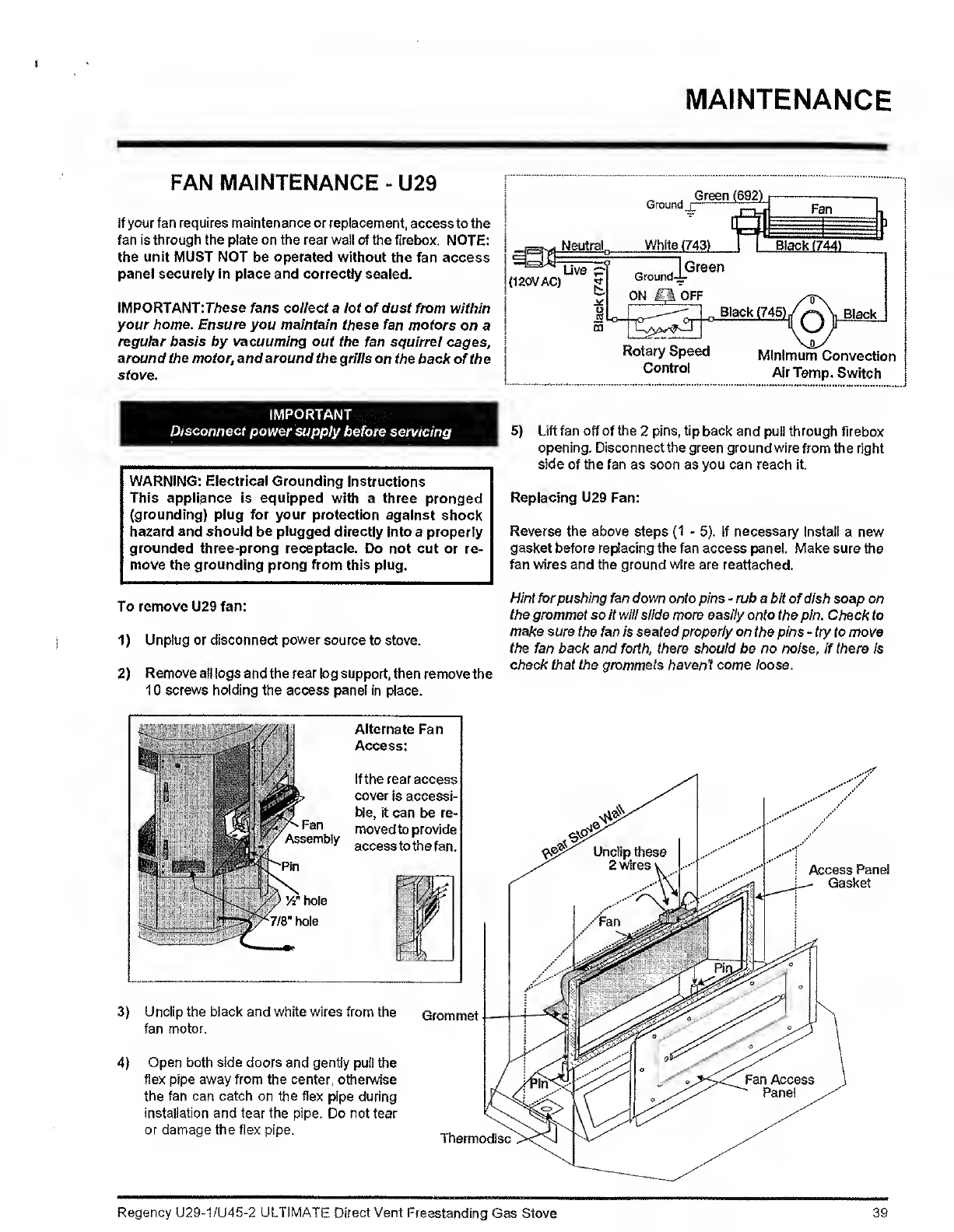

FAN MAINTENANCE - U29
If your fan requires maintenance or replacement, access to Oie
fan Is through the plate on the rear wall of the firebox. NOTE:
the unit MUST NOT be operated without the fan access
panel securely in place and correctly sealed.
IMPORTANT:r/?ese fans collect a lot of dust from within
your home. Ensure you maintain these fan motors on a
regular basis by vacuuming out the fan squirrel cages,
around the motor, and around the grills on the back of the
stove.
IMPORTANT
Disconnect power supply before servicing
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or re¬
move the grounding prong from this plug.
To remove U29fan:
1) Unplug or disconnect power source to stove.
2) Remove all logs and the rear log support, then remove the
10 screws holding the access panel in place.
5) Lift fan off of the 2 pins, tip back and pul! through firebox
opening. Disconnect the green ground wire from the right
side of the fan as soon as you can reach It.
Replacing U29 Fan:
Reverse the above steps (1 - 5). If necessary install a new
gasket before replacing the fan access panel. Make sure the
fan wires and the ground wire are reattached.
Hint for pushing fan down onto pins -rub a bit of dish soap on
the grommet so it will slide more easily onto the pin. Check to
make sure the fan is seated properly on the pins - try to move
the fan back and forth, there should be no noise, if there is
check that the grommets haven’t come loose.
Fan
Assembly
'A*" hole
7/8" hole
Alternate Fan
Access:
If the rearaccess
cover is accessi¬
ble. ft can be re¬
moved to provide
access to thefan.
Uncllp these
2 wires
3) Unclip the black and white wires from the
fan motor.
4) Open both side doors and gently pull the
flex pipe away from the center, othei\wse
the fan can catch on the flex pipe during
installation and tear the pipe. Do not tear
or damage the flex pipe.
Grommet
Thermodisc
Access Pane!
Gasket
Regency U29-1/U45-2 ULTIMATE Direct Vent Freestanding Gas Stove 39
