F2450 Wood Stove | 1

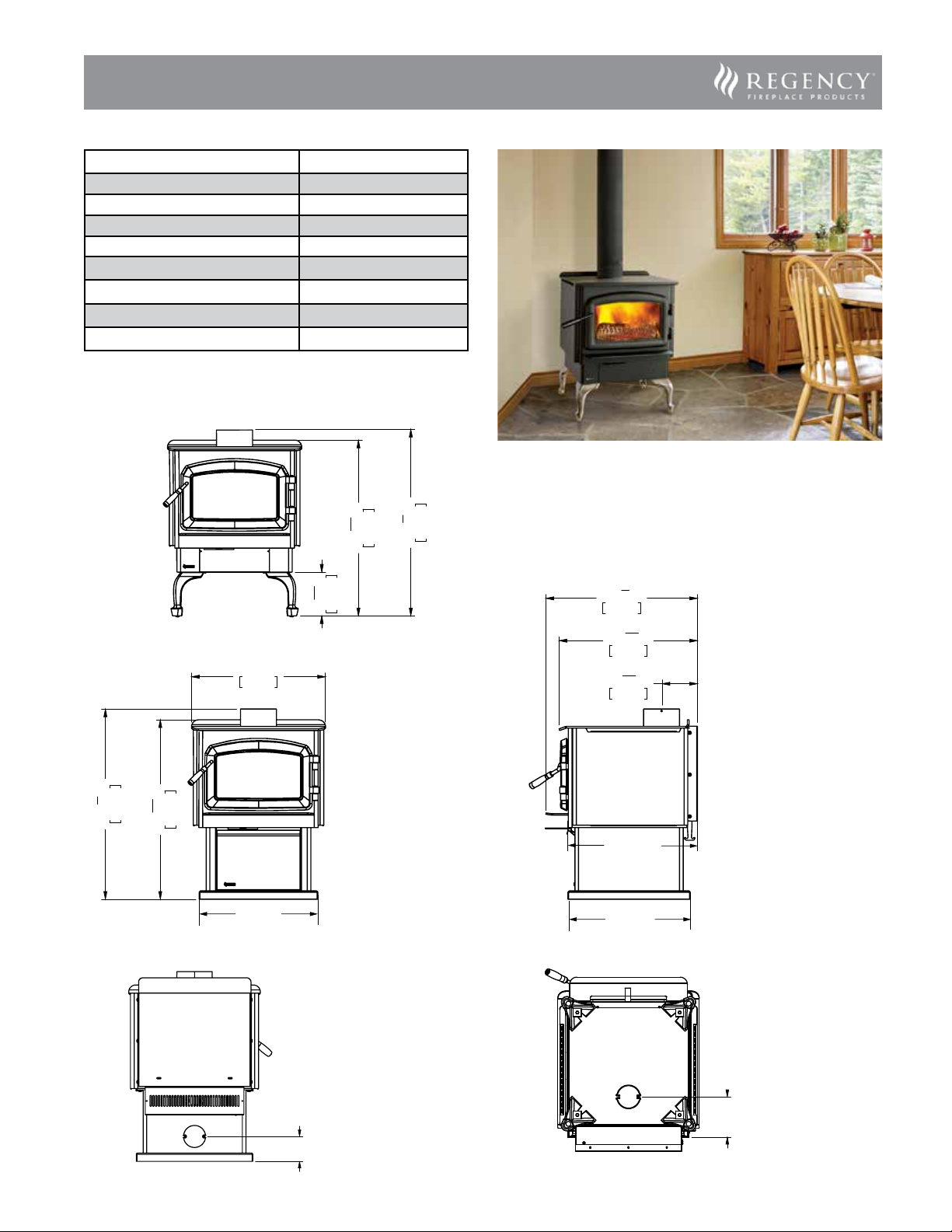

F2450 Wood Medium Stove
UNIT DIMENSIONS
24"
610mm
32 3
16
"
817mm
34 5
8
"
879mm
27 1
8"
690mm
24 13
16"
630mm
6 7
16"
163mm
33 7
8
"
860mm
31 7
16
"
798mm
7 13
16
"
198mm
21-1/4"
[540mm] 21-1/2"
[546mm]
23-1/8"
[587mm]
(from fuel door opening)
OUTSIDE AIR DIMENSIONS
Rear
Front
Rear
4-9/16" (115mm)
6-13/16"(173mm)
Images for OUTSIDE AIR DIMENSIONS
Rear
Front
Rear
4-9/16" (115mm)
6-13/16"(173mm)
Images for OUTSIDE AIR DIMENSIONS
24"
610mm
32 3
16
"
817mm
34 5
8
"
879mm
27 1
8"
690mm
24 13
16"
630mm
6 7
16"
163mm
33 7
8
"
860mm
31 7
16
"
798mm
7 13
16
"
198mm
21-1/4"
[540mm] 21-1/2"
[546mm]
23-1/8"
[587mm]
(from fuel door opening)
Model F2450
Cordwood BTU’s 75,000 BTU’s
Emissions (grams/hr) EPA Certied 2.3 grams/hr
Eciency (EPA HHV)* 73.3%
Eciency (EPA LHV) 78.4%
Flue Size 6" (152mm)
US Biomass Tax Rebate Eligible No
Maximum Log Size 18” (457 mm)
Firebox Size 2.3 cu.ft.
*US Biomass Tax Rebate eligibility is based on the HHV value being
greater than or equal to 75%.

2 | F2450 Wood Stove

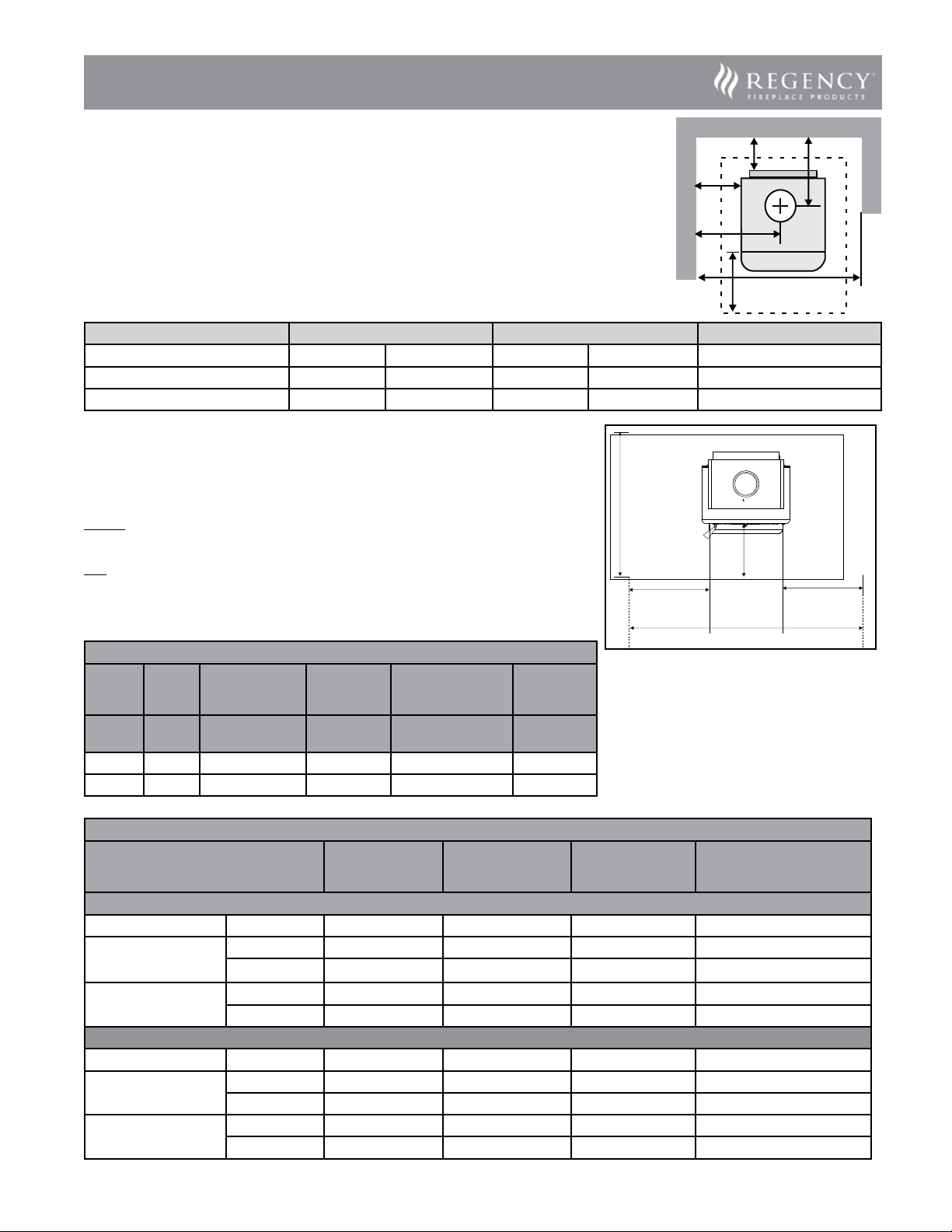

MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Please read the section below carefully as clearances depend on whether the airmate or
the rear heat deector is installed on the stove.
Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner,
and from the rear heat shield to a back wall.
Clearances may only be reduced by means approved by the regulatory authority.
Minimum ceiling height - 83" (2108mm)
A
F
F
C
C
B E
D
NOTE: Be aware that local Codes and Regulations may override some clearances listed in this manual.
Check with your local inspector.
NOTE: This clearance is also required for air space between the appliance and wall/ceiling.
Residential Installation “C” Vent (Single Wall)
Unit From Unit From Corner From Flue Center-Line
A B C D E F
Medium F2450M with Airmate 16" (406mm) 9.5" (241mm) 8" (203mm) 28" (711mm) 16" (406mm) 20" (508mm)
with Rear Deector 16" (406mm) 11.5"
(292mm)
8" (203mm) 28" (711mm) 18" (457mm) 20" (508mm)
Residential Close Clearance (To be installed with required pipe components)
When the stove is installed as a close clearance residential unit, a listed double wall connector is required from the stove collar to the ceiling level.
Unit From Unit From Corner From Flue Center-Line
A B C D E F
Medium F2450M with Airmate 15" (381mm) 8" (203mm) 6" (152mm) 27" (686mm) 14.5" (368mm) 18" (457mm)
with Rear Deector 15" (381mm) 10" (254mm) 6" (152mm) 27" (686mm) 16.5" (419mm) 18" (457mm)
Mobile Home Close Clearance (To be installed with required pipe components)
"C" Vent single wall pipe is not approved for Mobile Home installations. (Refer to Mobile Home Instructions.)
Unit From Unit From Corner From Flue Center-Line
A B C D E F
Medium F2450M with Airmate 15" (381mm) 8" (203mm) 6" (152mm) 27" (686mm) 14.5" (368mm) 18" (457mm)
with Rear Deector 15" (381mm) 10" (254mm) 6" (152mm) 27" (686mm) 16.5" (419mm) 18" (457mm)

F2450 Wood Stove | 3
FLOOR PROTECTION
(EMBER PROTECTION ONLY REQUIRED)
A combustible oor must be protected by a non-combustible material (like tile, concrete board,
or certied to UL-1618 Type 1, or as dened by local codes).
Canada: Beneath the heater and extending to at least 18" on the fuel loading side and at least
8" on the sides and back.
USA: Beneath the heater and extending to at least 16" beyond the fuel loading side and ash
removal opening and at least 8" on the sides and back and under the chimney connector
extending 2" beyond each side for horizontal applications.
Minimum Overall Depth (Y) of Floor Protector
Reference only when hearth pad is
installed to rear wall at minimum pipe
clearances.
Hearth
Depth
Edge of Fuel door
opening to edge
of hearth
Hearth
Width
Edge of Fuel Door Open-
ing
(Both Sides)
Residential Installation ''C'' Vent (Single Wall)
Unit A B C D
F2450M with Airmate Canada 50-1/2" (1283mm) 18" (457mm) 33-11/16" (856mm) 8" (203mm)
USA 48-1/2" (1232mm) 16" (406mm) 33-11/16" (856mm) 8" (203mm)
F2450M with Rear
Deector
Canada 52-1/2" (1334mm) 18" (457mm) 33-11/16" (856mm) 8" (203mm)
USA 50-1/2" (1283mm) 16" (406mm) 33-11/16" (856mm) 8" (203mm)
Residential Close Clearance (To be installed with required pipe components)
Unit A B C D
F2450M with Airmate Canada 48" (1219mm) 18" (457mm) 33-11/16" (856mm) 8" (203mm)
USA 46" (1168mm) 16" (406mm) 33-11/16" (856mm) 8" (203mm)
F2450M with Rear
Deector
Canada 50" (1270mm) 18" (457mm) 33-11/16" (856mm) 8" (203mm)
USA 48" (1219mm) 16" (406mm) 33-11/16" (856mm) 8" (203mm)
C
B
D
A
D
MINIMUM ALCOVE CLEARANCE AND CLEARANCE TO COMBUSTIBLE
MATERIALS
The Regency Freestanding models have been alcove approved and must be installed
with a listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height - 83"
Maximum depth of alcove - 48"
G
K
16"
405mm
HJ
I
NOTE: This clearance is also required for air space between the appliance and wall/ceiling. Where the
appliance is installed less than 8" from a rear wall, the ember pad only needs to extend to the base of
the wall based on the clearances noted in this manual.
Unit From Unit From Flue Center-Line From Wall
G H I J K
Medium F2450M with Airmate 15" (381mm) 8" (203mm) 27" (686mm) 14.5" (368mm) 54" (1372mm)
with Rear Deector 15" (381mm) 10" (254mm) 27" (686mm) 16.5" (419mm) 54" (1372mm)
Minimum Overall Depth (Y) of Floor Protector
Edge of Fuel door
opening to edge
of hearth
Edge of Fuel Door
Opening (Both Sides)
Unit
A B C D
F2450M Canada 49" (1245mm) 18" (457mm) 33 11/16" (856 mm) 8" (203mm)
USA 47" (1194mm) 16" (406mm) 33 11/16" (856 mm) 8" (203mm)

4 | F2450 Wood Stove

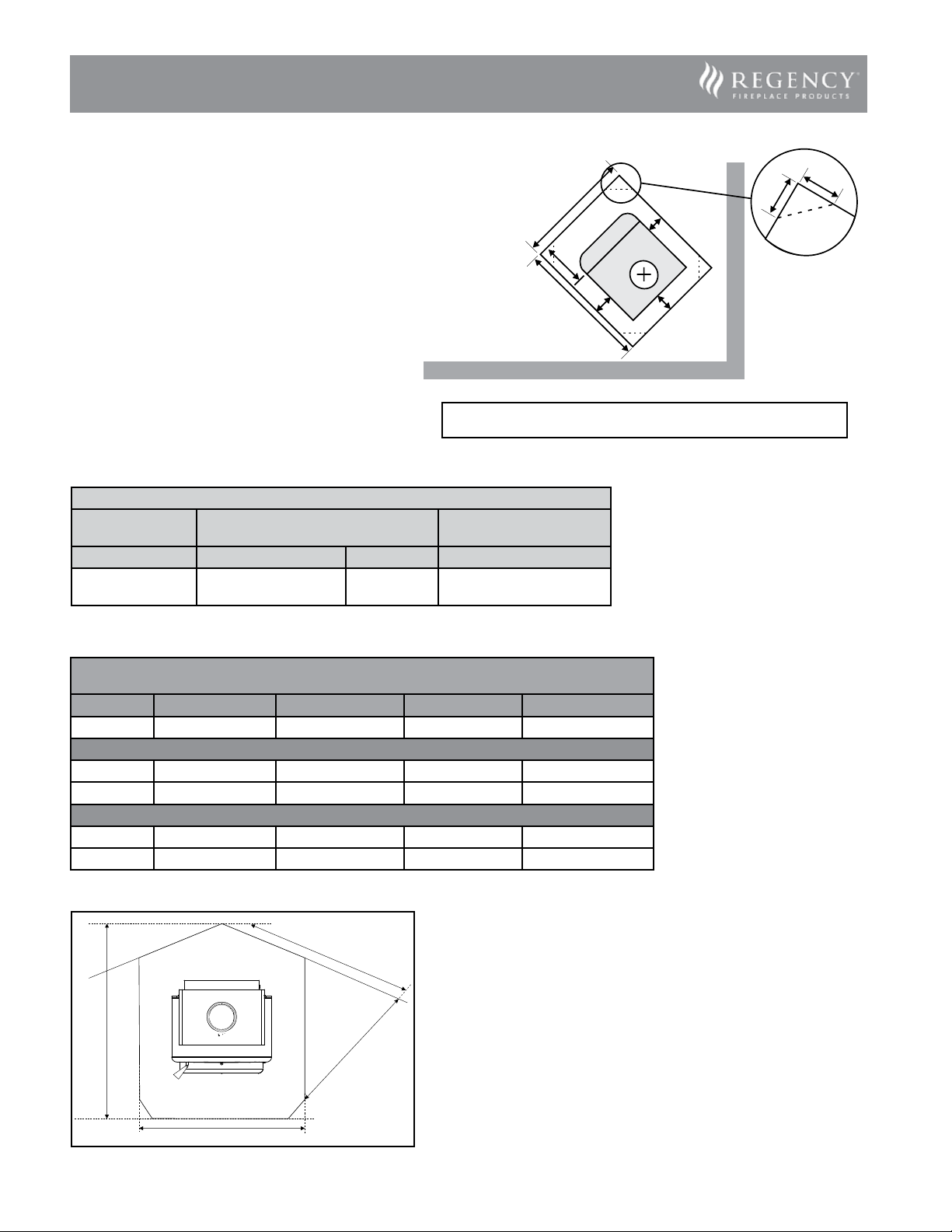

Minimum Overall Depth (Y) of Floor Protector - Corner Hearth
Reference only when hearth pad is installed to rear wall at minimum pipe clearances.
Hearth Depth
F2450M L M N O
Residential Installation ''C'' Vent (Single Wall)
Canada 33-11/16" (856mm) 62-7/8" (1596mm) 52-1/8" (1324mm) 28-5/16" (727mm)
USA 33-11/16" (856mm) 60-7/8" (1545mm) 50-3/4" (1289mm) 26-7/8" (681mm)
Residential Close Clearance (To be installed with required pipe components)
Canada 33-11/16" (856mm) 60-1/16" (1527mm) 50-1/8" (1273mm) 26-5/16" (676mm)
USA 33-11/16" (856mm) 58-1/16" (1475mm) 48-3/4" (1238mm) 24-7/8" (610mm)
M
O
L
N
Z
16"
Y
X
for angled corners
6"
6"
W
W
FLOOR PROTECTION
(CORNER INSTALLATION)
A combustible oor must be protected by non-combustible
material (like tile, concrete board, or certied to UL-1618 or
as dened by local codes) extending beneath the heater and
a minimum of 8" (203mm) from each side and minimum 16"
(406mm)** from the front face of the stove and minimum 6"
(152mm)** (or the rear clearance to combustibles whichever
is smaller) from the rear of the stove.
When installed with horizontal venting, non-combustible
oor protection must beneath the ue pipe and extend 2"
(51mm) beyond each side.
Minimum Overall Width (X) of Floor
Protector for all installations:
Stove F2450M 33-11/16" (856 mm)
**NOTE: In Canada, oor protection must extend 18" (450mm)
to the front and 8" (203mm) to back of the stove.
Minimum Overall Depth (Y) of Floor Protector
Unit Residential
"C" Vent
From Edge of Fuel Door
Opening
Y Z W
Medium F2450M Canada - 49" (1245mm)
USA - 47" (1194mm)
**6"
(152mm)
8" (203mm)

F2450 Wood Stove | 5
Pedestal
Bolted to
Floor
Outside Air
MOBILE HOME INSTALLATION
Once you have properly marked the position of
your unit and the oor protection as outlined in
the Residential Installation items #1 through #8, a
supply of fresh air has to be supplied to your unit.
See Optional Outside Air Kit instructions in this
manual.
Place your unit in position and secure it to the
oor using two lag bolts 3/8" (10mm) x 3-1/2"
(89mm) through the two holes inside the pedestal
base. It is important to maintain the structural
integrity of the Mobile Home oor, walls and roof
when installing your unit.
For Mobile Home units installed in the U.S. the
unit must be grounded using a #8 ground wire
with approved termination and star washer.
In addition to standard installation instructions
the following requirements are mandatory for
installation in a mobile home.
1. The stove must be permanently bolted to
the oor of the Mobile Home using the oor
screws provided.
2. The stove must have a permanent outside air
source for combustion.
3. The stove must be electrically grounded to
the steel chassis of the Mobile Home.
4. A listed double-wall connector chimney
system, roof thimble, spark arrestor and roof
ashing kit suitable for use in Mobile Homes
must be used.
5. If the chimney exits the Mobile Home at a
location other than through the roof, and
exits at a point 7ft. (2130mm) or less above
the ground level on which the Mobile Home
is positioned a guard or method of enclosing
the chimney shall be tted at the point of exit
for a height up to 7ft. (2130mm).
6. The chimney shall be attached directly to the
room heater and shall extend at least 3 ft.
(914mm) above the part of the roof through
which it passes. The top of the chimney
should project at least 2ft. (610mm) above
the highest elevation of any part of the Mobile
Home within 10 ft. (3048mm) of the chimney.
7. The chimney system shall comply with Local
Requirements.
8. Any openings in a chimney guard where
required must not permit the entrance of 3/4"
(19mm) diameter rod.
9. CAUTION: THESTRUCTURAL INTEGRITY
OF THE MOBILE HOME ROOF, FLOOR,
WALLS AND CEILING MUST BE
MAINTAINED.
10. Check any other local building code as other
local codes may apply.
11. WARNING: DO NOT INSTALL IN A
SLEEPING ROOM OF A MOBILE HOME.
12. Use silicone to create an eective vapour
barrier at the location where the chimney or
other component penetrates to the exterior
of the structure.
CAUTION: At no time use unlabelled
parts, or substitute parts made for
another chimney system.
Install as per chimney manufacturer's
installation instructions.
For Canadian Installations: see Outside
Air Kit - Part # 846-502.
There are further requirements when installing
this unit into a mobile home in Canada Only.
WARNING: Operate only with door
fully closed - open feed door to feed
re only.
1. Identify the position of the outside air damper by the orientation of
the metal handle that rests outside the galvanized pipe. The metal
handle and the damper disc are in line with each other. This means
that if the metal handle is in a horizontal position, the damper is at
and fully open.
2. Open the damper fully whenever you start a re. This will allow the
outside air to be drawn in the pedestal base eliminating any potential
smoke escaping the stove and entering the room. (Negative air
pressure)

6 | F2450 Wood Stove

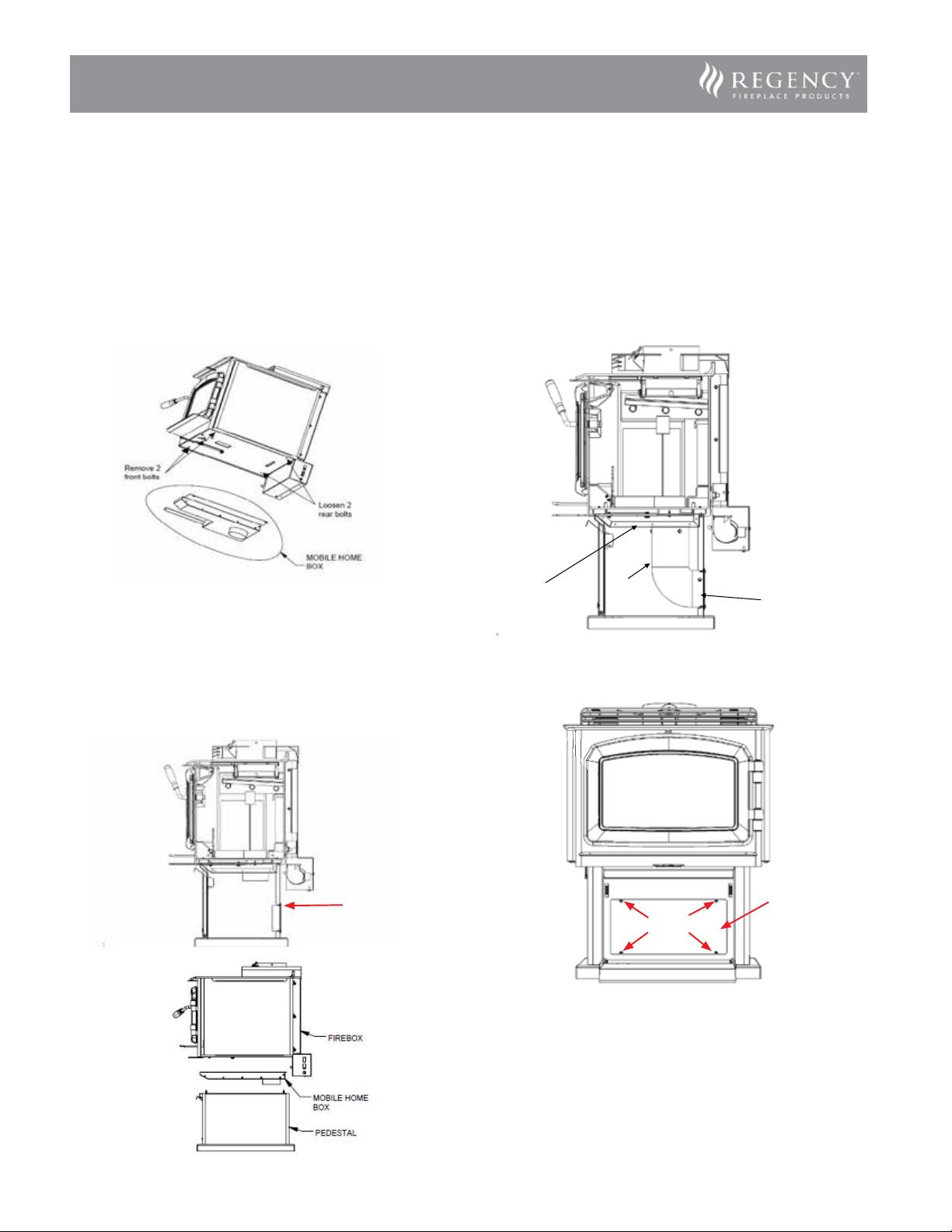

MOBILE HOME KIT - FOR CANADA
Note: The optional ashdrawer cannot be used when using the Mobile Home Kit.
919-757a 12.10.19
F1500
Mobile Home Kit - For Canada
Note: The optional ash drawer cannot be used when using the Mobile Home Kit.
3. Remove the 4" knock out from the rear pedestal.
4. Install rear collar to the rear pedestal using 4 screws.
Page 1 of 1 075-500.SLDASM 12/19/2016
Mobile Home Box
Pedestal Stove
Collar
Flex
The Mobile Home kit contains:
1 Bottom metal cover - only used when air is drawn from the floor.
1 Flex
1 Collar
1 Mobile home box
1 Square transition box (used when installing bottom heat shield/
legs)
Screws
5. Attach flex to rear pedestal using supplied screws or 4" clamp.
6. Bring pedestal base near the base of the firebox and secure flex
to the Mobile Home box.
7. Secure pedestal base and Mobile Home Box to firebox as shown
in diagram 3 using the screws that were previously removed/
loosened in step 1. See pedestal instructions.The Mobile Home
Box and firebox use the same screws.
Diagram 4
8. Install blanking plate to the front of the pedestal with 4 screws.
1. Lay unit on its back. Remove two front 7/16 bolts. Loosen rear
two 7/16" bolts. See diagram 1.
  
Install rear collar
to the rear pedes-
tal using 4 screws.
Diagram 2 4 screws
Diagram 5
9. Place unit into position and install the mandatory outside air kit.
See «Mobile Home installation» section in this manual.
Blanking
plate
2. If using outside air from the rear of the pedestal, follow instruc-
tions noted below. If using outside air from the pedestal base,
follow instructions from step 10 to 16. For bottom heat shield/
legs, follow instructions from step 17 to 22. The Mobile Home
Box is always mounted in between the firebox and pedestal or
bottom heat shield.
Diagram 1
Diagram 3

F2450 Wood Stove | 7
*
* when using single
wall pipe
Minimum
18"
(457mm)
to
centerline
Horizontal Installation
Standard Ceiling Installation
8. If you are using a horizontal connector,
the chimney connector should be as high
as possible while still maintaining the 18"
(457mm) minimum distance from the
horizontal connector to the ceiling.
NOTE: Residential Close Clearance
and Alcove installations require
a listed double wall connector
from the stove collar to the
ceiling level.

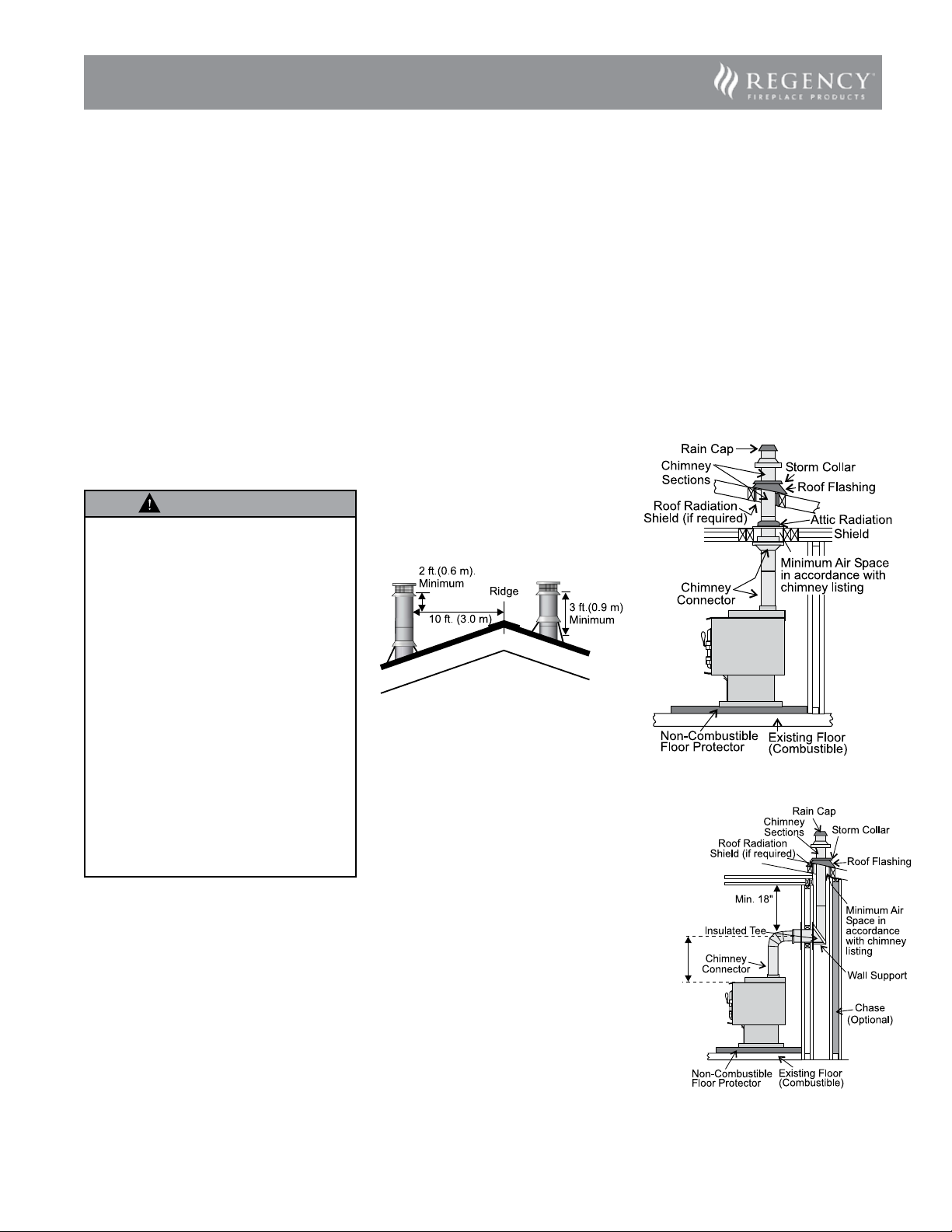

The diagrams below illustrate one way to
install your unit into a standard ceiling or
with a horizontal connector. Check with your
dealer or installer for information on other
options available to you.
STEP-BY-STEP CHIMNEY
AND
CONNECTOR INSTALLATION
Note: These are a generic set of chimney
installation instructions. Always
follow the manufacturers own
instructions explicitly. Check the
Minimum Recommended Flue
Heights section (Table 1).
1. With your location already established, cut
and frame the roof hole. It is recommended
that no ceiling support member be cut for
chimney and support box installation. If it is
necessary to cut them, the members must
be made structurally sound.
2. Install radiant shield and support from above.
3. Stack the insulated pipe onto your nish
support to a minimum height of 3 feet above
the roof penetration, or 2 feet above any
point within 10 feet measured horizontally.
There must be at least 3 feet of chimney
above the roof level.
Note: Increasing the chimney height
above this minimum level will
sometimes help your unit to
“breathe” better by allowing
a greater draft to be created.
This greater draft can decrease
problems such as, dicult start-
ups, back-smoking when door is
open, and dirty glass. It might be
sucient to initially try with the
minimum required height, and then
if problems do arise add additional
height at a later date.
4. Slide the roof ashing over your chimney
and seal the ashing to the roof with roong
compound. Secure the ashing to your roof
with nails or screws.
5. Place the storm collar over the ashing,
sealing the joints with a silicone caulking.
6. Fasten the raincap with spark screens (if
required) to the top of your chimney.
7. To complete your chimney installation, install
the double wall connector pipe from the
stove’s ue collar to the chimney support
device.
This stove may be connected to a lined masonry
chimney or a listed factory built chimney suitable
for use with solid fuels and conforming to ULC629
in Canada or UL-103HT in the USA. Do not connect
it to a chimney serving another appliance. To do
so will aect the safe operation of both appliances,
and will void the stove warranty. You must comply
with the local authority having jurisdiction and/or
in Canada, CSA installation standard B365-M87.
The chimney connector must be 6" diameter, 24 MSG
Black/Blue steel. Do not use aluminum or galvanized
steel, they cannot properly withstand the extreme
temperatures of a wood re. The chimney connector
between the stove and the chimney should be as
short and direct as possible.
The chimney connector must be attached to either
an approved masonry chimney or one of the listed
factory built chimneys suitable for use with solid
wood fuel. All joints must be tight and fastened
with sheet metal screws.
WARNING
THE CHIMNEY CONNECTOR IS
TO BE USED ONLY WITHIN THE
ROOM, BETWEEN THE STOVE
AND CEILING/ WALL. NEVER
USE A CHIMNEY CONNECTOR
TO PASS THROUGH AN ATTIC
OR ROOF SPACE, CLOSET OR
SIMILAR CONCEALED SPACE,
OR A FLOOR, OR CEILING. AN
EFFECTIVE VAPOR BARRIER
MUST BE MAINTAINED AT THE
LOCATION WHERE THE CHIMNEY
OR COMPONENT PENETRATES
TO THE EXTERIOR OF THE
STRUCTURE. ALWAYS MAINTAIN
THE MINIMUM CLEARANCES TO
COMBUSTIBLES AS REQUIRED
BY THE APPLICABLE BUILDING
CODES.

8 | F2450 Wood Stove
FACTORY BUILT CHIMNEY
When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase and install the
ceiling support package or wall pass-through and "T" section package, restops (where needed), insulation shield, roof ashing, chimney cap, etc.
Maintain proper clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other
obstructions for safety and proper draft operation. The space heater is to be connected to a factory-built chimney conforming to CAN/ULC-S629,
Standard for 6500C Factory-Built Chimneys.
MASONRY
CHIMNEY
Ensure that a masonry chimney meets the
minimum standards of the National Fire
Protection Association (NFPA) by having it
inspected by a professional. Make sure there
are no cracks, loose mortar or other signs of
deterioration and blockage. Have the chimney
cleaned before the stove is installed and
operated. When connecting the stove through a
combustible wall to a masonry chimney, special
methods are needed.
Ensure that an eective vapour barrier at the
location where the chimney or other component
penetrates to the exterior of the structure.
MASONRY
FIREPLACE
There are listed kits available to connect a stove
to a masonry replace. The kit is an adapter
that is installed at the location of the replace
damper. The existing damper may have to be
removed to allow installation.
Ensure that an eective vapour barrier at the
location where the chimney or other component
penetrates to the exterior of the structure.
This unit is designed to use either a 5.5" (140mm)
or 6" (152mm) ue liner only in the connes of
the masonry chimney as shown.
Minimum 18" (457mm)
to centerline
Minimum
18"
(457mm)
to
centerline
When referencing installation or connection to
masonry replaces or chimneys, the masonry
construction must or shall be code complying.
When referencing installation or connection to
masonry replaces or chimneys, the masonry
construction must or shall be code complying.
This unit is designed to use either a 5.5"
(140mm) or 6" (152mm) ue liner only in
the connes of the masonry chimney.

F2450 Wood Stove | 9

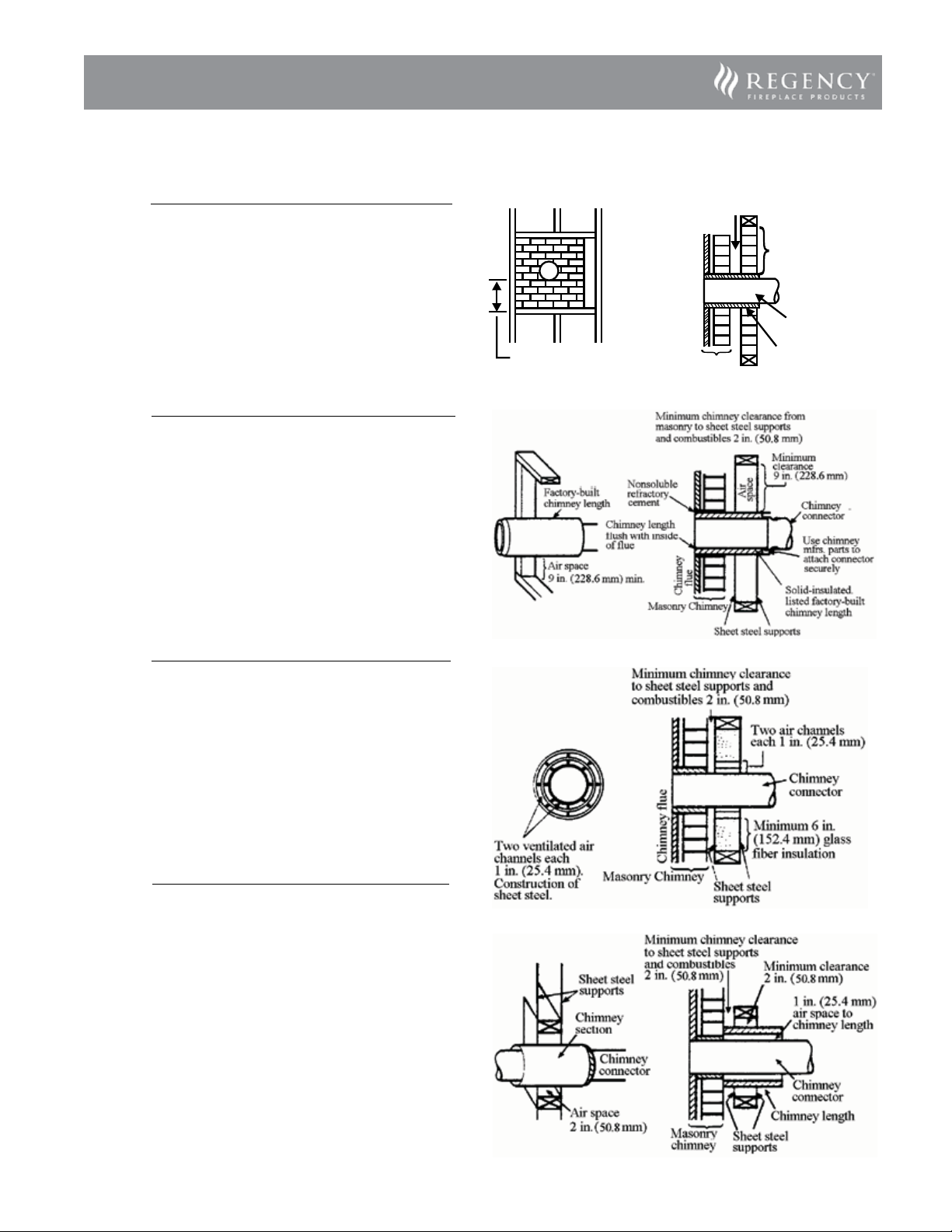

Method A: 12" (304.8 mm) Clearance to Combustible Wall Member:
Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm)
minimum wall thickness clay liner, construct a wall pass-through. The
clay liner must conform to ASTM C315 (Standard Specication for
Clay Fire Linings) or its equivalent. Keep a minimum of 12" (304.8
mm) of brick masonry between the clay liner and wall combustibles.
The clay liner shall run from the brick masonry outer surface to the
inner surface of the chimney ue liner but not past the inner surface.
Firmly grout or cement the clay liner in place to the chimney ue liner.
Method B: 9" (228.6 mm) Clearance to Combustible Wall Member:
Using a 6" (152.4 mm) inside diameter, listed, factory-built Solid-Pak
chimney section with insulation of 1" (25.4 mm) or more, build a wall
pass-through with a minimum 9" (228.6 mm) air space between the
outer wall of the chimney length and wall combustibles. Use sheet
metal supports fastened securely to wall surfaces on all sides, to
maintain the 9" (228.6 mm) air space. When fastening supports to
chimney length, do not penetrate the chimney liner (the inside wall
of the Solid-Pak chimney). The inner end of the Solid-Pak chimney
section shall be ush with the inside of the masonry chimney ue, and
sealed with a non-water soluble refractory cement. Use this cement
to also seal to the brick masonry penetration.
Minimum
12 in. (304.8mm)
to combustibles
Masonry chimney
Chimney Flue
Minimum chimney clearance to brick
and combustibles 2 in. (50.8mm)
Minimum clearance
12 in. (304.8mm)
of brick
Chimney
connector
Fire clay
liner
Method C: 6" (152.4 mm) Clearance to Combustible Wall Member:
Starting with a minimum 24 gage (.024" [.61 mm]) 6" (152.4 mm)
metal chimney connector, and a minimum 24 gage ventilated wall
thimble which has two air channels of 1" (25.4 mm) each, construct a
wall pass-through. There shall be a minimum 6" (152.4 mm) separation
area containing berglass insulation, from the outer surface of the wall
thimble to wall combustibles. Support the wall thimble, and cover its
opening with a 24-gage minimum sheet metal support. Maintain the
6" (152.4 mm) space. There should also be a support sized to t and
hold the metal chimney connector. See that the supports are fastened
securely to wall surfaces on all sides. Make sure fasteners used to
secure the metal chimney connector do not penetrate chimney ue liner.
Method D: 2" (50.8 mm) Clearance to Combustible Wall Member:
Start with a solid-pak listed factory built chimney section at least
12" (304 mm) long, with insulation of 1" (25.4 mm) or more, and an
inside diameter of 6" (2 inches [51 mm] larger than the 6" [152.4
mm] chimney connector). Use this as a pass-through for a minimum
24-gage single wall steel chimney connector. Keep solid-pak section
concentric with and spaced 1" (25.4 mm) o the chimney connector
by way of sheet metal support plates at both ends of chimney section.
Cover opening with and support chimney section on both sides with
24 gage minimum sheet metal supports. See that the supports are
fastened securely to wall surfaces on all sides. Make sure fasteners
used to secure the metal chimney connector do not penetrate chimney
ue liner.
COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS

10 | F2450 Wood Stove
RECOMMENDED HEIGHTS FOR WOODSTOVE FLUE
Simple rules on draft. See Table 1.
1) At sea level minimum height is 12' straight.
2) Add the following vertical height to compensate for:
45 deg. elbow = 1 ft.
90 deg. elbow = 2 ft.
"T" = 3 ft.
Each foot of horizontal run = 2 ft.
3) Add 4% overall for each 1000' above sea level.
Example: a)
1-1/2 ft. of horizontal run = 3 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 6 ft.
Example: b)
One 90 deg. elbow = 2 ft.
2 ft. of horizontal run = 4 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 9 ft.
Recommended Flue Height
Elevation Example a) Example b)
0' 18' 21'
1000' 18.72' 21.84'
2000' 19.44' 22.68'
5000' 21.60' 25.20'
8000' 23.76' 27.72'
TABLE 1
MINIMUM RECOMMENDED FLUE HEIGHTS IN FEET
(Measured from the top of the unit)
# OF ELBOWS
ELEVATION (FT)
ABOVE SEA LEVEL 0 2 x 15o4 x 15o2 x 30o4 x 30o2 x 45o4 x 45o
0-1000 12.0 13.0 14.0 15.0 18.0 16.0 20.0
1000-2000 12.5 13.5 14.5 15.5 19.0 16.5 21.0
2000-3000 13.0 14.0 15.0 16.0 19.5 17.0 21.5
3000-4000 13.5 14.5 15.5 17.0 20.0 18.0 22.5
4000-5000 14.0 15.0 16.0 17.5 21.0 18.5 23.0
5000-6000 14.5 15.5 17.0 18.0 21.5 19.0 24.0
6000-7000 15.0 16.0 17.5 18.5 22.5 20.0 25.0
7000-8000 15.5 16.5 18.0 19.0 23.0 20.5 25.5
8000-9000 16.0 17.0 18.5 20.0 24.0 21.0 26.5
9000-10000 16.5 17.5 19.0 20.5 24.5 22.0 27.0
NOTE: No more than two osets (four elbows) allowed.Two 45oelbows equal one 90oelbow.
WARNING:
DO NOT INSTALL IN SLEEPING
ROOM
CAUTION: The structural integrity of the mobile home
oor, wall and ceiling/roof must be maintained.
Draft is the force which moves air from
the appliance up through the chimney.
The amount of draft in your chimney
depends on the length of the chimney,
local geography, nearby obstructions and
other factors. Too much draft may cause
excessive temperatures in the appliance
and may cause damage. An uncontrollable
burn or excessive temperature indicates
excessive draft. Inadequate draft may
cause back pung into the room and
plugging of the chimney. Inadequate
draft will cause the appliance to leak
smoke into the room through appliance
and chimney connector joints. Ensure
the heater is installed in areas that are
not too close to neighbors or in valleys
that would cause unhealthy air quality
or nuisance conditions.
