Regulus LYRA 1000 DVS Owner's manual

1 │
www.regulus.eu
LYRA 1000 DVS
LYRA 1000 DVS
EN
Installation and Operation Manual
LYRA 1000 DVS THERMAL STORE

│2
CONTENTS
1 Description ................................................................................................ 3
1.1 Models .............................................................................................. 3
1.2 Tank protection ................................................................................. 3
1.3 Thermal insulation ............................................................................ 3
1.4 Packaging ........................................................................................ 3
2 General Information .................................................................................. 3
3 Technical Data and Dimensions of Regulus LYRA 1000 DVS ............... 4
4 Operation ................................................................................................... 4
5 Connection ............................................................................................... 5
5.1 Mounting pump stations and accessories onto ................................ 5
5.2 Connecting heating circuits .............................................................. 31
5.3 Connecting a DHW circuit ................................................................ 31
5.4 Connecting a solar circuit ................................................................. 31
5.5 Examples of heat source connection ............................................... 32
5.6 Fitting electric heating elements ....................................................... 33
6 Installation and commissioning .............................................................. 34
6.1 Commissioning ......................................................................... 34
7 Maintenance .............................................................................................. 34
8 Disposal ..................................................................................................... 34
9 Warranty .................................................................................................... 34

3 │
1 Description
Regulus LYRA Thermal Stores are intended for accumulation and subsequent distribution
of thermal energy from solid-fuel fired boilers, heat pumps, solar collectors, electric
boilers etc. The Thermal Store shall be always connected to a sealed heating circuit.
The tank comes with complete accessories for connection to heating circuits, solar
system and hot water.
The accessories supplied represent a complete solution for connecting a heating system,
connecting cold water inlet for DHW heating and subsequent DHW output. Heat sources
shall be connected to the free inlets at the tank rear, following the diagrams included
in this Manual (Chapter 5.5). When more heat sources are combined, some intelligent
controller should be used to control the heat sources and sinks, incl. the Thermal Store
charging and discharging, for example Regulus IR12 Intelligent Controller.
1.1 Models
There are 3 models of Regulus LYRA 1000 DVS:
- for 1 heating circuit, no DHW recirculation, no pool
- for 2 heating circuits, with DHW recirculation, with pool
- for 2 heating circuits, with DHW recirculation, no pool
1.2 Tank protection
The Thermal Store comes with no inner surface finish/anticorrosion protection, its outside
is painted in grey.
1.3 Thermal insulation
Thermal insulation is included in the supply. It consists of 3 layers: the first one is soft
insulation fitting tightly on the tank; the second, main layer, features thermal conductivity
λ=0.032 W/m.K; the third layer is a hard, glossy washable surface. The total insulation
thickness is 100 mm.
1.4 Packaging
Tanks are delivered standing, each screwed to its pallet, packed in bubble wrap. Included
in the package are all components to be fitted on the tank. Insulation is packaged separately.
2 General Information
This Owners Manual is an integral and important part of the product and must be handed
over to the User. Read carefully the instructions in this Manual as they contain important
information concerning safety, installation, operation and maintenance. Keep this Manual
for later reference. Installation shall be done by qualified staff only, in compliance with
valid rules, standards and manufacturer’s instructions.
This appliance is designed to accumulate heating water and distribute it subsequently.
It shall be connected to a heating system and heat sources.
Using the Thermal Store for other purposes than above described (e.g. as a
drinking water tank) is forbidden and the manufacturer accepts no responsibility
for damage caused by improper or wrong use.
The output of heat sources not equipped with their own safety valve and connected
to the tank fitted with the enclosed safety valve shall never exceed 110 kW.

│4
3 Technical Data and Dimensions of Regulus LYRA 1000 DVS
4 Operation
This Thermal Store is designed to heat water and accumulate heat for space heating
in domestic or industrial applications, however always in sealed pressure circuits with
forced circulation.
In the thermal store, heating water is heated up from several heat sources like various
types of hot-water boilers, renewable energy sources (heat pumps, solar collectors),
or electric heating elements.
codes
VIEW A
Total fluid volume in tank ................................................................................................... 925 l
Max. working temperature in tank ..................................................................................... 95 °C
Max. working pressure in tank ........................................................................................... 4 bar
Hot water recovery rate from 10 °C to 50 °C with 63 °C heating water temp. ................... 1800 l/h (84kW)
Empty weight ..................................................................................................................... 125 kg
Tipping height without insulation ........................................................................................ 2120 mm

5 │
5 Connection
5.1 Mounting pump stations and accessories onto
SCOPE OF SUPPLY
Regulus LYRA Thermal Store, code 13181 (the other thermal stores, codes 13184 and
13421, differ only in the number of heating circuits, or in the option to connect recirculation
to the fresh water station, or in the pool heating option).
Regulus LYRA Thermal Store, code 13181 (the other thermal stores, codes 13184
and 13421, differ only in the number of heating circuits, or in the option to connect
recirculation to the fresh water station, or in the pool heating option).
13181 - LYRA 1000 DVS NO POOL
Code Item name Qty
13171 PS1000 FWS DV Thermal Store for LYRA DV 1 pcs
13172 Insulation for PS1000 FWS DV Thermal Store code 13171, NEODUL 1 pcs
12224 Pump station for Thermal Store – 2 circuits 1 pcs
14866 S2 Solar 3 Pump station, ST25/6 1 pcs
9717 Fresh water station, with recirculation, FWC3 controller 1 pcs
12226 Assy Connection Kit for LYRA 1 pcs
12687 TSV3 Assy for LYRA 1 pcs

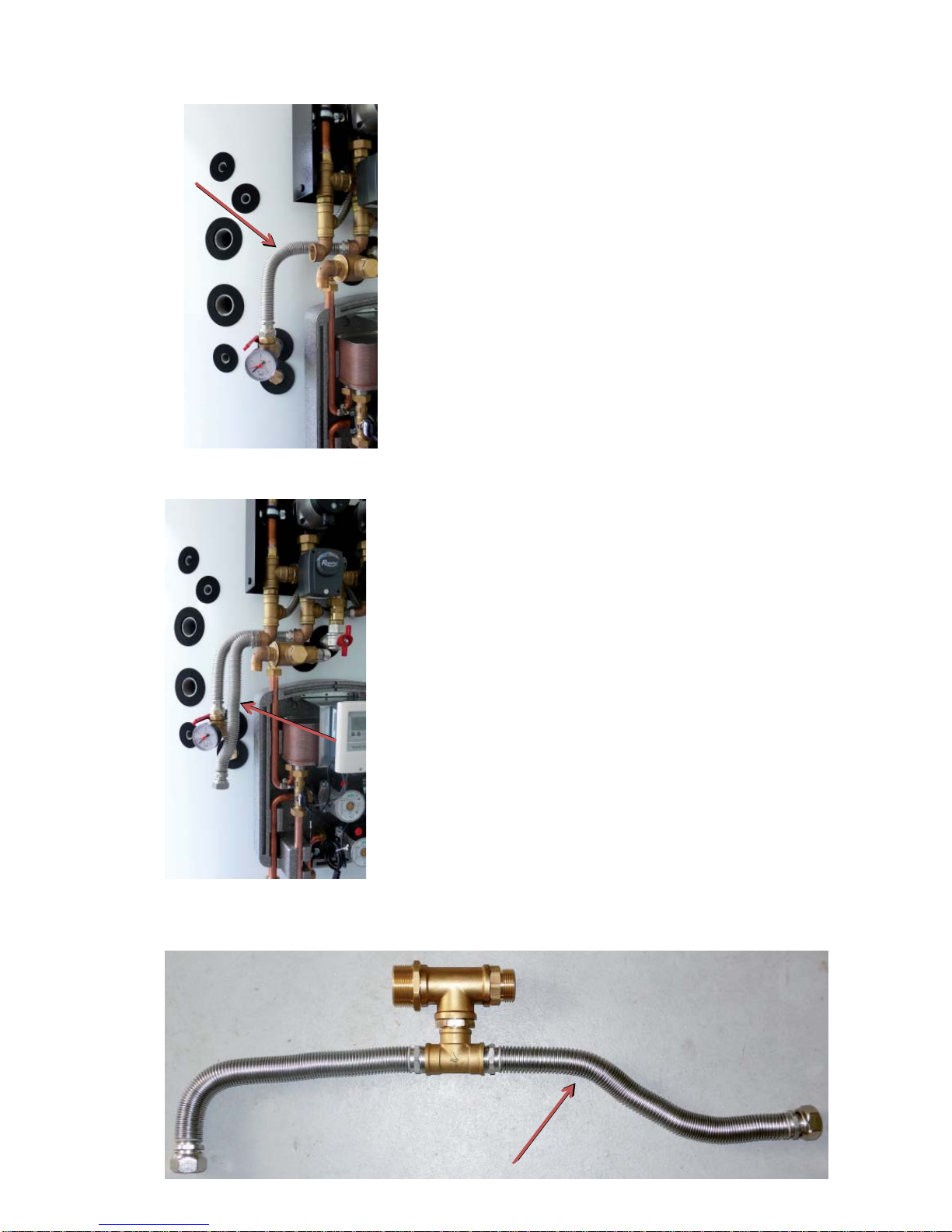

13983 T-Piece Assy for LYRA 1 pcs

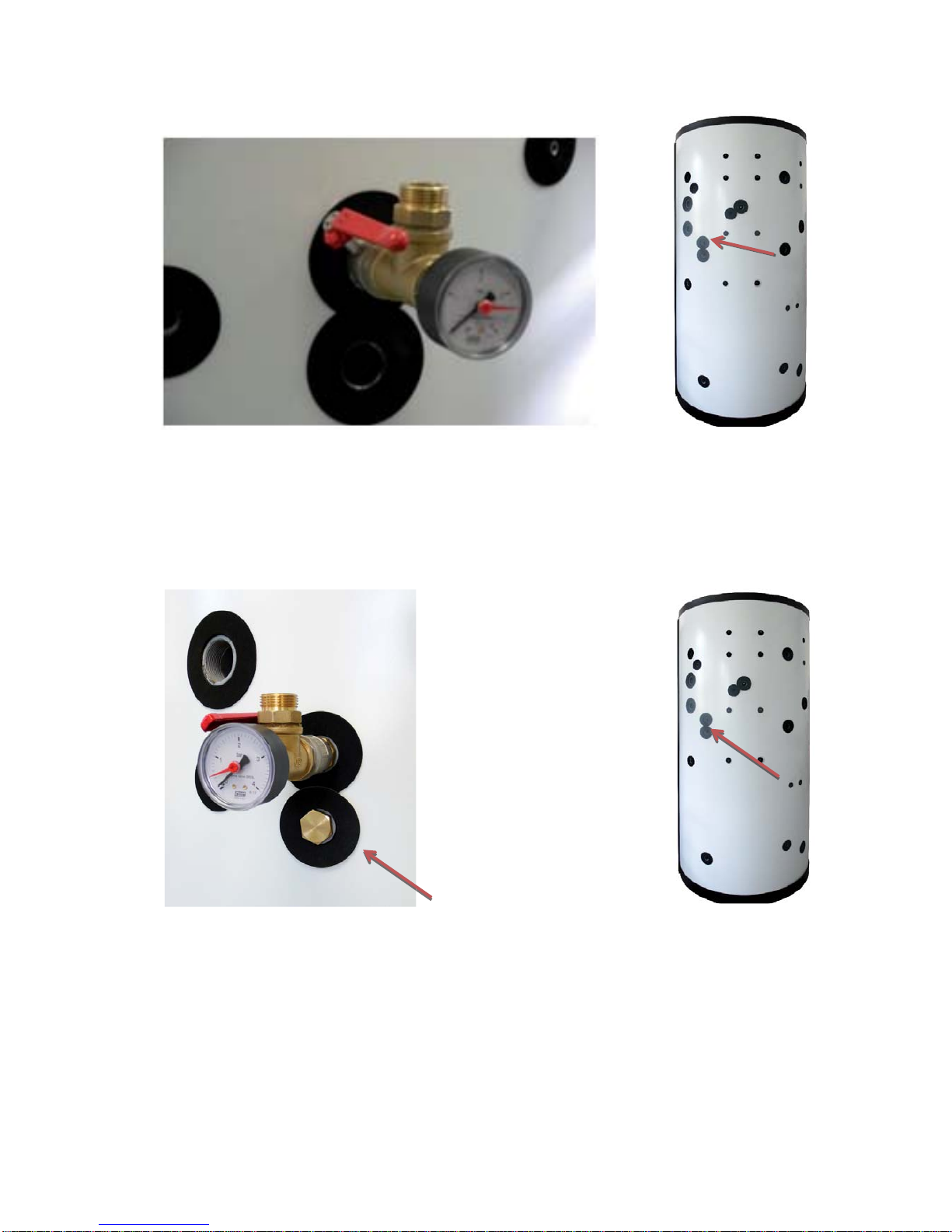

12689 Pressure Gauge Assy for LYRA 1 pcs

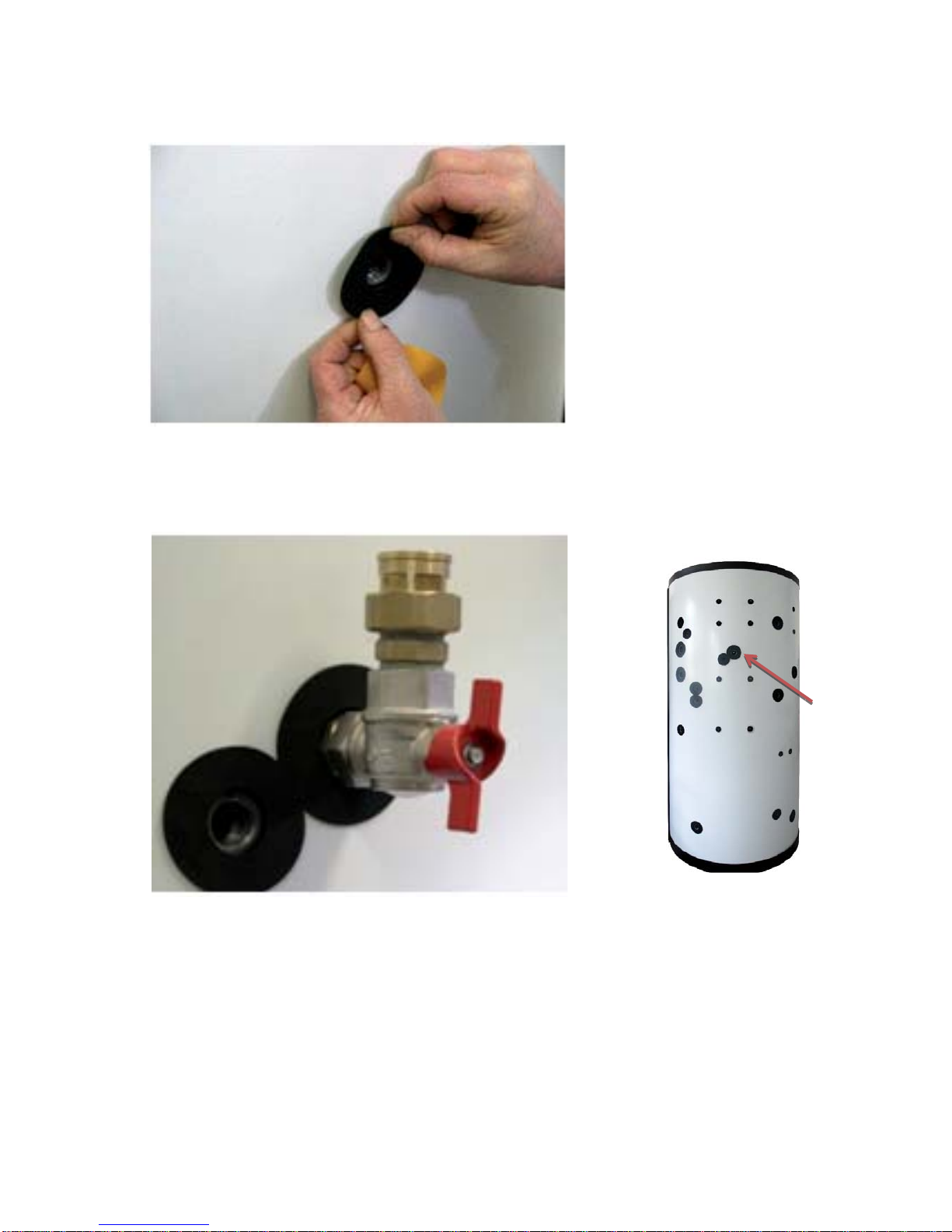

12690 Angled Ball Valve Assy for LYRA 1 pcs
13236 Ball Valve & Elbow Assy for LYRA 1 pcs
13234 Connection Kit for TSV Assy, for LYRA 1 pcs
13237 Accessory Kit for LYRA and VEGA 1 pcs
12222 2-Circuit Pump Station Cover, for 1000l thermal store 1 pcs
12223 Front Insulation for 2-Circuit Pump Station Cover 1 pcs
12720 Top Insulation for 2-Circuit Pump Station Cover, 1000 l 1 pcs
12713 Black Knurled Screw, M6x1-10 PA 6.6 4 pcs
13263 1“ M Ball Valve Assy for tanks with DV 1 pcs
13264 Zone Valve Assy for DV inlet 1 pcs
13265 1“M Ball Valve Assy for lower return 1 pcs
13266 Connection Assy - circulation pump 1 pcs
13267 Connection Assy - zone valve to DV 1 pcs
13268 Zone Valve Assy for DV outlet 1 pcs
13275 DV Plate HE Solar Inlet Assy 1 pcs
13270 1“M Ball Valve Assy for upper return 1 pcs
13451 Solar Pump Station Connection Kit for Tanks with DV 193 1 pcs
12128 Yonos Para 25/1-6 RKC Pump, 180mm, 6/4“ 1 pcs
9551 DV193-60E Stainless Steel Plate Heat Exchanger, insulated 1 pcs
13437 Expansion Vessel Connection Kit for Lyra/Vega 1 pcs
13452 DV193 Fixing Kit for Lyra/Vega 1 pcs
12226 - ASSY CONNECTION KIT
Code Item name Qty
11271 DN25 Pipe for water, 250-500 mm long, 1“ F and M threads 1 pcs
13984 DN25 Pipe for water, 5/4” nut, 580 mm long 1 pcs
3016 DN25 Pipe for water, 200-400 mm long, 1“ FM 1 pcs
3041 DN20 Pipe for water, 250-500 mm long, 3/4“ F and M threads 2 pcs
8306 3/4“ M/F Elbow, brass 1 pcs
6447 Insulation DNa 28, 13 mm thick, 2m 1,2 m
7187 Insulation DNa 35, 13 mm thick, 2m 1,5 m
12996 M 6x16 Stainless Steel Bolt (Allen head), DIN 912/A2 8 pcs
7853 Washer 6.5 (large diam. 3d) 8 pcs
9980 1“ PTFE Nut Gasket - 18.5x30x2 mm 3 pcs
9978 3/4“ PTFE Nut Gasket - 15x24 mm 3 pcs
7691 Brass hex plug, 1” M 1 pcs
MODEL WITH NO POOL

│6
13234 - CONNECTION KIT FOR TSV ASSY
Code Item name Qty
11946 DN20 Pipe for water, 65-125 mm long, 3/4“ F and M threads 1 pcs
998 Ball Valve 3/4“ M/F, red butterfly handle 1 pcs
6970 3/4“ M/M brass hex nipple 1 pcs
13237 - ACCESSORY KIT
Code Item name Qty
10474 Thermometer, d=63 mm, sheath l=150, G1/2”, rear conn., 0-120 °C 2 pcs
605 3 bar Safety Valve, G 1/2“ F/F 1 pcs
6971 1/2“ M/M Brass Hex Nipple, thick wall 2 pcs
11965 1/2“ Ball Valve, F/F 1 pcs
11708 1/2“ Automatic Air Vent Valve 1 pcs
13437 - EXPANSION VESSEL CONNECTION KIT
Code Item name Qty
11969 6/4“ Ball Valve, F/F 1 pcs
7627 Hex Nipple, 6/4“, M/M, thick wall 2 pcs
8757 6/4” T-piece FFF, brass 1 pcs
8766 Reducing Hex Nipple, 1“ x 6/4“, M/M 1 pcs
7049 1” T-piece FFF, brass 1 pcs
6969 1“ M/M brass hex nipple, thick wall 1 pcs
7701 Reducing Hex Nipple, 1“ x 1/2“, M/F, brass 1 pcs
11713 1/2“ drain valve, no handle, with cap 1 pcs
13451 - SOLAR PUMP STATION CONNECTION KIT
Code Item name Qty
7223 SOLAR PUMP STATION CONNECTION KIT 1 pcs
13447 DN 20 pipe (1“ nut), l=1000 mm 1 pcs
13448 DN 20 pipe (1“ nut), l=460 mm 1 pcs
3041 DN20 pipe for water, 250-500 mm long, 3/4“ F/M 1 pcs
13449 DN 20 pipe (1“ nut), l=360 mm 1 pcs
13450 DN 20 pipe (1“ nut), l=330 mm 1 pcs
3012 DN20 pipe for water, 100-200 mm long, 3/4“ F/M 1 pcs
12996 M 6x16 Stainless Steel Bolt (Allen head), DIN 912/A2 2 pcs
7853 Washer 6.5 (large diam. 3d) 2 pcs
9980 1“ PTFE Nut Gasket - 18.5x30x2 mm 8 pcs
6447 Insulation DNa 28, 13 mm thick, 2m 4 m
13452 - DV 193 FIXING KIT
Code Item name Qty
10192 3/4” FF Brass Elbow 1 pcs
8307 3/4” Radiator Straight Fitting 1 pcs
13438 DV193-60 Support for Thermal Store 1 pcs
7259 M 8x18 Stainless Steel Bolt (Allen head), DIN 912/A2 2 pcs
7008 Washer 8.4 (large diam. 3d), stainless steel, DIN 9021/A2 4 pcs

7 │
13421 - LYRA 1000 DVS FOR A POOL
Code Item name Qty
13171 PS1000 FWS DV Thermal Store for LYRA DV 1 pcs
13172 Insulation for PS1000 FWS DV Thermal Store code 13171, NEODUL 1 pcs
12224 Pump station for Thermal Store – 2 circuits 1 pcs
14866 S2 Solar 3 Pump station, ST25/6 1 pcs
9717 Fresh water station, with recirculation, FWC3 controller 1 pcs
12226 Assy Connection Kit for LYRA 1 pcs
12687 TSV3 Assy for LYRA 1 pcs
12689 Pressure Gauge Assy for LYRA 1 pcs
12690 Angled Ball Valve Assy for LYRA 1 pcs
13236 Ball Valve & Elbow Assy for LYRA 1 pcs
13983 T-Piece Assy for LYRA 1 pcs
13234 Connection Kit for TSV Assy, for LYRA 1 pcs
13237 Accessory Kit for LYRA and VEGA 1 pcs
12222 2-Circuit Pump Station Cover, for 1000l thermal store 1 pcs
12223 IFront Insulation for 2-Circuit Pump Station Cover 1 pcs
12720 Top Insulation for 2-Circuit Pump Station Cover, 1000 l 1 pcs
12713 Black Knurled Screw, M6x1-10 PA 6.6 4 pcs
13263 1“ M Ball Valve Assy for tanks with DV 1 pcs
13264 Zone Valve Assy for DV inlet 1 pcs
13265 1“M Ball Valve Assy for lower return 1 pcs
13266 Connection Assy - circulation pump 1 pcs
13267 Connection Assy - zone valve to DV 1 pcs
13268 Zone Valve Assy for DV outlet 1 pcs
13269 Solar Pool and DV Inlet Assy 1 pcs
13270 1“M Ball Valve Assy for upper return 1 pcs
13272 Pool Zone Valve Assy for tanks with DV 1 pcs
13951 Solar Pump Station Connection Kit for pool models with DV193 1 pcs
12128 Yonos Para 25/1-6 RKC Pump, 180mm, 6/4“ 1 pcs
9551 DV193-60E Stainless Steel Plate Heat Exchanger, insulated 1 pcs
13437 Expansion Vessel Connection Kit for Lyra/Vega 1 pcs
13452 DV193 Fixing Kit for Lyra/Vega 1 pcs
13951-SOLAR PUMP STATION CONNECTION KIT FOR POOL MODELS
Code Item name Qty
7223 Reducing Hex Nipple, 1“ x 3/4“, M/F, brass 1 pcs
13952 DN 20 pipe (1“ nut), l=1000 mm 1 pcs
13448 DN 20 pipe (1“ nut), l=460 mm 1 pcs
3041 DN20 pipe for water, 250-500 mm long, 3/4“ F/M 1 pcs
13449 DN 20 pipe (1“ nut), l=360 mm 1 pcs
13450 DN 20 pipe (1“ nut), l=330 mm 1 pcs
3012 DN20 pipe for water, 100-200 mm long, 3/4“ F/M 1 pcs
12996 M 6x16 Stainless Steel Bolt (Allen head), DIN 912/A2 2 pcs
7853 Washer 6.5 (large diam. 3d) 2 pcs
9980 1“ PTFE Nut Gasket - 18.5x30x2 mm 8 pcs
6447 Insulation DNa 28, 13 mm thick, 2m 4 m
The models for a pool involve more Kits identical with the model with no pool.
The identical Kits for both models can be found under the following codes: 12226,
13234, 13237, 13437, 13452.
MODELS FOR A POOL

│8
MOUNTING INSTRUCTIONS
WARNING! At least 20°C and 4 persons are necessary to mount the insulation. All
threaded connections shall be sealed either with a thread sealant or with the gaskets
included in separate kits.
1. Remove the tank from its pallet and place it to its approximate position, shift the bottom
insulation under the tank.
2. Slide the insulation inserts into the openings for connections.
3. Fit on the front insulation and subsequently the rear insulation.
Check their proper position against the sleeves prior to final fixing.
Use the jig to close the locks.

9 │
5. Fit the Angled Ball Valve Assy (code 12690). From this point on, it is important to stick
to the sequence of installation steps described below!
4. Peel off the protective foil from the insulation, apply the self-adhesive annuluses around
the openings for connections. Some annuluses are cut out, these shall be used in places
where openings are close to each other (the annuluses overlap).

│10
6. Fit the Pressure Gauge Assy (code 12689).
7. Fit the plug (code 7691) into the 1” sleeve below the Pressure Gauge Assy.

11 │
8. Fit the 3/4“ brass hex nipple (code 6970) into the sleeve, and the ball valve (code 998,
included in Kit 13234) onto the nipple. Turn the ball valve into a position shown in the Fig.
9. Fit the Ball Valve & Elbow Assy (code 13236) into the lower 1” sleeve.

│12
10. Fit the metal sheet against the four pins and fix it using 4 screws M6x16 with washers
(codes 12996 and 7853, included in Kit 12226). Also place insulation washers under and
on the metal sheet and loosen the clamps. Fit the Pump Station with 4-way mixing valves
(code 12224 or 12225). Join it with the earlier fitted Angled Ball Valve Assy using a 5/4”
union nut (see Point 5). Tighten the clamps.
11. Fit the Fresh Water Station (code 9717 or 9913) using 4 screws M6x16 with washers
(codes 12996 and 7853, included in Kit 12226). Then fit the ¾” elbow (code 8306,
included in Kit 12226) to the Fresh Water Station outlet.

13 │
12. Using the ¾” pipe 100 mm long (code 11946, included in Kit 13234), connect the TSV3
Assy (code 12687) with the ¾” ball valve (see Point 8). Prior to assembly, cut
the insulation and slide it onto the pipe.
13. Connect the TSV3 Assy with the Fresh Water Station.
14. Stretch the pipes to their preliminary lengths, cut the insulation and slide it onto the pipes
(included in Kit 12226):
−1 pipe 1” to 410 mm (code 11271), insulation circa 500 mm long
−1 pipe 1” to 250 mm (code 3016), insulation circa 300 mm long
−1 pipe 3/4” to 450 mm (code 3041), insulation circa 550 mm long
−1 pipe 3/4” to 320 mm (code 3041), insulation circa 400 mm long
−1 pipe 5/4” DN 25 to 580 mm (code 13984), insulation circa 700 mm long.

│14
15. Using the 1” pipe, 250 mm long (code 3016), connect the Manometer Assy with the inner
elbow of the pump station with 4-way valves.
16. Fit the 1” pipe, 410 mm long (code 11271) to the pump station.
17. Fit the ¾” pipes 320 and 450 mm long (code 3014) to the T-Piece Assy (code 13983).
The 450 mm long pipe shall be fitted to the right, see Fig.

15 │
18. Connect the T-Piece Assy at 3 points, see Fig.
19. Using the 5/4” pipe, 580 mm long (code 13984), connect the T-Piece Assy with the Ball
Valve Assy.

│16
20. Fit two thermometers (code 10474, included in Kit 13237), 6/4“ and 1/2“ plugs or electric
heating elements and a safety thermostat.
THERMOMETERS 6/4” plugs or
electric heating
elements
1/2” plug
or safety
thermostat
21. Stretch the pipes to their preliminary lengths, cut the insulation and slide it onto the pipes:
Model for a pool (included in Kit 13951):
- 1 pipe 1” DN20, 1000 mm (code 13952), insulation circa 1100 mm long
- 1 pipe 1” DN20, 460 mm (code 13448), insulation circa 1100 mm long
- 1 pipe 3/4” to 500 mm (code 3041), insulation circa 600 mm long
- 1 pipe 1” DN20, 360 mm (code 13449), insulation circa 450 mm long
- 1 pipe 1” DN20, 330 mm (code 13450), insulation circa 400 mm long
- 1 pipe 3/4” to 200 mm (code 3012), insulation circa 250 mm long
Model without a pool (included in Kit 13451):
- 1 pipe 1” DN20, 1250 mm (code 13447), insulation circa 1350 mm long
- 1 pipe 1” DN20, 460 mm (code 13448), insulation circa 550 mm long
- 1 pipe 3/4” to 500 mm (code 3041), insulation circa 600 mm long
- 1 pipe 1” DN20, 360 mm (code 13449), insulation circa 450 mm long
- 1 pipe 1” DN20, 330 mm (code 13450), insulation circa 400 mm long
- 1 pipe 3/4” to 200 mm (code 3012), insulation circa 250 mm long.

17 │
22. Fit the Ball Valve Assy for upper return (code 13270).
23. Fit the 1” M to 3/4” F reducing piece (code 7223, included in Kit 13451 or 13951) onto the
solar pump station (code 14866) below the pump.
Model for a pool: Fit the Pool Inlet Assy (code 13269) as shown in the figure.
Model with no pool: Fit the Plate HE Inlet Assy (code 13275) as shown in the figure.
POOL VERSION NO POOL VERSION

│18
24. Fit the solar pump station (code 14866) using 2 M6x16 bolts with washers (codes 12996
and 7853, included in Kit 13451 or 13951).
25. Fit the Ball Valve Assy for tanks with a plate HE (code 13263).

19 │
27 Fit the hex nipple (code 6971) into the sleeve first, and then the safety valve (code 605,
included in Kit 13237).
26. Fit the plate heat exchanger support (code 13438, included in Kit 13452) using 2 bolts
M8x18 with washers (codes 7259 and 7008), put washers under the support and then also
onto the support.

│20
28. Fit the Ball Valve Assy for lower return (code 13265).
29. Fit the Zone Valve Assy for DV outlet (code 13268).
