Rehatec Lasse User manual

User Instructions
Lasse standing aid, size 3+4
EN

Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
Identification
Rehatec® Dieter Frank GmbH
In den Kreuzwiesen 35
D-69250 Schönau
www.rehatec.com
© 2015 Rehatec® Dieter Frank GmbH
All rights reserved.
09.2015/ 10
Technical changes and printing errors reserved.

Technical changes and printing errors reserved.
Supine-Bear „Lasse“
Dear User,
We are glad that you decided in favor of a high-quality product from Rehatec Dieter Frank GmbH
and would like to thank you for your confidence in our products.
This guide should help you to familiarize yourself with your Supine-Bear „Lasse“ and show you how
it can be quickly and easily used in different missions of daily life.
The innovative backrest provides maximum comfort with the greatest possible individuality. It offers
maximum flexibility through the possibility of steplessly increasing, guided and controlled standing
training and thus ensures a high degree of functionality. You will need only to adjust the Supine-
Bear optimally and it is ready for use. Then you can enjoy its use for a long time.
Please note that presentations and instructions in this manual may vary due to individual
possibilities and options of your product.
We reserve the right to make technical changes and improvements.
These instructions have been created with great care. Nevertheless, errors cannot be completely
ruled out. Rehatec® Dieter Frank GmbH assumes neither legal nor other liability in case of faulty
information.
We hope you will enjoy using your therapy chair „Nele“.
Rehatec® Dieter Frank GmbH
Please read carefully these instructions before the initial use of your new Supine-Bear „Lasse“.
People with visual impairments should read the manual with aid of others.
User safety may be aected if you do not follow the instructions of this manual.
Keep this manual at hand for further usage and make sure that it remains with the product. We
would be happy to send you another copy in case of loss. It is also possible download the current
manual on our website www.rehatec.com.
Attention!

Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
Table of contents
1. Legal Terms 4
1.1. Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2. Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.3. Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4. Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2. Safety 6
2.1. Signs and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2. Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

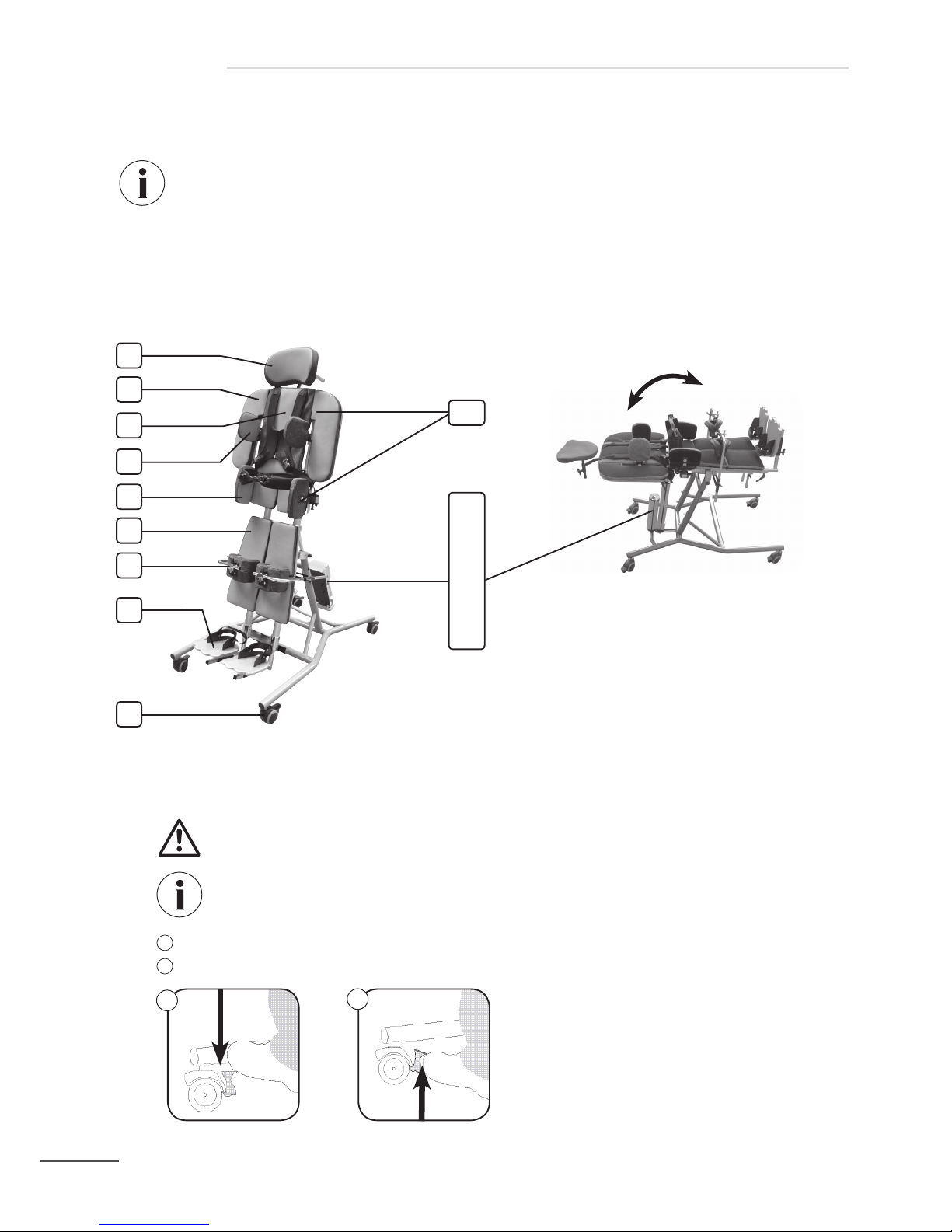

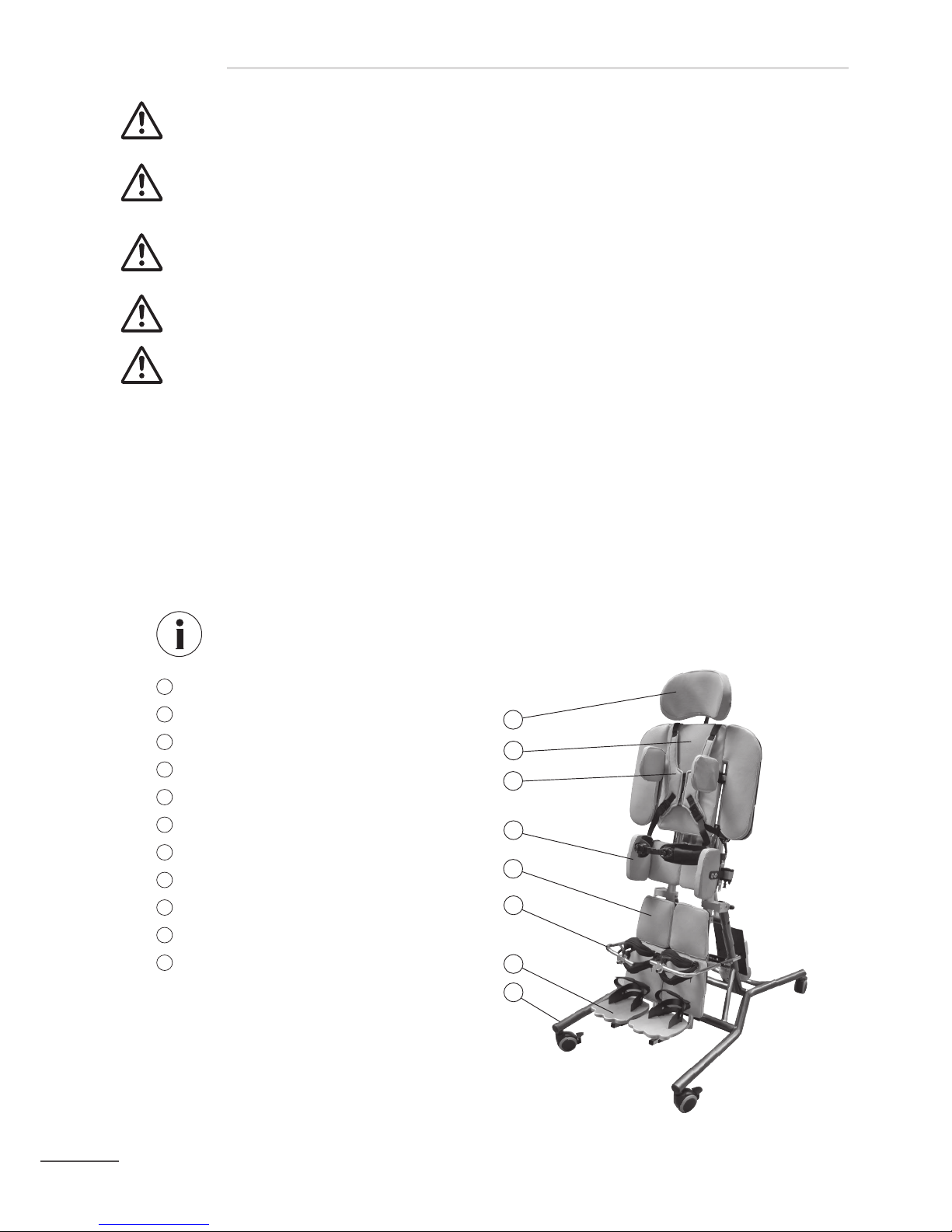

3. Product and delivery overview 8
3.1. Delivery Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.2. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.3. Delivery check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4. Preparing the device 9
5. Device Settings 10
5.1. Transport castors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.2. Headsupport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5.3. Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.4. Backrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5.5. Lateral trunk supports (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5.6. Pelvic supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5.7. Leg supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5.8. Anatomic Knee blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5.9. Footrest, divided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
5.10. Tray (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5.11. Seat belt systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
5.12. Tilting the entire standing system “Lasse” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
5.13. Behavior in case of power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
5.14. Hand switch operation . . . . . . . . . . . . . . . . . . . .... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
5.15. Startup of the drive without battery . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
5.16. Battery powered accessories . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.17. Angle adjustment without battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
5.18. Battery use and -operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 27

Technical changes and printing errors reserved.
Supine-Bear „Lasse“
6. Technical data 28
6.1. Lasse size 3 / for children and adolescents . . . . . . . . . . . . . .. . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .28
6.2. Lasse size 4 / for adolescents and adults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .28
6.3. Hand switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
6.4. Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
6.5. Control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .29
6.6. Battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
7. Product identifi ation 30
7.1. Type Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
8. Care and Maintenance 32
8.1. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
8.2. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
9. Reuse 34
10. Disposal / Recycling 34
11. Warranty and service 35
11.1. Warranty terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
11.2. Service / Complaints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

4Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
1. LEGAL TERMS
1.1. Intended use
The back-restraint is designed for the physiological stabilization of the user. Lasse is available in
different sizes. This manual describes:
• Size 3 - for children and adolescents - With a maximum user load of 70 kg
• Size 4 - for adolescents and adults - With a maximum user load of 70 kg
All safety precautions, advices and information in this manual have to be considered by the user/
operator, to insure safe and successful use of the device.
This product is made strictly for professional use by trained and professionally instructed persons.
Areas of use are: physiotherapy, rehab, physical therapy and medical therapy.
Rehatec® Dieter Frank GmbH gives no guarantee concerning suitability of this product for a parti-
cular therapeutic and diagnostic purpose. The user/operator determines the purposeful use.
This medical product is intended for indoor use at room temperatures from 15°C to 35°C. Use in
the wet area is prohibited. The device must also be kept away from sources of heat and strong
sunlight, as it involves a risk of burns! Use in wet rooms is not permitted. If disregar-ded it can
cause severe damage and be dangerous for the user as well as the operator.
Before use, the device must be connected to a suitable current source. In the event of an
emergency, remove the main plug from the source.
Risks
Depending on the medical condition and the therapeutic goal, it is important to clarify with the
physician or therapist, for how long the patient is able to stay in the standing system. The
fol-lowing symptoms might occur:
• Problems with circulation
• Pain in leg and/or back area
• Increase of spasticity
• Seizures
Many users have to initially stand in a fl xed position and only later can be fully extended. Never
correct the position with force or hard pressure.
1.2. Application
The Supine-Bear „Lasse“ is designed to support the therapeutic process, and can be applied in
cases with follow indications:
Muscular dystrophy, Cerebral movement disorders, Myelodysplasia, Diplegia, tetra paresis,
spinal bifida, cross-section paralysis, multiple sclerosis, paraplegia.
Various disease pictures with paralysis or considerable reduction of the muscles of the trunk, so
that upright standing without comprehensive support does not lead to malaise, deformity and
pain.

5
Technical changes and printing errors reserved.
Supine-Bear „Lasse“
1.3. Liability
The operator of the device is responsible for proper usage, care and maintenance of the product.
Alterations, repairs, maintenance work and upgrades of the therapy chair may only be carried
out by authorized persons, and only with original spare parts and accessories. Rehatec’s warranty
applies only when the product is used according to the specified conditions and for the intended
purposes (see also „Warranty and Service“).
1.4. Declaration of Conformity
EG-Konformitätserklärung
Entsprechend An- hang VII der Richtlinie 93/42 EWG
des Rates über Medi- zinprodukte
Wir Rehatec® Dieter Frank GmbH
In den Kreuzwiesen 35
D-69250 Schönau
+ 49 (0) 6228 - 91 36 0 + 49 (0) 6228 - 91 36 99
erklären hiermit, dass die nachfolgend genannten Produkte
Rückenliegebrett „Lasse 3” - Typ 167
Rückenliegebrett „Lasse 4” - Typ 164
mit den grundlegenden Anforderungen folgender Richtlinien und Standards
übereinstimmen:
Richtlinien 93/42 EWG des Rates über Medizinprodukte vom 14. Juni 1993,
Anhang 1
EN ISO 14971 Medizinprodukte – Anwendung des Risikomanagements
auf Medizinprodukte
EN 12182 Technische Hilfen für behinderte Menschen
Schönau, Januar 2013
Rehatec® Dieter Frank GmbH
(Dieter Frank, QM-Beauftragter)

6Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
2. SAFETy
2.1. Signs and Symbols
Attention!
This note indicates information that is particularly relevant to safety.
Important!
Indicates application tips and particularly useful information.
2.2. Safety Precautions
Please follow all instructions mentioned in current manual. Important functions can be aected
by incorrect operation. All safety instructions and other regulations must be observed by the user,
as well as the assisting person.
Ensure that prior to the rst use of the therapy chair all the settings are correct.
Check whether all accessories are securely mounted before initial use.
Check all settings in regular intervals. Check the strength of screwed connections
of all adjustable parts. Pay particular attention to adjustment possibilities with
two clamp connections, if necessary, tighten screws.
Combinations of Supine-Bear with third party products can be dangerous. The
ma-nufacturer assumes no liability for damage and complications due to such
combi-nations.
Do not leave the user unattended. Make sure the person is constantly
supervised by an adult assisting person.
The therapy chair is approved for use by one person only.
Please pay attention that the user is properly secured against falling out
without restricting comfort.
Operators should be properly trained in the safe handling of the chair. The
handling of the device has to be practiced.
The therapy chair may be operated only by authorized and respectively instructed
personnel.
The maximum allowable weight must never be exceeded. (See chapter ‘’ Technical Data’’).
Keep the device from access by unauthorized persons.
Depending on the disease pattern and weight, 1-2 assistants are needed to lift the
patient to the right position on the Lasse.
In case of defects of the Supine-Bear, it may not be used.
All repair works may only be carried out by Rehatec® Dieter Frank GmbH or by
au-thorized dealers.

7
Technical changes and printing errors reserved.
Supine-Bear „Lasse“
Do not apply force during setup the device (for instance height adjustment),
otherwise may occur damage of the device due to improper handling. If necessary,
read the manual.
The screw connections of the foot plates are hand-tightened in the delivery
condition! Only after the foot plates have been adapted to the patient's foot, the
screws are firmly tightened.
Adjustment ranges must not be exceeded. Secure locking of the adjusters must be
ensured.
During all adjustment and repair works pay attention to hazards of jamming
and crushing.
The therapy chair may only be used on firm, flat and horizontal ground.
To avoid a fire hazard, make sure that the device is never used near or in
connection with flammable substances! Wood, upholstery and plastic parts are for
instance by smokers, ovens, stoves, fireplaces and other room heaters
inflammable and not reliably flame-retardant.
Surfaces can heat up by heat supply - risk of burning! To protect the patient from
burns, be sure that the appliance is kept away from sources of heat (for instance,
stoves), as well as strong sunlight, and can never heat above 41 ° C.
The appliance must not be used outdoors, in wet area or in high humidity
environment. No condensation may form on the surfaces. For indoors usage only
and with ambient temperature of 15 ° C - 35 ° C.
If the device came in contact with moisture, provide for immediate drying, for
ex-ample by rubbing dry with an absorbent and soft cloth.
Electrical components must not be opened.
In use, the main plug must be accessible at all times in order to be able to pull it
out of the socket quickly in an emergency.
The user must be ensured that no risk is posed when the power plug is plugged in.
A self-start as a defect is to be stopped directly by pulling out the main plug.
Connect or disconnect electrical components only in a voltage-free state.
Carry out all repair and adjustment work in a voltage-free state.

8
1
2
3
5
9
8
7
6
Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
Cables and leads, of the device are not overdrive! A mechanical load must be
avoided.
In the event of a damaged power cable and / or lead wire, the electric cylinder
must be immediately taken out of service and disconnected from the power
source.
Caution if the battery is damaged! In case of contact with leaking liquid,
immediately flush contaminated areas with plenty of water and seek medical
advice.
The device must not be used in an environment where flammable or explosive
gases or vapors are likely to occur.
The drive, control and rechargeable battery must not be disposed of in domestic
waste!
3. PRODUCT AND DELIVERy OVERVIEW
3.1. Delivery Content
Typically, the Lasse is delivered fully assembled and pre-adjusted to the child by the
authorized supplier. Lasse is available in different sizes. For more information on the size and
permissible weight, please refer to the table in the "Technical data" section.
Standard delivery contents contain the following components:
The appearance can differ from your product due to the
individual equipment options (see chapter "Accessories").
1 Head support (Muschelform)
2 Backrest
3 Butterfly chest harness
Inclination
5 Pelvic Supports
6 Individual leg supports
7 Knee blocks (anatomic)
8 Individual footplates
9 Baseframe with Transport casters, 75 mm
Electric tilt adjustment
Hand switch

9
Technical changes and printing errors reserved.
Supine-Bear „Lasse“
3.2. Accessories
Parts or components which are not included in the standard version of your standing aid are
designated as accessories. It is recommended to order the desired accessories for the first set-up.
You can also purchase and assemble all accessory components at a later date. Contact your
dealer for further information
The following parts / accessories are available:
• Tray with depth- and angle adjustment
• Lateral trunk supports
• ASIS Spine support (Retraktion hanger)
• Armrests (removable)
• Pelvic-belt (pelvis)
• Head support (shell shaped)
• Pes equinus correction
• Foot holders incl. foot straps
•Battery power
You can find more information and data on our website www.rehatec.com under
Downloads. Or you can easily request your information by e-mail, fax or post!
3.3. Delivery check
Please check your delivery for completeness and integrity. In case of damage or incomplete deli-
very, please contact our customer service.
+ 49 (0) 6228 / 9136 0
Please check your delivery for completeness and integrity. In case of damage or incomplete deli-
very, please contact our customer service
4. PREPARING THE DEVICE
Please follow the below listed steps before transferring the child onto the Supine-Bear “Lasse”!
• Locking the caster wheels (Chapter 5.2)
• Releasing the lateral trunk supports (Chapter .5)
• Releasing the Pelvic supports (Chapter 5.6)
• Opening the Butterfly chest ha ness (Chapter 5.11)
• Swinging the Knee blocks outwards (Chapter 5.8)
• Hydraulic tilt of the entire Supine-Bear “Lasse” (Chapter 5.12 )
The detailed instructions for setting the ranges can be found on the next page, under the points
shown in the figure.

10
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.1
5.11
5.12
5.13
5.14
bzw.
5.16
5.17
5.18
12
Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
5.1. Transport casters
The four casters are equipped with parking brakes.
The Spine-Bear must stand on rm, at and horizontal ground.
In order to avoid accidental rolling way, always apply all parking brakes.
1 To block casters, press down on brake locks.
2 To release, press the parking brake lock upwards.
5. PREPARING THE DEVICE
Before using the Supine-Bear “Lasse” you have to adjust it to the body measurements of the child!
Variable positioning through multi-functional adjustment of height, depth and tilt angle, provides safe
supine positioning as well as interactive, supported vertical standing. Flexible leg rests, divided in three
interconnected parts, allow easy individual adjustment to accommodate possible contractures of
the leg musculature. The detailed guidance steps for setting the ranges can be found under the
points shown in the figure.
5.2

11
2
1
1
2
2
1
13
Technical changes and printing errors reserved.
Supine-Bear „Lasse“
5.2. Kopfstütze
The headrest is adjustable in height, depth and tilt.
Pay attention to hazards of jamming and crushing.
The maximum adjustment is achieved when the pipe end is flush with the guid .
Height adjustment
Loosen wing screw 1.
Move head support 2 to desired height.
Fasten wing screw 1 again.
Depth adjustment
Loosen wing screw 1.
Move head support 2 to desired depth.
Fasten wing screw 1 again.
Angle adjustment
Using a wrench (size 13) screw 1 At the joint of the headrest.
Move the head rest 2 to desired position.
Tighten the screw 1 at the joint of the support.

12
2
1
2
1
Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual

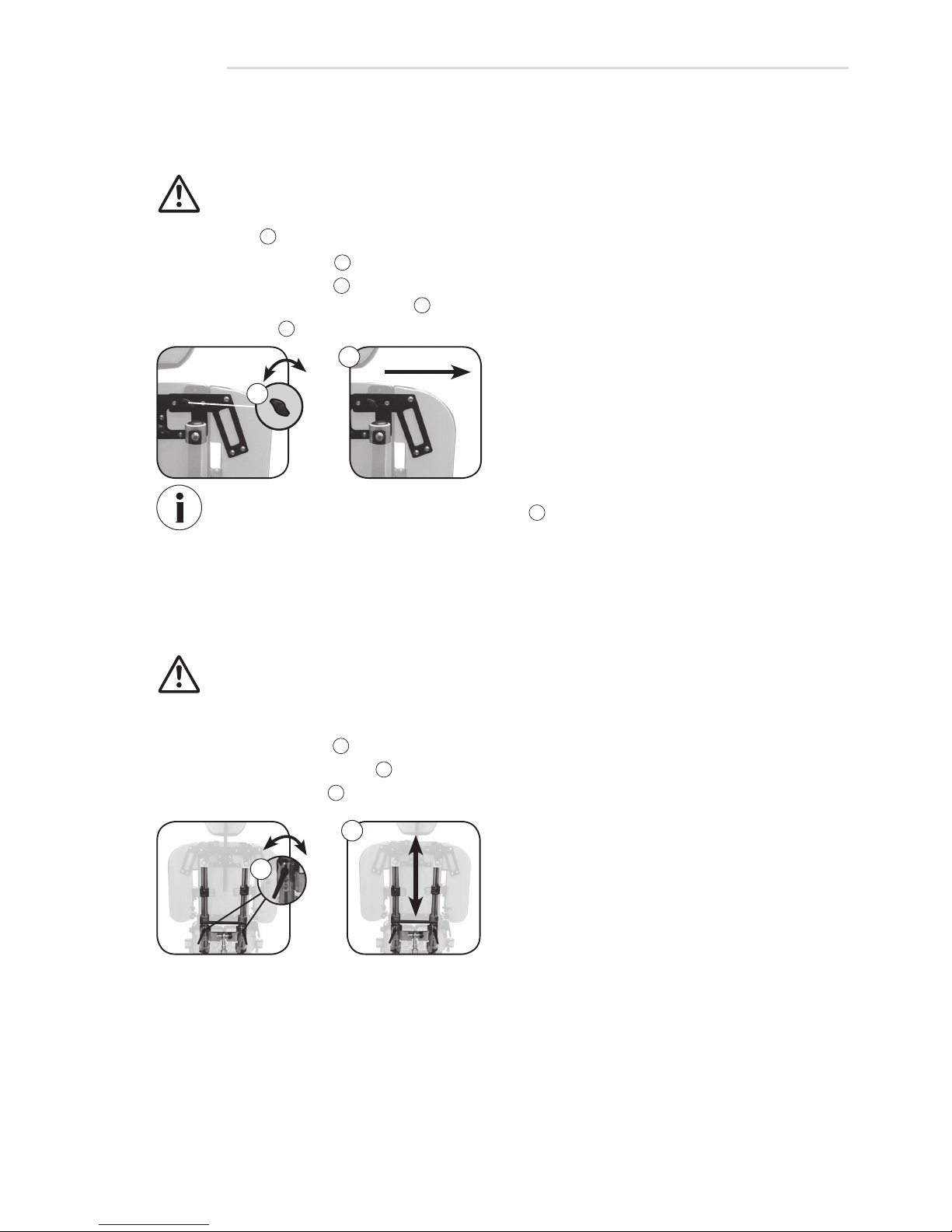

5.3. Armrest
The armrests can be adjusted and removed as required.
Pay attention to hazards of jamming and crushing.
The maximum adjustment is achieved when the washer of the wing
screw 1 is flush with the edge of the plate.
Loosen up the wing screw 1 at the back of the armrest.
to adjust, put the armrest 2 in desired position.
to remove, pull out the entire armrest 2.
Fasten wing screw 1 again.
When using without arm support, the wing screw 1 should be tightened so as
not to lose it.
Repeat the steps for width adjustment of the second armrest.
5.4. Backrest
Die Rückenpelotte lässt sich nach Lösen der rückseitigen Klemmhebel individuell und stufenlos an
die Körpermaße des Kindes anpassen.
Pay attention to hazards of jamming and crushing.

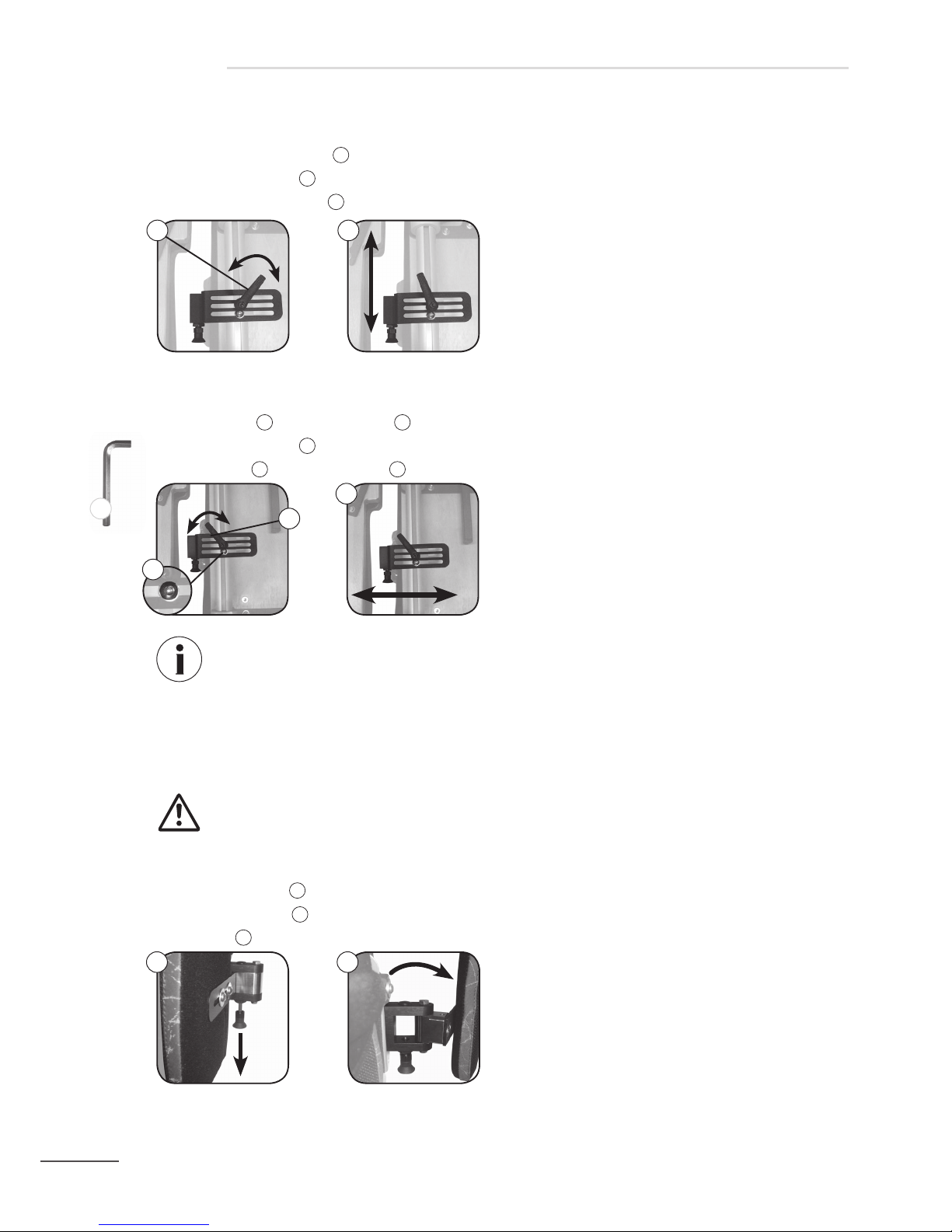

Height adjustment
Loosen both locking lever 1 at the back.
Push the complete backrest into 2 the desired position.
Fasten both locking lever 1 again.

13
21
1
2
3
2
1
Technical changes and printing errors reserved.
Supine-Bear „Lasse“
Furthermore, it is possible to offset the position of the back support by means of its screwed
connection by a grid.
Loosen the screws 1 . If necessary, loosen the two clamping levers 2 and move the backrest
upwards, then tighten the clamping lever 2 again.
Place backrest 3 in height
Fasten screws 1 again.
This adjustment also changes the distance from the table to the chest.
5.5. Lateral trunk supports (optional)
The optionally available lateral trunk supports guide the thoracic position.
Pay attention to hazards of jamming and crushing.
Fitting to the ribcage
Pull the locking pin 1 down.
Swing trunk support 2 towards the ribcage.
The locking pin 1 locks automatically.
Unfold
Pull the locking pin 1 down.
The side supports 2 can now be folded outwards. The
locking pin 1 locks automatically.

14
1 2
21
Gr. 4
3
1
2
Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
Height adjustment
Loosen both locking lever 1 at the back.
Adjust trunk support 2 to desired height.
Fasten both locking lever 1 again.
Width adjustment
Loosen screws 1 and locking lever 2 with key (size M4).
Adjust trunk support 3 as close as desired to the ribcage of the child.
Fasten screws 1 and locking lever 2 again.
Repeat the steps for adjustment of the second trunk support
5.6. Pelvic supports
The pelvic supports guide the position of the pelvic area and can be adjusted in height, width
and inclination to the position of the pelvis.
Pay attention to hazards of jamming and crushing.
Unfold
Pull the locking pin 1 down.
The pelvic supports 2 can now be folded outwards. The
locking pin 1 locks automatically.

15
12
1
2
2
1
Technical changes and printing errors reserved.
Supine-Bear „Lasse“

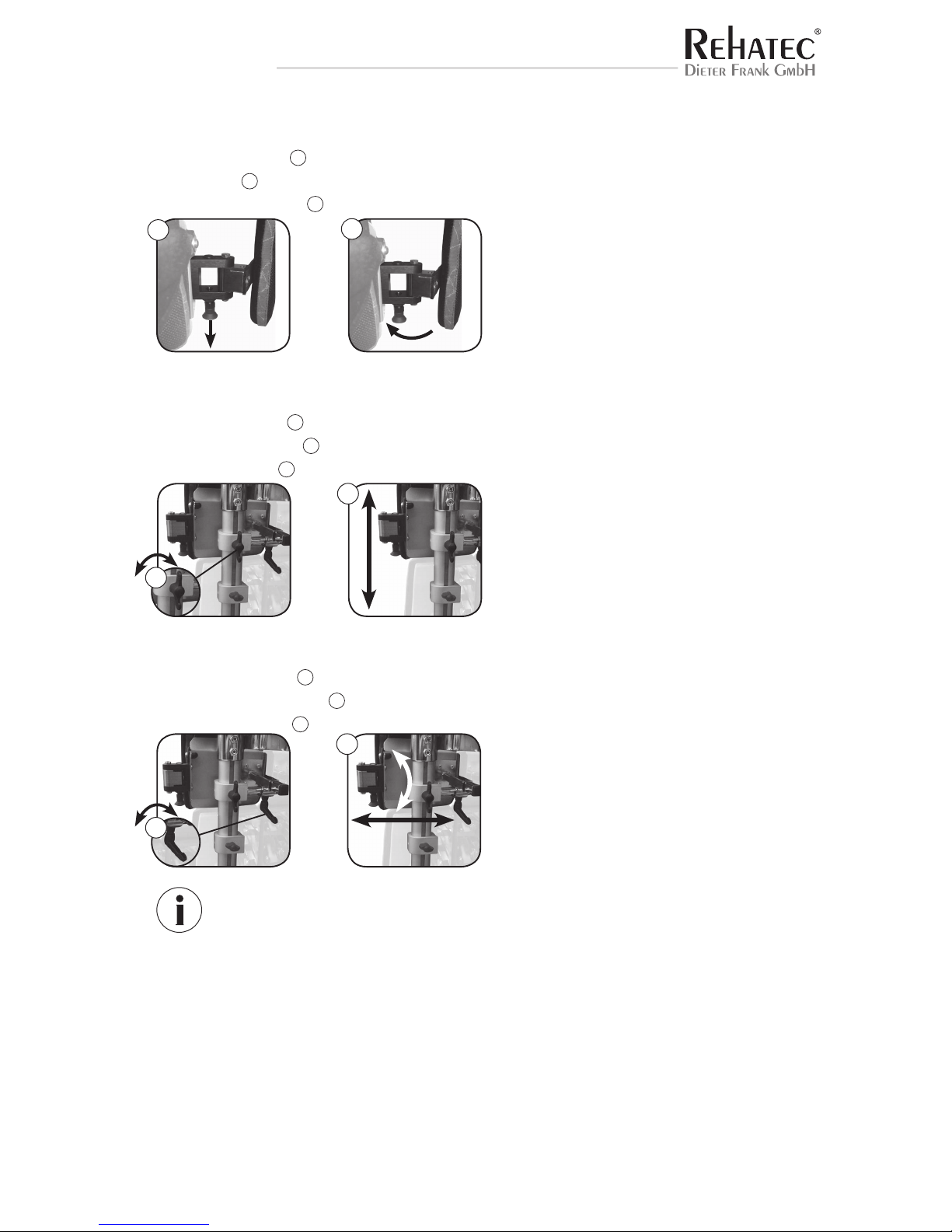

Re-folding the pelvic supports
Pull the locking pin 1 down.
Cymbal pad 2 and attach to the basin.
Lock the locking bolts 1 .
Height adjustment
Loosen wing screw 1 at the back.
Adjust pelvic support 2 to desired Height.
Fasten wing screw 1 again.
Width and Angle adjustment
Loosen locking lever 1.
Adjust the pelvic support 2 to the desired position.
Fasten locking lever 1 again.
Repeat the steps for adjustment of the second pelvic support

16
31
2
3
2
1
Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual
5.7. Leg supports
The leg supports of the Supine-Bear “Lasse” can be adjusted in various ways such as in general
height, general angle and knee angle.
Pay attention to hazards of jamming and crushing.
General Height adjustment
Loosen wing screw 1 and locking lever 2 at the back.
Adjust the general height of the leg support 3 to the position of the leg.
Fasten screw 1 and locking lever 2 again.
Knee angle adjustment
Loosen wing screw 1 and both locking lever 2.
Adjust the leg support 3 to the desired position.
Fasten screw 1 and both locking lever 2 again.
Repeat the steps for adjustment of the other leg support

17
2
1
2
1
1 2
Technical changes and printing errors reserved.
Supine-Bear „Lasse“
5.8. Anatomic Knee blocks
The optionally available knee blocks control the position of the knees. Höhe, Winkel, Neigung und
Spreizung sind individuell anpassbar.
Pay attention to hazards of jamming and crushing.
The maximum adjustment is achieved when the pipe end is flush with the guid .
Loosen the Knee block mounting
Loosen the wing screw 1 at the mounting of the knee block.
Rotate the Knee block 2 outwards.
Fasten wing screw 1 again.
Knee block mounting adjustment
Loosen the wing screw 1 at the mounting of the knee block.
Place the knee support bracket 2 over the patient's knee in the guide tube and loosely place it
on the knee.
Fasten wing screw 1 again.
Knee block adjustment
Loosen the locking lever 1 at the mounting of the knee block.
Adjust the knee block 2 to the knee.
Fasten locking lever 1 again.
Repeat the steps for adjustment of the other Knee block

18
Gr. 4
2
1
2
1
Gr. 4
Rehatec® Dieter Frank GmbH - 07.2015/ 05
User Manual

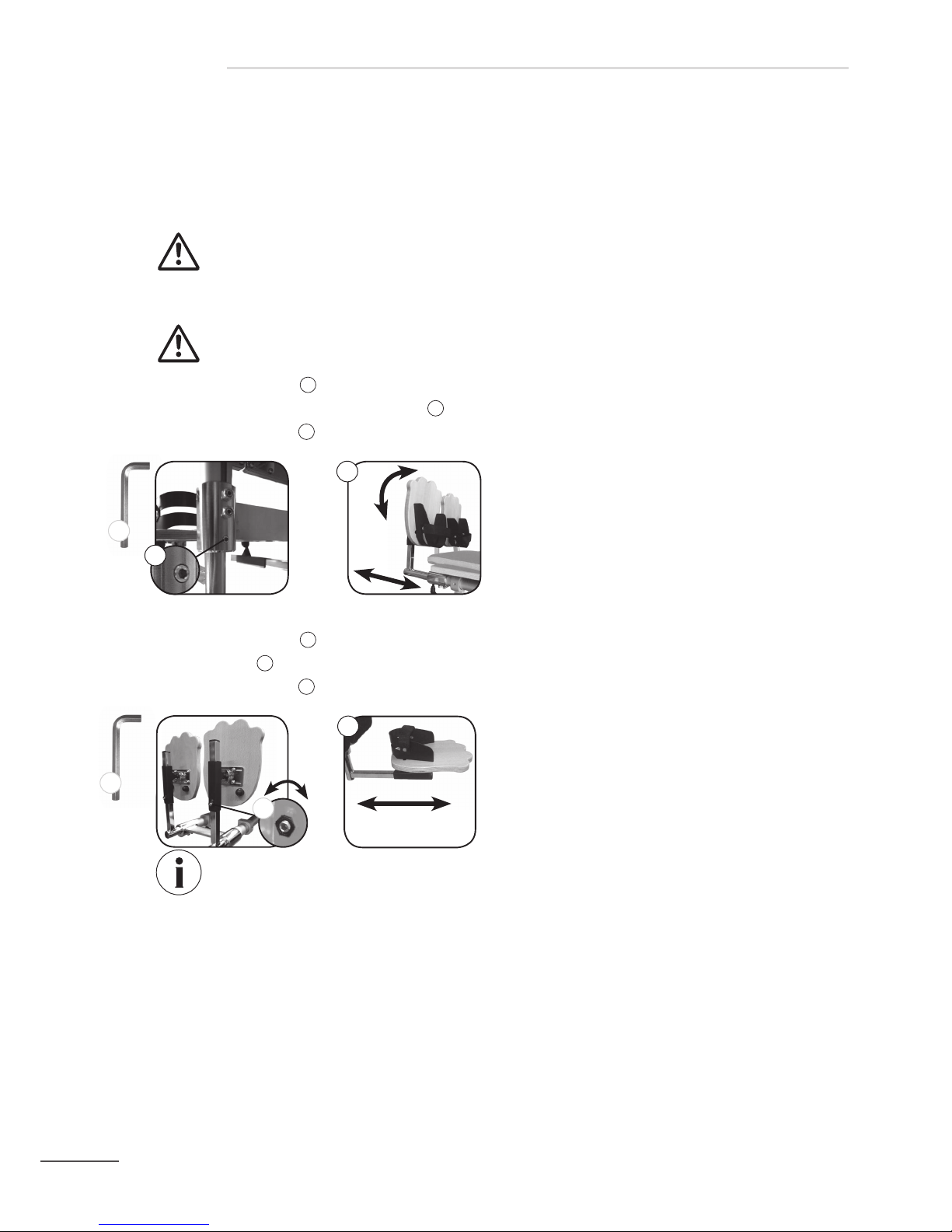

5.9. Individual footplates
Two footplates belong with the Supine-Bear “Lasse”. They should be adjusted to the needed height
of the user‘s feet. The various adjustment options allow for adjustment of foot length and ankle
position as well as for consideration of therapeutic goals (e.g. correction of pes equinus where
accessories available).
Pay attention to hazards of jamming and crushing.
The maximum adjustment is achieved when the pipe end is flush with the guid .
Height and Angle adjustment
The maximum adjustment is reached when the marking is visible.
Loosen the pin screw 1 with key (size M4).
Adjust height and angle of the footplate 2 to the foot.
Fasten the pin screw 1 again.
Lenght adjustment
Loosen the pin screw 1 with key (size M4).
Slide footplate 2 on the tube to adjust.
Fasten the pin screw 1 again.
Repeat the steps for adjustment of the other footplate
