Reinecker Topolino Click Application guide

User manual and
Medical device booklet
Topolino Click

M. Reinecker Geschäftsführer
M. Reinecker President, CEO
.................................................
Name und Unterschrift des Befug-
ten
Name and signature of the
authorized person
Wir erklären in alleiniger Verantwortung dass das Produkt
We declare under our sole responsibilit that the product
Topolino Click
auf das sich diese Erklärung bezieht mit der /den folgenden
Normen oder
normatischen Dokumenten übereinstimmt.
to which this declaration relates is in conformit with the following
guidelines.
Es entspricht damit den Bestimmungen der folgenden Richtlinie:
it corresponds to the rules of the following guidelines
Richtlinie 93/42/EWG
des Rates vom 14. Juli 1993 über Medi inprodukte
Klasse I nach Anhang VII
Guideline 93/42/EWG
of „The Council of 14th June 1993 about medical
product “
Cla I / Annexe VII
Die CE– Kennzeichnung auf dem Gerät dokumentiert diese Überein-
stimmung.
The CE mark on the s stem points out this accordance.
Alsbach-Hähnlein
17.09.2007
....................................
Ort und Datum der Aus-
stellung
Place and date of issue
Reinecker Reha-Technik GmbH
Sandwiesenstraße 19 · D- 64665
Alsbach-Hähnlein
Tel. 06257 / 9311-0 Fax 06257 / 2561
1

Content
User manual, please read carefully! 3
Combination with medical products 3
Safety measures 4
Further use / installation and maintenance 4
Security checks 4
Disposal of the unit according to EU directive 2002/96/EG 4
Special advice for the transport and storage 4
Product description 5
Purpose 5
Product life 5
Degree of protection / classification type B 5
Note on the installation 5
Set-up of the device 5
Instruction for camera reading system Topolino Click 6
Installation of the device 6
Connection of the camera system 9
Control panel top side of the device 10
Menu selection of languages 11
Saving of the adjustments last used 11
Resetting to factory settings 11
Control panel rear side of the camera 12
Mains operation 13
Rechargeable Battery operation 13
Automatic switching from mains operation to rechargeable battery 13
operation
Charging rechargeable batteries 13
Charging parallely 13
Operating time when rechargeable battery is completely charged 13
Eco-friendly disposal according to EU-guideline 2002/96/EG 13
LED display 14
Operation of rechargable batteries 14
Changing of rechargeable batteries 14
Warranty defects of the rechargeable batteries 14
Operation of the camera system as reading camera with CRT or TFT 15
display
Operation of the camera system on the computer or notebook / system 15
requirements
Installation of the software on the PC or notebook via the the active LAN 16
connection
Installation of the included CD 19
Explanation of the functions of the software twc.exe 20
Several Topolino Click connected to the IT-net 23
Configuration of LAN respectively netwiork 25
Operation of the camera system as reading camera with TV-set 28
Checklist: in case problems occur 28
2

1. Notes on the electromagnetic compatibility (EMV)
The opto-electronic reading system is suited for use in all set-ups including
connection to the public mains supply.
The opto-electronic reading system is designed for use in the indicated electro-
magnetic environment. The customer or user should ensure the use in the
indicated environment.
The opto-electronic reading system operates on HF-Energy exclusively for its
Own function. Therefore the emitted interference of high frequency disturbances
is very low and the possibility of disturbing othe appliances operated close-by is
improbable.
When operating the system simultaneously with other systems however, the
possibility of disturbances of the system or other systems should not be over-
Looked.
For this reason you should ensure that the system is not placed directly beside or
on top of another system.
If the set-up of system in the proximityof medical, analogical measuring devices
cannot be avoided, the operator of these devices has to be informed that it is ne-
cessary to observe the performance of the system to control the conventional use
of the system in the chosen set-up.
Electronic devices are sensitive towards electric discharge and towards high-
frequency electro-magnetic fields.
In order to avoid high-frequency disturbances the operator should respect a mini-
mum distance of one metre to portable and mobile HF-telecommunication
devices.
Combination with medical products
If the operator or user intends to run this opto-electronica device together with
Other medical devices, the written permission of Reinecker Reha-Technik GmbH
is required first.
User manual-please read carefully!
3

Safety measures
If technical problems do occur, the unit must be switched off imediately and the
mains plug disconnected. In this condition, the unit must not be used! Refer
directly to yourlocal dealer or to Reinecker headquarters.
Further use/installation and maintenance
The devices may be technically maintained and preprocessed by Reinecker
Reha-Technik GmbH only. The further use may only bve effected after a safety-
related check-up by Reinecker Reha-Technik GmbH. Maintenance and
installation measures must be carried out according to DIN VDE 0751-1.
Installation and maintenance must be carried out in accordance with EMV.
Detailed information depend on the devices and system.
Security checks (§6 MP-Betrieb V):
Security checks must only be executed by technicians of Reinecker Reha-
Technik GmbH authorized by the manufacturer. Reinecker Reha-Technik GmbH
does not rule deadlines for safety checks.
The statements made in §6 MP-Betreiber-Verordnung regarding deadlines
- every two years at the last - are recommended. Statements of the safety condi-
tion of a device will be made whilst safety checking according to the standard
VDE 0751.
Disposal of the unit according to EU directive 2002/96/EG
The system contains electronic components. In order to avoid damage to the en-
vironment or environmental hazard the disposal of the unit has to be carried out
according to valid regulations.
Special advice for the transport and storage#
For reasons of safety, the unit shall only be transported and stored in the original
packing. The unit must be stored in dry and closed rooms in the original packing.
The following conditions and storage have to be respected:
• Temperature range -10 to +50°
• Relative humidity 30% to 80%
• Air pressure 700-1000 hPa
4

Product description:
Electronic reading devices magnify text or pictures. The images are carried by the
camera and are displayed on adirectly connected monitor.
Purpose:
Reading systems are medical devices to assist the reading of printed text.
Visually impaired people compensate for their deficiency or illness by using this
device.
Product life:
Seven years from date of production, assuming recommended maintenance work
is carried out.
Degree of protection / Classification Type B
This system is classified according to type B.
Note on the installation:
• This device must not be operated in explosion-endangered environments.
• The system hast to be installed and used in closed an dry rooms only.
• It is a medical dveice, calss II.
• This opto-electronic device should only be installed in conjunction with
modern electrical circuitry.
• The openings in the casing ensure optimum cooling and must not be
covered.
• Make sure that no liquids get inside the unit.
Set-up of the device:
The opto-electronic reading system will be delivered, installed and explained by
an adviser of medical devices.
5

Instructions for camera reading system Topolino Click
Included in delivery:
- Carrier bag including belt - LAN cable
- Basic device - Manual/Software
- Power supply unit 12V DC 2,5A
Installation of device:
-Take the camera system out of the carrier bag and install according to the
demonstrated steps.
Topolino click in transport position
The carrier bag may be car-
ried in your hand and above
your shoulder.
6
Erect support arm until lock but-
ton (see picture) is set off and
the arm is completely locked.
1 2

7
3 4
6
Swivel camera head by 180°above.
In order to put the camera into the final reading position it has to be turned by 90°
according to the picture above.
5

Position Room camera
- Swivel the camera head horizontally
- Stand illumination turns off automati-
cally
Position Reading camera
- Turn the head of the camera
vertically downwards so that the
camera turns in direction of the
reading board. This camera
position is suitable for reading and
viewing of documents
Stand illumination turns on auto-
matically
Hint: The swivel range of the camera is 270°in the reading and room camera
mode
Note on the automatic switching room –reading mode:
• Room mode on flicker-free image replication.
• Reading mode on image replication without any time lag when moving.
• Stand illumination: If the stand illumination had been turn off by using the
corresponding key, the automatical turning on of the light at the position rea-
ding camera will be deactivated. Only when turning on again the stand illu-
mination by using the key stand illumination on /off, will activate the automa-
tical turning off when changing into the room mode.
Saving of the image parameter:
The images last shown will be saved.
8

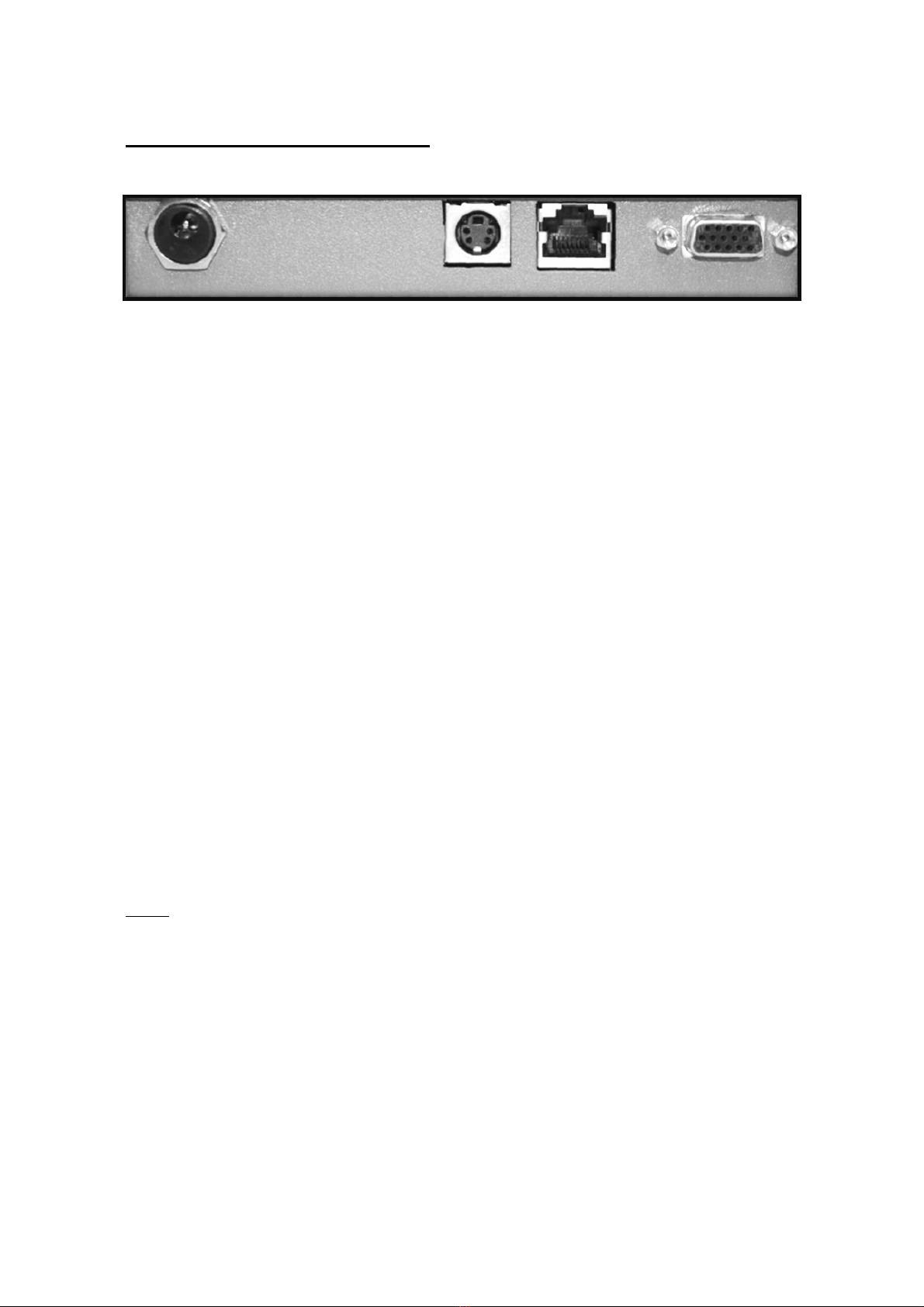

Connection of the camera system:
Connection
Power plug DC 12 V
9
Power plug (12V DC 2,5 A)
- Put the plug into a earth contact type or euro wall socket.
Please only use the delivered power plug. If you use another plug
the guarantee will extinguishes.
- Connect the CD plug with the 12V plug socket
VGA connection :
- Connection of 15pin VGA plug for CRT or TFT screen
Video Out:
- The camera signal of the connected camera can be transmitted
by using a graphic card plus video entrance , a computer or VCR
in S-Video Standard.
Lan Connection :
- The camera data will be transmitted by means of the LAN- inter
faces in case a PC or notebook is connected in real time.
Hint: Please observe that topolino click is deconnected before folding!
Unplug by pulling the plug and not by pulling the cable.
Video Out LAN-
connection
Connection of an
external screen
