Owner’s Manual
Our Tradition is Quality Driven and Field Proven
Manual # - MAN-VBS-700-002
Series 700 Screening Bucket

Manual # - MAN-VBS-700-002
2
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
Table of Contents
*PART DIAGRAMS
Scan the QR Code or visit our website to view our parts book:
https://www.remlingermfg.com/agricultural-products/downloads/
Warning ...........................................................................................................................3
Safety Rules .....................................................................................................................3
To the Owner ....................................................................................................................4
Warranty Policy ................................................................................................................4
Setup and Operation ........................................................................................................5
Lubrication and Maintenance ...........................................................................................6
Case Drain Instruction......................................................................................................7
Changing Screens..........................................................................................................10
Recommended Torque Specications ............................................................................11
Troubleshooting..............................................................................................................12
Registration Form...........................................................................................................13

Manual # - MAN-VBS-700-002
3
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
Warning
!
Before using this equipment, make certain that every operator:
• Is instructed in safe and proper use of this equipment.
• Reads and understands the manual pertaining to the equipment.
• Reads and understands ALL (if applicable) Safety Decals on the equipment.
• Clears the area of all other people before operating the equipment.
• Learns and practices safe use of the equipment in a safe clear open area.
This symbol indicates an important Safety Alert Message in this Manual. Carefully read and
understand the message that follows. The potential for series injury or death is possible.
!
Safety Rules
! !
• Never attempt to operate or adjust the equipment without reading this manual.
• Do not attempt to adjust the equipment while it is in motion.
• Caution is required when hooking up or un-hooking the equipment.
• Always use any transport locks that are provided on the equipment.
• Always place all safety decals and reectors in their proper locations. Clean and replace as
necessary.
• Never allow anyone to ride on the equipment.
• Always slow down when turning and traveling over rough terrain.
• Always support the equipment when mounting or working on the equipment.
• Before using the equipment, inspect hydraulic hoses and all fasteners for tightness. Also, check your
skid steer lift mechanisms are in good working order.
• Hydraulic oil at normal working pressure can penetrate the skin causing serious personal injury.
• Do not use your ngers or hands to check a hydraulic leak. Use a piece of cardboard or wood to
search for suspected leaks. If injured by escaping hydraulic oil, seek medical help immediately.
Serious infection or reaction can develop if proper medical treatment is not administered immediately.
• The operator is responsible for the safety of themselves and others when operating equipment.
• Always lower screening bucket to the ground when servicing.
• Stop the loader and remove keys before connecting or disconnecting hydraulic hoses. Before
disconnecting hoses operate the controls to release any pressure in the system.
!
!Heavy loads can make your equipment unstable. Keep the load close to the ground and
move slowly. Add counter weights if load is unbalanced.

Manual # - MAN-VBS-700-002
4
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
To the Owner
Your new equipment was carefully designed to give years of dependable service. This manual
contains important information about the safe assembly, adjustment, operation, and maintenance of
your equipment. To keep it operating e󰀩ciently, read the instructions in this manual. This manual should
be considered a permanent part of your implement and should remain with the implement when it is
sold. Additional diagrams may also be included for specic applications. Please contact the dealer or
Remlinger Manufacturing for any questions at 1-800-537-7370.
Any unauthorized modication to any part of the equipment could cause serious injury and void
any warranty consideration. Please refer to the Warranty Policy referenced below. For additional manuals
or to replace a lost or damaged manual, please contact your dealer. The manual number is referenced on
the lower right-hand corner of each page.
Warranty Policy
Remlinger Manufacturing will warrant all products against defects in material and workmanship
manufactured and sold by it. Warranty will only be granted after examination by appropiate personnel.
This warranty is expressly limited to the replacement of defective products. This warranty does not
obligate Remlinger Manufacturing to cover cost of labor to replace these parts. This warranty is in e󰀨ect
for 1 year after purchase.
Remlinger Manufacturing warrants its own products only and cannot be responsible for damages
to equipment on which it is attached or mounted.

Manual # - MAN-VBS-700-002
5
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
Setup and Operation
The Series 700 Screening Bucket comes completely assembled with the hose end connectors needed to
connect to the skid loader.
The hoses that connect to the skid loader are easily identiable. The smaller at face coupler attaches
to mating end on skid steer. The larger at face coupler attaches to mating end on skid steer. The case
drain hose and ends need to be attached. Warranty is voided if this is not used. If your skid steer
does not have a case drain, see instructions on page 7.
The hydraulic system on the Series 700 Screening Bucket motor is one-directional. The hydraulic
system of the vibrator in cludes a cross port check valve in the motor or built into the ow control valve.
This check valve allows the motor to stop gradually when the skid loader hydraulics are turned o󰀨. It will
allow the motor to run if the hoses are connected either way. We have found that the easiest method to
determine the proper hose connections is to put the two connectors on the hoses and connect them to
the skid loader. Adjust the lever on the ow divider to a setting of 5.
Once you have correctly connected the hy draulic hoses to the vibrator you can adjust the ow divider to
get the best screening action.
Setting 5 to 6 is normally the best setting to run the vibrator. We recommend that you do not adjust the
ow below setting 4.
Run your skid loader at its normal RPM to produce its rated hydraulic ow. If your skid loader has no
tachometer try to use the same throttle setting each time you use the bucket.

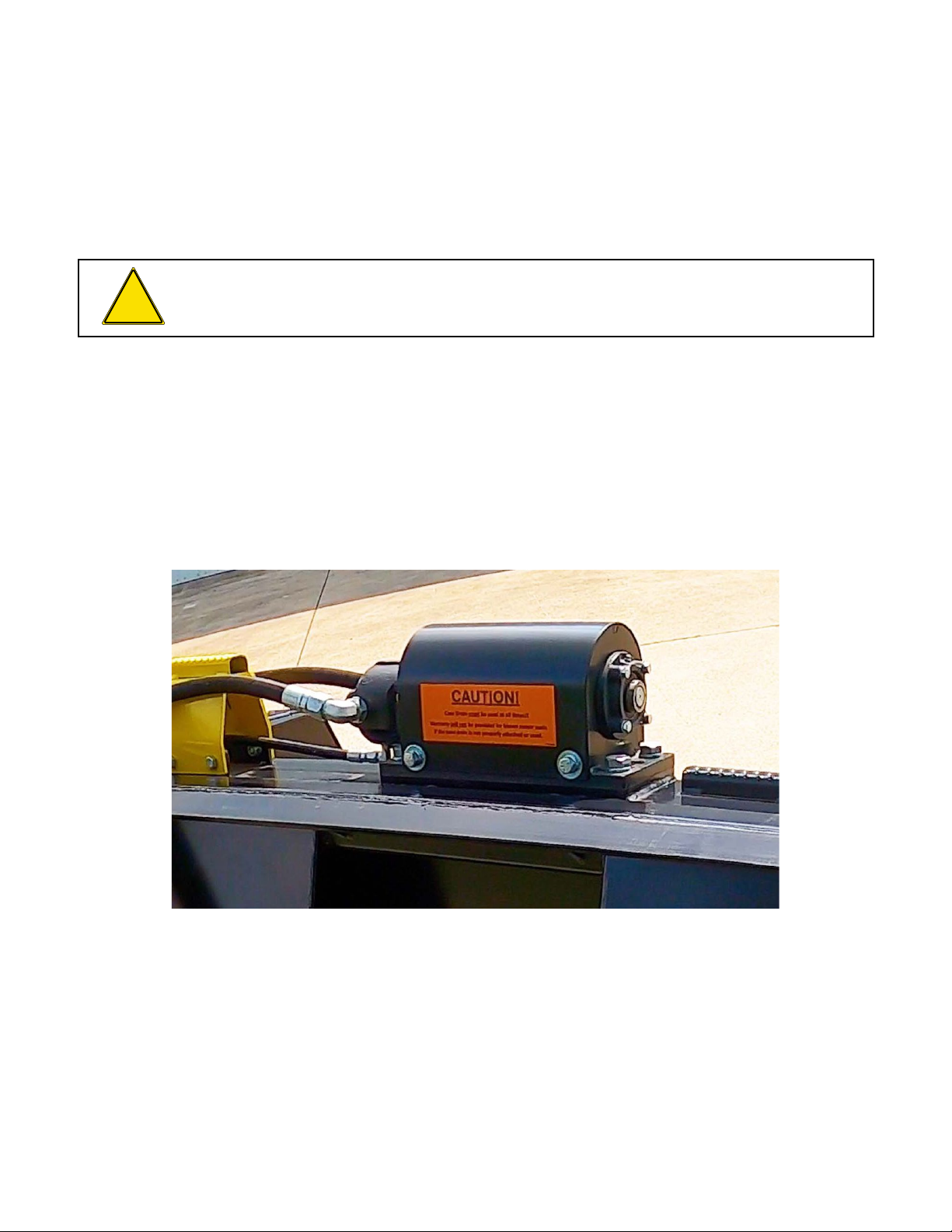

WARNING!
The screening bucket’s hydraulic compo nents are designed for a maximum ow rate of 16 GPM. If your
skid loader is ca pable of ow rate of over 16 GPM you can reduce the ow by adjusting the engine RPM.
If your skid loader is equiped with a high-ow pump use only the low-ow set ting.
Max load for this product is
1200 lbs capacity!

Manual # - MAN-VBS-700-002
6
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
Lubrication and Maintenance
Lubricate with multipurpose lubricant or an equivalent SAE multipurpose type grease at hourly intervals
indicated by the symbols.
Do not clean, lubricate, or adjust your machine while it is in motion.
!
Clean grease ttings before using grease gun. Replace any lost or broken ttings immediately. The
application of grease in bearing area is very critical. Grease motor shaft bearings every 20-25 hours.
DO NOT OVER GREASE.

Manual # - MAN-VBS-700-002
7
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
Case Drain Instruction
Remlinger Mfg. has come out with a “How to Instruction” for a Case Drain Line to incorporate onto older
model skid steers. Some older model skid steers are not equipped with an optional port to divert excess
oil pressure within the hydraulic system. Excessive oil pressure can cause internal damage to the motor
and/or possible shaft seal failure. This update must be incorporated on your skid steer, as Remlinger
Mfg. will no longer warrant blown shaft seals or damaged motors. Remlinger will not pay any labor or
any other material for adding the Case Drain to your skid steer. Prior to the new 2020 update, Vibrating

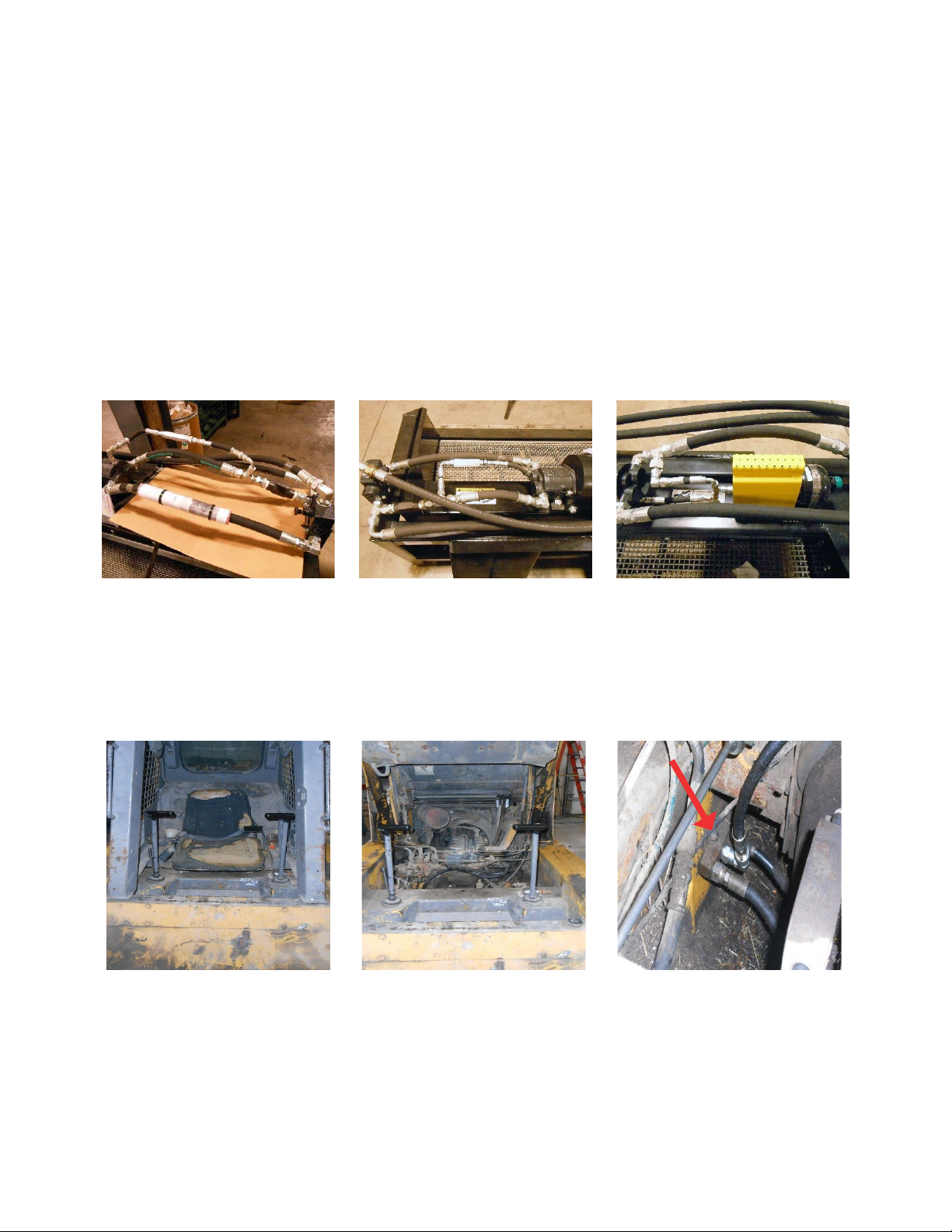

Screening Bucket hydraulic layouts looked like the ones seen below.
Step 1: Identify the hydraulic set-up on your existing attachment. If you have a bucket with this hydraulic
set-up or similar, prior to March 2020 machines, please follow all steps of this bulletin.
Note: If you have another hose set-up, this bulletin still can be used for your attachment.
Remove any hoses, ttings and valves. Refer to Step 5 as reference to install the hoses &
ttings of the new routing for the VSB system. Some hoses & ttings may be reused.

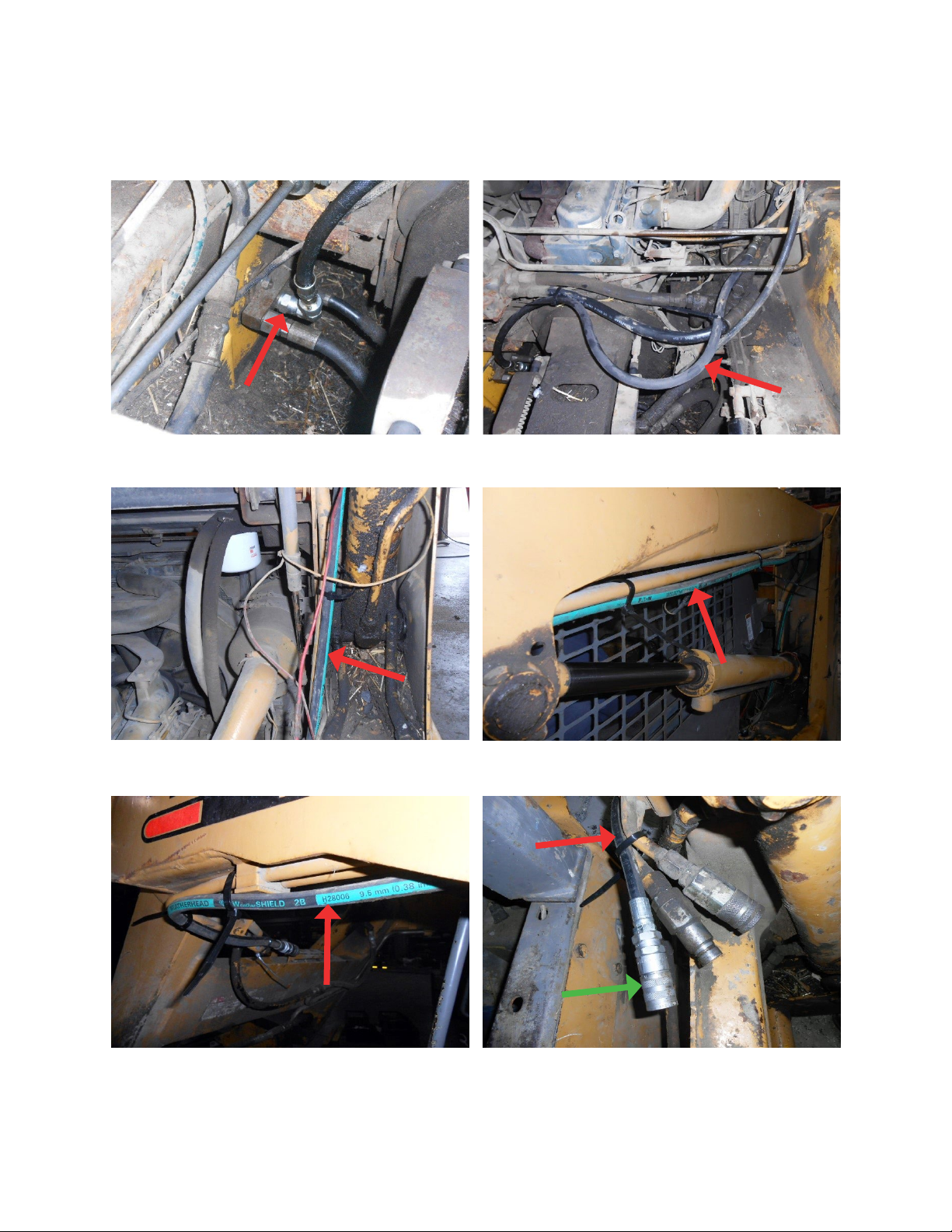

Step 2: Illustrating the location of attaching the case drain line into your skid steer compartment.
Note: Each skid steer location may be di󰀨erent! Locate the pump & identify if pump has a
capped o󰀨 hydraulic port. Check all sides. If no port found, alternative may be needed.

Manual # - MAN-VBS-700-002
8
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
Step 3: Routing the case drain hose through the machine compartment on your skid steer. Route hose
along the existing hydraulic pressure and return lines that the machine currently leads to the at faced
hook up connectors.
Note: The tting to the pump and the hose assembly will not be supplied by Remlinger.
Note: Route hose along the hydraulic pressure and return lines currently on the machine.
Note: Route hose along the boom & tighten securely using zip straps or clamps.

Manual # - MAN-VBS-700-002
9
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370

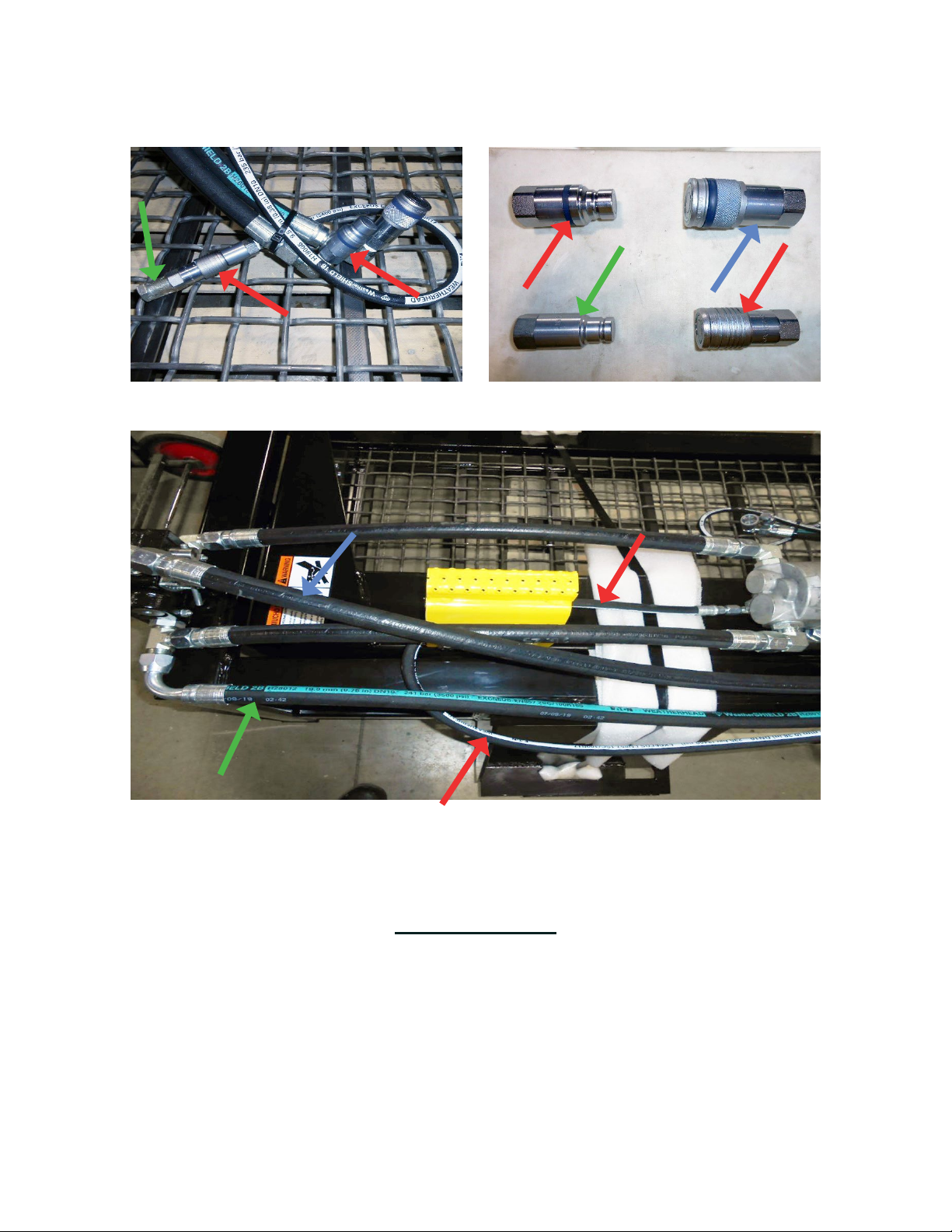

Step 4: Connecting all the hydraulic components together to complete the Update Kit.
Note: Arrow color designated location for Update Kit.
Illustration of Complete Assembled Update Kit
Note: Make sure all ttings and hoses are tight. Double check ttings and hose routing to insure
proper functioning of oil ow to and from motor.
Hydraulic Reminder
Pressure Line: Indicated with Blue Arrow
Return Line: Indicated with Green Arrow
Case Drain: Indicated with Red Arrow
Any questions or concerns about this bulletin please contact Technical Support.
[email protected] Toll free: 1-800-537-7370

Manual # - MAN-VBS-700-002
10
Remlinger Mfg reserves the right to change pricing or specications at anytime without notice or obligation
1-800-537-7370
Changing Screens
Step 1: Loosen and/or remove the screen clamp to inside rear of the bucket.
Step 2: Loosen both rubber bumpers on the back rear and all 4 isolators side of the bucket, this allows
for hopper to slide back to open gap where hooks lock in.
Step 3: Pry the screen out with pry bar or large screw driver. Remove screen and place di󰀨erent screen
in its place
Step 4: Tighten the rubber bumpers on the back rear of bucket and tighten down the bolts on side
isolators. Set them to original factory setting. Make sure screen hooks are locked in. Tighten the screen
clamp to inside rear of bucket. Make sure all bolt & nut connections are tight.
