Renault Carminat TomTom User manual

NW859-4 | ENG | Dos = 0 mm | 46 pages | 1 de Couv
Cyan Magenta Jaune Noir Noir texte
NW859-4 | ENG | Dos = 0 mm | 46 pages | 4 de Couv
Cyan Magenta Jaune Noir Noir texte
(www.e-guide.renault.com) (www.renault-multimedia.com)
à7711405958ôîëä – –
RENAULT S.A.S. SOCIÉTÉ PAR ACTIONS SIMPLIFIÉE AU CAPITAL DE 533 941 113 € / 13-15, QUAI LE GALLO
92100 BOULOGNE-BILLANCOURT R.C.S. NANTERRE 780 129 987 — SIRET 780 129 987 03591 / TÉL. : [phone]
NX 859-4 – 77 11 405 958 – 05/2010 – Edition anglaise
DRIVER’S HANDBOOK
CARMINAT TOMTOM®

1
ENG_UD18600_5
NFA - Sommaire (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
Contents
Precautionsduringuse........................................................... 2
Generalinformation.............................................................. 3
Generaldescription ........................................................ 3
Introductiontothecontrols................................................... 6
Swivelscreen............................................................. 8
SDcard:use,initialisation................................................... 9
Switchingon/off........................................................... 11
Guidedtours.............................................................. 12
Operatingprinciples........................................................ 13
Volume.................................................................. 15
Readingamap............................................................ 16
Preparingandcreatingajourney ................................................... 17
Enteringadestination ...................................................... 17
Guidance................................................................ 21
Preparingaroute.......................................................... 25
Trafficinformation.......................................................... 26
Browsemap.............................................................. 29
Add and manage favourites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Systemsettings................................................................. 33
Safetycameras................................................................. 39
Helpme! ...................................................................... 41
Imageviewer................................................................... 42
Reversingcamera............................................................... 43
System update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Operatingfaults................................................................. 48

SD card.................................................(up to the end of the DU)
navigation system.................................(up to the end of the DU)
precautions during use ......................... (up to the end of the DU)
2
ENG_UD13031_2
NFA/Précautions d’utilisation (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
Precautions during use
PRECAUTIONS DURING USE
The description of the models given in this manual is based on the specifications at the time of writing. This manual covers all
existing functions for the models described. Whether or not they are fitted depends on the equipment model, options selected
and the country where it is sold. This manual may also contain information about functions to be introduced later in the year.
Precautions when operating the system
– Operate the controls and read the information on the screen only when road conditions allow.
– Set the volume to a reasonable level so that outside noise can be heard.
Precautions regarding navigation
– Use of the navigation system does not in any way replace the responsibility or vigilance of the driver when driving the vehi-
cle.
– Depending on the geographical area, the map on the SD card may not have the latest information on new roads. Be alert.
In all cases, Road Traffic Regulations and road signs always take precedence over the directions of the navigation system.
Precautions concerning the equipment
– Do not attempt to dismantle or modify the system, as there is a risk of damage to equipment and fire.
– Contact a representative of the manufacturer in the event of malfunction and for all operations involving disassembly.
– Do not insert foreign objects or a damaged or dirty SD card into the reader.
– Allows clean your screen with a microfibre cloth or a soft, moistened cloth.
– Use an SD card which is suitable for your navigation system.
It is essential to follow the precautions below when using the system, both in the interest of safety and to prevent material damage.
You must always comply with the laws of the country in which you are travelling.

SD card..................................................................(current page)
GPS
receiver ............................................................(current page)
3
ENG_UD17657_4
NFA/ Description générale (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
The navigation system
The navigation system calculates your
position and guides you using data:
– vehicle speed and information from
the gyro (measuring the vehicle di-
rection);
– from the GPS receiver;
– from the digital map.
Note: when using the vehicle for the
first time, the speed information and
the gyro will be undergoing final cali-
bration. It is therefore normal that the
system does not provide a very precise
location until the vehicles has travelled
around fifty kilometres and undertaken
about forty pronounced corners.
General information
General description
GENERAL DESCRIPTION (1/3)
Navigation assistance
function
The system suggests a route to your
chosen destination using:
– its road map (on the SD card),
– the positioning sensors which esti-
mate your location even if the GPS
signals are lost,
– information from the traffic informa-
tion service (depending on country).
Finally, it indicates the route to take,
step by step, using the display screen
and voice messages.
The GPS receiver
The navigation system uses GPS satel-
lites (Global Positioning System) orbit-
ing around Earth.
The GPS receiver receives signals
transmitted from several satellites. The
system can then locate the position of
the vehicle.
Note: after moving a long distance
without driving (ferry, rail freight), the
system may take several minutes to
adjust before retuning to normal opera-
tion.
The digital map
The digital map contains the road maps
and town maps that the system re-
quires. This is found on the SD card.

screen
map..................................................................(current page)
screen
menu................................................................(current page)
4
ENG_UD17657_4
NFA/ Description générale (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
Jaune Noir Noir texte
GENERAL DESCRIPTION (2/3)

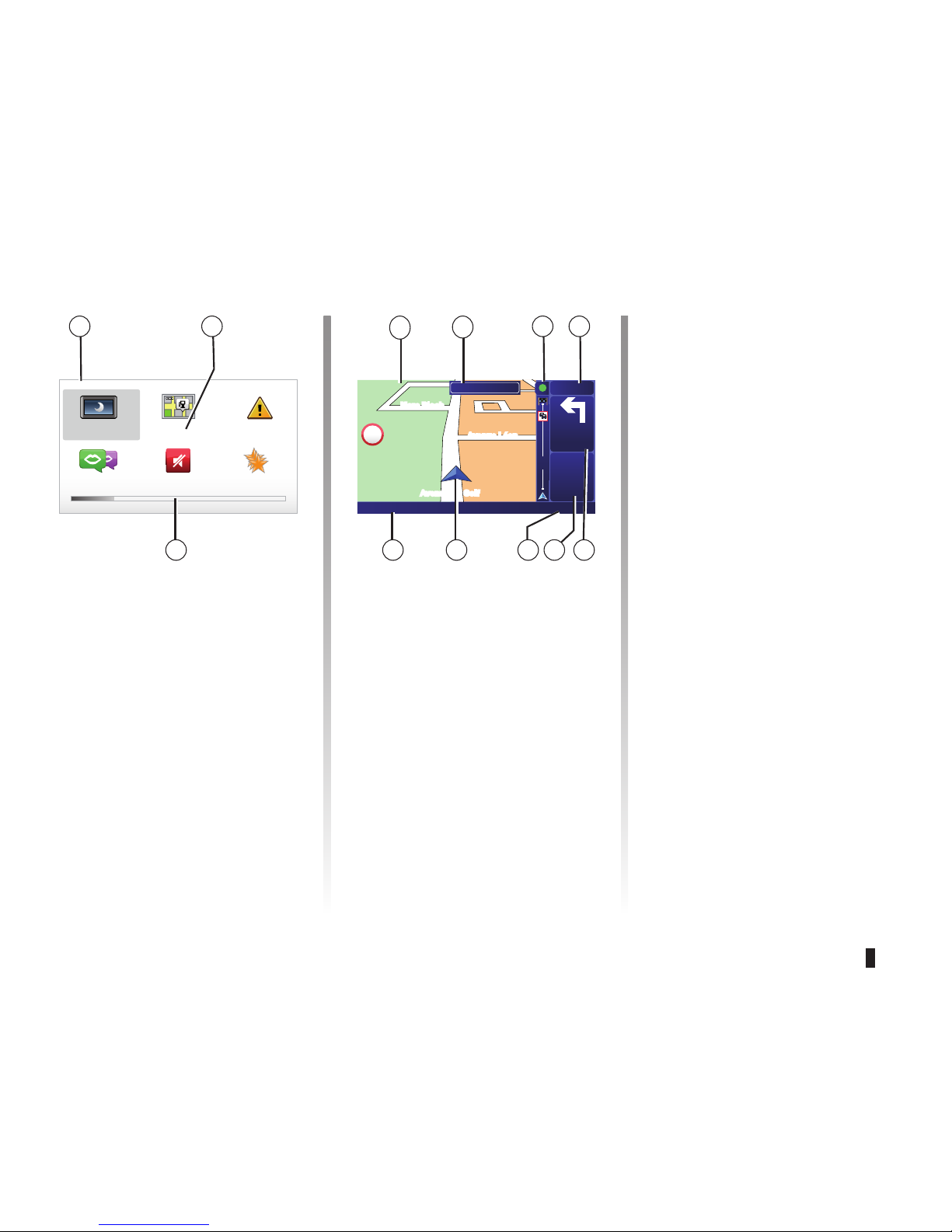

Displays
Menu screen
AMenu name
BSub-menu name
CMenu page scroll bar
Map screen
DNavigation maps
EIndication of the next navigation in-
struction (road sign)
FTraffic information
GClock
HInstructions for navigation and dis-
tance to next change of direction
IEstimated arrival time and total re-
maining distance
JExterior temperature
KCurrent location
LAudio information (depending on the
vehicle)
Note: you can access the map screen
at any time by pressing the MAP-2D/3D
button on the remote control or the cen-
tral control.
If you have just modified a parameter,
remember to confirm it using the soft
buttons before returning to the map
screen.
Use night
colors
Show POI
on map
Safety pref-
erences
Preferences 1 of 5
Voice prefer-
ences
Turn off
sound
Manage
Favorites
BA
C
Marc Bloch
Avenue du Golf
Avenue Léon
Marc Bloch
Avenue du Golf
Avenue Léon
4.5km
6:52
300
metres
6:47
LW 10245 66 RDS-AF 26°C
A2/E35 Utrecht
14
km
30
DEF G
L K J I H

screen
audio ................................................................(current page)
Jaune Noir Noir texte
5
ENG_UD17657_4
NFA/ Description générale (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0

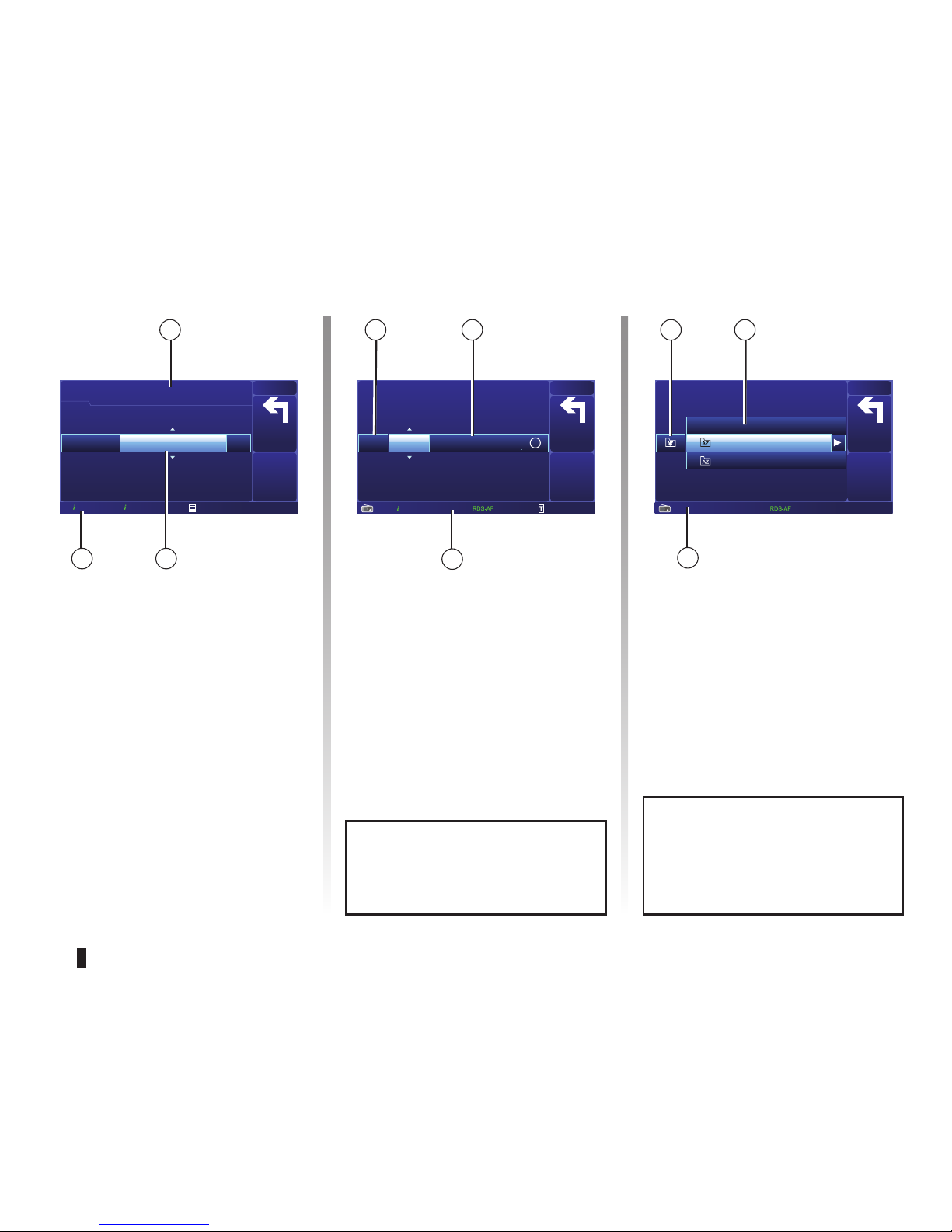

Telephone screen
(depending on the vehicle)
PFunctions
QPhone information
Audio screen
MSource currently in use (Radio, CD,
etc.)
NInformation on the current track or
station.
OAdditional information on radio mes-
sages and services (I news…) and
the CD play mode (Random).
Audio and telephone screen
When you use your audio system to
modify a source or change the audio
parameters, the information appears in
full screen mode.
When the operations are completed,
the window closes again, the audio in-
formation is displayed on band Oand
the navigation screen appears.
Refer to the user guide for your
audio and/or telephone system for
further information.
GENERAL DESCRIPTION (3/3)
4.5km
6:52
300
metres
6:47
26°C
News
RADIO FM
102.45 66
O N
M
RandomTraffic
4.5km
6:52
300
metres
6:47
26°C
6
FM 102.45 RADIO 1
Traffic
NM
O
4.5km
6:52
300
metres
6:47
26°C
RADIO 1
List of contacts
Update
P Q
O
Depending on the vehicle, the radio
display appears either on the navi-
gation screen or on the dashboard
screen.

controls.................................................(up to the end of the DU)
3D/2D mode .........................................(up to the end of the DU)
soft button............................................. (up to the end of the DU)
6
ENG_UD16630_4
NFA_Présentation commande (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
Jaune Noir Noir texte
Introduction to the controls
Function
1Soft buttons Select and confirm
2INFO/ROUTE Accessing the Traffic information (short press), ac-
cessing the programmed route summary (long press).
3Rotary button
Rotate:
– move vertically and horizontally through the menus;
– modify the scale (ZOOM mode).
Shift (up, down, right, left):
– move vertically or horizontally through the menus;
– move around the map.
Press:
– confirm;
– display the quick menu.
5MENU/SET Accesses the full navigation system menu (short
press), accesses the system settings (long press).
6LIGHT/DARK Changes the brightness of the screen (short press) or
activates the standby screen (long press).
7REPEAT/MUTE Repeats the instruction (short press), deactivates the
voice guidance (long press).
8DEST/HOME Accesses the “Navigate to...” (short press), navigate to
your Home (long press).
9MAP-2D/3D From a menu: displays the map
From the map: switches the map to 2D/3D mode.
10 BACK Back to previous screen.
INTRODUCTION TO THE CONTROLS (1/2)

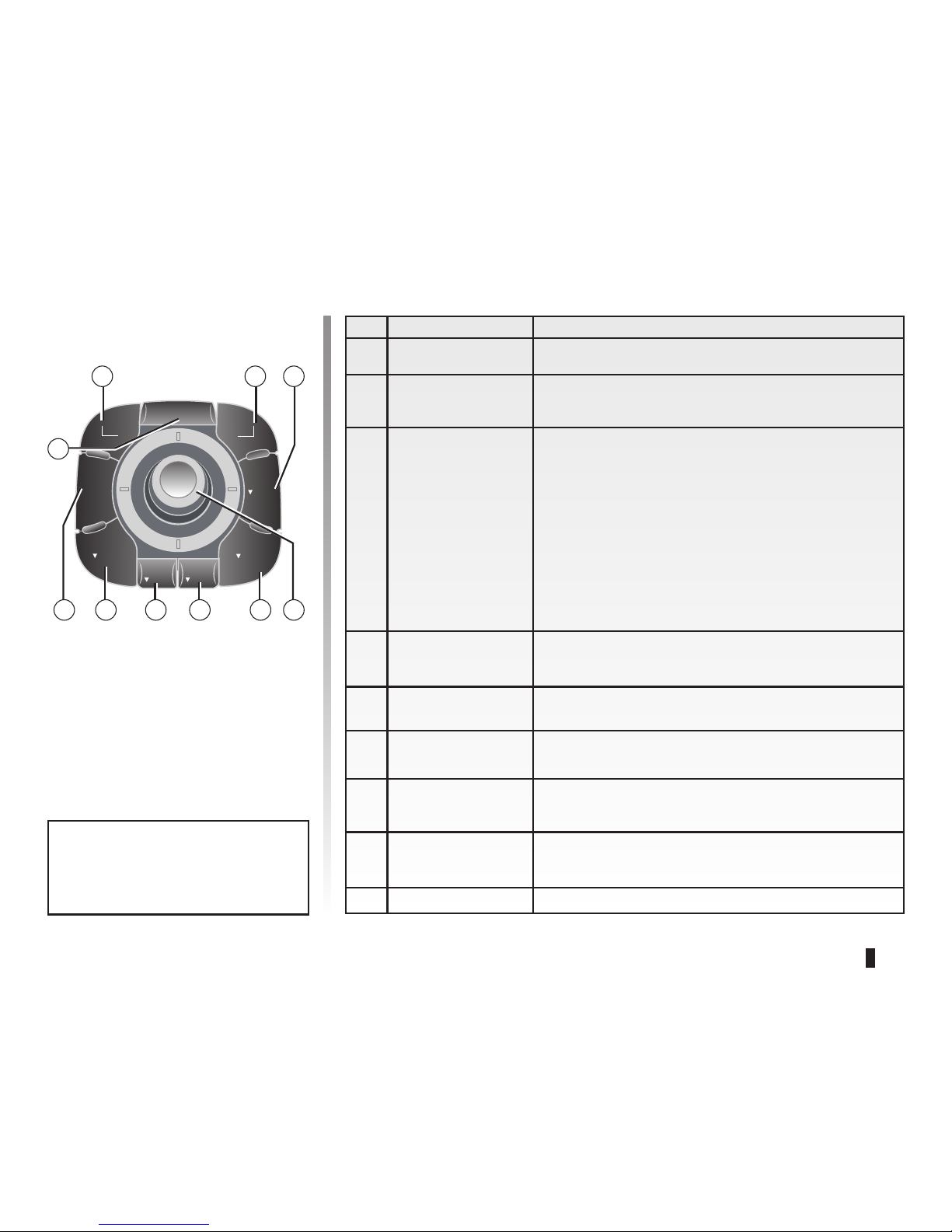

Central control
BACK
MAP
2D/3D
INFO
ROUTE
DEST
HOME
MENU
SET
REPEAT
MUTE
LIGHT
DARK
BACK
1 1 2
356789
10
Note: depending on the vehicle, the
system has either a central control
or a remote control.

Jaune Noir Noir texte
7
ENG_UD16630_4
NFA_Présentation commande (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
INTRODUCTION TO THE CONTROLS (2/2)
Function
1Soft buttons Select and confirm
4Remote control
Shift (up, down, right, left):
– move vertically or horizontally through the menu;
– move around the map.
Press the central button:
– confirm;
– displays the quick menu.
5MENU Accesses the full navigation system menu.
9MAP-2D/3D From a menu: displays the map
From the map: switches the map to 2D/3D mode.
10 BACK Back to previous screen.
LED Aon the remote control flashes
once your navigation system is con-
nected to it. To replace the batteries,
refer to the section entitled “Remote
control: batteries”.
Note: to connect your remote con-
trol more quickly, press one of the
remote control buttons when the
system starts, before the legal no-
tices appear.
Note: the remote control unit does
not have press and hold functions.

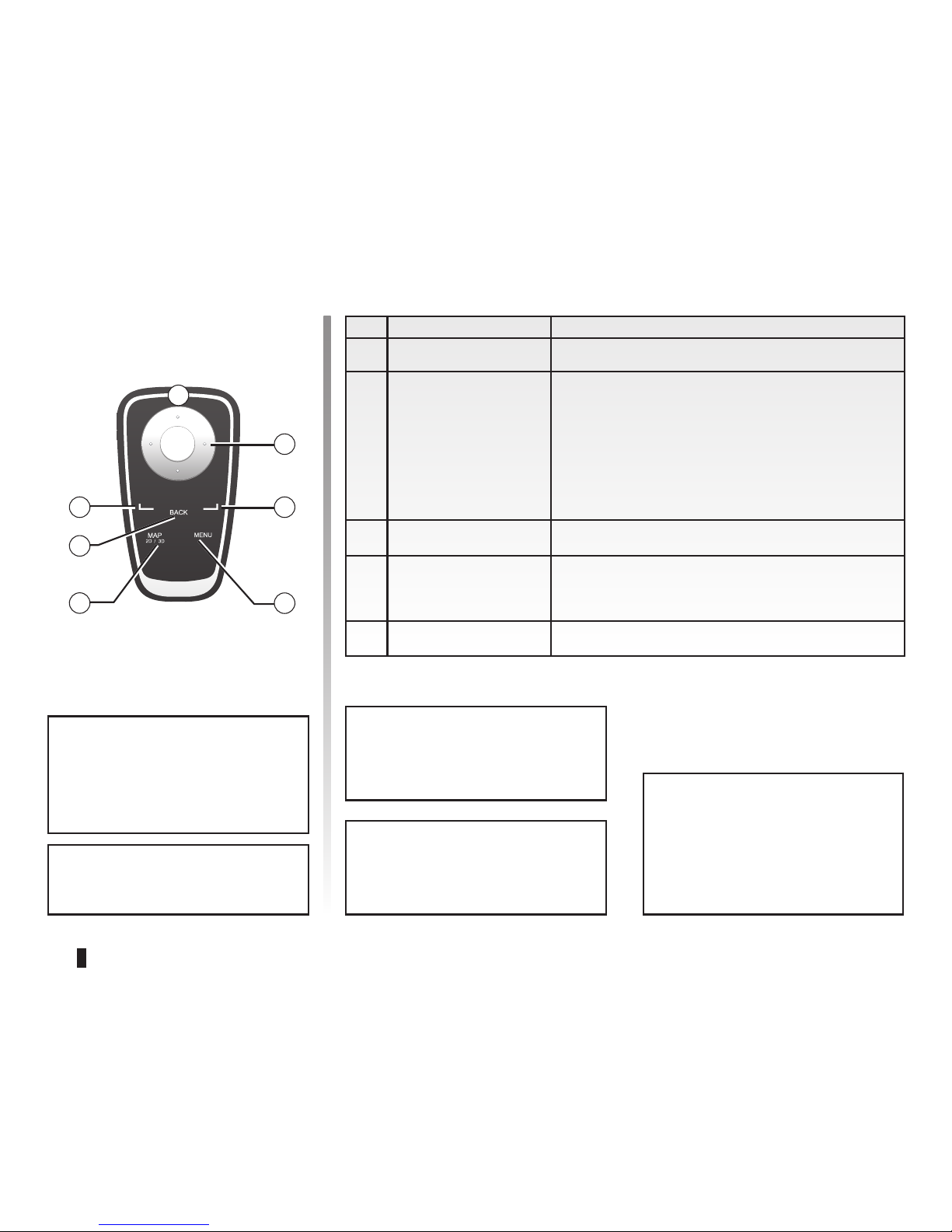

Remote control
Store the remote control in its hous-
ing, away from sunlight, to ensure
the batteries are not damaged.
A
4
1
5
1
10
9
Note: depending on the vehicle, the
system has either a central control
or a remote control.

8
ENG_UD16035_1
Ecran pivotant (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
Swivel screen
Definition
Depending on the vehicle, your navi-
gation screen can be turned to the left
and right to ensure it can be read with
the utmost comfort under any circum-
stances.
SWIVEL SCREEN
Manipulation
To avoid any temporary faults with the
guidance system, it is recommended
that the screen is moved when station-
ary.
Push the screen on the left or right to
swivel it.

SD card.................................................(up to the end of the DU)
system
initialisation .....................................(up to the end of the DU)
9
ENG_UD18859_4
Carte SD Utilisation/Initialisation (XNX - NFA - Renault)ENG_NW_859-4_TTY_Renault_0
To update your system and your map,
refer to the section entitled “System
update” in your user manual.
SD card

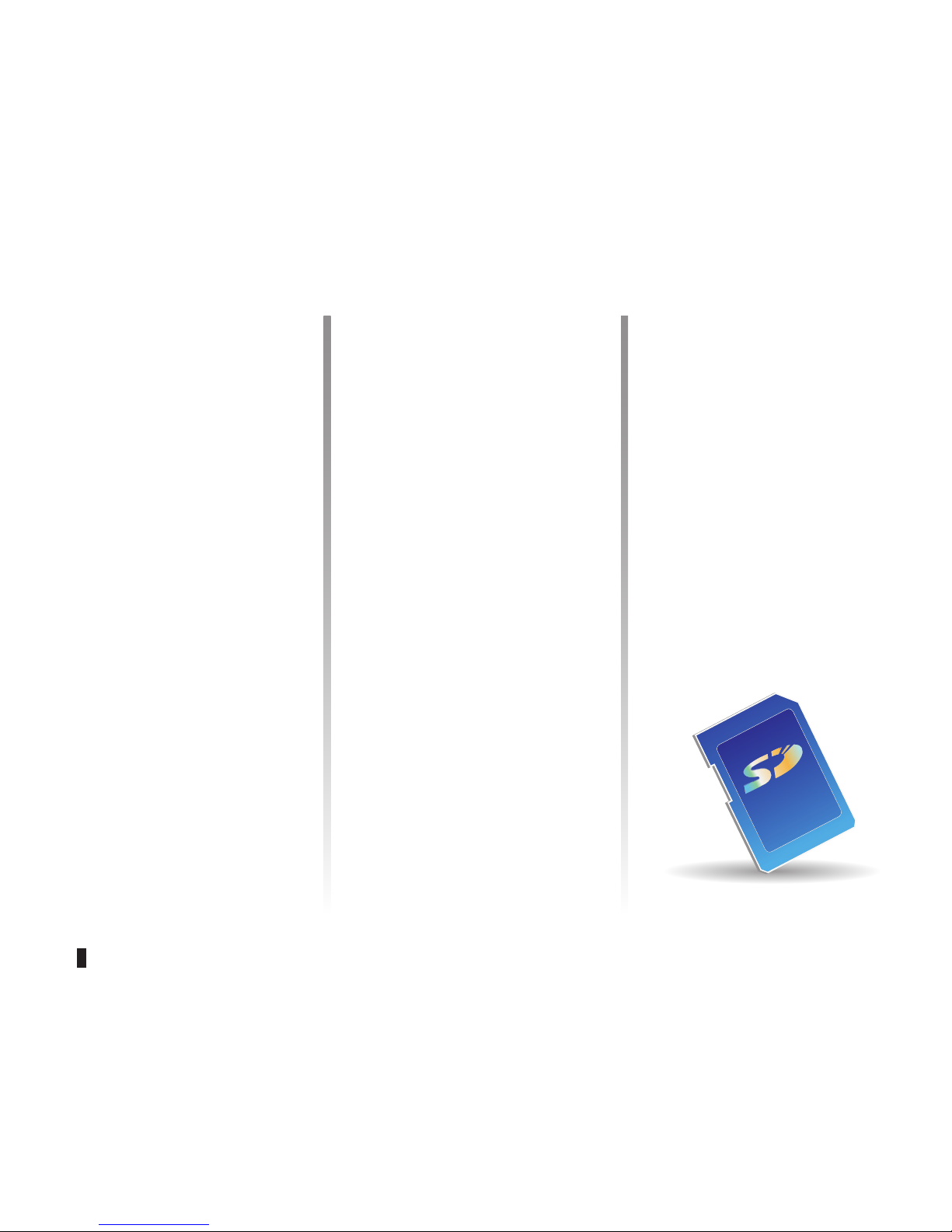

An SD card is supplied with the navi-
gation system. It includes, among other
things, a map of your country.
Updates are regularly issued, in par-
ticular for maps and safety cameras.
They are only available for download
by inserting your navigation system’s
SD card into a computer which is con-
nected to the internet.
Once your new vehicle has been de-
livered, you will have a maximum of
60 days in which to update the map for
free. Once this time has elapsed, you
will need to pay for updates.

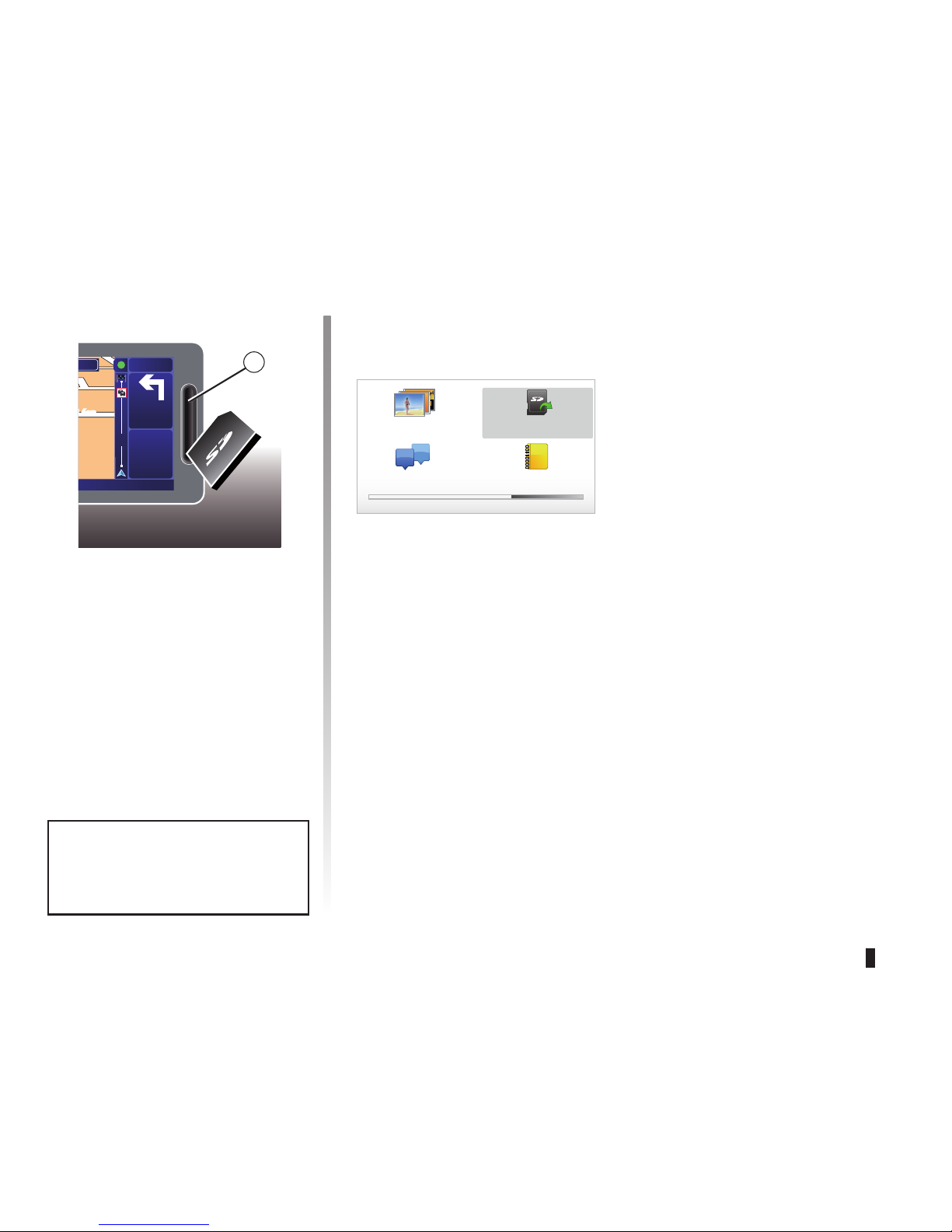

SD card: use, initialisation
SD CARD: USE, INITIALISATION (1/2)
L
éon
L
éon
4.5km
6:52
300
metres
6:47
RDS-AF 26°C
e
cht
14
km
Only use your SD card for operat-
ing and updating your navigation
system. Do not insert it in any other
device (camera, portable GPS,
etc.).
Only use an SD card which is com-
patible with your vehicle's naviga-
tion system.
You can also download maps cover-
ing more countries than your origi-
nal map (e.g. Western Europe).
Remember to back up the data on
the SD card regularly. Refer to the
section entitled “System update” in
your user manual.
