Renesas CCE4510 User manual

User Manual
CCE4510 Evaluation Board
Feb 28, 2022
Page 1
© 2022 Renesas Electronics
1. ABSTACT
The CCE4510 evaluation board is designed to evaluate and demonstrate the CCE4510 IO-Link Master IC with
integrated frame handler.
Contents
1. ABSTACT........................................................................................................................................................ 1
2. INTRODUCTION ............................................................................................................................................. 2
3. SYSTEM REQUIREMENTS............................................................................................................................ 2
4. FEATURE OVERVIEW ................................................................................................................................... 3
5. GETTING STARTED....................................................................................................................................... 3
6. POWER SUPPLY............................................................................................................................................ 3
7. SECTIONS OF THE CCE4510 EVALUATION BOARD................................................................................. 4
IO-Link Section ................................................................................................................................................4
MCU Section....................................................................................................................................................4
8. SCHEMATIC AND LAYOUT........................................................................................................................... 5
Connectors....................................................................................................................................................... 5
Schematic........................................................................................................................................................ 6
Layout.............................................................................................................................................................. 8
9. BILL OF MATERIALS................................................................................................................................... 11
10. REVISION HISTORY..................................................................................................................................... 12
11. REFERENCES ..............................................................................................................................................12
12. STATUS DEFINITIONS................................................................................................................................. 12
Corporate Headquarters ..................................................................................................................................... 12
Contact information............................................................................................................................................. 12
Trademarks .......................................................................................................................................................... 12

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 2
2. INTRODUCTION
The board is divided into two sections:
●IO-Link Section
The IO-Link section contains two CCE4510 including all necessary periphery to use the two CCE4510 for
IO-Link communication.
●MCU Section
The MCU section contains a LPC1549 32-bit ARM Cortex-M3 microcontroller from NXP to control the
CCE4510 Master ICs. The MCU is powered by an LDO with 3.3 V output voltage.
For maximum flexibility, the sections can be used separately and independently from each other. This allows to
evaluate the CCE4510 Master IC with every suitable MCU.
The evaluation board is compliant to IO-Link Interface and System Specification V1.1.2

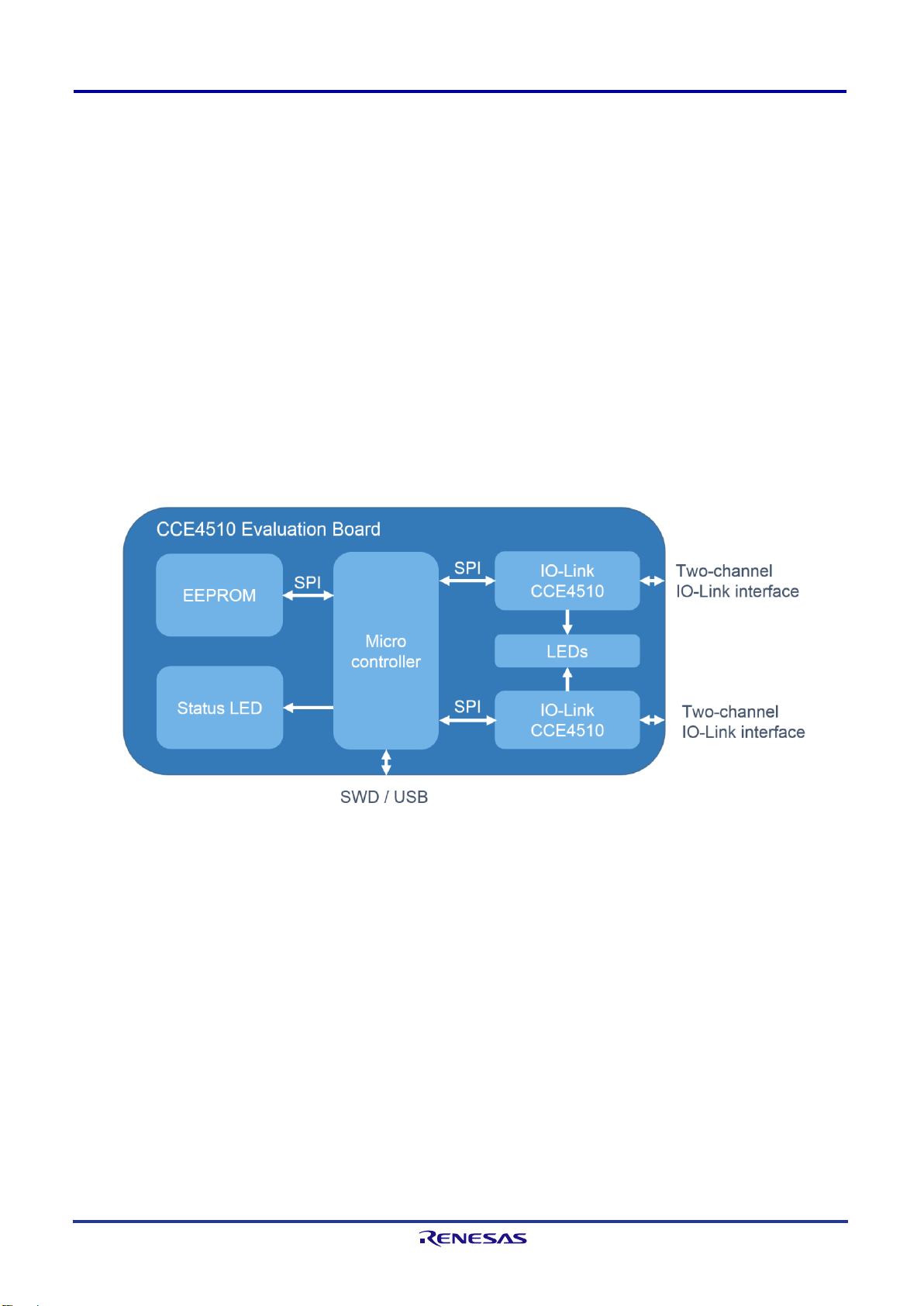

Figure 1: System Diagram
3. SYSTEM REQUIREMENTS
The CCE4510 evaluation board is ready to use with a preinstalled IO-Link master stack.
To get started, the following tools are required:
●Power Supply 24V
●USB Cable (Micro USB type B)
●Debug probe (for programming via SWD)

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 3
4. FEATURE OVERVIEW
■ARM Cortex-M3 Microcontroller
■On-Board 3.3 V LDO
■16 kB EEPROM
■Programmable via USB or Serial Wire Debug
(SWD)
■Status LED indicator
■External NMOS gate drivers
■24 V supply voltage
■Two CCE4510 IO-Link Master Transceiver ICs
■4 IO-Link channels
■4 Status LED indicators for IO-Link channels
■Additional on-board protection circuitry
■All pins accessible via pin-headers
□For microcontroller and IO-Link Master ICs
■Independent use of sections
5. GETTING STARTED
There are two different possibilities to program the CCE4510 evaluation board:
●Programming via USB
●Programming via SWD
To program via USB:
1. Connect pin MAS_INT (JP1 pin 5) to GND
2. Connect USB to PC
3. Power on the Evaluation Board (24V)
4. The microcontroller will now be recognized as USB mass storage
5. Copy any program on the microcontroller
To program via SWD
1. Connect debug probe to SWD connector
2. Connect USB to PC (USB 5V supply is needed) OR Connect USB_VBUS (JP1 pin 3) to +3.3V
3. Power on the Evaluation Board (24V)
4. Start programming with your preferred SDK
6. POWER SUPPLY
The CCE4510 Evaluation Board needs a 24 V power supply connected to JP2 pins 23 / 24. An on-board 3.3 V
LDO (placed on the MCU section) supplies the microcontroller as well as the CCE4510 ICs.
When using the IO-Link section independently from the MCU section it must be ensured that both voltages
(3.3 V and 24 V) are present at the IO-Link section.

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 4
7. SECTIONS OF THE CCE4510 EVALUATION BOARD
The CCE4510 Evaluation Board is divided into two sections.
Both sections can be used in combination with an IO-Link Master software stack to evaluate a fully functional,
ready-to-use IO-Link Master.
If required, both sections can also be used independently of each other. The connection between the sections
can be disconnected by cutting them open between the cutting marks (see Figure 2). Make sure not to break the
evaluation board in this process.
To reestablish the connections, pin-headers with 2.54 mm pitch can be used.
Figure 2: Cutting Marks
IO-Link Section
The IO-Link section contains two CCE4510 IO-Link master ICs, external NMOS gate drivers (U4, U6), four LED
indicators for channel activities and protection circuitry. Each IO-Link channel (L+, CQ, L-) can be accessed via
a terminal block (X2, X3, X4, X5). For maximum accessibility to the CCE4510 IO-Link Master ICs, all relevant
pins of the CCE4510 ICs are connected to pin-headers JP3 and JP4.
MCU Section
The MCU section contains an ARM Cortex-M3 processor from NXP (LPC1549), a 3.3 V LDO (U2) for power
supply, a 16 kB EEPROM (U7) and a status LED (LED5). The microcontroller can be programmed via USB
(mass storage device) or via SWD. For maximum accessibility of the LPC1549, all relevant pins are connected
to pin-headers JP1 and JP2.

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 5
8. SCHEMATIC AND LAYOUT
Connectors
Figure 3 shows all connectors of the CCE4510 Evaluation Board. It is possible to access all pins of the MCU and
the CCE4510 master ICs through these connectors.
Figure 3: Connectors

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 6
Schematic
Figure 4: Schematic 1

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 7
Figure 5: Schematic 2

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 8
Layout

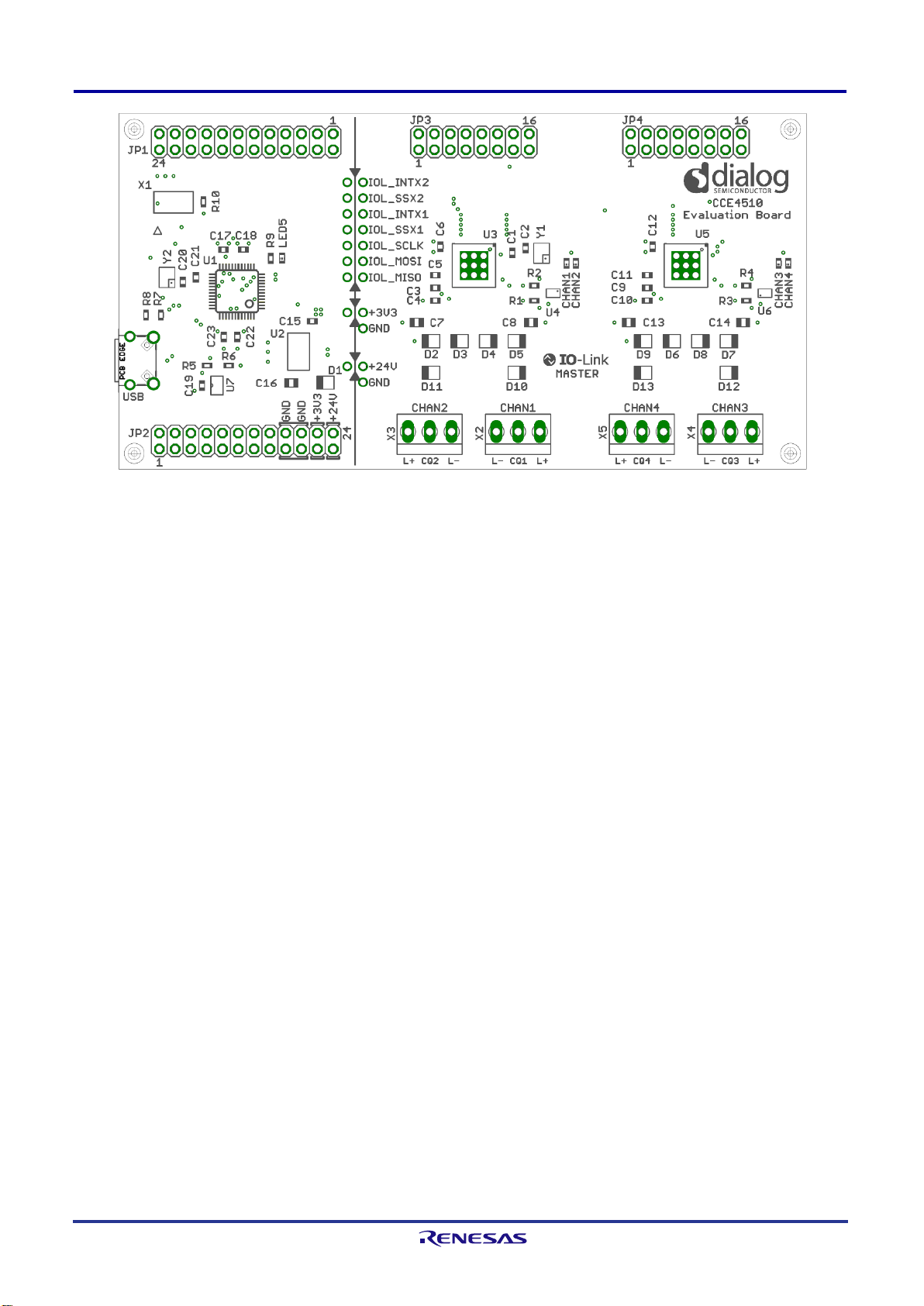

Figure 6: Layout TOP
Figure 7: Layout MID1 (Supply)

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 9
Figure 8: Layout MID2 (GND)
Figure 9: Layout BOTTOM

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 10
Figure 10: Layout Assembly

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 11
9. BILL OF MATERIALS
Part
Value / Description
Manufacturer
Manufacturer Part Number
C1,C2,C20,C21
18 pF 50V C0G 5 % 0603
Any
Any
C3,C4,C9,C10
10 nF 50V X7R 10 % 0603
Any
Any
C5,C6,C11,C12,
C15,C17,C18,C19,
C22,C23
100 nF 50V X7R 10 % 0603
Any
Any
C7,C8,C13,C14
4.7 nF 50V X7R 10 % 0805
Any
Any
C16
1 µF 50V X5R 10 % 0603
Any
Any
D1
Shottky-Diode 40V 2A
NXP
PMEG4020ER,115
D2, D3, D4, D5, D6,
D7, D8, D9, D10, D11,
D12, D13
TVS-Diode 33V
NXP
PTVS33VS1UR,115
JP1,JP2
Pin Header 24-Pin 2.54 mm
Any
Any
JP3,JP4
Pin Header 16-Pin 2.54 mm
Any
Any
LED1, LED2,LED3,
LED4
LED Orange
OSRAM Opto
Semiconductors Inc.
LO L29K-H2L1-24-Z
LED5
LED Green
OSRAM Opto
Semiconductors Inc.
LG L29K-F2J1-24-Z
R1,R2,R3,R4
0.5R 100V 100 mW 1 % 0603
Any
Any
R5,R6
2 k 75 V 100 mW 1 % 0603
Any
Any
R7,R8,R9
1 k 75 V 100 mW 1 % 0603
Any
Any
R10
12 k 75 V 100 mW 1 % 0603
Any
Any
U1
Microcontroller LPC1549
NXP
LPC1549JBD48QL
U2
LDO TDA3663 3.3 V SOT223-1
NXP
TDA3663/N1,135
U3,U5
IO-Link Master Transceiver
Dialog Semiconductor
CCE4510_QFN48
U4,U6
Dual-MOSFET n-channel 60 V
NXP
PMGD780SN
U7
EEPROM 16 kB I2C
ON Semiconductor
CAT24C128HU4IGT3
USB
Micro USB-B Connector
WURTH Elektronik
629105150521
X1
SMT Micro Header
SAMTEC
FTSH-105-01-F-DV-K
X2,X3,X4,X5
Wire-to-Board Connector
METZ CONNECT
31059103
Y1
Crystal 14.7456 MHz
ABRACON
ABM8G-14.7456MHZ-18-
D2Y-T
Y2
Crystal 12 MHz
ABRACON
ABM8G-12.000MHZ-18-D2Y-
T

CCE4510 Evaluation Board User Manual
Feb 28, 2022
Page 12
10. REVISION HISTORY
Revision
Date
Description
1
03-Mar-2020
Initial version.
2
28-Jan-2022
Rebrand
11. REFERENCES
[1] CCE4510, Datasheet, Dialog Semiconductor.
[2] LPC1549JBD48QL, Datasheet, NXP.
[3] IO-Link Interface and System Specification V1.1.2, IO-Link Community.
12. STATUS DEFINITIONS
Status
Definition
DRAFT
The content of this document is under review and subject to formal approval, which may result in modifications or additions.
APPROVED
or unmarked
The content of this document has been approved for publication.
Rev.5.0-1 October 2020
Corporate Headquarters
Contact information
TOYOSU FORESIA, 3-2-24 Toyosu,
Koto-ku, Tokyo 135-0061, Japan
www.renesas.com
For further information on a product, technology, the most up-to-date
version of a document, or your nearest sales office, please visit:
www.renesas.com/contact/.
Trademarks
Renesas and the Renesas logo are trademarks of Renesas Electronics
Corporation. All trademarks and registered trademarks are the property
of their respective owners.

Corporate Headquarters
TOYOSU FORESIA, 3-2-24 Toyosu,
Koto-ku, Tokyo 135-0061, Japan
www.renesas.com
Contact Information
For further information on a product, technology, the most
up-to-date version of a document, or your nearest sales
office, please visit:
www.renesas.com/contact/
Trademarks
Renesas and the Renesas logo are trademarks of Renesas
Electronics Corporation. All trademarks and registered
trademarks are the property of their respective owners.
