3
• cables must not be routed alongside high current sources (for
example, motor power supply cables), or be near high-speed
data lines;
• cable lengths should always be kept to a minimum.
Equipment operation
If this equipment is used in a manner not specied by the
manufacturer, the protection provided by the equipment may be
impaired.
Safety
Information to the user
In all applications involving the use of machine tools, eye
protection is recommended.
Information to the machine supplier/installer
It is the machine supplier’s responsibility to ensure that the user is
made aware of any hazards involved during operation, including
those mentioned in Renishaw product literature, and to ensure that
adequate guards and safety interlocks are provided.
If the probe fails, the probe signal may falsely indicate a probe
seated condition. Do not rely on probe signals to halt the
movement of the machine.
Information to the equipment installer
All Renishaw equipment is designed to comply with the relevant
EU and FCC regulatory requirements. It is the responsibility of
the equipment installer to ensure that the following guidelines are
adhered to, in order for the product to function in accordance with
these regulations:
• any interface MUST be installed in a position away from any
potential sources of electrical noise (for example, power
transformers, servo drives);
• all 0V/ground connections should be connected to the machine
“star point” (the “star point” is a single point return for all
equipment ground and screen cables).This is very important
and failure to adhere to this can cause a potential difference
between grounds;
• all screens must be connected as outlined in the user
instructions;

4

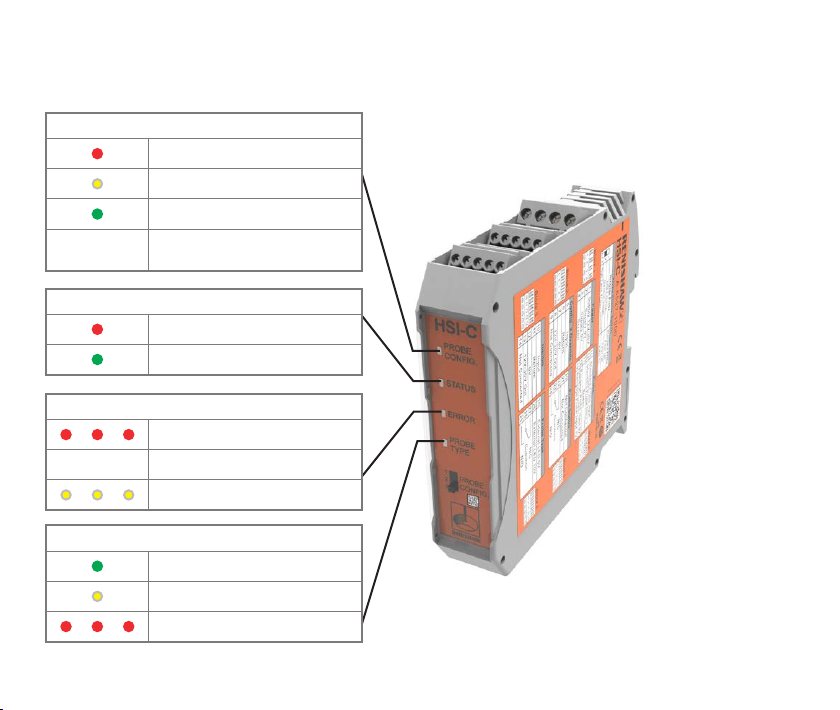

HSI-C visual diagnostics
PROBE STATUS LED
Probe triggered
Probe seated
ERROR LED
Error
Off No error
MP250 wiring fault
PROBE TYPE LED
Connected to RENGAGETM probe
Connected to standard probe
Probe inhibit function active
PROBE CONFIG. LED
Probe config. 1
Probe config. 2
Probe config. 3
Off Probe config. switch not correctly
seated

5

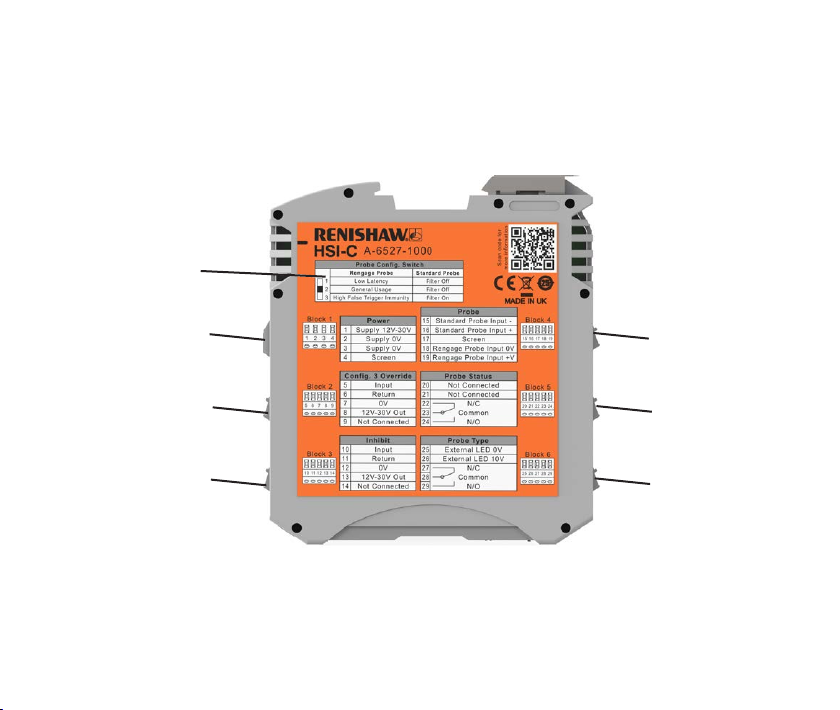

HSI-C connector block configurations
Probe cong.
switch settings
Power (block 1)
Cong. 3 override
(block 2)
Inhibit (block 3)
Probe (block 4)
Probe status
(block 5)
Probe type
(block 6)

6
Connecting the HSI-C to a RENGAGE™ probe and the CNC controller
HSI-C interface
Probe connector (5-way) 19. Rengage probe input + Vdc 18. Rengage probe input 0 Vdc 17. Screen 16. Standard probe input + 15. Standard probe input − Power connector (4-way) 1. +12 Vdc to 30 Vdc supply input 2. 0 Vdc supply 3. 0 Vdc supply 4. Screen Config. 3 override connector (5-way) 5. Config. 3 input 6. Config. 3 return 7. 0 Vdc 8. +12 Vdc to +30 Vdc out (fused at 100 mA) 9. Not connected Inhibit connector (5-way) 10. Inhibit input 11. Inhibit return 12. 0 Vdc 13. +12 Vdc to +30 Vdc out (fused at 100 mA) 14. Not connected SSR probe status connector (5-way) 24. Probe status N/O 23. Probe status common 22. Probe status N/C 21. Not connected 20. Not connected SSR probe type and external LED connector (5-way) 29. Probe type N/O 28. Probe type common 27. Probe type N/C 26. External LED 10 Vdc 25. External LED 0 Vdc
Outer spring pin, Green Inner spring pin, Blue Green/Yellow
FS10/FS20 probe holder fixed socket for Rengage probe
CNC controller
+12 Vdc to 30 Vdc
0 Vdc
Machine ground
“star point”
Config.3 override function. Refer to the HSI-C hard-wired system interface – configurable installation guide (Renishaw part no.H-6527-8501) for connection information Probe inhibit function. Refer to the HSI-C hard-wired system interface – configurable installation guide (Renishaw part no.H-6527-8501) for connection information
Connect either pin 24 or pin 22, but do not connect both pins
Connect either pin 29 or pin 27, but do not connect both pins
Block 4
Block 1 Block 2 Block 3 Block 5 Block 6

7
Connecting the HSI-C to a standard probe and the CNC controller
