Renz TC 20 User manual

Maximum: Output:
Width
300 mm
Max. punched
sheets per hour
8,000
Punch up to
2.0 mm
OFFICE LINE
20 mm
All performance outputs are based on 80 gsm paper
and may vary depending on the product type, the
working environment and the operator. For best
punching results we recommend a paper thickness
of 1.0 - 2.0 mm.
Manually punch 20 mm calendar thumb cuts. Allows a
calendar hanger to now be used in the binding
Quick adjustment up to A3 on the short edge
Horizontal paper feeding
Compact simple design
TC 20
Reliable, desktop, hand thumb cut calendar punch machine
producing a 20 mm thumb cut.
Customer benefits:

Technical data: TC 20
Mechanical cycles per hr: 800
Min. punching width: 70 mm
Max. punching width: 300 mm
Min. unpunched length: 60 mm
Max. unpunched length: 800 mm
Max. punching thickness: 2 mm
Punching operation: Manual
Punch pattern: 20 mm calendar thumb cut
Die type: -
Selectable punch pins (QSA): -
Bespoke dies: -
Variable margin depth: -
Die changeover time: -
Machine dimensions L x W x H: 250 x 50 x 170 mm
Machine weight: 1.2 kg
Machine packaging dimensions L x W x H: 260 x 90 x 60 mm
Machine weight with packaging: 1.3 kg
Power requirement: -
Using the RENZ SRW 360 punch (or any RENZ
punch machine with QSA technology), deselect
the 3 punch pins in the middle of the calendar.
Now punch the calendar normally. Remove the
calendar with the 3 holes in the middle not
punched out. The calendar is now ready for the
RENZ TC 20 thumb cut punch.
Take the RENZ TC 20 and insert the calendar into
the punch. Push the leaver and punch out the
20 mm thumb cut in the middle of the calendar.
The horizontal closing mechanism of the RENZ
SRW 360 allows you to bind the calendar easily
together with the hanger.
RENZ calendar set
SRW 360, TC 20 and binding material
for 100 calendars in A4

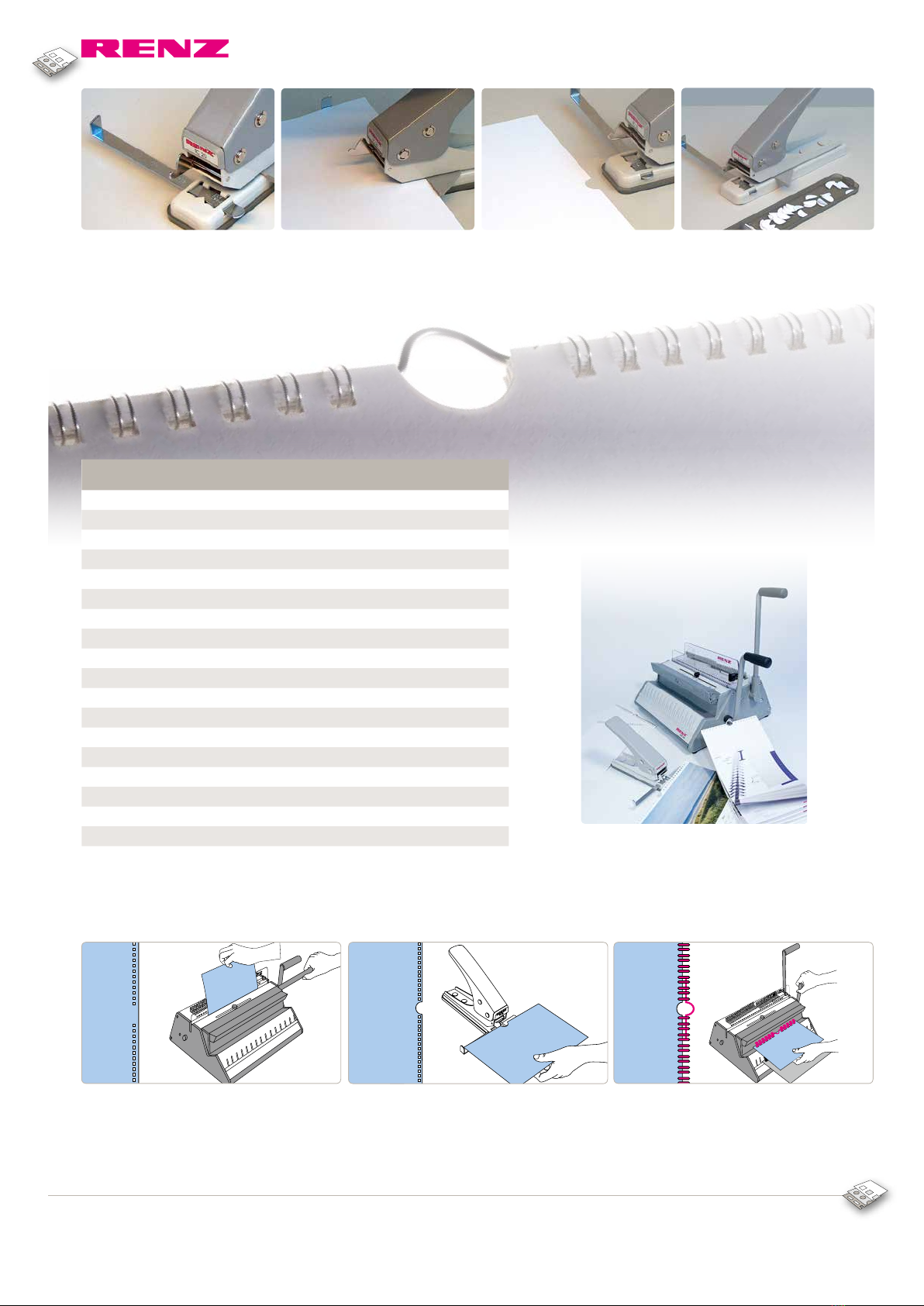

How to make a calendar...
Adjust the paper side lay
on the TC 20 to the correct
calendar width.
Insert the calendar into the
punching slot. Push the
handle down.
The transparent waste tray
can be emptied easily by
removing it from the
underside of the machine.
After the handle has been
pushed down, you can
remove your paper which
will have a 20 mm calendar
thumb cut in it.
Technical modifications may be made
without notice.
1 mm = 10 sheets of paper, based on 80 gsm.
All performance outputs are based on 80 gsm paper and may vary depending on
the product type, the working environment and the operator. For best punching
results we recommend a paper thickness of 1.0 - 2.0 mm.
Product code: 49480200040 (v1)
For further information and videos
please visit:
www.renz.com
