PH0389 IP Phone
Administrator
Guide

2
Contents
LOGIN PH0389..................................................................................3
QUICK SETUP ............................................................................3
CONFIGURATION REFERENCE..............................................................8
Device Settings..........................................................................8
VOIP Parameters Setting ........................................................... 13
SIP Line Settings...................................................................... 16
Phone Feature Settings ............................................................. 22
Dialing Plan ............................................................................. 23
Call History.............................................................................. 26
Device Status .......................................................................... 27
Device Maintenance.................................................................. 28

LOGIN
PH0389
QUICK SETUP
Login to PH0389:
Setp1: Setup the administrative PC’s IP address to be same as PH0389 and
connect the Ethernet cable into WAN port. Start IE6.0 (or later version) to
navigate PH0389 web management system by typing the default URL is
http://192.168.123.1/home.asp the screen will display User Name and
Password (the default user id is root and user password is root). (Fig.1)
If you using the IPV6 only mode, you need to use LCD manual to check the
auto configured IPV6 address and use it to connect to PH0389. The URL will be
like the following: http://[xxxx:xxxx:xxxx:xxxx]. It is recommend to use
IPV4 to configuration.
Fig.1
Step 2: The screen shows the Home page of PH0389. (Fig.2)
3

Fig.2
Change Default IP Network:
Step 3: After successfully logon to the system, we need to change the
network configuration. Click Device Setting > Network to setup the
Interface parameters. First, you need to select the IP supported mode which
could be IPV4/IPV6 dual stack, IPV4 only or IPV6 only. Since IPV6 address is
getting from router advertisement plus the MAC address and cannot be
changed, there is no need to set it up. You can tell the IPV6 address by the web
page. For IPv4, please enter the deserved IP address, netmask and default
gateway or selected to “DHCP”. Apply the change by clicking Apply button as
fig (Fig.3)
(Fig.3)
P.S. If DHCP is used, you can use LCD to know the IP address used.
Change Default Time setting:
Step 4: When re-logon to the new IP address, the next is to setup the system
time zone. Click Device Setting > Time to setup the system. Enter the
4

current date and time. Apply the change by clicking Apply button. (Fig.4)
(Fig.4)
Modify SIP Account Parameter:
Step 5: The next step is to setup the SIP account parameters. Click SIP Lines
> Line 1-3 to modify the parameter. Enter the effective user id, password and
proxy server or IPV6/IPV4…etc. You can have up-to 3 separate accounts to
register or making calls. Apply the change by clicking Apply button. (Fig.5)
5

(Fig.5)
Soft Reset PH0389:
Step 6: After modify basic setting. Need to reset PH0389. Click Maintenance
> Maintenance > Soft-Reset to take effect. Apply the change by clicking
Apply button. (Fig.6)
(Fig.6)
Check PH0389 Registered Status:
Step 7: After soft-reset. Click Status > Phone Status to check whether each
line is registered or not. (Fig.7)
6

(Fig.7)
7

CONFIGURATION REFERENCE
Device Settings
Network Configuration
Device Setting > Network
Network: DHCP
Network: Fixed IP
Parameter Description:
zIP Support: IP stack to be supported (IPV6 and IPV4 or IPV6 or IPV4
only)
zDHCP: Use IPv4 DHCP or not (available only when IPV4 is engaged)
zIPV6 Address: the auto configured IPv6 address (display only)
zIP Addess: IPV4 address
zNetmask: IPV4 network mask
8

zDefault Gateway: IPV4 Default gateway
zVOIP VLAN: Enable VOIP VLAN or not
zVOIP VLAN ID(2-4096): VLAN ID to be used
zDNS Server1: Primary DNS Server IP network
zDNS Server2: Secondary DNS Server IP network

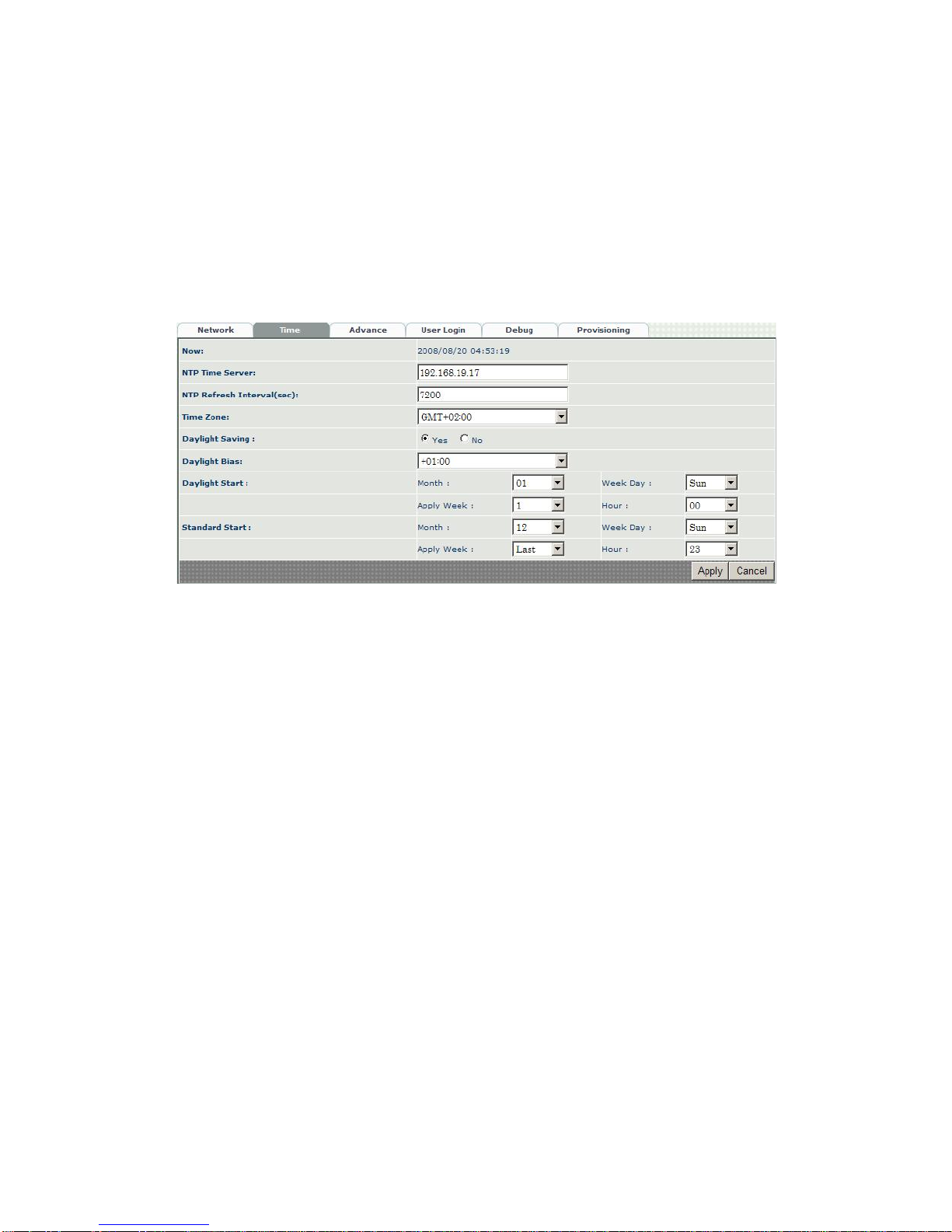

Device Time Setting:
PH0389 support SNTP with time zone and daylight saving.
Device Setting > Time
Parameter Description:
zNow: Current Time (display only)
zNTP Time Server: SNTP time server
zNTP Refresh Interval(sec):The frequency to sync NTP server in seconds
zTime Zone: The time-zone PH0389 is located.
-Standard: Use a predefined standard time zone
-Customize: Use a user defined time zone
zDaylight Saving: Auto adjust daylight saving timer or not
zDaylight Bias: The offset added to the Bias when the time zone is in
daylight saving time
zDaylight Start: The date that a time zone enters daylight time
-Month: 01 to 12
-Week Day: Sunday to Saturday
-Apply Week (Day:01 to 05, Specifies the occurrence of day in the
month; 01 = First occurrence of day, 02 = Second occurrence of
day, ...and 05 = Last occurrence of day)
-Hour: 00 to 23
zStandard Start: The date that a time zone enters daylight time
-Month: 01 to 12
-Week Day: Sunday to Saturday
-Apply Week (Day:01 to 05, Specifies the occurrence of day in the
month; 01 = First occurrence of day, 02 = Second occurrence of
day, ...and 05 = Last occurrence of day)
9

-Hour: 00 to 23

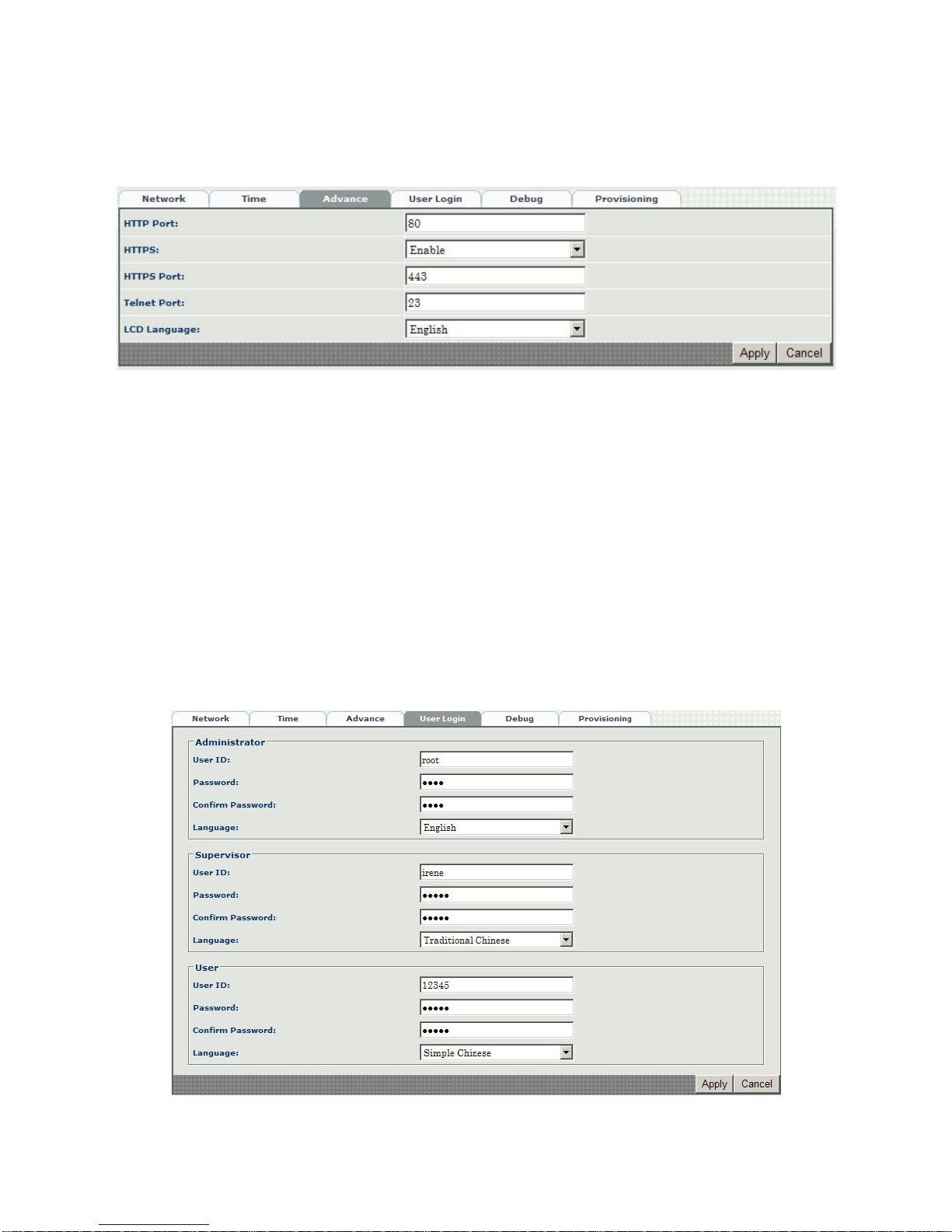

Device Advance Setting:
Device Setting > Advance
Parameter Description:
zHTTP Port: The Administrator Web service port (the default is 80)
zHTTPS: enable HTTPS web service or not
zHTTPS Port: The HTTPS Web service port (the default is 443)
zTelnet Port: The telnet service port (the default is 23)
zLCD Language: LCD menu language setting. Currently, it only can
support English or French.
User Login Setting:
Three level of users can be used, administrator, supervisor, user. Each level of
users will have different predefined access level.
Device Setting > User Login
10
