Repotec WA 2614 User manual

Wireless-G LAN Outdoor CPE AP/Router
User’s Manual
Ver. 1.1
(P/N: 41NE-WA261400-BRP)

i

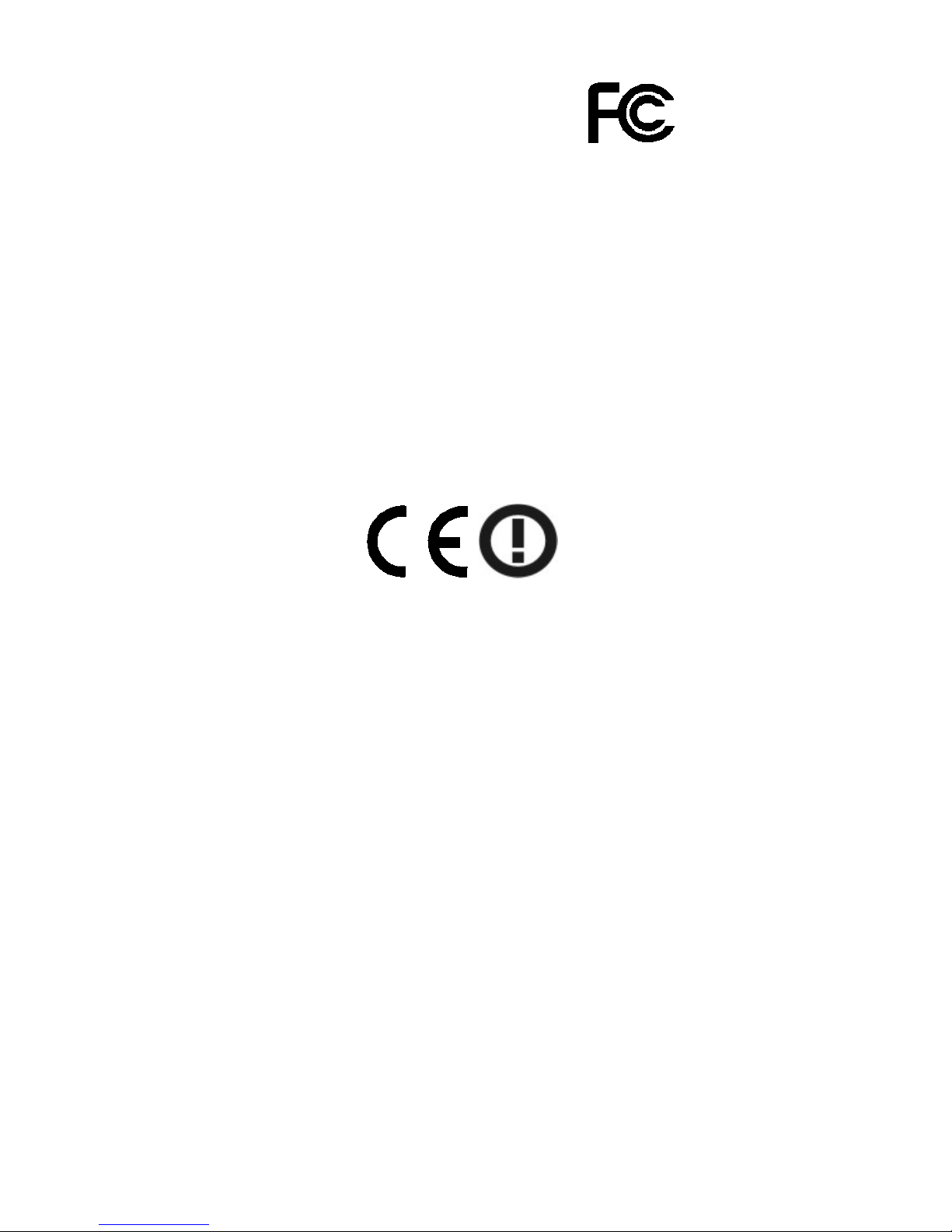

FCC Certifications
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
Company has an on-going policy of upgrading its products and it may be possible that information in this document is not
up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or
reproduced in any form without written consent from the company.
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950 has been conducted. These are considered relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-17 and EN 55024 has been conducted.
These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328-2 has been conducted. These are considered relevant and sufficient.

ii

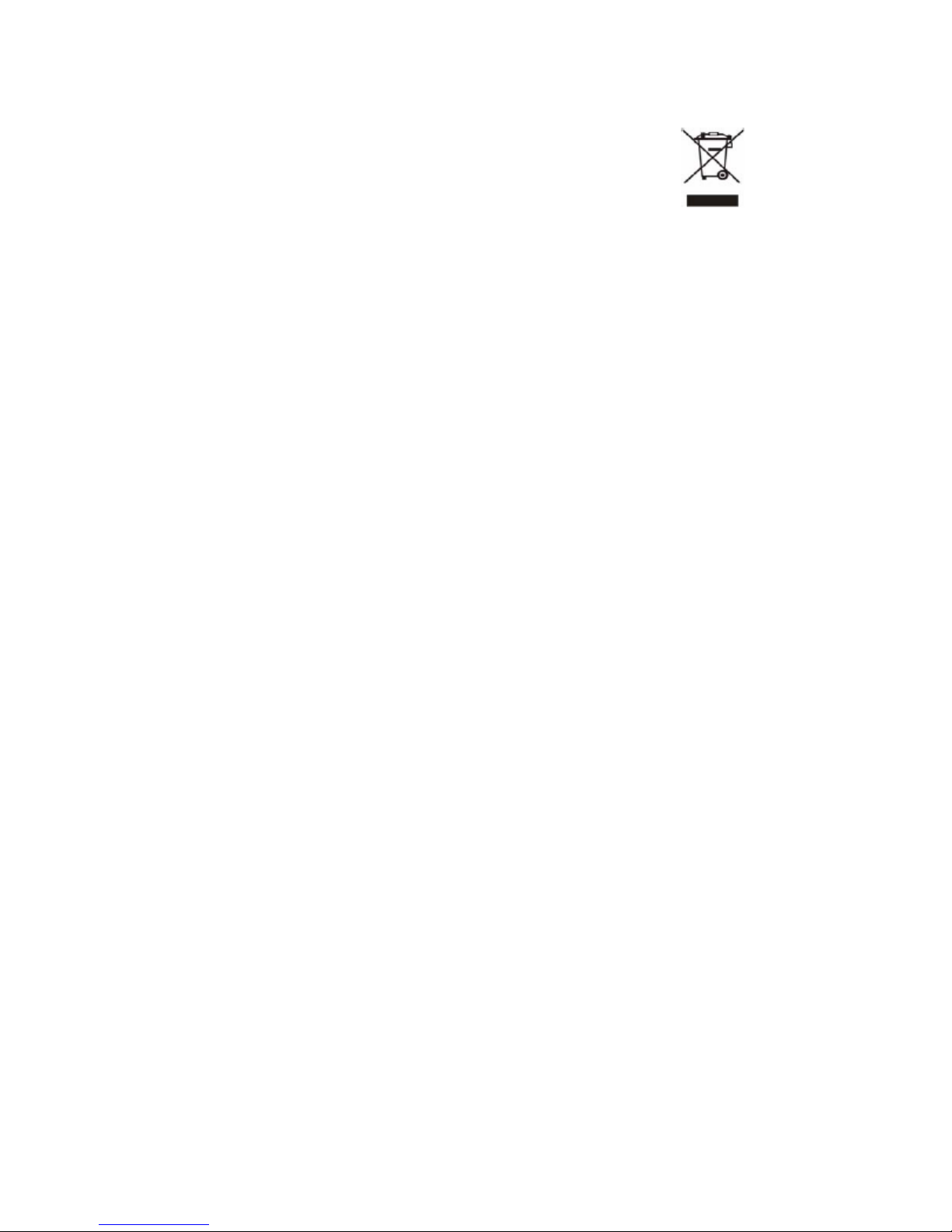

WEEE regulation
To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances
in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of
the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such
WEEE separately.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2008, All Rights Reserved.

iii
Contents
1. Introduction.............................................................................. 1
1.1 Package Contents...........................................................1
1.2 Feature............................................................................1
1.3 Specification....................................................................1
2. Hardware Installation............................................................... 3
2.1 Hot to fix the CPE on the Pole (1”- 1.5”) .........................3
2.2 PoE connection...............................................................4
2.3 CPE Connection .............................................................4
3CPE Configuration................................................................... 5

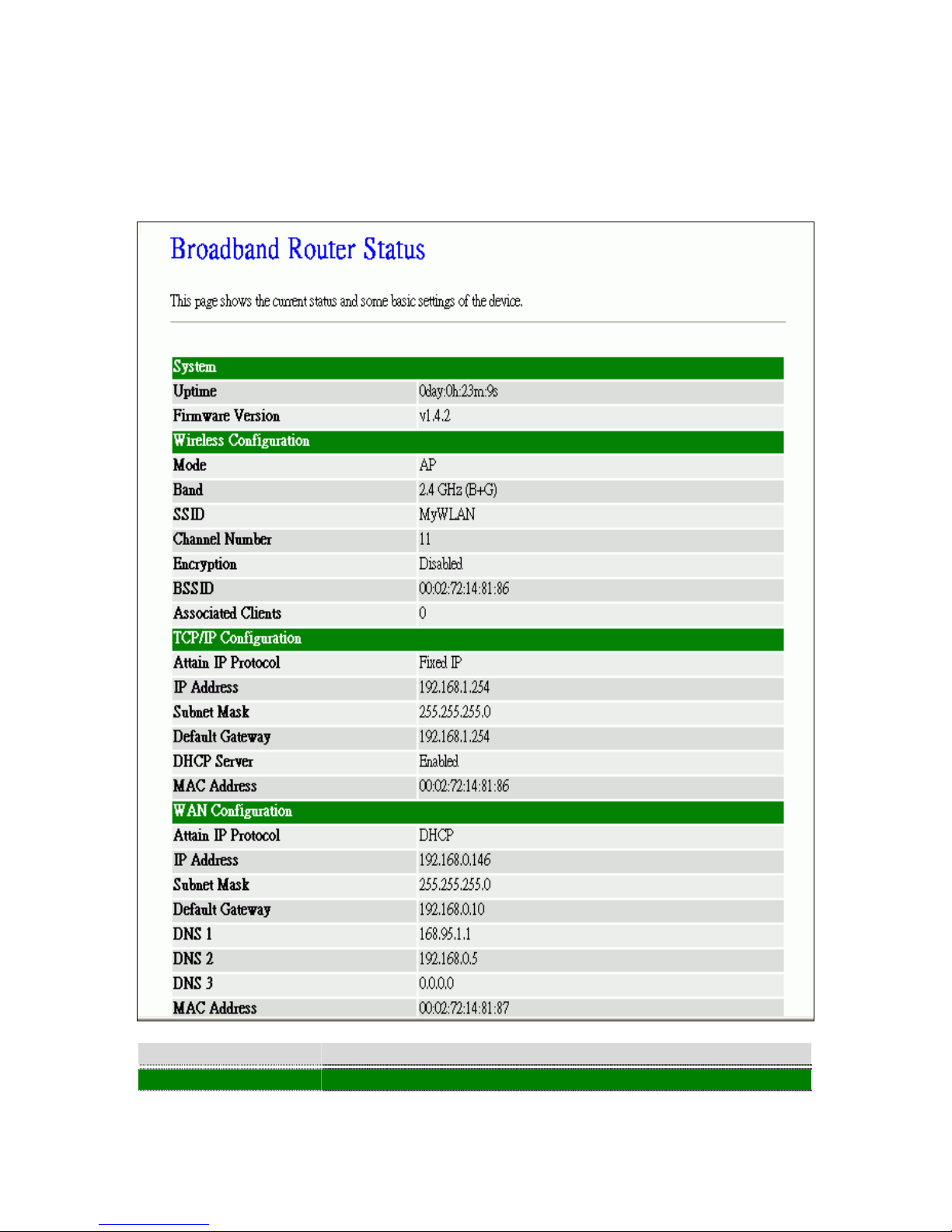

4Status....................................................................................... 7

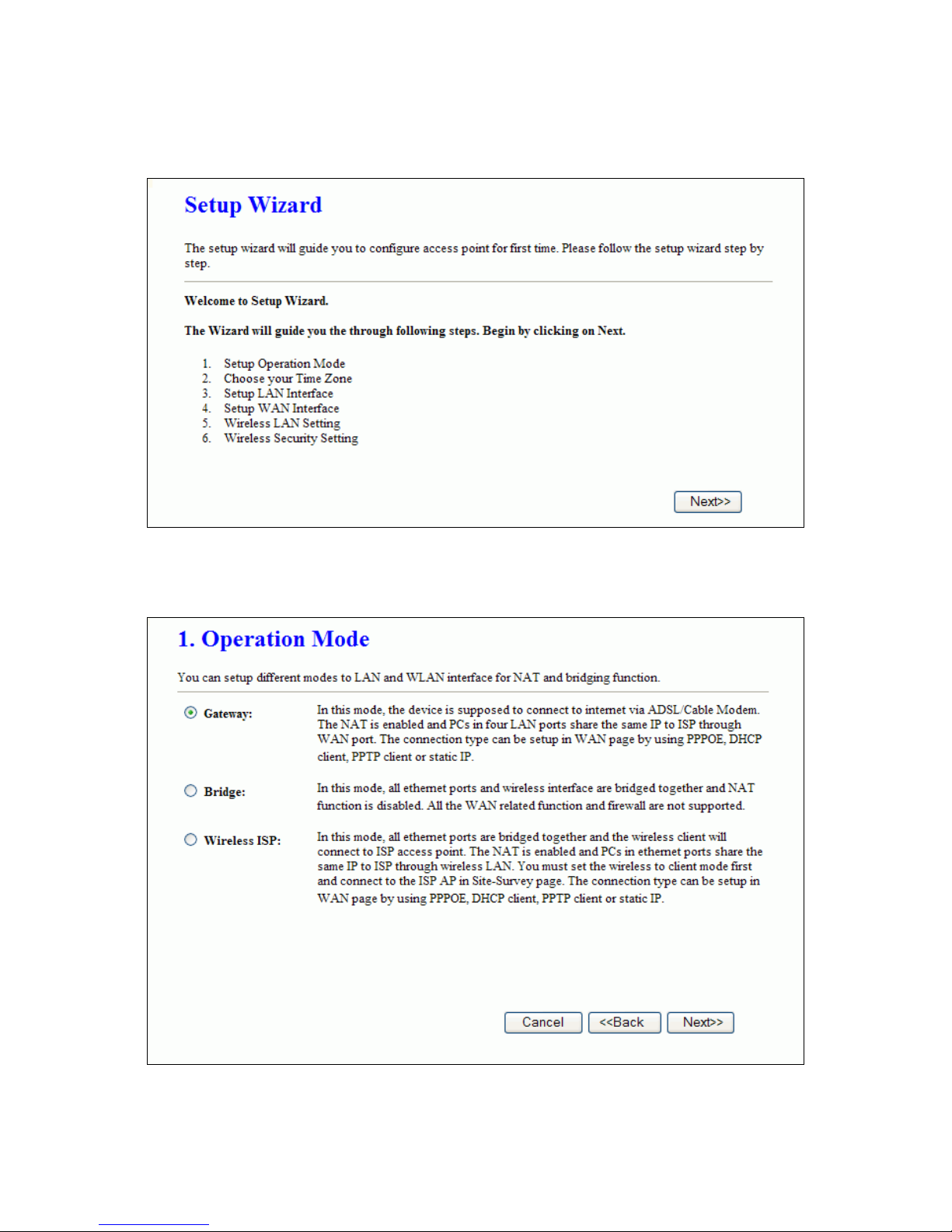

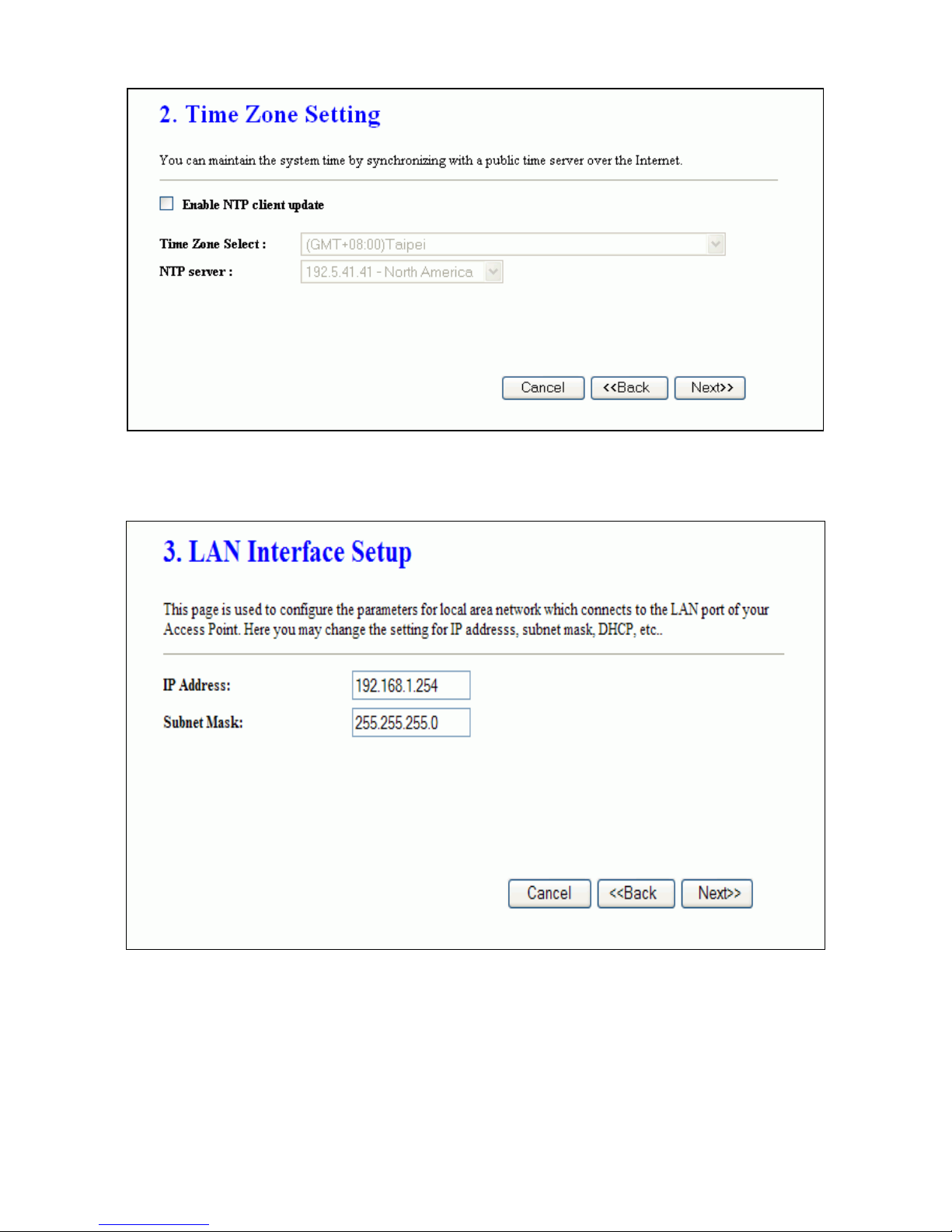

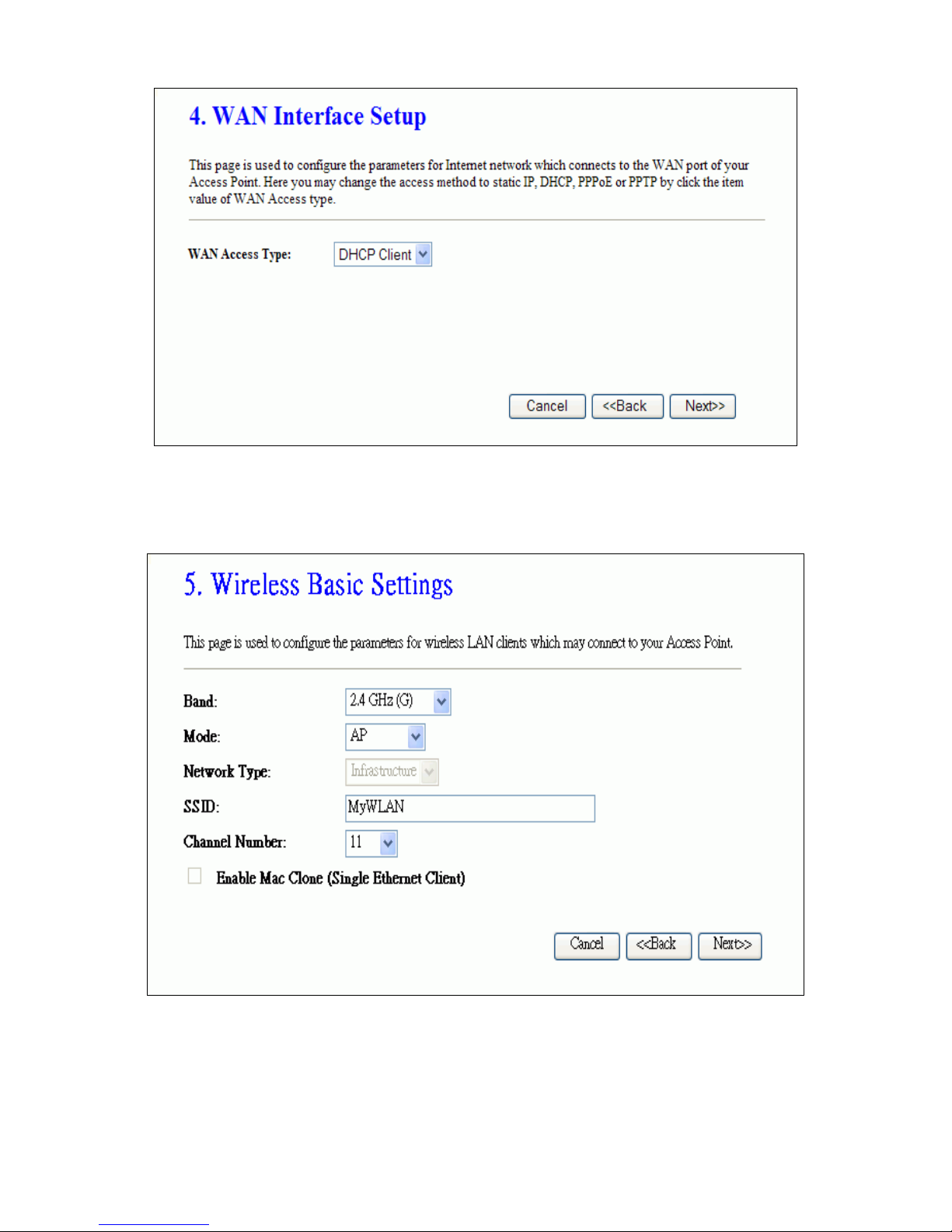

5Setup Wizard ........................................................................... 9
6Operation Mode..................................................................... 13
7.1 Wireless - Basic Settings ..............................................13
7.2 Wireless Advanced Settings .........................................15

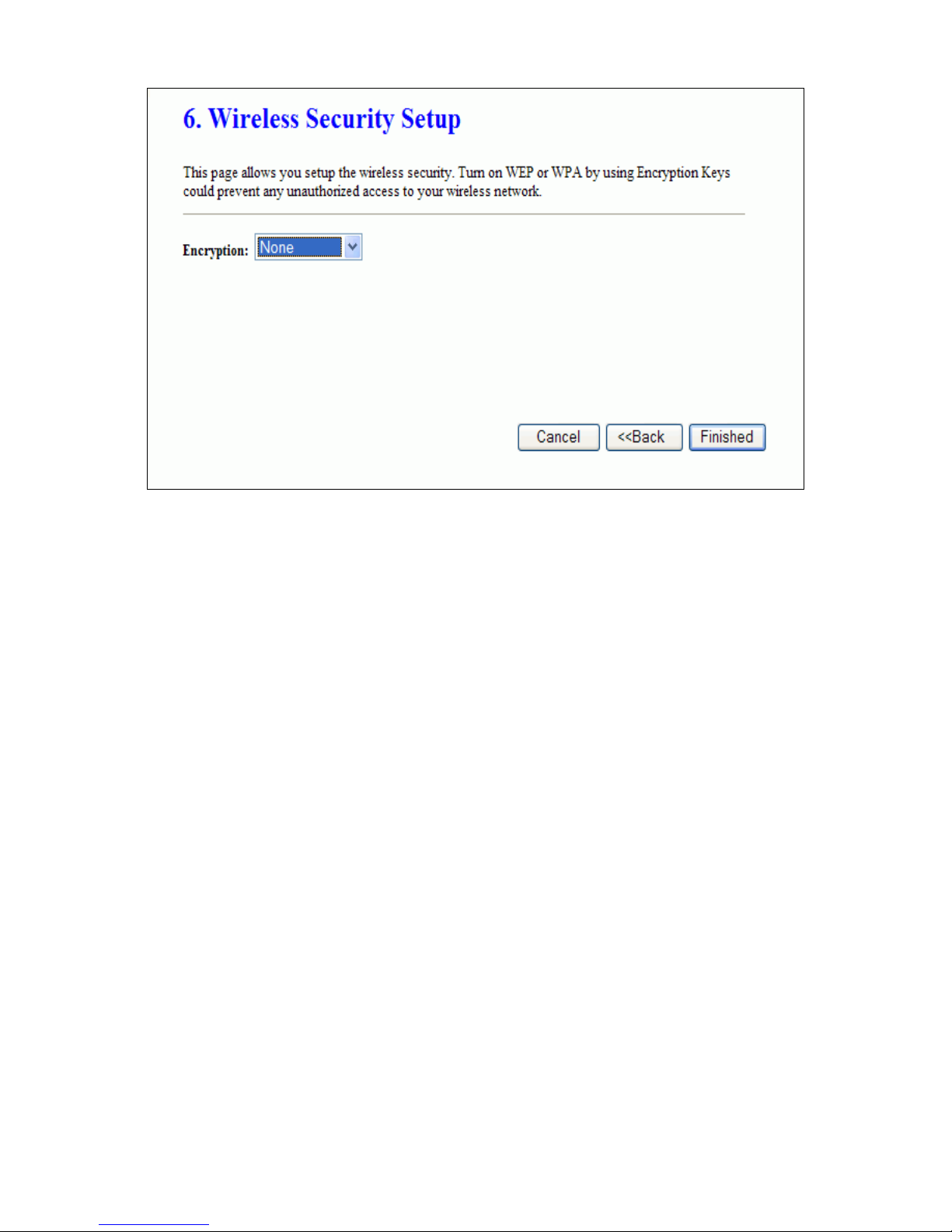

7.3 Wireless Security Setup................................................16
7.4 WEP Key Setup ............................................................18
7.5 Wireless Access Control ...............................................19
7.6 WDS Settings................................................................20
7.7 WDS Security Setup.....................................................21
7.9 Site Survey....................................................................22
7TCP/IP Settings ..................................................................... 24
8.1 LAN Interface Setup......................................................24
8.2 WAN Interface Setup ....................................................25
9.1 Port Filtering..................................................................32
9.2 IP Filtering.....................................................................33
9.3 MAC Filtering................................................................34
9.4 Port Forwarding ............................................................34
9.5 URL Filtering.................................................................36
9.6 DMZ..............................................................................36
9VPN Setting ........................................................................... 38
10.1 VPN Setup - Edit Tunnel...............................................38
10.2 Advanced IKE Setup.....................................................41
10 Management.......................................................................... 43
11.1 Statistics........................................................................43
11.2 DDNS............................................................................43
11.3 Time Zone Setting.........................................................44
11.4 Denial-of-Service ..........................................................45
11.5 Log................................................................................46
11.7 Save/ Reload Settings ..................................................48
11.8 Password Setup............................................................49
11.9 WatchDog .....................................................................49

iv
11.10Quality of Service..........................................................50
11.11 Logout...........................................................................52

1
1. Introduction
Thank you for purchasing the product. Before you start, please check all the contents
of this package.
1.1 Package Contents
The product package should include the following:
zOneCPESET
zOne DC12V @ 1.25mA Power Adapter
zTwo Host Clamps
zOnePoEDCPowerInjector
zOne CD user manual
1.2 Feature
zIEEE 802.11b/g Dual Standards Compatible
zMultiple Wireless Access Modes: AP, Client, WDS, AP+WDS, Repeater
zTwo Operating Modes: Bridge, WISP
zSupports IPSec VPN function
zSupports SPI Firewall, QoS functions
zMAC/IP/URL filtering
zSupports WEP, WPA, WPA2, 802.1x Authentication
zSolid housing provides protection against rigorous weather conditions
zPower over Ethernet design
zWeb base configuration
zBuilt-in 14dBi flat panel antenna
zProvide adjustable Pole mount kits
1.3 Specification
Standards z802.11 b/g, IEEE 802.3, IEEE 802.3u
Interface zOne 10/100BaseT with RJ45 port (WAN)
zOne 10/100BaseT with RJ45 ports (LAN)
Operation Modes zAP Client Router, AP Router, AP Bridge, PtP, and WDS
Modes
Frequency Range z2.412 GHz - 2.4835 GHz
Channels zAmerica/FCC:2.412~2.462 GHz (11 channels)
zEurope CE/ETSI:2.412~2.472 GHz (13 channels)
Data Rate z802.11b ( 11Mbps, 5.5Mbps, 2Mbps, 1Mbps)
z802.11g ( 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps,
12Mbps, 9Mbps, 6Mbps)
Transmit Power zRF Output Power : < 19±1dBm @802.11g/ 54Mbps
zRF Output Power : < 26±1dBm @802.11b/ 11Mbps
Receiver Sensitivity z-80dBm (11 Mbps), -66dBm (54 Mbps)
Management zWeb-base
Antenna Type z14dBi Panel Antenna
zHPBW/ Horizontal: 30 degree
zHPBW/ Vertical: 30 degree

2
Security
z64 bit/ 128 bit WEP, WPA, Port Filtreing, IP filtering, MAC
filtering, Port forwarding and DMZ hosting
Clock Speed z180Mhz
Reset Switch Built-in zSW2
SDRAM z16M bytes (with 2 X 8MB SDRAM chips)
Flash z2M bytes
LED Indicators z1 Power, 1WLAN
Power Supply zDC12V 1.25A PoE power adapter
Environment zOperating Temperature: -10 ~60℃
zHumidity Temperature: 0~90% (Non-Condensing)
Certifications zFCC, CE

3
2. Hardware Installation
2.1 Hot to fix the CPE on the Pole (1”- 1.5”)
(For better water resistance please wrap the RJ45 connector)

4
2.2 PoE connection
1. Connect (POE) RJ45 Jack to CPE RJ45 Jack with good quality Ethernet cable.
2. Connect (LAN) Jack to PC or Switch Hub LAN port.
3. Plug in the power adaptor to PoE DC jack.
2.3 CPE Connection
1. Open the CPE enclosure you will find two RJ45 Jacks two LEDs and one reset button.
2. Connect the PoE cable to either LAN or WAN port.
3. To reset the CPE just press and hold the reset button for about 10 seconds and wait for 55
seconds to reboot the CPE.

5
3 CPE Configuration
The WLAN Broadband Router is delivered with the following factory default parameters on the
Ethernet LAN interfaces.
Default IP Address: 192.168.1.254
Default IP subnet mask: 255.255.255.0
WEB login User Name: <empty>
WEB login Password: <empty>
The device has three operation modes (Gateway/Bridge/WISP).
The default IP addresses for the device are 192.168.1.254, so you need to make sure the IP
address of your PC is in the same subnet as the device, such as 192.168.1.X.
It will take about 55 seconds to complete the boot up sequence after power on from
PoE.
Prepare your PC to configure the WLAN Broadband Router
For OS of Microsoft Windows 95/ 98/ Me:
a. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
Note: Windows Me users may not see the Network control panel. If so, select View all Control
Panel options on the left side of the window
b. Move mouse and double-click the right button on Network icon. The Network window will
appear.
c. Check the installed list of Network Components. If TCP/IP is not installed, click the Add
button to install it; otherwise go to step 6.
d. Select Protocol in the Network Component Type dialog box and click Add button.
e. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to
install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the
installation. Close and go back to Network dialog box after the TCP/IP installation.
f. Select TCP/IP and click the properties button on the Network dialog box.
g. Select Specify an IP address and type in values as following example.
9IPAddress: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good
to connect the Wireless LAN Access Point.
9IP Subnet Mask: 255.255.255.0
h. Click OK and reboot your PC after completes the IP parameters setting.
For OS of Microsoft Windows 2000, XP:
a. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
b. Move mouse and double-click the right button on Network and Dial-up Connections icon.
Move mouse and double-click the Local Area Connection icon. The Local Area
Connection window will appear. Click Properties button in the Local Area Connection
window.

6
c. Check the installed list of Network Components. If TCP/IP is not installed, click the Add
button to install it; otherwise go to step 6.
d. Select Protocol in the Network Component Type dialog box and click Add button.
e. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to
install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the
installation. Close and go back to Network dialog box after the TCP/IP installation.
f. Select TCP/IP and click the properties button on the Network dialog box.
g. Select Specify an IP address and type in values as following example.
9IPAddress: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good
to connect the Wireless LAN Access Point.
9IP Subnet Mask: 255.255.255.0
h. Click OK to completes the IP parameters setting.
For OS of Microsoft Windows NT:
a. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
b. Move mouse and double-click the right button on Network icon. The Network window will
appear. Click Protocol tab from the Network window.
c. Check the installed list of Network Protocol window. If TCP/IP is not installed, click the
Add button to install it; otherwise go to step 6.
d. Select Protocol in the Network Component Type dialog box and click Add button.
e. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to
install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the
installation. Close and go back to Network dialog box after the TCP/IP installation.
f. Select TCP/IP and click the properties button on the Network dialog box.
g. Select Specify an IP address and type in values as following example.
9IPAddress: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good
to connect the Wireless LAN Access Point.
9IP Subnet Mask: 255.255.255.0
h. Click OK to complete the IP parameters setting.

7
4 Status
This page shows the current status and some basic settings of the device, includes system,
wireless, Ethernet LAN and WAN configuration information.
Item Description
System
Uptime It shows the duration since WLAN Broadband Router is
powered on.

8
Firmware version It shows the firmware version of WLAN Broadband Router.
Wireless
configuration
Mode It shows wireless operation mode
Band It shows the current wireless operating frequency.
SSID It shows the SSID of this WLAN Broadband Router.
The SSID is the unique name of WLAN Broadband Router
and shared among its service area, so all devices attempts
to join the same wireless network can identify it.
Channel Number It shows the wireless channel connected currently.
Encryption It shows the status of encryption function.
BSSID It shows the BSSID address of the WLAN Broadband
Router. BSSID is a six-byte address.
Associated Clients It shows the number of connected clients (or stations,
PCs).
TCP/IP configuration
Attain IP Protocol It shows type of connection.
IPAddress It shows the IP address of LAN interfaces of WLAN
Broadband Router.
Subnet Mask It shows the IP subnet mask of LAN interfaces of WLAN
Broadband Router.
Default Gateway It shows the default gateway setting for LAN interfaces
outgoing data packets.
DHCP Server It shows the DHCP server is enabled or not.
MAC Address It shows the MAC address of LAN interfaces of WLAN
Broadband Router.
WAN configuration
Attain IP Protocol It shows how the WLAN Broadband Router gets the IP
address. The IP address can be set manually to a fixed
one or set dynamically by DHCP server or attain IP by
PPPoE / PPTP connection.
IPAddress It shows the IP address of WAN interface of WLAN
Broadband Router.
Subnet Mask It shows the IP subnet mask of WAN interface of WLAN
Broadband Router.
Default Gateway It shows the default gateway setting for WAN interface
outgoing data packets.
DNS1/DNS2/DNS3 It shows the DNS server information.
MAC Address It shows the MAC address of WAN interface of WLAN
Broadband Router.

9
5 Setup Wizard
This page guides you to configure wireless broadband router for first time
Step1: Operation Mode
This page followed by Setup Wizard page to define the operation mode.
Step2: Time Zone Setting
This page is used to enable and configure NTP client

10
Step3: LAN Interface Setup
This page is used to configure local area network IP address and subnet mask
Step4: WAN Interface Setup
This page is used to configure WAN access type

11
Step5: Wireless Basic Settings
This page is used to configure basic wireless parameters like Band, Mode, Network Type SSID,
Channel Number, Enable Mac Clone(Single Ethernet Client)
Step6:Wireless Security Setup
This page is used to configure wireless security

12

13
6 Operation Mode
This page is used to configure which mode wireless broadband router acts
7.1 Wireless - Basic Settings
This page is used to configure the parameters for wireless LAN clients that may connect to
your Broadband Router. Here you may change wireless encryption settings as well as wireless
network parameters.
Item Description
Gateway Traditional gateway configuration. It always connects internet via
ADSL/Cable Modem. LAN interface, WAN interface, Wireless
interface, NAT and Firewall modules are applied to this mode
Bridge Each interface (LAN, WAN and Wireless) regards as bridge. NAT,
Firewall and all router’s functions are not supported
Wireless ISP Switch Wireless interface to WAN port and all Ethernet ports in
bridge mode. Wireless interface can do all router’s functions
Apply Changes Click the Apply Changes button to complete the new configuration
setting.
Reset Click the Reset button to abort change and recover the previous
configuration setting.

14
Item Description
Disable Wireless LAN
Interface Click on to disable the wireless LAN data transmission.
Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(B+G)
Mode Click to select the WLAN AP / Client / WDS / AP+WDS wireless
mode.
Site Survey The Site Survey button provides tool to scan the wireless
network. If any Access Point or IBSS is found, you could choose
to connect it manually when client mode is enabled. Refer to
3.3.9 Site Survey.
SSID It is the wireless network name. The SSID can be 32 bytes long.
Channel Number Select the wireless communication channel from pull-down
menu.
Associated Clients Click the Show Active Clients button to open Active Wireless
Client Table that shows the MAC address, transmit-packet,
receive-packet and transmission-rate for each associated
wireless client.
Enable Mac Clone
(Single Ethernet
Client)
Take Laptop NIC MAC address as wireless client MAC address.
[Client Mode only]
Enable Universal
Repeater Mode Click to enable Universal Repeater Mode
SSID of Extended Assign SSID when enables Universal Repeater Mode.

15
Interface
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset button to abort change and recover the previous
configuration setting.
7.2 Wireless Advanced Settings
These settings are only for more technically advanced users who have a sufficient knowledge
about wireless LAN. These settings should not be changed unless you know what effect the
changes will have on your WLAN Broadband Router.
Item Description
Authentication Type Click to select the authentication type in Open
System, Shared Key or Auto selection.
Fragment Threshold Set the data packet fragmentation threshold, value
can be written between 256 and 2346 bytes.
RTS Threshold Set the RTS Threshold, value can be written between
0 and 2347 bytes.
Beacon Interval Set the Beacon Interval, value can be written
