Reverie 3EM User manual
Reverie 3EM™Wireless Power Base
Owner’s Manual and Reference Guide
REV: 2018-01-17
Manual Part No. PT-MAN-3EMBT
Copyright © 2016. All Rights Reserved.
Ascion LLC.
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
2
Reverie 3EM™Wireless Power Base
Safety Precautions..............................................................................................3

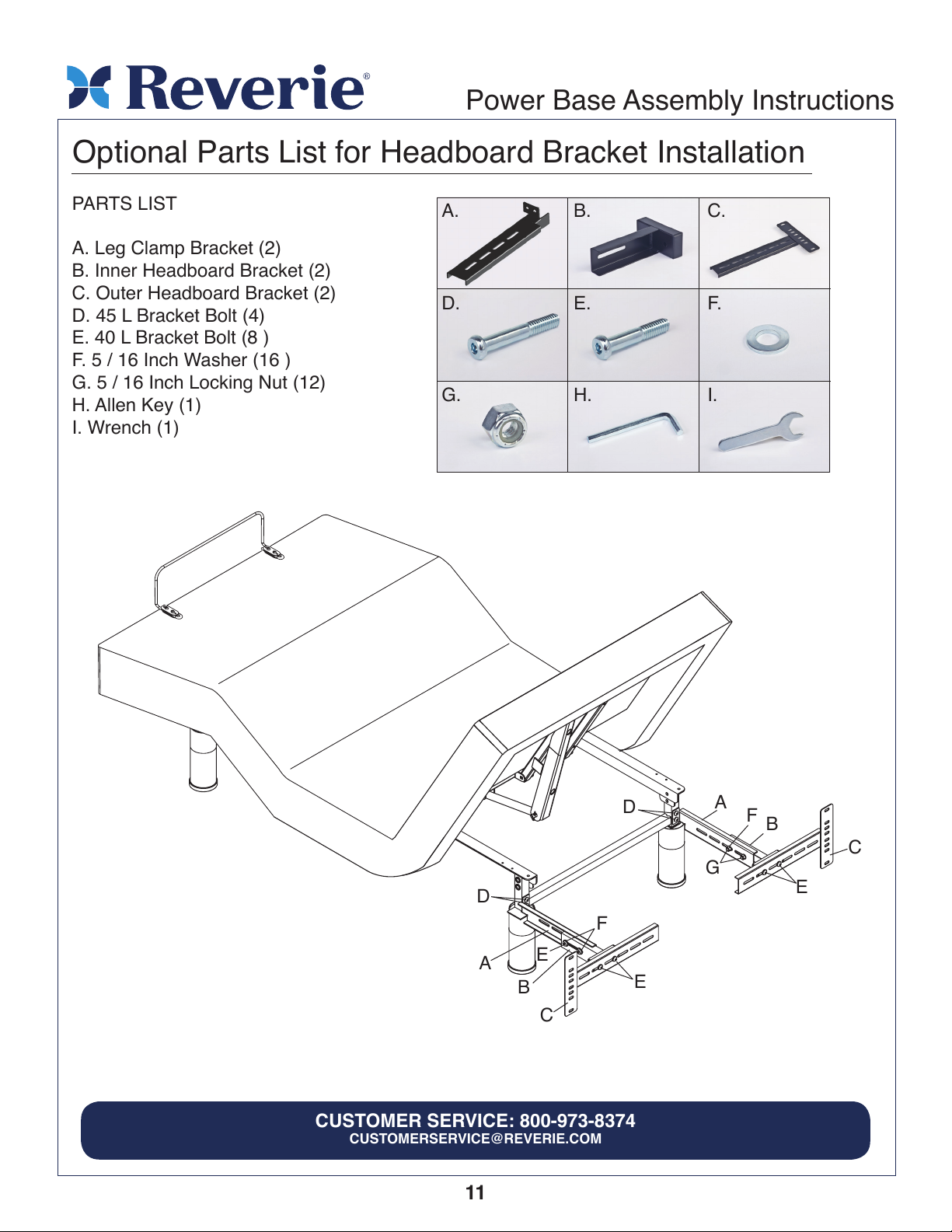

Parts List.............................................................................................................8
Power Base Assembly Instructions ...................................................................9
Wireless Remote Control...................................................................................13
Remote Control Operation Guide......................................................................14
Replacement Remote Control Programming.....................................................15
Remote Control Emergency Power Down Feature............................................17
Troubleshooting.................................................................................................21
Warranty.............................................................................................................22
Warranty Information: Please see warranty information at the end of this manual
App User Guide.................................................................................................18
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
3
SAFETY PRECAUTIONS
WARNING! IMPORTANT SAFETY INSTRUCTIONS.
PLEASE READ THESE INSTRUCTIONS
THOROUGHLY BEFORE USING THIS PRODUCT.
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS BEFORE USING (THIS FURNISHING)
DANGER:
WARNING:
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
4
WARNING:
WARNING:
DANGER:
SAVE THESE INSTRUCTIONS!
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
5

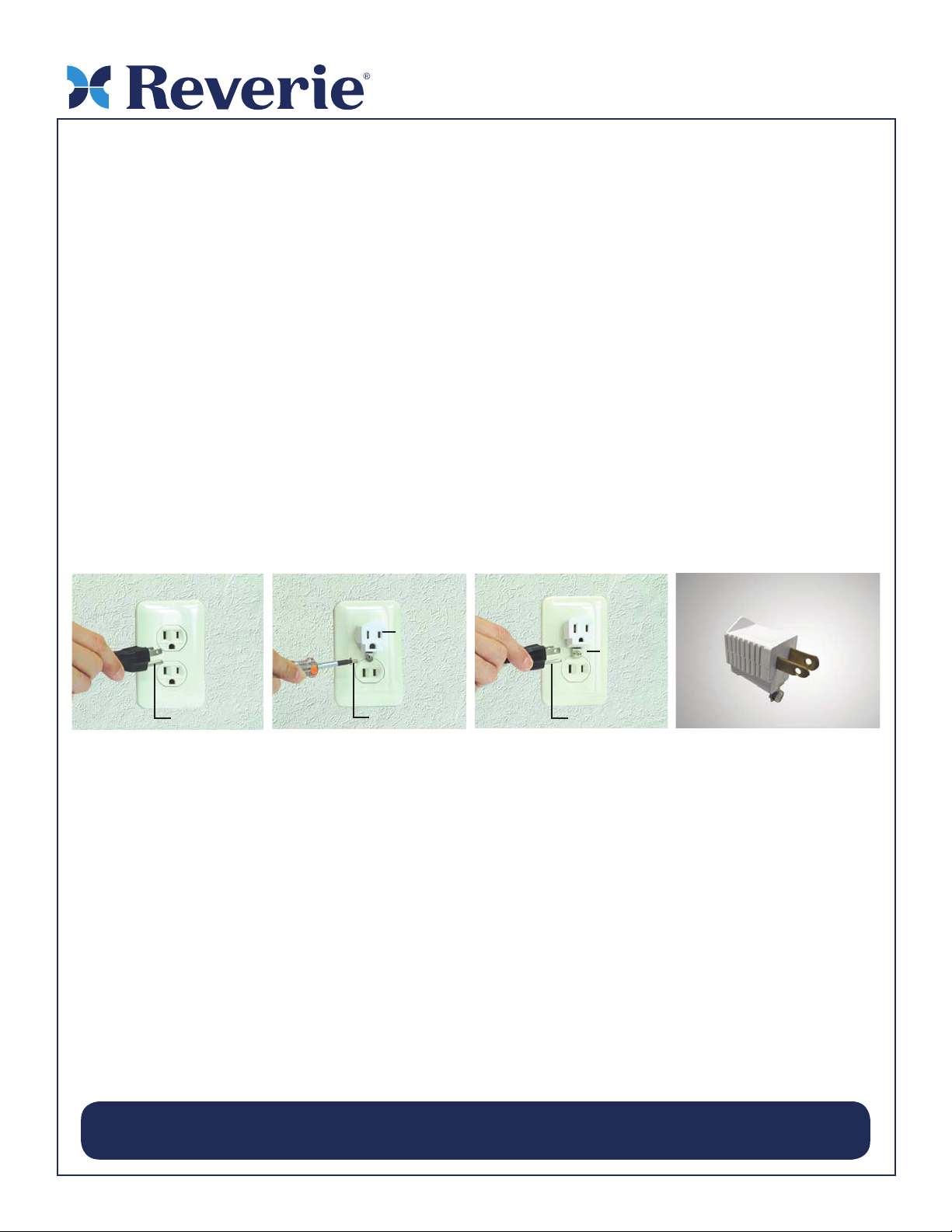

This product is for use on a standard 120-volt circuit, and has a grounding plug that looks
like the plug illustrated in photo A (see Figure). A temporary adapter that looks like the
adapter illustrated in photo B and C can be used to connect this plug to a 2-pole receptacle
as shown in photo B if a properly grounded outlet is not available. The temporary adapter
should be used only until a properly grounded outlet (photo A) can be installed by a
qualied electrician. The green colored rigid ear, lug or the like extending from the adapter
must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by a metal screw.
Unauthorized modications could void the electrical portion of your warranty.
WARRANTY PRECAUTION:
IN-HOME USE AND HOSPITAL DISCLAIMER:
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
6
WARNING!
IMPORTANT SAFETY FEATURES:
800-973-8374
USER-SERVICEABLE PARTS:
POWER RATINGS:
INPUT: AC 120V - 60Hz, 1 Amp
OUTPUT: DC 24V-3A
FUSE: 1.5A
800-973-8374
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
7
SMALL CHILDREN AND PETS WARNING:
SAVE THESE INSTRUCTIONS:
PRODUCT RATINGS
Note: Exceeding the recommended weight restrictions could damage your power base
and void your warranty and using a mattress on top of your power base that is
not designed for adjustability may also void your warranty.
DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION.
INTENDED USAGE
The electric power base should be installed with the head board brackets and/or the head
of the frame positioned close to a wall.
CUSTOMER SERVICE: 800-973-8374
8
Note:
A3
CUSTOMER SERVICE: 800-973-8374
9

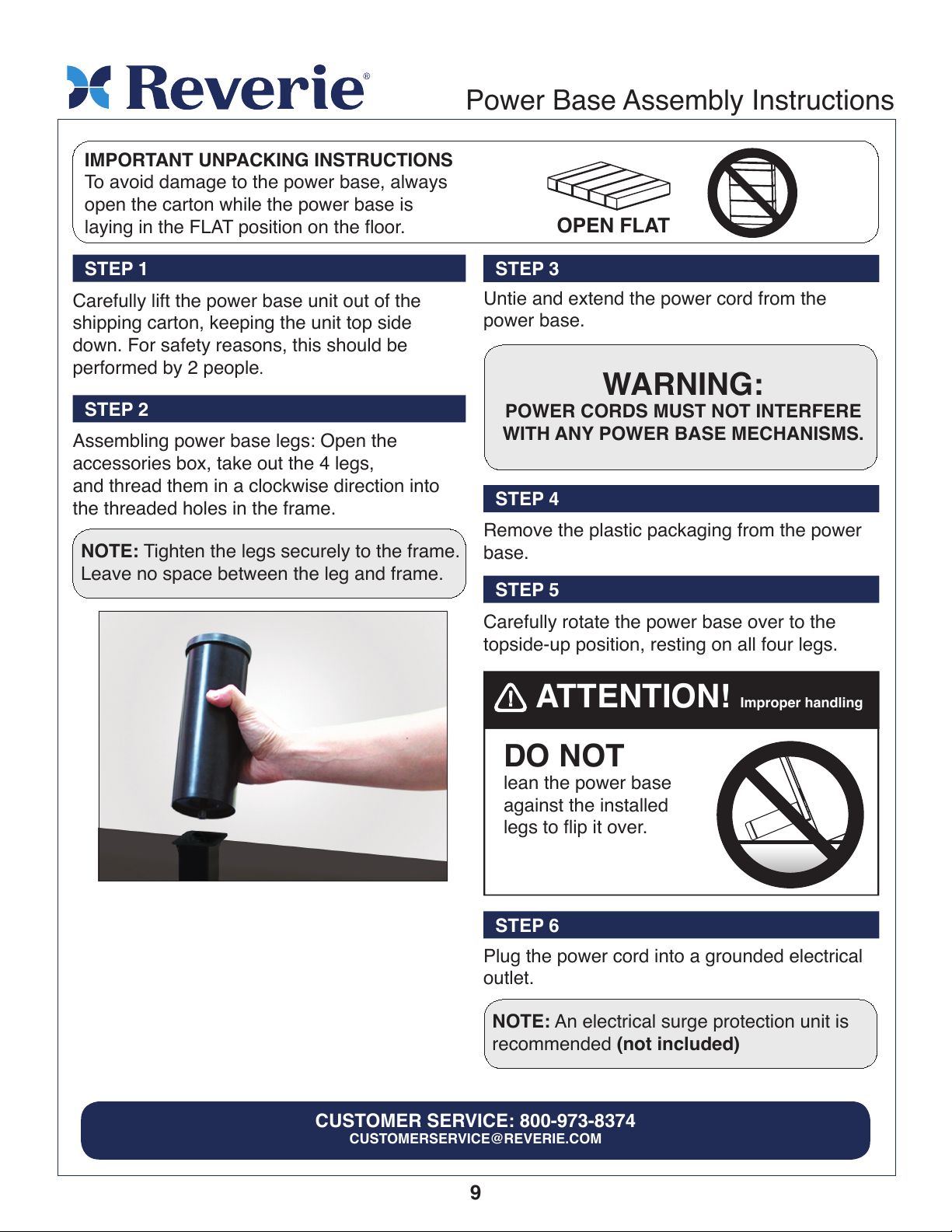

IMPORTANT UNPACKING INSTRUCTIONS
OPEN FLAT
STEP 1 STEP 3
STEP 4
STEP 5
STEP 6
STEP 2
.
NOTE:
NOTE:
(not included)
WARNING:
POWER CORDS MUST NOT INTERFERE
WITH ANY POWER BASE MECHANISMS.
ATTENTION! Improper handling
DO NOT
CUSTOMER SERVICE: 800-973-8374
10
STEP 7
STEP 8
STEP 10
STEP 9
Troubleshooting

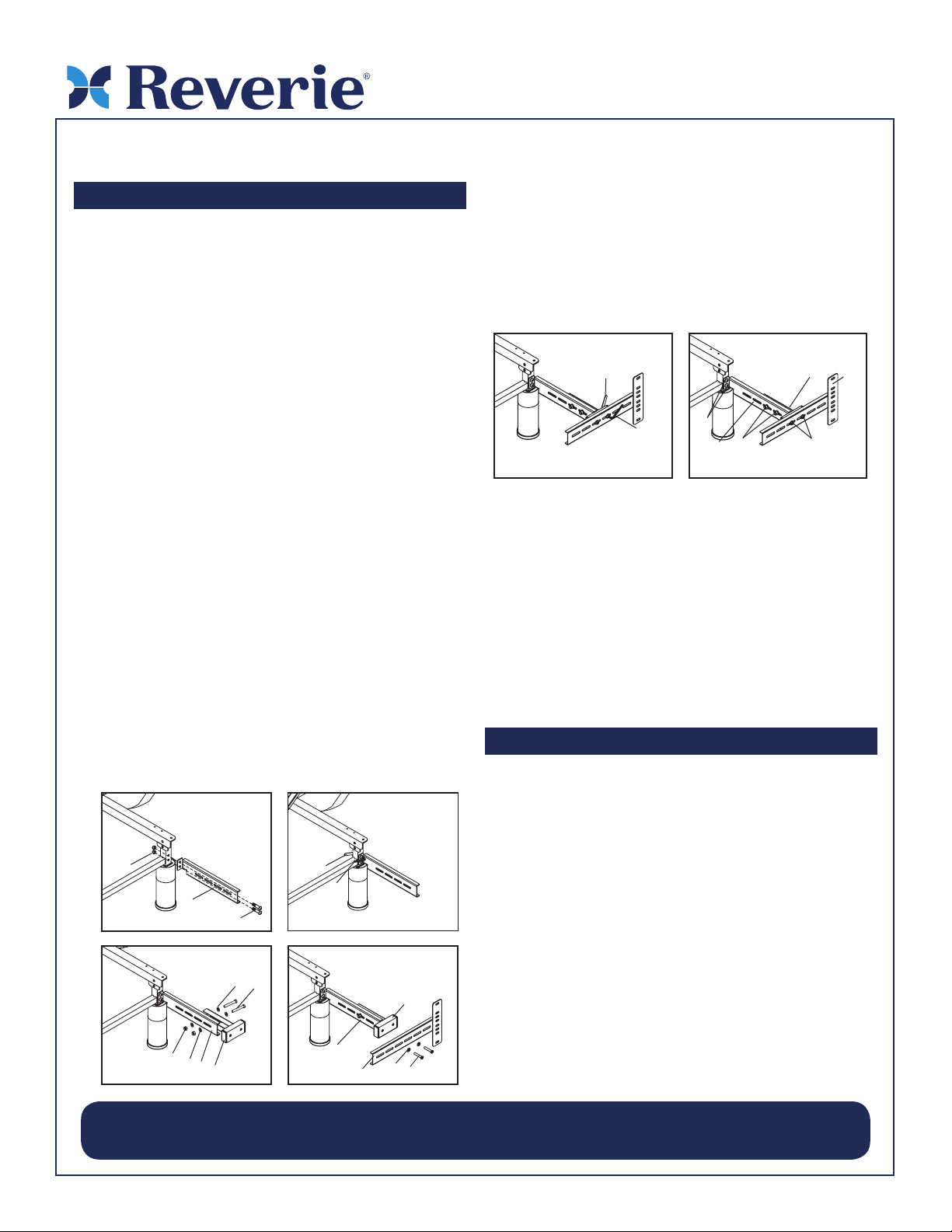

Mattress Retainer Bracket.
NOTE:
NOTE:
NOTE:
ATTENTION:
CUSTOMER SERVICE: 800-973-8374
11
A
A
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
12
STEP 1
STEP 2
A
A
A
A
CUSTOMER SERVICE: 800-973-8374
13
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
14

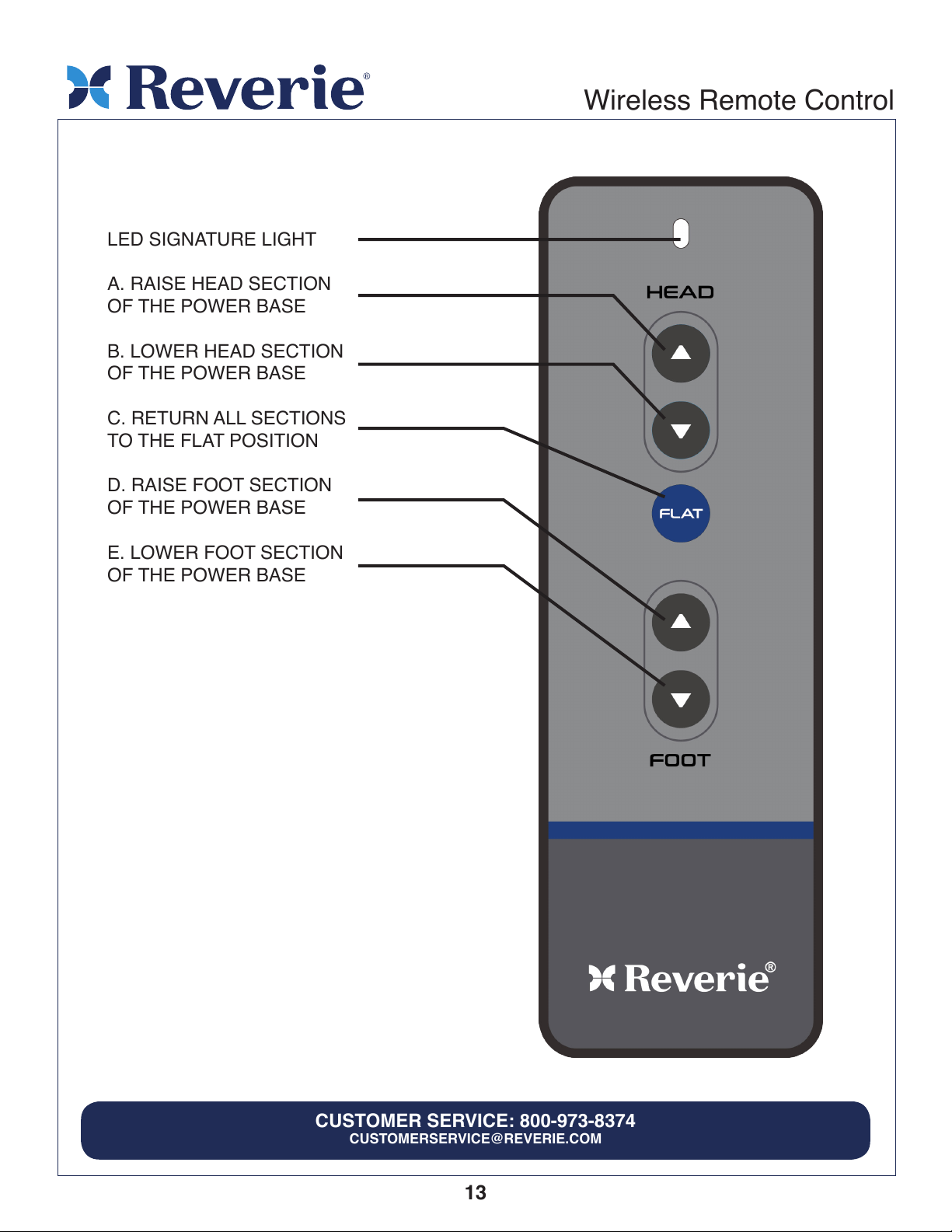

Remote Control Operation Guide
OPERATING INSTRUCTIONS
POWER BASE HEAD AND FOOT ADJUSTMENT (A, B, D, E)
Adjusts the head and foot sections to the desired positions.
FOUNDATION “FLAT” BUTTON (C)
REMOTE LOCKOUT FEATURE (A/C)
Safety
The input transformer voltage is AC120V 60HZ, the output voltage is DC24V 3A. When there is a
short circuit, a fuse on the transformer will automatically be blown in order to protect the electrical
equipment. When this occurs, the customer MUST seek professional assistance.
NOTICE:
could void the user’s authority to operate the equipment.
We created the remote lockout feature to help owners
prevent unintended use of the base.
Activating Remote Lockout
Deactivating Remote Lockout
At the same time, press and hold the HEAD UP and FLAT
buttons for 3 seconds. The red LED will flash twice to indicate
activation. Pressing any buttons on the remote while in lockout
mode will result in no movement from the power base.
Same method... press and hold the HEAD UP and FLAT
buttons at the same time for 3 seconds. The red LED will flash
twice to indicate deactivation. The remote and power base will
work normally.
NOTE: The included remote is
already paired with your power base.
No further action is required. Only
replacement remote controls require
programming.

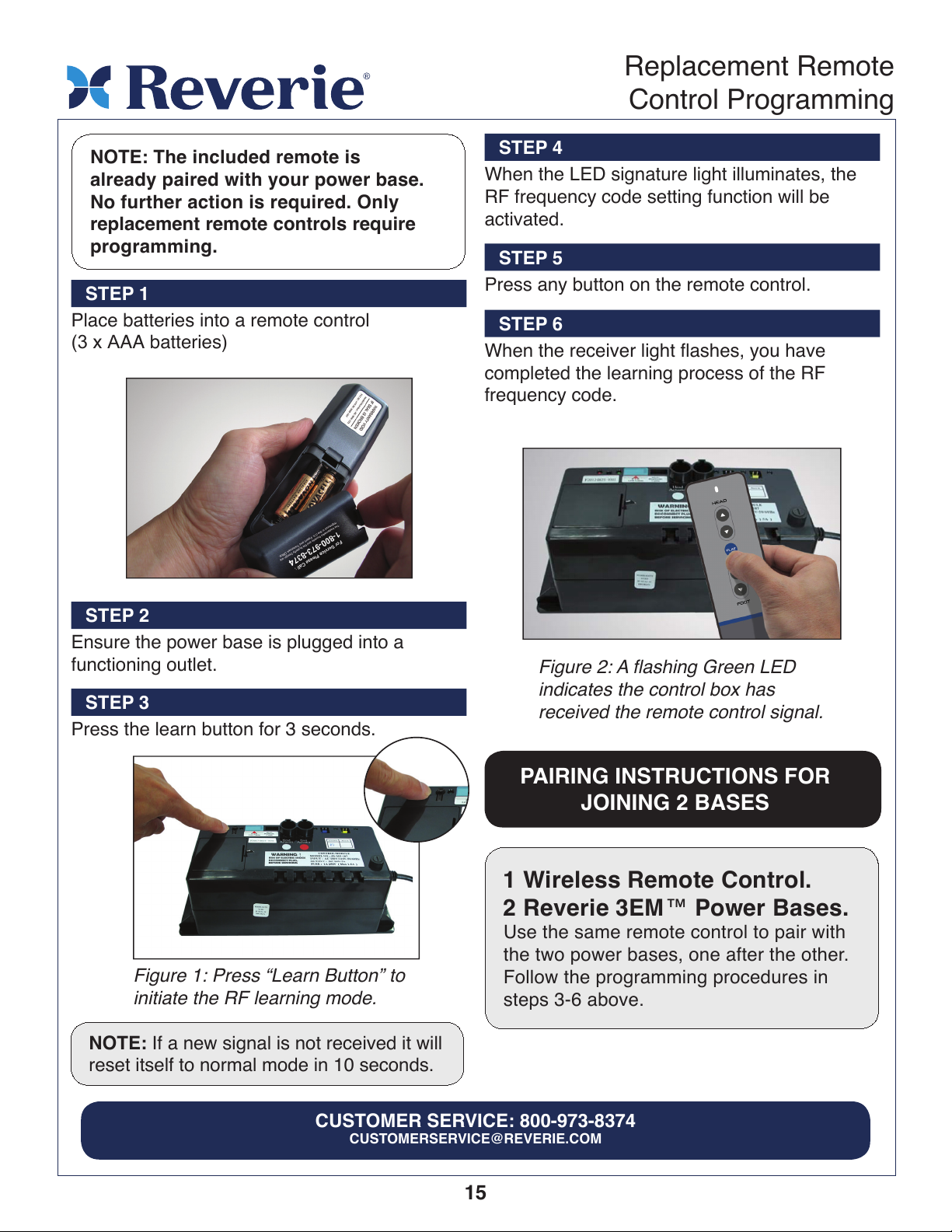

1 Wireless Remote Control.
2 Reverie 3EM™Power Bases.
NOTE:
STEP 1
STEP 4
STEP 5
STEP 6
STEP 2
STEP 3
3A
Figure 1: Press “Learn Button” to
initiate the RF learning mode.
Figure 2: A ashing Green LED
indicates the control box has
received the remote control signal.
PAIRING INSTRUCTIONS FOR
JOINING 2 BASES
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
16
King/Cal King units require
you to pair at least 1 remote to both bases so that both bases will move in sync
when using that remote. You can also pair two remotes to two bases, so that either
remote can control both bases at the same time.
.
A brelease the button on “Remote 2” (see
Steps 3-6 on Page 15). Do NOT hold the remote button after the light
blinks, and do
NOT press it again (see Note below). If you do you will remove Remote
1 from base 1’s memory.
.
release the button on “Remote 1” (see Steps 3-6 on
Page 15). Do NOT hold the remote button after the light blinks, and do
NOT press it again (see Note below). If you do you will remove Remote
2 from base 2’s memory.
Note: While the light is blinking if you release the button on the remote and press it
a second time, or if you continue to hold the button the PLC can jump to the second
slot and kick out the rst remote. This is why some people have a difcult time
joining the remotes. If they are patient and follow the process described they will
not have a problem.
CUSTOMER SERVICE: 800-973-8374
17
STEP 1
STEP 3
STEP 4
STEP 2
Figure 1: 9 volt batteries cover.
Figure 2
Figure 3
Figure 4: Lower the power base using the
9 volt battery back up system
NOTE:
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
18
Nightlight Feature
How to Download
the App Software
Your Power Base has a Bluetooth Accessory
Module as optional equipment.
The Bluetooth accessory module allows
you to control your power base with your
iOS or Android mobile device, using a free
downloadable app.
The LED light on the Bluetooth Accessory
Module serves as a nightlight that can be
controlled with the remote control or with the
mobile APP.
STEP 1
STEP 2
STEP 3
STEP 4
Please use your iOS or Android mobile device
to log into the APP STORE or GOOGLE PLAY
STORE.
Type “Reverie Nightstand” in the search column.
Select the reverie app.
Click install to download the app.
NOTE: Once the App is installed, when
you open the app the Bluetooth module will
connect to your device automatically.
NOTE: Make sure the Reverie Nightstand
App is the last app open on your phone
before locking (putting your phone in sleep
mode)
Reverie Nightstand
App User Guide
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
19

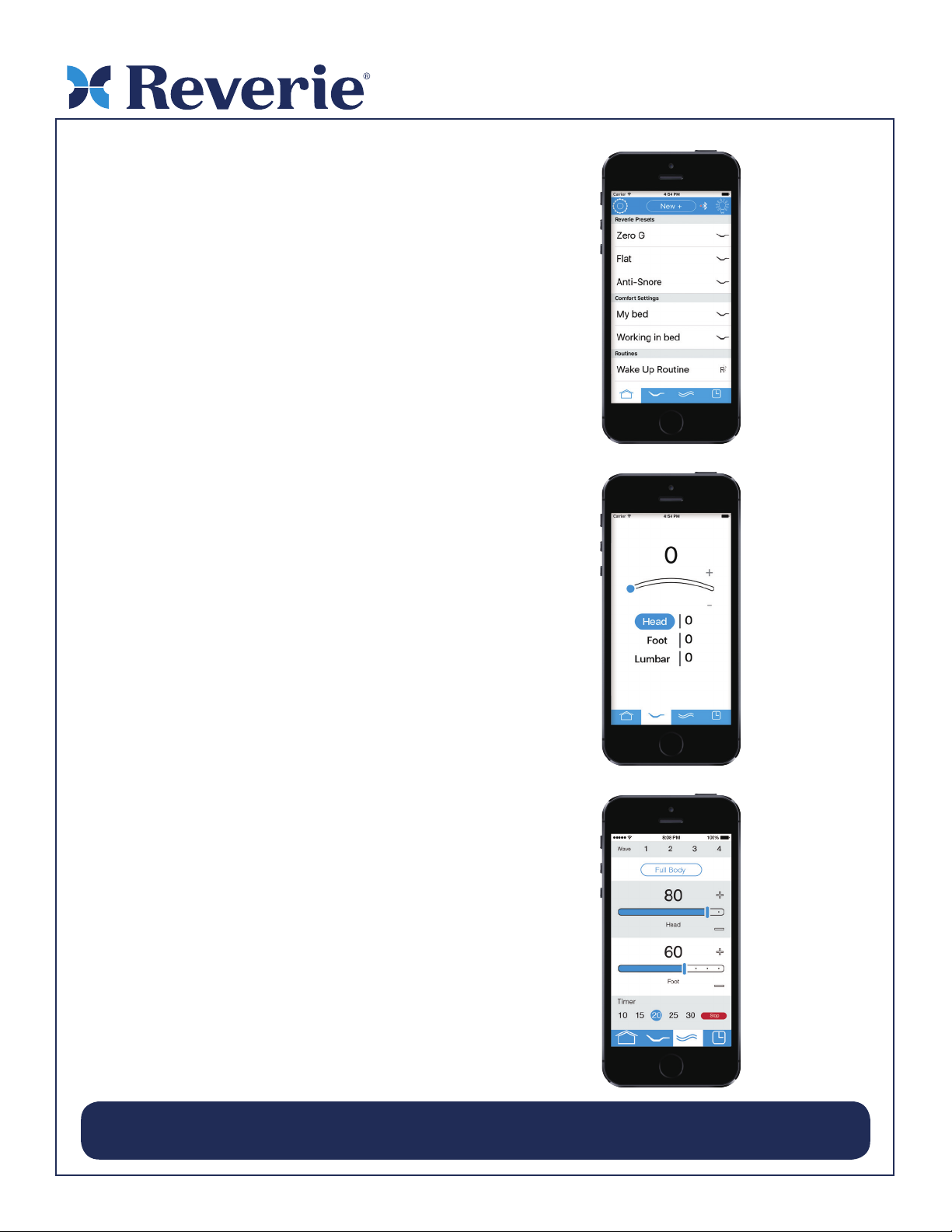

Home Screen
• Key features, functions and settings are accessible
from the home screen.
- Settings, Preset List, Comfort Settings, Routines,
Bluetooth, Nightlight, Home Tab, Position Tab,
Massage Tab, and Alarm Tab.
• Reverie Presets – Zero Gravity, Anti-Snore, and Flat
are right at your ngertips.
• Comfort Setting – Press “New +” to program a unique
head, foot and/or massage combination.
• Routines – Press “New +” to program a set of saved or
new comfort settings into a series of timed positions.
Position Control
• Control your head and foot elevation.
• Select the part of the bed you would like to elevate or
lower (head or foot).
- Use your nger to slide the blue dot
along the curve to your desired elevation.
- Or press and hold the plus or minus
symbol to adjust elevation.
• Your position readout on a scale of 1-100 will appear
at the top of the screen and next to the head or foot
position.
Massage
• Control your massage intensity and duration.
• Full body – Turns on the full body function.
• Wave – Select number of alternating pulses at the
head and foot of the bed.
• Head and Foot control – Select massage intensity in
the head and foot sections of the bed.
- Use your nger to slide the blue button to your
desired intensity.
- Or press and hold the plus or minus symbol to
adjust intensity.
• Timer – Select your desired massage duration.
• Stop – Turns the massage off.
Bluetooth Accessory
Module User’s Guide
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
20

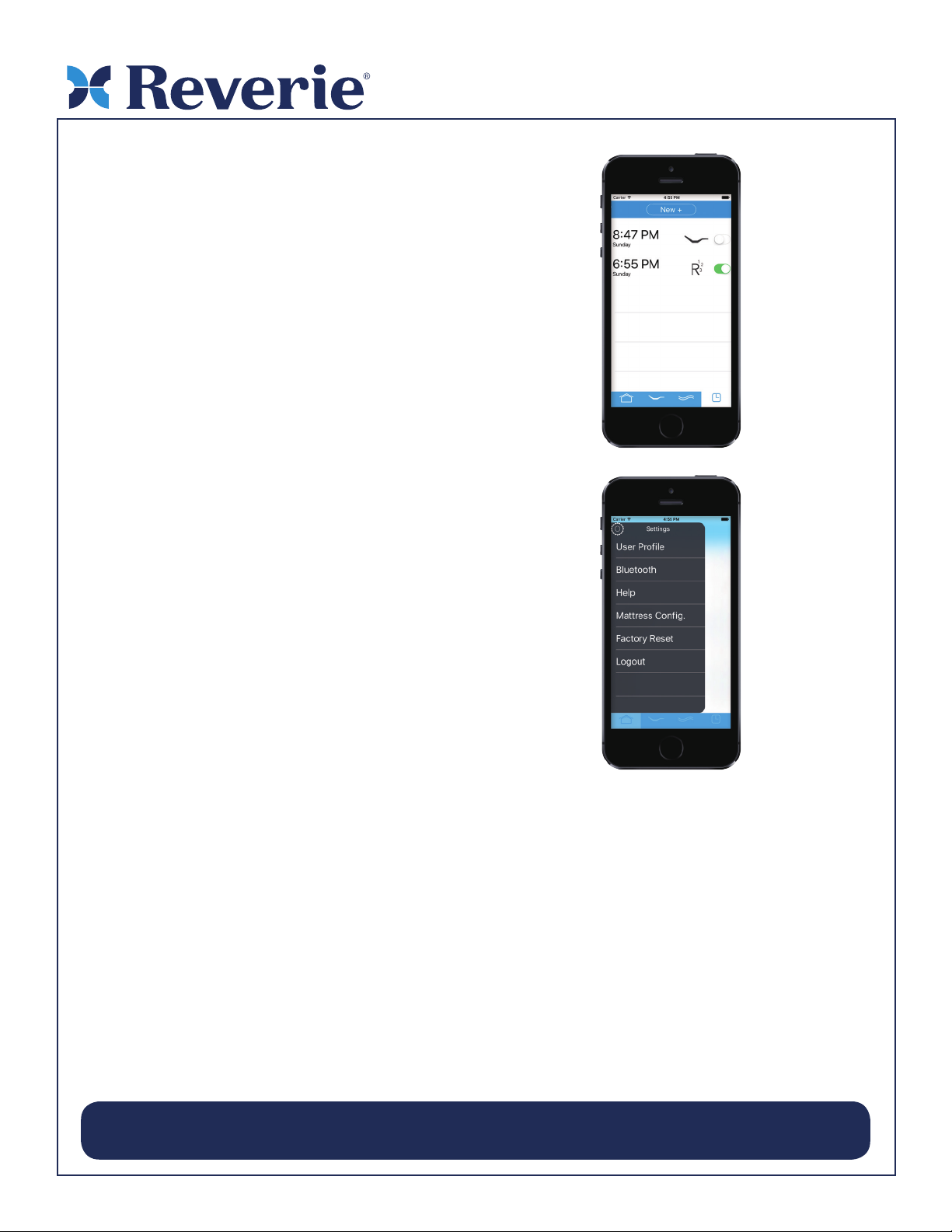

Alarm
• Create an alarm setting to raise and/or massage you
awake.
• Press “New +” to create a new alarm setting.
- Set time: Scroll to select the hour, minute and day.
- Repeat: Select the days of the week you would
like the alarm to activate.
- Bed control: Select nothing or select a new or
existing comfort setting or routine.
- Snooze: Enable snooze.
Settings
• Customize your app in settings.
• User Prole – Dene your user prole to get
recommendations on custom settings for you.
• Bluetooth – Shows the bed your app is connected to.
Shows nearby beds that you can connect to in order of
proximity.
• Help – Contact info for technical support.
• Mattress Congurator – Recongure your Reverie
Dream or Dream Supreme mattress with these
rmness guides.
• Factory Reset – Reset your app to original settings.
• Logout – Logout or create a new user.
Bluetooth Accessory
Module User’s Guide
Other manuals for 3EM
2
Table of contents
Other Reverie Indoor Furnishing manuals
Reverie
Reverie 3EMT User manual
Reverie
Reverie OSO 300T User manual
Reverie
Reverie 4M User manual
Reverie
Reverie 4M Power Base User manual
Reverie
Reverie 1M User manual
Reverie
Reverie R550L User manual
Reverie
Reverie OSO O400 User manual
Reverie
Reverie R650 User manual
Reverie
Reverie R350 User manual
Reverie
Reverie Personal Comfort Flex 3 User manual
Reverie
Reverie Flex 9 User manual
Reverie
Reverie 7T R550 User manual
Reverie
Reverie R600 User manual
Reverie
Reverie R550 User manual
Reverie
Reverie R310 User manual
Reverie
Reverie OSO O350LP User manual
Reverie
Reverie R300LP User manual
Reverie
Reverie Purple Powerbase User manual
Reverie
Reverie R400 User manual
Reverie
Reverie OSO 200 User manual
Popular Indoor Furnishing manuals by other brands
Next
Next CARTER 117994 Assembly instructions
DESKVIEW
DESKVIEW Lightweight standing desk instruction manual
Lightolier
Lightolier Lytecaster 302MRAICEX specification
Costway
Costway JV11205 manual
RTA Products
RTA Products TECHNI MOBILI RTA-739DL Assembly instructions
HOME RETAIL GROUP
HOME RETAIL GROUP EYDON GLASS TABLE Assembly instructions
Bensons for Beds
Bensons for Beds San Diego HUB120300 Assembly instructions
Birlea
Birlea SHARD Assembly instructions
Lehner Versand
Lehner Versand Nora 5873214 Assembly instruction
Lancaster
Lancaster 164CMLBVBKKD Assembly instructions
sweeek.
sweeek. LOFT ILFBK120 manual
ducduc
ducduc indi doublewide dresser/changer Assembly instructions
Emmezeta
Emmezeta EGLO 130 Assembling instructions
FURNITUREBOX
FURNITUREBOX CAMBRIDGE Assembly guide
Natural Signature
Natural Signature BEANSTALK 25-4681 quick start guide
Pier 1 Imports
Pier 1 Imports Halsted Series Assembly
Avenue Six
Avenue Six BALDWIN quick guide
Sauder
Sauder Carson Forge 420422 Instruction booklet
