Reverie Purple Powerbase User manual

Owner’s Manual and Reference Guide
.devreseR sthgiR llA .6102 © thgirypoCLPRP-TE3-NAM-TP .oN traP launaM03-80-6102 :VER
Ascion LLC.
Purple Powerbase
TW Part No. D1103-301-006

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
2
Congratulations on your Purple Powerbase
This manual has just about everything you need to know about your
new Purple Powerbase. If you need anything else, there is contact
information for you throughout this manual. You may notice as you
read that all the customer service and warranty information refers
you to Reverie®. Here's why:
Purple has contracted with Reverie to administer post-sale service
and support for the Purple Powerbase. Reverie has a nationwide
network of service experts with years of experience and a high level
of expertise in adjustable bed foundations. We are confident that
partnering with Reverie and utilizing their expertise is the best way
to provide you with a great service experience, should you need
assistance with your Purple Powerbase.
Thank you for choosing Purple !

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
3
Table of Contents
Safety Precautions.............................................................................................4
Parts List............................................................................................................10
Power Base Assembly Instructions ..................................................................11

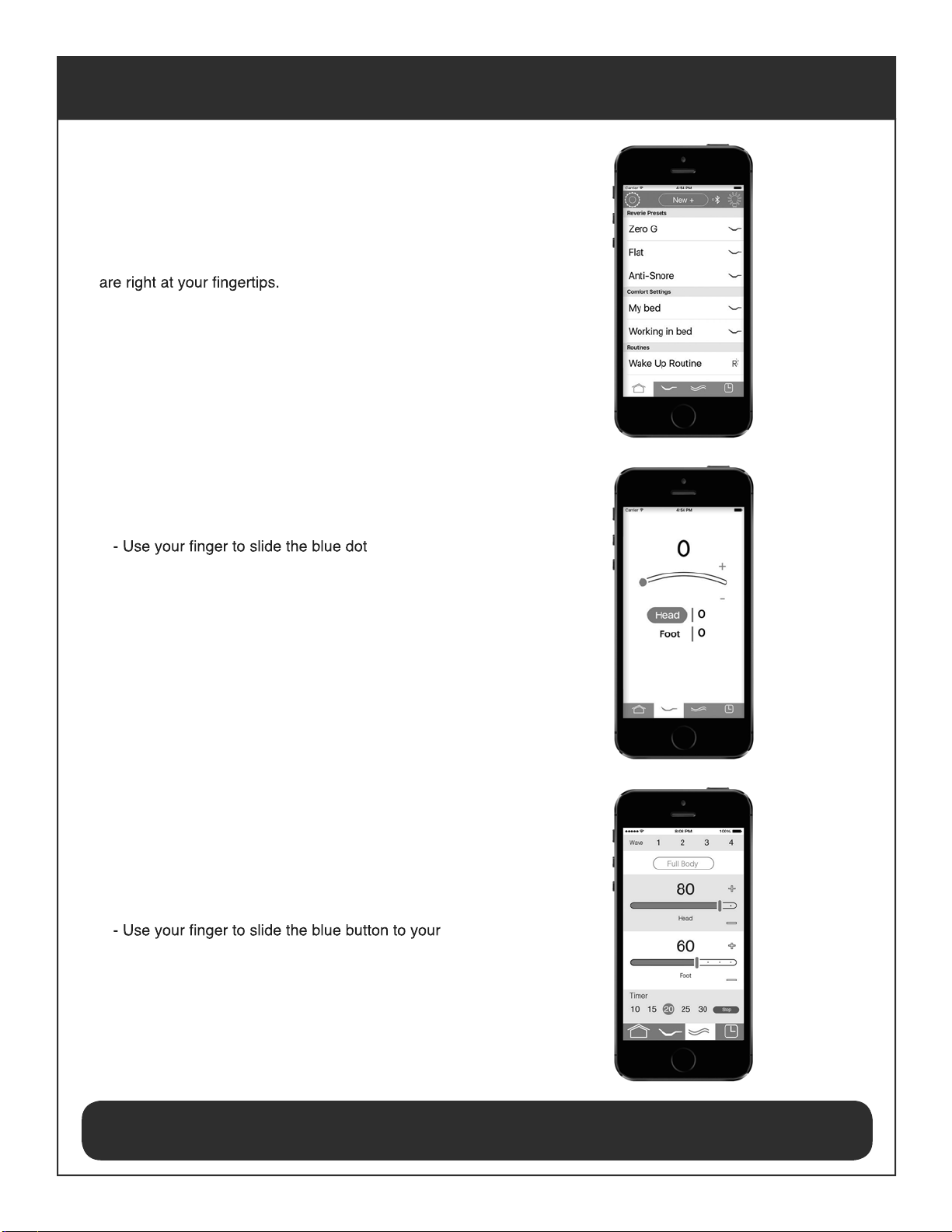

App User Guide ................................................................................................16

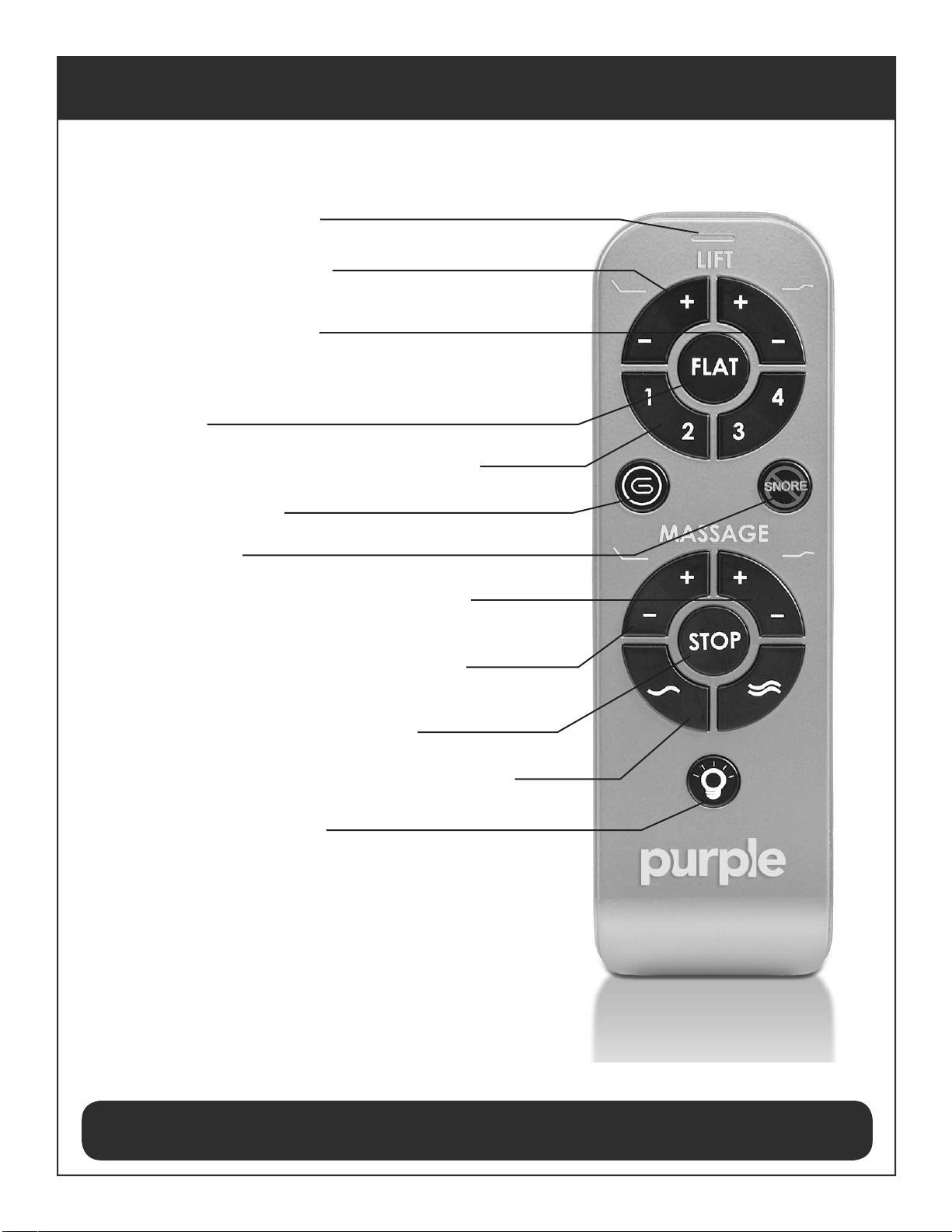

Wireless Remote Control...................................................................................19
Remote Control Operation Guide......................................................................20
Replacement Remote Control Programming.....................................................22
Remote Control Emergency Power Down Feature............................................24
Remote Stand User’s Guide..............................................................................25
Troubleshooting.................................................................................................26
Warranty.............................................................................................................28
Warranty Information: Please see the warranty that came with your
product.
Purple Powerbase

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
4
SAFETY PRECAUTIONS
WARNING! IMPORTANT SAFETY INSTRUCTIONS.
PLEASE READ THESE INSTRUCTIONS
THOROUGHLY BEFORE USING THIS PRODUCT.
SAVE THESE INSTRUCTIONS!
When using an electrical furnishing basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS FURNISHING)
DANGER: To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
WARNING:
• Unplug from outlet before putting on or taking off parts.
• Close supervision is necessary when this furnishing is used by or near children, invalids or
disabled persons.
• Use this furnishing only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
• Never operate this furnishing if it has a damaged cord or plug, or if it is not working properly,
dropped or damaged, or dropped into the water. Return the furnishing to a service center for
examination and repair.
• Keep the cord away from heated surfaces.
• Never operate the furnishing with the air openings blocked. Keep the air openings free of lint,
hair and the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
Safety Precautions

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
5
WARNING: Risk of Injury:
Keep children away from extended foot support (or other similar parts).
WARNING: Risk of electric shock:
Connect this furnishing to a properly grounded outlet only.
See Grounding instructions.
GROUNDING INSTRUCTIONS:
This product must be grounded. If it should malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
properly grounded.
SAVE THESE INSTRUCTIONS!
Safety Precautions

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
6
This product is for use on a standard 120-volt circuit, and has a grounding plug that looks
like the plug illustrated in photo A (see Figure). A temporary adapter that looks like the
adapter illustrated in photo B and C can be used to connect this plug to a 2-pole receptacle
as shown in photo B if a properly grounded outlet is not available. The temporary adapter
should be used only until a properly grounded outlet (photo A) can be installed by a
must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by a metal screw.
This product is for use on a circuit having a standard rating of 120 volts and is factory equipped
should be used with this product. If the product must be reconnected for use on a different type of
.Failure to use a
product.
FOR BEST RESULTS, YOUR POWER BASE SHOULD BE PLUGGED INTO A SURGE
PROTECTOR (not included).
WARRANTY PRECAUTION:
Do not open control box, motors or wireless remote controls (with the exception of the battery
compartment if equipped). The warranty is void if these units are tampered with. Any repair or
replacement of power base parts must be performed by an authorized technician.
IN-HOME USE AND HOSPITAL DISCLAIMER:
Your power base is strictly designed for in-home use only. It is NOT designed for hospital use
and is NOT designed to meet hospital standards. Do not use this base with TENT TYPE oxygen
therapy equipment or near explosive gases.
Safety Precautions

Safety Precautions
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
7
WARNING!
DO NOT USE NEAR PEOPLE USING OR WEARING MEDICAL DEVICES. FOR HOUSEHOLD /
RESIDENTIAL USE ONLY. DO NOT USE OUTDOORS.
This product conforms to UL STD 962
IMPORTANT SAFETY FEATURES:
Use this furnishing only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
If there is an overload weight condition on the head or foot mechanism, the control unit will
automatically stop all functions. Once the excess weight is removed the control unit will
automatically allow all functions to resume operation after 30 seconds.
As with any product that produces a vibrating motion, it is possible that some pacemakers may
interpret this motion as a false sense of movement and/or exercise. This may or may not affect
your pacemaker. If you have any concerns, please consult your physician. For more information
please contact customer service by calling 800-973-8374.
USER-SERVICEABLE PARTS:
. Therefore, you are
encouraged not to open any motors, alter the wiring, adjust, modify or change the structure of the
product, as it will void the warranty.
POWER RATINGS:
INPUT: AC 120V - 60Hz, 1Amp
OUTPUT: DC 24V-3A
The input transformer voltage is AC120V (1.5 Amp) 60HZ, and the output voltage is DC24V
(3Amp). When there is a short-circuit, a fuse on the transformer will be blown in order to protect
the electrical equipment (Fuse: 1.5A). Should the above situation occur, the customer should
seek professional assistance by calling a licensed electrician or by contacting customer service at
800-973-8374.

Safety Precautions
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
8
SMALL CHILDREN AND PETS WARNING:
PRODUCT RATINGS
After your Power Base has been unboxed, immediately dispose of packaging as it can
smother small children and pets. To avoid injury, children and pets should not be allowed to play
on or under the power base.
Children should not operate this product without adult supervision. Close supervision is necessary
when this furnishing is used by, or near children, invalids, or disabled persons.
SAVE THESE INSTRUCTIONS:
Your Power Base has been designed to provide you with the reliable operation and
durability you expect. This product has been inspected and tested prior to shipment.
The lift motor in your Power Base is NOT designed for continuous use. Reliable operation
and full life expectancy will be attained as long as the lift motor does not operate more than two
(2) minutes over an eighteen (18) minute period, or approximately 10% duty cycle. Any attempt
to circumvent or exceed this rating will shorten the life expectancy of this product and may void
the warranty. The recommended weight restrictions for your Power Base is up to 850 lbs. total
weight, including people and the mattress for all sizes of power bases. Lift speed will vary due
The weight must be evenly
distributed across the power base. This Product is not designed to support or lift 850 lbs of total
in the head or foot sections of your power base alone, or in any unevenly weight distributed
fashion. Some mattresses are not designed for Power Bases because they do not bend or flex
RADIO FREQUENCY IS 433.92 MHZ
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
To comply with the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or the device could result
in the device exceeding the RF exposure requirements and void the user’s authority to
operate the device.
“Power Base” occurs twice more
here. Preview wont let me highlight.

Safety Precautions
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
9
Note: Exceeding the recommended weight restrictions could damage your power base
and void your warranty and using a mattress on top of your power base that is
not designed for adjustability may also void your warranty.
lowered position.
DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION.
INTENDED USAGE

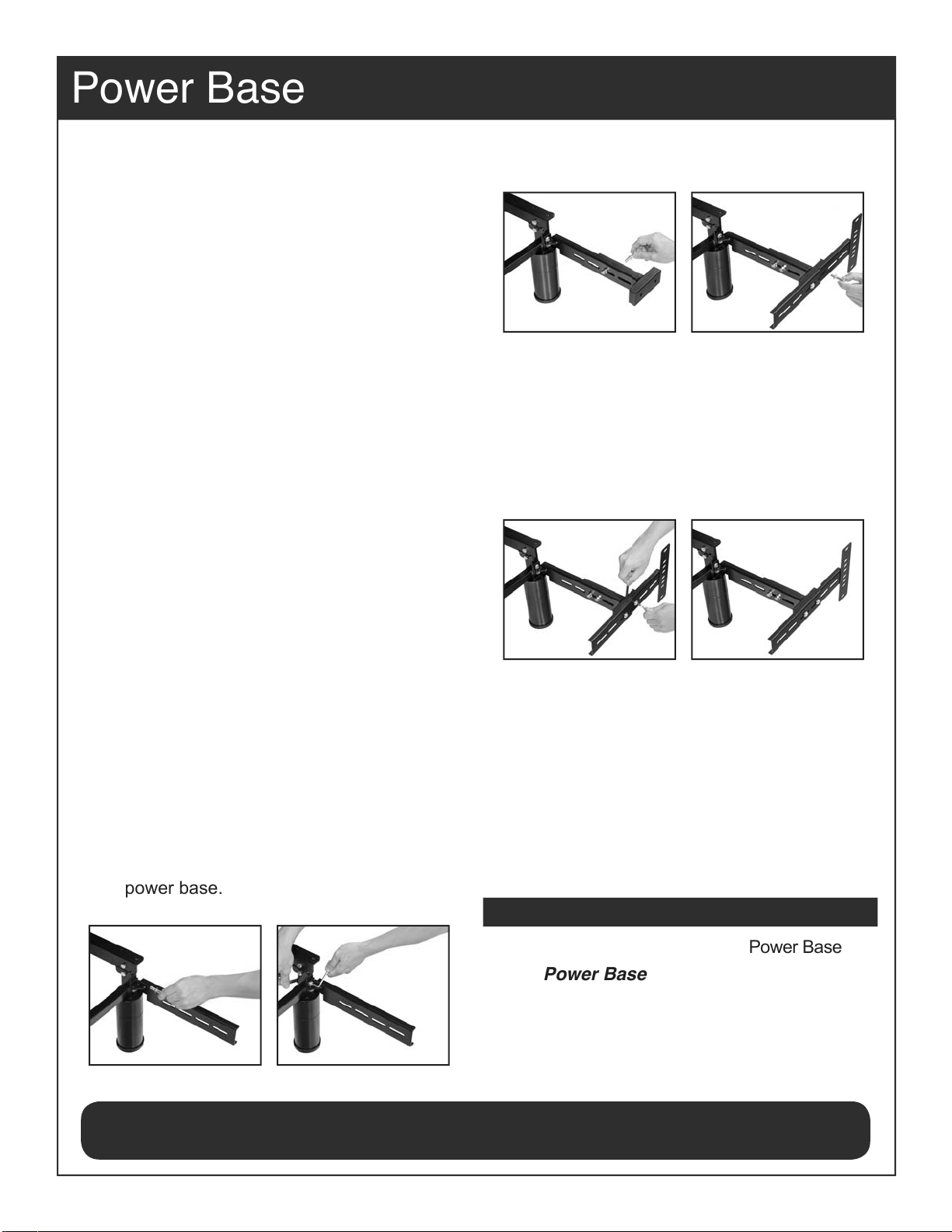

The electric power base should be installed with the head board brackets and/or the head
of the frame positioned close to a wall.
and here

10
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
Note: Before discarding any packing materials, check the power base carton and verify the
following items in the parts list are included:
PARTS LIST
Parts List for Purple Powerbase
A. Wireless Remote Control (1) and
AAA batteries (3)
B. Mattress Retainer Bar (2)*
C. Base Legs (4)
D. Retainer Bar Bolt (4)*
E. Retainer Bar Plate (4)*
F. Allen Wrench (1)
G. 9-Volt Batteries (2)
H. Remote Stand (1)
*Attached to basefor shipping
G. H.
F.
B. *
C.
E. *
D. *
Purple Powerbase A.

Power Base Assembly Instructions
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
11
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
3PETS1PETS

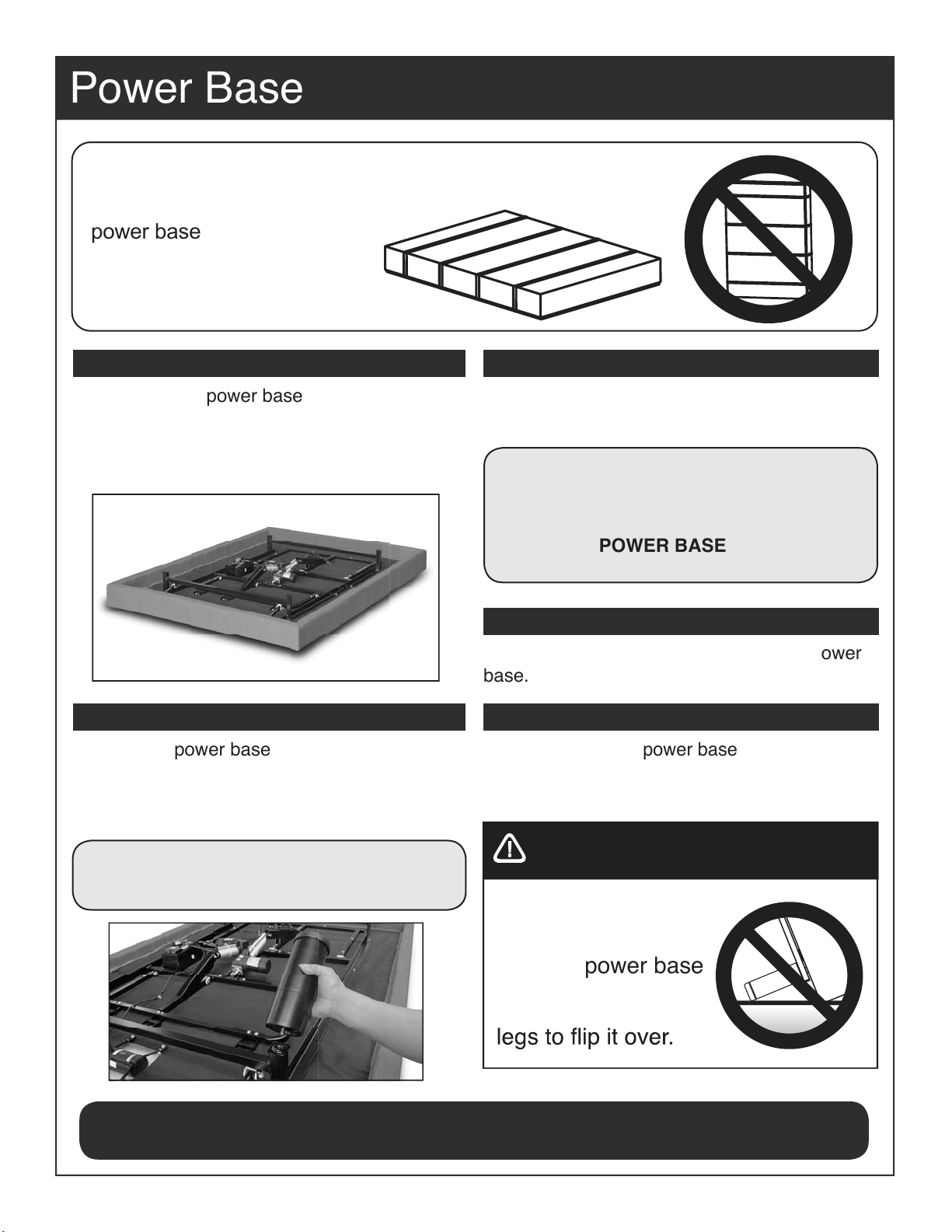

STEP 4
STEP 2
Carefully lift the power base unit out of the
shipping carton, keeping the unit top side
down. For safety reasons, this should be
performed by 2 people.
Untie and extend the power cord from the
frame.
Remove the plastic packaging from the power
STEP 5
base.
Assembling power base legs: Open the
accessories box, take out the 4 legs,
and thread them in a clockwise direction into
the threaded holes in the frame.
NOTE: Tighten the legs securely to the frame.
Leave no space between the leg and frame.
WARNING:
POWER CORDS MUST NOT INTERFERE
WITH ANY POWER BASE MECHANISMS.
To avoid damage to the
power base, always open the
carton while the power base
is laying in the FLAT position
on the floor.
IMPORTANT UNPACKING INSTRUCTIONS
OPEN FLAT
Carefully rotate the power base to the topside-up
position, resting it on all four legs.
ATTENTION! Improper handling
DO NOT
lean the power base
against the installed

Safety Precautions
12
STEP 7
STEP 6
Plug the power cord into a grounded electrical
outlet.
NOTE: An electrical surge protection unit is
recommended (not included).
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
Power Base Assembly Instructions

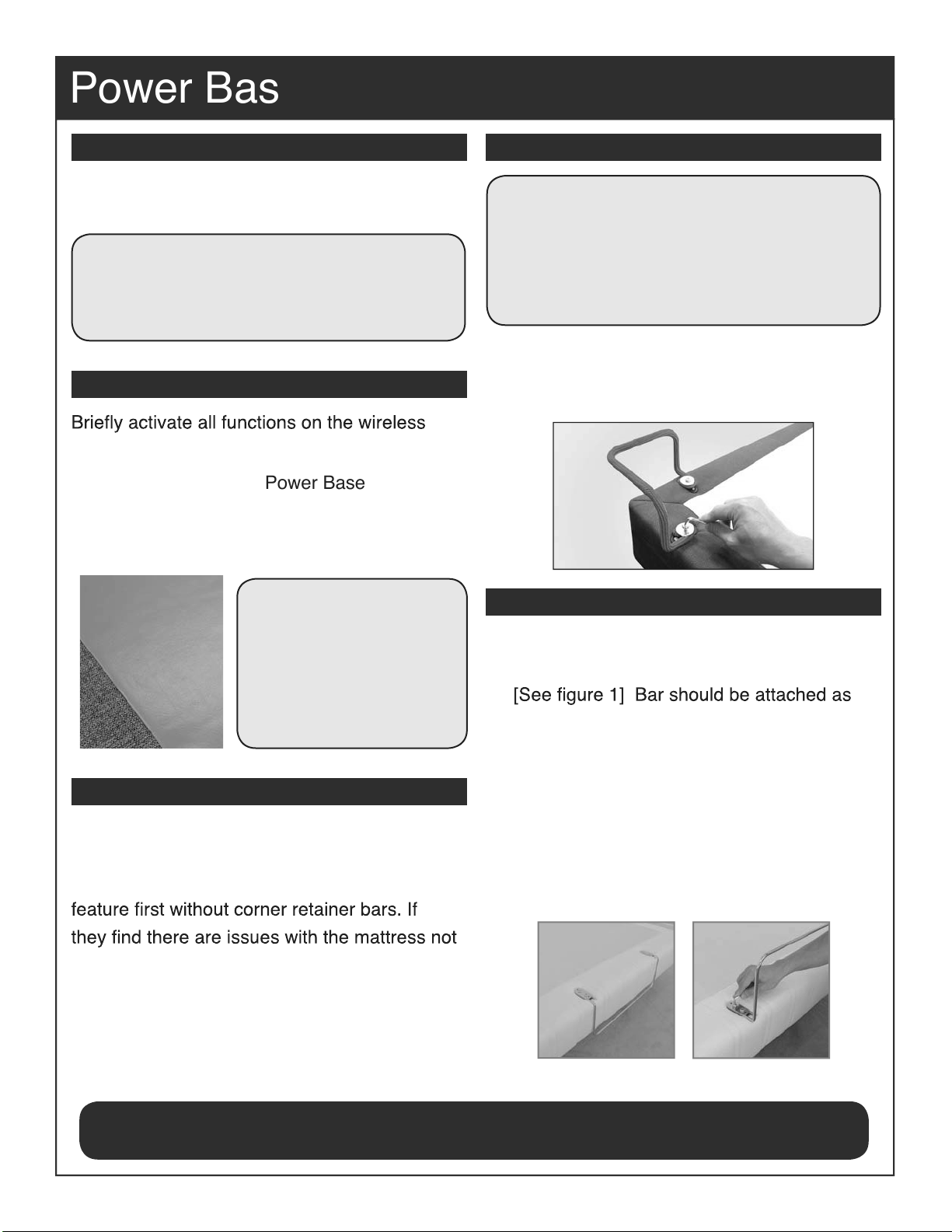

remote control to verify that all of the features
are operational. If your Power Base does NOT
operate, please refer to the Troubleshooting
section near the end of this manual.
NOTE:
ProGrip™ Base uses a
material near the foot
end to help prevent the
mattress from sliding off
the base when operating
head and foot lifts.
STEP 9A
STEP 9B
Use the Retainer Bolts (D) and Retainer
Bar Plate (E) to fasten the Mattress Retainer
Bracket (B) to the power base.
If you have a center foot retainer bar, then
follow the instructions below.
•
shown when bed arrives
• Loosen both bolts and slide the center bar out
• Turn bar over so standing upright and slide
bar back around bolts and under washers
as shown.
• ’
much or the washer plate will bend.
NOTE: Use only a manual screwdriver to
install the retainer bolts. DO NOT use a
power screwdriver to tighten the bolts. DO
NOT over tighten the mattress retainer
hardware.
STEP 8 (RETAINER BARS)
ONLY INSTALL AT THE CUSTOMERS
REQUEST. Customers should try the ProGrip
staying on the base when elevated then we
recommend the customer installing 2 retainer
bars at the foot end of bed. See STEP 9 to
install the corner retainer bars.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
13
Power Base Assembly Instructions
STEP 10
Install the headboard brackets to the power
base. Place one bracket on the left-hand side
of the power base and one bracket on the
right-hand side of the power base.
NOTE: If the power base is to be set
up without a headboard, simply install a
mattress on the frame. If a headboard is to
be installed, proceed to step 10.
NOTE: It is important to position the bottom
of the headboard cross member a maximum
distance of 3 inches (76.2 mm) between the
headboard and the top of the mattress. Do
not exceed 3 inches (76.2 mm).
ATTENTION: For any King/Split King
bars for either base on head or foot.
When two Twin XLs or two Split California
Kings are put together, DO NOT install
retainer bars in the center head or center
foot sections of the bases.

14
CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
Power Base Assembly Instructions
C.
F.
H.
D.
I.
E.
G.
B.
A.
B.
B.
PARTS LIST
A. Leg Clamp Bracket (2)
B. Inner Headboard Bracket (2)
C. Outer Headboard Bracket (2)
D. 45L Bracket Bolt (4)
E. 40L Bracket Bolt (8)
F. 5/16 Inch Washer (16)
G. 5/16 Inch Locking Nut (12)
H. Allen Key (1)
I. Wrench (1)
Optional Parts List for Headboard Bracket Installation
D
D
A
A
F
F
B
B
G
E
E
C
C
E

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
15
Headboard Bracket Installation (Optional)
STEP 11
Power Base Assembly Instructions
5. Ensure the headboard bracket is assembled a
distance of 1.5 (38.1 mm) to 2 inches (50.8 mm)
between the edge of the bed base and the
headboard bracket assemblies.
6. Firmly tighten the headboard bolts (not included)
to the end of the headboard bracket assembly.
Place your mattress on top of your Power Base.
Typical Power Base installation is now complete.
If the bed is equipped with a programmable setting
or options, refer to the Remote Control Guide for
more information.
7. Measure the distance of the center to center
mounting holes in the headboard.
8. Measure the distance of the center to center
mounting holes in the headboard bracket assemblies.
9. If the headboard brackets require adjustments,
l oosen the bolts that are holding the outer headboard
brackets and move them to the necessary distance.
Reinstall the bolts and firmly tighten.
Install the headboard brackets to the bed base
frame. Place one bracket on the left-hand side
of the base and one bracket on the right-hand
side of the base.
1. Use the hand control to raise the head of the
bed in order to gain access to the bed power
base.
2. Bolt the Leg Clamp Bracket (A) to the leg
using the headboard bracket bolts (D), and
the 5/16” lock nut (G).
3. Bolt the inner Headboard Bracket (B) to the
Leg Clamp Bracket (A) using the Headboard
Bracket Bolts (E), the 5/16” washer (F), and
the 5/16” lock nut (G).
4. Place the open side of the outer headboard
bracket (C) onto the exposed square tube of
the inner head board bracket (B). This will
create a tight fit between (B) and (C).
Place a Headboard Bracket Bolt (E) with a
5/16 Inch Washer (F) through the Outer
Headboard Bracket (C) and into the Inner
Headboard Bracket (B). Use a 5/16 Inch
Washer (F) and 5/16 Inch Locking Nut (G)
and hand tighten to allow for adjustment.
Repeat same procedure for opposing side of
the power base.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
16
How to Download
the App Software
Your Power Base has a Bluetooth Accessory
Module as standard equipment.
App User Guide
Nightlight Feature
The Bluetooth Accessory Module allows you
to control your power base with your mobile
device using a free, downloadable app. The
module is compatible with the following devices:
iPhone 5 and 6 series
iPad 3, iPad mini, iPad Air
iPod Touch 5th generation
The LED light on the Bluetooth Accessory
Module serves as a nightlight that can be
controlled with the remote control or with the
mobile APP.
STEP 1
STEP 2
Please use any of the previously listed devices
to log into the APP Store.
Type “Reverie Nightstand” in the search
column.
STEP 3
STEP 4
Select the reverie app.
Click install to download the app.
NOTE:
Once the App is installed, when you open
the app the Bluetooth Module will connect to
your device automatically.
Reverie Nightstand
NOTE:
Make sure the Reverie Nightstand APP
is the last thing open on your phone before
locking [putting your phone in sleep mode].

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
17
App User Guide
Home Screen
• Key features, functions and settings are accessible
from the home screen.
- Settings, Preset List, Comfort Settings, Routines,
Bluetooth, Nightlight, Home Tab, Position Tab,
Massage Tab, and Alarm Tab.
• Reverie Presets – Zero Gravity, Anti-Snore, and Flat
• Comfort Setting – Press “New +” to program a unique
head, foot and/or massage combination.
• Routines – Press “New +” to program a set of saved or
new comfort settings into a series of timed positions.
Position Control
• Control your head and foot elevation.
• Select the part of the bed you would like to elevate or
lower (head or foot).
along the curve to your desired elevation.
- Or press and hold the plus or minus
symbol to adjust elevation.
• Your position readout on a scale of 1-100 will appear
at the top of the screen and next to the head or foot
position.
Massage
• Control your massage intensity and duration.
• Full body – Turns on the full body function.
• Wave – Select number of alternating pulses at the
head and foot of the bed.
• Head and Foot control – Select massage intensity in
the head and foot sections of the bed.
desired intensity.
- Or press and hold the plus or minus symbol to
adjust intensity.
• Timer – Select your desired massage duration.
• Stop – Turns the massage off.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
18
App User Guide
Alarm
• Create an alarm setting to raise and/or massage you
awake.
• Press “New +” to create a new alarm setting.
- Set time: Scroll to select the hour, minute and day.
- Repeat: Select the days of the week you would
like the alarm to activate.
- Bed control: Select nothing or select a new or
existing comfort setting or routine.
- Snooze: Enable snooze.
Settings
• Customize your app in settings.
•
recommendations on custom settings for you.
• Bluetooth – Shows the bed your app is connected to.
Shows nearby beds that you can connect to in order of
proximity.
• Help – Contact info for technical support.
•
Dream or Dream Supreme mattress with these
• Factory Reset – Reset your app to original settings.
• Logout – Logout or create a new user.

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
19
LED SIGNATURE LIGHT
A. RAISE(+) I LOWER(-)
HEAD SECTION OF THE BASE
B. RAISE(+) I LOWER(-)
FOOT SECTION OF THE BASE
C. RETURN ALL SECTIONS TO THE FLAT
POSITION
D. SELECT 1 OF 4 MEMORY POSITIONS
E. ZERO GRAVITY
F. ANTI SNORE
G. INCREASE(+) I REDUCE(-) MASSAGE
INTENSITY ON FOOT SECTION OF THE BASE
H. INCREASE(+) I REDUCE(-) MASSAGE
INTENSITY ON HEAD SECTION OF THE BASE
I. STOP ALL MASSAGE FEATURES
J. SELECT 1 OF 2 MASSAGE WAVE SPEEDS
K. NIGHTLIGHT ON/OFF
Wireless Remote Control

CUSTOMER SERVICE: 800-973-8374
CUSTOMERSER[email protected]
20
OPERATING INSTRUCTIONS:
HEAD AND FOOT ADJUSTMENTS (A,B)
• Adjusts the head and foot sections to the
desired positions.
POWER BASE “FLAT” BUTTON (C)
•
when the button is pressed and held for at
least 1 second.
PROGRAMMABLE MEMORY
BUTTONS (D):
You can store 4 personalized memory
positions.
• To Set a Memory Position: When in desired
position, press and hold Memory button
for more than 5 seconds until the LED light
stored.
• To recall a Memory Position: Press Memory
button 1 - 4 until LED lights up.
ZERO GRAVITY(E)
• Allows your legs to be lifted to a position
slightly above the chest, which enables
heart, thus reducing stress and fatigue.
WAVE MASSAGE MODE (J)
• Choose one of two presets to turn on both
head and foot massage functions.
MASSAGE STOP BUTTONS (I)
• Press for 2 seconds to stop all massage
features.
NOTE: The “FLAT” cycle can be
interrupted and canceled by pressing the
head or foot adjustment buttons (A, B).
NOTE: Do not hold the memory button
for more than 5 seconds otherwise a new
memory position will be set.
NOTE: The lowest setting will turn off the
corresponding massage unit.
NOTE: You must stop the massage before
you can switch to another wave function or
to the full body massage.
NOTE: The massage feature is designed
to automatically shut off after 30 minutes of
continuous use.
ANTI SNORE (F)
• Raises the HEAD slightly for easier
breathing.
NIGHTLIGHT ON/OFF (K)
• Toggle between on/off functions.
HEAD AND FOOT MASSAGE CONTROLS
(G,H)
• Turns on the corresponding massage unit
(starting at intensity 5 of 10)
• Slowly increases or decreases massage
intensity. To increase massage intensity,
press (+) button. To decrease massage
intensity, press (-) button.
Remote Control Operation Guide
and here
