Revo TX341 User manual

1/6
TX341 Remote Electronic Ignition and Control System
OPERATING INSTRUCTIONS -FOR OEM USE ONLY
Fire or explosion hazard. Attempted disassembly or repair
of controls can cause property damage, severe injury or
death. Do not disassemble the gas valve; it contains no ser-
viceable components.
Read these instructions carefully. Failure to follow them
could result in a fire or explosion causing property dam-
age, personal injury, or loss of life. The product must be installed
and operated according to all local regulations.
A.
●Do not light any appliance.
●Do not touch any electrical switch; do not use any
phone in your building.
●
●If you cannot reach the gas supplier, call the fire de-
partment.
B. Use only your hand to push in or turn the gas control
knobs. Never use tools. If a knob will not push in or turn
by hand, don’t try to repair it, call a qualified service tech-
nician. Force or attempted repair may result in a fire or
explosion.
C. Do not use this control or any gas appliance if any part has
been under water or in contact with water. Immediately call
a qualified service technician to replace the control sys-
tem and any gas control system which has been under
water or in contact with water.
D. These instructions are to be referenced as a user guide,
and do not supersede appliance manufacturer’s lighting
instructions.
APPLICATION
TX341 is a battery-powered electronic remote ignition and
control system for gas appliances with pilot burners and ODS
systems.
GENERAL NOTES
TX341 IPI-8000
Radio frequency Remote
434 MHz for Europe, US, Canada;
⚠WARNING
NOTE: This device complies with part 15 of the FCC Rules. Oper-
ation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may
cause undesired operation. Changes or modifications not ex-
pressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency ener-
gy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful in-
terference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the follow-
ing measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
NOTE: This device complies with CAN ICES-3 (B)/NMB-3(B)
◆ This product meets the applicable Innovation, Science and
Economic Development Canada technical specifications.
Ce produit repond aux specifications techniques applicables a
l'innovation, Science et Developpement economique Canada.
◆ Canadian Compliance Statement
This device complies with Industry Canada license-exempt
RSSs. Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
Le present appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploita-
tion est autorisee aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage
radioelectrique subi, meme si le brouillage est suscepti-
ble d’en compromettre le fonctionnement.
Batteries - Remote Handset:
3 x1.5V “AAA” (quality alkaline recommended)
4.5V 100mA
Batteries - Receiver:
4 x 1.5V “AA” (quality alkaline recommended)
6.0V 1500mA
An AC Mains Adapter may be used instead of batteries
(only the Grand Mate or an AC Mains Adapter approved by
Grand Mate can be used).
NOTE: These remote handsets, receiver, wall switches, are not
interchangeable with previous versions.
For all lighting/ignition instructions please refer to appliance
manufacturer’s instructions.

TX341—Operating Instructions D03
2/6
TX341 SERIES REMOTE HANDSET FEATURES
Remote
Controller
434MHz
Unidirectional TX340 TX341
ON/ OFF ★★
Childproof ★★
Revo Home Compatible** ★★
Flame Height Adjustment ★★
Standing Pilot* ★★
LCD ★★
Low Battery Indicator ★★
Second Burner ★★
Thermostat ★★
Timer ★★
Error Code Notification** ★★
Fan Speed
Light Dimmer
AUX ON/ OFF
Fan Delay ON/ OFF
Clock ★
Daily Program Thermostat ★
3 Independent Access Keys
*Disabled for Europe
**ONLY for Bidirectional Model
TX340 TX341

TX341—Operating Instructions D03
3/6
SYMBOL
Figure 1: Symbol Display
SETTING TEMPERATURE SCALE
Choose Fahrenheit or Celsius from
slide switch.
After batteries installed, day setting:
Press or to select a number
to corresponding with the day of the
week (eg. 1= Monday, 2=Tuesday,
3=Wednesday, 4=Thu-rsday,
5=Friday, 6=Saturday, 7=Sunday).
Idle 10 seconds or press to con-
firm.
12/24 Hour setting:
Press or to select 12:HR or
24:HR
Idle 10 seconds or press to con-
firm.
SETTING DAY AND TIME
SETTING THE ELECTRONICS CODE
(First time use only)
●Slide the ON/OFF/REMOTE slide switch from OFF
to REMOTE mode. (see Figure 2).
●Press Pairing button, an acoustic signal and green
LED flashing. (see Figure 3).
●Within the subsequent 10 second press button
on the remote handset until you hear two (2) beep
confirming the code is set, receiver allow pairing up
to 3 remotes simultaneously.
Pres or to adjust Hour, Idle
10 seconds or press to confirm.
Press or to adjust minute,
Idle 10 seconds or press to
confirm.
After setting the time and temperature
scale , actual temperature display on
standby screen.

TX341—Operating Instructions D03
4/6

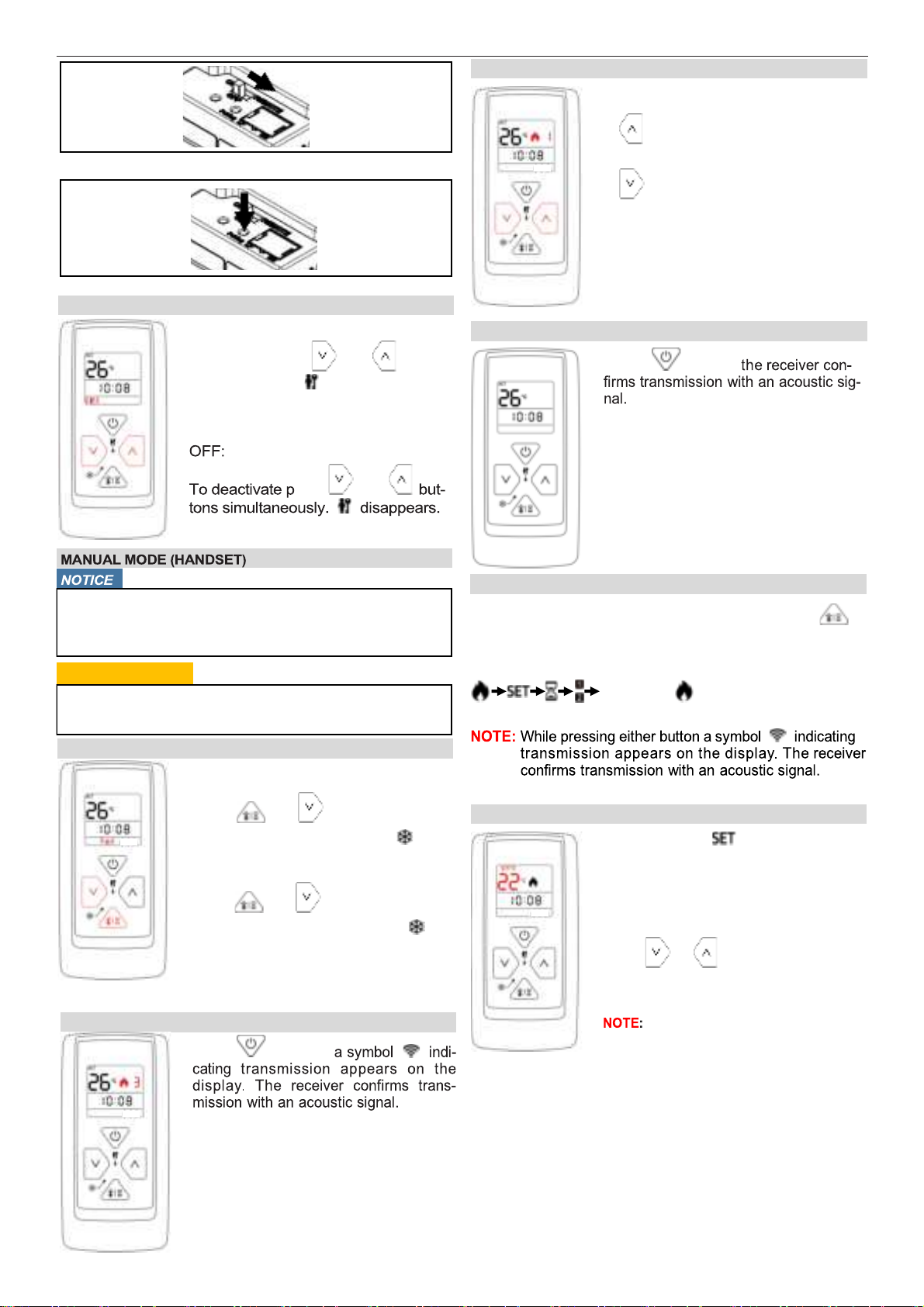

TURN ON THE FIRE
Press button ,
●Main burner and rear burner turn on
once pilot ignition is confirmed.
●Main gas goes Max flame height first,
and will goes last flame height memory.
●Handset automatically goes into Manual
mode after main burner ignition.
FLAME HEIGHT ADJUSTMENT
To increase flame height press
. Max flame height is 5.
To decrease flame height press
. Min flame height is 1.
TURN OFF THE FIRE
Press button,
NOTE: There is a 3 second delay
before the next ignition is
possible.
Figure 2: Slide to REMOTE mode
Figure 3: Press receiver’s pairing button
CHILDPROOF
ON:
To activate press and buttons
simultaneously. indicated and the
handset is rendered inoperable in-
clude the off function.
ress and
Wiring of valve and receiver must be completed be-
fore starting ignition. Failure to do so could damage
the electronics.
⚠WARNING
When pilot ignition is confirmed, main flame valve turn
on to maximum flame height.
STANDING PILOT
Handset
Press and hold button to acti-
vate appliance to standing pilot. indi-
cated.
Press and hold button to deac-
tivate appliance to standing pilot . dis-
appear.
NOTE: Standing pilot available to activate
or deactivate.
MODE OF THERMOSTAT – SET MODE
In Set mode, indicated. Room
temperature is measured from hand-
set and compared to the set tempera-
ture. The flame height modulated be-
tween last setting and off to achieve
the set temperature.
press or to change set tem-
perature.
The default set temperature is 22℃
(72℉). Set temperature range from
7℃(45℉) to 35℃(95℉).
CHANGING THE MODE OF THERMOSTAT
During the appliance flame on, briefly pressing the
button changes the mode of thermostat in the following
order:
and back to

TX341—Operating Instructions D03
5/6

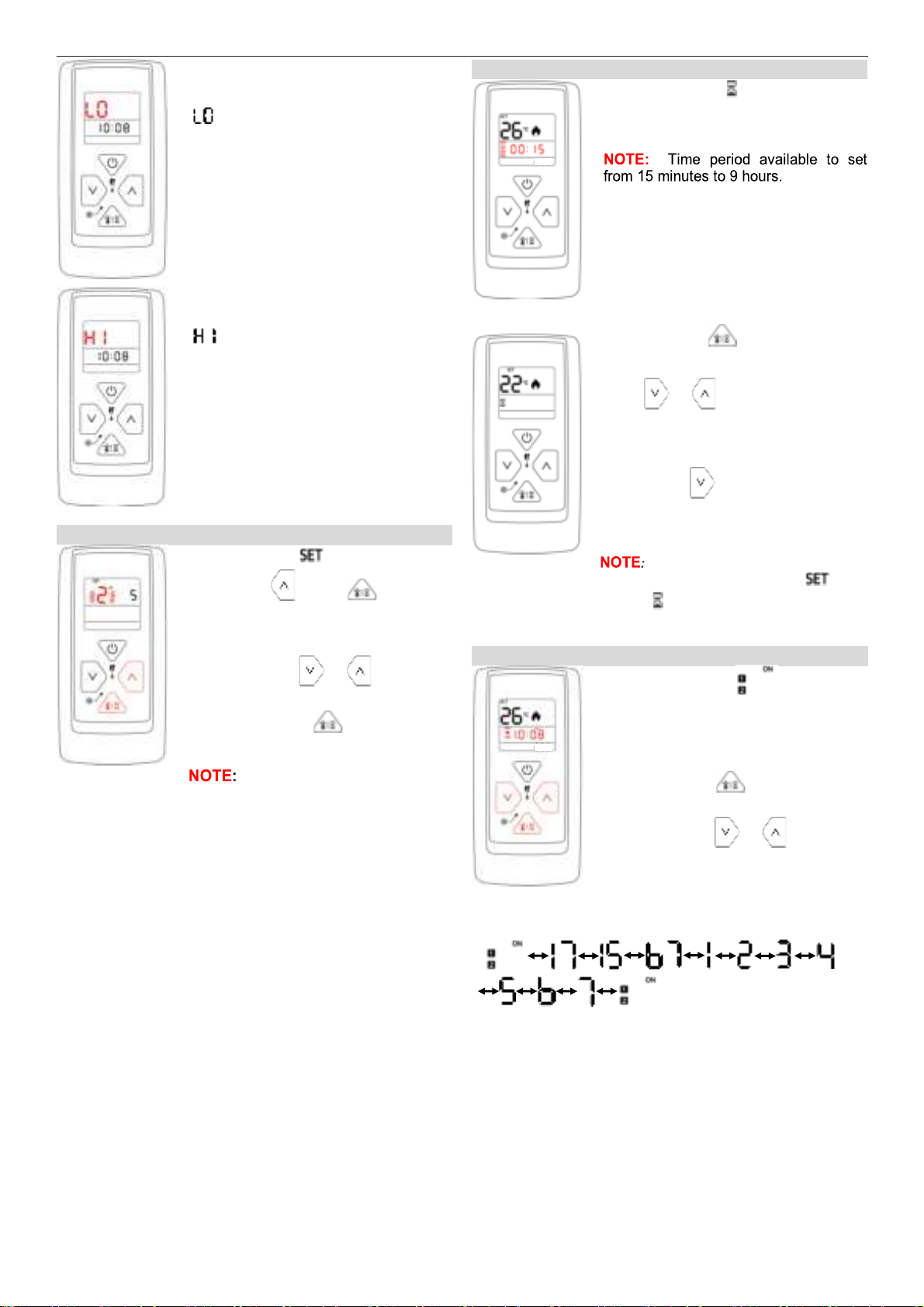

While ambient temperature equal or
lower than 10℃(50℉) will appear
.
Handset can still operate all the func-
tions except display ambient tempera-
ture, while ambient temperature high-
er than 10℃(50℉) then recovery dis-
play .
MODE OF OPERATION – TIMER MODE
In Timer mode, indicated. At the
end of countdown time period, the fire
turns off.
MODE OF OPERATION – PROGRAM MODE
While ambient temperature equal or
greater than 37℃(99℉) will appear
.
Handset will transmit a shutdown sig-
nal to appliance.
In program mode, indicated.
Appliance thermostat according to set
temperature and period between ON
time and OFF time.
Press and hold to enter settings.
Briefly pressing or button to
changes the mode of thermostat in
the following order:
Press and hold to check the tim-
er mode set temperature.
Press or to change set tem-
perature.
To cancel thermostat function in timer
mode, press to change set tem-
perature to -- .
There are individual set tem-
perature memories for and
. Set temperature show for
5 seconds every 25 seconds.
MODE OF THERMOSTAT – SWING
In Set mode, indicated. press
and hold and to enter
SWING setting.
Briefly pressing or button to
changes the range of SWING, idle 10
seconds or press to confirm.
The THERMO mode on the trans-
mitter operates with TEMPERA-
TURE DIFFERENTIAL (also
called variation “SWING”).
A lower SWING increases the
number of cycles so the room
temperature is updated more of-
ten which consume more battery
power. A higher SWING decreas-
es the number of cycles, so the
tolerance of ROOM temperature is
higher, but it lower consume from
battery.
While ℉ selected, default SWING
is 2℉. SWING range from ±2℉,
±4℉, ±6℉, ±8℉.
While ℃ selected, default SWING
is 1℃. SWING range from ±1℃,
±2℃, ±3℃, ±4℃.

TX341—Operating Instructions D03
6/6
Briefly pressing or to
can check ON Temp default is 22℃
(72℉).
Press to enter ON Temp setting,
pressing or to change the
temperature, press or idle for 10
sec to save and exit to next setting.
Except , press to enter
ON time and OFF time setting, to
change the time, press ,then
press or to change the hour,
press or idle for 10 sec to enter
minute setting.
Press or to change the mi-
nute, press or idle for 10 sec
save and exit to next setting.
Setting follow the sequence of :
ON OFF ON OFF
While complete all settings, Idle for 10 sec to save and
exit to program mode.
●Default settings:
Program 1 : ON : 23:45 OFF: 23:45
Program 2 : ON : 23:45 OFF: 23:45
●Two ON times can be programmed per day
●The ON/OFF times have to be programmed in the order
ON ≤ OFF< ON ≤OFF
●If ON = OFF or ON = OFF the timer is deactivat-
ed.
To have the fire overnight, it can be set: OFF 23:50
and ON 0:00
Only one set temperature memory for
= Set Temp while ON
= Monday to Sunday = Wednesday
= Monday to Friday = Thursday
= Saturday to Sunday = Friday
= Monday = Saturday
= Tuesday = Sunday
SLEEP MODE
While handset is idle for 1 minutes, it
will turn into sleep mode.
Clock will remain working, and display
ambient temperature.
MISCELLANEOUS
Low Battery Indication
Low battery indicator indicated.
Battery replacement
Battery replacement is recommended at the beginning of
each heating season. Do not use metal tools to remove bat-
teries. Using a metal tool could cause a short that may
damage the receiver.
Factory reset
Remove battery, press and hold and install battery,
backlight flash rapidly 3 times represent factory reset com-
plete.
Dexen Industries, Inc
9220 Norwalk Blvd
Santa Fe Springs, CA 90670
Tel: [phone]
