TX343 Remote Electronic Ignition and Control System
OPERATING INSTRUCTIONS -FOR OEM USE ONLY
Fire or explosion hazard. Attempted disassembly or repair of con-
trols can cause property damage, severe injury or death. Do not
disassemble the gas valve; it contains no serviceable components.
Read these instructions carefully. Failure to follow them could re-
sult in a fire or explosion causing property damage, personal inju-
ry, or loss of life. The product must be installed and operated according
to all local regulations.
A.
●Do not light any appliance.
●Do not touch any electrical switch; do not use any phone in
your building.
●
●If you cannot reach the gas supplier, call the fire department.
B. Use only your hand to push in or turn the gas control
knobs. Never use tools. If a knob will not push in or turn by
hand, don’t try to repair it, call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
C. Do not use this control or any gas appliance if any part has been
under water or in contact with water. Immediately call a qualified
service technician to replace the control system and any gas
control system which has been under water or in contact with
water.
D. These instructions are to be referenced as a user guide, and do
not supersede appliance manufacturer’s lighting instructions.
APPLICATION
TX343 is a battery-powered electronic remote ignition and
control system for gas appliances with pilot burners and ODS
systems.
GENERAL NOTES

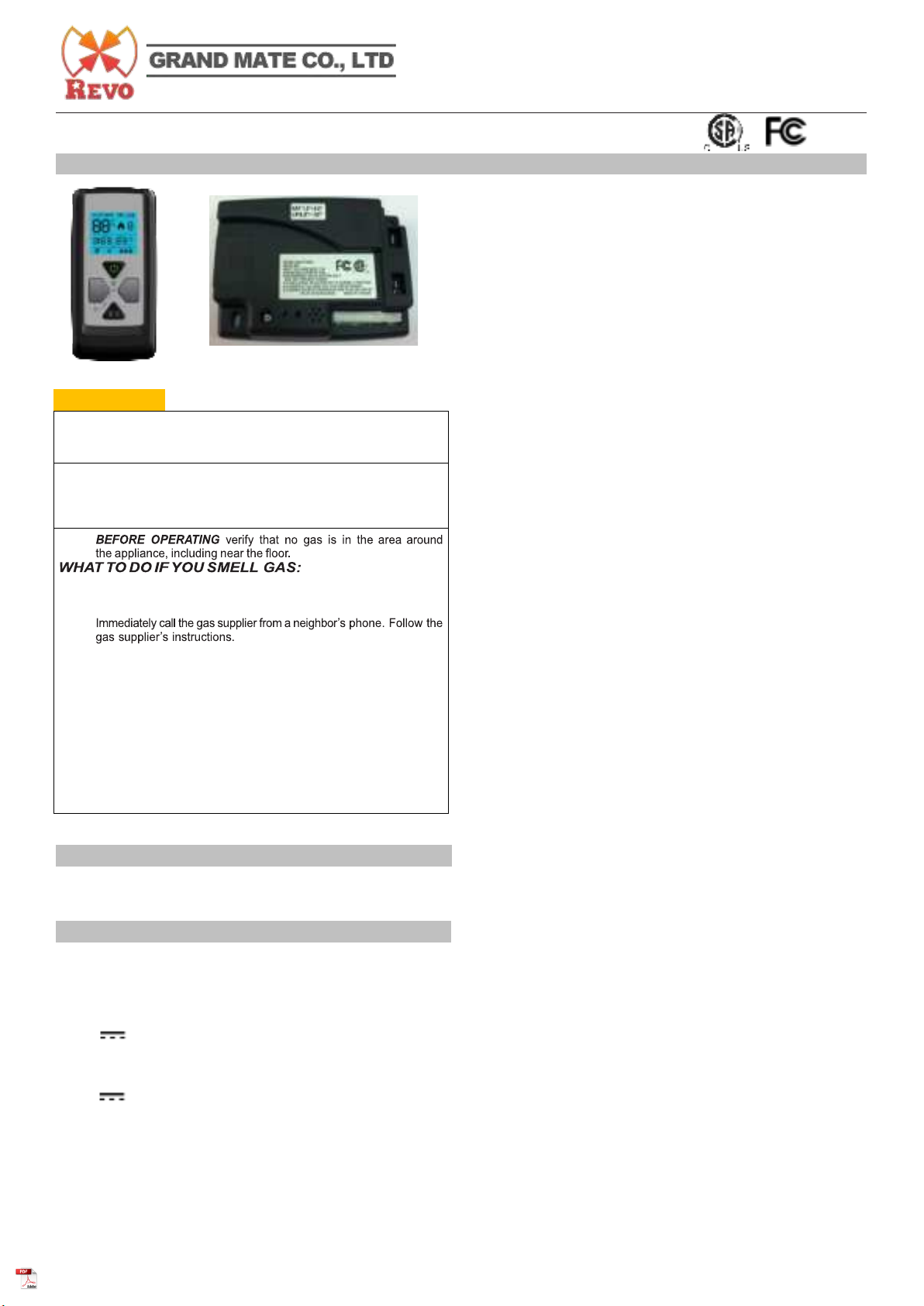

TX343
Radio frequency Remote
315 MHz for US, Canada;
⚠WARNING
NOTE: This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate the equip-
ment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accord-
ance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compli-
ance with FCC exposure compliance requirement, please follow opera-
tion instruction as documented in this manual.
NOTE: This device complies with CAN ICES-3 (B)/NMB-3(B)
◆ This product meets the applicable Innovation, Science and Economic
Development Canada technical specifications.
Ce produit repond aux specifications techniques applicables a l'inno-
vation, Science et Developpement economique Canada.
◆ Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs.
Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d’Industrie Canada appli-
cables aux appareils radio exempts de licence. L’exploitation est
autorisee aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioelec-
trique subi, meme si le brouillage est susceptible d’en compro-
mettre le fonctionnement.
◆ ISED RF exposure statement
This equipment complies with ISED radiation exposure limits set forth
for an uncontrolled environment. This transmitter must not be co-
located or operating in conjunction with any other antenna or trans-
mitter.
Cet équipement est conforme aux limites d'exposition aux rayonne-
ments ISED établies pour un environnement non contrôlé. Cet
émetteur ne doit pas être co-localisé ou fonctionner en conjonction
avec une autre antenne ou un autre émetteur.
Batteries - Remote Handset:
3 x1.5V “AAA” (quality alkaline recommended)
4.5V 100mA
Batteries - Receiver:
4 x 1.5V “AA” (quality alkaline recommended)
6.0V 1500mA
NOTE: These remote handsets, receiver, wall switches, are not
interchangeable with previous versions.
For all lighting/ignition instructions please refer to appliance
manufacturer’s instructions.
GM8K-935
An AC Mains Adapter may be used instead of batteries
(only the Grand Mate or an AC Mains Adapter approved by
Grand Mate can be used).

TX343—Operating Instructions D03
2/6
TX343 SERIES REMOTE HANDSET FEATURES
Remote
Controller
315MHz
Unidirectional TX342 TX343
ON/ OFF ★★
Childproof ★★
Revo Home Compatible** ★★
Flame Height Adjustment ★★
Standing Pilot* ★★
LCD ★★
Low Battery Indicator ★★
Second Burner
Thermostat ★★
Timer ★★
Error Code Notification** ★★
Fan Speed
Light Dimmer
AUX ON/ OFF
Fan Delay ON/ OFF
Clock ★
Daily Program Thermostat ★
3 Independent Access Keys
*Disabled for Europe
**ONLY for Bidirectional Model
TX342 TX343

TX343—Operating Instructions D03
3/6
SYMBOL
Figure 1: Symbol Display
SETTING TEMPERATURE SCALE
Choose Fahrenheit or Celsius from
slide switch.
After batteries installed, day setting:
Press or to select a num-
ber to corresponding with the day of
the week (eg. 1= Monday,
2=Tuesday, 3=Wednesday, 4=Thu-
rsday, 5=Friday, 6=Saturday,
7=Sunday).
Idle 10 seconds or press to
confirm.
12/24 Hour setting:
Press or to select 12:HR
or 24:HR
Idle 10 seconds or press to con-
firm.
SETTING DAY AND TIME
SETTING THE ELECTRONICS CODE
(First time use only)
●Slide the ON/OFF/REMOTE slide switch from OFF
to REMOTE mode. (see Figure 2).
●Press Pairing button, an acoustic signal and green
LED flashing. (see Figure 3).
●Within the subsequent 10 second press button
on the remote handset until you hear two (2) beep
confirming the code is set.
Press or to adjust Hour,
Idle 10 seconds or press to
confirm.
Press or to adjust mi-
nute, Idle 10 seconds or press
to confirm.
After setting the time and temperature
scale , actual temperature display on
standby screen.

TX343—Operating Instructions D03
4/6
Figure 2: Slide to REMOTE mode
Figure 3: Press receiver’s pairing button
TURN ON THE FIRE
Press button ,
●Main burner and rear burner turn on
once pilot ignition is confirmed.
●Main gas goes Max flame height first,
and will goes last flame height memory.
●Handset automatically goes into Manual
mode after main burner ignition.
CHILDPROOF
ON:
To activate press and but-
tons simultaneously. indicated
and the handset is rendered inopera-
ble include the off function.
ress and
Wiring of valve and receiver must be completed be-
fore starting ignition. Failure to do so could damage
the electronics.
⚠WARNING
When pilot ignition is confirmed, main flame valve turn
on to maximum flame height.
STANDING PILOT
Handset
Press and hold button to acti-
vate appliance to standing pilot. indi-
cated.
Press and hold button to de-
activate appliance to standing pilot .
disappear.
NOTE: Standing pilot available to activate
or deactivate.
FLAME HEIGHT ADJUSTMENT
To increase flame height press
. Max flame height is 5.
To decrease flame height press
TURN OFF THE FIRE
Press button,
NOTE: There is a 3 second delay
MODE OF THERMOSTAT – SET MODE
In Set mode, indicated. Room
temperature is measured from hand-
set and compared to the set tempera-
ture. The flame height modulated be-
tween last setting and off to achieve
the set temperature.
press or to change set
temperature.
The default set temperature is 22℃
(72℉). Set temperature range from
CHANGING THE MODE OF THERMOSTAT
During the appliance flame on, briefly pressing the
button changes the mode of thermostat in the following
order:
and back to

TX343—Operating Instructions D03
5/6

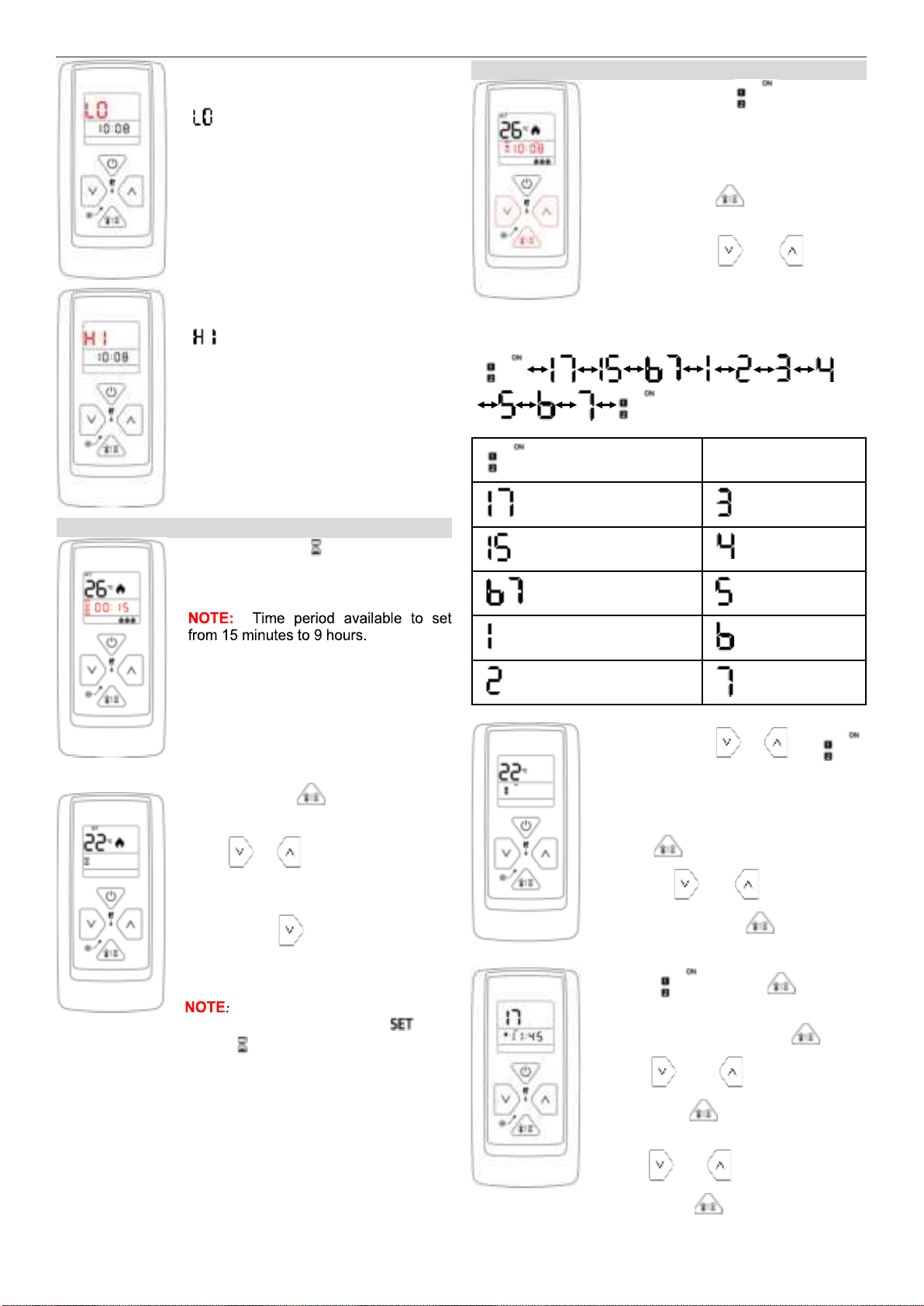

While ambient temperature equal or
lower than 10℃(50℉) will appear
.
Handset can still operate all the func-
tions except display ambient tempera-
ture, while ambient temperature high-
er than 10℃(50℉) then recovery dis-
play .
Briefly pressing or to
can check ON Temp default is 22℃
(72℉).
Press to enter ON Temp setting,
pressing or to change the
temperature, press or idle for 10
sec to save and exit to next setting.
Except , press to enter
ON time and OFF time setting, to
change the time, press ,then
press or to change the
hour, press or idle for 10 sec to
enter minute setting.
Press or to change the mi-
nute, press or idle for 10 sec
save and exit to next setting.
MODE OF OPERATION – TIMER MODE
In Timer mode, indicated. At the
end of countdown time period, the fire
turns off.
MODE OF OPERATION – PROGRAM MODE
While ambient temperature equal or
greater than 37℃(99℉) will appear
.
Handset will transmit a shutdown sig-
nal to appliance.
In program mode, indicated.
Appliance thermostat according to set
temperature and period between ON
time and OFF time.
Press and hold to enter settings.
Briefly pressing or button
to changes the mode of thermostat in
the following order:
= Set Temp while ON
= Monday to Sunday = Wednesday
= Monday to Friday = Thursday
= Saturday to Sunday = Friday
= Monday = Saturday
= Tuesday = Sunday
Press and hold to check the tim-
er mode set temperature.
Press or to change set tem-
perature.
To cancel thermostat function in timer
mode, press to change set tem-
perature to -- .
There are individual set tem-
perature memories for and
. Set temperature show for
5 seconds every 25 seconds.

TX343—Operating Instructions D03
6/6

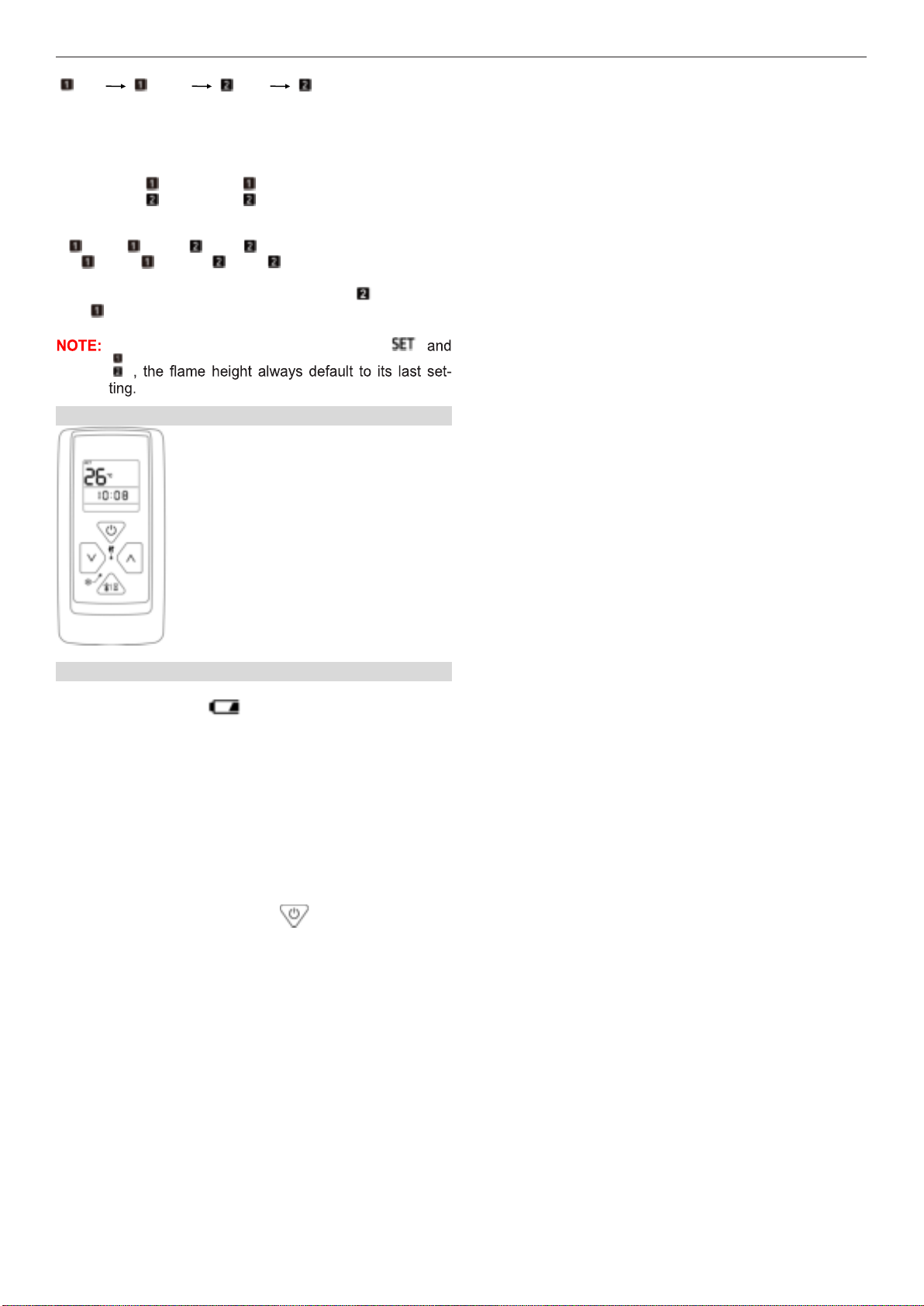

Setting follow the sequence of :
ON OFF ON OFF
While complete all settings, Idle for 10 sec to save and
exit to program mode.
●Default settings:
Program 1 : ON : 23:45 OFF: 23:45
Program 2 : ON : 23:45 OFF: 23:45
●Two ON times can be programmed per day
●The ON/OFF times have to be programmed in the order
ON ≤ OFF< ON ≤OFF
●If ON = OFF or ON = OFF the timer is deactivat-
ed.
To have the fire overnight, it can be set: OFF 23:50
and ON 0:00
Only one set temperature memory for
SLEEP MODE
While handset is idle for 1 minutes, it
will turn into sleep mode.
Clock will remain working, and display
ambient temperature.
MISCELLANEOUS
Low Battery Indication
Low battery indicator indicated.
Battery replacement
Battery replacement is recommended at the beginning of
each heating season. Do not use metal tools to remove bat-
teries. Using a metal tool could cause a short that may
damage the receiver.
Factory reset
Remove battery, press and hold and install battery,
backlight flash rapidly 3 times represent factory reset com-
plete.
Dexen Industries, Inc
9220 Norwalk Blvd
Santa Fe Springs, CA 90670
Tel: [phone]
