REVOLABS FLX2TM
Wireless Conference System
for analog phone lines
System Guide
Models:
10-FLX2-200-POTS 10-FLX2-020-POTS 10-FLX2-002-POTS 10-FLX2-101-POTS
10-FLX2-200-DUAL-POTS

2
© 2011-2013 REVOLABS, INC. All rights reserved. No part of this document may be
reproduced in any form or by any means without express written permission from
Revolabs, Inc. Product specifications are subject to change without notice.
Revolabs FLX2 System Guide – Analog
10-FLX2SYSGUIDE-EN
April 2013 (Rev 2.1.0)

3
Important Information
Analog Telephone
This Revolabs FLX is an analog telephone. Connecting this telephone to a digital phone line
will cause irreparable damage to the phone and will void your warranty!
If you are unsure about the type of phone line connection your telephone outlet provides,
consult with the person managing your telephone network to ensure it is an analog outlet
before connecting the FLX.
Introduction
Congratulations on your purchase of the Revolabs FLX2TM Wireless Conference Phone.
This system utilizes state of the art technology providing high band-width audio and
enabling clear, reliable, un-tethered communications with your telephone, PC, mobile
device, and video conferencing system.
The Revolabs FLX2 Conferencing Phone allows enhanced freedom for telephone and
video conferences by allowing independent locations of the microphones and the
speaker used during the call.
The FLX2 Conference Phone utilizes encrypted digital communication for its wireless
transport, ensuring highest security for your conversations. The FLX2 Conference
Phone is a flexible solution for all your communication needs, allowing it to be used in
your telephone network, for your video conferences, and with your Bluetooth enabled
cell phone or computer.
Welcome to the 21st century Unified Communications Technology!
Please read this documentation carefully and follow the instructions before using your
FLX2 Wireless Conference phone.

4
Safety Warnings
•Do not expose any of the FLX2 components to water, moisture, or high humidity.
•Do not expose any of the FLX2 components to extreme high or low temperatures.
•Do not expose any of the FLX2 components to lit candles, cigarettes, cigars, or to
open flames, etc.
•Do not drop, throw, or try to bend any of the components, as rough treatment could
damage them.
•Do not open the casings of any of the components of the FLX2 Conference Phone
•Do not use any other accessories than Revolabs’ originals intended for use with
this product. Use of non-original accessories may result in loss of performance,
damage to the product, fire, electric shock or injury. The warranty does not cover
product failures which have been caused by use of non-original accessories.
•Only use the power adapters provided to connect the components to the electric
mains.
•Please note the two different power supplies delivered with the Conference Phone.
Ensure that you connect the right power supply with the FLX2 Base Station and
the FLX2 Charging Tray, respectively.
•Do not open or try to modify any of the batteries delivered with the FLX2
Conference Phone components. Replace batteries only with Revolabs approved
batteries.
•Extreme heat, short circuits, or any attempt to open or modify the batteries might
cause them to ignite or explode.

5
Contents
Important Information........................................................................................................................ 3
Analog Telephone ................................................................................................................................. 3
Introduction ............................................................................................................................................ 3
Safety Warnings..................................................................................................................................... 4
Contents.................................................................................................................................................... 5
General Information ............................................................................................................................ 7
Quick setup for Telephone Conference Calls............................................................................... 8
Description ............................................................................................................................................11
Unpacking......................................................................................................................................................... 11
Installing FLX2 Components ...........................................................................................................12
FLX2 Base Station .......................................................................................................................................... 12
FLX2 Charger Base......................................................................................................................................... 13
FLX Dialer ......................................................................................................................................................... 14
FLX Speaker ..................................................................................................................................................... 15
FLX Microphones ........................................................................................................................................... 16
Initial Setup...................................................................................................................................................... 17
Managing A Call....................................................................................................................................18
Calling Configurations.................................................................................................................................. 18
FLX Home Screen ........................................................................................................................................... 20
Placing a Telephone Call ............................................................................................................................. 21
Answering an Incoming Telephone Call................................................................................................ 22
Ignoring an Incoming Telephone Call .................................................................................................... 22
Ending a Telephone call ............................................................................................................................. 23
Calling a Directory Contact......................................................................................................................... 23
Active Call Management .............................................................................................................................. 23
Charging Components during a Call........................................................................................................ 25
Bluetooth................................................................................................................................................26
Activating Bluetooth..................................................................................................................................... 26
Managing the Device Registry................................................................................................................... 26
Making a call via Bluetooth ........................................................................................................................ 29
Answering a call via Bluetooth ................................................................................................................. 29
Video Conference Collaboration ....................................................................................................30
Connecting a Video Conference System................................................................................................. 30
Configuring the Analog Audio ................................................................................................................... 30
Making a Video Call ....................................................................................................................................... 30
Mixing the audio signals.............................................................................................................................. 31
FLX2 System Configuration..............................................................................................................32
Menu Hierarchy.............................................................................................................................................. 32
Menu Navigation ............................................................................................................................................ 32
Recent Calls...................................................................................................................................................... 33

6
Contacts............................................................................................................................................................. 35
Audio Control .................................................................................................................................................. 38
Device Status ................................................................................................................................................... 40
System Information ...................................................................................................................................... 40
Bluetooth .......................................................................................................................................................... 41
Home .................................................................................................................................................................. 41
Call....................................................................................................................................................................... 41
Setup................................................................................................................................................................... 41
Power On/Off the System Components .......................................................................................49
Battery Exchange.................................................................................................................................50
Microphones .................................................................................................................................................... 50
Dialer.................................................................................................................................................................. 51
Speaker.............................................................................................................................................................. 51
Connecting using AUX IN / AUX OUT............................................................................................52
Troubleshooting..................................................................................................................................53
Warning Messages......................................................................................................................................... 53
Microphone, Speaker, or Dialer not connecting to Base Station .................................................. 54
Microphone, Speaker, or Dialer not paired with Base Station ...................................................... 55
Telephone Interface problems ................................................................................................................. 55
Cannot dial numbers .................................................................................................................................... 55
Two phones using the same extension .................................................................................................. 55
LED Indicators................................................................................................................................................. 55
Reset to Factory Defaults ............................................................................................................................ 58
Technical Specifications ...................................................................................................................58
Models................................................................................................................................................................ 58
Regulatory Information ....................................................................................................................60
FCC Notice to Users........................................................................................................................................ 60
Industry Canada Notice to Users .............................................................................................................. 60
Restricted use with certain medical devices ....................................................................................... 61
Export Law Assurance.................................................................................................................................. 61
North American UPCS Usage Restriction............................................................................................... 61
European Union Usage Restriction ......................................................................................................... 61
WEEE Notification.......................................................................................................................................... 61
Limited Warranty and Limitation of Liability...........................................................................64
GPL LICENSED SOFTWARE ...............................................................................................................66
GNU GENERAL PUBLIC LICENSE................................................................................................................ 66
Technical Support ...............................................................................................................................71

7
General Information

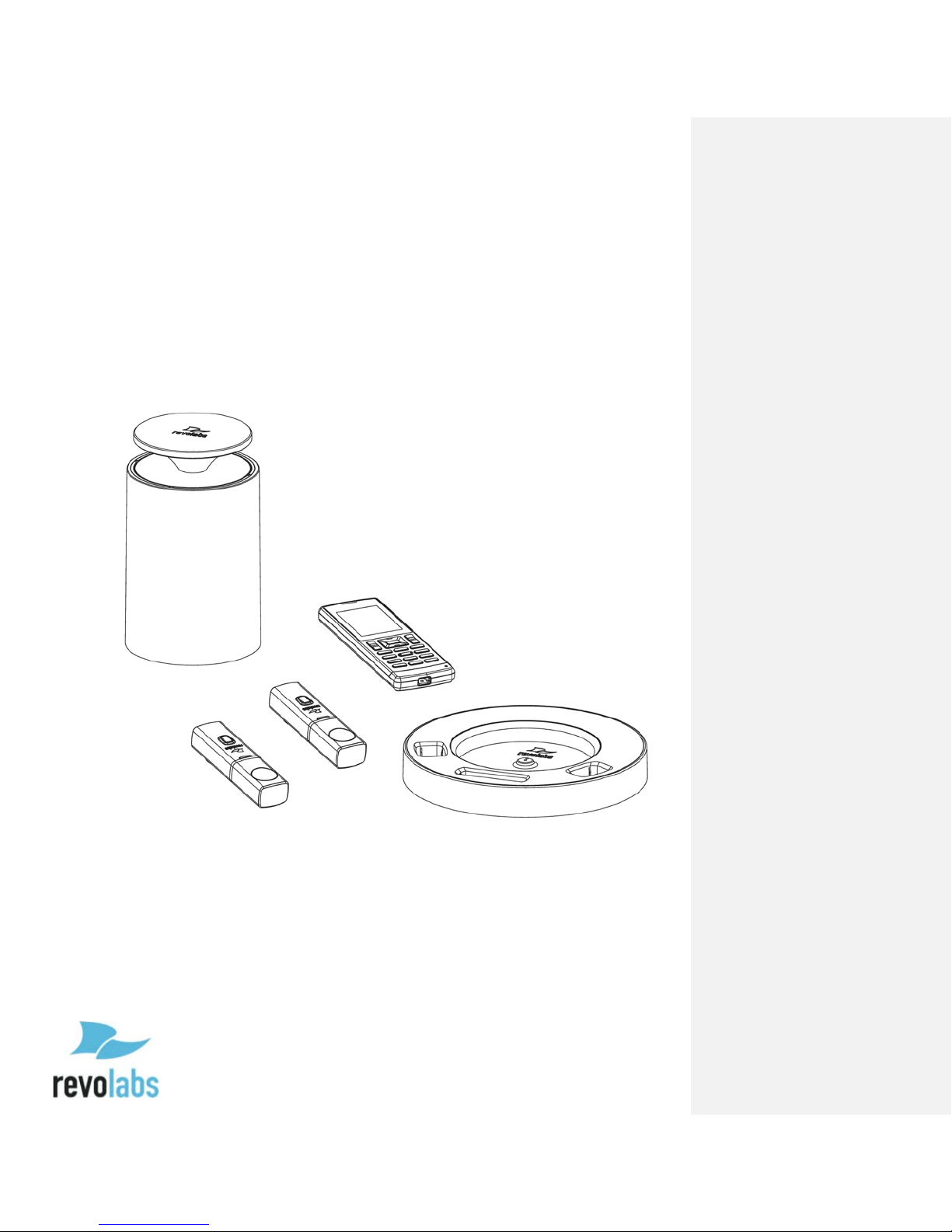

The Revolabs FLX2 Conference Phone includes several components which, in the sum,
make up the conferencing phone. The components are the Charger Base, Speaker,
Microphones, and Dialer (handset).
In addition, the Base Station receives the wireless signals from those components and
connects into your telephone network for conference calls, with your video conferencing
unit to provide outstanding audio for your video calls, or to your Bluetooth enabled
device such as a cell phone.

8
Quick setup for Telephone Conference Calls
While all components delivered with the Revolabs FLX2 Conference Phone are partially
charged, we recommend charging the Speaker, the Microphones, and the Dialer for at
least 8 hours or overnight before configuring and using the system.
Please note that the Revolabs FLX2 Conference Phone comes with two different power
supplies. Please ensure that you are using the correct power supply when connecting
the Base Station and the Charger Base.
Connecting the Base Station
Place the Base Station close to the analog
telephone outlet you want to use for the
conference phone. Connect the Base Station to
the telephone network using the provided RJ 11
Telephone cable. Use the 5 Volt power supply to
connect the Base Station to the power outlet.
The Base Station will power up.
Connecting the Charger Base
Place the Charger Base at a location where you
can easily access the Microphones and the
Speaker for your conference calls, e.g. on a side
board, a desk, or the conference table. Connect
the Charger Base to the power outlet using the
provided 12-15V power supply. Place the
Speaker, the Microphones, and the Dialer in the
respective openings of the Charger Base to
charge them.
The Dialer and Speaker will automatically connect
to the Base Station after a short time if it is
powered up. You will hear a confirmation chime
from the Speaker once the system is ready for
use. If the Speaker or the Dialer is not powered
up, take them out of the Charger Base for a few
seconds and put them back in. This will switch on
the component.
To switch on the microphones
take them out of the charger
base. They will automatically
power up and connect to the
base station.

9
Configuring the system
Before using the conference phone for the first time, the
FLX2 will walk you through some configuration setup.
First, it will ask for the language to use. The six options
are English, Español (Spanish), Français (French),
Deutsch (German), Italiano (Italian), and Português
(Portuguese). Highlight the language of your choice,
and press either “Enter” or “Select” on the Dialer to
select it. Once a language is select, the system will use
that language for all screen contents. Please ensure
that you selected the right one. If the wrong language
was selected, it can be changed in the advanced setup
menu of the dialer, however you will have to navigate
through screen content in the selected language to get
there.
Once the language is selected, the system will ask for
the region or country in which the system is used. This
setting is required to configure the telephone interface of
the FLX for the requirements of that country or region. If
your country or region is not in the list, please contact
Revolabs support.
Lastly, the system will ask for date and time settings.
Please enter the current time and date.
Language, country / region, and time settings can be
changed in the menu on the dialer. The corresponding
menus are described later on in this document.
Making a call
To make a conference call, take at least one of the
Microphones out of the Charger Base, and take the Dialer out of the Charger Base.
You can remove all Microphones and the Speaker if you wish, but this is not required.
Use the Dialer to enter the number you want to call, including any leading digits your
telephone connection might require. The Speaker and any Microphone that is not in the
Charger Base will be active during the call. To finish a conference call, press the red
hang-up button on the Dialer.
NOTE: It is also possible to have a conference call with the
microphones in the charger base. However, due to the
proximity of microphone and speaker at that time, audio
quality might be impacted. The maximum volume of the
speaker is limited while the microphones are in the charger
base. Microphones that are placed into the charger base are
switched off. To use microphones in the charger base for
phone calls they first have to be switched on. You do this by
Comment [HS1]: Add picture of country /
region selection during start-up

10
pressing the button on the microphone while it is in the
charger. The microphone will start in a muted state. Once it
starts blinking red, unmute it by pressing the mute button once
again. Microphones in the charger base never transmit audio
to the AUX OUT connector. If any microphone is active
outside of the charger base, microphones in the charger base
cannot be activated (unmuted) for the call.
To make a call using the Dialer as a handset, make sure that all Microphones are in the
Charger Base before starting to dial the number. At this point, only the Dialer will be
used for the call. To end the call, press the red hang-up button on the Dialer.
At any time during a call you can toggle between handset and conference phone mode
using the buttons on the Dialer.
To answer a call using the conference phone, simply remove one or more Microphones
from the Charger Base when the Speaker rings. If a microphone is already out of the
charger base when an incoming call comes in, pressing the button on the microphone
will answer the call in conference phone mode. You can also use the Dialer to answer
the call by pressing the green call button on the handset. If all microphones are in the
charger at this time, the call will be answered using the handset mode. If at least one
microphone is switched on and not in the charger base, this will answer the call in
Conference phone mode.

11
Description
The Revolabs FLX2™Wireless Conference Phone is a unique marriage of innovative
technology and ergonomic design, allowing for an unparalleled experience when
making telephone calls, video conference calls, or using it with your Bluetooth enabled
cell phone or computer to make speaker phone calls.
The technology used allows the Microphones, the Dialer, and the Speaker to co-exist
with other wireless products such as wireless LANs (802.11b&g&n) without interference.
The Revolabs FLX2 Conference Phone includes digital encryption technology to ensure
secure wireless communications between the Microphones, Speaker and the Base
Station.
Unpacking
Your Revolabs FLX2™ Conference Phone package contains the following items. When
unpacking the system be sure to take inventory of all parts to ensure that nothing is
missing. If parts are missing, please contact your retailer.
•FLX2 Base Station
•FLX2 Charger Base
•FLX Speaker
•FLX Dialer
•2 FLX Microphones
•1 12-15V AC adapter for the Charger Base
•1 5V AC adapter for the Base Station
•RJ11 Telephone Cable
•Quick Setup Guide
•Quick User Guide
The 10-FLX2-200-DUAL-POTS additionally includes:
•A second FLX2 Charger Base
•A second FLX Speaker
•A second 12-15V AC adapter for the Charger Base

12
Installing FLX2 Components
The Revolabs FLX2TM System is comprised of several components that work together
to provide you with a great wireless conferencing system. These components must be
setup correctly for optimal performance of the system.
FLX2 Base Station
The Base Station is the wireless receiver and sender of the audio stream from the
Microphones and to the Speaker, as well as to the Dialer. It features the ability to
connect two Revolabs FLX Microphones and one Speaker wirelessly.
The Base Station is designed to optimize audio and video conferencing by providing
consistent audio input from all participants.
The FLX2 POTS Base Station is shown in rear panel view below. It is equipped with a
telephone connection to connect to an analog telephone output, a DC power
connection, two mini-USB ports for firmware updates, and analog audio input/output
connections for video conferencing collaboration or for recording.
NOTE: The Base Station comes equipped with the necessary
cables and power supplies to perform an analog telephone
conference call. Other types of conference calls performed with
FLX2 may require additional cables that are not part of the
delivery.

13
FLX2 Charger Base
The FLX2 Charger Base, shown below, provides charging capabilities for all battery
operated system components, including the Dialer, the Speaker, and the Microphones,
by allowing them to charge in one simple and organized location.
The FLX2 Charger Base is not required while in a conference call, however it can
maintain the charge of the FLX Speaker and FLX Dialer while a call is in progress. The
Charger Base is equipped with a DC power connection and a mini-USB connection for
firmware updates to the Dialer.

14
FLX Dialer
The FLX Dialer equips the user with an intuitive and interactive tool for configuring and
operating the FLX System.
The Dialer is not only used to make and answer conference calls, but it is also used for
configuring the system settings, having a call using the handset, and monitoring the
system components.
The FLX Dialer, shown below, is composed of several parts such as a color LCD
screen, a compilation of buttons, and a microphone and handset speaker.

15
FLX Speaker
The FLX Speaker, shown below, is a wireless active omnidirectional speaker that has
been designed and optimized specifically for use with the FLX Conferencing System.
The Speaker is equipped with a pairing button on the bottom and 4 LED indicators on
the top to display the activity of the Speaker and the mute status of the system. The
Speaker can operate in or out of the Charger Base during conference calls.

16
FLX Microphones
The FLX Microphones provide a sleek and unobtrusive form factor allowing for closer
proximity to the participants and creating the best audio available to the far end. They
are equipped with a button for pairing and muting, an LED indicator to display mute
status and battery charge level, and an internal buzzer to warn if the Microphones have
lost connection to the Base Station.
The FLX Microphones, shown below, come in three different versions to provide a
flexible solution to meet all applications of conferencing spaces. Microphone types
include an omnidirectional tabletop Microphone, a directional tabletop Microphone, and
a wearable lapel style Microphone. Any combination of two FLX Microphones can be
used with a FLX System as they are mix and match.
FLX Microphones will operate in or out of the Charger Base. It is recommended to
always remove the microphones from the charger tray for conference calls as audio on
the speaker and the microphones is limited while in the charger base. When using
Microphones in the charger tray system behavior is automatically adjusted to the close
proximity of speaker and microphones. See the note on page 9 on how to activate
microphones in the charger.
Omnidirectional
Tabletop
Microphone
Directional
Tabletop
Microphone
Wearable Lapel
Microphone

17
Initial Setup
After unpacking the FLX2 Conferencing System, there are a few initial setup tasks that
must be performed before a call can take place or any system configuration can be
changed.
Connecting System Cables
The FLX2 Base Station and Charger Base each have a power supply that need to be
connected, as shown below. In addition, the Base Station needs to be connected to the
telephone network using the provided RJ11 telephone cable before a conference call
can be made. The Base Station offers additional optional connections that are only
being used when the FLX2 System for example is connected to a video conferencing
unit or a recording device. The cables required for these connections are not included
with the FLX2 system and need to be purchased separately.
System Setup
Before using the FLX2 to make a call, some system
settings need to be selected. When taking the handset out
of the charger base, it will show a screen that asks you for
the language to be used. The six options are English,
Español (Spanish), Français (French), Deutsch (German),
Italiano (Italian), and Português (Portuguese). Please
select the language of your choice.
Note: If a wrong language was selected at this time, it can be
change it later on in the admin area in the dialer menus.
However, you will have to navigate through the menu to get to
that option using the language you selected. So be careful that
you do not select a language you are unfamiliar with.

18
Once the language is selected, the FLX2 will ask for the
country / region in which the system is being used. Select
the country or region from the list. If no country matches
your location, contact Revolabs support for more
information. The Country/Region setting will configure the
analog telephone interface to the settings required in the
respective area.
Lastly, the system will ask for the current time and date.
After entering the date, the FLX2 handset will go to the
home screen and be ready for use.
Any selection made at this time can be changed in the
Settings and Advanced Settings menu of the dialer.
Managing A Call
The FLX2 Wireless Conferencing system is equipped with a telephone interface that
allows the system to make telephone conference calls. The following are the basic
operational instructions for making and receiving telephone conference calls.
Calling Configurations
The FLX2 Wireless Conferencing system has the ability to make and receive calls in
many different ways. This provides the caller the ability to choose what mode or call
type best suits the needs of each individual call.
Speaker Mode
Speaker mode allows the call to take place using the Speaker and Microphones
provided with the FLX2 System. This allows multiple users, within the conference room,
to participate in the call. It also provides the ability for the Microphones and Speaker to
be located anywhere in the conference room to meet the needs of each meeting. The
call, as well as the Speaker and Microphones, are controlled by the FLX Dialer. The
user can switch between ‘speaker mode’ and ‘handset mode’ while in a call.
Handset Mode
Handset mode allows a telephone call to take place through the handset speaker and
microphone located in the FLX Dialer. This allows a single user to make and receive a
private call. It also provides the ability for the FLX2 System to act as a personal desk
phone. The Microphones and Speaker are not used during a handset call. The user can
switch between ‘speaker mode’ and ‘handset mode’ while actively in a call by using the
key marked ‘‘Handset’ or ‘Speaker’.
NOTE: To switch from a handset call to a speaker call at least
one Microphone should be out of the Charger Base and
switched on, and the Speaker must be switched on. If all
Microphones are in the Charger Base at least one of the

19
Microphones in the Charger Base has to be activated manually
by pressing the Microphone button before switching from the
handset call to a speaker call.
Telephone Call
The FLX2 Conference Phone allows making conference calls using an analog
telephone connection. A telephone call can be made using either ‘speaker mode’ or
‘handset mode’. A telephone call can be made at the same time as a video call.
Telephone calls are controlled via the FLX Dialer.
Bluetooth Call
The FLX2 System is equipped with a Bluetooth interface that supports the Hands Free
Profile (HFP). This profile allows the user to make a call through a cell phone, a
computer, or other device via a Bluetooth connection. A Bluetooth call can be made
using ‘speaker mode’ only. A Bluetooth call is controlled by the connected Bluetooth
device. A Bluetooth call can be made at the same time as a video call.
NOTE: Revolabs FLX only supports the Hands Free Profile
(HFP) for Bluetooth 2.0 or higher. Applications that try to use
the Bluetooth connection not using the HFP profile, or that are
using an older HFP / Bluetooth standard are not supported by
the FLX.
Video Conference Call
The FLX2 System can be connected to a 3rd party video or PC conferencing system via
the Analog I/O ports located on the FLX2 Base Station. This allows the Microphones
and Speaker to be used as the audio interface for the video conference call. Video
Conference calls are controlled primarily by the video conference system. However,
audio properties can be controlled via the FLX Dialer.While the FLX2 Conference
Phone is connected to a video conferencing device, it might still make and accept calls
over the analog telephone connection or via a Bluetooth device.
NOTE: When using the FLX connected through the AUX IN
and AUX OUT to another device, only the FLX speaker can be
used. All other speakers, e.g. in a television set, must be turned
off. To avoid audio problems, any Echo Cancellation provided
on the Video Conferencing unit should be switched off.
NOTE: For security reasons, Microphones will not send any
audio signal to the AUX OUT connector when in the charger.
To receive audio signal on the AUX OUT, microphones have to
be taken out of the Charger Base.

20
FLX Home Screen
Whenever the FLX is not in a call, the FLX Dialer will show
the FLX Home Screen. The Top of the home screen shows
several symbols, indicating the current status of the FLX
components. From left to right they are an indicators for each
of the possible Speakers, one symbol for each of the mics,
and a charging indicator for the handset itself. The color of
the Speaker and Microphone symbol indicate their status. A
green Speaker indicates that that speaker is available, a grey
one means that this speaker is not available, e.g. no speaker
is paired or the speaker is switched off, and a yellow means
that the status of the speaker is unknown, e.g. it was taken
out of range or connection was unexpectedly lost. A green
microphone indicates that the microphone is available and
unmuted, a red indicates it is available but muted, grey
indicates it is switched off, and yellow means the current
status is unknown, e.g. it was taken out of range. The
handset charging indicator shows the current status of the
battery. Green indicates a charged battery, yellow means that
the charge is getting low, and red indicates that the battery
requires re-charging. In the Charger Base the battery
indicator will show a grey symbol while charging.
In addition, the first line will show if a Bluetooth link is
currently active with a blue symbol. If the Handset failed
to connect to the Base Station, a red, crossed out
Bluetooth symbol is shown.
If the phone number or extension number is set in the menu and a phone line is
detected, the number will be shown in the first text line of the screen. Time and date will
be shown underneath. If either of this information is not available, the corresponding
lines on the handset will be blank.
