Rf-t KAMOUFLAGE P User manual

www.rft.be
en
Rf-Technologies nv Lange Ambachtstraat 40 9860 Oosterzele Belgium Tel [phone] Fax [phone] [email protected]
1812
V14-EN-I 01/2020
KAMOUFLAGE P
Aesthetic smoke evacuation shutter for ceiling mounting.

2Table of content
Table of content
Declaration of performance 4
Product presentation KAMOUFLAGE P 5
Range and dimensions KAMOUFLAGE P 5
Evolution - kits 6
Options - at the time of order 6
Storage and handling 7
Installation 7
Operation: manual opening 7
Operation: manual closing 8
Electrical connection 9, 16
Position in the shaft 10
Shock absorbers for the doors 10
Horizontal installation with built-in mounting frame: general instructions for all types of shafts 11

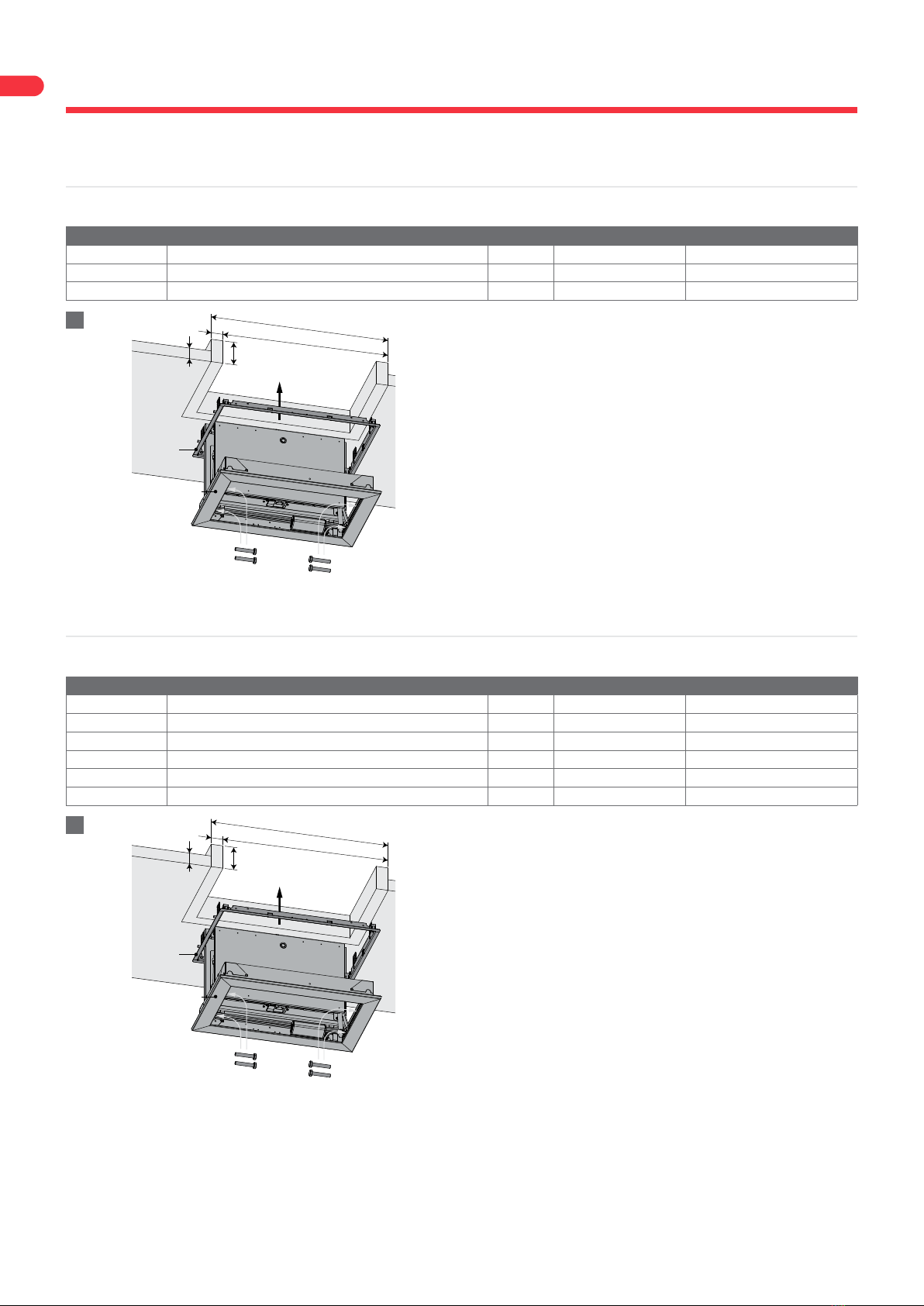

Horizontal installation into shaft PROMATECT L500 with built-in mounting frame 12
Horizontal installation into shaft GEOFLAM (LIGHT) / GEOTEC with built-in mounting frame 12
Horizontal installation into shaft TECNIVER with built-in mounting frame 13
Horizontal installation into shaft GLASROC F V500 with built-in mounting frame 13
Horizontal installation into shaft DESENFIRE (HD/THD/STR) with built-in mounting frame 14
Horizontal installation into shaft EXTHAMAT with built-in mounting frame 14
Finishing 15
Operation and mechanisms 16
Electrical connection 16
Weights 17
Selection data 18
Sample order 19
Approvals and certificates 19

3
Explanation of the abbreviations and pictograms
Explanation of the abbreviations and pictograms
Wn = nominal width
Hn = nominal height
Sn = free air passage
E = integrity
I = thermal insulation
S = smoke leakage
60/120 = fire resistance time
Pa = pascal
o -> i = meets the criteria from the outside
(o) to the inside (i)
i <-> o = fire side not important
AA = automatic activation
multi = multi compartment
1500 = pressure level 3 (1500Pa)
ved = vertical duct
hod = horizontal duct
vew = vertical wall penetration
V = volt
W = watt
V AC = Volt alternating current
V DC = Volt direct current
E.TELE = power supply magnet
E.ALIM = power supply motor
Auto = automatic
Tele = remote controlled
Pnom = nominal capacity
Pmax = maximum capacity
DAS MOD = modular product
OP = option (delivered with the product)
KIT = kit (delivered separately for repair or
upgrade)
PG = connection flange to the duct
GKB (type A) / GKF (type F): "GKB"
stands for standard plasterboards (type
A according to EN 520) while "GKF"
plasterboards offer a higher fire resistance
for a similar plate thickness (type F
according to EN 520)
Cal-Sil = calcium silicate
ζ [-] = pressure loss coefficient
Q = air flow
∆P = static pressure drop
v = air speed in the duct
Lwa = A-weighted sound power level
ME = motorised
H = habitat
aesthetic solution optimal acoustic performance
optimal free air passage and minimal pressure loss
-
superior air tightness (tested at 1500 Pa)
intermediate dimensions on request
Janus 2012
winner of the French "Janus de l'Industrie" award

4Declaration of performance
H-11/2019CE_DoP_Rf-t_V14_EN
DECLARATION OF PERFORMANCE Declarationofperformance CE_DoP_Rf-t_V14_EN H-11/2019
1. Unique identication code of the product-type: KAMOUFLAGE P 2. Intended use/es: Smoke evacuation shutter to be used in smoke control systems, in multi-compartment applications at re temperatures, or in single-
compartment applications.
3. Manufacturer: Rf-Technologies NV, Lange Ambachtstraat 40, B-9860 Oosterzele 4. System/s of AVCP: System 1 5. Harmonised standard / European Assessment Document; notied body / European Technical Assessment, Technical Assessment Body,
notied body; certicate of constancy of performance:
EN 12101-8:2011, Efectis with identication number 1812; Efectis_1812_CPR_1043
6. Declared performance according to EN 12101-8:2011 (re resistance according to EN 1366-10, classication according to EN 13501-4)
Essential characteristics Performance Range Product Type shaft Shaft Installation Classication
350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm
Kamouage 60 P Shaft Promatect L500 ≥ 30 mm 1 EI 60 (hod i no) S 1500 AA multi
Geoam ≥ 30 mm Geotec ≥ 30 mm Tecniver ≥ 35 mm Glasroc F V500 ≥ 35 mm Exthamat ≥ 25 mm Desenre HD ≥ 25 mm
Kamouage 120 P Shaft Promatect L500 ≥ 40 mm 1 EI 90 (hod i no) S 1500 AA multi
Geoam ≥ 35 mm Tecniver ≥ 45 mm Exthamat ≥ 30 mm Desenre THD ≥ 25 mm
Shaft Promatect L500 ≥ 50 mm 1 EI 120 (hod i no) S 1500 AA multi
Geoam ≥ 45 mm Geoam Light ≥ 35 mm Geotec ≥ 45 mm Tecniver ≥ 50 mm Glasroc F V500 ≥ 50 mm Exthamat ≥ 35 mm Desenre HD ≥ 35 mm Desenre ≥ 45 mm Desenre STR ≥ 25 mm
1 Type of installation: shaft-mounted 0/90°/180°/270°
Nominal activation conditions/sensitivity: Pass - automatic activation Response delay (response time): closure time Pass - automatic activation Operational reliability: cycling 300 cycles (no load) Durability of response delay: Pass Durability of operational reliability: Pass Approved accessories Acrylic paint on the leaf and synthetic paint on the frame on the side not exposed to re; Glued wall paper on the side not exposed to re;
ATOUT RAL 9010; KAP mounting frame
High operational temperature (HOT 400/30): NPD (no performance determined)
Harmonised standard
EN 12101-8:2011
The performance of the product identied above is in conformity with the set of declared performance/s.This declaration of performance is issued, in accordance with Regulation (EU) No 305/2011, under the sole responsibility of the manufacturer identied above.
Signed for and on behalf of the manufacturer by:
Mathieu Steenland, Technical Manager
Oosterzele, 11/2019

5
Product presentation KAMOUFLAGE P
Product presentation KAMOUFLAGE P
Aesthetic smoke evacuation shutter suitable for ceiling mounting into the bottom of smoke shafts.
Smoke evacuation shutters and dampers are suitable for use in ventilating protected lobbies, venting to shafts either naturally or
mechanically. They open to evacuate smoke in emergency situations whilst maintaining fire resistant integrity in standby position.
5aesthetic solution
5modern look: either select the ready-to-install product with white laquered finish, or
cover with paint or wallpaper
5superior air tightness (tested at 1500 Pa)
5thermal and acoustic insulation
5optimal free air passage and minimal pressure loss
5frame available with primer
∎tested according to EN 1366-10
∎compliant with EN 12101-8
∎approved for installation in calcium-silicate, ‘Staff’, Tecniver and Glasroc shafts
∎maintenance-free
∎for indoor use
∎winner of the French “Janus de l’Industrie” award
∎intermediate dimensions on request
-Janus 2012
1. 1 shutter (1V)
2. frame in anodised aluminium / with primer (PRIM) / white laquered (ATOUT RAL9010)
3. lock + key
4. connection compartment
5. blocking mechanism + automatic locking at 90°
6. product identification
7. gas spring (ceiling version)
4
7
6
3
1
5
2
Range and dimensions KAMOUFLAGE P
2
1
3
92mm
≥
105mm
10mm
4
5
6
Wn+ 52mm
1. Refractory material
2. Sealing mounting frame
3. KAP mounting frame (mandatory option)
4. Nominal dimensions shutter Wn x Hn
5. Built-in dimensions with KAP mounting frame (Wn+20) x (Hn+20)mm
6. Overall (outside) dimensions of the shutter (Wn+54) x (Hn+54)mm
≥ ≤
(Wn x Hn)
mm 350x385 600x1045

6Evolution - kits

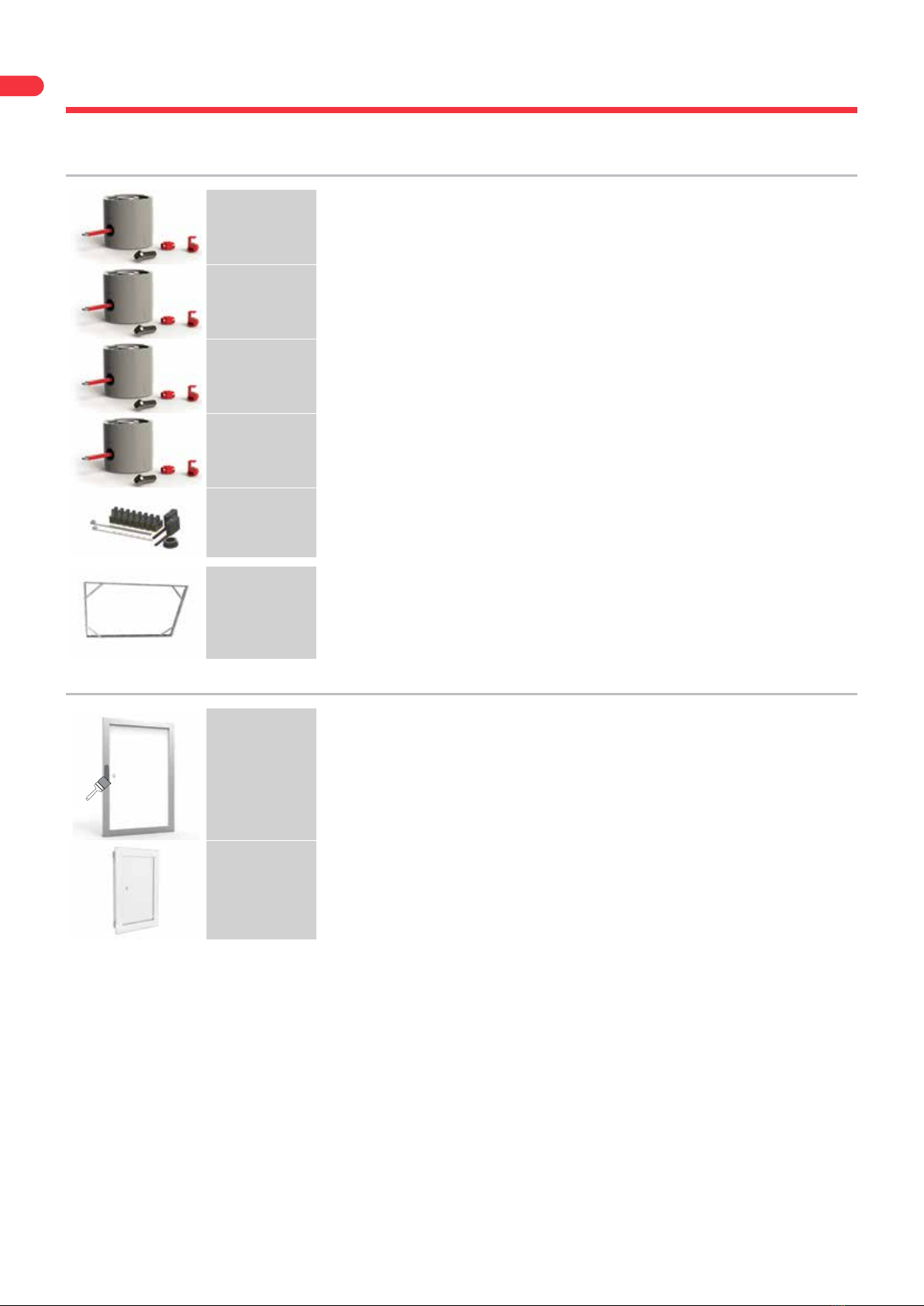

Evolution - kits
KITS VD24-VA Natural magnet 24 V DC
KITS VD48-VA Natural magnet 48 V DC
KITS VM24-VA Electromagnet 24 V DC (not applicable for ME model)
KITS VM48-VA Electromagnet 48 V DC (not applicable for ME model)
KITS FDC-VA Limit switches 'open/closed'
KAP Mounting frame (delivered separately)
Options - at the time of order
PRIM Frame with primer (to facilitate the application of a layer of synthetic paint on the outside
of the frame). The shutter is covered with a raw gypsum-cardboard-plate.
ATOUT 1V P RAL9010 Frame painted white and shutter covered with white metallic sheet (RAL 9010 mat)

7
Storage and handling
Storage and handling
As this product is a safety element, it should be stored and handled with care.
Avoid:
• any kind of impact or damage
• contact with water
• deformation of the casing
It is recommended:
• to unload in a dry area
• not to flip or roll the product to move it
• not to use the damper as a scaffold, working table, etc.
• not to store smaller dampers inside larger ones
Installation
General points
∎The installation must comply with the installation manual and the classification report.
∎The installation of the shaft must comply with the classification report delivered by the shaft manufacturer.
∎Axis orientation: see the declaration of performance.
∎Avoid the obstruction of adjoining shafts.
∎Verify if the blade can move freely.
∎Rf-t smoke dampers may be applied to ducts that have been tested according to EN 1366-8 and EN 1366-9 as appropriate,
constructed from similar materials with a fire resistance, thickness and density equal or superior to these of the tested materials.
Caution: when fitting, the product should be handled with care and remain protected from any sealing products.
Caution: before putting the installation into operation, clean off all the dust and dirt.
Caution: bear in mind the blade’s clearance inside the smoke evacuation duct.
Operation: manual opening
1
2
1. Unlocking 1V
Remove the finishing cap from the shutter. To do this, use the
hook with key ring that is delivered with the product. You may
attach this tool to the key through its handy key ring.
20°
2. Insert the key in the lock. Turn the key 20° anti-clockwise: the
shutter opens. Remove the key from the lock.
1 2

8Installation
Operation: manual closing
1
2
1. Resetting 1V
Remove the finishing cap from the shutter. To do this, use the
hook with key ring that is delivered with the product. You may
attach this tool to the key through its handy key ring.
15°
2. Insert the key in the lock. Turn the key 15° clockwise, the key
gets blocked in the lock and can be used to pull the shutter.
3. Press on the blocking devices.
Close the shutter by pulling at the key.
Turn the key 15° clockwise, the key unblocks from the lock.
Withdraw the key.
1 2
3

9
Installation
Electrical connection
1. You can thead the cable for the power supply through the 2
corners of the shutter, on the hinges' side.
2. Drill a hole in the refractory material at the chosen corner(s).
The galvanised part at the inside of the shutter is already
indented.
Caution: after passing and fixing the cables, you need to seal
the drilled hole in the refractory plates around the electrical
cables with fire resistant adhesive sealant (BCM f.e.).
3. Pierce an opening in the connection box. Affix the grommet
delivered with the product.
1
2
2
3
4
4. Lead the cables through the opening. Use the protective
sleeve (1), the fixation clips (2) and the plastic cable clamp
(3) to attach the cables to the frame. Lead the cables to
the connection box through the grommet (4) and connect
according to the electrical connection diagram.
Comply with the installation rules according to article 6.1 of
NF S 61-932.
1 2
3 4

10 Installation

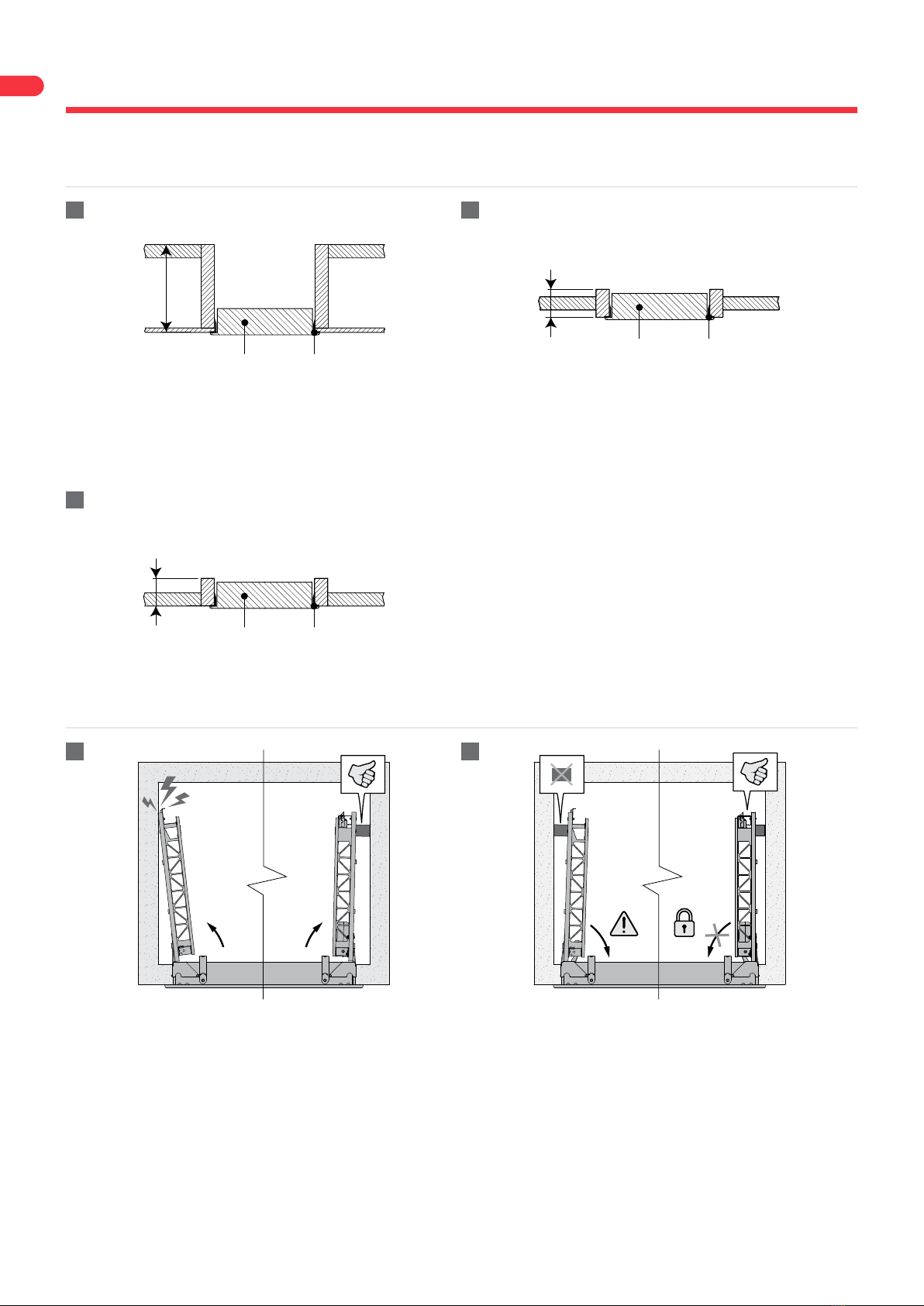

Position in the shaft
≥105
Kamouflage P KAP
1. The shutter is affixed to the smoke evacuation shaft through
a sleeve. That sleeve can be installed either in the shaft, in the
axis of the shaft or outside the shaft (or shaft extension).
≥105
Kamouflage P KAP
Kamouflage P KAP
≥105
Shock absorbers for the doors
1. Shock absorbers (foam) come standard with the shutter. They
can be affixed to the inner face of the door to prevent it from
hitting the shaft wall when opening.
2. Be sure to cut these blocks to the correct dimensions so that
the blocking mechanism can engage when the door opens.
1 2
3
1 2

11
Installation

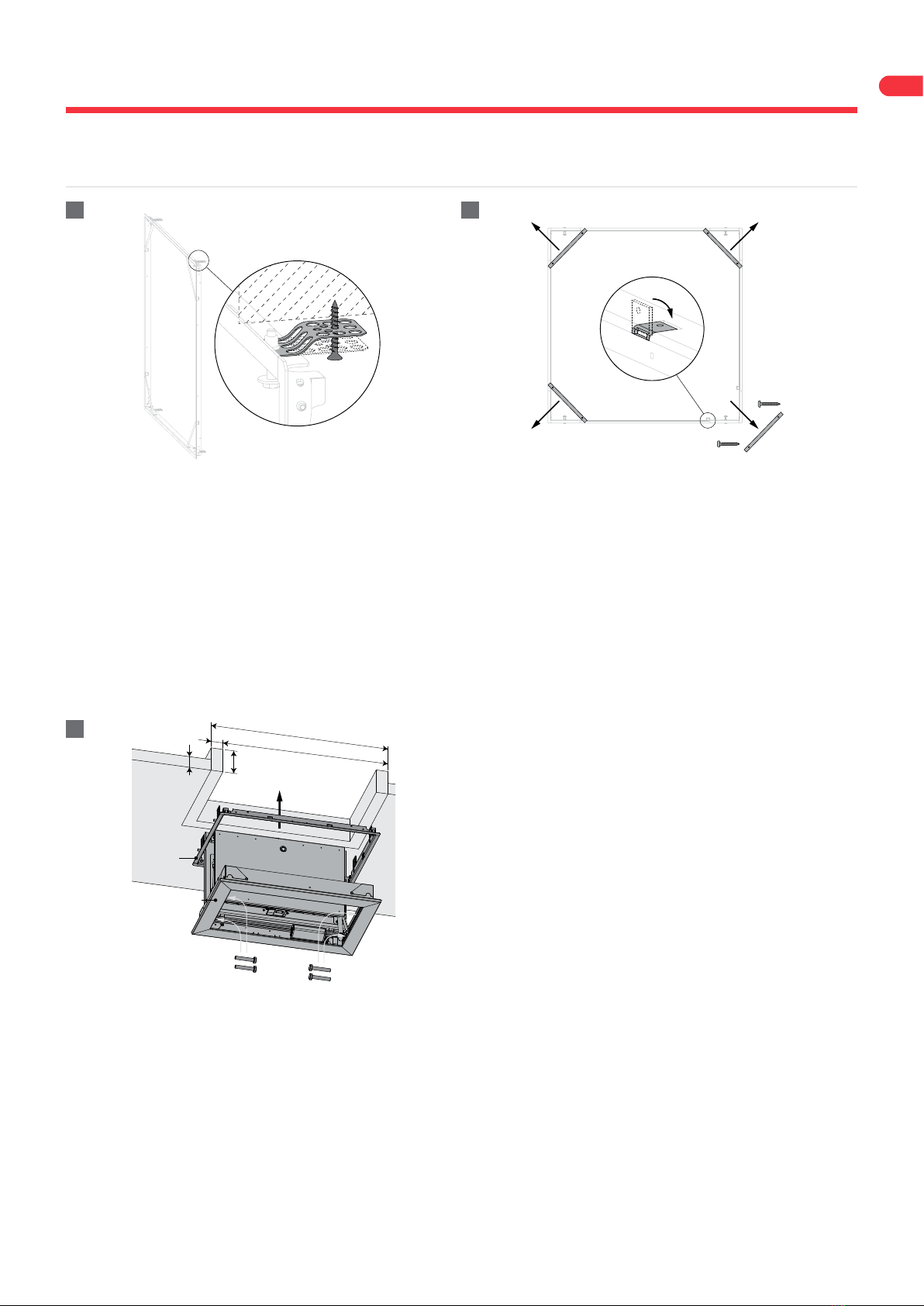

Horizontal installation with built-in mounting frame: general instructions for all types of shafts
1. Make an opening with dimensions (W+A) x (H+A) mm.
A = 2 x thickness sleeve (e) + 20 mm.
Fit a sleeve of the same type and thickness of the duct
(thickness e) of minimum 105 mm deep in the opening.
Fasten and seal the mounting frame. See details per type of
shaft hereafter.
Screw the mounting frame with chipboard screw (Ø 6 x e)mm
to the sleeve. Two sealing lugs are provided at the bottom and
at the top of the mounting frame: fold these against the sleeve.
Take care not to misshape the frame during its installation. The
finished opening must have the same size as the mounting
frame (W+10) x (H+10) mm.
2. Unscrew the 4 cross beams of the KAP mounting frame and
fold the 8 plates in the frame.
KAP
e
e
KAMOUFLAGE P
≥ 105 mm
A = 2 x e + 20 mm
(W+A) x (H+A) mm
(W+20) x (H+20) mm
3. Open and position the shutter in the mounting frame. If VM
magnet: remove the key from the lock to open the shutter.
Don't use the bolts delivered with the mounting frame, but use
the ones delivered with the shutter (M6x50).
Caution: make sure that the screws don't exceed the sleeve's
thickness!
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
1 2
3

12 Installation
Horizontal installation into shaft PROMATECT L500 with built-in mounting frame
The product was tested and approved in:
Product Range Wall type Classication
Kamouage 60 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Promatect L500 ≥ 30 mm EI 60 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Promatect L500 ≥ 40 mm EI 90 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Promatect L500 ≥ 50 mm EI 120 (hod i no) S 1500 AA multi
KAP
e
e
KAMOUFLAGE P
≥ 105 mm
A = 2 x e + 20 mm
(W+A) x (H+A) mm
(W+20) x (H+20) mm
1. Assemble the sleeve with staples and affix the assembled
sleeve to the shaft wall with staples.
Coat the edges of the opening with adhesive plaster type
Promacol S.
Seal the mounting frame with Promacol S taking care not to
misshape it.
Horizontal installation into shaft GEOFLAM (LIGHT) / GEOTEC with built-in mounting frame
The product was tested and approved in:
Product Range Wall type Classication
Kamouage 60 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Geoam ≥ 30 mm EI 60 (hod i no) S 1500 AA multi
Kamouage 60 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Geotec ≥ 30 mm EI 60 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Geoam ≥ 35 mm EI 90 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Geoam ≥ 45 mm EI 120 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Geoam Light ≥ 35 mm EI 120 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Geotec ≥ 45 mm EI 120 (hod i no) S 1500 AA multi
KAP
e
e
KAMOUFLAGE P
≥ 105 mm
A = 2 x e + 20 mm
(W+A) x (H+A) mm
(W+20) x (H+20) mm
1. Coat the edges of the opening with adhesive plaster type
PLACOL (in case of Geoflam) or GEOCOL (S) (in case of Geotec).
In case of Geotec you can also assemble the sleeve with glue
and screws Ø 5 x (2 x e) mm and affix the assembled sleeve to
the shaft wall with glue and screws Ø 5 x (2 x e) mm every
100 mm.
Seal the joints between uprights and cross pieces and between
the lining and the wall with vegetable fibre caulking and
plaster or with GEOCOL (S) (in case of Geotec).
Two fixing lugs are provided at the bottom and at the top of
the mounting frame: fold these against the sleeve. Caulk the
mounting frame to the duct with vegetable fibre or (in case
of Geotec) you can also coat the opening with Geocol (S) and
fasten the mounting frame with screws of Ø 5 x e mm. Take
care not to misshape the frame. The finished opening must
have the same size as the mounting frame (W+10) x (H+10) mm.
1
1

13
Installation
Horizontal installation into shaft TECNIVER with built-in mounting frame
The product was tested and approved in:
Product Range Wall type Classication
Kamouage 60 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Tecniver ≥ 35 mm EI 60 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Tecniver ≥ 45 mm EI 90 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Tecniver ≥ 50 mm EI 120 (hod i no) S 1500 AA multi
KAP
e
e
KAMOUFLAGE P
≥ 105 mm
A = 2 x e + 20 mm
(W+A) x (H+A) mm
(W+20) x (H+20) mm
1. Put glue CF GLUE on the edges of the opening and the
uprights and cross pieces.
Put glue type CF GLUE on the uprights and cross pieces and
between the lining and the wall. Screw the sleeve using
chipboard screws Ø5 x 70 mm at 150 mm intervals.
Two fixing lugs are provided at the bottom and at the top of
the mounting frame: fold these against the sleeve. First coat
the opening with glue CF GLUE. Glue the mounting frame to
the lining taking care not to misshape it. The finished opening
must have the same size as the mounting frame (W+10) x
(H+10) mm.
Horizontal installation into shaft GLASROC F V500 with built-in mounting frame
The product was tested and approved in:
Product Range Wall type Classication
Kamouage 60 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Glasroc F V500 ≥ 35 mm EI 60 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Glasroc F V500 ≥ 50 mm EI 120 (hod i no) S 1500 AA multi
KAP
e
e
KAMOUFLAGE P
≥ 105 mm
A = 2 x e + 20 mm
(W+A) x (H+A) mm
(W+20) x (H+20) mm
1. Put glue GLASROC F V500 on the edges of the opening and
the uprights and cross pieces.
Put glue type GLASROC F V500 on the uprights and cross pieces
and between the lining and the wall. Screw the sleeve using
chipboard screws Ø5 x 70 mm at 150 mm intervals.
Two fixing lugs are provided at the bottom and at the top of
the mounting frame: fold these against the sleeve. First coat
the opening with glue GLASROC F V500. Glue the mounting
frame to the lining taking care not to misshape it. The finished
opening must have the same size as the mounting frame
(W+10) x (H+10) mm.
1
1

14 Installation
Horizontal installation into shaft DESENFIRE (HD/THD/STR) with built-in mounting frame
The product was tested and approved in:
Product Range Wall type Classication
Kamouage 60 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Desenre HD ≥ 25 mm EI 60 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Desenre THD ≥ 25 mm EI 90 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Desenre HD ≥ 35 mm EI 120 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Desenre ≥ 45 mm EI 120 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Desenre STR ≥ 25 mm EI 120 (hod i no) S 1500 AA multi
KAP
e
e
KAMOUFLAGE P
≥ 105 mm
A = 2 x e + 20 mm
(W+A) x (H+A) mm
(W+20) x (H+20) mm
1. Coat the edges of the opening with adhesive plaster, type
FACILIS.
Fit a sleeve of the same type and thickness of the duct
(thickness e) of minimum 105 mm deep in the opening.
Seal the joints between uprights and cross pieces and between
the lining and the wall with vegetable fibre caulking and
plaster.
Two fixing lugs are provided at the bottom and at the top of
the mounting frame: fold these against the sleeve. Caulk the
mounting frame to the duct with vegetable fiber caulking and
plaster and taking care not to misshape it. The finished opening
must have the same size as the mounting frame (W+10) x
(H+10) mm.
Horizontal installation into shaft EXTHAMAT with built-in mounting frame
The product was tested and approved in:
Product Range Wall type Classication
Kamouage 60 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Exthamat ≥ 25 mm EI 60 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Exthamat ≥ 30 mm EI 90 (hod i no) S 1500 AA multi
Kamouage 120 P 350x385 mm ≤ Kamouage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Exthamat ≥ 35 mm EI 120 (hod i no) S 1500 AA multi
KAP
e
e
KAMOUFLAGE P
≥ 105 mm
A = 2 x e + 20 mm
(W+A) x (H+A) mm
(W+20) x (H+20) mm
1. Put gypsum glue on the edges of the opening.
Seal the joints between uprights and cross pieces and between
the lining and the wall with vegetable fibre caulking and
plaster.
Two fixing lugs are provided at the bottom and at the top of
the mounting frame: fold these against the sleeve. Caulk the
mounting frame to the duct with vegetable fiber caulking and
plaster and taking care not to misshape it. The finished opening
must have the same size as the mounting frame (W+10) x
(H+10) mm.
1
1

15
Installation
Finishing
1. The upper face of the shutter consists of a sheet of
plasterboard, which you can decorate to match the wall in
which the shutter is installed (paint or wallpaper).
A coat of paint can be applied on the unexposed face of the
shutter and the frame; wallpaper can be applied to the shutter.
Covering plate of plasterboard: fill the holes of the screws
with a suitable filler. Let it dry and sand. Apply a primer paint
suitable for plasterboard.
Profile of anodised aluminium: apply a primer suitable for
metal. With the option PRIM, the frame is already prepared
with a primer, ready to be painted.
Once the primer is dry, proceed with the finishing (paint or
wallpaper).
Caution : don’t fill / cover the joint between the covering
plate and the aluminium profile in order to guarantee that
the shutter can open.
The options ATOUT RAL9010 / ALU (ALU not available on ceiling
(P) model) and PRIM facilitate the finishing phase. With option
ATOUT RAL9010 / ALU the shutter is supplied with a finished
aspect, laquered white or aluminium. With option PRIM the
profile is pre-painted with a primer.
Maintenance
∎No specific maintenance required.
∎Schedule at least two running visual checks each year.
∎Remove dust and all other particles before start-up.
∎Follow the local maintenance regulations (i.e. BS9999 Annex V; NF S 61-933) and EN13306.
1

16 Operation and mechanisms
Operation and mechanisms
Operation: general points
∎See under 'Installation'.
Caution : please note dampers must be fully open before starting supply and/or extract fans.
VA MEC Remote controlled unlocking by a magnet.
Remote controlled unlocking by an electric impulse (VD) or by interruption (VM) of the magnet's power supply.
Options - at the time of order
VD24 Natural magnet 24 V DC
VD48 Natural magnet 48 V DC
VM24 Electromagnet 24 V DC (not applicable for ME and H model)
VM48 Electromagnet 48 V DC (not applicable for ME and H model)
FDCU Limit switch 'open/closed' (Incl. exc. for H model)
FDCB Auxiliary limit switch 'open/closed'
Unlocking
∎manual unlocking: with the key (delivered in the bag together with the installation guidelines)
∎automatic unlocking: n/a
∎remote unlocking: by electrical impulse (VD) or interruption (VM) of current to the magnet.
Resetting
∎manual resetting: with the key (delivered in the bag together with the installation guidelines)
Electrical connection
VA MEC
DC
FC
DC
FC
DCU FCU
5 6 7 8 9 10
DCB FCB
11 12 13 14 15 161 2
5 6 7 8 9 10 11 12 13 14 15 16
1 2
5 6 7 8 9 10 11 12 13 14 15 16
1 2
68%
24VDC -15/+20%
48VDC -15/+20%
DC
FC
DC : Switch closed position smoke evacuation shutter
FC : Switch open position smoke evacuation shutter
MEC Nominal voltage
motor
Nominal voltage
magnet
Power consumption
(stand-by)
Power consumption
(operating) Standard switches Protection class
VA MEC N/A 24/48 V DC VM: 1,5W / VD: - VM: - / VD: 3,5W 1mA...6A, DC 5V...AC 250V IP 42

17
Weights
Weights
KAMOUFLAGE 1V60 P - 1V120 P
Hn\Wn [mm] 350 400 450 500 550 600 650 700
385 kg 10,8 11,0 11,3 12,0 12,6 13,5 14,4
415 kg 11,5 12,1 12,7 13,3 13,9 14,5 15,2
445 kg 10,9 11,7 12,4 13,2 14,0 14,7 19,0 19,8
475 kg 11,2 12,0 12,8 13,6 14,4 15,2 19,5 20,3
505 kg 11,6 12,4 13,2 14,0 14,8 15,7 20,0 20,8
535 kg 12,3 13,2 14,1 15,1 16,0 20,5 21,4 22,3
565 kg 12,6 13,5 14,5 15,5 16,4 20,9 21,8 22,8
595 kg 13,0 14,0 14,9 15,9 16,9 21,3 22,3 23,3
625 kg 13,6 14,5 15,3 16,0 17,2 21,8 22,8 23,7
655 kg 13,9 14,8 15,6 16,4 21,2 22,2 23,2 24,2
685 kg 14,2 15,1 16,0 16,7 21,6 22,6 23,7 24,7
715 kg 14,1 15,2 16,3 17,0 21,9 23,0 24,1 26,3
745 kg 14,4 15,5 16,6 17,4 22,3 23,4 24,6 26,8
775 kg 14,7 15,8 17,0 21,2 22,7 23,9 25,0 27,3
805 kg 15,0 16,1 17,3 21,6 23,1 24,3 25,5
835 kg 15,3 16,4 17,6 21,9 23,5 24,7 25,9
865 kg 15,5 16,7 18,0 22,2 23,9 25,1 26,4
895 kg 17,6 18,7 19,7 23,9 24,3 25,5 26,8
925 kg 18,0 19,1 23,7 24,4 24,6 26,0
955 kg 18,4 19,5 24,1 24,8 25,0 26,4
985 kg 18,8 19,9 24,5 25,3 25,4 26,8
1015 kg 19,2 20,3 25,0 25,7 25,8 27,2
1045 kg 19,7 20,8 25,4 26,2 26,2 27,6
1075 kg 20,1 21,2 25,9 26,6 29,2
ATOUT 1V P RAL 9010
Hn\Wn [mm] 350 400 450 500 550 600 650 700
385 kg 0,4 0,4 0,5 0,5 0,6 0,7
415 kg 0,4 0,5 0,5 0,6 0,7 0,7 0,8
445 kg 0,4 0,5 0,6 0,6 0,7 0,8 0,9 0,9
475 kg 0,5 0,5 0,6 0,7 0,8 0,9 0,9 1,0
505 kg 0,5 0,6 0,7 0,7 0,8 0,9 1,0 1,1
535 kg 0,5 0,6 0,7 0,8 0,9 1,0 1,1 1,2
565 kg 0,6 0,7 0,8 0,8 0,9 1,0 1,1 1,2
595 kg 0,6 0,7 0,8 0,9 1,0 1,1 1,2 1,3
625 kg 0,6 0,7 0,8 1,0 1,1 1,2 1,3 1,4
655 kg 0,7 0,8 0,9 1,0 1,1 1,2 1,3 1,5
685 kg 0,7 0,8 0,9 1,1 1,2 1,3 1,4 1,5
715 kg 0,7 0,9 1,0 1,1 1,2 1,4 1,5 1,6
745 kg 0,8 0,9 1,0 1,2 1,3 1,4 1,6
775 kg 0,8 0,9 1,1 1,2 1,3 1,5 1,6
805 kg 0,8 1,0 1,1 1,3 1,4 1,5 1,7
835 kg 0,9 1,0 1,2 1,3 1,5 1,6 1,8
865 kg 0,9 1,0 1,2 1,4 1,5 1,7
895 kg 0,9 1,1 1,2 1,4 1,6 1,7
925 kg 1,0 1,1 1,3 1,5 1,6 1,8
955 kg 1,0 1,2 1,3 1,5 1,7 1,9
985 kg 1,0 1,2 1,4 1,6 1,7 1,9
1015 kg 1,1 1,2 1,4 1,6 1,8
1045 kg 1,1 1,3 1,5 1,7 1,9
1075 kg 1,1 1,3 1,5 1,7 1,9

18 Selection data
Selection data
∆p = 0,6 x v² x ζ
KAMOUFLAGE 1V60 P - 1V120 P
Hn\Wn [mm] 350 400 450 500 550 600 650 700
385 ζ [-] 3,603 2,960 2,518 2,196 1,950 1,757 1,600
415 ζ [-] 3,237 2,663 2,267 1,978 1,758 1,585 1,444
445 ζ [-] 2,940 2,422 2,064 1,802 1,602 1,445 1,317 1,212
475 ζ [-] 2,696 2,222 1,895 1,656 1,473 1,329 1,212 1,115
505 ζ [-] 2,491 2,055 1,754 1,533 1,364 1,231 1,123 1,033
535 ζ [-] 2,316 1,913 1,633 1,428 1,271 1,147 1,047 0,963
565 ζ [-] 2,166 1,790 1,529 1,337 1,191 1,075 0,981 0,903
595 ζ [-] 2,035 1,683 1,438 1,258 1,121 1,012 0,923 0,850
625 ζ [-] 1,920 1,588 1,358 1,189 1,059 0,956 0,873 0,804
655 ζ [-] 1,818 1,505 1,287 1,127 1,004 0,907 0,828 0,762
685 ζ [-] 1,728 1,430 1,223 1,071 0,955 0,862 0,787 0,725
715 ζ [-] 1,646 1,363 1,166 1,022 0,911 0,823 0,751 0,692
745 ζ [-] 1,572 1,303 1,115 0,977 0,871 0,787 0,718 0,662
775 ζ [-] 1,506 1,248 1,068 0,936 0,834 0,754 0,689 0,634
805 ζ [-] 1,445 1,198 1,025 0,899 0,801 0,724 0,661
835 ζ [-] 1,389 1,152 0,986 0,864 0,771 0,697 0,636
865 ζ [-] 1,338 1,109 0,950 0,833 0,743 0,671 0,613
895 ζ [-] 1,290 1,070 0,917 0,804 0,717 0,648 0,592
925 ζ [-] 1,246 1,034 0,886 0,777 0,693 0,626
955 ζ [-] 1,206 1,001 0,857 0,752 0,671 0,606
985 ζ [-] 1,168 0,969 0,831 0,728 0,650 0,588
1015 ζ [-] 1,132 0,940 0,806 0,707 0,630 0,570
1045 ζ [-] 1,099 0,913 0,782 0,686 0,612 0,554
1075 ζ [-] 1,068 0,887 0,760 0,667 0,595
KAMOUFLAGE 1V60 P - 1V120 P - Free air passage (m2)
Hn\Wn [mm] 350 400 450 500 550 600 650 700
385 Sn [m²] 0,1160 0,1340 0,1520 0,1700 0,1880 0,2060 0,2240
415 Sn [m²] 0,1260 0,1450 0,1650 0,1840 0,2040 0,2230 0,2430
445 Sn [m²] 0,1360 0,1570 0,1780 0,1990 0,2200 0,2410 0,2610 0,2820
475 Sn [m²] 0,1450 0,1680 0,1900 0,2130 0,2350 0,2580 0,2800 0,3030
505 Sn [m²] 0,1550 0,1790 0,2030 0,2270 0,2510 0,2750 0,2990 0,3230
535 Sn [m²] 0,1650 0,1900 0,2160 0,2410 0,2670 0,2920 0,3180 0,3430
565 Sn [m²] 0,1750 0,2020 0,2290 0,2550 0,2820 0,3090 0,3360 0,3630
595 Sn [m²] 0,1840 0,2130 0,2410 0,2700 0,2980 0,3270 0,3550 0,3840
625 Sn [m²] 0,1940 0,2240 0,2540 0,2840 0,3140 0,3440 0,3740 0,4040
655 Sn [m²] 0,2040 0,2350 0,2670 0,2980 0,3300 0,3610 0,3920 0,4240
685 Sn [m²] 0,2140 0,2460 0,2790 0,3120 0,3450 0,3780 0,4110 0,4440
715 Sn [m²] 0,2230 0,2580 0,2920 0,3270 0,3610 0,3950 0,4300 0,4640
745 Sn [m²] 0,2330 0,2690 0,3050 0,3410 0,3770 0,4130 0,4490 0,4850
775 Sn [m²] 0,2430 0,2800 0,3180 0,3550 0,3920 0,4300 0,4670 0,5050
805 Sn [m²] 0,2520 0,2910 0,3300 0,3690 0,4080 0,4470 0,4860
835 Sn [m²] 0,2620 0,3030 0,3430 0,3830 0,4240 0,4640 0,5050
865 Sn [m²] 0,2720 0,3140 0,3560 0,3980 0,4400 0,4820 0,5240
895 Sn [m²] 0,2820 0,3250 0,3680 0,4120 0,4550 0,4990 0,5420
925 Sn [m²] 0,2910 0,3360 0,3810 0,4260 0,4710 0,5160
955 Sn [m²] 0,3010 0,3470 0,3940 0,4400 0,4870 0,5330
985 Sn [m²] 0,3110 0,3590 0,4070 0,4550 0,5030 0,5500
1015 Sn [m²] 0,3200 0,3700 0,4190 0,4690 0,5180 0,5680
1045 Sn [m²] 0,3300 0,3810 0,4320 0,4830 0,5340 0,5850
1075 Sn [m²] 0,3400 0,3920 0,4450 0,4970 0,5500

19
Sample order
Sample order
KAMOUFLAGE P 1V 120 400 685 VD24 FDCB ATOUT RAL 9010
52 3 4 61 7 8
1. product
2. 1 shutter (1V)
3. fire resistance of 60 or 120 minutes
4. width
5. height
6. option: type magnet and voltage
7. option: bipolar end of range switch (FDCU included)
8. option: frame painted white, shutter covered with white metallic sheet
Approvals and certicates
All our products are submitted to a number of tests by official test institutes. Reports of these tests form the basis for the approvals of
the products.
1812
Efectis_1812_CPR_1043
18.23
The NF-label guarantees: conformity with the standard NF S 61-937 Parts 1 and 10: “Systèmes de Sécurité Incendie Dispositifs
Actionnés de Sécurité”; conformity with the national decree of March 22, 2004, changed on 14 March 2011 for the classification of
fire resistance; the values of the characteristics mentioned in this document. Organisme Certificateur: AFNOR Certification, 11 Rue
Francis de Pressensé, F93571 La Plaine Saint-Denis Cedex; Website: http://www.afnor.org http://www.marque-nf.com; Phone: +33
(0)1.41.62.80.00, Fax: [phone], Email: [e-mail]
If the product is manipulated in any other way than described in this manual, Rf-Technologies will decline any responsibility and the guarantee will expire!
