RHINO SR14 User manual

SR20/ SR14
FLEX-WING MECHANICAL LEVEL
LIFT ROTARY CUTTER / SHREDDER
Published10/03 Effective Serial No. SR20-11310 Through Current Part No.00763403C
OPERATOR'S MANUAL
This Operator's Manual is an integral part of the safe operation
of this machine and must be maintained with the unit at all
times. READ, UNDERSTAND, and FOLLOW the Safety and
Operation Instructions contained in this manual before
operating the equipment.
© 2004Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected] $0.00

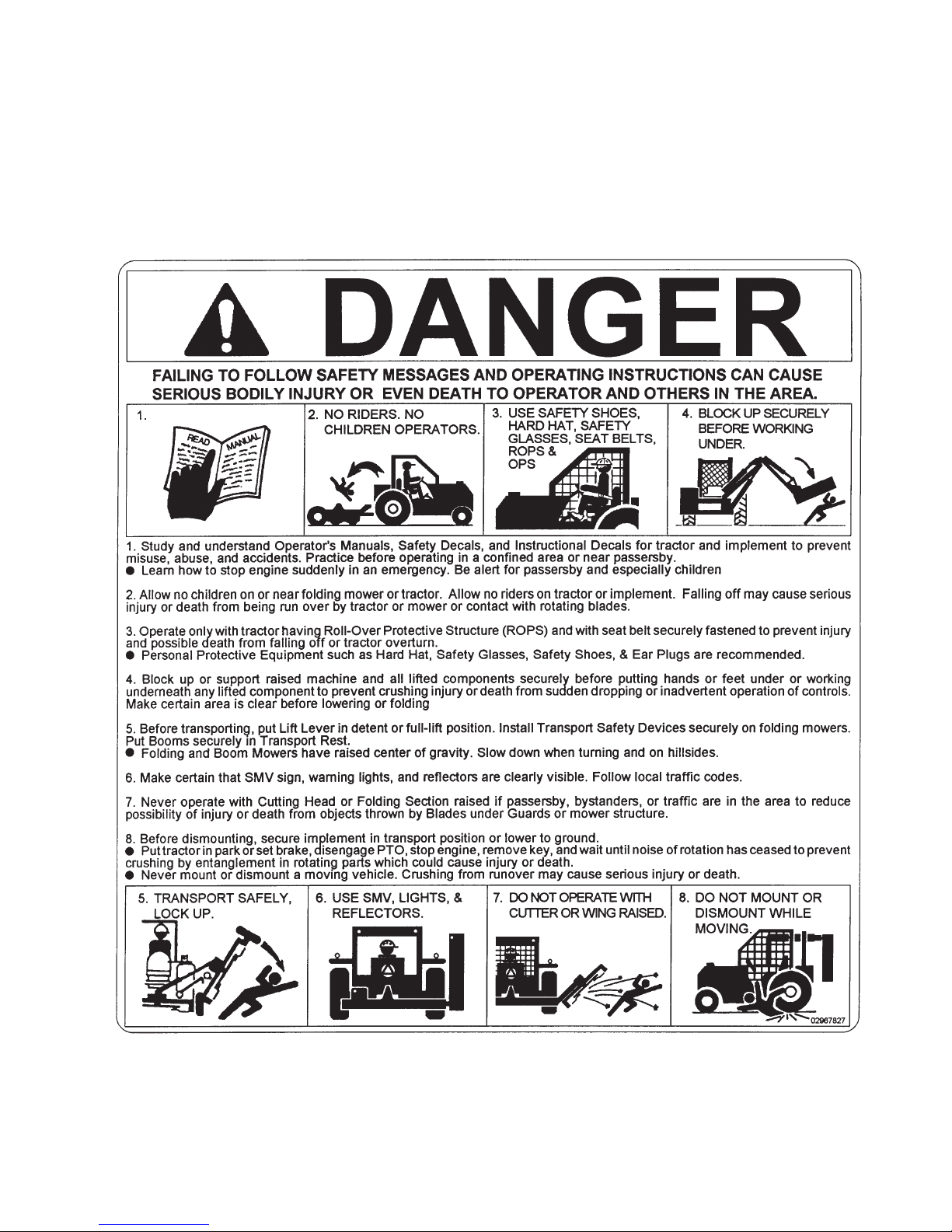

TO THE OWNER/OPERATOR/DEALER
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded
operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has
designed this implement to be used with all its safety equipment properly attached to minimize the chance of
accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty
Registration Form in full and return it within 30 Days. Make certain the Serial Number of the Machine is
recorded on the Warranty Card and on the Warranty Form that you retain. The use of "will-fit" parts will void
your warranty and can cause catastrophic failure with possible injury or death.

In order to reduce accidents and enhance the safe operation of mowers, Alamo Group Ag Division, in
cooperationwith otherindustrymanufacturershasdevelopedtheAEM/FEMAIndustrialandAgricultural
MowerSafetyPractices videoandguide book.
Thevideo willfamiliarizeandinstructmower-tractoroperators insafepracticeswhenusing industrialand
agriculturalmowingequipment. ItisimportantthatEveryMowerOperatorbeeducatedin theoperationof
theirmowing equipment and be ableto recognizethe potentialhazards that can occur whileoperating a
mower. Thisvideo,alongwiththemoweroperator’smanualandthewarningmessagesonthemower,will
significantlyassistinthisimportanteducation.
YourAuthorizedAlamoAgDealermayhaveshownthisvideoandpresentedyouaDVDVideo when you
purchasedyour mower. If youor any moweroperatorhave notseenthis video, Watchthe Video,Read
thisOperator’sManual,andCompletetheVideoGuidebook beforeoperatingyournewmower.Ifyou
do not understand any of the instructions included in the video or operator’s manual or if you have any
questionsconcerning safety ofoperation, contact yoursupervisor, dealerorAlamo GroupAg.
IfyouwouldlikeaVHSvideotapeofthevideo,please emailAEMV[email protected]orFaxAEM
VHSVideo at [phone] or mail in a completed copy of the form on the back of this page toAEM
VHSVideo1502EWalnutStreet,Seguin,TX78155. and request theVHSvideoversion. Pleaseinclude
yourname, mailing address,mowermodelandserialnumber.
Everyoperatorshouldbetrainedforeachpieceofequipment(TractorandMower),understandtheintended
use,andthepotentialhazardsbeforeoperating the equipment.
Safety Training
MakestheDifference


BE SAFE!


BEALERT!
 
 
 BE ALIVE!


BE TRAINED
beforeoperating
theMower!

Alamo Group Ag. Division is willing to provide
one (1) AEM Mower Safety Practices Video
Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video
DVD Format – AEM/FEMA Mower Operator Safety Video
Mower Operator’s Manual
AEM Mower Operator’s Safety Manual
RequesterName: Phone:
RequesterAddress:
City
State
Zip Code
MowerModel: Serial Number:
Date Purchased: DealerSalesperson:
DealershipName: Dealership Location:
Mailto: AEM Video Services
1502 E Walnut street
Seguin, TX 78155
Or Fax to: [phone]
OrEmail to: AEMV[email protected]

TABLE OF CONTENTS
SAFETYSECTION ...................................................................................................................................... 1-1
SafetyInformation ................................................................................................................................. 1-2
Safety Decal Location........................................................................................................................... 1-13
Safety Decal Description....................................................................................................................... 1-14
Federal Laws And Regulations ............................................................................................................. 1-19
INTRODUCTIONSECTION ......................................................................................................................... 2-1
ASSEMBLYSECTION ................................................................................................................................ 3-1
Blade Carrier and Blades ...................................................................................................................... 3-2
Tongue ................................................................................................................................................... 3-3
Level Rod ............................................................................................................................................... 3-3
Wing Section......................................................................................................................................... 3-4
Hose Bracket ........................................................................................................................................ 3-4
Level Lift Axle ........................................................................................................................................ 3-5
Axle Adjustment Rod ............................................................................................................................ 3-6
Center Axle Hydraulic Cylinder ............................................................................................................. 3-6
Wing Section Hydraulic Cylinder .......................................................................................................... 3-7
Tires & Wheels...................................................................................................................................... 3-7
SpringStop............................................................................................................................................ 3-9
Baffle Assembly .................................................................................................................................... 3-9
RubberDeflectors.................................................................................................................................. 3-10
ChainGuard........................................................................................................................................... 3-11
Counter Weight Attachment ................................................................................................................. 3-11
DrivelineAssembly................................................................................................................................ 3-12
Shields................................................................................................................................................... 3-13
ThreeSpool Control Valve...................................................................................................................... 3-14
OPERATIONSECTION ............................................................................................................................... 4-1
MAINTENANCESECTION .......................................................................................................................... 5-1
Lubrication ............................................................................................................................................. 5-2
Tongue ................................................................................................................................................... 5-3
Gearboxes ............................................................................................................................................. 5-3
Drivelines ............................................................................................................................................... 5-4
ProtectiveShielding............................................................................................................................... 5-5
Blades ................................................................................................................................................... 5-9
BladeCarrier.......................................................................................................................................... 5-11
Slip Clutch ............................................................................................................................................. 5-11
Hydraulic Hoses .................................................................................................................................... 5-12
Skid Shoes ............................................................................................................................................ 5-12
Storage .................................................................................................................................................. 5-13
TorqueChart.......................................................................................................................................... 5-13
Gearbox Assembly & Disassembly ....................................................................................................... 5-14
RhinoandServisareregistered trademarks of Alamo GroupInc.

SAFETY
SECTION
Safety Section 1-1

Safety Section 1-2SR20M/SR14M 10/03
© 2004 Alamo Group Inc.
SAFETY
SAFETY
Asafeandcarefuloperatoris thebestoperator. Safetyis ofprimaryimportancetothemanufac-
turer and should be to the owner/operator. Most accidents can be avoided by being aware of
yourequipment,your surroundings,and observingcertain precautions. Thefirst sectionof this
manual includes a list of Safety Messages that, if followed, will help protect the operator and
bystandersfrominjury ordeath. Read andunderstand theseSafety Messagesbefore assem-
bling, operating or servicing this mower. This equipment should only be operated by those
personswho haveread the Manual,who areresponsible and trained,and whoknow how todo
sosafely and responsibly.
TheSafety Alert Symbol combined with aSignal Word, as seen below, is used throughout this
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal
Wordareintendedtowarntheowner/operatorofimpendinghazardsandthedegreeofpossible
injuryfacedwhenoperatingthisequipment..
CAUTION! ThelowestlevelofSafetyMessage;warnsofpossibleinjury. Decals
located on the Equipment with this Signal Word are Black and Yellow.
WARNING! Serious injury or possible death! Decals are Black and Orange.
DANGER! Imminentdeath/criticalinjury. DecalsareRedandWhite.(SG-1)
Practice all usual and customary safe working precautions and
above all---remember safety is up to YOU. Only YOU can prevent
serious injury or death from unsafe practices.

Safety Section 1-3
© 2004 Alamo Group Inc.
SAFETY
SR20M/SR14M 10/03
SAFETY

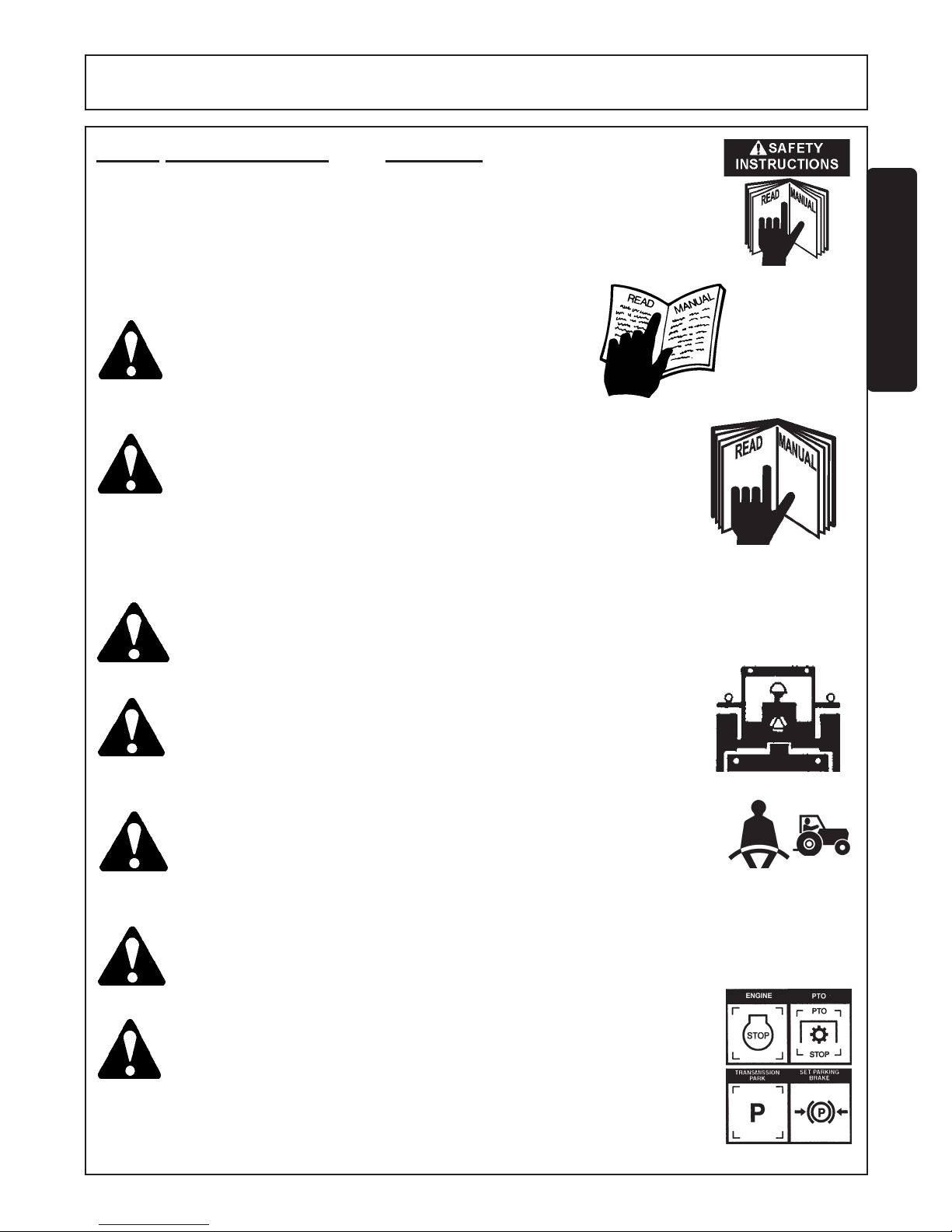

READ, UNDERSTAND, and FOLLOW the following Safety
Messages. Serious injury or death may occur unless care is
taken to follow the warnings and instructions stated in the Safety
Messages. Always use good common sense to avoid hazards.
(SG-2)
Si no lee Ingles, pida ayuda a alguien que si lo lea
para que le traduzca las medidas de seguridad. (SG-3)
PELIGRO! ¡LEAEL
INSTRUCTIVO!
DANGER! Never operate the Tractor or Implement until you have read and
completelyunderstandthisManual, the Tractor Operator’s Manual,
andeachoftheSafetyMessagesfoundintheManualorontheTractor
andImplement. Learn how to stop the tractor enginesuddenly in an
emergency. Never allow inexperienced or untrained personnel too
operatetheTractor and Implement withoutsupervision. Makesure
the operator has fully read and understood the manuals prior to
operation. (SG-4)
WARNING! Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in
such a way as to be clearly visible and legible. When transporting the
EquipmentusetheTractorflashingwarninglightsandfollowalllocaltraffic
regulations.(SG-6)
WARNING! OperatethisEquipmentonlywithaTractorequippedwithanapproved
roll-over-protectivesystem(ROPS). Alwayswearseatbelts. Serious
injuryorevendeathcouldresultfromfallingoffthetractor--particularly
duringaturnoverwhentheoperatorcouldbepinnedundertheROPS.
(SG-7)
WARNING! DonotmodifyoralterthisImplement. DonotpermitanyonetomodifyoralterthisImplement,
any of its components or any Implement function. (SG-8)
DANGER! BEFOREleavingthetractorseat,alwaysengagethebrakeand/orsetthe
tractortransmissioninparkinggear,disengagethePTO,stoptheengine,
removethekey,andwaitforallmovingpartstostop. Placethetractorshift
lever into a low range or parking gear to prevent the tractor from rolling.
Never dismount a Tractor that is moving or while the engine is running.
Operate the Tractor controls from the tractor seat only.
(SG-9)
WARNING! Always maintain the safety decals in good readable condition. If the
decalsaremissing,damaged,orunreadable,obtainandinstallreplace-
ment decals immediately. (SG-5)

Safety Section 1-4SR20M/SR14M 10/03
© 2004 Alamo Group Inc.
SAFETY
SAFETY
DANGER! NeverallowchildrenorotherpersonstorideontheTractororImplement.
Falling off can result in serious injury or death. (SG-10)
DANGER! Neverallowchildrentooperateor ride on the Tractor or Implement.
(SGM-11)
WARNING! Do not mount the Tractor while the tractor is moving. Mount the
Tractor only when the Tractor and all moving parts are completely
stopped. (SG-12)
DANGER! Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions. (SG-13)
DANGER! NeverworkundertheImplement,theframework,oranyliftedcompo-
nent unless the Implement is securely supported or blocked up to
preventsuddenorinadvertentfallingwhichcouldcauseseriousinjury
or even death. (SG-14)
DANGER! Do not operate this Equipment with hydraulic oil leaking. Oil is
expensiveanditspresencecouldpresentahazard. Donotcheckfor
leakswithyourhand! Useapieceofheavypaperorcardboard. High-
pressureoil streams from breaks in the line couldpenetrate the skin
andcausetissuedamageincludinggangrene. Ifoildoespenetratethe
skin, have the injury treated immediately by a physician knowledge-
able and skilled in this procedure. (SG-15)

Safety Section 1-5
© 2004 Alamo Group Inc.
SAFETY
SR20M/SR14M 10/03
SAFETY
WARNING! Theoperatorandallsupportpersonnelshouldwearhardhats,safety
shoes,safety glasses, and properhearingprotection at all timesfor
protection from injury including injury from items thrown by the
equipment. (SG-16)
WARNING! Transport only at safe speeds. Serious accidents and injuries can
resultfromoperatingthisequipmentatunsafespeeds. Understandthe
Tractorand Implementandhowit handlesbeforetransporting on streets
andhighways. Make sure the Tractor steeringand brakes are in good
conditionandoperate properly.
BeforetransportingtheTractorandImplement,determinethesafe
transport speeds for you and the equipment. Make sure you abide
bythefollowingrules:
Be aware of the operating conditions. Do not operate the Tractor with
weak or faulty brakes. When operating down a hill or on wet or rain
slickroads,thebrakingdistanceincreases:useextremecareand reduce
yourspeed. Whenoperatingin traffic always use the Tractor’s flashing
warning lights and reduce your speed. Be aware of traffic around you
andwatch out for the other guy. (SG-19)
2. Test the equipment at a slow speed in turns. Increase the speed
through the turn only after you determine that it is safe to operate
at a higher speed. Use extreme care and reduce your speed when
turning sharply to prevent the tractor and implement from turning
over. Determine the maximum safe turning speed for you and this
equipmentbefore operating onroadsoruneven ground.
3. Only transport the Tractor and Implement at the speeds that you
have determined are safe and which allow you to properly control the
equipment.
1. Test the tractor at a slow speed and increase the speed slowly.
Apply the Brakes smoothly to determine the stopping
characteristicsofthe Tractor and Implement.
As you increase the speed of the Tractor the stopping distance
increases. Determine the maximum safe transport speed for
you and this Equipment.
CAUTION! PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PER-
MANENT HEARING LOSS! Tractors with or without an Implement
attached can often be noisy enough to cause permanent hearing
loss. We recommend that you always wear hearing protection if the
noise in the Operator’s position exceeds 80db. Noise over 85db
over an extended period of time will cause severe hearing loss.
Noiseover90dbadjacent to the Operator over anextendedperiodof
time will cause permanent or total hearing loss. Note: Hearing loss
from loud noise [from tractors, chain saws, radios, and other such
sources close to the ear] is cumulative over a lifetime without hope
of natural recovery. (SG-I7)

Safety Section 1-6SR20M/SR14M 10/03
© 2004 Alamo Group Inc.
SAFETY
SAFETY
WARNING! Neverattempttolubricate,adjust,orremovematerialfromtheImplementwhileitisinmotion
or while tractor engine is running. Make sure the tractor engine is off before working on the
Implement! (SG-20)
WARNING! Periodically inspect all moving parts for wear and replace when
necessary with authorized service parts. Look for loose fasteners,
worn or broken parts, and leaky or loose fittings. Make sure all pins
have cotter pins and washers. Serious injury may occur from not
maintaining this machine in good working order. (SG-21)
WARNING! Always read carefully and comply fully with the manufacturers
instructions when handling oil, solvents, cleansers, and any other
chemical agent. (SG-22)
DANGER! Neverrun the tractor enginein a closed buildingor without adequate ventilation. Theexhaust
fumes can be hazardous to your health. (SG-23)
DANGER! KEEPAWAY FROMROTATING ELEMENTStoprevententanglement
andpossible serious injury or death. (SG-24)
DANGER! Never allow children to play on or around Tractor or Implement. Children can slip or fall off the
Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing
themselves or others. (SG-25)
WARNING! DonotexceedtheratedPTOspeedfortheImplement. ExcessivePTO
speeds can cause Implement driveline or blade failures resulting in
serious injury or death. (SG-26)

Safety Section 1-7
© 2004 Alamo Group Inc.
SAFETY
SR20M/SR14M 10/03
SAFETY

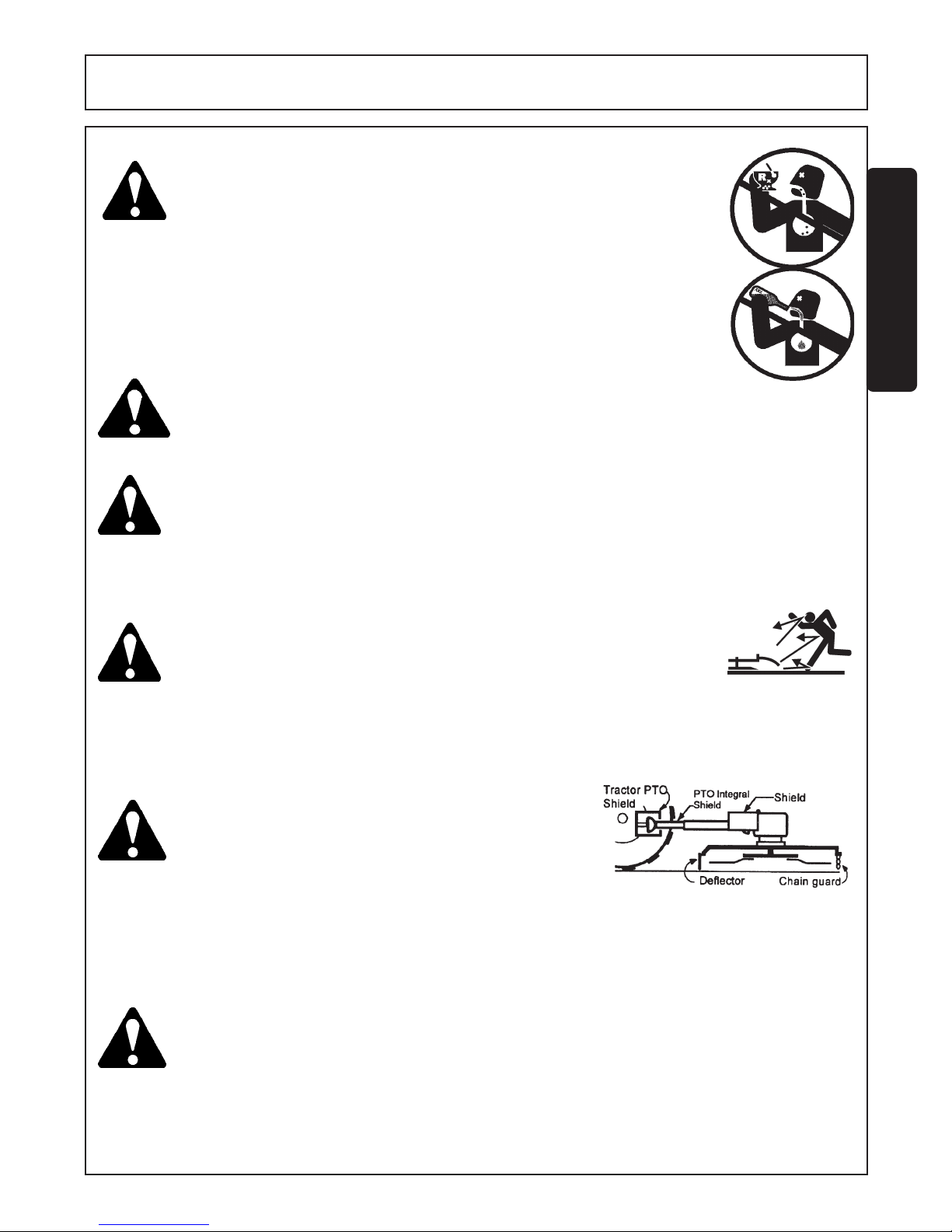

DANGER! NEVERusedrugs oralcoholimmediatelybeforeorwhileoperatingthe
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or
Implement,an operatoronprescriptionor over-the-counter medication
mustconsult a medicalprofessional regarding any side effects of the
medication that would hinder their ability to operate the Equipment
safely. NEVER knowingly allow anyone to operate this equipment
when their alertness or coordination is impaired. Serious injury or
death to the operator or others could result if the operator is under
the influnce of drugs or alcohol. (SG-27)
DANGER! AllSafetyShields,GuardsandSafetydevicesincluding
(butnotlimitedto)-theDeflectors,ChainGuards,Steel
Guards, Gearbox Shields, PTO integral shields , and
Retractable Door Shields should be used and main-
tained in good working condition. All safety devices
should be inspected carefully at least daily for missing
orbrokencomponents. Missing,broken,or wornitems
must be replaced at once to reduce the possibility of
injury or death from thrown objects, entanglement, or
blade contact. (SGM-3)
DANGER! Therotatingpartsofthismachinehavebeendesignedandtestedfor
ruggeduse. However,thebladescouldfailuponimpactwithheavy,
solidobjectssuchasmetalguardrailsandconcretestructures. Such
impactcould cause the broken objectsto be thrown outwardatvery
highvelocities. Toreducethepossibilityofpropertydamage,serious
injury,or even death,never allow thecutting blades tocontact such
obstacles. (SGM-4)
DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Mower. REMEMBER! Thismachineisoftenoperatedinheavybrush
and in heavy weeds. The Blades of this Mower can throw objects if
shields are not properly installed and maintained. Serious injury or
evendeathmayoccurunlesscareistakentoinsurethe safetyofthe
operator, bystanders, or passersby in the area. Do not operate this
machinewithanyoneintheimmediatearea. Stop mowing if anyone
is within 100 yards of mower. (SGM-2)
WARNING! Mow only in conditions where you have clear visibility in daylight or with
adequate artificial lighting. Never mow in darkness or foggy conditions
whereyou cannotclearlyseeat least100yardsin frontandtothe sidesof
the tractor and mower. Make sure that you can clearly see and identify
passersby,steepslopes,ditches,drop-offs,overheadobstructions,power
lines,debrisandforeignobjects. Ifyouareunabletoclearlyseethis type
ofitems discontinue mowing. (SGM-1)
DANGER! OperatetheTractorand/orImplementcontrolsonlywhileproperlyseated
in the Tractor seat with the seat belt securely fastened around you.
Inadvertent movement of the Tractor or Implement may cause serious
injury or death. (SG-29)

Safety Section 1-8SR20M/SR14M 10/03
© 2004 Alamo Group Inc.
SAFETY
SAFETY
WARNING! Many varied objects, such as wire, cable, rope, or chains, can become
entangledin the operatingpartsofthemower head. These itemscould
thenswingoutsidethehousingatgreatervelocitiesthantheblades. Such
a situation is extremely hazardous and could result in serious injury or
even death. Inspect the cutting area for such objects before mowing.
Remove any like object from the site. Never allow the cutting blades to
contact such items. (SGM-6)
WARNING! Mowatthespeedthatyoucansafelyoperateandcontrolthetractorand
mower. Safemowingspeeddependsonterrainconditionandgrasstype,
density,andheightofcut. Normalgroundspeedrangeisfrom0to5mph.
Use slow mowing speeds when operating on or near steep slopes,
ditches,drop-offs,overheadobstructions,powerlines,orwhendebrisand
foreignobjectsare to be avoided. (SGM-7)
WARNING! Mowonlyinconditionswhereyouhaveclearvisibilitiesindaylightor
with adequate artificial lighting. Never mow in darkness or foggy
conditionswhereyoucannotclearlyseeatleast100yardsinfrontand
tothesidesoftheTractorandMower. Makesurethatyoucanclearly
see and identify passersby, steep slopes, ditches, drop-offs, over-
headobstructions,powerlines,gaslines,debris,andforeignobjects.
If you do not have clear and safe visibility discontinue mowing. (SGM-
11)
WARNING! MowatthespeedthatyoucansafelyoperateandcontroltheTractor
and Mower. Safe mowing speed depends on terrain condition and
grasstype,density,andheightofcut. Normalgroundspeedrangeis
from0to5mph. Useslowmowingspeedswhenoperatingon ornear
steepslopes,ditches,drop-offs,overheadobstructions,powerlines,
gaslinesorwhendebris,andforeignobjectsaretobeavoided. (SGM-
12)
WARNING! Extremecareshouldbetakenwhenoperatingnearlooseobjectssuch
as gravel, rocks, wire, and other debris. Inspect the area before
mowing. Foreignobjectsshouldberemovedfromthesitetoprevent
machinedamageand/orbodilyinjuryorevendeath. Anyobjectsthat
cannotberemovedmustbeclearlymarkedandcarefullyavoidedby
the operator. Stop mowing immediately if blades strike a foreign
object. Repair all damage and make certain rotor or blade carrier is
balancedbeforeresumingmowing.(SGM-5)
WARNING! Avoid mowing in reverse direction when possible. Check to make sure
there are no persons behind the mower and use extreme care when
mowinginreverse. Mowonlyataslowgroundspeedwhereyoucansafely
operateandcontrolthetractorandmower. Nevermowanarea thatyou
havenotinspectedandremoveddebrisorforeign material. (SGM-8)
WARNING! Donot put hands orfeet under mower decks. BladeContact can result
seriousinjuryorevendeath. Stayawayuntilallmotionhas stoppedand
the decks are securely blocked up. (SGM-9)
DANGER! Replacebentorbrokenbladewithnewblades. NEVERATTEMPTTO
STRAIGHTEN OR WELD ON BLADES SINCE THIS WILL LIKELY
CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSE-
QUENTFAILUREANDPOSSIBLESERIOUSINJURYFROMTHROWN
BLADES. (SGM-10)

Safety Section 1-9
© 2004 Alamo Group Inc.
SAFETY
SR20M/SR14M 10/03
SAFETY
WARNING! Avoidmowinginthereversedirectionwhenpossible. Checktomake
sure there are no persons behind the mower and use extreme care
whenmowinginreverse. Mowonlyataslowgroundspeedwhereyou
cansafelyoperateandcontroltheTractorandMower. Nevermowan
areainthereversedirectionthatyouhavenot inspectedandremoved
debris or foreign material. (SGM-13)
DANGER! Always disconnect the main PTO Driveline from the Tractor before
performing service on the Mower. Never work on the Mower with the
tractor PTO driveline connected and running. Blades or Drivelines could
turn without warning and cause immediate entanglement, injury or death.
(SRM-3)
DANGER! Do not turn so sharp or lift mower so high to produce a severe
"knocking" of the Driveline which will cause accelerated wear and
breakage of drive train components and could result inpossible injury
from the separated Driveline sections. (SRM-4)
WARNING! Do not let the Blades turn when the Mower Deck is raised for any
reason, including clearance or for turning. Raising the Mower
deck exposes the Cutting Blades which creates a potentially
serious hazard and could cause serious injury or even death from
objects thrown from the Blades. (SRM-7)
WARNING! NeverleaveTractorandImplementedunattendedwhiletheimplementis
in the lifted position. Accidental operation of lifting lever or a hydraulic
failure maycausesuddendropofunitwith injuryordeathbycrushing.
To properly park the implement when disconnecting it from the tractor,
lowerthestandandputtheretainingpinsecurelyinplace,orputasecure
supportundertheA-Frame. Lowertheimplementcarefullytotheground.
Do not put hands or feet under lifted components. (S3PT-1)
DANGER! RotaryMowersarecapableunderadverse conditions
of throwing objects for great distances (100yardsor
more) and causing serious injury or death. Follow
safety messages carefully
-Front and Rear Deflectors, Chain Guards, or Bands are installed
and in good, workable condition;
-Mower sections or Wings are running close to and parallel to the
ground without exposed Blades;
-Passerby are outside the existing thrown-object zone;
-All areas have been thoroughly inspected and all foreign material
such as rocks, cans, glass, andgeneraldebrishasbeenremoved.
NOTE: Wherethere are grass and weeds high enoughto hide debris
that could be struck by the blades, the area should be: inspected
andlarge debrisremoved,mowed atanintermediate height,inspected,
closely with any remaining debris being removed, and mowed again
at desired final height. (This will also reduce power requiredto mow,
reduce wear and tear on the Mower drivetrain, spread cut material
better, eliminate streaking, and make the final cut more uniform.)
(SRM-1)
STOPMOWING IF PASSERSBYARE WITHIN 100YARDSUNLESS:

Safety Section 1-10SR20M/SR14M 10/03
© 2004 Alamo Group Inc.
SAFETY
SAFETY
CAUTION! To prevent tipping of implement when stored in folded position, use
carrying wheels or adequate stands on center frame. (S3PT-6)
DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Implementasinallpower-drivenorpulledequipment. REMEMBER!
Thismachineisoftenoperatedinroughterrainconditionsthatincludetall
grass, weeds, gullies, holes, slopes, hidden obstructions and the like.
Seriousinjuryorevendeathmayoccurunlesscareistakentoassurethe
safetyofthe operator and bystanders inthearea. Do not operate this
machine with anyone in the immediate area. (S3PT-7)
WARNING! The rotating parts of this machine continue to rotate even after the PTO
has been turned off. The operator should remain in his seat for 60
seconds after the brake has been set, the PTO disengaged, the tractor
turned off, and all evidence of rotation has ceased. (3PT-10)
“Wait a minute...Save a life!”
DANGER! Be particularly careful when transporting the Implement using the tractor.
Turn curves or go up or down hills only at a low speed and at a gradual
steering angle. Make certain that at least 20% of the tractor’s weight is
on the front wheels to maintain safe steerage. Slow down on rough or
uneven surfaces. (STI-1)
DANGER! When the Wings are folded for transport, the center of gravity is raised
and the possibility of overturn is increased. Drive slowly and use
extremecaution when turning on hillsides. Overturning the Implement
could cause the Implement to overturn the Tractor and vice versa resulting
in serious injury or even death. Never fold wings on a hillside...the
Implement may overturn. (STI-2)
DANGER! DO NOT allow any person under a folded wing unless wing is securely
locked up or supported. DO NOT approach the Implement unless the
Tractor is turned off and all motion has ceased. Never work under the
frame work, or any lifted component unless the implement is securely
supported or blocked up. A sudden or inadvertent fall by any of these
components could cause serious injury or even death. (STI-3)
WARNING! Use extreme care when lowering or unfolding the implement’s wings. Make
sure no bystanders are close by or underneath the wings. Allow ample
clearance around the implement when folding or unfolding the wings. Use
extreme caution around buildings or overhead power lines. (S3PT-5)
DANGER! Make sure the PTO shield, integral driveline shields, and input shields are
is installed when using PTO-driven equipment. Always replace any
shield if it is damaged or missing. (S3PT-8)
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair work
on the Implement. Place the Implement on the ground or securely
blocked up, disengage the PTO, and turn off the tractor engine. Push
and pull the Remote Cylinder lever in and out several times prior to
starting any maintenance or repair work. (S3PT-9)

Safety Section 1-11
© 2004 Alamo Group Inc.
SAFETY
SR20M/SR14M 10/03
SAFETY
WARNING! Never unhitch without using the Tongue Jack. The Tongue is
very heavy. Attempting to lift the Tongue without using the Tongue
Jack could cause strains or other injury. Allowing the tongue to fall
suddenly and unexpectedly could result in crushing injury. Use
the Tongue Jack for lifting the mower only. Overloading the
Tongue Jack can cause failure with possible serious bodily injury
or even death. (STI-4)
CAUTION! On a fully-assembled unit, do not remove the Wing Retaining Strap
until hoses are attached to the tractor and the Wing Cylinders are
filled with oil. Lower the Wings slowly and carefully. Keep bystand-
ers away during operations. (STI-5)
WARNING! Only tow the Implement behind a properly sized and equipped Tractor which exceeds the weight
of the Implement by at least 20%. DO NOT tow the Implement behind a truck or other type of
vehicle. Never tow the Implement and another Implement connected in tandem. Never tow the
Implement at speeds over 20 MPH. (STI-6)
Follow these guidelines to reduce the risk of equipment and grass fires
while operating, servicing, and repairing the Mower andTractor:
-Equip the Tractor with a fire extinguisher in an accesible location.
-Do Not operate the Mower on a Tractor with an underframe exhaust.
-Do Not smoke or have an open flame near the Mower and Tractor.
-Do Not drive into burning debris or freshly burnt areas.
-Ensureslipclutchesareproperlyadjustedtopreventexcessiveslippage
andplateheating.
-Never allow clippings or debris to collect near drivelines, slip clutches,
andgearboxes. PeriodicallyshutdowntheTractorand Mower and clean
clippings and collected debris from the mower deck. (SGM-12)
WARNING!
WARNING! DonotmowwithtwomachinesinthesameareaexceptwithCabtractorswiththewindowsclosed.
(SGM-11)
DANGER! Replacebentorbrokenbladewithnewblades. NEVERATTEMPTTOSTRAIGHTENORWELD
ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE
WITHSUBSEQUENTFAILUREANDPOSSIBLESERIOUSINJURYFROMTHROWNBLADES.
(SGM-10)

Safety Section 1-12SR20M/SR14M 10/03
© 2004 Alamo Group Inc.
SAFETY
SAFETY
PARTSINFORMATION
Servis-Rhinomowersusebalancedandmatchedsystemcomponentsforbladecarriers,blades,cuttershafts,
knives,knifehangers,rollers,drivetraincomponents,andbearings. ThesepartsaremadeandtestedtoServis-
Rhino specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of
“will fit” parts may reduce mower performance, void mower warranties, and present a safety hazard. Use
genuineServis-Rhinomowerpartsforeconomyandsafety.
(SPRM-1)
SEEYOURSERVIS-RHINODEALER
In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
trainingofpersonnelinvolvedin the operation, transport, maintenance, and storageofthemachine. Referalso to
Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment
Manuals. Pay close attention to the Safety Signs affixed to theTractor and Equipment. (SG-18)

Safety Section 1-13
© 2004 Alamo Group Inc.
SAFETY
SR20M/SR14M 10/03
SAFETY
13
7
4
19
15
22
14
24
2
7
14
22
24
20
3
4
Counterweight
For two-section
Cutter
24
11
3
4
62
22
3
4
For two-section Cutter Only
25
21
18
21
19
26
26 26
14
4
3
12
95
27
26
16
17
36 35
8
31
32
32
28
29
33
NOTE: Rhino supplies safety decals on this product to
promotesafeoperation.Damagetothedecals may occur
whileinshipping,use,orreconditioning. Rhinocaresabout
the safety of its customers, operators, and bystanders,
and will replace the safety decals on this product in the
field,free of charge (Some shippingandhandlingcharges
may apply). Contact your Rhino dealer to order
replacementdecals.

Safety Section 1-14SR20M/SR14M 10/03
© 2004 Alamo Group Inc.
SAFETY
SAFETY
ITEM PARTNO. QTY LEVEL DESCRIPTION
1 00725746 1 PELIGRO GetManualTranslated
2 00753840 2(1) DANGER FoldingWings
3 00756004 1((3)) DANGER Driveline Shield Missing; Do Not Operate
4 00756005 1((3)) DANGER RotatingDriveline,Entanglement
5 00769736 1 WARNING Use/Repair Shields & Guards, Rotary
6 00756059 1 WARNING Oil Leak Detection, Skin Penetration
7 00769737 2 (1) DANGER Cutting Blades, Thrown Objects, Rotary
8 00756494 1 DANGER DrivelineHazards
9 00760657 1 IMPORTANT RHINORepair Parts
11 999403 0(1) DANGER Overturnof Two-Section Flex
12 D103 [1] INSTRUCT 540 RPM
D114 [1] INSTRUCT 1000 RPM
13 03200347 * REFLECT SMV Emblem
14 1458392 2 REFLECT RedReflective
15 1458393 1 REFLECT AmberReflective
16 00763613 1 INSTRUCT Slip Clutch Adjustment
17 00763977 1 INSTRUCT Notice to Owner
18 D102 [1] INSTRUCT PTO-to-DrawbarHoleAdjustment
19 D137 2(1) INSTRUCT CCW Blade Rotation
20 D138 1 INSTRUCT CW Blade Rotation
21 D302 2 LOGO RHINO 4-7/8 x 6-1/2
22 D303 2 L.NAME RHINO TYPE, 4-3/8 x 16-3/4
24 00757768 [2] NAME SR20
00766722 [2] NAME SR14
25 nfs 1 SER. PLT SR20 Serial Plate
27 00771283 INSTRUCT 5-Year Gearbox Warranty
28 02977417 1 INSTRUCT OperatorsManual Inside
29 00776031 1 -------------- Canister,Operators Manual
30 00766693C 1 -------------- OperatorsManual
31 10058000 3 -------------- Bolt
32 00024100 3 -------------- Flatwasher
33 02959924 3 -------------- Locknut
34 00749117 1 DANGER Multi-Hazard
35 00773723 1 PELIGRO RotatingDrivelineTranslation
* Furnished by Tractor Manufacturer
( ) For Two-Section unit only
(()) Installed byDriveline Manufacturer
[ ] Use one or the other
SR 20 & SR14 Decal Sheet
00773384 Center Section
00773383 Divider Shield
00776558 Right Wing SR20
00776569 Left Wing SR20
00776574 Right Wing SR14
00776677 Counter Balance SR14
R 04-23-02
