ROTARY CUTTER
TR210LT/PT
Rev 10-2020 Part No. 00793561P

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingparts arepotentiallyhazardous. There isnosubstitute foracautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
ReadandunderstandthecompleteWarrantyStatementfoundinthis Manual. Fill out the Warranty Registration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2006 Alamo Group Inc.
For maximum safety and to guarantee optimum product reliability, always use
genuine Servis-Rhino Parts. The use of inferior replacement parts may cause
premature or catastrophic failure which could result in serious injury or death.
Direct any questions regarding parts to:
The following instructions are offered to help eliminate needless delay and error in processing
purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locate the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization
ordering the parts, who should be charged, and if possible, the serial number of the machine
for which the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct part
number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked and
are subject to special handling. Request a quotation for such parts before sending a
Purchase Order.
6. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to The Safety Section in the front of this Manual for the proper
Part Number when ordering Replacement Safety Decals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

PART NAME INDEX
AXLE ASSEMBLY - PULL TYPE............................................................................................................................................................... 4
BLADE CARRIER........................................................................................................................................................................................ 6
CANISTER ASSEMBLY.............................................................................................................................................................................. 7
CASTERFORK ASSEMBLY - 00776220 LIFT TYPE................................................................................................................................ 8
CHAINGUARD ASSEMBLY..................................................................................................................................................................... 10
CYLINDER ASSEMBLY - PULL TYPE................................................................................................................................................... 11
DRIVELINE - 00787965 540RPM CAT 4, 80 DG CV 35EBL (PULL TYPE)........................................................................................ 12
DRIVELINE - 00793198 1000RPM CAT 4 1-3/8 20 X 60.12 (LIFT TYPE)............................................................................................ 13
DRIVELINE - 00776944 (SIDE DRIVE).................................................................................................................................................... 14
DRIVELINE - 00793192 JACKSHAFT (PULL TYPE)............................................................................................................................. 15
DRIVELINE - 00793197 540RPM CAT4, 1-3/8-6 X 1-3/4-20 X 59.65 (LIFT TYPE).............................................................................. 16
GEARBOX ASSEMBLY - 00778600P 1:1.6 SU 1-3/4-20 (540RPM DIVIDER).................................................................................... 17
GEARBOX ASSEMBLY - 00778614P 1.17:1RD 1-3/4-20 (1000RPM DIVIDER)................................................................................. 19
GEARBOX ASSEMBLY - 00791057 1:1.21 (OUTBOARD).................................................................................................................... 21
HUB & SPINDLE ASSEMBLY - 00790220.............................................................................................................................................. 23
LEVEL ROD ASSEMBLY - 00793407 PULL TYPE................................................................................................................................ 24
QUICK HITCH COMPONENTS................................................................................................................................................................ 25
SHIELD ASSEMBLY - CENTER LIFT TYPE.......................................................................................................................................... 27
SHIELD ASSEMBLY - CENTER PULL TYPE......................................................................................................................................... 28
SHIELD ASSEMBLY - OUTBOARD........................................................................................................................................................ 30
SKID SHOES............................................................................................................................................................................................... 32
SLIPCLUTCH - 00793537........................................................................................................................................................................... 33
TAILWHEEL ASSEMBLY - LIFT TYPE.................................................................................................................................................. 34
TONGUE ASSEMBLY - PULL TYPE....................................................................................................................................................... 35
©2020 Alamo Group Inc. Parts Section -3
TR210LT TR210PT
TIRE OPTIONS......................................................................................................................................................................................... 37

AXLE ASSEMBLY - PULL TYPE
©2020 Alamo Group Inc. Parts Section -4
TR210LT TR210PT

AXLE ASSEMBLY - PULL TYPE
Continued...
15 00780878 3
16 02931300 8
17 00037200 8
18 02675800 8
19 00695100 8
20 4526 2
21 00791366 1
22 00755234 1
23 8727A 1
24 420011 1
25 02822500 2
26 00606000 2
27 8354 1
28 00755153 4
29 00793282 4
30 02776600 4
RIVET, 3/16 POP X 15/32" G.R.
HHCS, 3/4"NC X 2" ZP GR5
NUT,HEX TOPLOCK 3/4 NC GR.C PL
BOLT 5/8 NC 1-1/2 PL5
NUT, TOPLOCK 5/8 NC PLC
NUT LOCK FLG WHIZ 1/2-13 NC PL
CASTING, 8IN CYLINDER LOCK
KIT, CONTROL SPACER
CYLINDER, HYD 2-1/2 X 8
PIN,CLEVIS 1 X 5 - PLATED
FLATWASHER 1 PL STD
PIN, COTTER 3/16 X 2"
PIN,CLEVIS 1.00 DIA X 3.25 LG
PIN,COTTER 3/16 X 1-1/2 PLATED
WDMT, AXLE PIVOT PIN
HHCS 1/2-13 NC X 1 1/4 GR8 PL
©2020 Alamo Group Inc. Parts Section -5
TR210LT TR210PT
ITEM PART NO. QTY.
1 00793404 1
2 00793406 1
3 00793402 1
4 00793240 2
5 00793242 2
6 00790220 2
7 03200347 1
8 00793364 1
9 00793365 1
10 00764375 2
11 00001800 2
12 00021400 2
13 02959924 2
14 00748823 2
DESCRIPTION
WDMT, TR 10` LH EXT AXLE
WDMT, TR 10` RH EXT AXLE
WDMT, TR LARGE CENTER AXLE
WDMT, STIFF AXLE ARM
PLATE, AXLE CLAMP
ASY,HUB & SPINDLE (DEMCO)
EMBLEM, SMV
MOUNT, CANISTER SMV BRANDED
PLATE, BRANDING BACKER
HHCS 1/2NC X 3-1/4 PL5
LOCKNUT TLM 1/2 NC PLC
HEXB 1/4 NC 3/4 PL5
NUT, LOCK TLM 1/4-20 NC PLB
HHCS 1/2-13 UNC X 1-1/2 GR.5 PL

BLADE CARRIER
ITEM PART NO. QTY. DESCRIPTION
1 00791100 1 CAST WING PAN
2 00792894 2 BLADE, FAN CW, 3X20-1/2 CTR-TIP
00792895 2BLADE, FAN CCW, 3X20-1/2 CTR-TIP (NOT SHOWN)
3 00791094 1 HUB, EZ80 FLANGED ADAPTOR
4 B571044 2 BLADE BOLT KIT/NUTS
5 571045 2 SHOULDER BOLT WASHER
6 00756077 6WASHER,5/8 HARDENED
7 00760711 6 HHCS 5/8-11NC X 1-3/4" PL5
©2020 Alamo Group Inc. Parts Section -6
TR210LT TR210PT

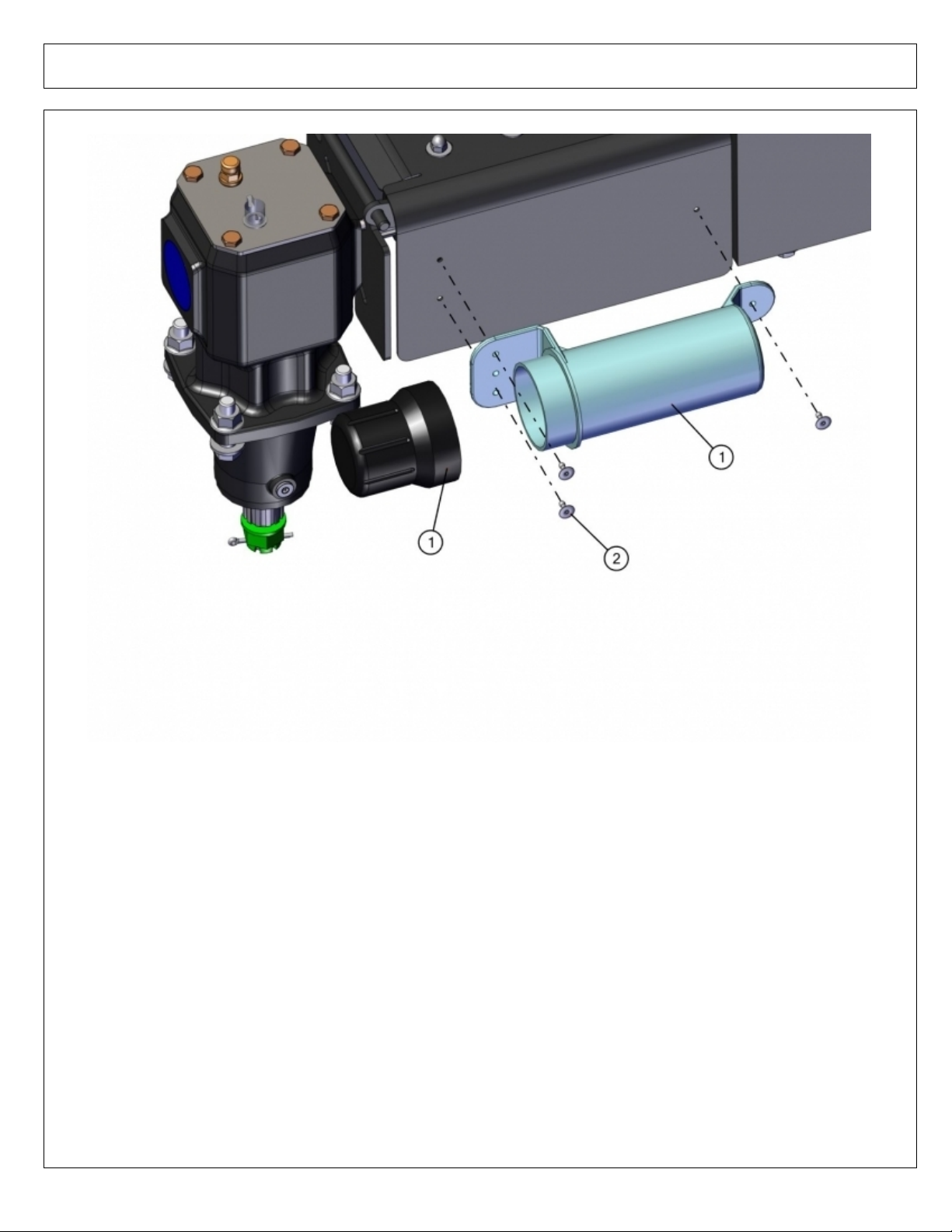

CANISTER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00776031 1 CANISTER, PARTS MANUAL
2 00780878 3 RIVET, 3/16 POP X 15/32" G.R.
©2020 Alamo Group Inc. Parts Section -7
TR210LT TR210PT

CASTERFORK ASSEMBLY - 00776220 LIFT TYPE
©2020 Alamo Group Inc. Parts Section -8
TR210LT TR210PT

CASTERFORK ASSEMBLY - 00776220 LIFT TYPE
Continued...
18 02822500 1
19 00780238 1
20 00785915 1
FLATWASHER 1 PL STD
ASY,TAILWHEEL HUB (INCLUDES ITEMS 7 & 20)
KIT,BEARING & SEAL (INCLUDES ITEMS 7-13 & 17)
©2020 Alamo Group Inc. Parts Section -9
TR210LT TR210PT
ITEM PART NO. QTY.
1 0585020210A 1
2 15B2400 1
3 00758899 1
4 373024H 1
5 00002000 4
6 00771824 4
7 00776214 1
8 00776213 2
9 00759635 4
10 00762462 4
11 00772017 2
12 00772018 2
13 00776219 2
14 00776211 1
15 00776212 1
16 00771620 1
17 00772082 1
DESCRIPTION
WDMT,CASTER FORK
FLATWASHER,SAE 1-1/2 NAR-PLT
PIN COTTER 3/8X2-1/2 PL EXTEND
ASY,WHEEL & TIRE
HHCS 3/8 NC X 3/4 PL5
LOCKNUT TLMF 3/8 NC PLB
HUB 4 BOLT
SET,BEARING CONE & CUP
WASHER, FLAT 1/2 HARDND NONPLT
HEXB METRIC 12-P1.75- 25MM PL5
BUSHING SPINDLE STEP
DUST CAP
SEAL,DBL LIP OIL 40 X 62 X 8
BOLT,SPINDLE M24 X 2 X 192 OAL
NUT SPINDLE M24 X 2
PIN,COTTER 5/32X2-1/2 PL
NIPPLE, GREASE M8X1

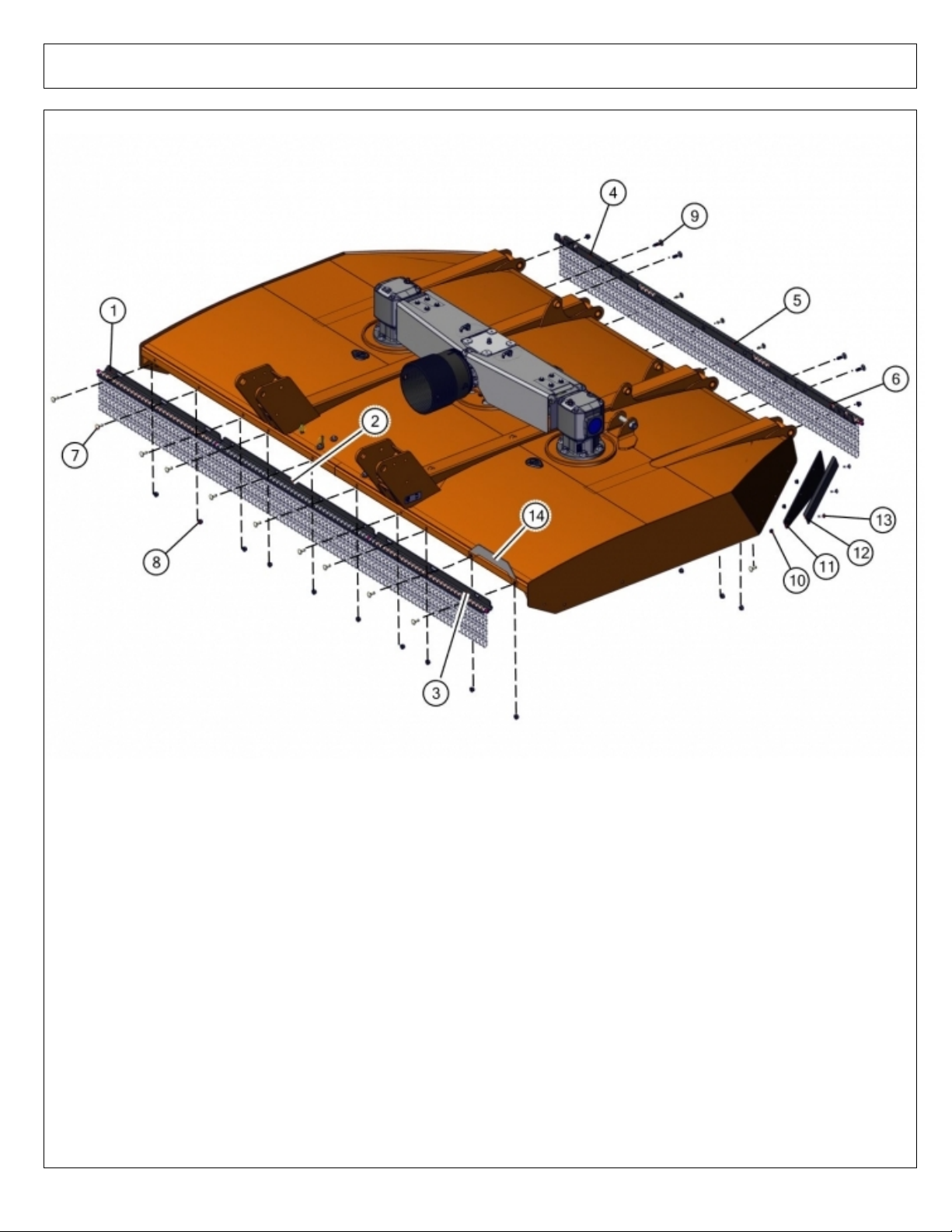

CHAINGUARD ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00793416 1 ASSY, TR210 FRONT SIDE C.G.
2 00793418 1 ASY, TR210 FRONT C.G.
3 00793416 1 ASSY, TR210 FRONT SIDE C.G.
4 00793414 1 ASSY, TR210 REAR RH C.G
5 00793410 1 ASSY, TR210 REAR CENTER C.G.
6 00793412 1 ASSY, TR210 REAR LH C.G.
7 000514 1 CARB, 1/2 NC 1-1/4 PL5
8 4526 1 NUT LOCK FLG WHIZ 1/2-13 NC PL
9 000516 1 CARB BOLT 1/2 NC 1-3/4 PL5
10 4528 1 NUT, HEX LOCK 3/8-16 FLG WHIZ
11 00793434 1 DEFLECTOR, TR 10` RUBBER TAIL
12 00793435 1 BRACKET, TAIL DEFLECTOR
13 000644 1 CARB-3/8 NCK 1-1/4 PL5
14 00793467 1 BRACKET, TR REFLECTOR
©2020 Alamo Group Inc. Parts Section -10
TR210LT TR210PT

CYLINDER ASSEMBLY - PULL TYPE
ITEM PART NO. QTY. DESCRIPTION
8727A - COMPLETE ASSEMBLY
1 00774729 1 CLEVIS CAP
2 ---------- - ROD CAP
3 ---------- - PISTON
4 ---------- - ROD
5 ---------- - TUBE
6 ---------- -
700774760 1
83047117 1
91917140 1
1000774740 1
1133003H5C 8
125JRC12160 1
13 1917132 1
14 2417154 1
15 00793437 2
16 00786767 2
17 02968850 1
TIE ROD
SEAL KIT
NYLON THREAD PROTECTOR
ROD CLEVIS
SET SCREW
TIE ROD NUT
PISTON NUT
PORT PLUG
BREATHER
HOSE (NOT SHOWN)
ADAPTER,HYD STGHT 8MB-6MJ W/.062 (ORIFICE) (NOT SHOWN)
ADAPTER, 8MB-6MJ (NOT SHOWN)
QK CPLR 1/2 MHALF X 3/4 F ORB (NOT SHOWN)
©2020 Alamo Group Inc. Parts Section -11
TR210LT TR210PT
18 6137-10 1
NOTE: ITEMS 15-18 LISTED IN THE PARTS LIST ARE FOR THE HYDRAULIC HOSE & FITTINGS

DRIVELINE - 00787965 540RPM CAT 4, 80 DG CV 35EBL (PULL TYPE)
ITEM PART NO. QTY. DESCRIPTION
00787965 1 540RPM CAT 4, 80 DG CV 35EBL (PULL TYPE)
1 00788002 1 COMPLETE SHIELD ASSEMBLY
2 50069190 1 CROSS BEARING KIT (35EBL)
3 50069189 1 CROSS BEARING KIT (80°EBL)
4 00788001 1 BOLT, FLANGED 5/8”-11 X 3-1/2” GR.8
5 5HR10110 1 LOCKNUT, TOPLOCK FLANGED 5/8”
6 2716868 1 YOKE 1-3/4-20 SPLINE
7 00788000 1 CV CENTER HOUSING
8 00787999 1 AUTO-LOC YOKE ASSY
©2020 Alamo Group Inc. Parts Section -12
TR210LT TR210PT

DRIVELINE - 00793198 1000RPM CAT 4 1-3/8 20 X 60.12 (LIFT TYPE)
ITEM PART NO. QTY. DESCRIPTION
00793198 1 1000RPM CAT 4 1-3/8 20 X 60.12 (LIFT TYPE)
1 00793538 1 YOKE,1-3/8 - 21 SPLINE
2 00793536 2 KIT,CROSS & BEARING 75MM
3 8982 1 INBOARD YOKE 2400 SERIES
4 00756934 2 PIN,ROLL 10 X 80
5 7413 1 INNER PROFILE
6 00775377 1 PROFILE & SLEEVE W.A.
7 8387 1 YOKE, INBOARD
8 00793537 1 ASY,FRICTION CLUTCH, 4-PLATE
9 8393 2 BEARING SUPPORT RING SC25
10 00759217 2 SCREW 1/2 LG #8 PAN
11 00756005 1 DECAL,ROTATING DRIVELINE
12 00756004 1 DECAL,DANGER - GUARD MISSING
13 8974 1 SUPPORT BEARING WAL
14 00771813 1 GREASE FTG, STGHT
15 00767954 1 YOKE.Q.D.KIT - PLASTIC
16 00793539 1 KIT,COMPLETE GUARD
©2020 Alamo Group Inc. Parts Section -13
TR210LT TR210PT

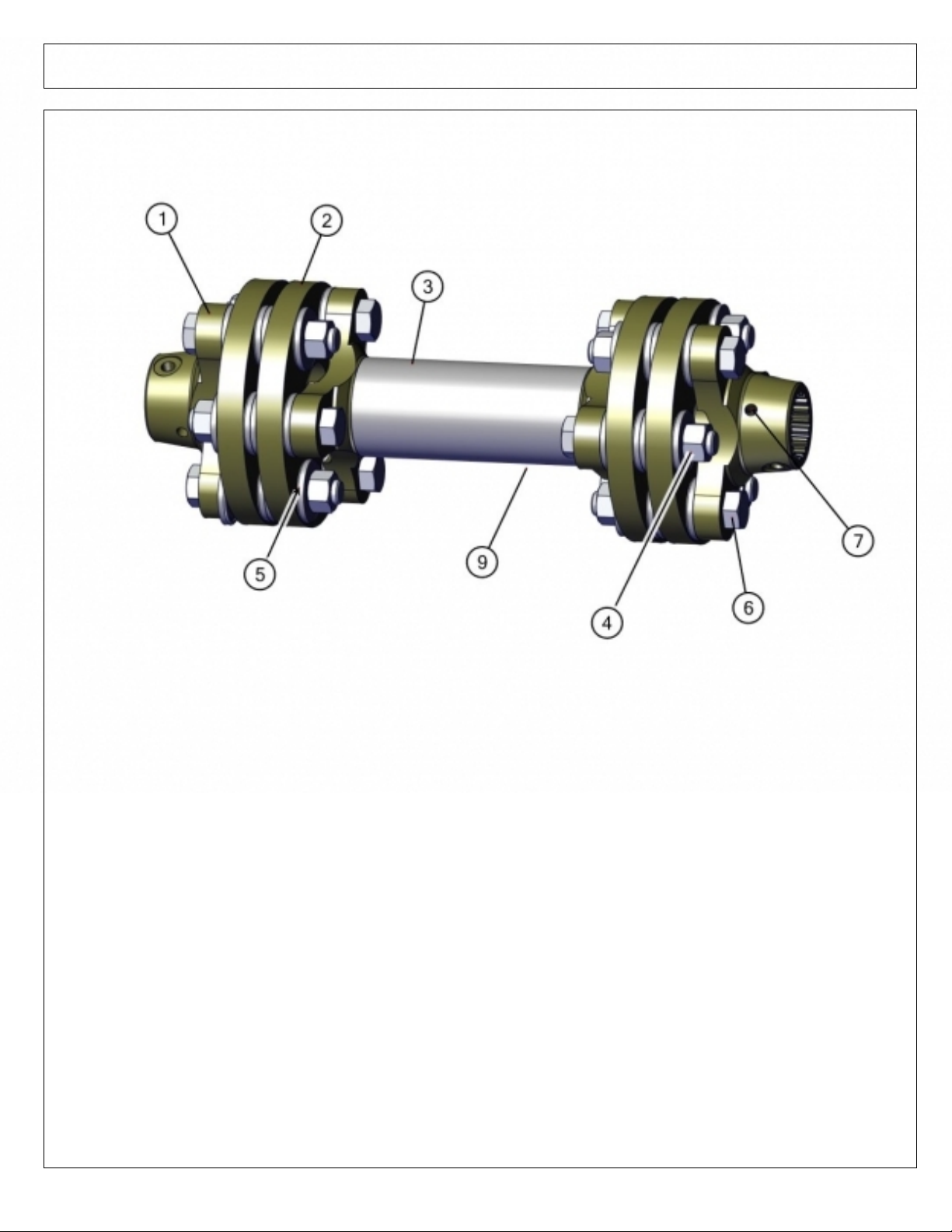

DRIVELINE - 00776944 (SIDE DRIVE)
ITEM PART NO. QTY. DESCRIPTION
00776944 1 SIDE DRIVE - COMPLETE
1 00785557 2 OUTER CONNECTOR YOKE 1 3/4"-20
2 00785557 4 FLEX COUPLER RUBBER DISK
3 00776947 1 DOUBLE FLEX YOKE & TUBE ASSEMBLY
4 00765962 12 M16X2 SELF LOCKING HEX NUT
5 00766475A 48 FLEX COUPLER SHAPED WASHER
6 00765902 12 M16X2X90 HEX HEAD CAP SCREW
7 00764386 2 M8X1 GREASE ZERK
8 00771287 24 16 I.D. FLEX COUPLER BUSHING (NOT SHOWN)
9 00756004 1 SHIELD MISSING WARNING LABEL
©2020 Alamo Group Inc. Parts Section -14
TR210LT TR210PT

DRIVELINE - 00793192 JACKSHAFT (PULL TYPE)
ITEM PART NO. QTY. DESCRIPTION
00793192 1 JACKSHAFT (PULL TYPE)
1 00756934 1 SPRING PIN, 10X80
2 00775310 1 INBOARD YOKE S5
3 00793540 1 STUB + PROF ILE W .A.
4 00756004 1 DECAL INNER-IN ITEM 3
5 00793536 1 CROSS+ BRG KIT
6 00793537 1 FRICTION CLUTCH
©2020 Alamo Group Inc. Parts Section -15
TR210LT TR210PT

DRIVELINE - 00793197 540RPM CAT4, 1-3/8-6 X 1-3/4-20 X 59.65 (LIFT TYPE)
ITEM PART NO. QTY. DESCRIPTION
00793197 - 540RPM CAT4, 1-3/8-6 X 1-3/4-20 X 59.65
1 00779516 1 YOKE,1-3/8 - 6 SPLINE
2 00793536 2 KIT,CROSS & BEARING 75MM
3 8982 1 INBOARD YOKE 2400 SERIES
4 00756934 2 PIN,ROLL 10 X 80
5 7413 1 INNER PROFILE
6 00775377 1 PROFILE & SLEEVE W.A.
7 8387 1 YOKE, INBOARD
8 00793537 1 ASY,FRICTION CLUTCH, 4-PLATE
9 8393 2 BEARING SUPPORT RING SC25
10 00759217 2 SCREW 1/2 LG #8 PAN
11 00756005 1 DECAL,ROTATING DRIVELINE
12 00756004 1 DECAL,DANGER - GUARD MISSING
13 8974 1 SUPPORT BEARING WAL
14 00771813 1 GREASE FTG, STGHT
15 00767954 1 YOKE.Q.D.KIT - PLASTIC
16 00793539 1 KIT,COMPLETE GUARD
©2020 Alamo Group Inc. Parts Section -16
TR210LT TR210PT

BLANK INTENTIONALLY
©2020 Alamo Group Inc.
TR210LT TR210PT

GEARBOX ASSEMBLY - 00778600P 1:1.6 SU 1-3/4-20 (540RPM DIVIDER)
©2020 Alamo Group Inc. Parts Section -17
TR210LT TR210PT
