SENDit™
Wireless Load Cell Interface
Installation Manual
PN 167466 Rev FOctober 24, 2019

An ISO 9001 registered company
© Rice Lake Weighing Systems. All rights reserved.
Rice Lake Weighing Systems® is a registered trademark of
Rice Lake Weighing Systems.
All other brand or product names within this publication are trademarks or
registered trademarks of their respective companies.
All information contained within this publication is, to the best of our knowledge, complete and
accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make
changes to the technology, features, specifications and design of the equipment without notice.
The most current version of this publication, software, firmware and all other product
updates can be found on our website:
www.ricelake.com

Contents
© Rice Lake Weighing Systems ● All Rights Reserved i
Contents
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com/training
or obtained by calling 715-234-9171 and asking for the training department.
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Mounting the Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.1 Connect Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.2 Connect Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.0 RF Pairing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Pairing Receivers and Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.0 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.0 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1.1 Standard Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.2 Long Range OMNI 9 dBi Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.3 Vehicle Mount Whip Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.4 YAGI Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.5 Corner Reflector Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.6 Patch Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SENDit Wireless Load Cell Interface
ii Visit our website www.RiceLake.com
Rice Lake continually offers web-based video training on a growing selection
of product-related topics at no cost. Visit www.ricelake.com/webinars

© Rice Lake Weighing Systems ● All Rights Reserved 1
Introduction
1.0 Introduction
The SENDit Wireless Load Cell Interface transmitters and receivers are efficient communication devices that replace the need
for traditional wire runs. Compatible with a broad range of transmitting and receiving devices, SENDit is designed to work with
ScaleCore-based products as shown in Figure 1-1 on page 3. SENDit transmitters can interface with virtually any strain-gage
sensor. This manual provides the details for SENDit and SENDit installation, configuration and calibration.
Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com
Warranty information can be found on the website at www.ricelake.com/warranties
1.1 Safety
Safety Signal Definitions:
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes
hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death. Includes
hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.
Indicates information about procedures that, if not observed, could result in damage to equipment or corruption
to and loss of data.
General Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood.
Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake
Weighing Systems dealer for replacement manuals.
Failure to heed could result in serious injury or death.
Do not allow minors (children) or inexperienced persons to operate this unit.
Do not use this unit if any of the components are loose or cracked.
Do not remove or obscure warning labels.
Do not use near water.
Do not place fingers into slots or possible pinch points.
Do not make alterations or modifications to the unit.
There are no user serviceable parts within the SENDit units. Any repairs are to be performed by qualified service personnel only.
DANGER
WARNING
CAUTION
IMPORTANT
WARNING

SENDit Wireless Load Cell Interface
2 Visit our website www.RiceLake.com
1.2 Options
Part No Description
162172 Charger, SENDit for 6V SLA battery
162173 Battery, SENDit 6V SLA
162175 Enclosure, SENDit for 6V SLA battery
150964 RS-232 13' (4 m) serial cable with 9-Pin (female) connector
150965 RS-232 13' (4 m) serial cable with 9-Pin (male) connector
160110 AC adapter, SENDit (INTL) 6V
162178 Antenna kit, remote standard antenna
139309 Antenna kit, long range Omni with 3 M coax
139310 Antenna kit, corner reflector 9 DBI with 3 M coax
139311 Antenna kit, corner reflector 12 DBI with 3 M coax
139312 Antenna kit, Yagi 15 DBI with 3 M coax
144345 30 M coaxial cable, for use with non-vehicle mount antenna kits
162177 Cordset, SENDit. Pre-wired for use with single channel transmitters or receivers
162184 Load cell connector, SENDit. Field wire-able, 4-6 mm straight.
162185 Load cell connector, SENDit. Field wire-able, 6-8 mm straight.
162186 Load cell connector, SENDit. Field wire-able, 4-6 mm right angle.
162187 Load cell connector, SENDit. Field wire-able, 6-8 mm right angle.
Table 1-1. Options

© Rice Lake Weighing Systems ● All Rights Reserved 3
Introduction
1.3 Overview
The SENDit offers an effective wireless load cell cable replacement in systems where it would be difficult to have a load cell
cable. Replacing the cable with an RF link, the output is then set to match the device that the cable was connected to.

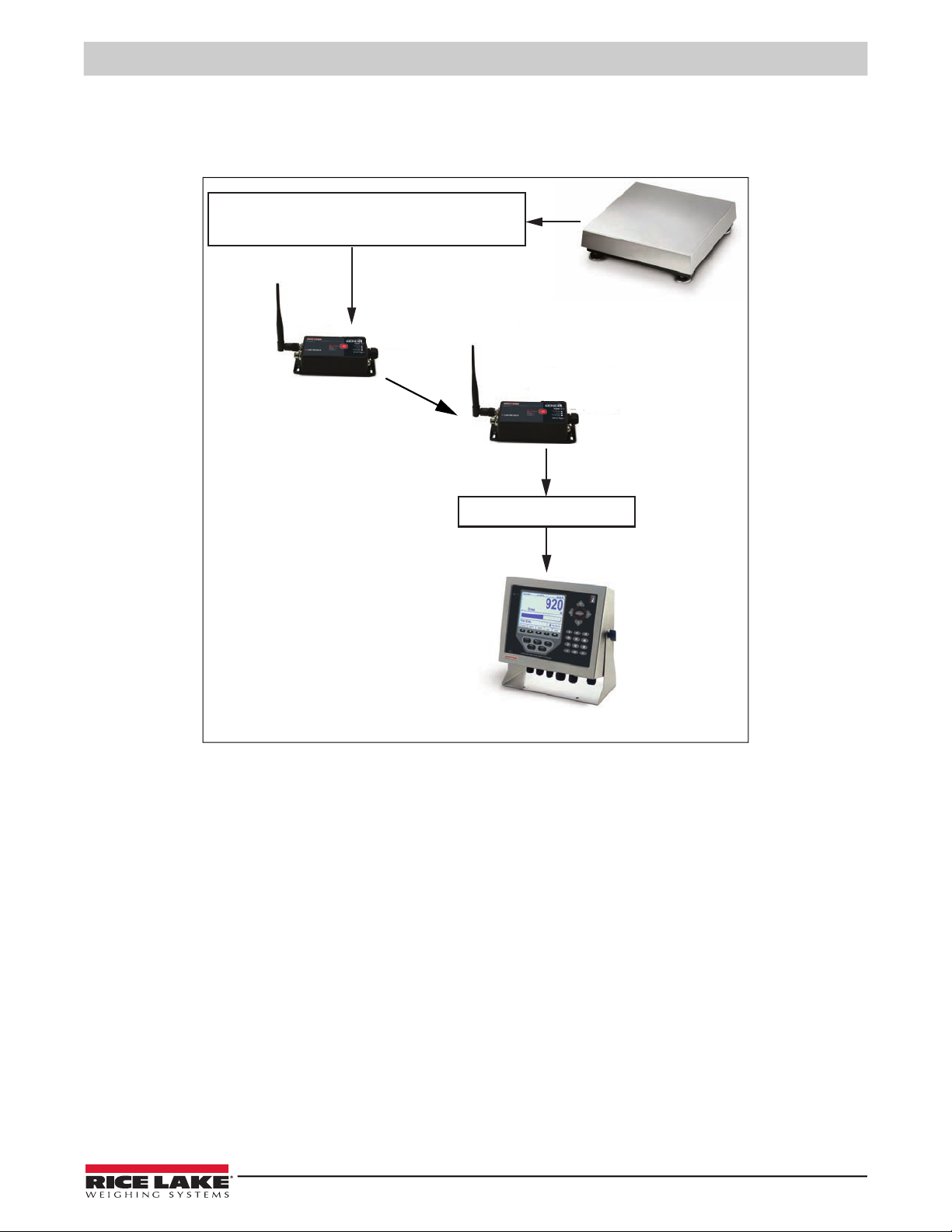

Figure 1-1. SENDit Connectivity
One ChanSENDit Transmitter Transmitter
BenchMark Bench Scale
SENDit Reciever
920i Digital Weight Indicator

SENDit Wireless Load Cell Interface
4 Visit our website www.RiceLake.com
1.4 Front Panel
Figure 1-2. Transmitter Front Panel
Figure 1-3. Receiver Front Panel
Item No. Description
1 Load Cell connector (Transmitter) - located on the side of the unit.
mV/V Output (Receiver) - located on the side of the unit.
2 Transmitter Power LED – Indicates state of indicator power.
Steady short blinks – good battery (or AC power).
Two blinks then a pause – low battery.
Four blinks then a pause – very low battery.
Receiver Power LED – Indicates state of indicator power.
Steady short blinks – RF connected, good battery (or AC power).
Two short blinks then a pause – RF connected, low battery.
Four short blinks then a pause – RF connected, very low battery.
Steady long blinks – RF disconnected and good battery (or AC power).
Long blink, short blink then a pause – RF disconnected and low battery.
Long blink, three short blinks – RF disconnected and very low battery.
3 Power Button
Press & release – turns unit on
Press & hold for one to four seconds – will auto zero
Press & hold five seconds – turns unit off
4 Power In Connection – Located on the side of the unit. Type of power source will be checked on the overlay. All SENDit units
are currently 5-6 VDC.
5 Serial Port – located on the side of unit.
Table 1-2. Front Panel
2
1
3
4
5
2
1
3
4
5

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 5
2.0 Installation
This section describes procedures for connecting load cell, power, and serial communications cables to the SENDit.
2.1 Unpacking and Assembly
SENDit transmitter and receiver units are factory paired. Take care when unpacking orders of multiple units to keep the paired
sets together. In the event a transmitter or receiver must be replaced or the units must be re-paired, see Figure 2-3 on page 6
for paring information.
Immediately after unpacking, visually inspect the contents to ensure all components are included (refer to the packing list) and
undamaged.
If any parts were damaged in shipment, notify Rice Lake Weighing Systems, and the shipper immediately.
2.2 Mounting the Enclosure
The SENDit can be mounted either vertically or horizontally to a flat surface.
If mounted inside an enclosure or I-beam, use the correct antenna for the environment and distance. Please call Rice Lake
Weighing Systems if assistance is needed to select an antenna, or reference the antenna selection guide in the appendix.
Antennas must be placed in appropriate line-of-sight for reliable communications.
Ensure antennas are securely connected to both the transmitter and receiver.
A standard antenna and coax connector are resistant to water, but not waterproof.
Seal the TNC base with an adhesive heat shrink boot if antenna is exposed to water.
Figure 2-1. Mounting Dimensions
Note
IMPORTANT
149 mm [5.866"]
135.5 mm [5.335"]
6.0 mm [0.236"]
9.70 mm [0.382"]
4.50 mm [0.177"]
66 mm [2.598"]
44.5 mm
[1.752"]
38.5 mm [1.516"]
Center Distance
39.8 mm [1.567"]
M4 or #8
FH Mounting
Screw X4

SENDit Wireless Load Cell Interface
6 Visit our website www.RiceLake.com
2.3 Cable Connections
2.3.1 Connect Transmitter
Using the optional pre-wired cable (Table 2-1) or the field wire-able connector (Figure 2-2), connect a SENDit transmitter to the
load cell or j-box; eliminating the need for a homerun cable.
See Section 4.0 on page 9 for calibration procedure.

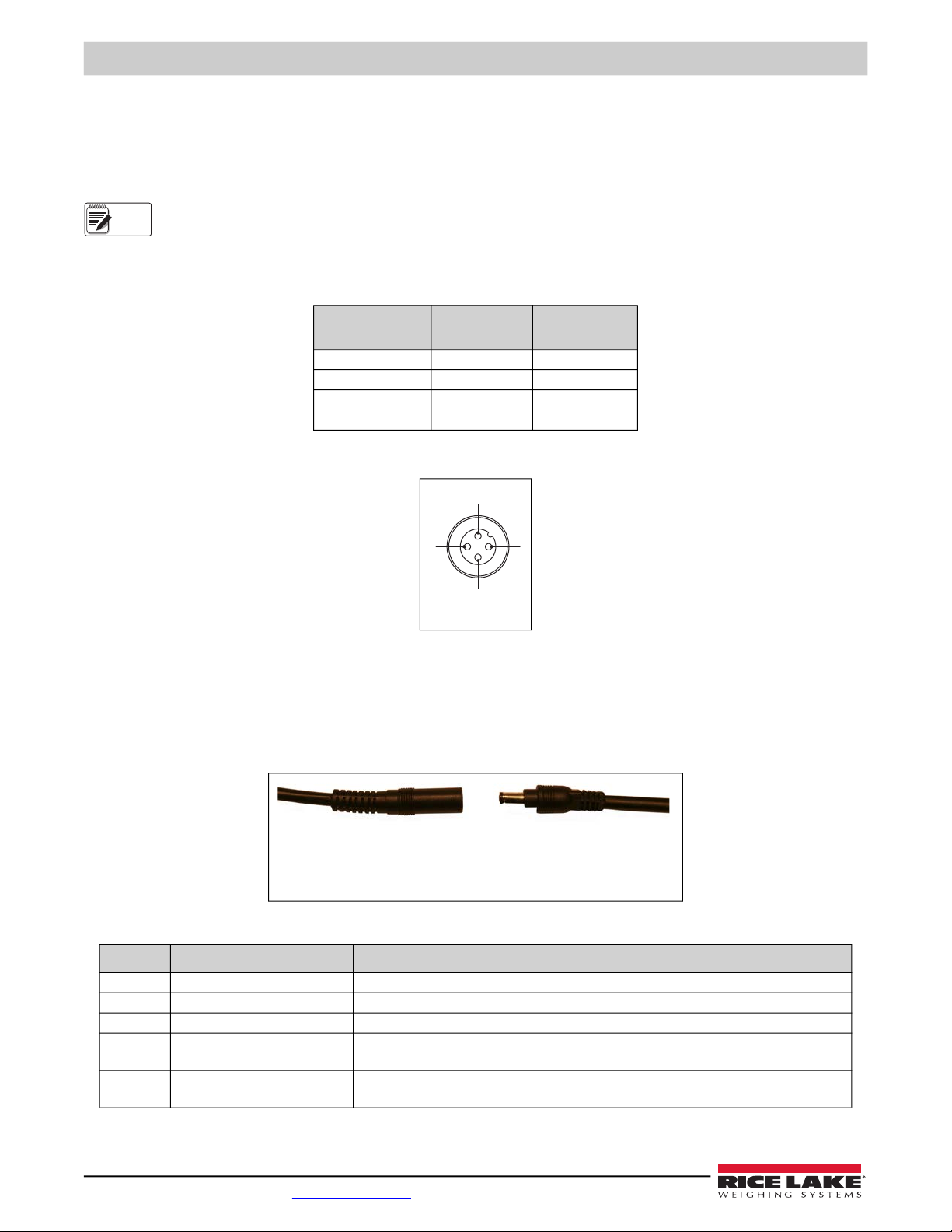

SENDit Load Cell Wiring
Use cordset PN 162177
Figure 2-2. Field Wire-able Connection
2.3.2 Connect Receiver
1. Connect the power source (Table 2-2) to the transmitter.
2. Using a 9 pin serial cable, connect the transmitter to a computer. This allows setup with the MSI TranSend mV/SENDit
Receiver Calibration program. See Section 4.0 on page 9.
Figure 2-3. Power Input Wiring
SENDit
Connector Pin # Wire Color Function
1 Brown +Excitation
2 White -Excitation
3 Blue +Signal
4 Black -Signal
Table 2-1. Load Cell TB-Input Device
Part No Description Comments
162172 6V Battery Charger Universal Power, US Plug. Requires changing plug type for international sales.
162173 6V Battery Option Kit Battery (161679) and interface cable (159817)
162175 Enclosure for 6V SLA Battery Used for installations where the battery needs to be rigidly mounted.
160109 6V Wall Cube, US Plug Power Adapter, 12W 6VDC Wall Mount. Universal Input 90-264VAC. 2.1mm Coax Power Plug.
US, Canada, Japan
160110 6V Wall Cube,
International Plugs
Power Adapter, 18W 6VDC Wall Mount. Universal Input 90-264VAC. 2.1mm Coax Power Plug.
Contains blades for international mains. US, UK, Europe, Aus, China
Table 2-2. Power Connection Options
Note
1
2
3
4
Male Connector
Power Input Cable 6VDC Battery Connector
or
120VAC Power
Adapter Connector

RF Pairing
© Rice Lake Weighing Systems ● All Rights Reserved 7
3.0 RF Pairing
Keep paired sets together when unpacking multiple sets of SENDit transmitter and receiver units.
3.1 Pairing Receivers and Transmitters
SENDit transmitter and receiver units are factory paired. Take care when unpacking orders of multiple units to keep the paired
sets together. In the event a transmitter or receiver must be replaced or the units must be re-paired, use the following
instructions to pair the SENDit receiver and transmitter units. The MSI mV Scale Calibration software can be downloaded from
the Rice Lake Weighing Systems website.

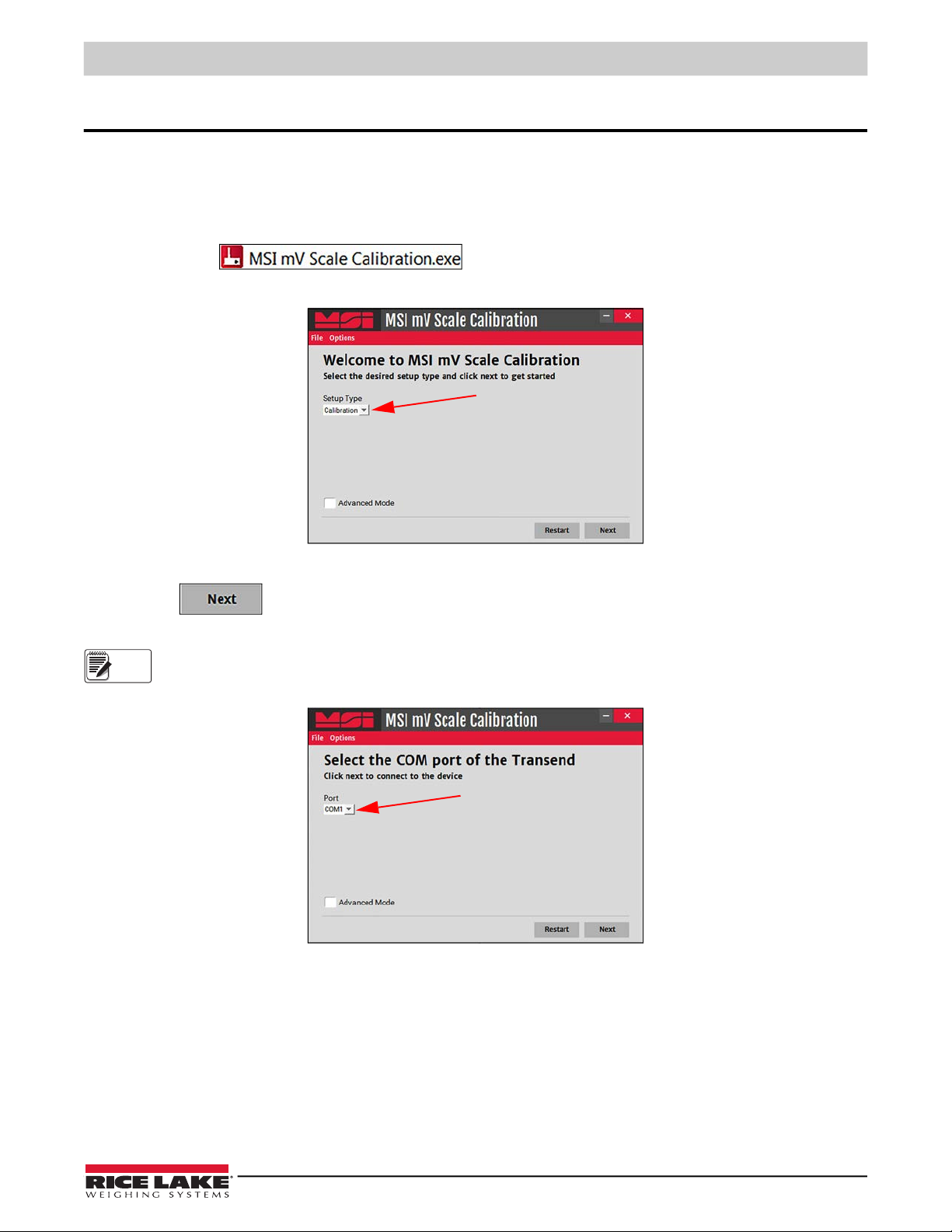

1. Power on the transmitter and receiver units.
2. On the connected computer, navigate to the MSI mV Scale Calibration program.
3. Double click .Select RF Pairing from the drop-down menu.
Figure 3-1. RF Pairing
4. Press .
5. Select the COM port the SENDit receiver is connected to.
If no Com Port selection is available, ensure the serial cables are properly connected, the Drivers are installed
properly, and that the SENDit Pair is powered up. Once an acceptable connection has been made, restart the
Calibration program.
Figure 3-2. COM Port Selection
IMPORTANT
Note

SENDit Wireless Load Cell Interface
8 Visit our website www.RiceLake.com
6. Enter the RF Channel and network ID.
Figure 3-3. RF Channel and Network ID
7. Press .
8. Connect the transmitter to the computer and select its COM port. If the computer has only one COM port, disconnect
the receiver and then connect the transmitter to the port.
9. Press . The set up is complete.
10. Power cycle both units and the units are ready for use.
If the pairing is not successful, repeat the above procedure until a successful pairing is obtained.

Calibration
© Rice Lake Weighing Systems ● All Rights Reserved 9
4.0 Calibration
Use the following instructions to calibrate the SENDit receiver unit. The MSI mV Scale Calibration software can be downloaded
from the Rice Lake Weighing Systems website.
1. Power on the transmitter and receiver units.
2. On the connected computer, navigate to the MSI mV Scale Calibration program.
3. Double click .
4. Select Calibration from the drop-down menu.
Figure 4-1. Calibration
5. Press .
6. Select the COM port the SENDit receiver is connected to from the drop-down menu.
If no Com Port selection is available, ensure the serial cables are properly connected, the Drivers are installed
properly, and that the SENDit Pair is powered up. Once an acceptable connection has been made, restart the
Calibration program.
Figure 4-2. COM Port Selection
Note

SENDit Wireless Load Cell Interface
10 Visit our website www.RiceLake.com

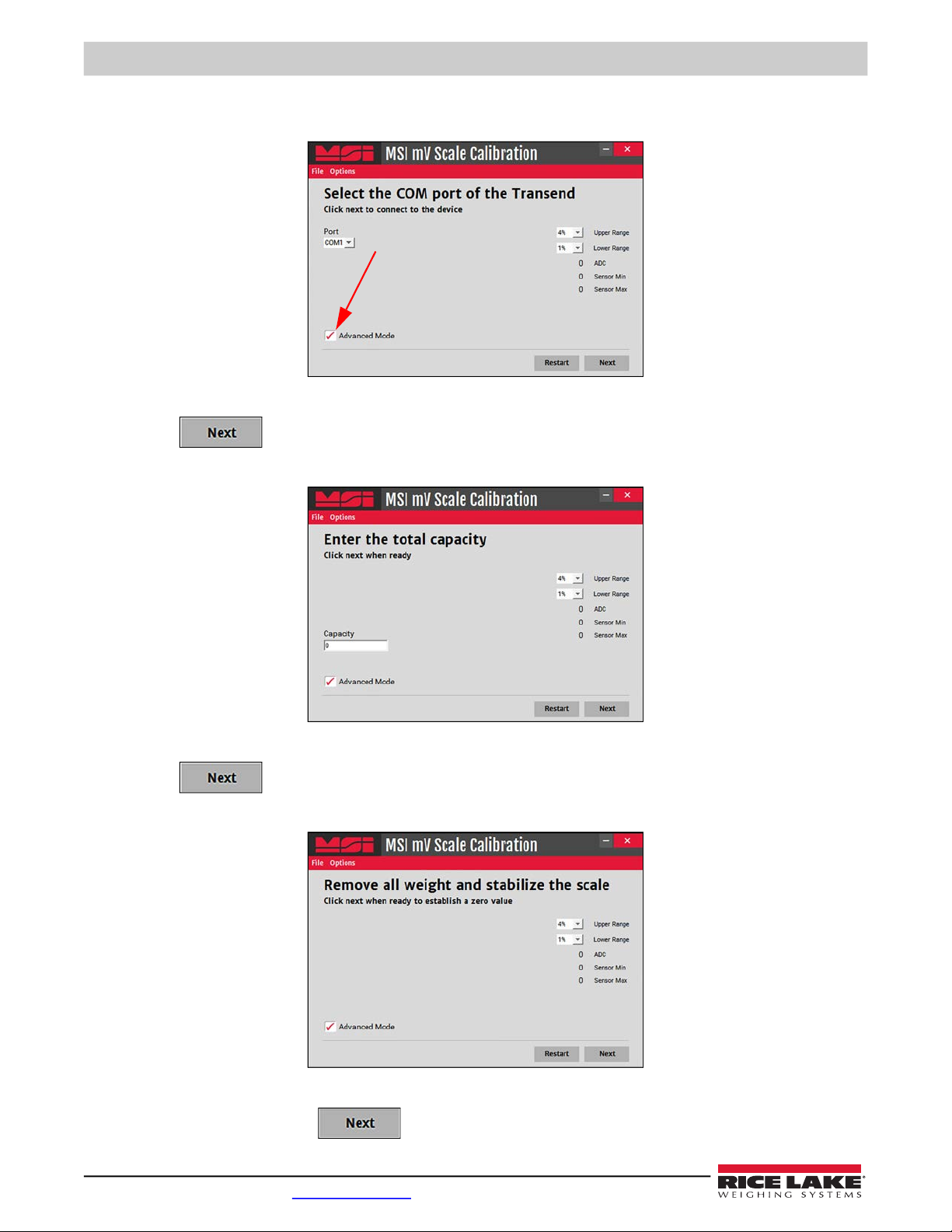

7. Check the Advanced Mode dialogue box to change the upper and lower range percent detected by the SENDit
system, if necessary.
Figure 4-3. Advanced Mode
8. Press .
9. Enter the total scale capacity.
Figure 4-4. Scale Capacity
10. Press .
11. Remove all weight from the scale.
Figure 4-5. Zero Calibration
12. When scale is stable, press .

Calibration
© Rice Lake Weighing Systems ● All Rights Reserved 11

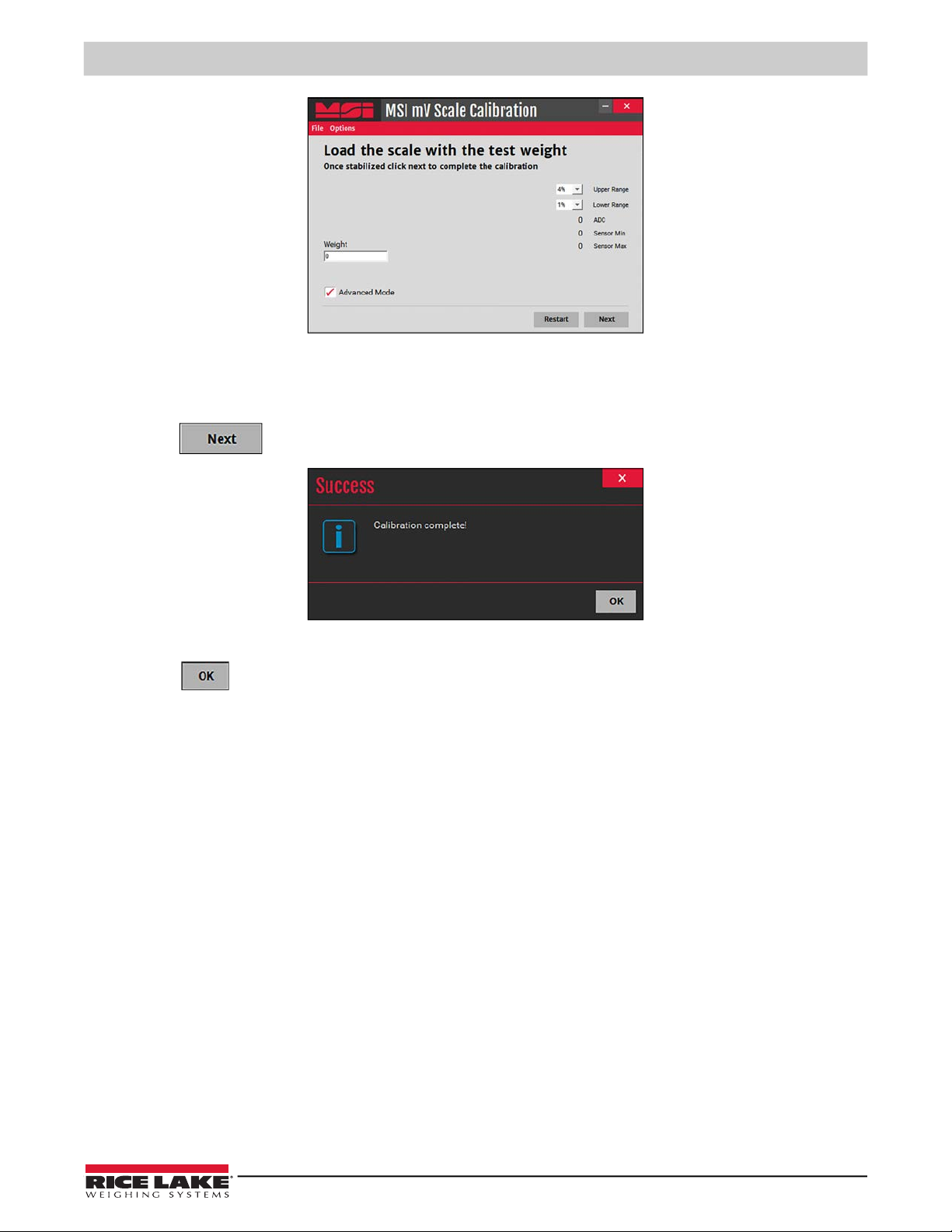

Figure 4-6. Span Calibration
13. Load test weights onto the scale.
14. Enter the appropriate weight value in the weight dialogue box.
15. Press . Calibration Complete displays.
Figure 4-7. Calibration Complete
16. Press to return to the calibration start display.
17. Calibrate the indicator, see the indicator manual for instructions.

SENDit Wireless Load Cell Interface
12 Visit our website www.RiceLake.com
5.0 Appendix
5.1 Antenna Options
To meet FCC licensing rules, use only antennas supplied or recommended by Rice Lake Weighing Systems.
Antenna placement is critical to problem-free use of the system.
• Ensure a relatively clear transmission path exists between the devices to be connected. Radio signals travel primarily by
line of sight (LOS), obstructions between stations may degrade the system performance.
• When using a long range antenna, mount antenna on an elevated structure to ensure there is a clear LOS transmission
path. This ensures the antenna will clear surrounding obstructions. Do not provide a ground plane for the antenna.
• Fixed station locations often benefit from directional antennas when the location of the other components of the RF
network are fixed and/or in the same direction. Never use a directional antenna on a mobile system.
• If using the standard antenna, ensure the antenna is not blocked by any metal. Transmission is good through most kinds
of glass so mounting a meter next to a window will work fine. If there is no clear line of sight location to mount the
receiving device, consider switching to the long range antenna so the antenna can be set up remotely.
• The standard and long range antennas are vertical plane devices. They should be vertical, pointing up or down, when
high off the ground. Do not mount them sideways. The long range 9 dBi antenna is particularly sensitive to off axis
mounting. Use a level to ensure the antenna is exactly 90° perpendicular to the earth.
• Do not mount an omni-directional antenna next to metallic or concrete surfaces. This can result in reflections and
undesired RF characteristics. Use a corner reflector instead.
• After installation, seal the antenna connection with an adhesive heat shrink boot. Failure to seal the antenna may result
in liquid destroying the antenna and device it’s connected to.
Rice Lake Weighing Systems does not recommend extending the coaxial cable beyond three meters.
At 2.4 GHz more loss will result from coax losses than are gained by raising the antenna. If the antenna must be extended, use a
very low loss 50 ohm
 coax such as RG-214, RF-195, or other low loss varieties.
For very short extensions (<1m), cables made with RG-316 are suitable.
ANTENNA FCC STATEMENT
FCC ID: HSW-2450M
NOTE: This unit has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at their expense.
RADIO FCC STATEMENT
Contains FCC ID: MCQ-PS2CTH
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
INTERNATIONAL RADIO CERTIFICATIONS
CANADA:
Radio Certificate Number: IC 1846A-PS2CTH
AUSTRALIA & NEW ZEALAND:
DIGI-090F15C247
The product is compliant with the following standards and/or other normative documents:
• Safety (article 3.1A) EN60950-1:2001
• EMC (article 3.1b) ETSI EN 301 489-1 v1.7.1 (2007-04) In accordance with the specific requirements of ETSI EN
301 489-17 v1.2.1 (2002-08)
• Spectrum (article 3.2) ETSI EN 300 328 v1.7.1 (2006-10)
Note
Note

Appendix
© Rice Lake Weighing Systems ● All Rights Reserved 13
5.1.1 Standard Antenna
The standard antenna is an articulated 1/2 wave 2 dBi gain design with a standard TNC connector that mounts
directly on the enclosure.
This antenna and coax connector, though resistant to water, is not water-proof. Seal the TNC base with an
adhesive heat shrink boot if this antenna might be exposed to rain or other weather conditions where it could get
wet.
This antenna must be vertically oriented and is suitable for most short to medium range applications.
5.1.2 Long Range OMNI 9 dBi Antenna
This omni-directional high gain antenna is remotely mounted with a low loss coaxial cable and
increases the range up to four times.
The antenna must be vertically mounted. The vertical Beamwidth (-3dB point) is 14 degrees.
This antenna is supplied with a 10 foot (3m) coax cable pre-attached. The 10-foot cable allows
placement of the antenna above the unit for ease of clearing possible obstacles to data transmission.
It is also available with an N connector for applications requiring longer coax cable lengths.
5.1.3 Vehicle Mount Whip Antenna
The vehicle mount whip antenna mounts directly to the roof of mobile vehicles and is weatherproof.
This 5 dBi gain whip mounts in a 3/4'' hole on the roof of the vehicle.
The mount includes 17' of low loss coax terminated in a TNC connector.
5.1.4 YAGI Antenna
For maximum range, a 14 dBi gain Yagi Antenna is available by special order. Please contact Rice
Lake Weighing Systems for details.
5.1.5 Corner Reflector Antenna
Corner reflector antennas are often the best choice for a wall mounted antenna. Rice Lake Weighing Systems offers a 14 dBi
and a 9 dBi corner reflector.
5.1.6 Patch Antenna
The patch antenna is for applications where the standard antenna is vulnerable to physical damage or outdoor applications.
The patch antenna is mildly directional which requires more care in antenna placement for long range applications. Patch
antennas are available by special order only. Please contact Rice Lake Weighing Systems for details.
Adhesive
Heat Shrink
14 dBi Corner Reflector 9 dBi Corner Reflector

SENDit Wireless Load Cell Interface
14 Visit our website www.RiceLake.com
6.0 Specifications
Accuracy: ±0.05% of applied load
Resolution: Up to 10,000 d available
Enclosure: NEMA 4, IP66 (excludes universal AC wall cube model) aluminum, black powder coated
Weight: 1.7 lb (0.75 kg)
Function Keys: POWER
LED Annunciators: Power on LED
Power Input: 5-6 VDC, 90-264 VAC (with optional AC/DC power adapter)
Optional Battery
Life Estimate: Over 130 hours of continuous use with the battery option
Operating
Temperature: -40° F to 185° F (-40° C to 85° C)
Auto-Off Mode: Select for 15, 30, 45, 60 minutes or off
Auto Sleep Mode: Power down during non-use and power up with weight change or any key press
Service Counters: Counts number of loads applied over 25% of capacity and loads applied over capacity
Event Counter: Counts number of loads applied over a user defined threshold. outputs to setpoints and a text string
Scale Inputs: One scale input Four independent scale channels with digital summing
Transmitter
Excitation Voltage: +4.75 VDC, can drive (16) 350 Ω load cells or (32) 700 Ω load cells
mV/V Converter
Excitation Voltage: 3 VDC or ±1.4 VDC minimum, 12 VDC or ±6 VDC maximum
Digital Filtering: OFF, LO, Medium and HI selectable
Radio Link: Direct sequence spread spectrum @ 2.4 GHz, license free 802.15.4
Radio Link
Effective Range: Up to 100 meters line-of-sight typical
Standard Antenna: 1/2 wave 2 dBi, articulated
RFI/EMI Shielding: Exceeds NIST handbook 44 and CE standards
Data I/O: RS-232
Connectors: RS-232, 6-Pin M8
Internal Setpoints: 3 configurable setpoint outputs
Offers setpoint relays, and setpoint status LED’s

230 W. Coleman St. • Rice Lake, WI 54868 • USA
U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe [phone]
Rice Lake Weighing Systems is an ISO 9001 registered company.
© Rice Lake Weighing Systems Specifications subject to change without notice.
www.ricelake.com
PN 167466 Rev FOctober 24, 2019
