RIDGID R8646 User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION / MANUAL DEL OPERADOR
18 VOLT RECIPROCATING SAW
SCIE ALTERNATIVE 18 V
SIERRA ALTERNATIVA DE 18 V
R8646
To register your RIDGID
product, please visit:
register.ridgidpower.com
Pour enregistrer votre
produit de RIDGID,
s’il vous plaît la visite :
register.ridgidpower.com
Para registrar su producto
de RIDGID, por favor visita:
register.ridgidpower.com
TABLE OF CONTENTS
****************
General Power Tool Safety
Warnings .........................................2-3
Safety Instructions for
Reciprocating Saws........................3-4
Symbols..............................................4
Features..............................................5
Assembly............................................5
Operation.........................................5-7
Maintenance.......................................8
Illustrations ....................................9-10
Parts Ordering and
Service ................................Back page
TABLE DES MATIÈRES
****************
Avertissements de sécurité générales
relatives aux outils électriques........2-3
 Instructions de sécurité
concernant la scie alternative ..........3-4
Symboles............................................4
Caractéristiques .................................5
Assemblage........................................5
Utilisation ........................................5-7
Entretien .............................................8
Illustrations ....................................9-10
Commande de pièces et
dépannage ........................Page arrière
ÍNDICE DE CONTENIDO
****************
Advertencias de seguridad
para herramientas eléctrica........... 2-3
Instrucciones de seguridad
para la sierra alternativa ................ 3-4
Símbolos............................................4
Características ...................................5
Armado..............................................5
Funcionamiento............................. 5-7
Mantenimiento...................................8
Illustraciones................................ 9-10
Pedidos de piezas y
servicio .........................Pág. posterior
WARNING:
To reduce the risk of injury, the
user must read and understand
the operator’s manual before
using this product.
AVERTISSEMENT :
Pour réduire les risques de
blessures, l’utilisateur doit lire
et veiller à bien comprendre
le manuel d’utilisation avant
d’utiliser ce produit.
ADVERTENCIA:
Para reducir el riesgo de lesio-
nes, el usuario debe leer y com-
prender el manual del operador
antes de usar este producto.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE

2 - English
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The
term “power tool” in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoid-
able, use a ground fault circuit interrupter (GFCI) protected
supply. Use of a GFCI reduces the risk of electric shock.
Use this product only with batteries and chargers listed in
tool/appliance/battery pack/charger correlation supple-
ment 988000-302.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operat-
ing power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying power
tools with your finger on the switch or energizing power tools
that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all
times. This enables better control of the power tool in unex-
pected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep
your hair and clothing away from moving parts. Loose
clothes, jewelry or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a
fraction of a second.
Do not wear loose clothing or jewelry. Contain long hair.
Loose clothes, jewelry, or long hair can be drawn into air vents.
Do not use on a ladder or unstable support. Stable footing
on a solid surface enables better control of the power tool in
unexpected situations.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or remove
the battery pack, if detachable, from the power tool before
making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.
Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools and accessories. Check for misalign-
ment or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation.
If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.

3 - English
GENERAL POWER TOOL SAFETY WARNINGS
SAFETY INSTRUCTIONS FOR RECIPROCATING SAWS
Hold the power tool by insulated gripping surfaces,
when performing an operation where the cutting ac-
cessory may contact hidden wiring. Cutting accessory
contacting a “live” wire may make exposed metal parts
of the power tool “live” and could give the operator an
electric shock.
Use clamps or another practical way to secure and
support the workpiece to a stable platform. Holding
the workpiece by hand or against your body leaves it
unstable and may lead to loss of control.
Know your power tool. Read operator’s manual care-
fully. Learn its applications and limitations, as well
as the specific potential hazards related to this tool.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1 when assembling parts,
operating the tool, or performing maintenance. Fol-
lowing this rule will reduce the risk of serious personal
injury.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the risk
of serious personal injury.
Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
Battery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and possibly
injury.
Do not crush, drop or damage battery pack. Do not
use a battery pack or charger that has been dropped
or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged
battery immediately.
Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of
serious personal injury, never use any cordless product
in the presence of open flame. An exploded battery can
propel debris and chemicals. If exposed, flush with water
immediately.
Do not charge battery tool in a damp or wet location.
Do not use, store, or charge battery packs or products
in locations where the temperature is less than 50°F
or more than 100°F. Do not store outside or in vehicles.
Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
Use the power tool, accessories and tool bits etc. in ac-
cordance with these instructions, taking into account the
working conditions and the work to be performed. Use of
the power tool for operations different from those intended
could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and free
from oil and grease. Slippery handles and grasping surfaces
do not allow for safe handling and control of the tool in unex-
pected situations.
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the manufac-
turer. A charger that is suitable for one type of battery pack
may create a risk of fire when used with another battery pack.
Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk of
injury and fire.
When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek medi-
cal help. Liquid ejected from the battery may cause irritation
or burns.
Do not use a battery pack or tool that is damaged or modi-
fied. Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of injury.
Do not expose a battery pack or tool to fire or excessive
temperature. Exposure to fire or temperature above 265°F
may cause explosion.
Follow all charging instructions and do not charge the bat-
tery pack or tool outside the temperature range specified
in the instructions. Charging improperly or at temperatures
outside the specified range may damage the battery and
increase the risk of fire.
SERVICE
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
Never service damaged battery packs. Service of bat-
tery packs should only be performed by the manufacturer
or authorized service providers.

4 - English

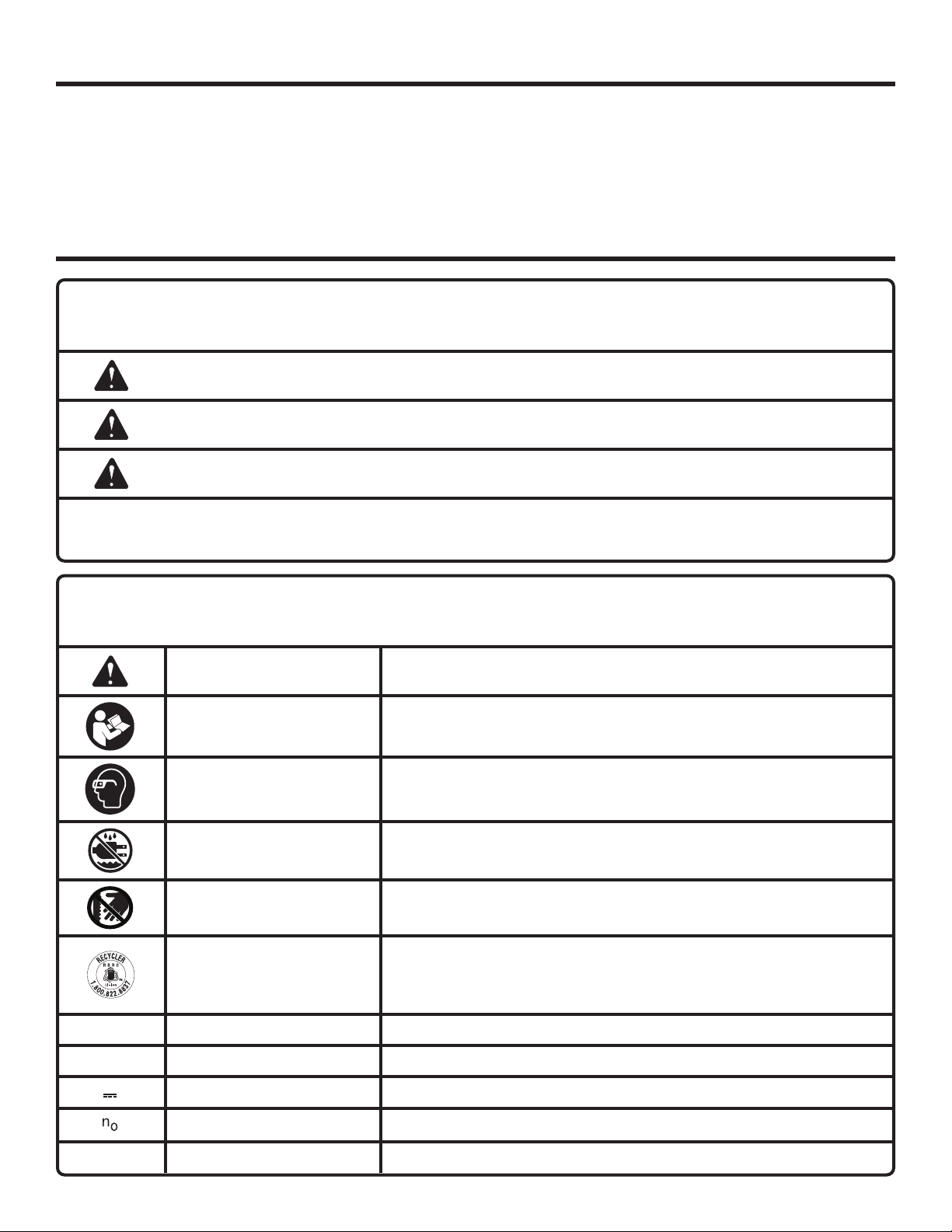

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s
Manual
To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Eye Protection Always wear eye protection with side shields marked to comply with ANSI
Z87.1.
Wet Conditions
Alert Do not expose to rain or use in damp locations.
No Hands Symbol Failure to keep your hands away from the blade will result in serious personal
injury.
Recycle Symbol
This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws
may prohibit disposal of batteries in ordinary trash. Consult your local waste
authority for information regarding available recycling and/or disposal options.
V Volts Voltage
min Minutes Time
Direct Current Type or a characteristic of current
No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or
moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates information considered important, but
not related to a potential injury (e.g. messages relating to property damage).
SAFETY INSTRUCTIONS FOR RECIPROCATING SAWS
Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with your skin, wash immediately with soap and water.
If liquid gets into your eyes, flush them with clean water
for at least 10 minutes, then seek immediate medical
attention. Following this rule will reduce the risk of seri-
ous personal injury.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also.

5 - English
FEATURES
PRODUCT SPECIFICATIONS
Stroke Length............................................................................................................................................................. 1-1/8 in.
No Load Speed ......................................................................................................................................... 0-3,000/min (SPM)
ASSEMBLY
WARNING:
Do not use this product if it is not completely as-
sembled or if any parts appear to be missing or
damaged. Use of a product that is not properly and
completely assembled or with damaged or missing
parts could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
If any parts are damaged or missing, please call 1-866-539-1710 for assistance.
WARNING:
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a
second is sufficient to inflict severe injury.
WARNING:
Always remove battery pack from your tool when
you are assembling parts, making adjustments,
cleaning, or when not in use. Removing battery
pack will prevent accidental starting that could
cause serious personal injury.
WARNING:
Always wear eye protection with side shields
marked to comply with ANSI Z87.1. Failure to do
so could result in objects being thrown into your
eyes resulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this prod-
uct. The use of attachments or accessories not
recommended can result in serious personal injury.
OPERATION
APPLICATIONS
You may use this product for the purposes listed below:
Cutting all types of wood products (lumber, plywood,
paneling, composition board, and hard wood)
Cutting masonite and plastic
Cutting drywall
Cutting metals such as sheet steel, pipe, steel rods, alu-
minum, brass, and copper
WARNING:
Battery tools are always in operating condition.
Lock the switch when not in use or carrying at
your side, when installing or removing the battery
pack, and when installing or removing the blade.
INSTALLING/REMOVING BATTERY PACK
See Figures 1 - 2, page 9.
To install:
Lock the switch trigger by sliding the lock-off button into
the lock position.
Place the battery pack into the saw. Align the raised ribs
on the battery pack with the grooves inside the saw.
Make sure the latches on each side of the battery pack
snap into place and the battery pack is secured in the
tool before beginning operation.
