RIGOL
Data Sheet

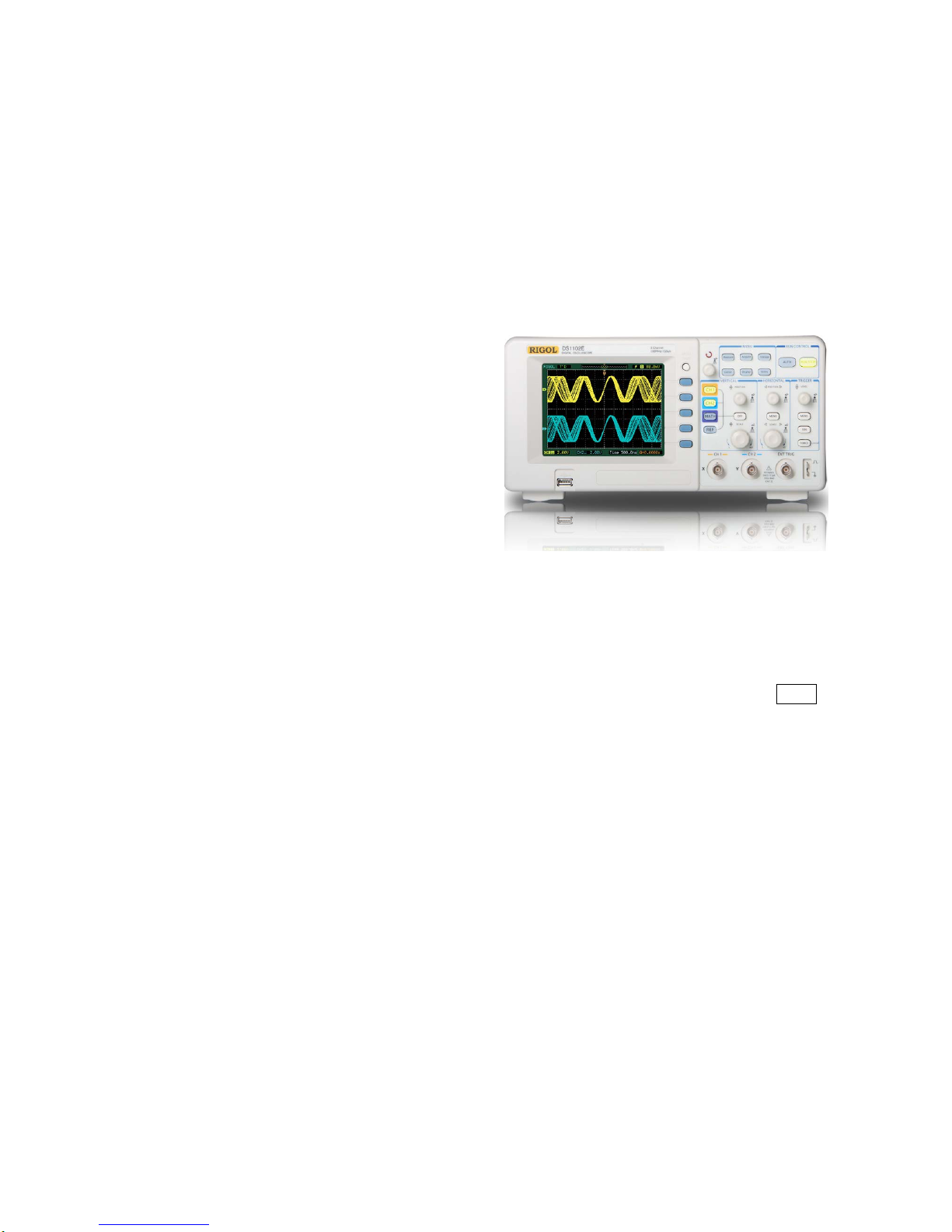

DS1000E, DS1000D Series
Digital Oscilloscopes
DS1102E, DS1052E, DS1102D, DS1052D
Main Features
Dual analog channels and 16 channels logic
analyzer, 100MHz maximum bandwidth,
1GSa/s maximum real-time Sample rate and
25GSa/s maximum equivalent Sample rate
5.6 inch and 64 k TFT LCD make the
waveform displays more clear and vivid
Abundant trigger types: Edge, Pulse Width,
Video, Slope, Alternate, Pattern and
Duration
Unique adjustable trigger sensitivity enables
to meet different demands
Enable to measure 20 types of wave
parameters and track measurements via
cursor automatically
Unique waveform record and replay
function
Fine delayed scan function
Built-in FFT function, hold practical digital
filters
Pass/Fail detection function enables to
output testing results
Math operations available to multiple waves
Powerful PC application software UltraScope
Standard configuration interface: USB
Device, USB Host , RS-232 and support U
disk storage and PictBridge print standards
The new function “Key Lock” can meet the
needs of industrial production
Support for remote command control
May. 2013
RIGOL Technologies, Inc.
Applications
Electronic Circuit Test
Circuit Functional Test
Logical Relation Between Singals
Verification
Circuit of Mixed Signal Test
Education & Training
Product Overview
DS1000E, DS1000D series are kinds of economical
digital oscilloscope with high-performance.
DS1000E series are designed with dual channels
and 1 external trigger channel.
DS1000D series are designed with dual channels
and 1 external trigger channel as well as 16
channels logic analyzer.
Easy to Use Design
Built-in help menu enables information
getting more convenient
Multiple Language User Interface, support
Chinese & English input
Support U disk and local files storage
Waveform intensity can be adjusted
To display a signal automatically by AUTO
Pop-up menu makes it easy to read and use

1
Automatically Measure 20 Wave Parameters
Automatic measure FFT cursor measure
Digital channels setup
Waveform recording
Cursor Measure
Pattern trigger
Key Lock function
This function is widely used in most productions. All keys are locked
except F1 to F5 and MENU ON/OFF in this mode.
To lock the keyboard, use menu; to unlock, correct code has to be input.
Also, you can reset a new code if necessary.
RIGOL provides powerful PC application software: UltraScope, which
enables to: Capture and measure wave; Perform local or remote
operation; Save waves as “.bmp” format; Save files as “.txt” or “.xls”
format; Print waveforms.
Measurement window
UltraScope Software
Key Lock
Pass/Fail testing
16 Channels Logic Analyzer
Being equipped with 16 channels logic analyzer, DS1000D series mixed
signal oscilloscopes achieve mixed signal measure coordinating with 2
analog channels.
Each channel can be turned on or off independently, or in groups of
8(D7-D0 and D15-D8); also, you can set waveform size and threshold
types or change the display position on screen for digital channel.
Waveform Recording
In virtue of waveform recording function from DS1000E and DS1000D, not
only the outputs from two channels could be recorded, but also the waves
outputted by Pass/Fail test could be easily recorded. Totally, up to 1000
frames of waves are available to record. Besides, users can analyze waves
according to reall or save
transient waves so as to get more exact datum.
Pass/Fail Testing
The Pass/Fail function monitors the changes of signals by comparing
whether the input signal is within the pre-defined mask. The testing results
not only can be displayed on screen or output by isolated pass/fail port, but
also can be alarmed according to turn on system sound.
DS1000E, DS1000D series oscilloscopes
provide 20 types of wave parameters for
automatically measuring, which contains
10 Voltage and 10 Time parameters.
Both DS1000E and DS1000D series contain abundant triggers:
Edge trigger, Pulse Width trigger, Video trigger, Slope trigger
Alternate trigger, Pattern trigger (DS1000D), Duration trigger
(DS1000D)
Especially the duration trigger is a new type from perfect combination of
patten and pulse width trigger. Unique function of adjustable trigger
sensitivity is good for filtering possible noise from signal in order to avoid
false triggers.
Multiple Trigger
In cursor mode, users can easily
measure by moving cursor. Besides, 3
types of cursor measurement are
optional: Manual, Track and Auto.

2
Specifications
All specifications apply to DS1000E, DS1000D Series Oscilloscopes unless where noted. To come up to
these specifications, two conditions must be met firstly:
The instrument must have been operated continuously for 30 minutes under the specified
operating temperature.
Do perform Self-Calibration operation through the Utility menu if the range of operating
temperature variations up to or more than 5°C.
NOTE: All specifications are guaranteed unless where marked “typical”.
Specifications
Bandwidth
DS1102E
DS1052E
DS1102D
DS1052D
100MHz
50MHz
100MHz
50MHz
Acquisition
Sample Modes
Real-Time Sample
Equivalent Sample
Sample Rate 1GSa/s[1], 500MSa/s
DS1102X
DS1052X
25GSa/s
10GSa/s
Averages
The waveform will be displayed one time while all the channels finish N
times Sample, N could be selectable from 2, 4, 8, 16, 32, 64, 128 and 256
Inputs
Input Coupling
DC, AC, GND
Input Impedance
1MΩ±2%, the input capacity is 18pF±3pF
Probe Attenuation Factors
1X, 5X, 10X, 50X, 100X, 500X,1000X
Maximum Input Voltage
400V (DC
＋
AC Peak, 1MΩ input impedance)
40V (DC+AC Peak)
[2]
Time Delay between Channel (typical)
500ps
Horizontal
Sample Rate Range
Real-Time: 13.65Sa/s-1GSa/s
Equivalent: 13.65Sa/s-25GSa/s
Waveform Interpolation
Sin(x)/x
Memory Depth
Channel
Mode
Sample rate
Memory Depth
(normal)
Memory Depth
(long memory)
Single
channel
1GSa/s 16kpts N.A.
Single
channel
500MSa/s
or lower
16kpts 1Mpts
Dual
channel
500MSa/s
or lower
8kpts N.A.
Dual
channel
250MSa/s
or lower
8kpts 512kpts
Scanning Speed Range
(Sec/div)
2ns/div~50s/div, DS1102X
5ns/div~50s/div, DS1052X
1-2-5 Sequence
Sample Rate and Delay
Time Accuracy
±50ppm (any interval ≥1ms)
Delta Time
Measurement Accuracy
(Full Bandwidth)
Single: ±(1 Sample interval + 50ppm × reading + 0.6 ns)
>16 averages: ±(1Sample interval + 50ppm × reading + 0.4 ns)

3
Vertical
A/D Converter
8-bit resolution, all channels sample simultaneously
Volts/div Range
2mV/div~10V/div (at the input terminal connecting to BNC)
Maximum Input
Maximum input voltage on analog channel
CAT I 300Vrms, 1000Vpk; instantaneous overvoltage 1000Vpk
CAT II 100Vrms, 1000Vpk
RP2200 10:1：CAT II 300Vrms
RP3200 10:1：CAT II 300Vrms
RP3300 10:1：CAT II 300Vrms
Offset Range
±40V (250mV/div~10V/div)
±2V (2mV/div~245mV/div)
Analog Bandwidth
100MHz (DS1102D,DS1102E)
50MHz (DS1052D, DS1052E)
Single-shot Bandwidth
100MHz (DS1102D, DS1102E)
50MHz (DS1052D, DS1052E)
Selectable Analog
Bandwidth Limit (typical)
20MHz
Lower Frequency
Response (AC –3dB)
≤5Hz (at input BNC)
Rise Time at BNC (typical)
<3.5ns, <7ns, respectively at 100MHz, 50MHz
Dynamic range
±5div
DC Gain Accuracy
2mV/div-5mV/div:
±4% (In Normal or Average acquisition mode)
10mV/div-10V/div:
±3% (In Normal or Average acquisition mode)
DC Measurement
Accuracy, Average
Acquisition Mode
When vertical displacement is zero, and N ≥16:
±(DC Gain Accuracy×reading+0.1div+1mV)
When vertical displacement is not zero, and N ≥16:
±[DC Gain Accuracy×(reading+vertical displacement)+(1% of
vertical displacement) + 0.2div]
When vertical scale is between 2mV/div and 245mV/div, add 2mV
more for setting value.
When vertical scale is between 250mV/div and 10V/div, add 50mV
more for setting value.
Delta Volts
Measurement Accuracy
(Average Acquisition Mode)
U nder sam e setting and condition, the voltage difference (△V)
between any two points in the waves coming from the average of
more than 16 waves have been acquired:
±(DC Gain
Accuracy×reading + 0.05 div)
Trigger
Trigger Sensitivity
0.1div~1.0div (adjustable)
Trigger Level Range
Internal
±6 divisions from center of screen
EXT
±1.2V
Trigger Level Accuracy (typical)
applicable for the signal of
rising and falling time ≥20ns
Internal
±(0.3div × V/div)(±4 divisions from center of screen)
EXT ±(6% of setting + 200 mV)
Trigger Offset In Normal mode: pre-trigger (memory depth/ 2*Sample rate),
delayed trigger 1s
In Slow Scan mode: pre-trigger 6div, delayed trigger 6div
Trigger Holdoff Range 500ns~1.5s
Set Level to 50% (typical) When input signal frequency ≥50Hz
Edge Trigger
Edge trigger slope
Rising, Falling, Rising + Falling
Pulse WidthTrigger

4
Trigger Condition
(
＞
,
＜
, =) Positive pulse width, (
＞
,
＜
, =) Negative pulse width
Pulse Width Range
20ns ~10s
Video Trigger
Video Standard
Line Frequency
Support for standard NTSC, PAL and SECAM broadcast systems. Line
number range: 1~525 (NTSC) and 1~625 (PAL/SECAM)
Slope Trigger
Trigger Condition
(
＞
,
＜
, =) Positive slope, (
＞
,
＜
, =) Negative slope
Time Setting
20ns~10s
Alternate Trigger
Trigger on CH1
Edge, Pulse Width, Video, Slope
Trigger on CH2
Edge, Pulse Width, Video, Slope
Pattern Trigger[2]
Pattern Type
D0~D15 select H, L, X, ,
Duration Trigger[2]
Pattern Type
D0~D15 select H, L, X
Qualifier
＞
,
＜
, =
Time Setting
20ns~10s
Measurements
Cursor
Manual
Voltage difference between cursors (∆V)
Time difference between cursors (∆T)
Reciprocal of ∆T in Hertz (1/∆T)
Track
Voltage value for Y-axis waveform
Time value for X-axis waveform
Auto
Cursors are visible for Automatic Measurement
Auto Measure
Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq,
Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1→2,
Delay1→2
Remarks:
[1] Only one channel is available when the Sample rate is 1GSa/s.
[2] For DS1000D Series.

5
General Specifications
Display
Display Type
145mm (5.6 inch) diagonal TFT Liquid Crystal Display
Display Resolution
320 horizontal ×RGB×234 vertical pixels
Display Color
64k color
Display Contrast (typical)
150:1
Backlight Brightness (typical)
300 nit
Probe Compensator Output
Output Voltage (typical)
Approximately 3Vpp (peak to peak value)
Frequency (typical)
1kHz
Power Supply
Supply Voltage
100 ~ 240VACRMS, 45~440Hz, CAT II
Power Consumption
Less than 50W
Fuse
2A, T level, 250 V
Environmental
Ambient Temperature
Operating 10
℃
~ 40
℃
Non-operating -20
℃
~ +60
℃
Cooling Method
fan cooling
Humidity
below +35
℃
: ≤90% relative humidity
+35
℃
~ +40
℃
: ≤60% relative humidity
Altitude
Operating at 3,000 m or below
Non-operating at 15,000 m or below
Mechanical
Dimensions
Width
303mm
Height
154mm
Depth
133mm
Weight
Without package
2.3kg
Packaged
3.5kg
IP Protection
IP2X
Calibration Interval
The recommended calibration interval is one year

6
Ordering Information
Name of Product
RIGOL DS1000E, DS1000D series oscilloscopes
Standard Accessories
Probe×2 (1.5m), (1:1 or 10:1 adjustable)
Passive Probes
A Power Cord that fits the standard of
destination country
A USB Cable
A Data Cable (DS1000D series)
An Active Logic Head (DS1000D series)
20 Logic Testing Nips (DS1000D series)
20 Logic Testing leads (DS1000D series)
A CD-ROM (including User’s Guide and
Application Software)
A Quick Guide
Optional Accessories
BNC Cable
USB Data Cable
RS232 Cable
USB-GPIB Adapter
DS1000E, DS1000D soft carrying case
Warranty
Thank you for choosing RIGOL products!
RIGOL Technologies, Inc. warrants that this
product will be free from defects in materials and
workmanship from the date of shipment. If a
product proved defective within the respective
period, RIGOL will provide repair or
replacement as described in the complete
warranty statement.
For the copy of complete warranty statement or
maintenance, please contact with your nearest
RIGOL sales and service office.
RIGOL do not provide any other warranty items
except the one being provided by this summary
and the warranty statement. The warranty items
include but not being subjected to the hint
guarantee items related to tradable
characteristic and any particular purpose.
RIGOL will not take any responsibility in cases
regarding to indirect, particular and ensuing
damage.
Contact Us
If you have any problem or requirement when using our products, please contact RIGOL Technologies,
Inc. or your local distributors, or visit: www.rigol.com.
