Quick Guide
DS4000E Series Digital Oscilloscope
Aug. 2016
RIGOL TECHNOLOGIES, INC.

RIGOL
2 DS4000E Quick Guide
English
Guaranty and Declaration
Copyright
© 2016 RIGOL TECHNOLOGIES, INC. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL TECHNOLOGIES, INC.
Publication Number
QGA21102-1110
Notices
RIGOL products are covered by P.R.C. and foreign patents, issued and
pending.
RIGOL reserves the right to modify or change parts of or all the
specifications and pricing policies at the company’s sole decision.
Information in this publication replaces all previously released materials.
Information in this publication is subject to change without notice.
RIGOL shall not be liable for either incidental or consequential losses in
connection with the furnishing, use, or performance of this manual, as
well as any information contained.
Any part of this document is forbidden to be copied, photocopied, or
rearranged without prior written approval of RIGOL.
Product Certification
RIGOL guarantees that this product conforms to the national and industrial
standards in China as well as the ISO9001:2008 standard and the
ISO14001:2004 standard. Other international standard conformance
certifications are in progress.
Contact Us
If you have any problem or requirement when using our products or this
manual, please contact RIGOL.
E-mail: servic[email protected]
Website: www.rigol.com

RIGOL
DS4000E Quick Guide 3
English
Contents
Guaranty and Declaration....................................................................2
Contents ...............................................................................................3
General Safety Summary .....................................................................4
Safety Notices and Symbols.................................................................4
Care and Cleaning ................................................................................5
Document Overview.............................................................................6
General Inspection...............................................................................7
Product Overview.................................................................................7
To Prepare the Oscilloscope for Use..................................................11
To Remove the Front Panel Cover......................................................11
To Connect to Power Supply .............................................................11
Power-on Inspection........................................................................12
To Connect the Probe.......................................................................12
Function Inspection for the Passive Probe..........................................14
Probe Compensation........................................................................16
To Use the Built-in Help System ........................................................16
Remote Control ..................................................................................18
More Product Information .................................................................18

RIGOL
4 DS4000E Quick Guide
English
General Safety Summary
1. Only the exclusive power cord designed for the instrument and
authorized for use within the local country could be used.
2. Ensure that the instrument is safely grounded.
3. Connect the probe correctly.
4. Observe all terminal ratings.
5. Use proper overvoltage protection.
6. Do not operate without covers.
7. Do not insert objects into the air outlet.
8. Use the proper fuse.
9. Avoid circuit or wire exposure.
10. Do not operate the instrument with suspected failures.
11. Provide adequate ventilation.
12. Do not operate in wet conditions.
13. Do not operate in an explosive atmosphere.
14. Keep instrument surfaces clean and dry.
15. Prevent electrostatic impact.
16.
Handle with caution.
Safety Notices and Symbols
Safety Notices in this Manual:
WARNING
Indicates a potentially hazardous situation or practice which, if not
avoided, will result in serious injury or death.
CAUTION
Indicates a potentially hazardous situation or practice which, if not
avoided, could result in damage to the product or loss of
important data.

RIGOL
DS4000E Quick Guide 5
English
Safety Terms on the Product:
DANGER It calls attention to an operation, if not correctly performed,
could result in injury or hazard immediately.
WARNING It calls attention to an operation, if not correctly performed,
could result in potential injury or hazard.
CAUTION
It calls attention to an operation, if not correctly performed,
could result in damage to the product or other devices
connected to the product.
Safety Symbols on the Product:
Hazardous
Voltage Safety Warning Protective Earth Terminal Chassis Ground Test Ground
Care and Cleaning
Care
Do not store or leave the instrument where it may be exposed to direct sunlight
for long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions.
1. Disconnect the instrument from all power sources.
2. Clean the external surfaces of the instrument with a soft cloth dampened
with mild detergent or water. When cleaning the LCD, take care to avoid
scarifying it.
CAUTION
To avoid damage to the instrument, do not expose it to caustic
liquids.
WARNING
To avoid short-circuit resulting from moisture or personal injuries,
ensure that the instrument is completely dry before connecting it
to the power supply.

RIGOL
6 DS4000E Quick Guide
English
Document Overview
This manual introduces some basic information that you should know when you
use the DS4000E series digital oscilloscope for the first time. For more
information about this instrument, log in to the RIGOL official website
(www.rigol.com) to download the latest version of the relevant manuals.
Format Conventions in this Manual
1. Key
The key on the front panel is denoted by the format of “Key Name (Bold)
+ Text Box” in the manual. For example, Utility denotes the "Utility" key.
2. Menu softkey
The menu softkey is denoted by the format of "Menu Name (Bold) +
Character Shading" in the manual. For example, System denotes the
"System" softkey under Utility.
3. Operation Procedures:
The next step of the operation is denoted by an arrow "" in the manual.
For example, Utility System denotes that first press Utility, and
then press System.
4. Knob
Icon
Knob
HORIZONTAL Horizontal time base knob
SCALE
HORIZONTAL Horizontal position knob
POSITION
VERTICAL Channel vertical scale knob
SCALE
VERTICAL Channel vertical position knob
POSITION
TRIGGER Trigger level knob
LEVEL
Content Conventions in this Manual
DS4000E series includes the following models. Unless otherwise specified, this
manual takes DS4024E as an example to illustrate the basic information of
DS4000E series.
Model
Analog Bandwidth
No. of Analog Channels
DS4024E
200 MHz
4
DS4014E
100 MHz
4

RIGOL
DS4000E Quick Guide 7
English
General Inspection
1．Inspect the packaging
If the packaging has been damaged, do not dispose the damaged
packaging or cushioning materials until the shipment has been checked
for completeness and has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to the instrument
resulting from shipment. RIGOL would not be responsible for free
maintenance/rework or replacement of the instrument.
2．Inspect the instrument
In case of any mechanical damage, missing parts, or failure in passing the
electrical and mechanical tests, contact your RIGOL sales
representative.
3．Check the accessories
Please check the accessories according to the packing lists. If the
accessories are damaged or incomplete, please contact your RIGOL
sales representative.
Product Overview
Based on the UltraVision technology, DS4000E is a multi-functional digital
oscilloscope with high performance. It is easy to use, and its superb technical
specifications and multiple functions are perfectly integrated, enabling you to
quickly accomplish the tasks, such as test measurement, remote control, etc.
For a brief introduction about the front panel, refer to Figure 1; for the rear
panel, refer to Figure 2; and for the user interface, refer to Figure 3. For details
about them, refer to the User's Guide of this instrument.

RIGOL
8 DS4000E Quick Guide
English

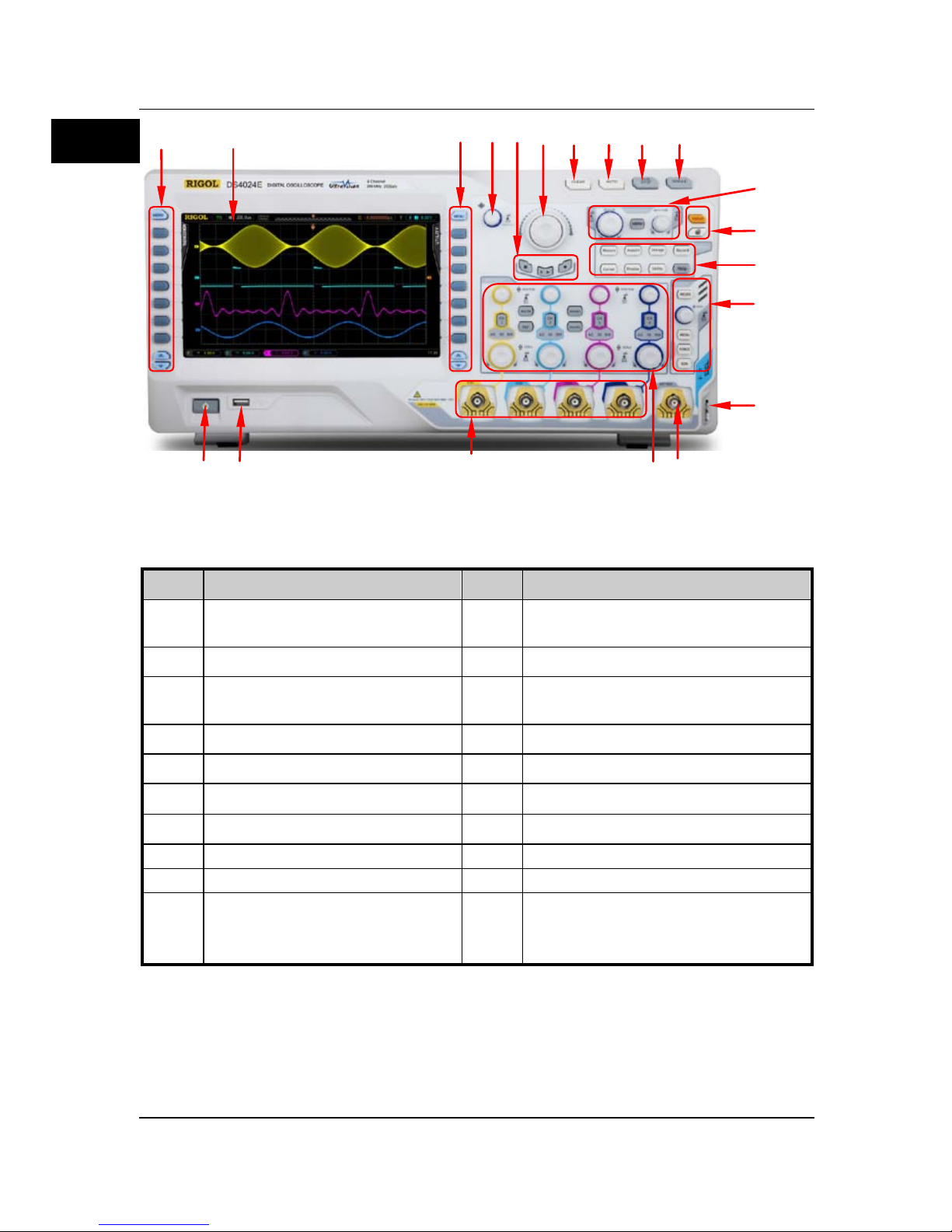

Figure 1 Front Panel
Table 1 Front Panel Description
No.
Description
No.
Description
1Parameter Measurement
Menu Softkeys 11 Power Key
2LCD 12 USB HOST Interface
3Function Setting Menu
Softkeys 13 Analog Channel Input Terminals
4Multi-function Knob 14 Vertical Control Area
5Waveform Record Keys 15 External Trigger Input Terminal
6Navigation Knob 16 Horizontal Control Area
7CLEAR Key 17 Default Key and Print Key
8
AUTO Key
18
Function Keys
9
RUN/STOP Key
19
Trigger Control Area
10 SINGLE Key 20 Probe Compensation Signal Output Terminal and Ground
Terminal
11 12 13 14 15
1 2 3 4 5 6 7 8 9 10
16
17
18
19
20

RIGOL
DS4000E Quick Guide 9
English
Figure 2 Rear Panel
Table 2 Front Panel Description
No. Description
1 Trig Out/Calibration
2 10 MHz In/Out
3 Video Output
4 LAN Interface
5 USB DEVICE Interface
6 USB HOST Interface
7 Lock Hole
8 AC Power Supply Connector and Power Switch
1 2 3 4 5 6 7 8

RIGOL
10 DS4000E Quick Guide
English
Figure 3 User Interface
Table 3 User Interface Description
No. Description No. Description
1 Auto Measurement Option 9 Trigger Setting
2 Analog Channel Label and Waveform 10 CH1 Status Label
3 Operating Status 11 CH2 Status Label
4 Horizontal Time Base 12 CH3 Status Label
5 Sample Rate and Memory Depth 13 CH4 Status Label
6 Waveform Memory 14 Message Box
7 Trigger Position 15 Notification Area
8 Horizontal Position 16 Function Setting Menu
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16

RIGOL
DS4000E Quick Guide 11
English
To Prepare the Oscilloscope for Use
To Remove the Front Panel Cover
Before using the oscilloscope, remove the front panel cover. Grasp the
transverse tabs on each side and pull them outward to remove the cover.
Figure 4 To Remove the Front Panel Cover
To Connect to Power Supply
This oscilloscope supports two kinds of AC input power supplies: 100 V-127 V,
45 Hz-440 Hz; 100 V-240 V, 45 Hz-65 Hz. Please use the power cord supplied
with the accessories to connect the oscilloscope to the AC power source, as
shown in the figure below. After you turn on the power switch, the oscilloscope
is connected to power, and the Power key located at the lower left corner
of the front panel is blinking.
Figure 5 To Connect to Power Supply
Power Supply
Connector
Power Switch
Front Panel Cover
Transverse Tab

RIGOL
12 DS4000E Quick Guide
English
Power-on Inspection
When the oscilloscope is connected to power, press the Power key at the
lower left corner of the front panel to start the oscilloscope. During the start-up
process, the oscilloscope performs a series of self-tests. You can hear the
switching sound of the relay. After the self-test, the welcome screen is
displayed. The "Current Options" dialog box will be displayed if your instrument
currently has installed the trial versions of the options. From this dialog box,
you can view the name, version, and the remaining trial time of the option
currently installed. The instrument will be installed with the trial versions of the
options before leaving factory. Its remaining trial time is about 2,000 minutes.
You can press Utility System SelfTestInfo to view the self-test results.
To Connect the Probe
RIGOL provides passive and active probes for DS4000E. For detailed
information of the probes, please refer to the User’s Guide of the corresponding
probe. The following table lists the recommended probes for this oscilloscope.
Model Description
PVP2350
350 MHz, passive probe, standard, auto detection
RP7150
1.5 GHz, active probe, optional, auto detection
Besides, DS4000E supports Tektronix probes with TekProbe II BNC Interface
(required to be used with the option - RIGOL T2R1000 interface adapter).
To Connect the Passive Probe
1. Connect the BNC terminal of the probe to an analog channel input
terminal or the external trigger input connector on the front panel of the
oscilloscope.
2. Connect the ground alligator clip or spring of the probe to the circuit
ground terminal and connect the probe tip to the circuit point to be tested.
After connecting the passive probe, you need to perform probe function
inspection and probe compensation adjustment before making measurements.
For detailed procedures, refer to "Function Inspection for the Passive
Probe" and "Probe Compensation".

RIGOL
DS4000E Quick Guide 13
English
To Connect the Active Probe
Take RP7150 (using the differential probe front) as an example.
1. Connect the probe head to the active probe amplifier.
2. Connect the other end of the active probe amplifier to the analog channel
input terminal or the external trigger input connector on the front panel of
the oscilloscope. Note that you need to push the probe straight on until it
latches into place.
Figure 6 To Connect the Active Probe
3. Use the probing aids to connect the probe head to the circuit under test.
After connecting the active probe, you can perform probe calibration and offset
voltage adjustment if necessary. For detailed procedures, refer to the User's
Guide of this instrument.

RIGOL
14 DS4000E Quick Guide
English
To Connect the Tektronix Probe
1. Connect the Tektronix probe to one end of T2R1000 adapter properly.
2. Connect the other end of T2R1000 adapter to the analog channel input
terminal or the external trigger input connector on the front panel of the
oscilloscope.
3. Connect the ground terminal of the probe to the circuit ground terminal,
and connect the probe tip to the test point of the circuit.
For the specified model of the Tektronix probe, after connecting the probe, you
can perform probe calibration and offset voltage adjustment if necessary. For
detailed procedures, refer to the User's Guide of this instrument.
Function Inspection for the Passive Probe
You need to perform probe function inspection according to the steps below
before making measurements with the passive probe.
1. Press Default OK to restore the oscilloscope to factory settings.
2. Connect the ground alligator clip of the probe to the "Ground Terminal" as
shown in Figure 7 below.
3. Connect one end of the probe to CH1 input terminal of the oscilloscope,
and connect the other end to the "Probe Compensation Signal Output
Terminal" as shown in Figure 7.
T2R1000
Tektronix Probe

RIGOL
DS4000E Quick Guide 15
English
Figure 7 To Use the Compensation Signal
4. Set the attenuation on the probe to 10X. Then press AUTO.
5. Observe the waveform on the screen. In normal conditions, the square
waveform is displayed, as shown in the figure below. If the square
waveform actually shown does not match that in the figure below, please
follow the procedures for "Probe Compensation" in the next section.
Figure 8 Probe Compensation Signal (Square Waveform)
6. Use the same method to inspect other analog channels.
WARNING
To avoid electric shock, please ensure that the insulated wire of
the probe is in good condition, and do not touch the metallic part
of the probe when the probe is connected to high voltage source.
Tip
The probe compensation signal can only be used for probe compensation
adjustment and cannot be used for calibration.
Probe Compensation
Signal Output Terminal
Ground Terminal

RIGOL
16 DS4000E Quick Guide
English
Probe Compensation
When the probe is used for the first time or when the probe compensation
signal does not match that shown in Figure 8, you should compensate the
probe to match the input channel of the oscilloscope. The non-compensated or
poorly compensated probe may cause measurement errors.
The procedures for the probe compensation are as follows:
1. Perform Step 1, 2, 3, and 4 in the above section.
2. Check the waveform displayed on the screen of the oscilloscope and
compare it with the waveforms shown in the figure below.
Figure 9 Probe Compensation
3. Use a nonmetallic screwdriver to adjust the low-frequency compensation
adjustment hole on the probe until the waveform is displayed as "Properly
Compensated" in the figure above.
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function
keys and menu softkeys on the front panel. Press Help to open the help
interface, and press it again to close the interface. The help interface consists of
two sections. The left section is "Help Options", and you can select the "Button"
or "Index" tab. The right section is "Help Display Area", which displays the help
information.
Overcompensated Properly Compensated Undercompensated

RIGOL
DS4000E Quick Guide 17
English
Figure 10 Help Information
Button:
By default, the "Button" tab is selected. Under the tab, you can view the
corresponding help information in the "Help Display Area" by pressing the keys
or menu softkeys (except the Power key , multi-function knob , and
the Page Up/Down key /) on the front panel directly or rotating the
multi-function knob to select the desired key name (the item currently
selected is displayed with brown shading) in the “Help Options” area and then
pressing down the knob.
Besides, you can acquire the help information of the navigation knob by
rotating the multi-function knob to select "WaveSearch" or directly rotating
the navigation knob to quickly select "WaveSearch". To switch to the "Index"
tab, use the multi-function knob to select "To Index" and then press down
the knob.
Index:
Under the tab, you can view the corresponding help information in the "Help
Display Area" by rotating the multi-function knob to select the desired key
name (the item currently selected is displayed with brown shading) in the “Help
Options” area and then pressing down the knob. To switch to the Button tab,
use the multi-function knob to select "To Button" and then press down the
knob.
Help Options Help Display Area

RIGOL
18 DS4000E Quick Guide
English
Remote Control
DS4000E series digital oscilloscope can be connected to the PC via the USB,
LAN, or GPIB (option) interface to set up communication and realize remote
control through the PC. The remote control can be realized by using SCPI
(Standard Commands for Programmable Instruments) commands. DS4000E
series digital oscilloscope supports two ways of remote control: user-defined
programming and PC software (e.g. RIGOL Ultra Sigma).
More Product Information
1. Obtain the device information
Press Utility System System Info to obtain the information of the
instrument, including the manufacturer, model, serial number, as well as
software and hardware version number.
2. Check the option installation status
Press Utility Options Installed to view the installation status of
the current option.
For more information about this instrument, refer to the relevant manuals by
logging in to the official website of RIGOL (www.rigol.com) to download them.
DS4000E User’s Guide introduces the functions of the instrument
and the operation methods, remote control
methods, possible failures and solutions in
using the DS4000E series, specifications, and
order information;
DS4000E Programming Guide provides detailed descriptions of SCPI
commands and programming instances of
the instrument.
DS4000E Datasheet provides the main features and technical
specifications of the instrument.

中文
RIGOL
快速指南
DS4000E 系列数字示波器
2016年8月
RIGOL TECHNOLOGIES, INC.

RIGOL
2 DS4000E 快速指南
中文
保证和声明
版权
©2016 北京普源精电科技有限公司
商标信息
RIGOL 是北京普源精电科技有限公司的注册商标。
文档编号
QGA21002-1110
声明
本公司产品受中国及其它国家和地区的专利（包括已取得的和正在申请的
专利）保护。
本公司保留改变规格及价格的权利。
本手册提供的信息取代以往出版的所有资料。
本手册提供的信息如有变更，恕不另行通知。
对于本手册可能包含的错误，或因手册所提供的信息及演绎的功能以及因
使用本手册而导致的任何偶然或继发的损失，RIGOL 概不负责。
未经 RIGOL 事先书面许可，不得影印、复制或改编本手册的任何部分。
产品认证
RIGOL 认证本产品符合中国国家产品标准和行业产品标准及 ISO9001:2008 标
准和 ISO14001:2004 标准，并进一步认证本产品符合其它国际标准组织成员的
相关标准。
联系我们
如您在使用此产品或本手册的过程中有任何问题或需求，可与 RIGOL 联系：
电子邮箱：serv[email protected]m
网址：www.rigol.com
