Organization of This Manual
This manual describes the features and operation principles of the Vibration Exciter VE-10.
To ensure safety and accuracy, please read this document carefully.
The manual contains the following sections.
Outline
Gives basic information on the unit.
Parts and Functions
Identies and explains all parts of the unit.
Preparations
Describes how to insert batteries, how to mount vibration pickup and how to select opera-
tion mode.
Calibration
Describes how to calibrate a vibration measurement system and how to perform an ac-
celerometer sensitivity check.
Specications
Lists the technical specications of the unit.

ii
To conform to the EU requirement of the Directive on Waste Elec-
trical and Electronic Equipment, the symbol mark on the right is
shown on the instrument.
The product described in this manual is in conformity with the
following European standards;
EN61326:1997+A1:1998+A2:2001+A3:2003

iii
Provides advice on how to use the
functions of the unit correctly. Be
sure to read this information.
Note
Operating Precautions
- Operate the unit only as described in this manual.
- Do not disassemble or modify the unit.
- In the vicinity of a strong magnetic eld (such as produced by magnets, motors,
speakers, etc.), measurement results may be affected.
- The calibration exciter in the unit uses a semipermanent magnet. If cassette tapes,
oppy disks, watches or similar are placed close to the unit, erasure or faulty opera-
tion may result.
- This is a precision device. Protect it from shocks.
- If the specied torque (0.1 N·m to 0.2 N·m) is exceeded when fastening the vibration
pickup, the exciter spring may sustain permanent damage.
- In case of malfunction, do not any attempt any repairs. Note the condition of the
unit clearly and contact the supplier.

iv

v
Contents
Operating Precautions ..................................................................................... iii
Outline..............................................................................................................1
Parts and Functions...........................................................................................2
Preparations ......................................................................................................3
Loading Battery...........................................................................................3
Attaching Vibration Pickup .........................................................................4
Operation Mode...........................................................................................9
Calibration ......................................................................................................10
Calibration of Vibration Measurement System...........................................10
Sensitivity Check of Accelerometer ........................................................... 11
Specications ..................................................................................................12

vi

1
Outline
The VE-10 is a portable vibration exciter designed for calibration of vibration pickup, vibra-
tion meter, vibration measurement system, etc.
The VE-10 generates a sinusoidal vibration of 10 m/s2(rms) in acceleration, 10 mm/s (rms)
in velocity, 10 μm (rms) in displacement.
Block diagram
Charge amplier Rectier
Reference voltage generator
Comparator
Oscillator
159.2 Hz
Power amplier
Accelerometer
Exciter
Battery
(9 V)
Control circuit Timer Overload detector
Switch
Reset signal
Battery voltage detector

2
Parts and Functions
Exciter
Vibration pickup or adapter is mounted here.
Bottom case
Battery compartment is located inside this case.
Power indicator
Lights up when the power is switched on.
Power/mode switch
Serves to on/off the power and switches the operation mode.
R
I
O
N
C
O
.
,
L
T
D
.
V
E
-
1
0
0
0
7
6
0
0
0
5

3
Loading Battery
1. Turn the bottom case counterclockwise and
take it off.
2. With the correct polarity, attach a 6LR61
alkaline battery to the battery connector.
3. Insert the battery in the battery compart-
ment.
4. Screw the bottom case on the unit.
Note
If continuous mode cannot be activated, or if
the unit does not respond when the Power/Mode
switch is pressed, replace the battery with fresh
one.
Preparations
Battery connector
Battery
Do not try to turn or
pull out this part.

Preparations
4
Attaching Vibration Pickup
Attach the vibration pickup to the VE-10 with one
of the following methods, and connect the pickup
to the input connector of vibration meter using a
low-noise cable.
Torque for fastening the vibration pickup and adapter
will be 0.1 N.m to 0.2 N.m; tighten lightly by hand.

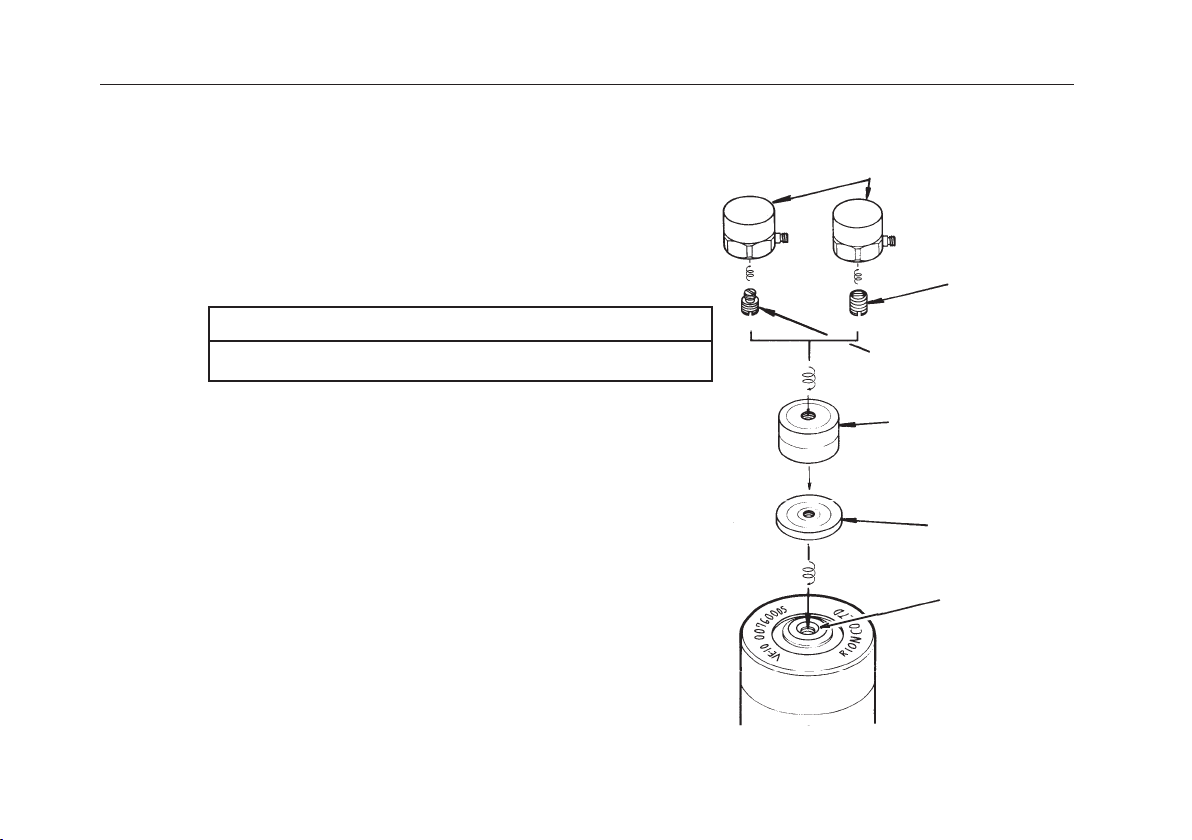

Pickup with M3 screw hole
1. Attach the vibration pickup to the adapter
with the M3 screw.
2. Mount the adapter on the exciter of the
VE-10.
Note
If the specied torque (0.1 N.m to 0.2 N.m) is
exceeded when fastening the vibration pickup, the
exciter spring may sustain permanent damage.
Vibration Pickup
Low-noise cable
Vibration Pickup
Adapter
Exciter
M3 screw

Preparations
5
Vibration Pickup with M6 screw hole
Mount the vibration pickup on the exciter with the M6 screw.
Vibration Pickup with UNF screw hole
1. Attach the M6-UNF screw (UNF side) to the
vibration pickup.
2. Mount the vibration pickup on the exciter using
the M6 side of M6-UNF screw.
＊Precautionstoensurecorrectcalibrationresults
・When mounting pickups with a weight of less
than 10 g, use the supplied adapter (weight about
12 g) or another suitable weight to bring the total
weight to 10 g or more.
・Do not use vibration pickups with a weight of more
than 70 g (including adapter and connection cable
etc.). This is especially important when calibrating
products such as the PV-57A or PV-57I that can exceed 70 g depending on cabling.
For information on pickup weight, refer to the catalog, specications, or other docu-
mentation about the pickup.
Vibration Pickup
M6-UNF screw
M6 screw
Exciter
.

Preparations
6
Vibration Pickup with M6 screw hole (using magnet attachment)
1. Mount the vibration pickup on the magnet
attachment with the M6 screw.
2. Mount the adapter on the exciter.
3. Attach the magnet to the adapter.
Note
To remove the magnet, slide it on the adapter.
Vibration Pickup
M6-UNF screw
M6 screw
Magnet
attachment
Adapter
Exciter
.

Preparations
7
Vibration Pickup with UNF screw hole (using magnet attachment)
1. Attach the M6-UNF screw (UNF side) to the vibration pickup.
2. Mount the vibration pickup on the magnet attachment using the M6 side of M6-UNF
screw.
3. Mount the adapter on the exciter.
4. Attach the magnet to the adapter.

Preparations
8
Adhesive mounting type vibration pickup
1. Mount the adapter on the exciter.
2. Attach the vibration pickup to the adapter with
both-sided adhesive tape.
Note
When attaching a triaxial type vibration pickup,
be careful of the measurement axes (X, Y, Z).
Vibration Pickup
Adhesive tape
Adapter
Exciter
.

Preparations
9
Operation Mode
The VE-10 provides two operation modes. The mode can be changed by pressing the
power/mode switch.
Note
Do not press the switch strongly with a sharp pointed object such
as pointed tweezers.
Auto-stop (pushes once)
Continuous operation (pushes twice within ve seconds)
ON
OFF
Press Auto-stop 1 minute after power on
Power indicator
Off On Off
Power/mode switch
Power/mode switch
Within ve seconds
Power indicator
Press Press Press
Off Off
ON
OFF
On
On

10
Calibration
The VE-10 should be in the soft case when performing calibration. Also, do not give vibra-
tions to the VE-10 especially when calibrating in velocity and displacement.
Calibration of Vibration Measurement System
1. Set the sensitivity of the vibration meter to the sensitivity of the vibration pickup
in use.
2. Set the measurement range of the vibration meter to measure 10 m/s2(rms) for ac-
celeration, 10 mm/s (rms) for velocity, or 10 m (rms) for displacement.
3. Press once the power/mode switch. The power indicator lights up, and the VE-10
generates a sinusoidal vibration of 10 m/s2(rms) in acceleration, 10 mm/s (rms) in
velocity, 10 m (rms) in displacement.
4. After at least ve seconds have elapsed, verify that the indication of the vibration
meter has stabilized, and then check the measurement values in the respective mea-
surement modes. If the meter does not show the correct value, adjust the sensitivity
setting.

Calibration
11
Sensitivity Check of Accelerometer
1. Set the sensitivity of the meter to the sensitivity of the accelerometer.
2. Set the measurement range of the vibration meter to measure 10 m/s2(rms) for ac-
celeration.
3. Press once the power/mode switch. The power indicator lights up.
4. After at ve seconds have elapsed, verify that the indication of the vibration meter
has stabilized, and then adjust the sensitivity control of the meter so that the meter
indicates 10 m/s2(rms). The reading of the sensitivity control shows the correct
sensitivity of the accelerometer in pC/(m/s2).

12
Specications
Frequency: 159.2 Hz ±1% (-10ºC to +55ºC)
Acceleration: 10 m/s2(rms) 14.14 m/s2(peak) ±3% (+10ºC to +40ºC)
±5% (-10ºC to +55ºC)
Velocity: 10 mm/s (rms) 14.14 mm/s (peak) ±4% (+10ºC to +40ºC)
±6% (-10ºC to +55ºC)
Displacement: 10 µm (rms) 14.14 µm (peak) ±5% (+10ºC to +40ºC)
±7% (-10ºC to +55ºC)
