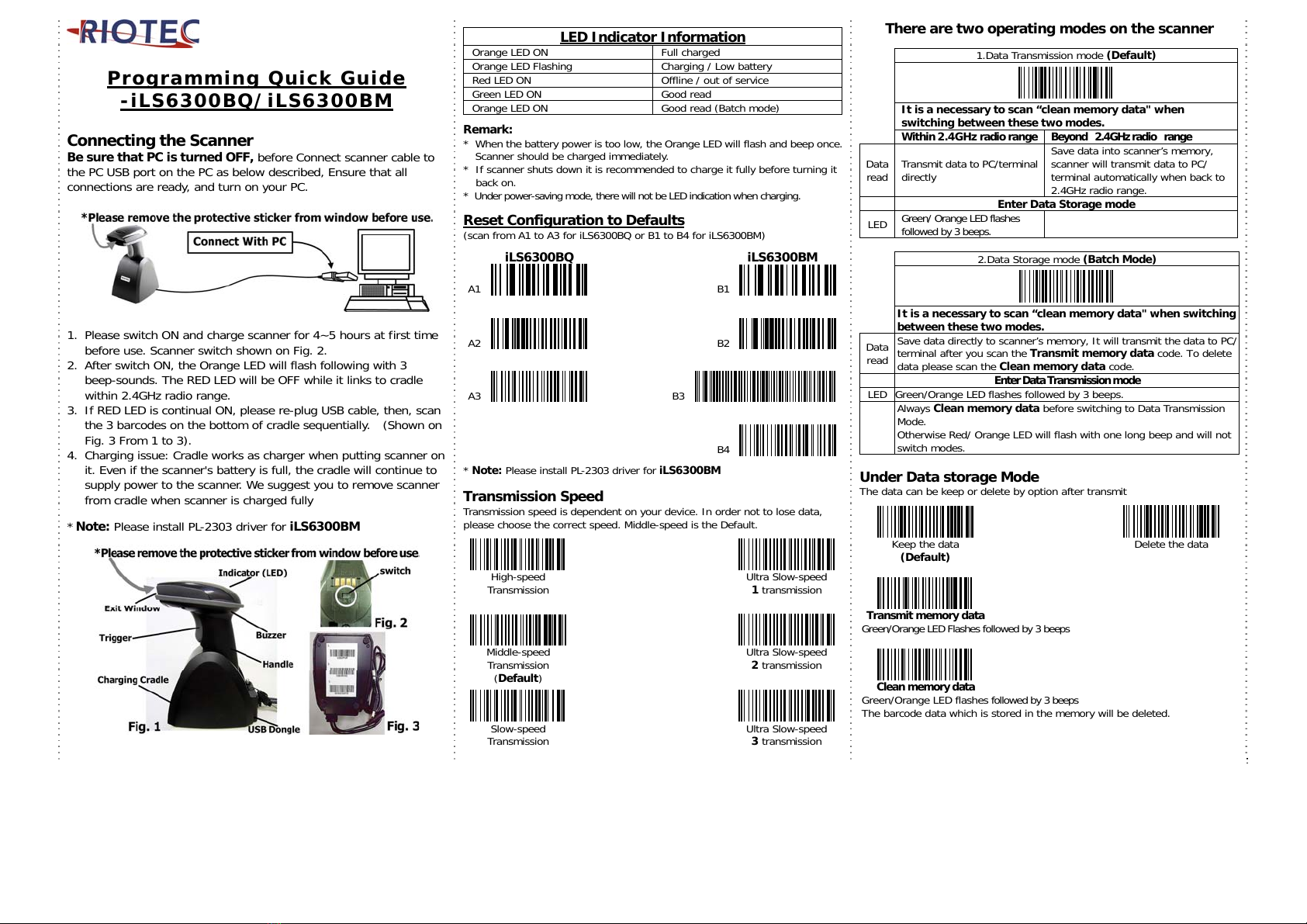

Programming Quick Guide
-iLS6300BQ/iLS6300BM

Connecting the Scanner
Be sure that PC is turned OFF, before Connect scanner cable to
the PC USB port on the PC as below described, Ensure that all
connections are ready, and turn on your PC.



1. Please switch ON and charge scanner for 4~5 hours at first time
before use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle
within 2.4GHz radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan
the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 From 1 to 3).
4. Charging issue: Cradle works as charger when putting scanner on
it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully
*Note: Please install PL-2303 driver for iLS6300BM
LED Indicator Information
Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Orange LED ON Good read (Batch mode)
Remark:
*When the battery power is too low, the Orange LED will flash and beep once.
Scanner should be charged immediately.
*If scanner shuts down it is recommended to charge it fully before turning it
back on.
*Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A3 for iLS6300BQ or B1 to B4 for iLS6300BM)
iLS6300BQ iLS6300BM
A1 B1

A2 B2

A3 B3

 B4

*Note: Please install PL-2303 driver for iLS6300BM
Transmission Speed
Transmission speed is dependent on your device. In order not to lose data,
please choose the correct speed. Middle-speed is the Default.
High-speed Ultra Slow-speed
Transmission
1transmission
Middle-speed Ultra Slow-speed
Transmission
(Default)
2transmission
Slow-speed Ultra Slow-speed
Transmission 3transmission

There are two operating modes on the scanner

1.Data Transmission mode (Default)


It is a necessary to scan “clean memory data" when
switching between these two modes.
Within 2.4GHz radio range Beyond 2.4GHz radio range
Data
read Transmit data to PC/terminal directly
Save data into scanner’s memory,
scanner will transmit data to PC/
terminal automatically when back to
2.4GHz radio range.
Enter Data Storage mode
LED Green/ Orange LED flashes
followed by 3 beeps.

2.Data Storage mode (Batch Mode)


It is a necessary to scan “clean memory data" when switching
between these two modes.
Data
read
Save data directly to scanner’s memory, It will transmit the data to PC
/
terminal after you scan the Transmit memory data code. To delete
data please scan the Clean memory data code.
Enter Data Transmission mode
LED
G
reen/Oran
g
e LED flashes followed by 3 beeps.

Always Clean memory data before switching to Data Transmission
Mode.
Otherwise Red/ Orange LED will flash with one long beep and will not
switch modes.

Under Data storage Mode
The data can be keep or delete by option after transmit
Keep the data
(Default) Delete the data
Transmit memory data
Green/Orange LED Flashes followed by 3 beeps
Clean memory data
Green/Orange LED flashes followed by 3 beeps
The barcode data which is stored in the memory will be deleted.


1

Trigger Mode
Trigger always
(Trigger available at any time)
Trigger standard
(Trigger available, after data sent to the device)
(Default)
Wireless Auto-connection
Wireless Auto-connection ON:
When out of range, it will keep trying to connect to
device, scanner will not enter power-saving mode.
Wireless Auto-connection OFF:
When you are out of BT signal range, scanner will stop
sending auto-connection signal to device after 2 minutes.
During this time, it will not enter power-saving mode.
Once you are back within range, press trigger to connect
to the device. (Default)
Keyboard Country(For USB HID only)
Scan the appropriate country code as below to program the keyboard for your
country or language. As a general rule, the following characters are not
supported by the scanner for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~
USA
(Original setting) Italian
Norway
France
Germany
Vietnam
Sweden
Spain
Denmark
Portugal
Switzerland Hungary

Power-saving Mode
Power-saving mode OFF
Power-saving mode ON (Default):
Enter power-saving mode after 1-minute inactivity.
This function converses battery power. When you
press "SCAN/Power ON" button, it will wake up and
begin to scan.
*When charging, the scanner will not enter power-saving mode automatically.
How to append a “prefix” or a “suffix” to the barcode data
prefix suffix
1. scan above configuration code for Prefix or Suffix
2. enter the required values (right, numeric barcode) for Prefix or Suffix using
the hex values for the desired HEX values from “Prefix & Suffix TABLE (blew
page)”
3. then, end by scanning Code X (below, right)
*The max. of special characters is 5.
*When you append 1~4 required values for Prefix or Suffix, it must end with
Code X.
*It doesn’t need Code X, if you append 5 values to barcode data.
How to delete Prefix or Suffix
1. scan above configuration code for Prefix or Suffix
2. enter the “0” “0” (above, right)
3. then end by scanning Code X (below, right)
Numeric barcode for settings
0
6
C
1 7
D
2 8
E
3 9
F
4
A
5
B X
Prefix & Suffix TABLE
HEX HID
(SPP) HEX HID (SPP) HEX HEX HEX HEX
01 CTRL A
(SOH) 19 CTRL Y (EM) 20 SPACE 38 8 50 P 68 h
02 CTRL B
(STX) 1A CTRL Z(SUB) 21 ! 39 951 Q 69 i
03 CTRL C
(ETX) 1B ESC
(ESC) 22 " 3A : 52 R 6A j
04 CTRL D
(EOT) 1C CTRL \ (FS) 23 # 3B ;53 S 6B k
05 CTRL E
(ENQ) 1D CTRL ]
(GS) 24 $ 3C < 54 T 6C l
06 CTRL F
(ACK) 1E CTRL ^ (RS) 25 % 3D =55 U 6D m
07 CTRL G
(BEL) 1F CTRL _
(US) 26 & 3E > 56 V 6E n
08 Backspace
(BS) 27 ' 3F ?57 W 6F o
09 Tab
(HT) 28 ( 40 @ 58 X 70 p
0A CTRL J
(LF) 29 ) 41 A59 Y 71 q
0B CTRL K
(VT) 2A * 42 B 5A Z 72 r
0C CTRL L
(FF) 2B + 43 C5B [ 73 s
0D Enter
(CR) 2C , 44 D 5C \ 74 t
0E CTRL N
(SO) 2D - 45 E5D ] 75 u
0F CTRL O
(SI) 2E . 46 F 5E ^ 76 v
10 CTRL P
(DLE) 2F / 47 G5F _ 77 w
11 CTRL Q
(DC1) 30 0 48 H 60 ` 78 x
12 CTRL R
(DC2) 31 1 49 I61 a 79 y
13 CTRL S
(DC3) 32 2 4A J 62 b 7A z
14 CTRL T
(DC4) 33 3 4B K63 c 7B {
15 CTRL U
(NAK) 34 4 4C L 64 d 7C |
16 CTRL V
(SYN) 35 5 4D M65 e 7D }
17 CTRL W
(ETB) 36 6 4E N 66 f 7E ~
18 CTRL X
(CAN) 37 7 4F O67 g



2


READING MODE
SINGLE SCAN SINGLE SCAN
NO TRIGGER
LASER TIMEOUT
–5 SECONDS LASER TIMEOUT –2 SECONDS
*If you want expand laser timeout, please scan
“Single Scan No Trigger + Laser Timeout-x seconds”.
Symbologies On/OFF-1
ENABLE CODE 39 DISABLE
ENABLE CODE 39
FULL ASCII DISABLE
ENABLE CODE 93 DISABLE
ENABLE CODE 128 DISABLE
ENABLE CODE 128
ISBT DISABLE
Symbologies On/OFF-2
ENABLE CODABAR DISABLE
ENABLE INTERLEAVED
2 OF 5 DISABLE
ENABLE INDUSTRIAL
2 OF 5 DISABLE
ENABLE MSI DISABLE
ENABLE UPC-A DISABLE
ENABLE UPC-E DISABLE
ENABLE EAN-13 DISABLE
ENABLE EAN-8 DISABLE
ENABLE CODE 11 DISABLE


Quick guide is subject to change without notice. R_140515_01
