Ripley ODM RP 460 User manual

M-UM016-03 Page 1
RP 460 Optical Power Meter
Quick-Start Guide
1 2
7 8 9 1110
3 4 5 6
1. Connector Adapter - Interchangeable
The RP 460 comes with a 2.5mm universal adapter. Contact ODM for additional adapter options.
2. Low Battery Indicator
“BATT” will appear on the LCD when the CR2 3V battery needs to be replaced.
3. 2kHz Tone Indicator
The RP 460 will beep and show “2kHz” on the LCD when a 2kHz modulated signal is recognized.
4. Save Button
Over 4000 readings may be saved on the RP 460. Each time the Save button is pressed, the current
reading will be saved to internal storage. The display ashes the indexed location where the
reading has been saved.
5. RCL Button
Pressing this button allows the user to toggle through the saved readings on the RP 460. The
indexed location, wavelength, and reading will ash onscreen.
6. USB Button
When the RP 460 is connected via USB to a computer running ODM’s software, pressing this
button will transfer all saved data points into the software for reporting.
7. LCD Screen
This screen displays the measured value, currently-selected wavelength, and status indicators.
8. Measurement Mode Indicator - dB/dBm
dB is a loss measurement. dBm is an absolute power measurement.
9. Wavelength Button
Hold this button to switch the RP 460 between the 850, 1300, 1310, 1490, 1550, 1611, and
1625nm wavelengths. Press the button once to immediately display the current wavelength. The
currently-selected wavelength will briey appear onscreen every 8 seconds.
10. dB/dBm Button
Press this button to toggle between dB and dBm modes. Hold this button down when in dBm
mode to set a reference on the RP 460.
11. Power Button
Press this button once to turn the RP 450 on. Press once again to turn the RP 460 o. The RP 460 is
set to turn o after 5 minutes.
Device Overview

M-UM016-03 Page 2

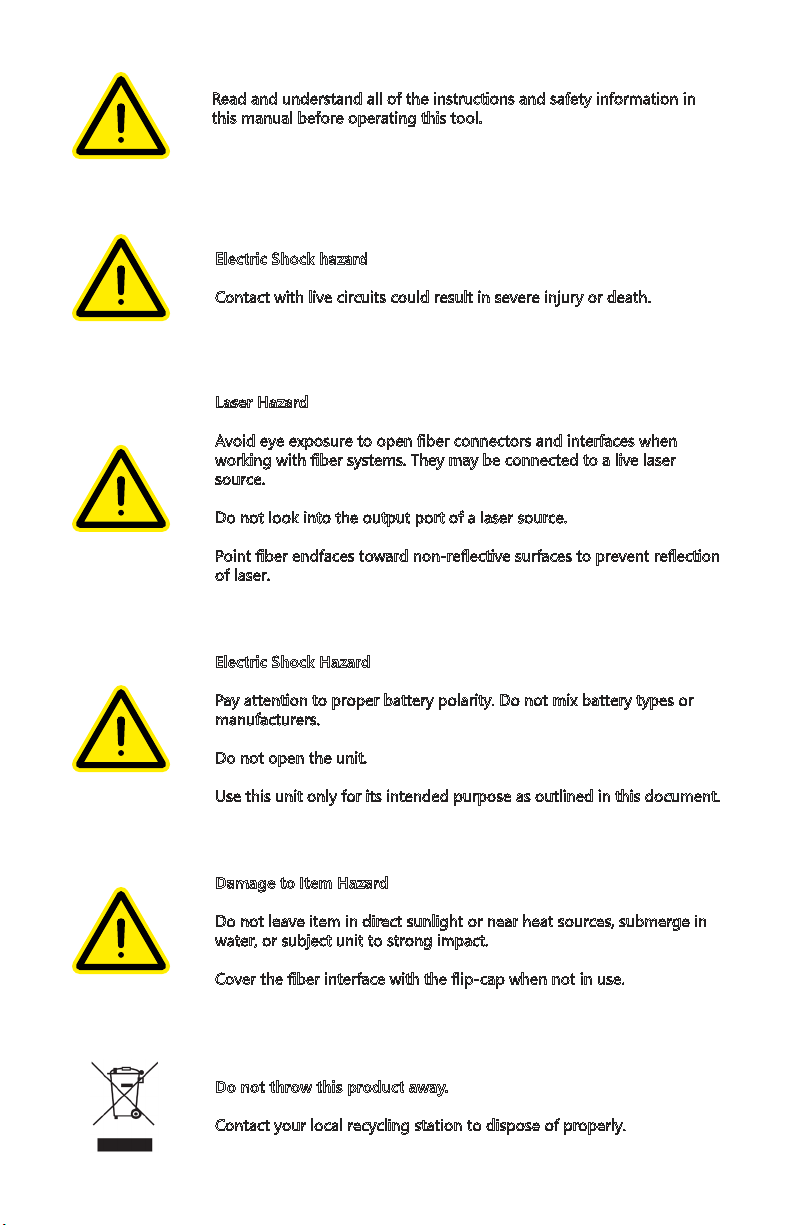

Read and understand all of the instructions and safety information in
this manual before operating this tool.
Electric Shock hazard
Contact with live circuits could result in severe injury or death.
Laser Hazard
Avoid eye exposure to open ber connectors and interfaces when
working with ber systems. They may be connected to a live laser
source.
Do not look into the output port of a laser source.
Point ber endfaces toward non-reective surfaces to prevent reection
of laser.
Electric Shock Hazard
Pay attention to proper battery polarity. Do not mix battery types or
manufacturers.
Do not open the unit.
Use this unit only for its intended purpose as outlined in this document.
Damage to Item Hazard
Do not leave item in direct sunlight or near heat sources, submerge in
water, or subject unit to strong impact.
Cover the ber interface with the ip-cap when not in use.
Do not throw this product away.
Contact your local recycling station to dispose of properly.

M-UM016-03 Page 3
Audible Alerts
The RP 460 will emit an audible beep each time a major function is used. To disable most
beeps, start with the unit OFF. Press and hold the Save button, then turn the unit ON while
holding the Save button. Perform the same procedure to turn the audible beeps back on.
Continuous Usage Mode
The RP 460 will turn o automatically if no buttons are pressed for 5 minutes. To bypass
this feature, hold the Power button for 3 seconds when powering on. A series of beeps will
indicate that the unit is now in continuous mode: it will not turn o automatically.
Reviewing Saved Readings
While in the RCL mode, use the Save and Wavelength buttons to navigate through the
saved readings on the device. Each reading has a “location” indicated by a 4-digit number.
Note the blue arrows on the Save and Wavelength buttons. The data cycles at either end, so
going “up” from the last data point will cycle back to the rst location (0001) and vice versa.
Deleting Saved Readings
Press and hold the Save and Wavelength buttons simultaneously to delete all saved
readings in the RP 460 internal memory. The screen will ash 0000 to indicate that the
memory is empty.
Non-Volatile Memory
The RP 460 uses a non-volatile memory system. Data will not be lost if the unit is turned o
while testing, if the battery is removed, or if the unit is stored for long periods of time.
Function Tips
Before transferring data from the RP 460 to the computer, download and install the OpTest
software, available online at www.odm-inc.com
1. Plug the RP 460 into the computer using the included USB cable. If this is the rst time
it has been plugged in, WAIT ten seconds for drivers to install.
2. Place the OpTest software into the Dump/Sync mode by navigating to
Settings>Data Mode>Dump Mode.
3. Press the USB button on the RP 460 to dump/sync all data points. The data from the
RP 460 will appear in the box on the left side of the window.
4. Fill out the information on the right side of the window (Customer, User, Test Site, etc.).
5. Navigate to Settings>Report Settings to identify a minimum and maximum value
for the PASS/FAIL functionality. Choose a color code scheme from this window, if
appropriate.
6. Create the nal report by clicking File>Export to Excel.
USB Download
The RP 460 can be used in a live streaming mode with the OpTest software.
1. With the RP 460 plugged in via USB, place the OpTest software into Active mode by
navigating to Settings>Data Mode>Active Mode.
2. Click the Save button onscreen to save the live reading displayed in the window. Save
as many readings as needed.
3. Create the nal report by clicking File>Export to Excel.
Data Streaming

M-UM016-03 Page 4
Unpacking and Inspection
The RP 450 comes supplied with a soft carry case, 2.5mm adapter (on the unit), 3.0V CR2
battery, USB cable, and instruction card. Contact ODM immediately if any part of the unit or
packaging is damaged or otherwise unsatisfactory.
Low Battery
The RP 450 will provide over 1000 operations under normal conditions. When the BATT
indicator is shown on the device screen, the CR2 battery should be replaced.
Optical Connector Interface
The RP 450 is equipped with a universal connector adapter which allows the interface of
many popular style connectors. This connector adapter interface should be kept covered
and protected from contamination. Care must be taken to avoid objects that could damage
the glass surface of the detector mount. If scratches or breaks occur on the surface, please
contact ODM for proper service.
Warranty and Calibration
All ODM products come with a 2 year warranty. ODM recommends recalibration every two
years to ensure adherence to NIST measurement standards. The rst recalibration is free
within the warranty period. Contact ODM for return information.
Maintenance
Specications
OPTICAL POWER METER
Detector Type -02: InGaAs / -04: Filtered InGaAs
Measurement Range -02: +6 to -70dBm / -04: +23 to -45dBm
Wavelength Range 850nm to 1650nm
Selectable Wavelengths 850 / 1300 / 1310 / 1490 / 1550 / 1611 / 1625 nm
Resolution 0.01dB
Absolute Accuracy ± 0.25 dB
Optical Interface Universal 2.5mm (Additional Adapters Available)
Display LCD
Tone ID 2kHz
Storage 4000+ Measurements
Data Transfer Mini-USB (Live Readings or Data Dump)
Power Push Button Toggle / Auto OFF
Battery CR2
Dimensions 6.1″ x 0.94″ x 0.75″ (15.5 x 2.38 x 1.9 cm)
Weight 3 oz (85.4 g)

M-UM016-03 Page 5
Certications and Contact Information
This product conforms with health, safety, and environmental
protection standards for products sold within the European
Economic Area (EEA). This product was tested by an ISO 17025
accredited laboratory and complies with the following CE
directives and standards listed below:
Directives:
Electromagnetic Compatibility (2014/30/EU)
Low-Voltage (2014/35/EU)
Standards:
EMC: EN 61326-1:2013 Industrial
Safety: EN/IEC61010-1:2010+A1:2016
Contact us with any questions pertaining to this or any other ODM product.
Call 603-524-8350
Email [email protected]
Visit us online at www.odm-inc.com
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
