Ritchie DRAFT PRO User manual

www.ritchie-uk.com
REFERENCE
Work Instruction
REFERENCE DESCRIPTION
Span Calibration Guide
Total Pages
16
This document contains proprietary and confidential information which
belongs to David Ritchie Ltd. It is loaned for limited purposes only and
remains the property of David Ritchie Ltd. Reproduction, in whole or in
part or use of this design or distribution of this information to others is
not permitted without the express written consent of David Ritchie Ltd.
This document is to be returned to David Ritchie Ltd upon request and in
any event upon completion of the use for which it was loaned. This
document and the information contained and represented herein is the
copyrighted property of David Ritchie Ltd.
David Ritchie Ltd
David Ritchie Ltd
Carseview Road
Forfar
Angus
DD8 3BT
Phone +44 (0)1307 462271
Fax +44 (0)1307 464081
DOCUMENT NUMBER
R2019-10-01
REV
02
Span Calibration Guide
S3 Indicator
EziWeigh7
ID5000
Gallagher – TW1
Gallagher – W210
Gallagher – W310/W610/W810

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 2 of 16
www.ritchie-uk.com
REVISION HISTORY
02 22/04/2021 EziWeigh 5 removed JH
01 01/10/2019 First Issue IB
Rev Date Reason for issue Prepared
Chkd Approved
TABLE OF CONTENTS
1INTRODUCTION .....................................................................3
2CALIBRATION BACKGROUND INFORMATION ........................3
3CALIBRATION PROCESS..........................................................4
3.1 S3 –CALIBRATION ................................................................4
3.2 EZIWEIGH7–CALIBRATION ....................................................5
3.3 ID 5000 -CALIBRATION.......................................................11
3.4 GALLAGHER TW1 –CALIBRATION ..........................................14
3.5 GALLAGHER W210 –CALIBRATION........................................15
3.6 GALLAGHER W310/W610/W810 –CALIBRATION..................16

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 3 of 16
www.ritchie-uk.com
1INTRODUCTION
The information contained within this document should
provide suitable instruction to allow any personnel to
carry out span calibration of the following:
1. S3
2. EziWeigh7
3. ID 5000
4. Gallagher TW1
5. Gallagher W210/W310/W610/W810
2CALIBRATION BACKGROUND INFORMATION
Span calibration uses test weights to calibrate the
indicator to a specific set of load cell or load bars.
The known test weight which is used for calibration should
be at least one third of the total capacity of the scale.
Ideally a known test weight about equal in weight to the
load or animal to be weighed is required.
During span calibration process the operator is required to
set desired capacity, resolution of the scale and enter the
amount of the test weight. The indicator will take two
readings, one without the test weight on the platform and
one with.

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 4 of 16
www.ritchie-uk.com
3CALIBRATION PROCESS
This section details the procedure by which to calibrate
the instruments.
3.1 S3 – Calibration
3.1.1 Download the MiHub Data Link app for your
mobile device. Note the app is free to download.
The app symbol is
3.1.2 Connect the S3 indicator to your mobile device
or computer
3.1.3 Select the S3 indicator from the list of device
that may appear
3.1.4 Select to open settings, and choose
Span Calibration.
3.1.5 Follow the on screen step to complete the span
Calibration.

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 5 of 16
www.ritchie-uk.com
3.2 EziWeigh7 – Calibration
3.2.1 Ensure that the load cells are tightly connected to
EziWeigh7i indicator.
3.2.2 Press to turn the indicator on.

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 6 of 16
www.ritchie-uk.com
3.2.3 Press ESC and MENU buttons together.
3.2.4 Press ENTER to go into the Span Calibration
menu.
Display will show
Display will show

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 7 of 16
www.ritchie-uk.com
3.2.5 Type the desired capacity for the system (200.0kg)
using numerical key pad and press ENTER to store.
3.2.6 Press down arrow.
3.2.7 Set cell resolution to 0.5kg by pressing ENTER.
3.2.8 Press down arrow . Display will show the
“Test Weight”. By using numerical key pad type the
actual test weight that will be used for calibration
and press ENTER to store. The weight should
be at least one third of the total capacity of the
scale or about equal to the typical loads that will be
weighed, whichever is greater.
Display will show

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 8 of 16
www.ritchie-uk.com
3.2.9 Press down arrow.
3.2.10 Ensure that there is no load on platform then
press Enter.
Wait until next instruction appears on the screen.
Display will show
the test weight
Display will show

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 9 of 16
www.ritchie-uk.com
3.2.11 Place the test load on platform and press ENTER.
Display will show
Display will show

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 10 of 16
www.ritchie-uk.com
3.2.12 If the span calibration was successful the display will
show “Done”.
3.2.13 Press ESC button twice to exit the span
calibration.

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 11 of 16
www.ritchie-uk.com
3.3 ID 5000 - Calibration
3.3.1 Screw the load bars connectors securely to the correct positions
3.3.2 Turn on indicator with
power button.
3.3.3 Start at the home
screen, select the
settings page, by
using the grey button
at the side.
3.3.4 Select Weighing settings, by using the grey button at the
side
Load bar connectors

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 12 of 16
www.ritchie-uk.com
3.3.5 Select Span Cal, by using the grey button at the side.
3.3.6 Select 0.5 resolution.
Press enter to access the drop down box.
Use down arrow to select 0.5 resolution.
Press enter to confirm selection.
3.3.7 Enter capacity (full scale) of 200.0 using the keypad,
press enter to confirm.
3.3.8 Carry out zero weight calibration. DO NOT touch
weight scale while calibration is being carried out.
Press enter to start calibration. Screen will display “No
load measurement is done”
Screen display:

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 13 of 16
www.ritchie-uk.com
3.3.9 Enter the test weight into ID5000, add test weight
to weigh scale, keeping central for best accuracy.
3.3.10 Press enter to start span calibration. DO NOT touch
weigh scale while calibration is being carried out.
Screen will display “Test weight measurement is
done”
3.3.11 Remove weight when completed.
3.3.12 Return to weighing screen, using the back key
.
Test weigh scale with known weight to verify
calibration.

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 14 of 16
www.ritchie-uk.com
3.4 Gallagher TW1 – Calibration
3.4.1 Connect load bars to the
Gallagher indicator
connectors using Y piece
Gallagher adaptor cable
manufactured and supplied
by Ritchie.
3.4.2 Turn on the indicator, using
the power button.
3.4.3 Tap on the Icon to open settings menu.
3.4.4 Tap Equipment Connections to enter the selected
menu.
3.4.5 Tap the “Loadbar name”or select a “Create Custom”
and follow indicator wizard
3.4.6 Tap “Advanced”
3.4.7 Tap “Span”
3.4.8 Follow the configuration wizard of the indicator

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 15 of 16
www.ritchie-uk.com
3.5 Gallagher W210 – Calibration
3.5.1 Ensure the load bars are connected to indicator using Y
piece Gallagher adaptor cable manufactured and supplied
by Ritchie. Ensure no load and is free from obstruction
3.5.2 Hold down GREEN and BLUE
buttons at the same time. Turn
the rotary knob from OFF to
FINE.
Screen will show “CAL”
3.5.3 Check there is no load on the loadbars and press the BLUE
button.
The ZERO icon will be displayed once zero load has been
captured.
3.5.4 Add any known weight up to 200kg to the scale. Once the
load is stable, press the GREEN button.
Screen will show calculated weight
3.5.5 Press the GREEN button to increase shown weight to
known test weight. Press BLUE button to decrease shown
weight. (Adjustment in 1kg increments)
3.5.6 Once display weight equals the know test weight, turn
rotary knob from FINE to AUTO.
Display will read “SAVE”
3.5.7 Press the GREEN button to save the new span value
3.5.8 To exit the span calibration without saving the new
value, turn the rotary knob to OFF before pressing
the GREEN button.

Document number R2019-10-01 Span Calibration Guide
Revision 02
Page 16 of 16
www.ritchie-uk.com
3.6 Gallagher W310/W610/W810 – Calibration
3.6.1 Ensure the load bars are connected to
indicator using Y piece Gallagher
adaptor cable manufactured and
supplied by Ritchie. Ensure no load
and is free from obstruction
3.6.2 Turn the rotary knob to SETUP. Select
USER OPTIONS using the soft keys.
3.6.3 When the user options screen is displayed carry out the
following key sequence:
WEIGH →DELETE →ZERO →ZERO →
DELETE →RIGHT HAND SOFT KEY
3.6.4 The engineering option screen will display.
Select “Change Span” and press “Select”
3.6.5 For W610/W810 indicators choose “RESPAN” using soft key
F5
3.6.6 Check that there is no load on the loadbars and press the BLUE
button. The ZERO indicator will come on once the zero has
been captured
3.6.7 Apply any known test load up to 200kg to the scale. Once the
value has stabilised press the GREEN button. The calculated
weight will display on the lower screen
3.6.8 Use the arrow key or key pad to adjust the displayed span
weight to the known test weight. For the W310 use the DIGIT
key to change the digit position in the span weight value.
3.6.9 Press soft key F5 or OK to save the new span value
3.6.10 To exit the span calibration without saving the new value, turn
the rotary knob out of SETUP before accepting the test weight
value. The scale will default to normal operation without
saving the new value.
Table of contents
Other Ritchie Test Equipment manuals
Popular Test Equipment manuals by other brands

Fluke
Fluke TP1000 Safety information

Seaward
Seaward PAC3760 operating instructions

DH Instruments
DH Instruments ADCS-601 Operation and maintenance manual

PCE Instruments
PCE Instruments PCE-VTS 50 user manual

Mastech
Mastech Analog Earth Resistance Tester user manual

Hanna Instruments

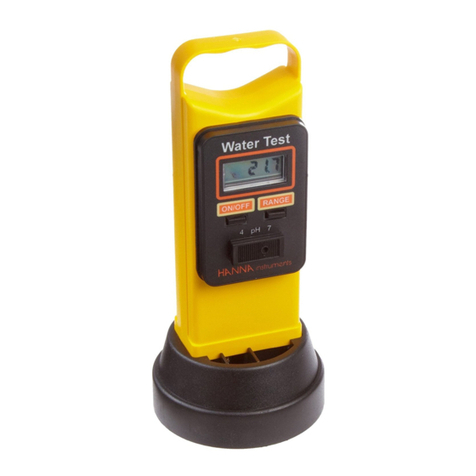

Hanna Instruments HI 98204 instruction manual
