This manual describes the installation and operation of the ULB-362B
Series Underwater Locator Beacons used for marking underwater
locations, equipment and subsea vehicles. This manual is divided into the
following six sections:
1 Description
2 Specifications
3 Installation and Checkout
4 Beacon Maintenance
5 Return Procedures
6 Warranty
Proprietary Information
The information, description, and illustrations in this manual are the
property of RJE International, Inc. Materials may not be reproduced or
disseminated without the prior written consent of RJE International, Inc.
Changes
RJE International, Inc. reserves the right to make changes to meet new
specifications at any time without incurring any obligation to modify
previously installed units. This manual is provided for informational and
reference purposes only and is subject to change without notice.
Notes and Warnings
Where applicable, special notes and warnings are presented as follows:
NOTE: A reminder to check that certain criteria are met before
proceeding further in a step or sequence.
WARNING: A reminder that dangerous consequences could result if
certain recommended procedures are not followed

ULB-362B Underwater Locator Beacon ii
User’s Manual January 2018
Table of Contents
1Description ....................................................................................................................... 1
External Construction............................................................................................. 2
Internal Construction.............................................................................................. 3
Theory of Operation ................................................................................................. 3
Locating the Beacon ............................................................................................... 3
2Specifications ................................................................................................................. 4
3Installation and Checkout ........................................................................................ 5
Installation Considerations ................................................................................. 5
Installation Procedures for ULB-362B and ULB362-02 Mounting
Bracket ................................................................................................................................... 6
Installation Procedures for ULB-362/PL........................................................ 8
Pre-Deployment Tests ............................................................................................ 9
Battery Check................................................................................................................ 9
4Beacon Maintenance................................................................................................. 10
Beacon Cleaning...................................................................................................... 10
Beacon Maintenance Precautions................................................................. 10
Battery Maintenance............................................................................................. 10
Tooling Requirements for Battery Replacement......................................................... 11
Beacon Disposal ...................................................................................................... 11
Beacon Storage........................................................................................................ 11
5Return Procedures...................................................................................................... 12
6Warranty........................................................................................................................... 13

ULB-362B Underwater Locator Beacon iii
User’s Manual January 2018
List of Figures
Figure 1-1 ULB-362B/37............................................................................................................... 1
Figure 1-2 Installed in Mounting Bracket.................................................................................... 2
Figure 1-3 Dimensions .................................................................................................................. 2
Figure 1-4 Locating the ULB-362B After Water Activation........................................................ 3
Figure 3-1 Mounting Bracket Hole Pattern ................................................................................. 6
Figure 3-2 Securing the Mounting Bracket ................................................................................. 7
Figure 3-3 Installing the Beacon into the Mounting Bracket ..................................................... 7
Figure 3-4 Wiring Diagram of the ULB-362PL/B37................................................................... 8

ULB-362B Underwater Locator Beacon 1
User’s Manual January 2018
1Description
This section provides a general descriptive overview of the beacon, its theory of
operation, and use.
The ULB-362B Series Underwater Locator Beacons are durable, water-activated,
underwater location aids. A Power Loss version is also available. The ULB-362B
series beacons can be ordered in several frequencies, 27kHz, 37.5kHz and
45kHz. The beacons transmit an acoustic signal once every second after
activation. The acoustic output for the 30 day battery will remain above 157.0dB
for 30 days.
RJE International, Inc. also offers a standard mounting bracket (P/N ULB362-02).
The bracket allows the beacon to be securely mounted (Please contact RJE
International, Inc. if the mounting bracket does not meet your needs). The ULB-
362B beacon is shown in Figure1-1. The beacon is also shown installed in its
standard mounting bracket in Figure 1-2, and a dimensional outline of the beacon
is shown in Figure 1-3.

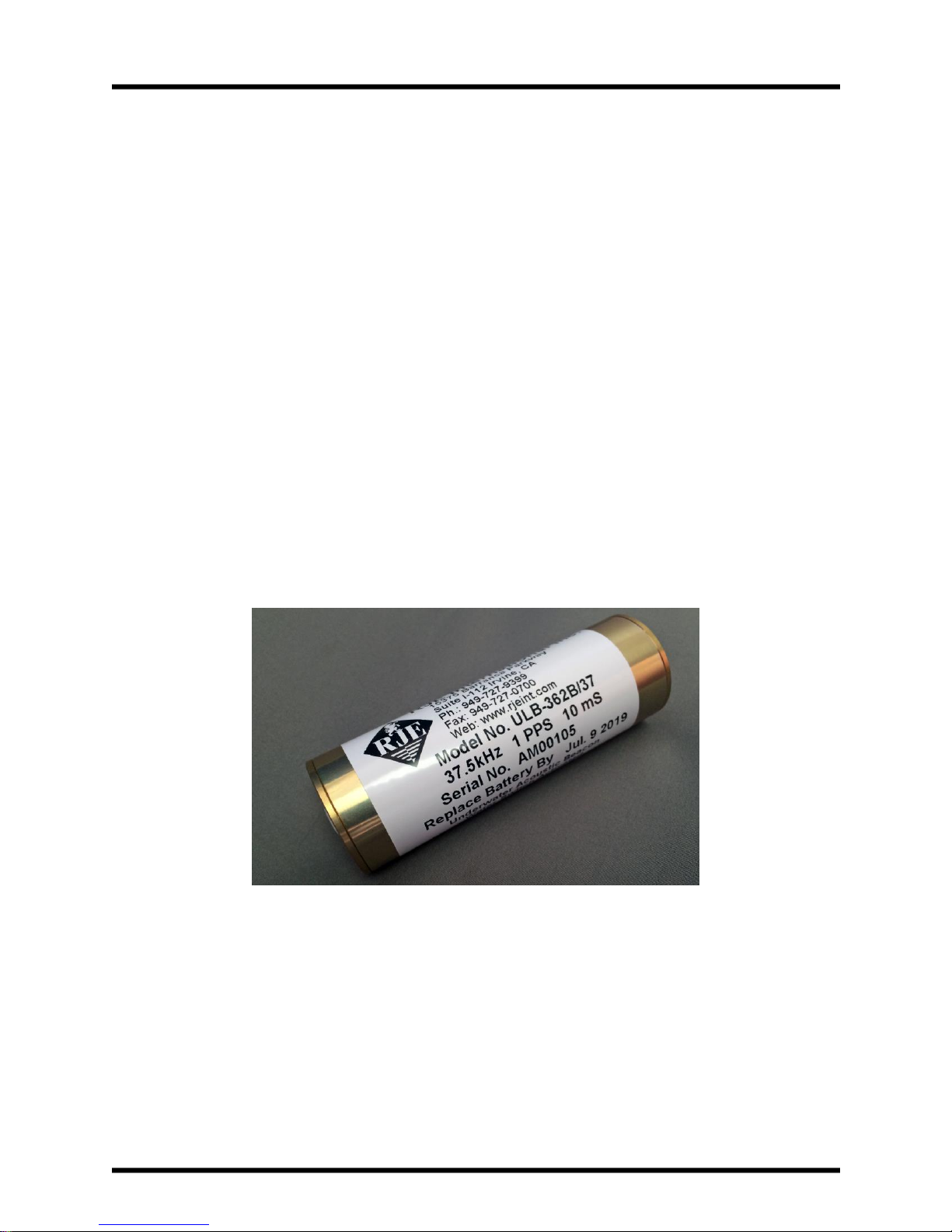

Figure 1-1 ULB-362B/37

ULB-362B Underwater Locator Beacon 2
User’s Manual January 2018

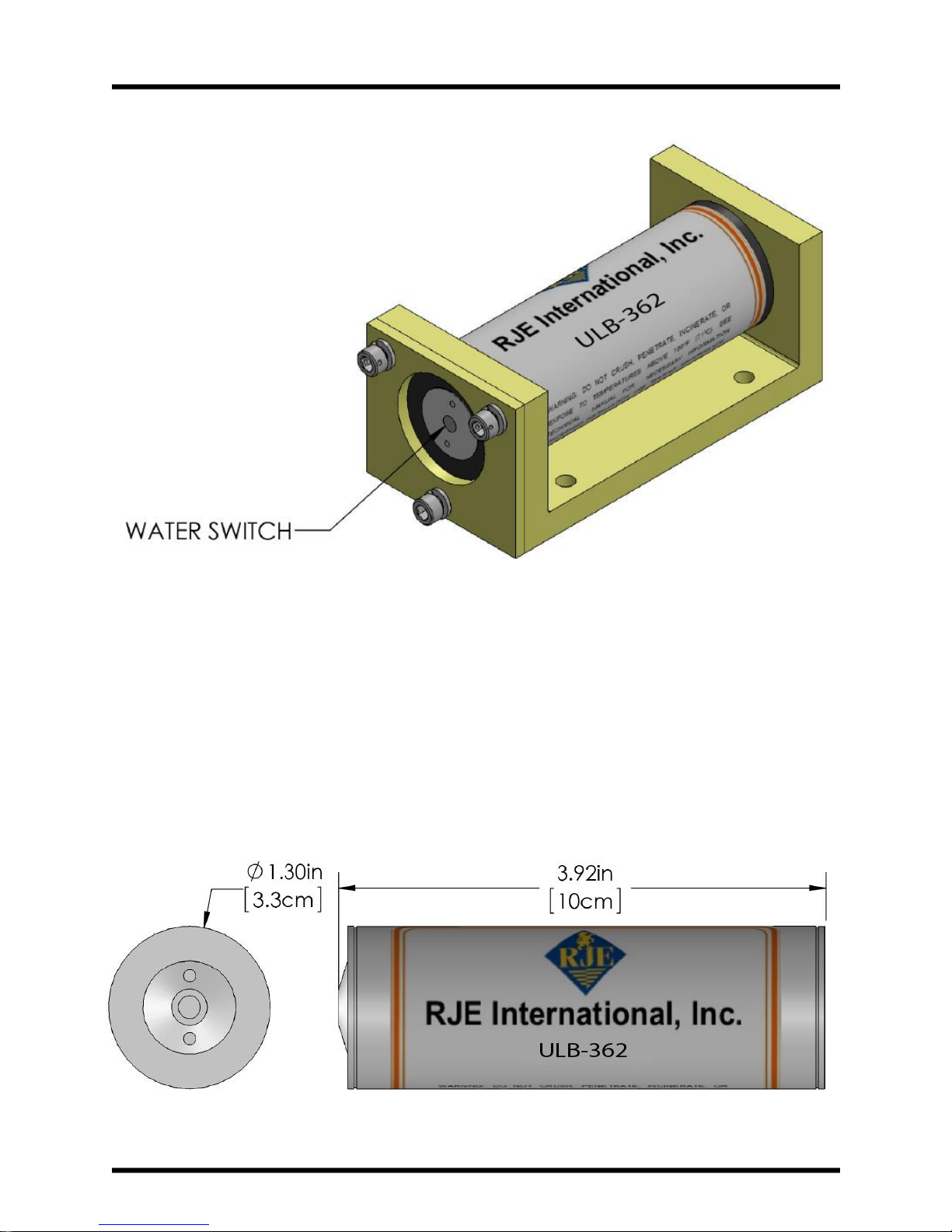

Figure 1-2 Installed in Mounting Bracket
External Construction
The beacon is contained in a water-tight aluminum case capable of
withstanding high-impact shock and deep-water immersion. As shown in
Figure 1-2, one of the end caps has a built in water-activated switch that
causes the beacon to begin transmitting when the switch comes in contact
with water.
Figure 1-3 Dimensions

ULB-362B Underwater Locator Beacon 3
User’s Manual January 2018
Internal Construction
The major internal components of the beacon include a printed circuit board
assembly, a urethane-encapsulated transducer assembly, and a battery. The
battery is contained in its own, separate, user accessible compartment.
Theory of Operation
The printed circuit board assembly generates all the necessary logic functions
to produce a pulse with the desired characteristics. The pulse is then
transformed from a CMOS level square wave to a much larger sinusoidal
pulse by a transformer. The output of the transformer drives the epoxy-
encapsulated transducer, which propagates through the housing in the form
of a tuned acoustic signal based on the frequency of the beacon (27kHz,
37.5kHz, or 45kHz).
Locating the Beacon
When the beacon is immersed in water, it will begin to radiate an acoustic
signal which can be received and transformed into a visual signal by using the
RJE International, Inc. STI-350, DTI-300A, DPR-275 or VADR6000M
Acoustic Receivers. When using the STI-350 Surface Acoustic Receiver, the
general vicinity of the ULB-362B beacon can be located from shipboard. After
the area is known, a diver can be deployed with the DTI-300A diver acoustic
receiver, which will give the exact location of the beacon. When recovery is
too deep for diver operations, a VADR receiver, mounted on a ROV, can be
used. Other equivalent pinger receivers may also be used to relocate the
ULB-362B beacon.

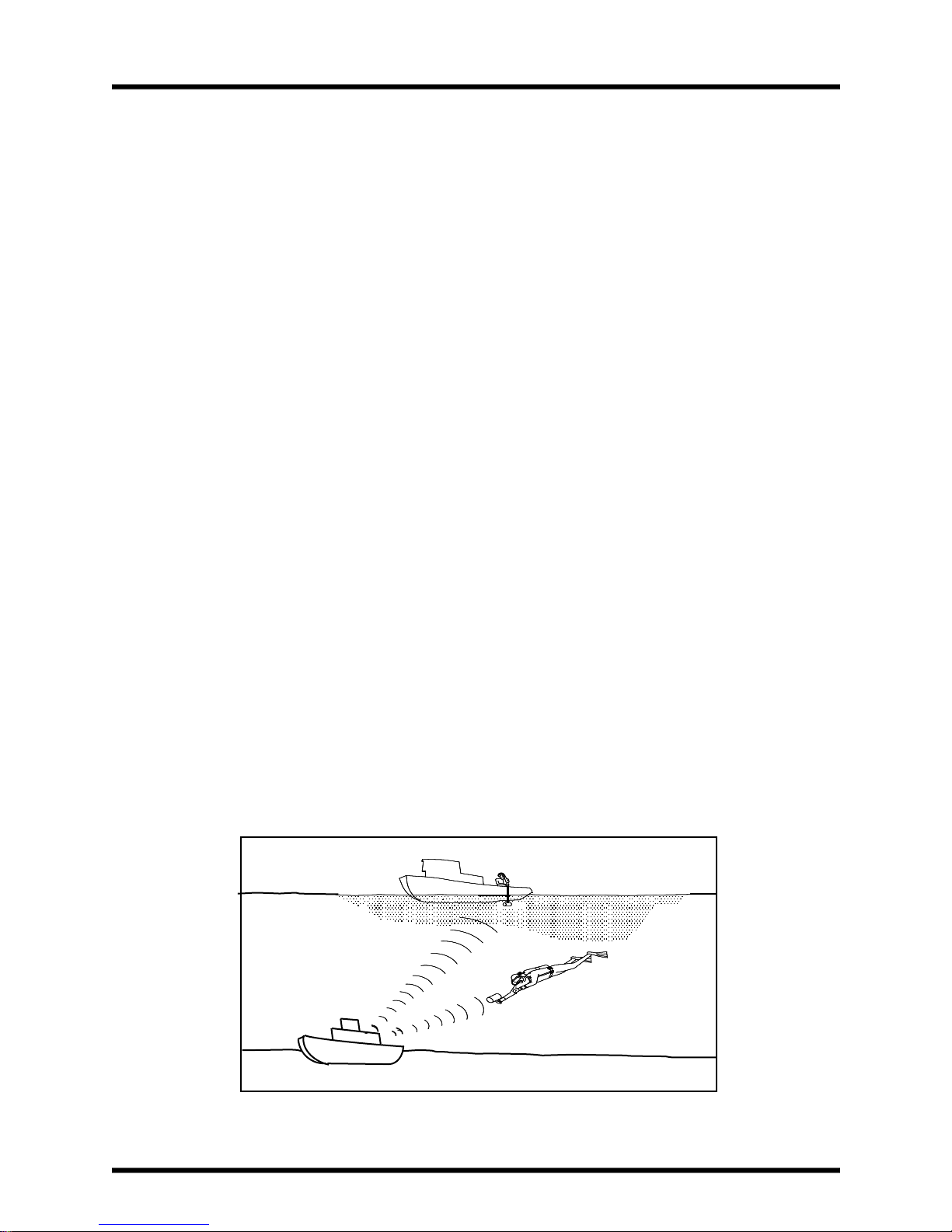

Figure 1-4 Locating the ULB-362B After Water Activation

ULB-362B Underwater Locator Beacon 4
User’s Manual January 2018
2Specifications
ULB-362B/27, ULB-362B/37,
ULB-362B/45
Specifications
ULB-362PL/B37
27, 37.5, 45 kHz, + 1 kHz
Operating Frequency:
37.5 kHz, + 1 kHz
0 to 20,000 feet (6,096 meters)
Operating Depth:
0 to 20,000 feet (6,096 meters)
≥ 9 ms
Pulse Length:
≥ 9 ms
B362-B30-01
Incl. battery, o-ring, lube & inst.
Battery Kit:
B362-B30-01
Incl. battery, o-ring, lube & inst.
≥ 30 days
Operating Life:
≥ 30 days
6 years from date of
manufacture
Battery Storage Life in
Beacon:
6 years from date of
manufacture
≥ 160.5 dB re 1 µPa @ 1
meter
Acoustic Output:
≥ 160.5 dB re 1 µPa @ 1
meter
Water immersion
Activation:
Water immersion and closure
of external relay through a
connector on beacon
80% sphere
Beam Pattern:
80% sphere
1.3 in. (3.3 cm) diameter
3.9 in (10 cm) long
Case Size:
1.3 in. (3.3 cm) diameter
5.1 in (13 cm) long
7075 T6 aluminum
Case Material:
7075 T6 aluminum
5.95 oz. (168g) Maximum
Weight:
7.00 oz. (198g) Maximum
-55ºC (-67ºF) to 71ºC (160ºF)
Storage Temperature:
-55ºC (-67ºF) to 71ºC (160ºF)
-2ºC (28ºF) to 38ºC (100ºF)
Operating Temperature:
-2ºC (28ºF) to 38ºC (100ºF)

ULB-362B Underwater Locator Beacon 5
User’s Manual January 2018
3Installation and Checkout
This section encompasses the installation considerations and procedures for
mounting the beacon using the mounting bracket kit, and a pre-deployment test
that can be conducted using a digital voltmeter.
Installation Considerations
To minimize the probability of physical damage or inadvertent activation, the
following precautions should be considered when mounting the beacon:
▪The beacon should normally be mounted onto a sturdy structure without
weakening the structure itself.
▪The beacon should be mounted in an area guarded against heavy
equipment tearing loose and striking the beacon and should be mounted in
a way that provides convenient access during regular inspections and tests.
▪The beacon should be mounted in an area where sound absorbent
materials are not present. Avoid affixing labels to the beacon or any other
material that would affect the acoustic beam.
▪The shelf life of the battery will be decreased when exposure to higher
than normal temperatures. The maximum temperature where the beacon
is mounted should not exceed 71ºC (160ºF).
▪Nonconformance to the mounting instructions or intended use may void
the warranty.

ULB-362B Underwater Locator Beacon 6
User’s Manual January 2018
Installation Procedures for ULB-362B and
ULB362-02 Mounting Bracket
Carefully unpack the beacon and inspect it for shipping damage. If any
damage is evident, it should be reported to the freight carrier and to RJE
International, Inc. If ordered, the mounting bracket kit includes an aluminum-
mounting bracket, an aluminum end plate, three drilled (for lockwire) socket
head cap screws, and three lock washers.
NOTE: Before installing the mounting bracket, be sure that it will be
possible to install and remove the beacon once the bracket is
installed.
To mount the beacon, perform the following steps:
1. Ensure the beacon is mounted in the vehicle so that it has a clear path to send
the acoustic signal. Avoid mounted it behind other equipment.
2. Mount the beacon with the water switch down to prevent accidental activation.
3. Refer to the mounting bracket hole pattern shown in Figure 3-1 and drill four
0.19in (0.5cm) diameter holes.
4. Secure the mounting bracket with four 10-32 stainless steel screws and
associated hardware (not supplied) as shown in Figure 3-2.
5. Slide the beacon into the bracket as shown in Figure 3-3. Rotate the beacon
until the battery date is visible and secure it in place with the end plate and the
three drilled socket head cap screws.
6. Lockwire the drilled screws and clean the water activation switch (refer to section
4 Beacon Cleaning).
Figure 3-1 Mounting Bracket Hole Pattern

ULB-362B Underwater Locator Beacon 7
User’s Manual January 2018

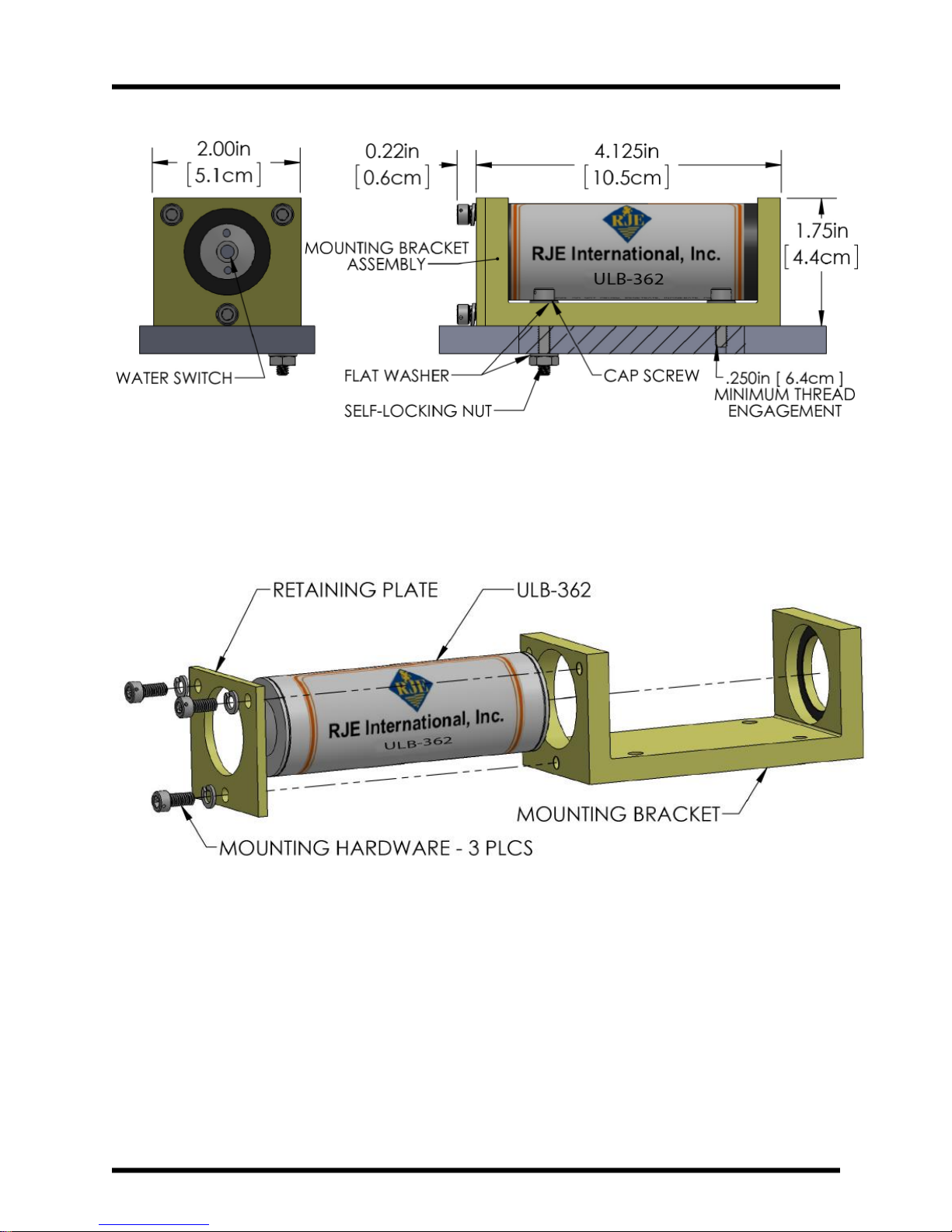

Figure 3-2 Securing the Mounting Bracket
Figure 3-3 Installing the Beacon into the Mounting Bracket

ULB-362B Underwater Locator Beacon 8
User’s Manual January 2018
Installation Procedures for ULB-362/PL
Carefully unpack the beacon and inspect it for shipping damage. If any
damage is evident, it should be reported to the freight carrier and to RJE
International, Inc.
To mount the beacon, perform the following steps:
1. Ensure the beacon is mounted in the vehicle so that it has a clear path to send
the acoustic signal. Avoid mounting it behind other equipment.
2. Mount the beacon with the water switch down to prevent accidental activation.
3. Male E/O Pigtail Connector, provided with the unit, is wired to Vehicle’s
electronics module through a penetrator.
4. A ‘normally closed’ electrical relay is installed in electronics module of the
Vehicle. This relay is wired to the vehicle’s power supply. (see below diagram)
Figure 3-4 Wiring Diagram of the ULB-362PL/B37

ULB-362B Underwater Locator Beacon 9
User’s Manual January 2018
Pre-Deployment Tests
A pre-deployment test on each beacon should be performed before and after
mounting. Short out the water switch and use a acoustic pinger receiver to
determine that the beacon is functioning.
For the ULB-362B series beacon, check the beacon’s battery condition using a
digital voltmeter (see Battery Check, Page 9).
NOTE: If the beacon does not operate properly, return it RJE International,
Inc. for service. (See Section 5 Return Procedures
for instructions on how to return the beacon.)
Battery Check
A high-impedance (minimum input impedance of 10 Megohms) digital voltmeter
can be used to measure the battery voltage. Use the following procedure to
measure the battery voltage:
1. Place the negative meter lead on the water activation switch.
2. Place the positive meter lead on any exposed surface of the housing.
Note: if testing a ULB-362PL/B37, the Pig-Tale conductors need to be
shorted together.
3. Read the voltmeter.
If the voltmeter reading is 6.0 volts or more, the beacon has
sufficient operating power.
If the voltmeter reading is below 6.0 volts, the battery needs to be
replaced. Follow procedures included in the B362-B30-01 Battery
Kit.
WARNING: Failure to observe these precautions could result in the release
of hazardous chemicals.

ULB-362B Underwater Locator Beacon 10
User’s Manual January 2018
4Beacon Maintenance
This section covers the cleaning, recommended testing interval, disposal,
storage procedures, and battery replacement for the ULB-362B Series
Underwater Locator Beacons.
Beacon Cleaning
The end cap with the water switch should remain free and clear of dirt,
grease, and dust. The beacon should be cleaned with a mild detergent and
dried thoroughly with a clean cloth. This process should be repeated
periodically depending on the local environment.
Beacon Maintenance Precautions
The following precautions should be exercised when handling or storing the
beacon:
▪The beacon should not be exposed to temperatures in excess of
71ºC (160ºF), as the battery life can be reduced by storage in a high
temperature environment.
▪Any situation that could possibly crush or penetrate the case of the
beacon should be avoided.
Battery Maintenance
The shelf life on the ULB-362B beacon is six (6) years. The standard
operational life of the beacon is thirty (30) days of continuous use and it is
recommended that the battery be replaced after every deployment.
When deploying an ULB-362PL/37 power loss beacon on a vehicle, replace
the battery on or before the date stamped on the beacon label.
When replacing the battery on ULB-362B beacon, please follow the chart
below for selecting the proper Battery Kit.

ULB-362B Underwater Locator Beacon 11
User’s Manual January 2018
WARNING: Hazardous chemicals are used in the beacon battery. Dispose
of the battery in accordance with local regulations.
Use the battery replacement procedure provided with the lithium battery
replacement kit P/N B362-B30-01 or B362-A30-01.
Tooling Requirements for Battery Replacement
Item
Part Number
1/2” Box End
Wrench
Commercially Available
Torque Adapter
B362-09111
Beacon Disposal
If it is necessary to dispose of the beacon, perform the Battery Check
referenced in Section 3 of this User’s Manual first.
If the battery voltage is 6.0 volts or more, remove the battery and dispose of
the battery and beacon in accordance with local regulations.
If the battery voltage is less than 6.0 volts, DO NOT remove the battery
access end cap and dispose of the beacon in accordance with local
regulations.
WARNING: Failure to observe these precautions could result in the release
of hazardous chemicals.
Beacon Storage
When long-term storage is required, the beacon should be stored in a cool,
dry environment in its original shipping container.
Beacon Part Number
Battery Kit Part Number
ULB-362/18, ULB-362/37, ULB-362/27, ULB-362/45, ULB-
362PL/27, ULB-362PL/37, ULB-362A/27, ULB-362A/37
B362-01
ULB-362B/27, ULB-362B/37, ULB-372B/45, ULB-
362PL/B37
B362-B30-01

ULB-362B Underwater Locator Beacon 12
User’s Manual January 2018
5Return Procedures
If you need to return an ULB-362B Underwater Locator Beacon for warranty
service, contact RJE International, Inc. for a Case Number and shipping
instructions.
RJE International, Inc.
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
You will need to provide the following information to receive a Case Number:
▪Reason for return
▪Number of beacons to be returned
▪Serial number of each unit
▪Shipping method, if applicable
NOTE: Do not ship a beacon without a Case Number.

ULB-362B Underwater Locator Beacon 13
User’s Manual January 2018
6Warranty
LIMITED WARRANTY. RJE International, Inc. warrants that the products sold hereunder shall be free
from defects in materials and workmanship under normal use and service when correctly installed, used
and maintained for a period of 12 months from date of shipment from RJE International, Inc. Purchaser’s
receipt of any product delivered hereunder shall be an unqualified acceptance of and a waiver by
Purchaser of the right of Purchaser to make a claim with respect to such product unless Purchaser gives
RJE International, Inc. notice of any claim within 12 months after the receipt of such product. This
warranty is limited to repair or replacement of the said product at RJE International, Inc. plant in Irvine,
California, providing the product was not abused or operated other than in accordance with the RJE
International, Inc. instruction manuals. RJE International, Inc. does not assume responsibility for any
damage due to leakage or implosion. RJE International, Inc. reserves the right to modify its warranty at
any time, in its sole discretion. THIS LIMITED WARRANTY IS NOT TRANSFERABLE.
LIMITATION OF LIABILITY. RJE INTERNATIONAL, INC. MAKES NO OTHER WARRANTY
REGARDING ITS PRODUCTS OR THE PRODUCTS OF OTHERS EITHER EXPRESS OR IMPLIED;
AND, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE WHICH EXCEEDS THE FORGOING WARRANTIES IS HEREBY DISCLAIMED BY RJE
INTERNATIONAL, INC. AND EXCLUDED FROM ANY AGREEMENT MADE BY ACCEPTANCE OF ANY
ORDER. RJE INTERNATIONAL, INC. DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET
FORTH HEREIN INCLUDING ANY LIABILITY FOR PRODUCTS NOT BEING AVAILABLE FOR USE OR
FOR LOST OR CORRUPTED DATA, LOSS OF BUSINESS, LOSS OF PROFITS, LOSS OF USE OF
THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF SUBSTITUTE
OR REPLACEMENT PRODUCT, FACILITIES OR SERVICES, DOWN-TIME, CHARGES FOR
PURCHASER’S TIME AND EFFORT, THE CLAIMS OF THIRD PARTIES, INJURY TO PROPERTY, OR
ANY OTHER DIRECT, INDIRECT, SPECIAL, RELIANCE, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, REGARDLESS OF THE NATURE OF THE CLAIM AND WHETHER OR NOT
FORESEEABLE AND WHETHER OR NOT BASED ON BREACH OF WARRANTY, CONTRACT OR
TORT (INCLUDING NEGLIGENCE) OR STRICT LIABILITY, EVEN IF RJE INTERNATIONAL, INC. HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY THIRD
PARTY EXCEPT AS EXPRESSLY PROVIDED HEREIN.
THIS LIMITATION OF LIABILITY APPLIES BOTH TO PRODUCTS AND SERVICES AND SUPPORT
PROVIDED PURCHASER UNDER THIS AGREEMENT. NO ORAL OR WRITTEN INFORMATION OR
ADVICE GIVEN BY RJE INTERNATIONAL, INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A
WARRANTY OR IN ANY WAY INCREASE THE SCOPE OF THE LIMITED WARRANTY PROVIDED
ABOVE. ANY AND ALL LIABILITY OF RJE INTERNATIONAL, INC. IS EXPRESSLY LIMITED TO THE
PRICE PURCHASER HAS PAID FOR THE PRODUCTS. PURCHASER’S SOLE REMEDY AGAINST
RJE INTERNATIONAL, INC. IN ANY DISPUTE UNDER THIS AGREEMENT SHALL BE TO SEEK
RECOVERY OF THE AMOUNTS PURCHASER PAID, PURSUANT TO THE LIMITED WARRANTY
PROVIDED ABOVE, UPON THE PAYMENT OF WHICH RJE INTERNATIONAL, INC., ITS AGENTS
AND EMPLOYEES, AND AFFILIATES, WILL BE RELEASED FROM AND DISCHARGED OF ALL
FURTHER OBLIGATIONS AND LIABILITY TO PURCHASER.
THE LIMITED WARRANTY OF RJE INTERNATIONAL, INC. GIVES PURCHASER SPECIFIC LEGAL
RIGHTS, AND PURCHASER MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO
STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO PURCHASER.
