Instructions for the Control Units

for Vibratory Drives

ESG 2000

Rhein-Nadel Automation GmbH

Rhein-Nadel Automation GmbH 2 14.04.2014

VT-BA ESG2000 -GB

Table of contents

Chapt........................................................................................................................ Page

1 Technical data 3

2 Safety notes.................................................................................................. 4

3 Commissioning instructions ............................................................................... 4

4 Operation 6

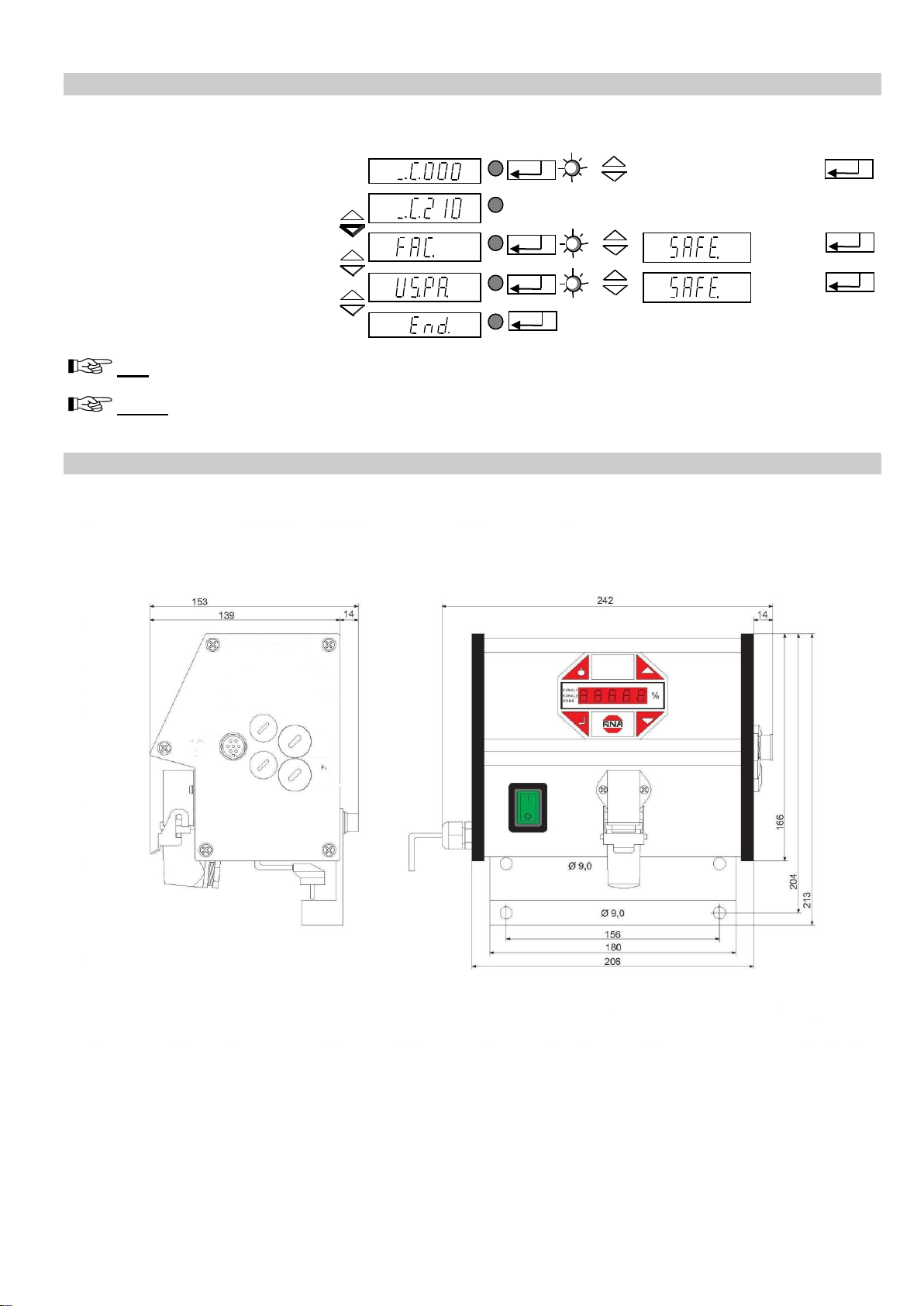

5 Dimensional drawing..................................................................................... 10

6 Connection diagram....................................................................................... 11

Declaration of conformity

as defined by

Low voltage directive 2014/35/EU

and EMC directive 2014/30/EU

Herewith we declare that the product complies with the following provisions:

Low voltage directive 2014/35/EU

EMC directive 2014/30/EU

applied harmonized standards: DIN EN 60204 T1

EN 61439-1

remarks:

Rhein-Nadel-Automation

--------------------------------

Managing Director

Jack Grevenstein

Rhein-Nadel Automation GmbH 3 14.04.2014

VT-BA ESG2000 -GB

1.1 Performance Characteristics

This compact control unit has been designed to operate a bowl or linear feeder.

The unit has the following performance characteristics:

-one power outputs:

- channel 1 bowl feeder < 10 A

- 24V DC remote control input.

- two optocouplers for status messages and further links.

-a membrane keyboard for setting and editing the operating values (parameters) in the setting menus.

- plug connections for

- bowl or linear feeder

- communication

- double-pole mains power switch

1.2 EC Conformity / CSA Conformity

The control device corresponds to the following regulations:

Low voltage directive 2014/35/EU

EMC directive 2014/30/EU

Applied harmonized standards:

DIN EN 60204 T1

EN 61439-1

The control device corresponds also to the UL/CSA regulations.

1.3 Technical Data

Mains voltage:

230 Volt AC, 50/60 Hz, +20/ -15%

110 Volt AC, 50/60 Hz, +10 / -10%

Output voltage:

0 ... 208 Veff /230 VAC ; 0 ... 98 Veff /110 VAC

Load current channel 1:

10 Aeff

Total load current:

10 Aeff

Minimum load current:

80 mA

Internal fuse:

F1 = 10A

Soft start time, soft stop time:

0 ... 5 sec.

Remote control input:

24V DC (10-24 VDC)

Outputs:

2 optocouplers

Status output (optocoupler):

max. 30V DC 10mA

Operating temperature:

0 ... 50° C

Type of protection:

IP 54

1.4 Accessoires

Label Denomination Type Manufacteur Supplier RNA-Mat-code

XS1 Connector Harting

XS1 Mains plug C16-1 Amphenol 35051469

XS4 Coupler connector, 7-poles, straight 09 0126 70 07 Binder EVG 35051153

XS4 Coupler connector, 7-poles, angular 99 0126 75 07 Binder EVG 35002545

Rhein-Nadel Automation GmbH 4 14.04.2014

VT-BA ESG2000 -GB

2 Safety Instructions

It is always necessary to read and understand the safety instructions. This ensures that valuable material is not dam-

aged and injuries are avoided.

Steps must be taken to ensure that all persons working with this control unit are familiar with the safety regulations and

observe them.

The device described in this manual is a control unit for operating RNA bowl feeders and linear feeders. The limit val-

ues specified in the technical data must be observed.

Note!

This hand indicates tips on operation of the control unit.

Attention!

This warning triangle indicates safety instructions. Failure to heed this warning can lead to severe

injuries or death!

Work on electrical equipment of the machine/plant may be carried out only by a trained electrician or by

untrained persons under the leadership and supervision of a trained electrician in accordance with the

regulations for electrical engineering!

All safety and danger signs on the machine/plant must be observed!

The electrical equipment of a machine/plant must be inspected and checked regularly. Defects such as

loose connections or damaged cables must be remedied immediately!

Before commencing operation, make sure that the earthing line (power earth, PE) is intact and installed

at the connecting point. Only test instruments approved for this purpose may be used for checking the

safety grounding conductor.

3 Commissioning Instructions

Before connecting up to the mains and switching on the control unit, it is essential to check the following

points:

Is the control unit in proper working condition and closed with all screws?

Are the connector locks clicked in/screwed secure?

Are all cables and glands intact?

Is PROPER INTENDED USAGE ensured?

Does the mains voltage specification on the control unit agree with the local mains voltage?

Does the mains frequency specification on the vibratory drive agree with the local mains?

Is the correct operating mode set on the control unit? (See "Operating Mode" section)

Operation of the control unit may be commenced only when all questions asked above can be answered unambiguous-

ly with YES.

Before you start operation after repair work has been carried out or control units/vibrating drives have been

exchanged, set the output on the control unit to minimum before switching on. Check that the system is

working properly when you increase the output.

Rhein-Nadel Automation GmbH 5 14.04.2014

VT-BA ESG2000 -GB

3.1 OPERATING MODE

Bowl feeder frequency coding in connector.

Operating mode 2

With bridge: 100 / 120Hz

With bridge: 6000 / 7200 oscillations/min

Operating mode 1

Without bridge: 50 / 60Hz

Without bridge: 3000 / 3600 oscillations/min

3.2 Status Outputs

The status outputs are used for remote diagnostics of the control unit operating mode or for linking several control units

together. They are unassigned NPN-doped transistor routes and are potential-free.

The transistor route is always connected at the STANDBY status output when the control unit is connected to the

mains and switched on with the mains power switch.

The ON ACTION status output requires the same conditions as STANDBY. Channel 1 must also be active and the

transistor will block if it is set to OFF or STOP. The status outlet and the remote control should be wired via the XS4

plug connection.

The connections and the cable inlets are on the right-hand side of the control unit. The terminal strip is behind the con-

trol unit panel.

Rhein-Nadel Automation GmbH 6 14.04.2014

VT-BA ESG2000 -GB

4. Operation

4.1 General

Control unit plug connections

Mains power

switch

The control unit is isolated from the mains with a double-pole switch.

Channel 1

Plug connector for bowl feeder ( < 10A)

XS 4

Plug connector for optocoupler outputs and remote control input

The control unit display (membrane keyboard)

On/off

This key switches all connected devices off. "OFF" will appear in the display. The

control unit is still ready for operation.

Cursor up and cursor down

Use these keys to page through the control unit menu or to set parameters.

Enter

Use this key to confirm the parameters entered with the cursor.

Decimal point in display

If the decimal point is not flashing, you cannot make an entry.

If the decimal point is flashing, you can make an entry.

4.2 Switching on the Control Unit

Channel 1

Mains power

switch

Return

Cursor up

ON/ OFF

Cursor down

XS 4

Rhein-Nadel Automation GmbH 7 14.04.2014

VT-BA ESG2000 -GB

Switch on the control unit with the mains power switch. The main menu will appear in the display showing the last set-

point set in channel 1 (bowl feeder or linear feeder feed rate).

KANAL l

KANAL 2

CODE

The following displays may also appear depending on the circuit state of the unit.

KANAL l

KANAL 2

CODE

The remote control has been activated but is currently not available on the unit.

(low priority)

KANAL l

KANAL 2

CODE

The unit has been switched off with the upper left-hand key on the membrane keyboard, all

functions are blocked. (high priority)

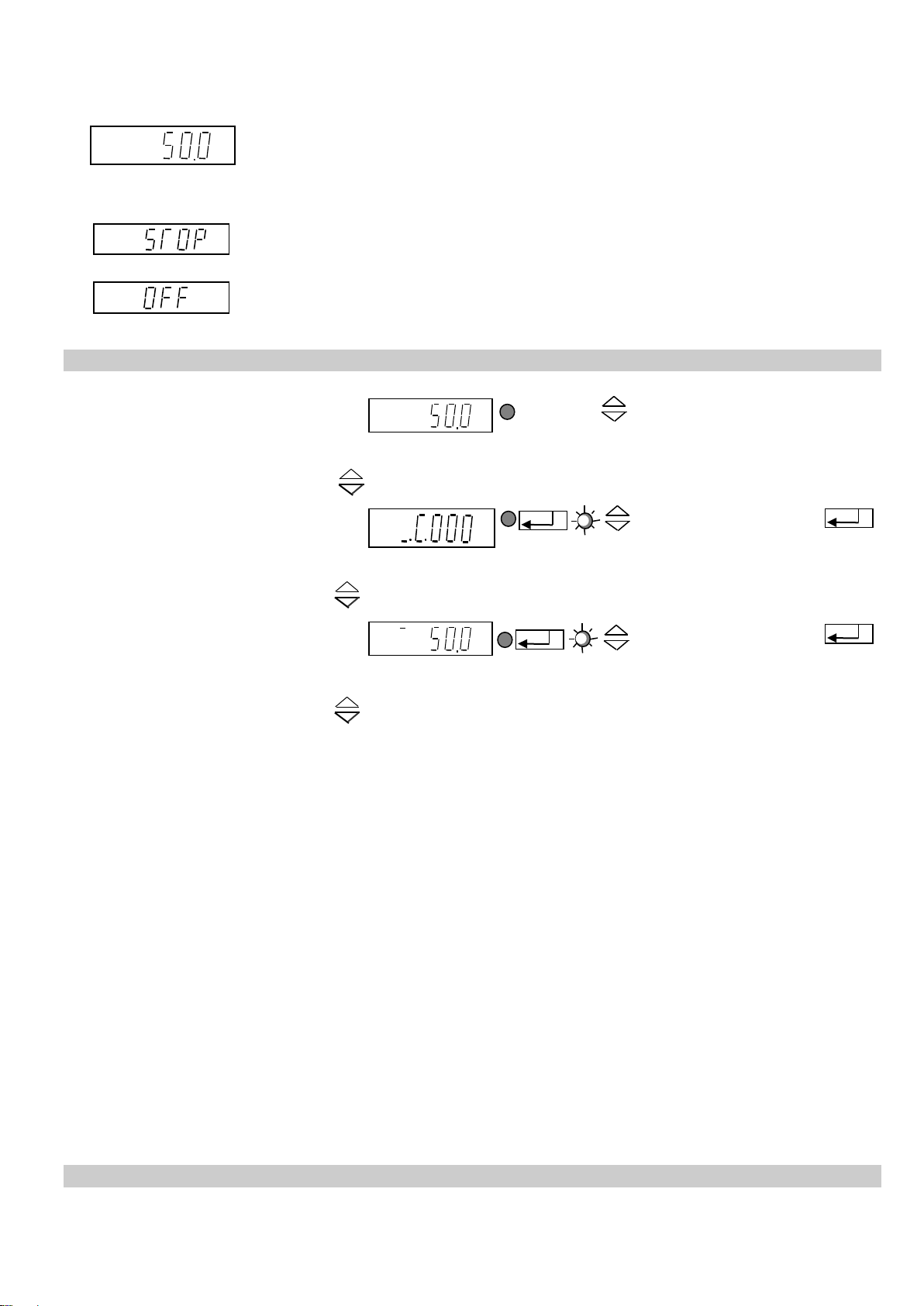

4.3 Main Menu/Setting and Displaying Setpoints for Channel 1

Display of setpoint or the channel 1

output (bowl feeder)

Alternatively: STOP, OFF

(see above)

KANAL l

KANAL 2

CODE

No entries possible

Enter code to change or make re-

quired settings.

KANAL l

KANAL 2

CODE

Enter code.

See section 4.4 for de-

scription of code.

Setpoint preset for channel 1

(bowl feeder)

KANAL l

KANAL 2

CODE

Entry in %; return to

display mode to store

From these three basic displays you can page through the main menu using the cursor keys (UP/DOWN). Press the

ENTER key in the main menu to activate a menu item for setting or adjustment. The decimal point will flash once you

have pressed the ENTER key. Changes can now be made using the cursor keys (UP/DOWN). Confirm the entries by

pressing the ENTER key again. The decimal point will no longer flash. You can scroll further through the menu using

the cursor keys. This procedure is also used in the code menus described below.

All displays shown in the following section represent the factory settings. If the actual display on the control unit differs,

the factory setting has been changed in the individual codes for a specific application.

4.4 Description of the Individual Codes for Programming the Control Unit

Rhein-Nadel Automation GmbH 8 14.04.2014

VT-BA ESG2000 -GB

KANAL l

KANAL 2

CODE

Settings for channel 1

The following functions can be set or limited for channel 1 in this submenu:

- vibration amplitude - signal direction of the remote control

- remote control - soft start time and soft stop time

KANAL l

KANAL 2

CODE

Lock setpoint

This submenu allows the setpoints (vibration amplitude) to be blocked in the main menu. The

setpoints for channel 1 and channel 2 can no longer be changed in the main menu. This pre-

vents the output values being accidentally changed. Changes can only be made using code

C001.

KANAL l

KANAL 2

CODE

Display status

This submenu is used to check the set vibration frequency.

KANAL l

KANAL 2

CODE

To call software version

Determinat. 411. 59. 10. 23.11.99

date

version -no.

type

internal no.

type:

59 = ESK 2001

58 = ESG 2001

57 = ESK 2000

56 = ESG 2000

KANAL l

KANAL 2

CODE

Store parameters

If the values (user parameters) previously set in the different submenus are to be stored, call

this submenu.

KANAL l

KANAL 2

CODE

Block all setting functions

This code blocks all entry options on the control unit. The values can no longer be changed.

The menu can now only be enabled using this code.

KANAL l

KANAL 2

CODE

Reset parameters

This submenu allows the user to reset the control unit to the factory settings. If user parameters

have been stored, the control unit can also be set to these settings.

4.5 Application-specific Changes to the Factory Settings

4.5.1 Code C001 for Channel 1 and Code C002 for Channel 2

Aim: Setting and limiting the oscillation amplitude, the remote control, the soft start time and the soft stop time.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C001

KANAL l

KANAL 2

CODE

Set vibration amplitude

KANAL l

KANAL 2

CODE

0 - 100 %

Limit vibration amplitude

KANAL l

KANAL 2

CODE

50 - 100 % (*)

Remote control

KANAL l

KANAL 2

CODE

I = active

0 = inactive

Remote control signal direction

KANAL l

KANAL 2

CODE

I = start = 24V DC

0 = stop = 24V DC

Soft start time

KANAL l

KANAL 2

CODE

0 - 5 sec.

Soft stop time

KANAL l

KANAL 2

CODE

0 - 5 sec.

Return

KANAL l

KANAL 2

CODE

Store and return to

main menu

* For RNA-Feeder with 200 V = 90 %

Rhein-Nadel Automation GmbH 9 14.04.2014

VT-BA ESG2000 -GB

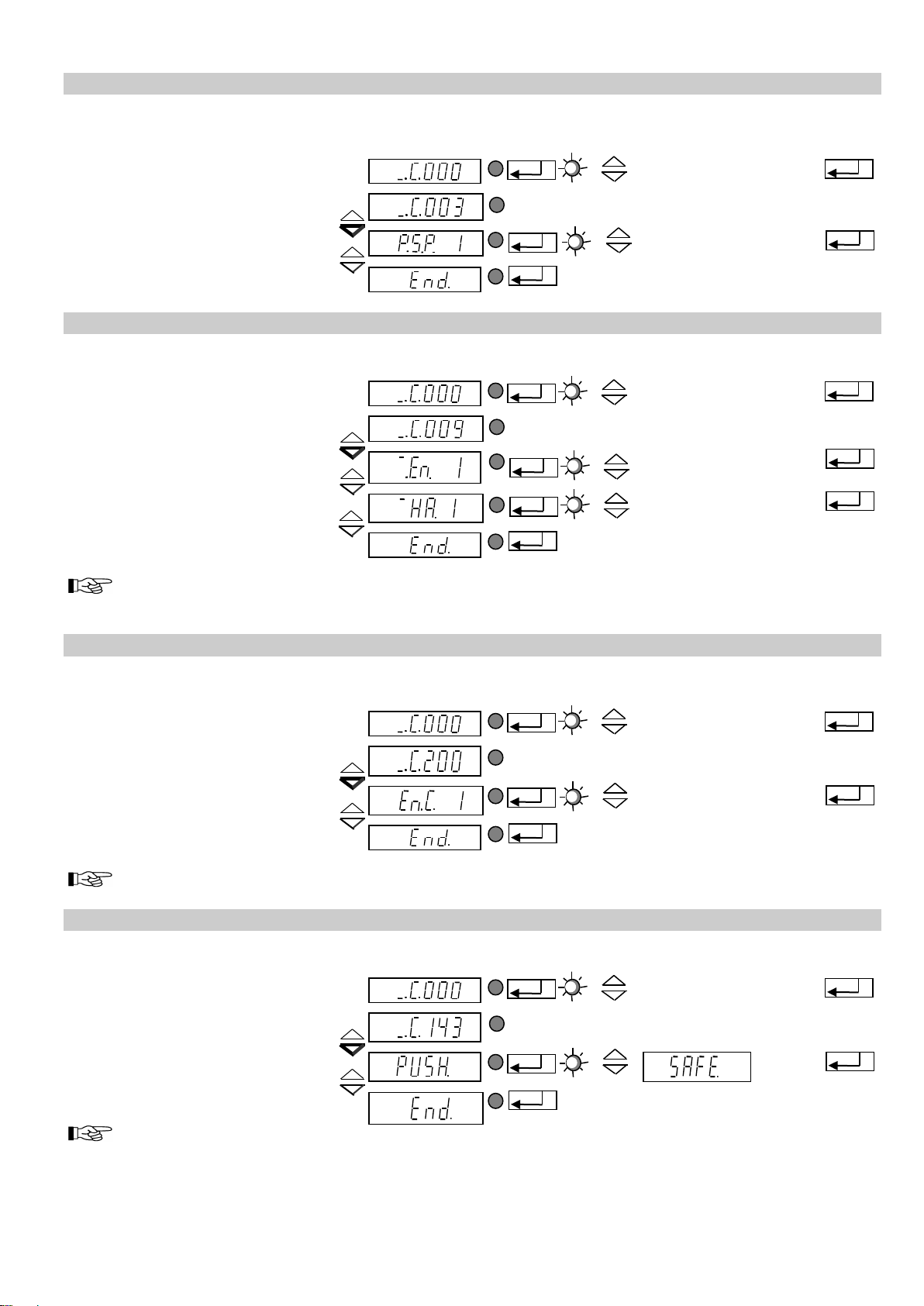

4.5.2 Code C003 Lock Setpoint

Aim: Blocking the setpoints in the main menu. The values can no longer be changed directly. Changes can only be

made using code C001.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C003

KANAL l

KANAL 2

CODE

Setpoint (vibration amplitude)

KANAL l

KANAL 2

CODE

1 = can be set

0 = entry blocked

Return

KANAL l

KANAL 2

CODE

Store and return to

main menu

4.5.3 Code C009 Display Status

Aim: Checking the set oscillation frequency.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C009

KANAL l

KANAL 2

CODE

Remote control signal

Channel 1

KANAL l

KANAL 2

CODE

I = active

0 = inactive

Vibration frequency channel 1

KANAL l

KANAL 2

CODE

I = 50 Hz

0 = 100 Hz

Return

KANAL l

KANAL 2

CODE

Store and return to

main menu

With the menu item HA = half-wave you can check whether the operating mode (100–50Hz) has been

correctly selected.

4.5.4 Code C200 Blocking all Setting Functions

Aim: The user can no longer (accidentally) change the set values.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C200

KANAL l

KANAL 2

CODE

Block the setting functions

KANAL l

KANAL 2

CODE

I = enabled

0 = block

Return

KANAL l

KANAL 2

CODE

Store and return to

main menu

Now only code C200 will be accepted!!!

4.5.5 Code C143 Store Parameters

Aim: Storing user parameters.

Select code

KANAL l

KANAL 2

CODE

Select code

Code C143

KANAL l

KANAL 2

CODE

Store

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

Return

KANAL l

KANAL 2

CODE

Store and return to

main menu

Once PUSH has been confirmed with ENTER, the selected parameters will be stored separately

by pressing a cursor key.

Rhein-Nadel Automation GmbH 10 14.04.2014

VT-BA ESG2000 -GB

4.5.6 Code C210 Reset Parameters

Aim: Resetting to factory settings or restoring the stored user parameters.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C210

KANAL l

KANAL 2

CODE

Factory setting

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

User parameters

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

Return

KANAL l

KANAL 2

CODE

Store and return to

main menu

FAC Selection and confirmation of FAC. applies the factory settings.

US.PA. Selection and confirmation of US.PA restores the user parameters previously stored

under C143.

5 Scale Drawing

Table of contents

Other RNA Control Unit manuals

RNA

RNA EBC 3000 User manual

RNA

RNA ESR 2500 User manual

RNA

RNA ESK 2002 User manual

RNA

RNA ESG 1000 User manual

RNA

RNA ESK 2002 Installation manual

RNA

RNA ESM 906 User manual

Popular Control Unit manuals by other brands

Seitz

Seitz 14A80 user manual

Wilo

Wilo RS485 Installation and operating instructions

Becker

Becker CentralControl CC41 Commissioning Instruction

SICK

SICK CDB650 operating instructions

Panduit

Panduit NetKey NKP5E88M Series installation instructions

MX Options Concentric Petite Fitting instructions

Clean Water Systems

Clean Water Systems Fleck 2510 Installation & start?up guide

Fairchild

Fairchild FSB44104A user guide

LEGRAND

LEGRAND Wattstopper LMIN-104 installation instructions

PMK

PMK ATT10BNCS instruction manual

Tektronix

Tektronix TDS3FFT user manual

Woodward

Woodward easYgen Technical manual

Balluff

Balluff BNI EIP-502-105-R015 user guide

NXP Semiconductors

NXP Semiconductors TWR-LS1021A Getting started

Advantech

Advantech PCM-3117 Startup manual

Danfoss

Danfoss MCO 101 manual

Moons'

Moons' Lin Engineering R701P user manual

Aventics

Aventics RV1 operating instructions

RNA ESG 2000 User manual

Popular Control Unit manuals by other brands
