RoadKing RKING1000 User manual

- 1 -
RKING1000
Noise-Canceling Mono
Bluetooth®Headset
User Manual

- 2 -
Contents:
Product Overview ------------------------------------------------------------------ 3
Basic Operation -------------------------------------------------------------------- 4
Bluetooth Pairing and Connection --------------------------------------------- 5
Connection with Two Devices -------------------------------------------------- 6
LED Indicator ----------------------------------------------------------------------- 7
Charging ----------------------------------------------------------------------------- 8
Product Specifications ----------------------------------------------------------- 9
Notes and Q & A ------------------------------------------------------------------ 10

3

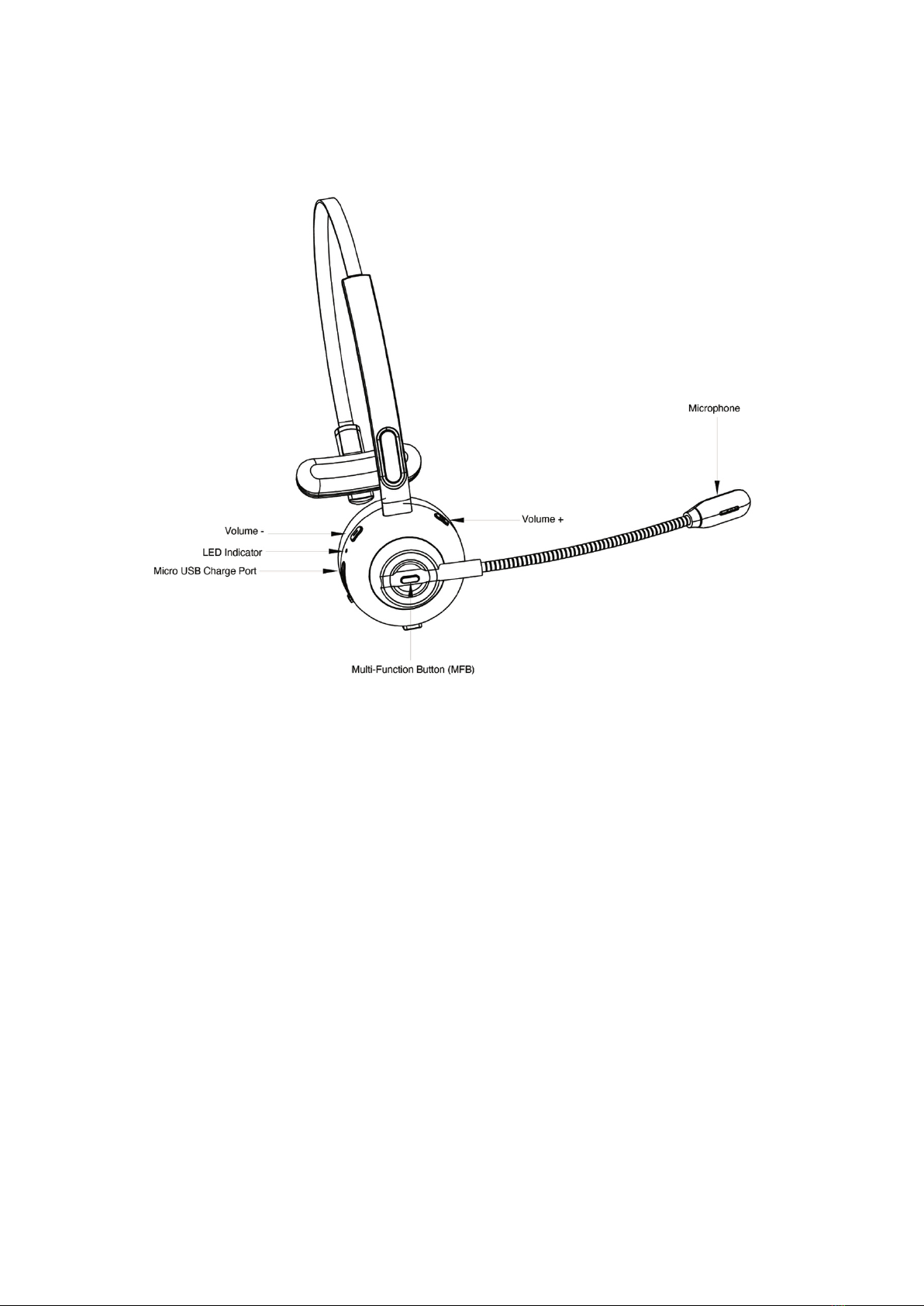

Product Overview
Package Contents:
A. Bluetooth headset RKING1000 x 1
B. Micro USB charging cable x 1
C. User manual x 1
D. Car charger x 1
E. Sponge microphone cover x 1
F. Drawstring bag x 1

4
Basic Operation
Button
Function
Operation Instructions
MFB
Power on When device is off, press and hold the MFB for 1-3
seconds to power on.
Power off
When device is on, press and hold the MFB for 5
seconds to power off.
Enter pairing
mode
When device is off, press and hold the MFB for 5-8
seconds to enter into pairing mode.
When under disconnected standby mode, double-click
the MFB to enter into pairing mode.
Play / Pause
Short click the MFB when listening to music.
Redial a call
Double-click the MFB to dial the last number called.
Reconnect
If you have paired before, powering on should enter
into reconnected state. If it doesn't reconnect
automatically, short click the MFB to reconnect under
pairing mode.
Voice dial Hold down the MFB for 1 second, then release.
Audio switch Hold down the MFB for 1 second to switch the audio
between phone and the Bluetooth headset.
Answer a call When receiving a call, short click the MFB to answer.
End a call To end a call, short click the MFB.
Reject a call
To decline an incoming call, hold down the MFB for
1 second.
Volume +
Volume up
Short click the Volume + button to increase volume.
Next song Hold down the Volume + button to skip to the next
song.
Volume -
Volume down Short click the Volume - button to decrease volume.
Previous song Hold down the Volume - button to go back to the
previous song.

5

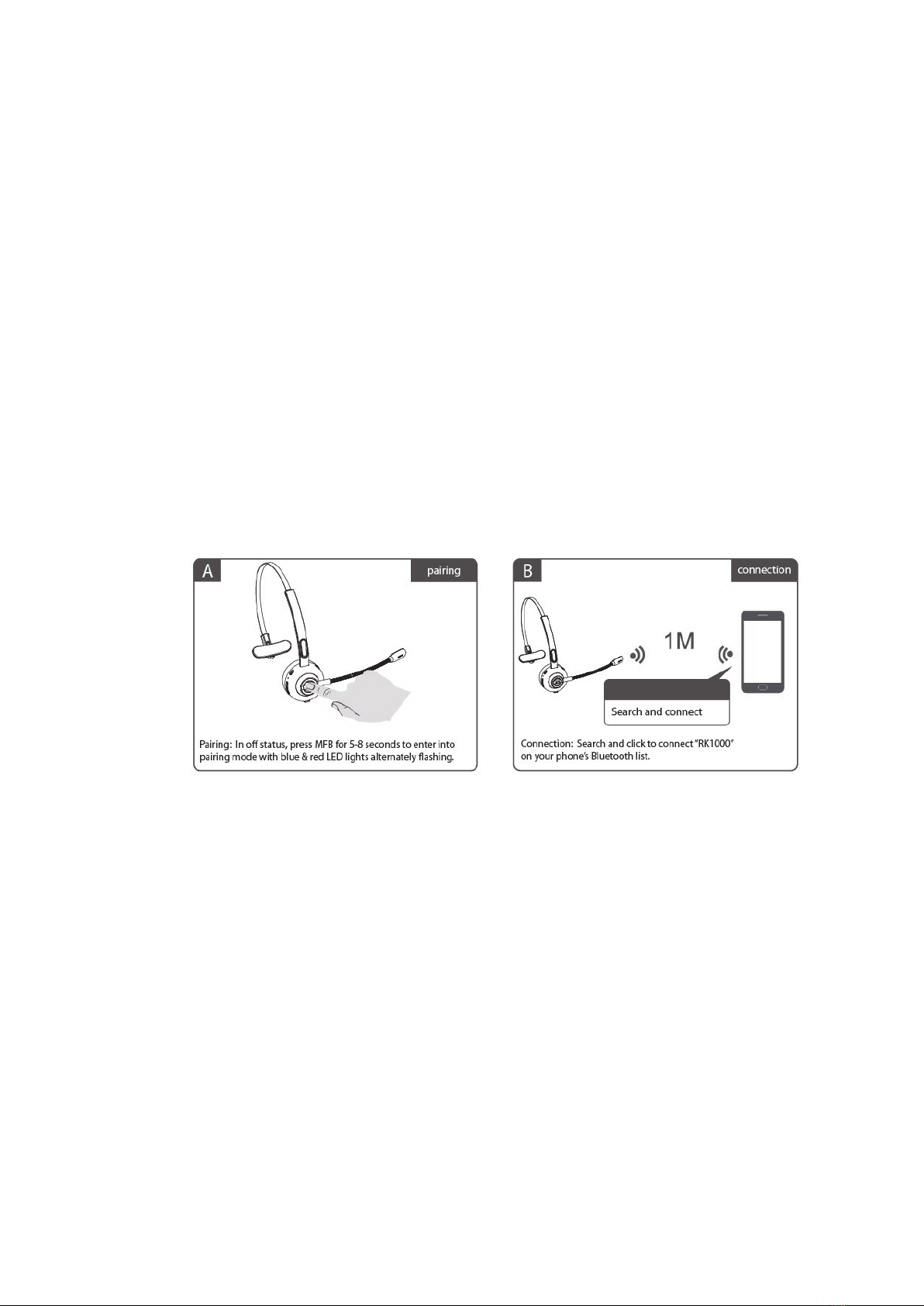

Bluetooth Pairing and Connection
A. When device is off, press and hold the Multi-Function Button (MFB) for
5-8 seconds to enter into pairing mode. The blue & red lights should
alternate flashing.
B. Search and click "RK1000" to connect the headset to your phone's
Bluetooth. Once connected, the blue LED light will flash and you can
now play music from your phone to the headset.
C. You can press the MFB and Volume +/- on the Bluetooth headset to
control calls and music.

6
Connection with Two Devices
A. Follow instructions on page 5 to connect first phone, then turn off the
Bluetooth function on the first phone.
B. Double-click the MFB to enter into pairing mode again, you'll see the
red & blue LED lights flash alternately.
C. Search and click "RK1000" on the second phone's Bluetooth list. The
LED will flash blue once connected.
D. Turn the first phone's Bluetooth back on and reconnect to "RK1000".
The headset will now be connected to two phones.
Note:
Music can only be played from one phone at a time. When you want to play
music from the other phone, you will need to pause or close the music of the
previous phone. The same applies during talking status.

7
LED Indicator
Mode
LED Indicator
Power on
The blue LED light flashes for 1 second
Power off
The red LED light flashes for 1 second
Pairing mode
The red & blue LED lights flash alternately
Disconnected standby mode
The blue LED light flashes once every 2 seconds
Connected standby mode
The blue LED light flashes once every 5 seconds
Playing music
The blue LED light flashes once every 5 seconds
Talking
The blue LED light flashes once every 5 seconds
Delete paired record
The red & blue LED lights flash once at
the same time
Charging
Solid red LED light
Full charge
Solid blue LED light
Low battery
The red LED light flashes

8

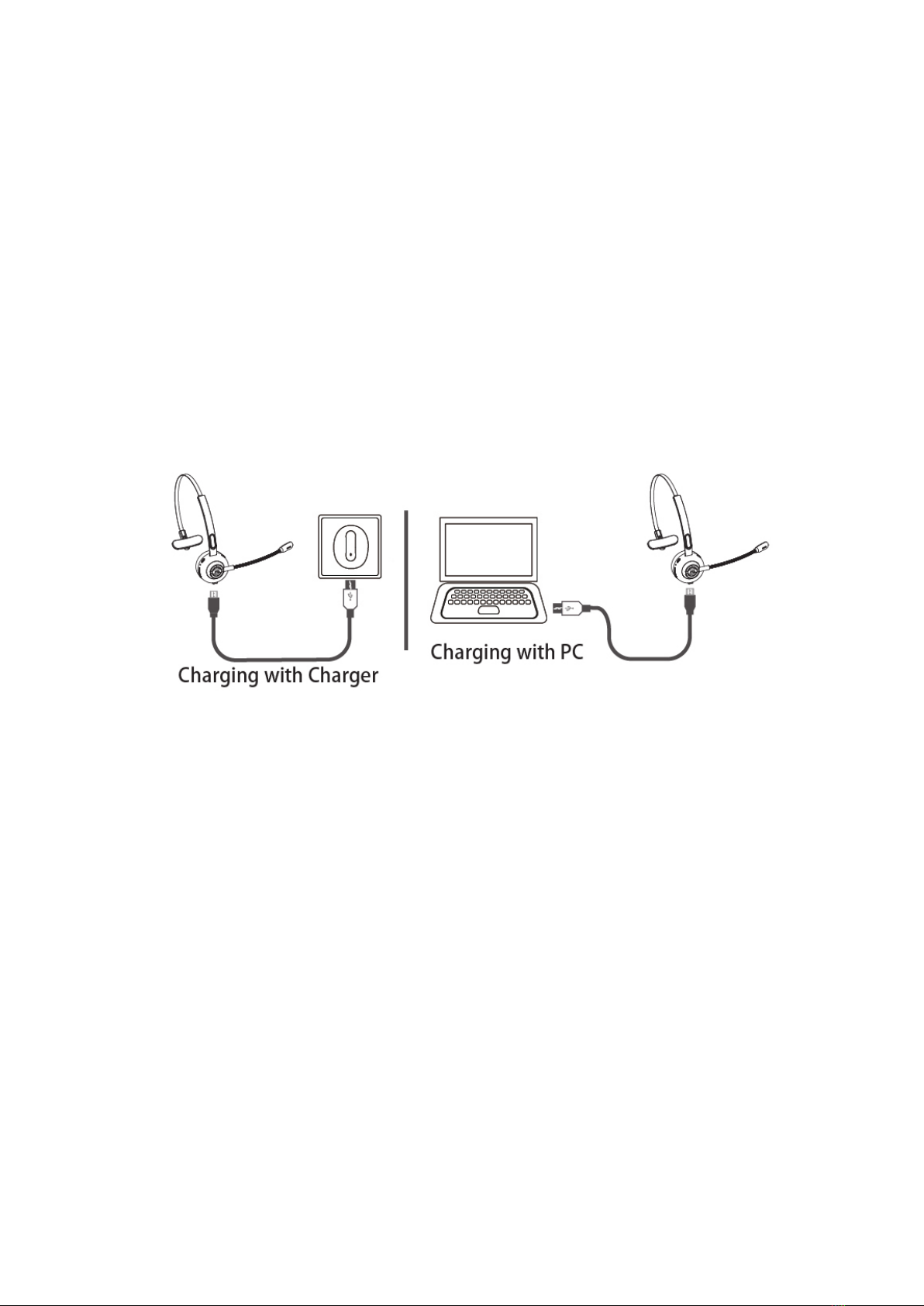

Charging
Please charge the RKING1000 at once when the red LED flashes. Charging
time is approximately two hours. Solid LED red will change to solid LED blue
when fully charged.
Charge Connections
Please connect to the RKING1000 charging port through the Micro USB
charging cable. The charger can be used as a car charger, travel charger,
computer USB, etc.
Note:
1. Charge the RKING1000 at least once every two months when not in use.

9
Product Specifications
Bluetooth Version
Bluetooth V5.0
Bluetooth Chipset
CSR 8615
Operation Range
Up to 32 feet
Bluetooth Protocols
HSP HFP A2DP AVRCP
CODEC Code
SBC
Battery Capacity
180maH/3.7V
Charging Time
2 hours
Stand by Time
200 hours
Working Time About 14 hours @ 50% volume
Headset Net Weight
.11 lbs
Headset Dimension
6.42 " x 5.60" x 1.9"
Actual use time will differ depending on environment and music.

10
Notes and Q & A
A. How to reconnect and operate when connection fails?
When RKING1000 connects to your phone successfully the first time, it will
search and reconnect to the paired device automatically going forward. If it
fails to connect, repair the phone to reconnect.
B. How to delete paired records?
When powered on, press and hold the Volume + and - buttons for 5 seconds
to clear the pairing record. The blue and red indicator lights will flash once at
the same time indicating the record has been cleared. Try clearing the records
when experiencing a connection problem.
C. What is the password for pairing?
Some devices require a password for pairing. Please try 0000, 8888, 1111, or
1234.
D. What device can charge the headset?
Any car charger, power bank, PC etc. that has a DC 5V, charging current
more than 500mA will charge the headset.
E. Three-way calling function operation?
When receiving an incoming call, while already on a call...
1. Short click the MFB to answer the new call and end the
current call.
2. Double-click the MFB to answer the new call and keep the current
call on hold.
3. Click and hold the MFB for 1 second to reject the incoming call. When
on a three-way call, double-click the MFB to switch audio between the
current call and call on hold.
