ROBAND PA100G User manual

Instruction Manual
PIE MASTER PIE WARMERS
PM25, PM25L Version 1
PM50, PM50L Version 1
PM100, PM100L Version 1

2
CONTENTS
Pro uct Features 2
Specifications 2
Parts Inclu e 2
Safety Instructions 2
Cleaning & Maintenance 3
Installation 3
Operation 4
Troubleshooting 5
Spare Parts 6
Circuit Diagram 6
Warranty 7
PRODUCT FEATURES
 High Temperature Capacity
 A justable Angle Racks
 Ultra-Life Stainless Steel Elements
 Toughene Safety Glass
 Easy Clean Crumb Tray
 Crumb Baffle (L versions only)
 Humi ity Tray (L versions only)
SPECIFICATIONS
Mo el Power
(230V)
Size (mm) Kg
W D H
PM25 1100W 401 370 585 20
PM25L 1200W 401 370 585 21
PM50 (G) 1250W 610 364 507 25
PM50L (G) 1350W 610 364 507 26
PA100 (G) 1550W 759 364 587 34
PM100L (G) 1650W 759 364 587 35
*Specifications subject to change
PARTS INCLUDED
 Pie Warmer (appropriate mo el) – inclu es
shelves an crumb tray
 ‘L’ mo els inclu e crumb baffle, humi ity
tray an integrate lamp
 Instruction Manual
Any amage to the machine as a result of
freight must be reporte to the Freight
Company an to the agent responsible for the
espatch of machine within 24 hours of receipt.
No claims will be accepte after this perio .
SAFETY INSTRUCTIONS
Rea all Instructions an safety warnings prior to
use. Keep user manual for future reference.
Service an repair shoul only be performe by
qualifie technicians who have rea an
un erstan this manual.
Personnel must be traine prior to operating
this appliance.
This pro uct is suitable for commercial use only.
This machine shoul not be operate by
persons (inclu ing chil ren) with re uce
physical, sensory or mental capabilities, or lack
of experience or knowle ge, unless they have
been given supervision or instruction concerning
the safe use of the appliance by a person
responsible for their safety.
Keep out of reach from chil ren.
Avoi contact with the exterior of this machine
as surfaces can get hot.
Do not position appliances where hot surfaces
may be acci ently touche .
The machine shoul be isconnecte from all
power an allowe to cool before cleaning or
servicing.

3
Regularly inspect the supply cor /plug an
iscontinue use imme iately if amage is foun .
Return to manufacturer or authorise repairer
for repair prior to use.
This machine contains no user-serviceable parts.
Roban Australia, one of our agents, or a
similarly qualifie person(s) shoul carry out
repairs.
Keep cor away from heate surfaces.
This appliance is inten e as a foo isplay
warmer only. It shoul not be use to cook
foo .
Do not remove any cover panels from the
machine.
Roban will accept no liability if:
 Non-authorise personnel have tampere
with the machine
 The instructions in this manual have not
been followe
 Non-original spare parts are use
 There is any amage to the unit
SAFETY GLASS
The Toughene Safety Glass use in the
ROBAND
®
Pie Warmers is approximately five
times stronger than normal glass.
Despite the high impact strength, the
toughene glass is still susceptible to breakage
if impact or pressure is applie to the e ge or
corner of the glass.
C
CC
CAUTION
AUTIONAUTION
AUTION:
::
: Ensure glass e ges are protecte
uring installation an operation.
CLEANING & MAINTENANCE
CAUTION:
CAUTION: CAUTION:
CAUTION: Disconnect from power an allow to
cool before cleaning.
CAU
CAUCAU
CAUTION:
TION:TION:
TION: Steel cutting processes use in the
construction of this machine can result in sharp
e ges. Avoi contact with sharp e ges uring
cleaning an maintenance.
CAUTION:
CAUTION:CAUTION:
CAUTION: Han le glass with care when
cleaning.
Do not clean with the use of a water jet or
immerse in water.
Do not use caustic or abrasive cleaning pro ucts
as they will amage the machine.
Wipe all surfaces of the machine with warm
soapy water using a amp non-abrasive cloth.
Wipe glass on a aily basis with a cloth an
warm soapy water or glass cleaner.
Empty crumb tray on a aily basis an wipe with
a amp cloth with warm soapy water.
Regular cleaning will prevent a buil -up of oils
an keep the machine looking new.
INSTALLATION
Remove all packaging materials, tape, an any
protective plastic from the machine. Remove
any glue resi ue from the protective plastic or
tape using citrus cleaner.
Place the pro uct on a firm, level surface in the
esire position. Install at least 100mm from
combustible materials an a least 50mm from
any other appliance.
Do not connect to power using an extension
cor .
Before connecting the machine to the power
supply, ensure that all switches are in the OFF
position. Connect only to a RCD protecte ,
groun e 3-pin outlet.

4
OPERATION

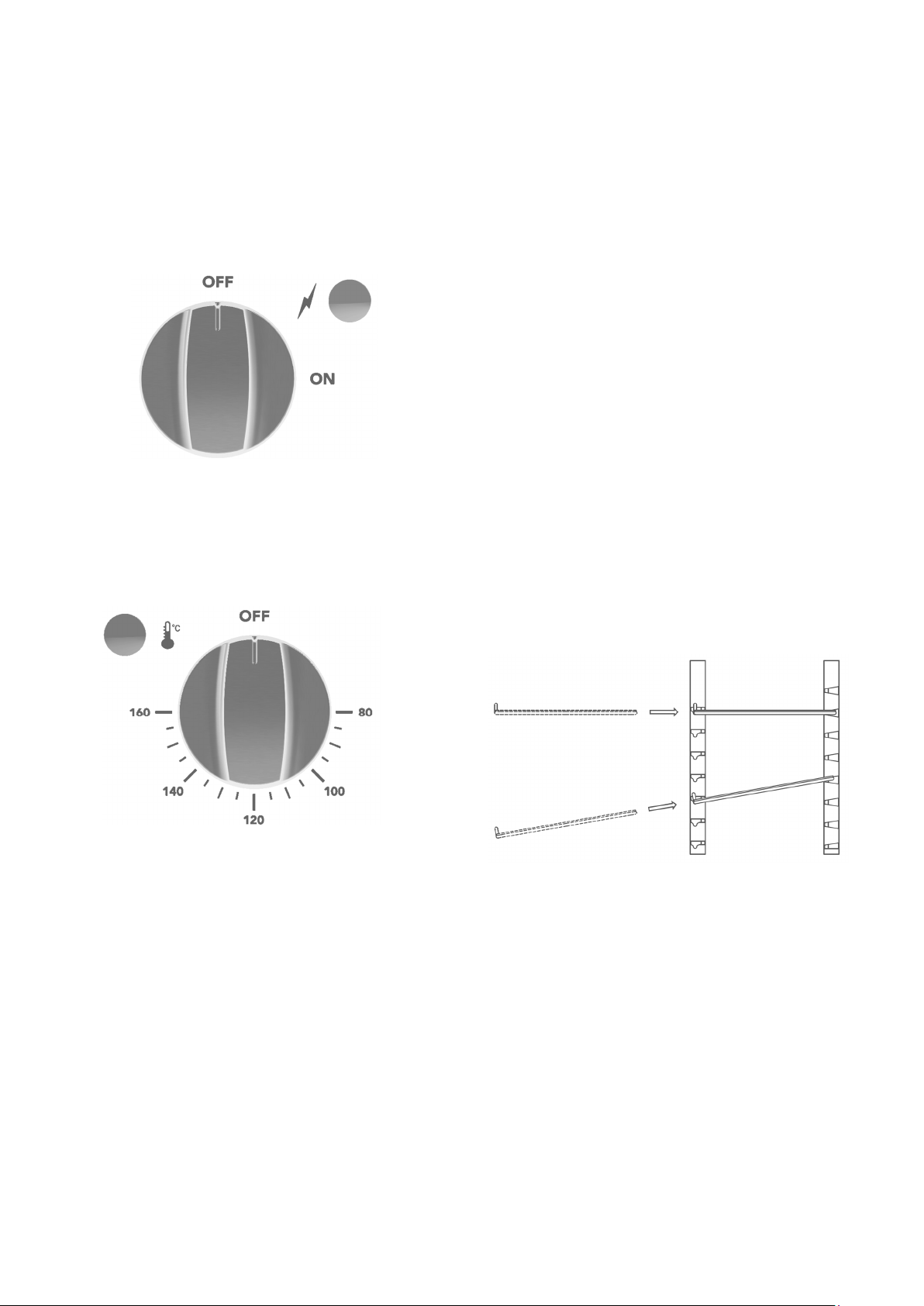

1. Turn on/off switch to the ON position. The
green light in icates the unit has power.
On L mo els, the internal light will also
illuminate.
2. Set the thermostat knob to the esire
temperature (typically 90-100°C for pies).
3. Pie warmer shoul be pre-heate for 20
minutes before inserting foo .
FROZEN PRODUCTS
The unit is esigne as a foo warmer for use
with freshly bake or refrigerate pro ucts.
If frozen pro ucts are use it is highly
recommen e that the pro ucts be thawe
before being put in the Pie Warmer.
Approximate times for thawe pro ucts to
reach the esire serving temperature when
place in a pre-heate unit at 90°C:
 Meat Pies 35-45 mins
 Sausage Rolls 20 mins
 Party Pies 15 mins
 Pasties/Pockets 15-20 mins
RACK ADJUSTMENT
Racks can be positione angle or flat. To
a just, open hinge oor or remove sli ing
oors an reinsert rack as shown below. Racks
can be angle in either irection.
DOOR CONFIGURATION
The serving si e can be change on the PM50
(+L) an PM100 (+L) mo els by swapping the
glass from front to back. A runner separates the
oors at the top. When installing the oors, take
care to re-insert each oor into a ifferent
runner. Always start with the insi e oor.
To serve from both si es, a itional glass oors
can be purchase to replace the fixe glass
panel. (This can be or ere from the factory as a
“G” variant).

5
PIE LOADING
When loa ing pro uct into the pie warmer take
note that the lower shelves will heat up more
quickly ue to proximity to the element.
Therefore use lower shelves if partially fille .
A itionally, if unit is completely fille , pro ucts
such as pies that take longer to heat up shoul
be place on the lower shelves.
Using foil on a shelf may block heat to the
shelves above it. If foil is use ventilation holes
must be ma e every few centimetres.
TROUBLESHOOTING
If the Pie Warmer oes not function check the
following points before calling for service.
 The machine is plugge in correctly an the
power switche on.
 The power point is not faulty.
 The on/off switch is not in the OFF position.
 The thermostat is not set to OFF.
 The thermostat an on/off switch knob are
not loose or broken, ren ering the switches
inoperable.
 If appliance is tripping RCD, this may be
cause by:
1. Too many machines on the same circuit
(relocate appliance to another circuit an
try again);
2. Faulty appliance; or
3. Moisture absorption into heating
element.
Tubular heating elements are subject to
moisture absorption which can result in RCDs
(resi ual current evices) tripping, particularly
when the appliance is not use for an exten e
perio , or store in humi con itions.
Regular use can avoi moisture absorption.
Partially Loa e Pie Warmer
Empty
Empty
Sausage Rolls, Pasties
Sausage Rolls, Pasties
Pies, Pizza Pockets
Full Pie Warmer
Sausage Rolls, Pasties
Sausage Rolls, Pasties
Pies, Pizza Pockets
Pies, Pies
Pies, Pies

6
SPARE PARTS
Common
CommonCommon
Common
EC0239 Plug & Cor - 10A
ES0264 Pilot Light - Amber (incl. Nut)
ES0265 Pilot Light – Green (incl. Nut)
ES0283 On/Off Switch an Knob
MC0846 Aluminium Knob
MC1243 Thermometer
PC0008 Silicone Bumper
PC0060 Cor Clamp - 10A
PS0011 Foot Set (4 off)
PS0146 Knob (incl. Screw an Washer)
TS0029 Thermostat an Knob
PM25
PM25PM25
PM25
GC0133 Hinge Glass Door (Glass only)
GC0134 Fixe Glass
HC0236 1100W 230V Element
MC1246 Rack with Stop
MC1248 Magnetic Catch
SS3068 Crumb Tray
PM50
PM50PM50
PM50
GC0004 Fixe Glass
GC0005 Glass Door
HC0043 1250W 230V Element
MC1793 Rack with Stop
SS3049 Crumb Tray
PM100
PM100PM100
PM100
GC0006 Fixe Glass
GC0007 Glass Door
HC0044 1550W 230V Element
MC1800 Rack with Stop
SS3135 Crumb Tray
Light Mo el (all)
Light Mo el (all)Light Mo el (all)
Light Mo el (all)
EC0044 Lamp Hol er
EC0559 Halogen Globe
VS0341 Lamp Reflector Assy Complete
Z19065 Humi ity Pan
Optional*
Optional*Optional*
Optional* –
––
– Crumb Baffle
Crumb BaffleCrumb Baffle
Crumb Baffle
PM25L SS3119 Crumb Baffle
PM50L SS3120 Crumb Baffle
PM100L SS3143 Crumb Baffle
*Crumb baffle supplie on Light (L) mo els only

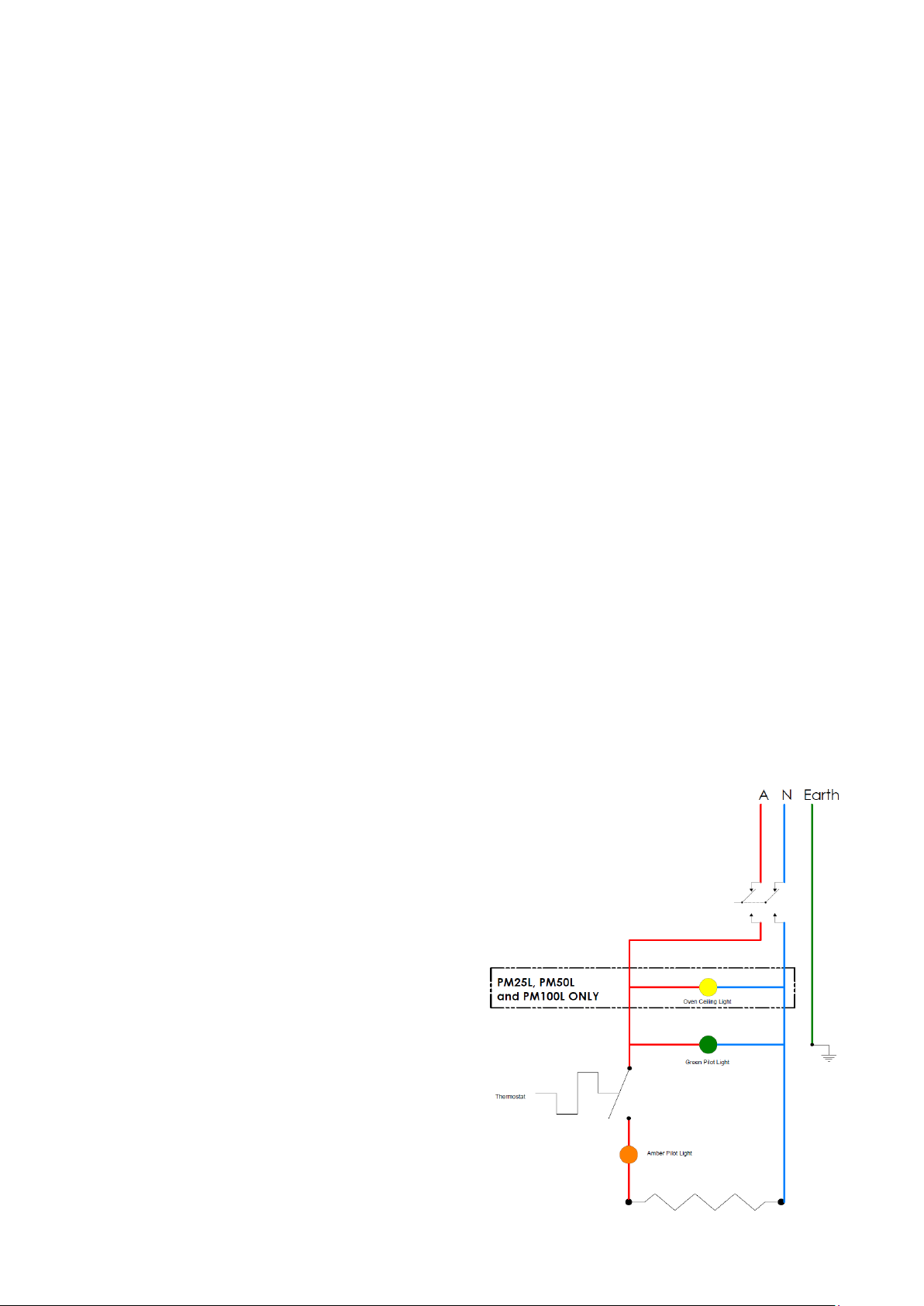

CIRCUIT DIAGRAM

7
WARRANTY
The warranty con itions set out below are in a ition to any warranties implie or governe by law.
Roban Australia warrants that this appliance shall be elivere free from efects in material an
workmanship. The warranty for this pro uct is offere to the original purchaser, to be free of fault in both
workmanship an materials for a perio of 12 months from ate of purchase. Roban ’s obligations pursuant
to this warranty are limite to the repair or replacement of the efective goo s or materials, at its iscretion
an subject to the terms containe within this Warranty statement.
The following conditions apply:
The pro uct must be installe , maintaine an use un er normal operating con itions within the scope of
the operating instructions.
All warranty claims must be submitte to Roban or an authorise Roban ealer, an Roban authorisation
must be grante prior to repairs being carrie out. Proof of purchase is require for any repair authorisation.
Warranty is back to base, meaning elivery to an collection of your pro uct to Roban or an authorize
service agent is the responsibility of the purchaser.
Where a pro uct cannot be returne back to base, on-site warranty can be arrange by prior agreement.
The following exclusions apply:
Claims or faults arising from misuse, neglect, transport amage or other mechanical amage, inclu ing but
not limite to; oor’s, hinges & interlock switches etc., other than those arising from manufacture or material
efects. Where relevant, glass, Teflon® an lamps are not inclu e in this warranty an RCD tripping ue to
moisture absorption by Tubular Heating Elements is not a warranty fault.
Roban or any subsi iary company or Agent shall not be liable for loss of profit or amage to other
equipment an property except where it is in breach of the guarantees provi e in accor ance with
applicable legislation.
Roban reserves the right to reject a warranty claim if it is not satisfie with the circumstances un er which the
fault occurre or where a pro uct has been altere from its original specification.
For on-site repairs outsi e of capital city metropolitan areas, travel costs, service callout fee an relate
labour costs etc. are the responsibility of the claimant.
Any costs incurre for false claims or faults ue to incorrect usage etc. are the responsibility of the claimant.
Any attempt to repair the pro uct by non-Roban approve service personnel or the use of non-genuine
parts will voi the warranty agreement
Our goo s come with guarantees that cannot be exclu e un er the Australian Consumer Law. You are
entitle to a replacement or refun for a ma
jor failure an compensation for any other reasonably foreseeable
loss or amage. You are also entitle to have the goo s repaire or replace if the goo s fail to be of
acceptable quality an the failure oes not amount to a major failure.
For the name of your nearest Australian authorise service agent, please contact:
Roban Australia Pty Lt
Roban Australia Pty LtRoban Australia Pty Lt
Roban Australia Pty Lt
1 Inman Roa ,
Cromer, NSW, 2099, Australia
Warranty: 1800 268 848
Tel: [phone]
Fax: [phone]
Email: sales@roban .com.au
Web:
www.roban .com.au
For your nearest International istributor,
please visit:
https://www.roban .com.au/worl wi e/

31/03/2020
© Copyright 2019
© Copyright 2019 © Copyright 2019
© Copyright 2019 –
––
– Roban
RobanRoban
Roban
®
Australia Pty Lt
Australia Pty LtAustralia Pty Lt
Australia Pty Lt
All rights reserve . No part of this work may be repro uce or copie in any form or by any means,
electronic or mechanical, inclu ing photocopying or posting to a
website, without the written permission
of the publisher. The material containe within this ocument is inten e entirely for instructional
Purposes. Roban
®
Australia is a wholly Australian owne company an has been manufacturing quality
commercial cate
ring equipment for the foo service in ustry for more than 50 years.
