2. Description of the the RoboSpot
2.1 RoboSpot

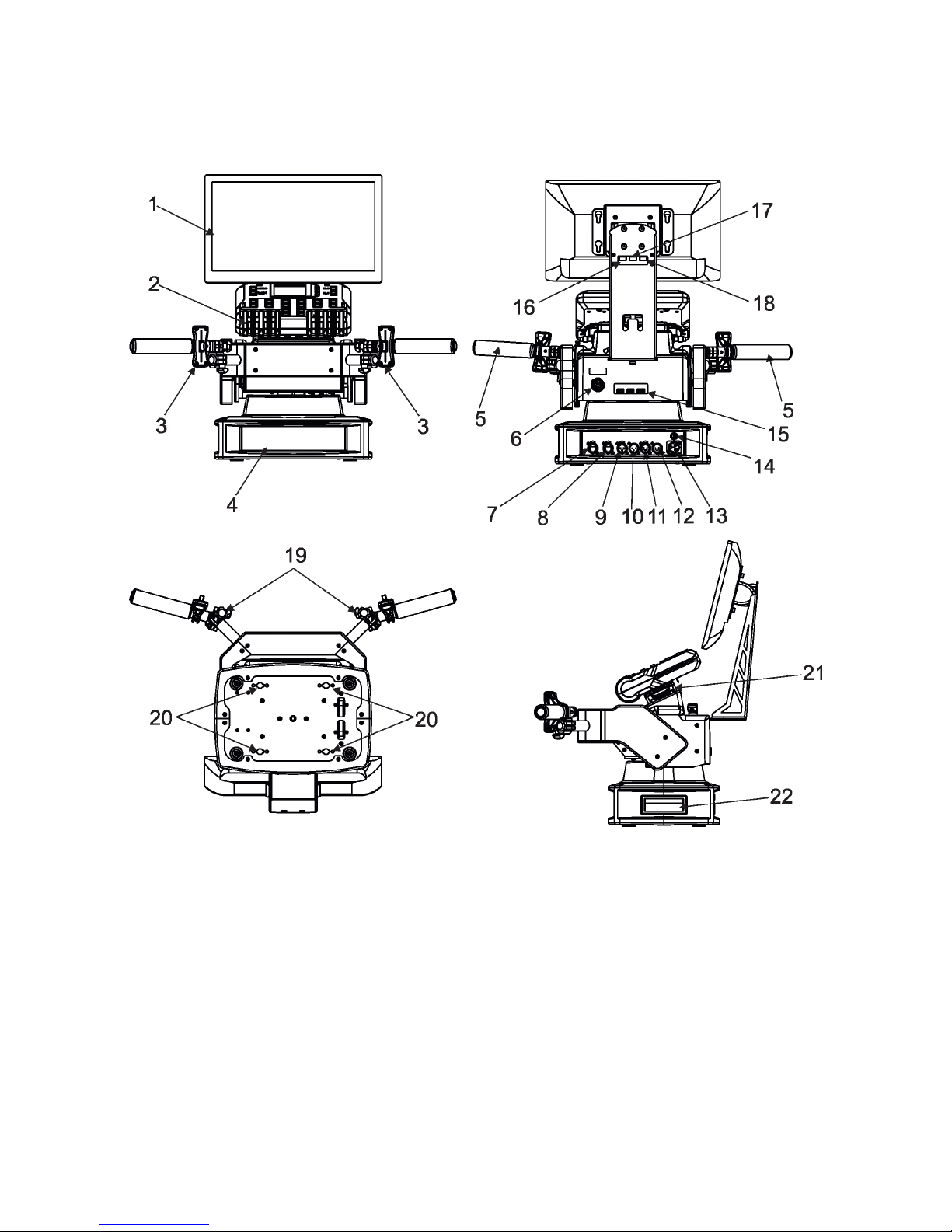

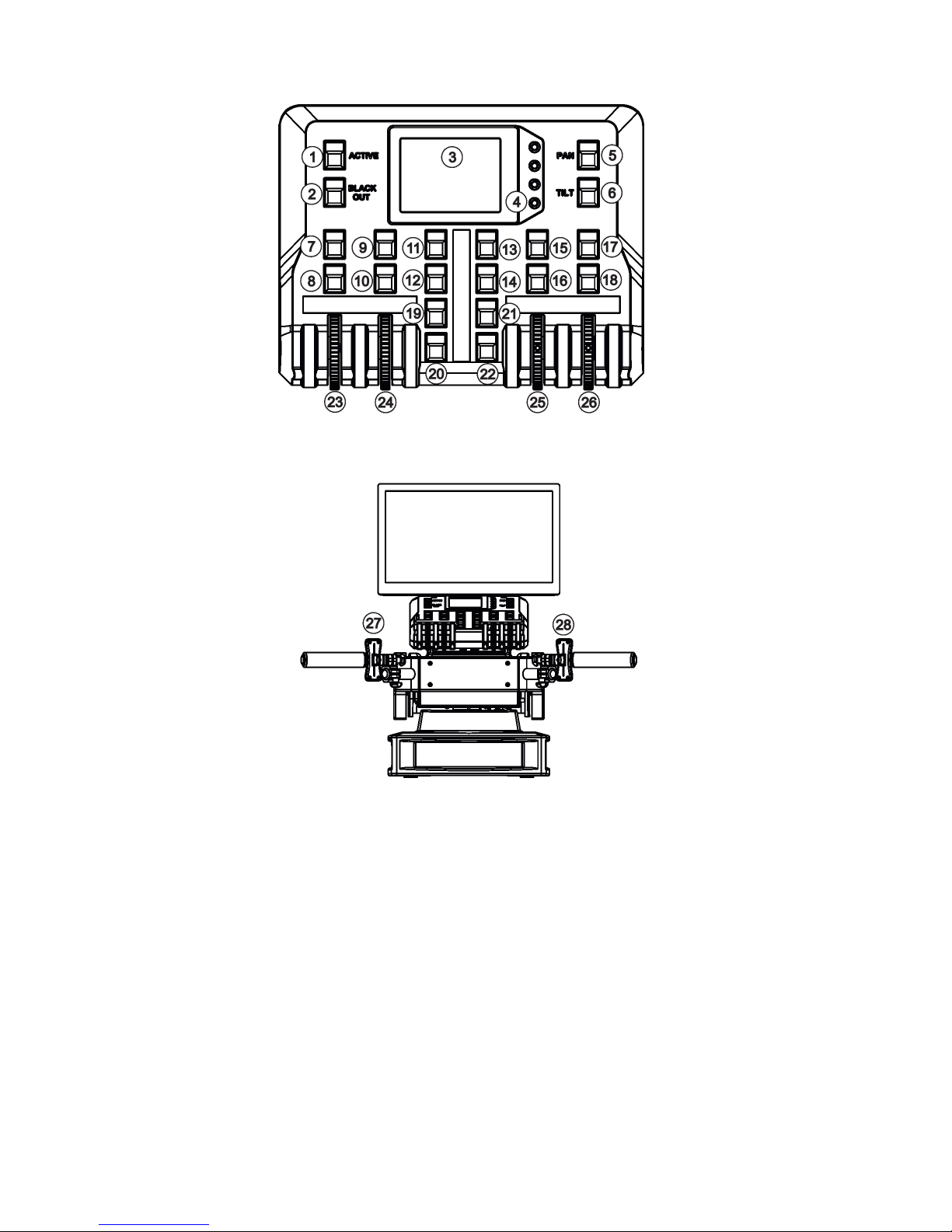

1 - Monitor installed on the monitor holder 17 - USB (50mA)
2 - FollowSpot Controller 18 - Input for USB lamp (+5V/50mA)
3 - Faders 19 - Adjusting locks for handles
4 - Base 20 - Apertures for 1/4 turn locks
5 - Control handlebars 21 - Base of the FollowSpot Controller
6 - Monitor supply 22 - Manipulation handles
7 - Camera IN (RJ45)
8 - Ethernet (RJ45)
9- (DMX Out (3-pin XLR)
10 - (DMX In (3-pin XLR)
11- (DMX Out (5-pin XLR)
12 - (DMX In (5-pin XLR)
13 - Power (Neutrik PowerCon)
14 - Fuse holder
15 - HDMI output for monitor + 2 x USB
16 - Input for USB lamp (+5V/50mA)
5

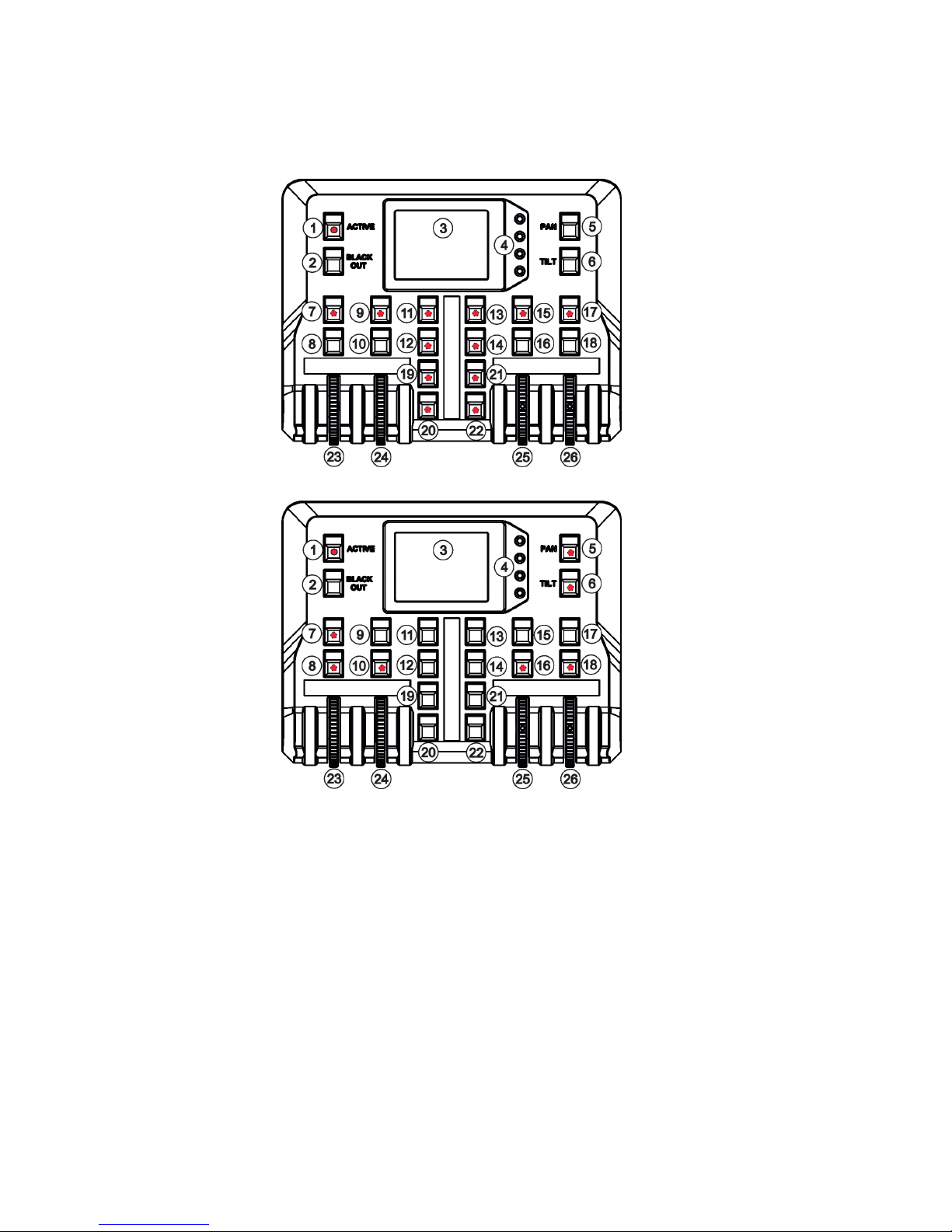

1 - Activation button (actives
the FollowSpot Controller)
2 - BlackOut button
3 - Graphic touch screen
4 - Switch On screen button
5 - Pan button(enables/disables
pan motor)
6 - Tilt button(enables/disables
tilt motor)
7 - Preset button
8 - Activation button for jog-wheel
9 - Preset button
10 - Activation button for jog-wheel (24)
11 - Preset button
12 - Preset button
13 - Preset button
14 - Preset button
15 - Preset button
16 - Activation button for jog-wheel (25)
17 - Preset button
18 - Activation button for jog-wheel (26)
19 - Preset button
20 - Preset button
21 - Preset button
22 - Preset button
23 - Jog-wheel
24 - Jog-wheel
25 - Jog-wheel
26 - Jog-wheel
27 - left Fader
28 - Right Fader
2.2 FollowSpot Controller
6
3. Installation
The RoboSpot must be installed by a qualied worker in accordance with
all national and local electrical and construction codes and regulations.
Monitor installation
1. Insert the monitor holder (A) into the slot (B) of the RoboSpot and secure it by means of the lock (C).
The lock must be fully screwed and reclined. Check the monitor is securely fastened.
2. Connect the power cable of LCD monitor to the socket (D), HDMI cable and two USB cables to sockets (E)
in the RoboSpot.
Note: The HDMI connection has to be carried out before connecting the RoboSpot to mains.
FollowSpot Controller installation
1. Place the FollowSpot Controller (F) on the FollowSpot Controller base (G). Connectors on both parts have
to snap each other. Two locks (H) have to be pressed during placing (removing) the FollowSpot Controller (F).
2. If you need to place the RoboSpot on a tripod, you have to install an adaptor with spigot to the tripod.
7
Tripod and adaptor installation

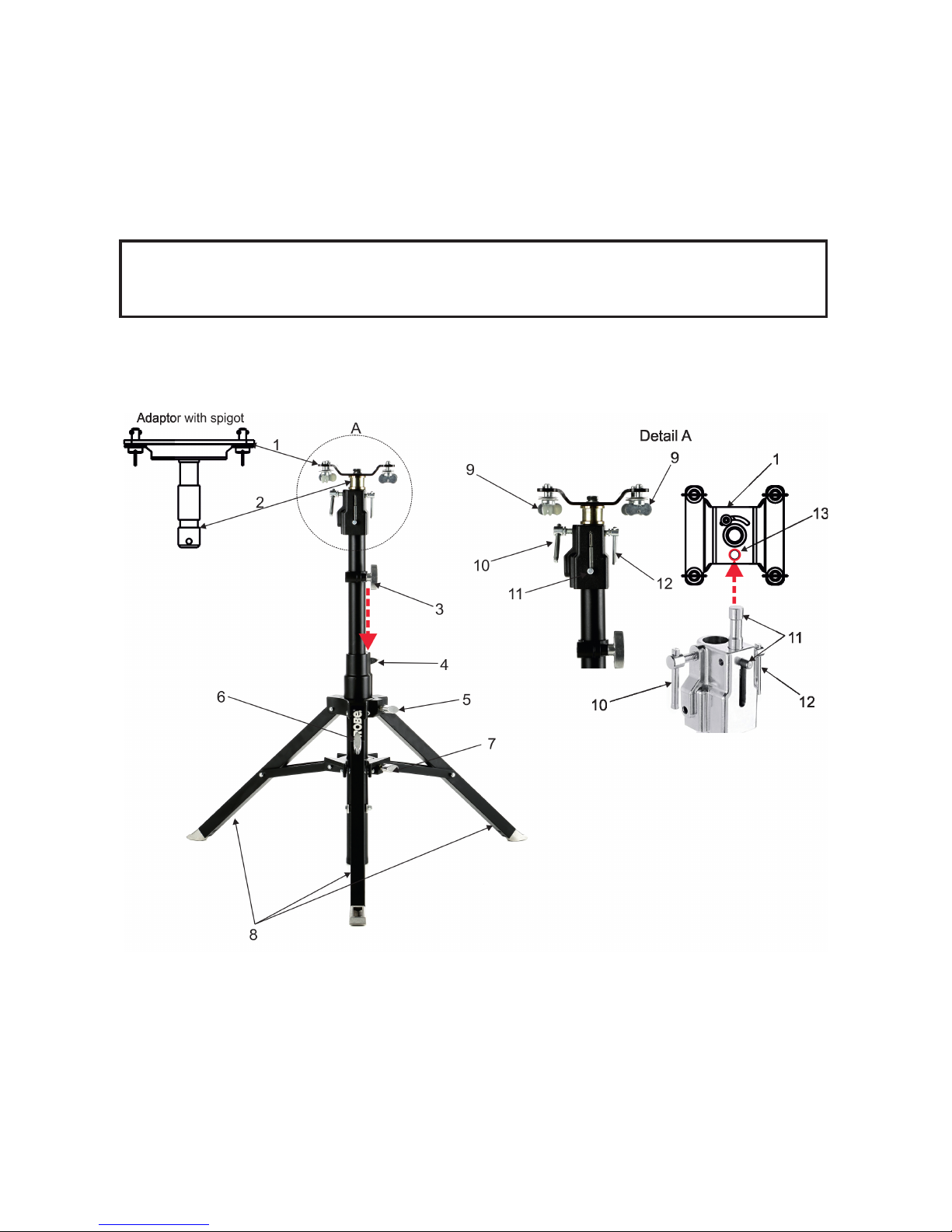

1. Unfold and adjust height of the tripod and distance of legs (8) by means of adjusting locks (4,5,6,7).
The lock (3) has to be in a lower position (as shows arrow on picture below).
2. After inserting the adaptor (1) with spigot (2) to the tripod, the spigot (2) has to be secured by means of
the lock (10) and the adaptor (1) by means of the pin (11) which is inserted to the hole (13) of the adaptor (1)
as shows arrow on picture below. Position of the pin(11) has to be secured by means of the lock (12).
3. The four quarter -turn locks (9) of the adaptor serve for fastening the RoboSpot on the adaptor. Two workers
should install the RoboSpot on the assebled tripod with the adaptor.
Check that all quarter -turn locks (9) are fully tightened before operating the RoboSpot.
Check that all locks (3, 4, 5,6,7, 10,12) are fully tightened before placing
the RoboSpot on the tripod with adaptor.
8
3.1 Monitor shield and note holder installation

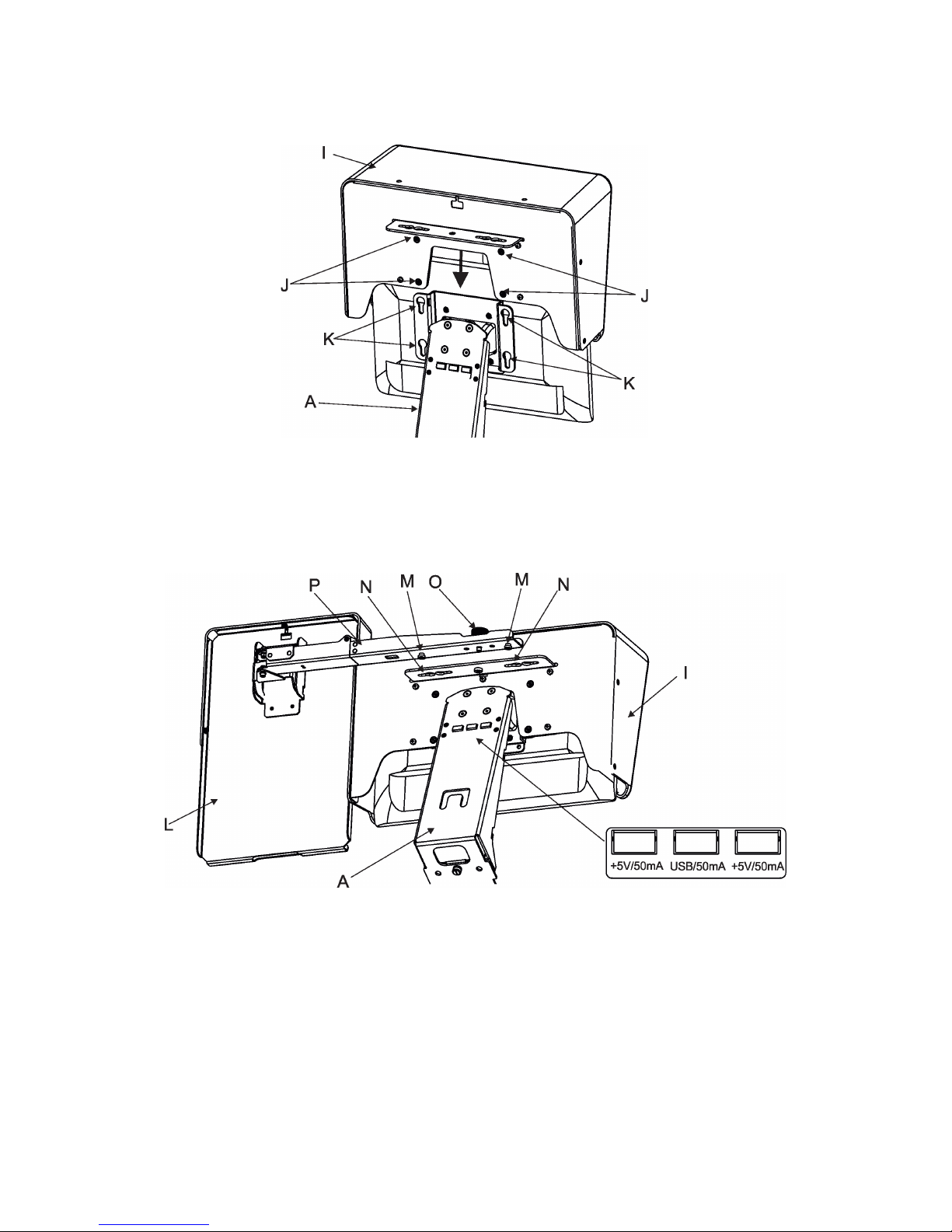

1. Place the monitor shield (I) on the monitor holder (A) in this way that pins (J) of the monitor shield snap to
apertures (K) in the monitor holder and move the monitor shield down until you rich a stop.
2. Place the note holder (L) on the monitor shield (I) in this way that pins (M) of the arm (P) snap to the apertures
(N) of the monitor shield (I) and move the arm (P) to the left until you rich a stop.
3. Secure the note holder to the monitor shield by means of the knob (O).
4. Connect two cables of USB lamps to the sockets marked +5V/50mA on the monitor holder.
Note. The arm (P) of the note holder (L) can be turned by 180°, this turned position of the arm allows you to
install the note holder on the opposite site of the monitor shield.
9
4. RoboSpot connection
After installing the RoboSpot, connect it with the ROBIN BMFL FollowSpot with camera (or the RoboSpot Mo-
tionCamera), with another supported ROBIN xtures and a control desk.
You do not need to patch the RoboSpot, but xtures connected to the RoboSpot have to be patched.
Note: Fixtures connected to the RoboSpot and not supported by the RoboSpot will be ignored by the
RoboSpot.

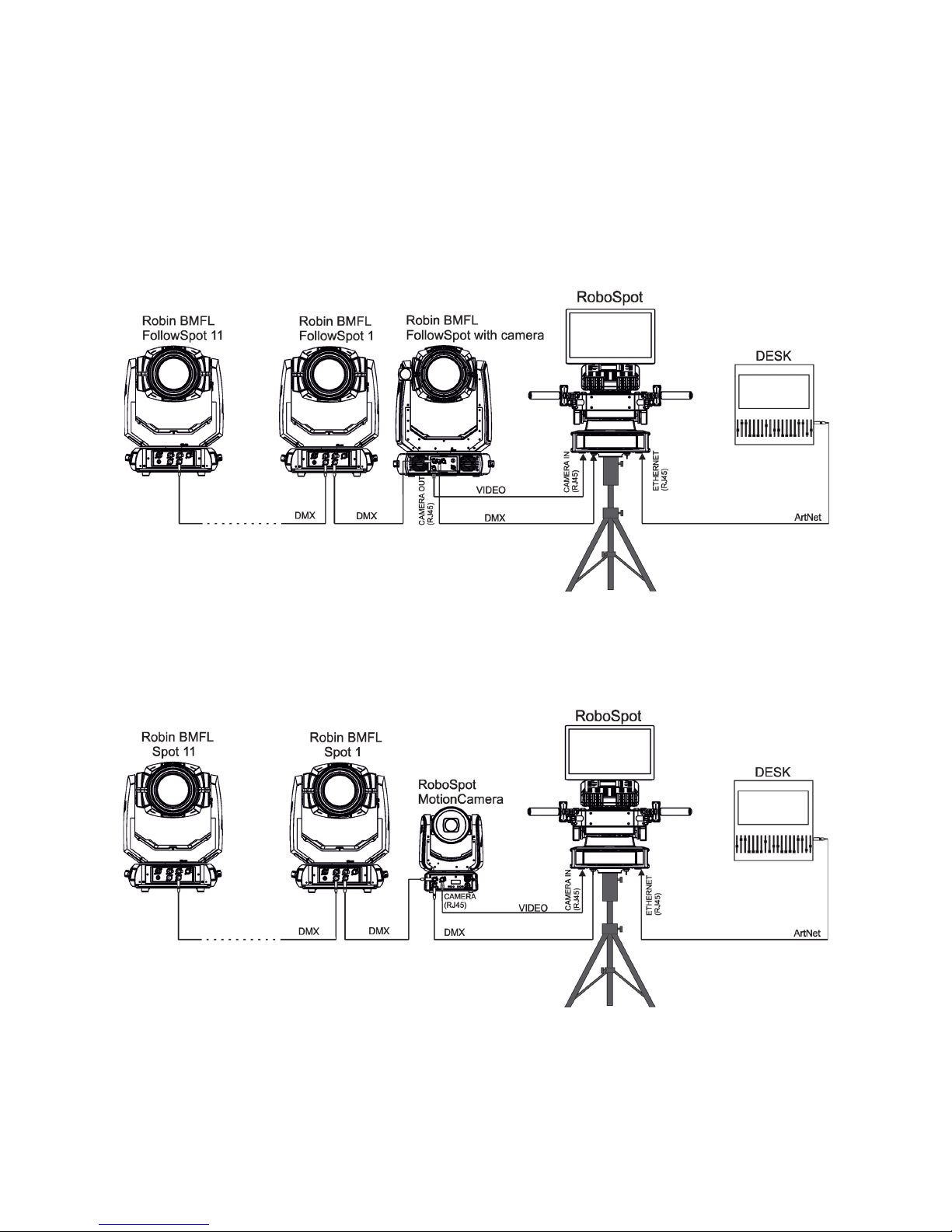

Example 1. Connection with the ROBIN BMFL FollowSpot with camera
Up to 11 ROBIN BMFL FollowSpots can be connected to the ROBIN BMFL FollowSpot with camera.
Example 2. Connection with the RoboSpot MotionCamera
Up to 11 supported ROBIN xtures can be connected to the RoboSpot MotionCamera.The xtures should be
of the same type.
Note. In case of operating the RoboSpot system in interfered environment, Ethernet switches are
recommended in video line (one at the RoboSpot and one at the Robin BMFL FollowSpot or RoboSpot Mo-
tionCamera).
10
5. Operation
After installing the RoboSpot and connecting it with the ROBIN BMFL FollowSpot (RoboSpot MotionCamera),
connect the RoboSpot to mains by means of the enclosed power cord.
Press the button ACTIVE (1) in order to activate the FollowSpot Controller. By pressing the button PAN (5) and
TILT (6) you can activate/deactivate of the pan/tilt movement of the ROBIN BMFL FollowSpot (and all connected
BMFL xtures to the RoboSpot).
The button BLACK OUT (2) closes light output of the ROBIN BMFL FollowSpot (and also all connected BMFL
xtures to the RoboSpot).
5.1 Functions mapping
After switching the xture on,touch the Sliders button on the RoboSpot touch screen and use the pan and tilt
sliders to set desired position of the ROBIN BMFL FollowSpot´s head.
It is suitable to set the RoboSpot handlebars to the "middle" position and after that set the pan and tilt position
of the moving head by the sliders on the RoboSpot touch screen.
Sensitivity of pan/tilt movement:
High level (most accurate) - green
slider
Medium level -yellow slider
Low level- red slider
In order to switch sensitivity of pan or
tilt movement to desired level, press
and hold the PAN (5) or TILT (6) button
until the colour of fader is changed.
Sliders button
11
Touch the icon on the FollowSpot Controller to display the password entering screen:
Enter the password (5242) to enter the main menu of the FollowSpot Controller. The password prevents unau-
thorized person from changing setting of the FollowSpot Controller.
Enter the menu "Functions Mapping". The list of available eects will appear:
If the message" Please Activate FollowSpot Controller!" will appear, press the ACTIVE button (1) on the Follow
Spot Controller.
To assign an eect to the jog-wheels and faders
1.Touch desired eect. Buttons (8/10/16/18) which activate Jog-wheels (23/24/25/26) and buttons (20/22), which
matches faders (27/28) will start to ash.
2.Press desired button and selected eect will be assigned to its jog-wheel (fader).
Assigned eect is displayed in a yellow colour, free eects stay in a white colour.
3.Repeat steps 1 and 2 for needed eects.
12
Only eects assigned to the jog-wheels will
appear on this screen.
Eects assigned to the faders will not be
shown.
4.Touch the [cancel] icon and than [back arrow] icon. The screen with eect faders will appear.
E.g.
Sensitivity of the jog-wheels assigned to the eects can be set at three levels: low, medium and high.
The levels of the sensitivity are marked in colour on the screen:
low level - red slider
medium level - yellow slider
high level (most accurate)-
green slider
In order to switch an jog-wheel to desired level of sensitivity, press and hold its activating button (8/10/16/18)
until the colour of fader is changed.
Eects assigned to the four jog-wheels and two faders on the handlebars have a priority over DMX values
coming from a DMX controller.
Functionality of the RoboSpot can by restricted by means of commands on the channel Power/Special Functions
(240-255 DMX) of connected xture.
To control desired eect
1.Use its slider on the screen or press the activating button for its jog-wheel and use this jog-wheel or use a
corresponding fader.
To release an eect from the jog-wheel (fader)
1.Touch desired eect from the list of eects in the menu "Functions Mapping".
2.Touch the option "Unlink".
3.The eect will be displayed in a white colour.
The item "All" allows you to release all assigned eects at one go.
13
5.2 LCD monitor screen
The RoboSpot is equipped with the 15.6" (10-point) touch screen with max. resolution 1366 x 768.
1. After switching the RoboSpot and the ROBIN BMFL FollowSpot (or the RoboSpot MotionCamera) on, image
scanned by the camera is displayed.
1- Slider button
2- Camera button
3- User button
4 - Camera selection buttons*
5- IP address of selected camera
6 - Position circle (red)
7 - Action toolbar
8 - Screen lock**
*You can change the name of selected camera. To rename selected camera, touch for two seconds the camera
name (e.g. Camera IP: 10.195.164.171).
The software touch keyboard will appear. Use the keyboard to type a new name of camera (e.g. Camera 1).
Touch ENT to save the new name of the camera. The new name is saved into camera (in case that you will
use other Robospot, the new camera name will be reloaded)
Touch the key X to close the keyboard.
** To lock the screen, touch the button . To unlock the screen, touch the button and the the software touch
keyboard will appear. Type a correct password (the password is the same as the password for the FollowSpot
Controller, default password is 5242) and conrm it by touching the key ENT.
Touch the key X to close the keyboard.
.
Touch the centre of the
positioning cross and
move the positioning
cross to desired
position on the screen.
Touch the edge of the positioning circle and move it in/out
to decrease/increase the size of the circle
14
Note: the message "Not correct camera settings! Reset camera settings?" informs you that the RoboSpot
software and the camera settings are not accordance.
Use the option "Yes" to set correct camera settings.
The option "Yes" has the same eect as the option "Factory reset " in the Camera button menu.
2. After switching the ROBIN BMFL FollowSpot lamp on and adjusting its beam (zoom, focus, dimmer....), aim
the beam to desired position by means of the FollowSpot Controller handlebars.
3. Move the position circle on the beam image. Now, when you move with the control handlebars, both beam
image and position circle on the screen will move synchronously. It is useful in case that the light output from
the xture is closed and by means of the sighting point you approximately know the position of the light beam.
15
Note: if you change a camera zoom, you have to move and adjust the position circle on the beam image again.
Sliders menu

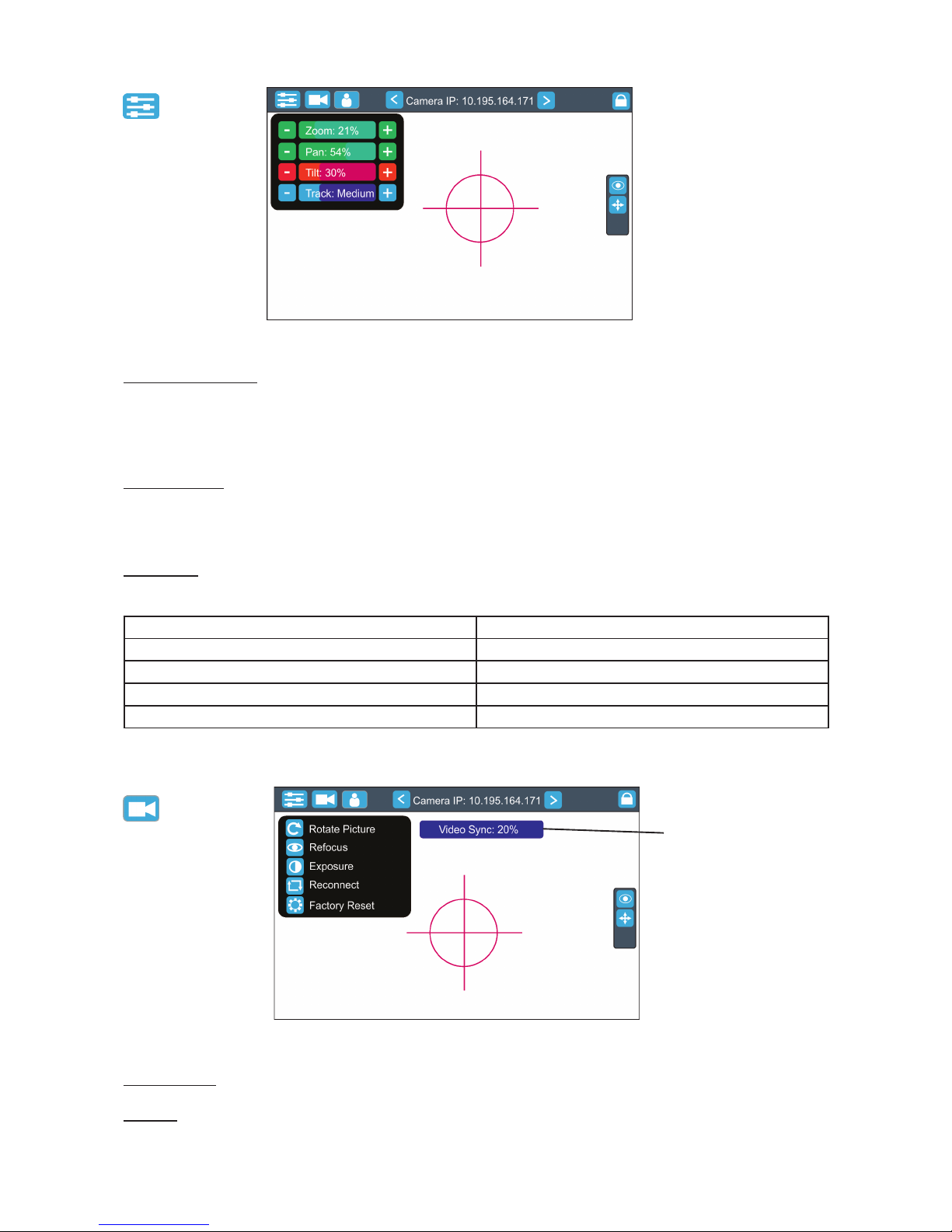

Camera Zoom slider- use it to change a zoom of currently selected camera. A sensitivity of a camera zoom
can be set in three levels: low (green slider), medium (yellow slider) and high (red slider).
To change the sensitivity level of the camera zoom, the camera zoom has to be assigned to some jog-wheel
of the FollowSpot Controller, please see the chapter "Functions mapping" how to change sensitivity level of a
slider. After changing of zoom size, picture is automatically focused.
Pan/Tilt sliders - use them to move a moving head to the desired position. A Sensitivity of pan/tilt movement
can be set in three levels : low (green slider), medium (yellow slider) and high (red slider).
In order to switch the sensitivity of pan or tilt movement to desired level, press and hold the PAN (5) or TILT (6)
button until the colour of fader is changed.
Track slider- use it to set desired level of speed of pan/tilt movement. Each level of the track slider responds to
the DMX value of the Pan/Tilt speed channel in DMX chart of BMFL xture:
Track level DMX value on the Pan/Tilt speed channel
Smooth 0
Fast 1
Medium 10
Slow 20
Camera menu
Rotate Picture- use this item to rotate a picture on the touch screen 180 degrees from current orientation.
Refocus- use this item to focus an image on the screen (Focus of the camera is set to the "One shot focus "
mode which means that picture is focused automatically after zoom change and the item Refocus allows to
focus the image when the zoom is without change.
video synchronization
eld
16
Exposure- you can choose from three levels (Low, Medium, High) of a light intensity in the position circle on
the screen to see objects hidden from reason of high light intensity in the position circle on the screen. The
item Auto switches o this function.
Reconnect- the item disconnects and again connects active camera to the RoboSpot. Use the item in case that
behaviour of the camera is not correct (e.g. long response time).
Factory Reset- use this item to set a camera to the current setting.
All items stated above relate to the selected camera in the menu bar.
When you switching between cameras, a eld with video synchronization status is displayed. This eld shows
a delay between the camera and the screen. The value 0% means max. delay, 100% is without delay (and this
eld will disappear from the screen after reaching 100%).
Every camera holds information about position of the position circle, its size and picture rotation.
User menu
Blackout Display - use the item to darken the screen. To active the screen, touch it.
Network Test - the item runs a connection test between a camera and the RoboSpot. Do not touch any buttons
on the FollowSpot controller.
Trace Cursor - if the function is on, a blue circle will appear during (behind a red position circle) which gives a
target position of the position circle (beam image) during its movement.
Pan Invert - the item inverts a pan movement
Tilt Invert - the item inverts a tilt movement
Device - the menu allows you to select a device with camera. Correct device has to be chosen
if the "Trace Cursor" function is to work correctly.
MotionCamera - select the item if you use the RoboSpot Motion Camera.
BMFL Follow Spot - select the item if you use the Robin BMFL FollowSpot with camera.
17

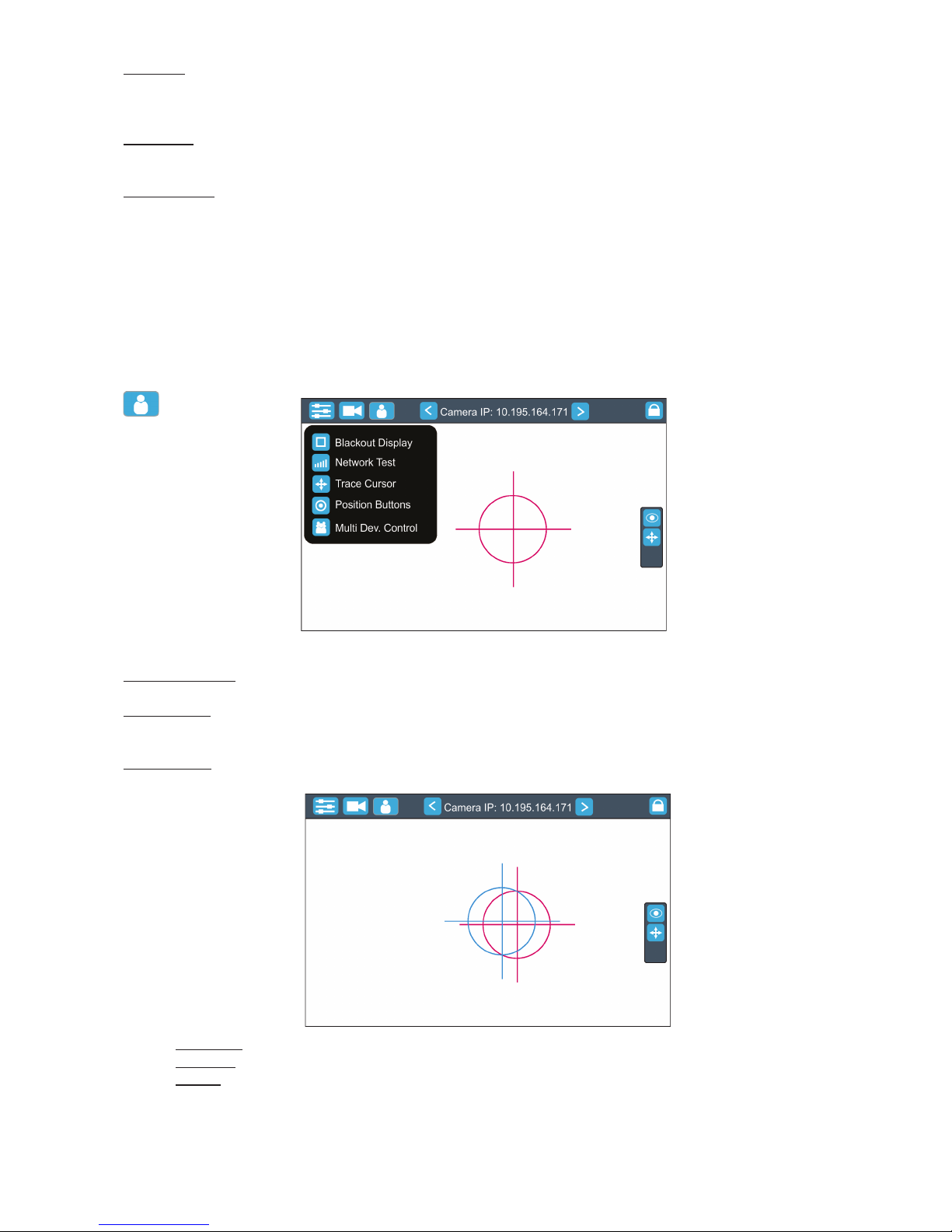

Position Buttons - if the function is on, the "+" button will appear at the bottom of the screen. Move the position
circle to desired position and press the "+" button. Button no.1 will appear at the bottom of the screen and
the button no.1 is assigned to this position of the position circle (if item " Show in scene is active, button no.1
is displayed in the position circle on the screen). You can assign up to 9 buttons to dierent positions of the
position circle on the screen.
If you touch a position button, the position circle will move to the position of this position button.
Example (option "Show in Scene" is active):
In the position button are also saved values of the following items: zoom, focus, camera zoom, pan/tilt sensi-
tivity and track.
To remove position button from screen, touch it until the message "Delete position button number X?" appears
on the screen and select option "Yes".
Show in Scene - the item allows you to show positions of the position buttons on the screen.
Multi Dev.Control - the menu serves for activating and setting control of xtures in the multi device operation.
For more information please see the chapter Multi device control.
5.3 Streaming a camera video
If you wish to stream a camera video over computer network, use a rtsp stream supported media player (e.g.
VLC media player, SMPlayer,...) running on your computer and type the following to your media player:
rtsp://IP address of camera/prole2/media.smp
example: rtsp://10.195.165.223/prole2/media.smp
18
5.4 Saving and recalling the FollowSpot controller presets
The FollowSpot Controller oers to save up to 12 presets.
To save the FollowSpot controller preset
1. Press and hold one of the preset buttons (7/9/11/12/13/14/15/17/19/20/21/22) e.g. button (7) until the jog-
wheel activating buttons (8/10/16/18) and the pan/tilt buttons (5/6) start to ash.
2. Press ashing button of eect which value you wish to add to the current preset (the button will start light
continually).
3. Press and hold selected preset button until the jog-wheels activating buttons stop to ash.
The preset button will light.
Note: Every user preset can have dierent FollowSpot Controller presets which are saved into the user preset
le. This le can be saved on a USB ash drive.
To recall the FollowSpot controller preset
Press a button with stored FollowSpot Controller preset.
To delete the FollowSpot controller preset
1. Press and hold desired preset button until the jog-wheel activating buttons (8/10/16/18) and the pan/tilt
buttons (5/6) start to ash.
2. Press and hold selected preset button until the jog-wheels activating buttons stop to ash. Do not press any
jog-wheels activating button. The preset button will stop to light.
Note: you can write notes on the white elds of the FollowSpot Controller, use a marker on an alcohol base and
a suitable cleaning liquid (on alcohol base) for removing the notes. Never use solvents!
Note: values on faders
cannot be included to
presets.
19
5.5 RoboSpot handles calibration
To calibrate the RoboSpot handles.

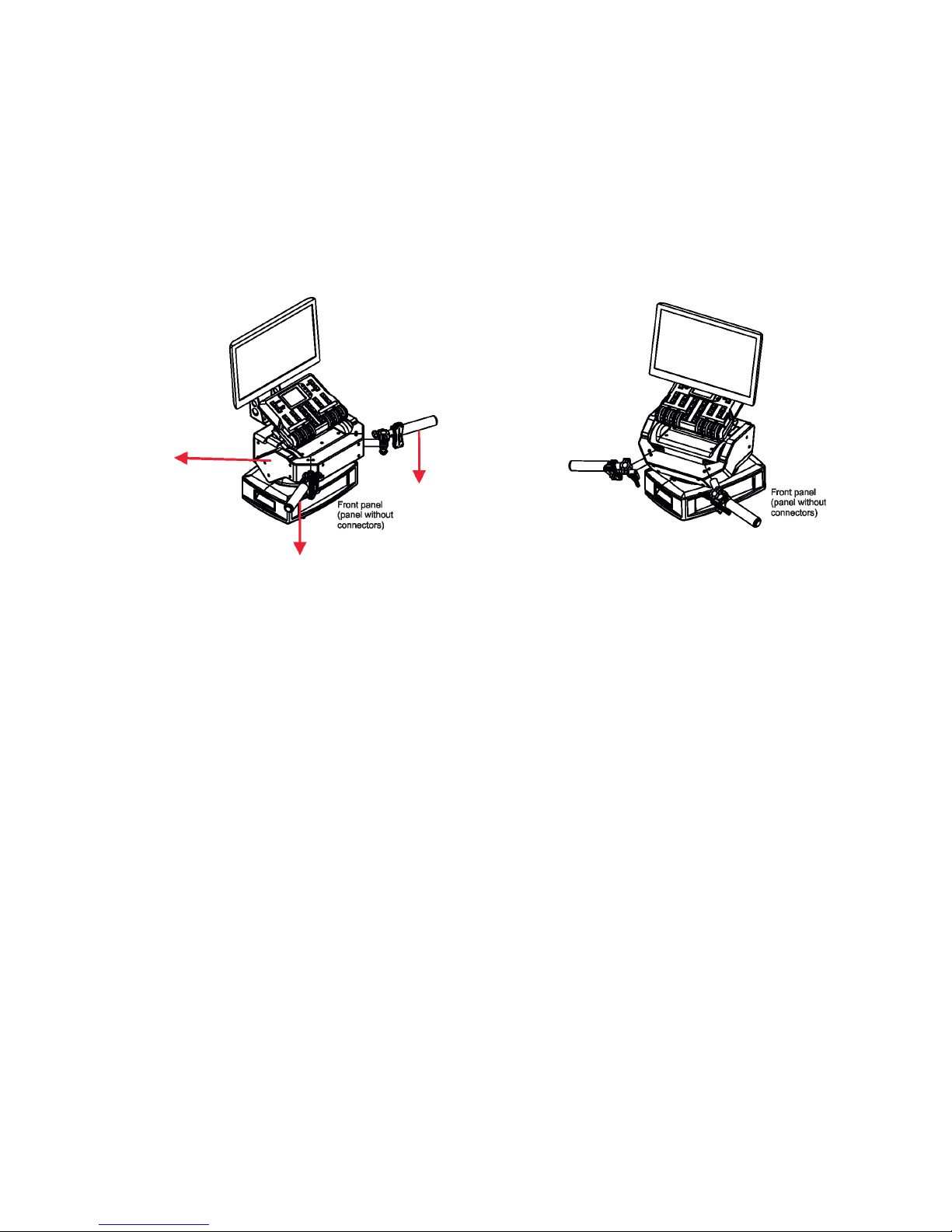

1. Install the FollowSpot Controller on the FollowSpot Controller base
1. Deactive the FollowSpot Controller (button ACTIVE (1) must not light)
2. Move the control handles of the RoboSpot to the calibration position, in this way:
pan direction - move handles fully to the left until you reach a stop
tilt direction - move handles fully down until you reach a stop
3. Keep handles in the calibration position and press and hold the PAN button (5) for circa 6 seconds until this
button makes one ash - it is a nish of the calibration and you can use the FollowSpot Controller.
Middle position Calibration position
Move handles down to
reach the stop
Move handles to
the left to reach
the stop
20
5.6 Multi device control
The RoboSpot can support more xtures in the follow spot operation.
The xtures used in the follow spot operation should be placed on a truss around the area intended for the follow
spot operation. The xtures can be placed above stage on one ( two or three) side(s) of the stage or around
the stage, placing inside the working area for the follow spot operation is not suitable .
Some examples of possible arrangements of xtures above the stage:
Other manuals for RoboSpot
2
This manual suits for next models
1
Table of contents
