PROAIM P-18-JS User manual

1
What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Central
Post
LCD Mounng Arm
Tools
18 Camera Crane Jib with Stand for Gimbals
Pan-Tilt & Fluid Head (P-18-JS)
A s s e m b l y M a n u a l
Jib Stand
Secon 1st
Secon 2nd
Secon 3rd
Secon 4th
Secon 5th
Weight Closer
Weight Rod
Accessory Wire Tensioner Knob

2
Slide Central Post of Jib onto the Jib Stand
and ghten knob-2 to secure it.
Jib Stand Setup
Open shank from central post. Leave the
black washers at one side help of wrench.
Insert the secon 4 inside central post then
Align holes of secon with central post to
screw in the shank back.
Then ghten the bolt properly with the help
of a wrench, and to aach secon 5 to 4,
loosen the bolt from secon 4.
Knob 2
Jib Secon Setup
Secon-5 has connecng bars aached with
secon-4 on both ends and then ghten
them together using provided allen key.

3
Connue the Arm build by sliding in secon 3
onto secon 4 as shown in the image.
Loosen the bolt from the connecng bar with
the help of a 6mm Allen key and wrench, and
then insert the bolt using the holes provided.
Then ghten them together using provided
allen key.
Connue the Arm build by sliding in secon 2
onto secon 3, and nally secon 1 onto sec-
on 2.
Connect the Wire/Cable Tensioner with
cable. Simply rotate the mid-secon handle
to ghten the cable adding required amount
of strength to the system.
Connecng Bar
Tighten Bolt
Then ghten them together using provided
allen key. As shown in the image.

4
Secure your camera setup with weight
closers as shown.
NOTE: Once you discover correct balance,
consider marking the weights for that parcu-
lar camera; facilitang an easier set up the next
me.
Aach LCD mounng arm onto central fork
then ghten the knob.
Lock the pin for keeping your camera in a
xed angle to take stable shots.
Insert weight rod of secon 5 then with a 1”
hole, according to your camera setup
requirements. Secure them with Weight
Closers.
NOTE: The Central Fork has provision to attach
LCD Monitor (Not Included) via LCD Mounng
Arm.

5
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon
and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.

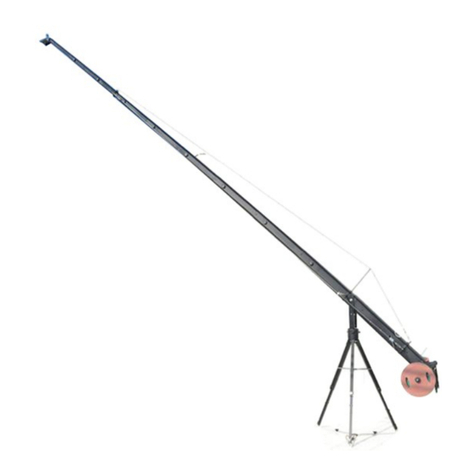

YOUR PROAIM 18 CAMERA CRANE JIB WITH STAND FOR GIMBALS, PAN-TILT & FLUID HEAD
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
