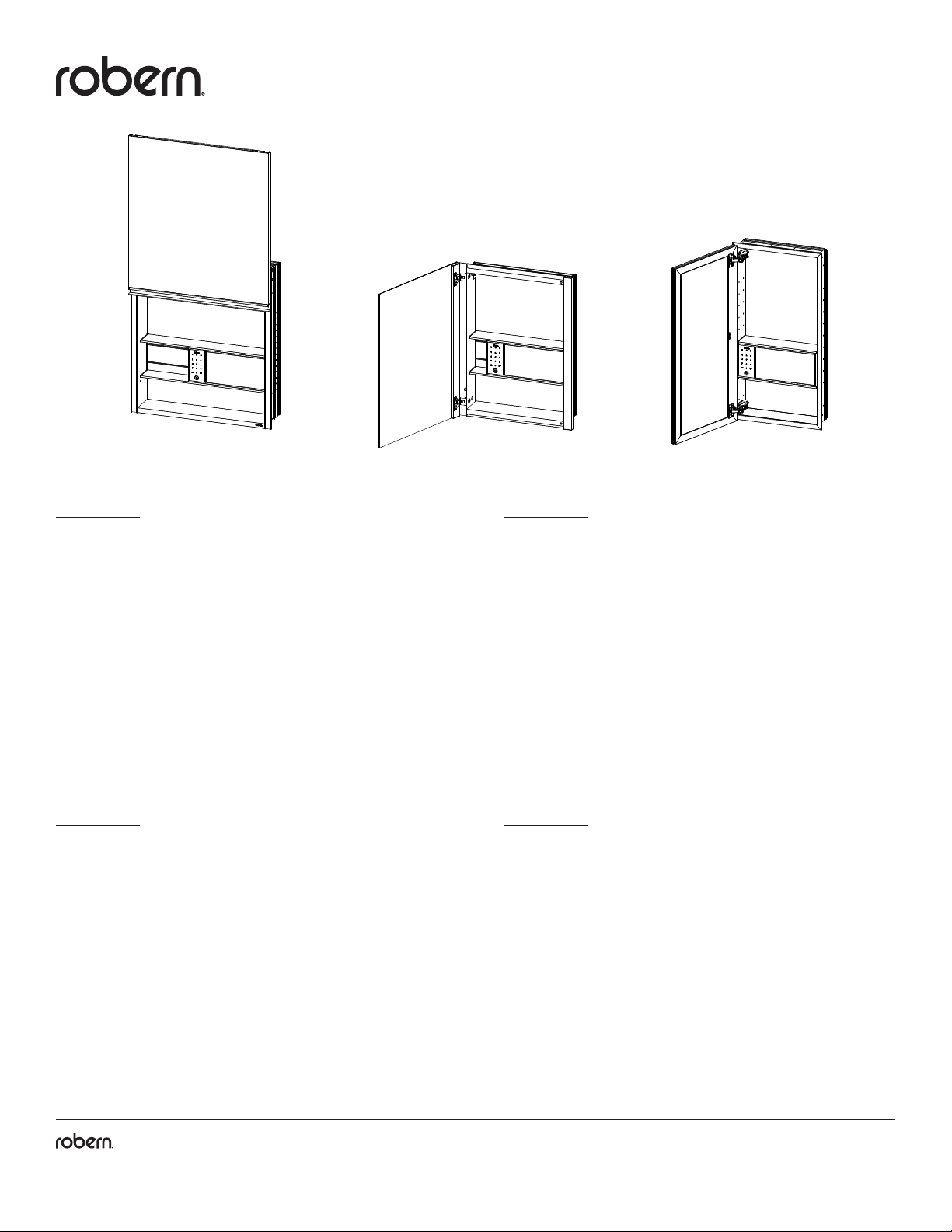

IQ™ DIGITAL LOCK BOX
Installation Instructions
Important safety instructions - Save these instructions
Tools Needed - 2
Parts - 2
Notes - 3
Dimensions - 3
Existing Recessed Installation - 4
Existing Surface Installation - 5
New Installation: PLM Cabinets - 6
New Installation: R3 / Uplift Tech - 8
Finish the Installation - 10
Use and Maintenance - 11
Cleaning - 11
Warranty - 11
Compliance - 12

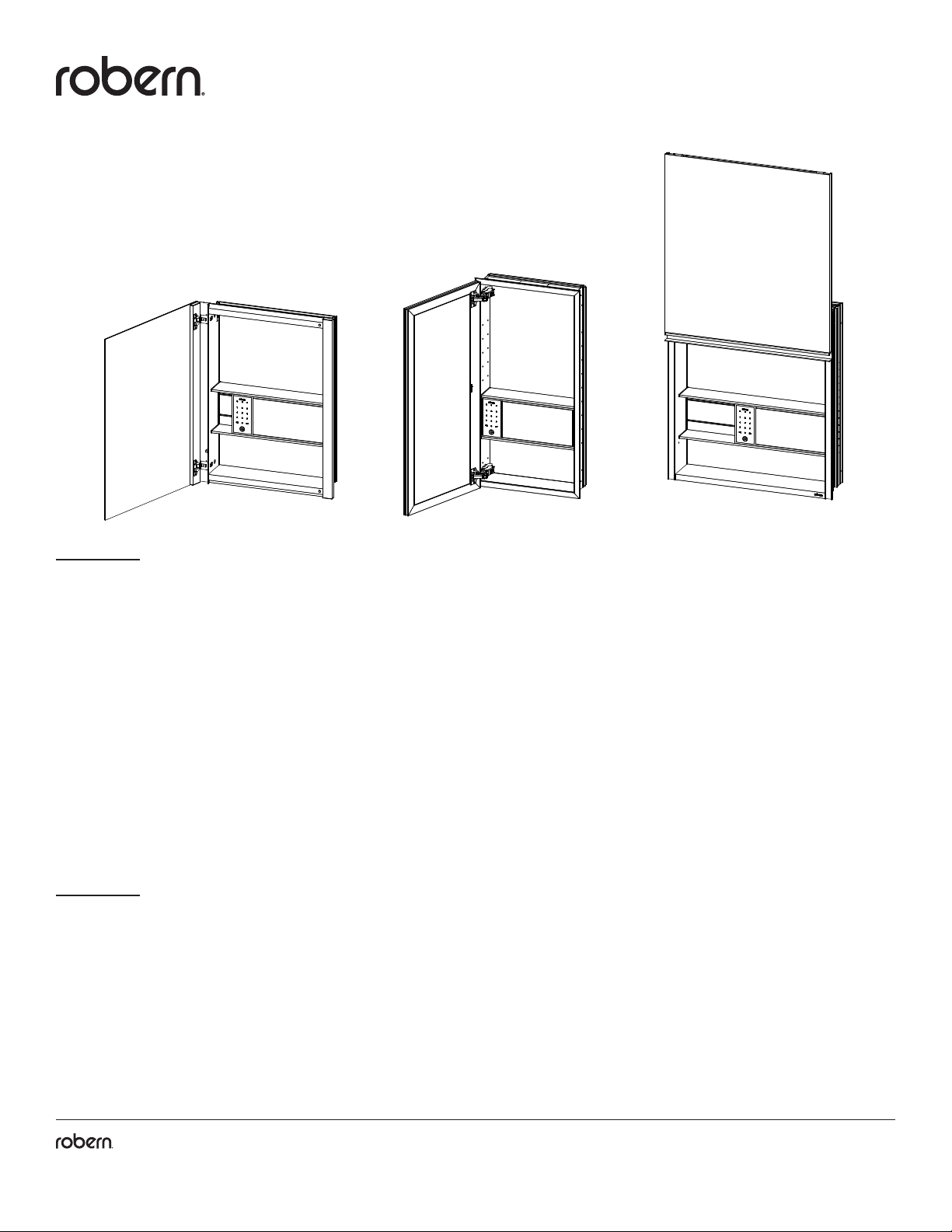

This instruction sheet contains information on how to install a lock box and shelf in a variety of applications. This product kit ts di󰀨erent
cabinet sizes. Read the specic instruction for how your lock box and shelf will be installed.
Save these instructions for future use and reference. An improper installation voids the warranty. Carefully inspect the lock box, shelf
and hardware for damage prior to installation. Installed products cannot be returned.
If you experience any problems with your lock box, contact your dealer or Robern directly.
Limited Warranty — One Year Term
CONTENTS
GENERAL INFORMATION
RC 20, 24 UC 24, 30, 36, 48PL 16, 20, 24
PC 16, 20, 24
MC 16, 20, 24
DC 16, 20, 24
AC 24, YC 24

2Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
TOOLS NEEDED

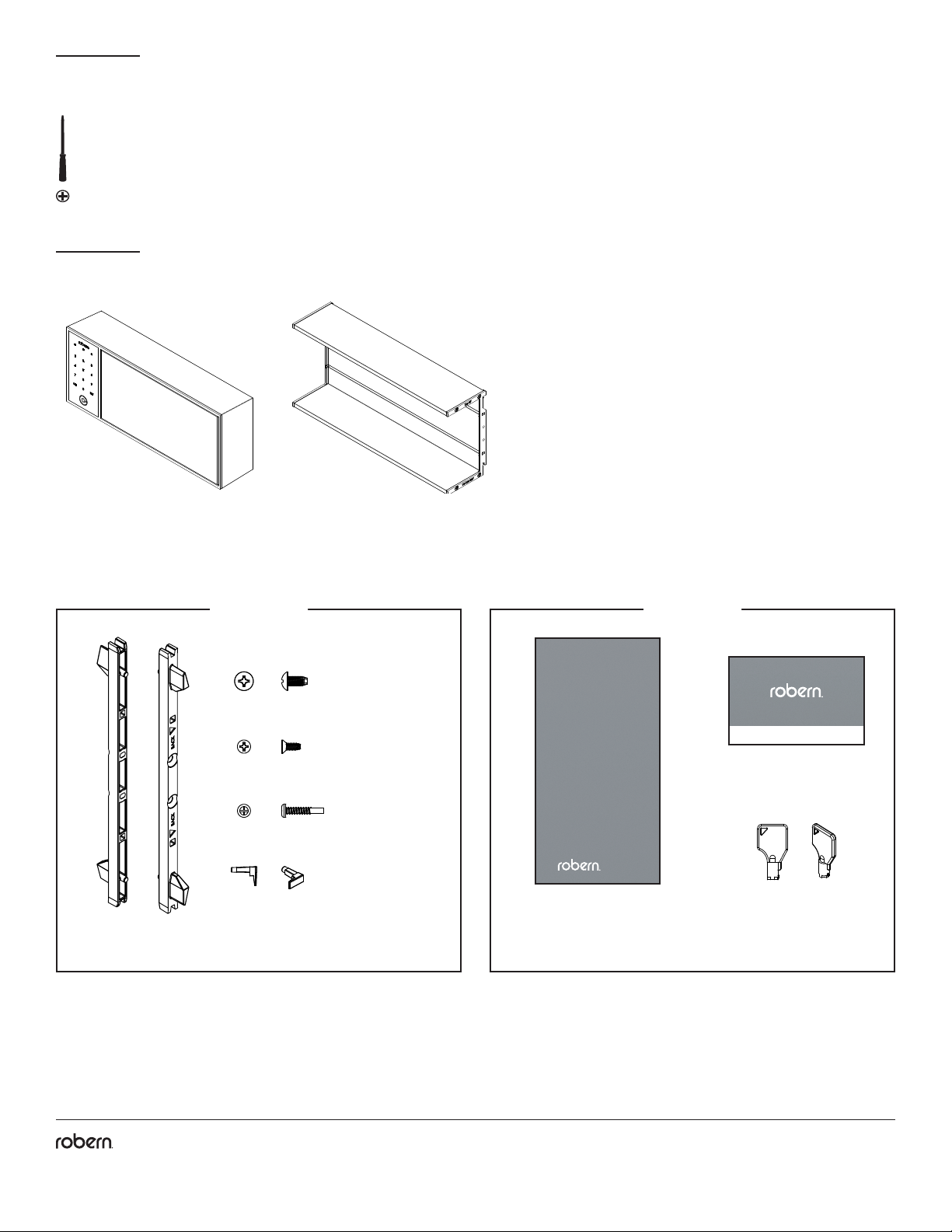

PARTS
*Depending on installation, not all parts will be used.
[217-1382]
Quick Start Guide
Registration Card
[203-1510]
(2) Lock Box Key
Lock Box Shelf
[211-1331]
Digital Lock Box
[216-1192]
Hardware Bag*
[211-1325]
(2) Mounting Block
[211-1328]
(4) Locking Pin
[203-1492]
(4) #10 x 3/8" Screw
[203-1493]
(4) #6 x 3/8" Screw
[SS125]
(4) #6 x 3/4" Screw
[216-1193]
Quick Start Bag
US E R
S E T U P
G U I D E
IQ
™
DIGITAL
LOCK BOX
IQ
™
DI G ITAL LOCK BOX

3Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
NOTES

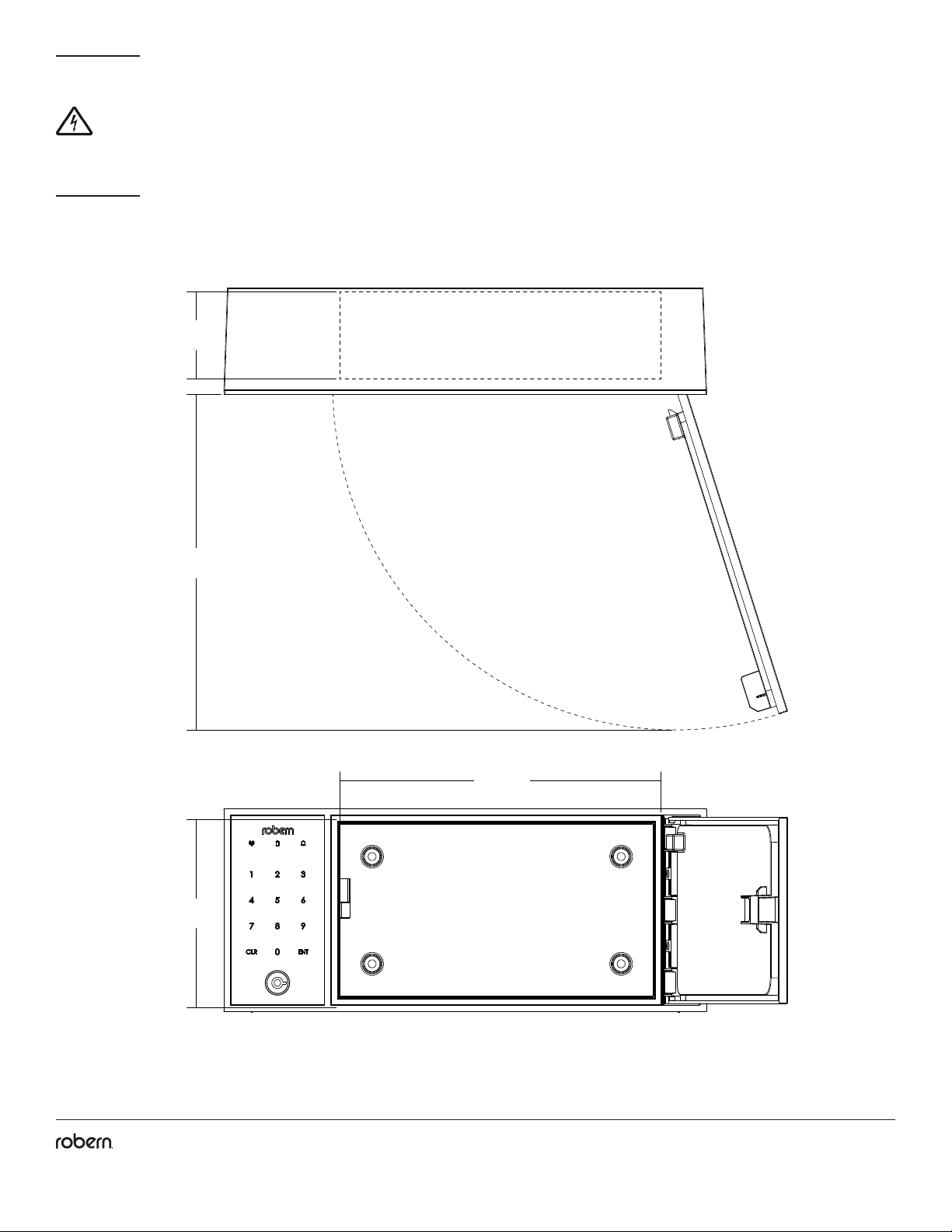

DIMENSIONS
228.6
9"
133.4
5-1/4"
62
2-7/16"
238.3
9-3/8"
WARNING! To reduce the risk of electrical shock, shut o󰀨 power before installing in an electrically powered cabinet.
9-3/8"
(238mm)
2-7/16"
(62mm)
5-1/4"
(133mm)
9"
(229mm)

4Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
NOTE: For cabinets with electrical options, turn breaker o󰀨 before beginning.
NOTE: Remove door from cabinets before beginning.

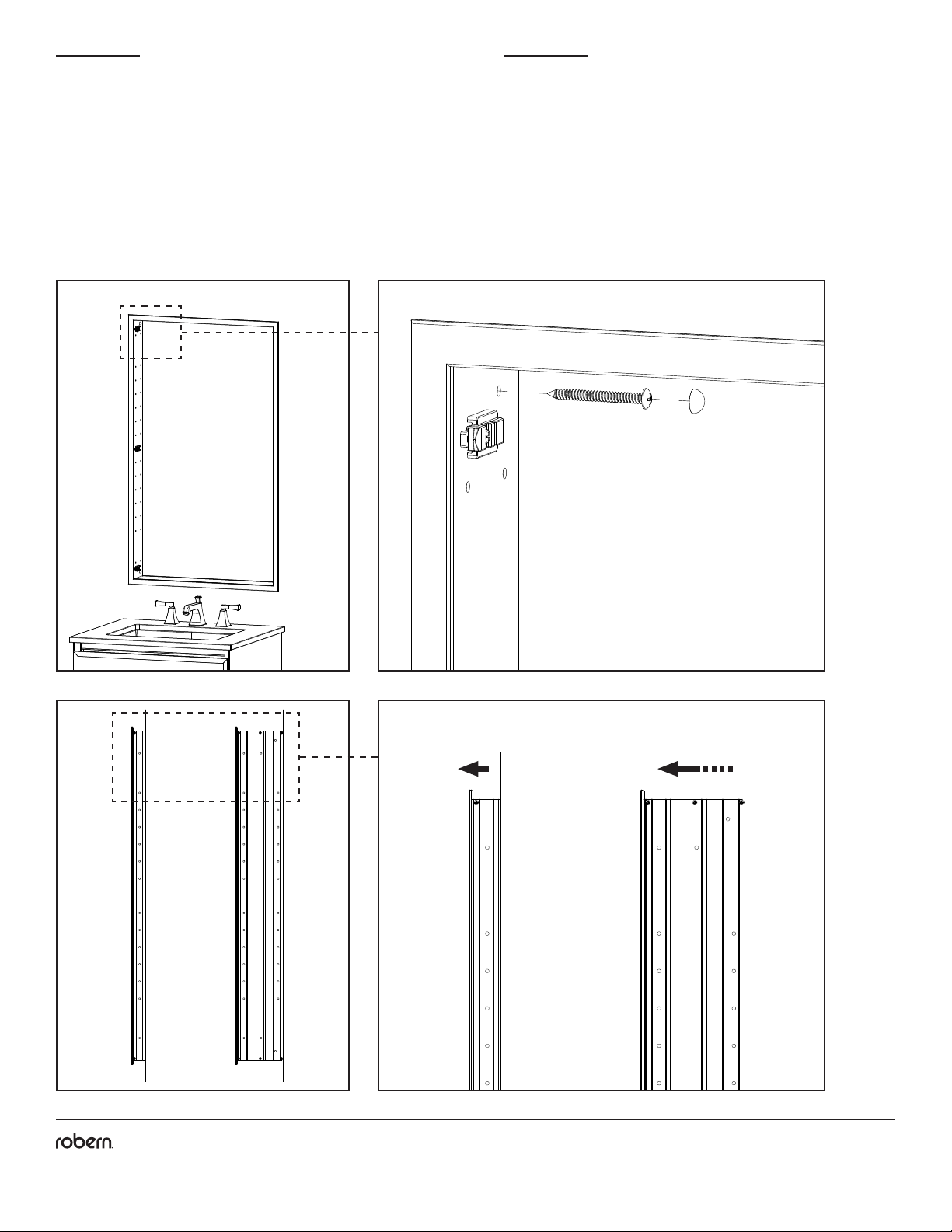

1. Remove four mounting screws from the cabinet box and save for reinstallation of cabinet.
2. Partially remove the cabinet from the rough opening until the required shelf holes are accessible.
EXISTING RECESSED INSTALLATION
2D4
1
D6 / D8

5Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
NOTE: For cabinets with electrical options, turn breaker o󰀨 before beginning.
NOTE: Remove door from cabinets before beginning.

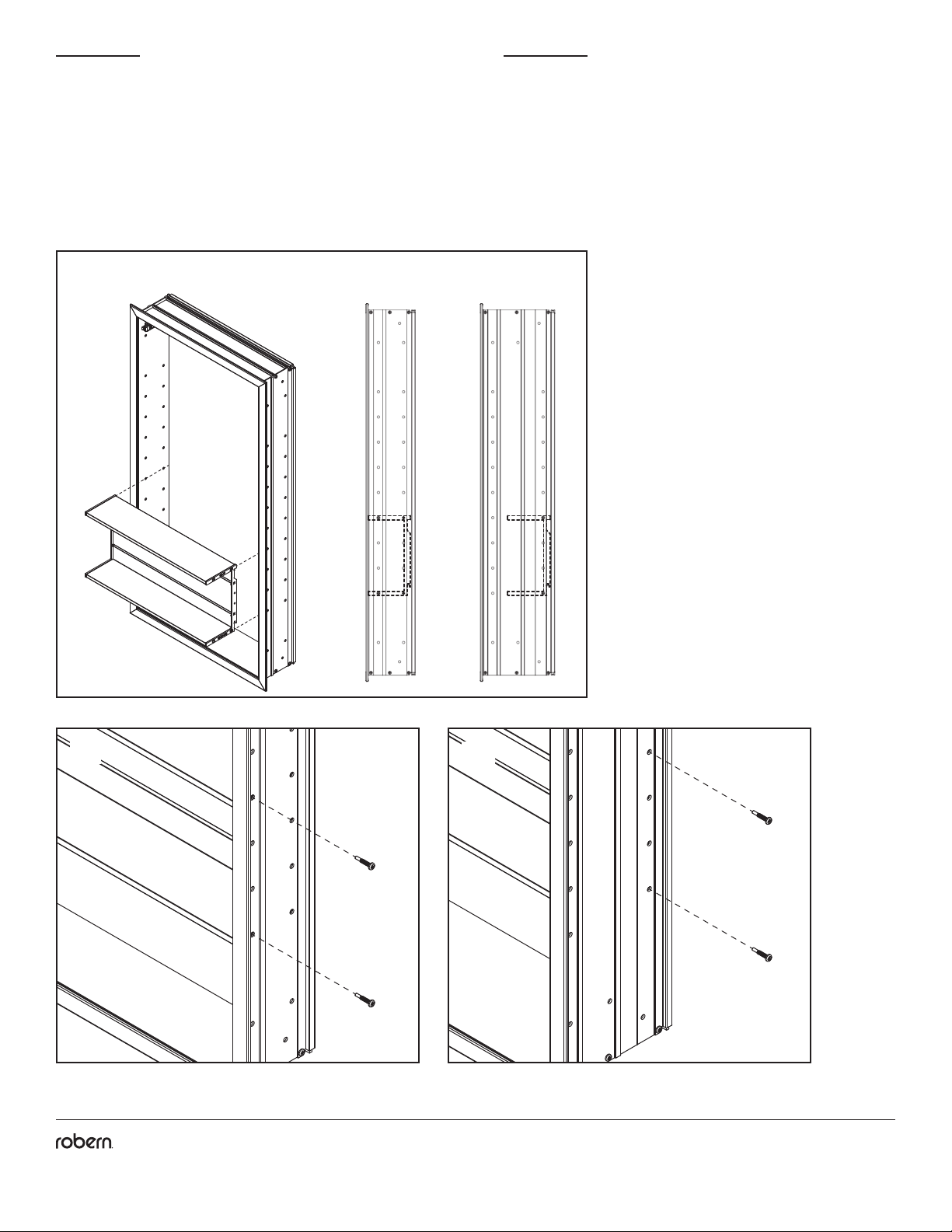

1. Remove four screws holding each side kit to the cabinet box and save for side kit reinstallation.
2. Remove side kits and set aside in a safe location.
EXISTING SURFACE INSTALLATION
2
1

6Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
NEW INSTALLATION: PLM CABINETS
NOTE: Remove door from cabinets before beginning.

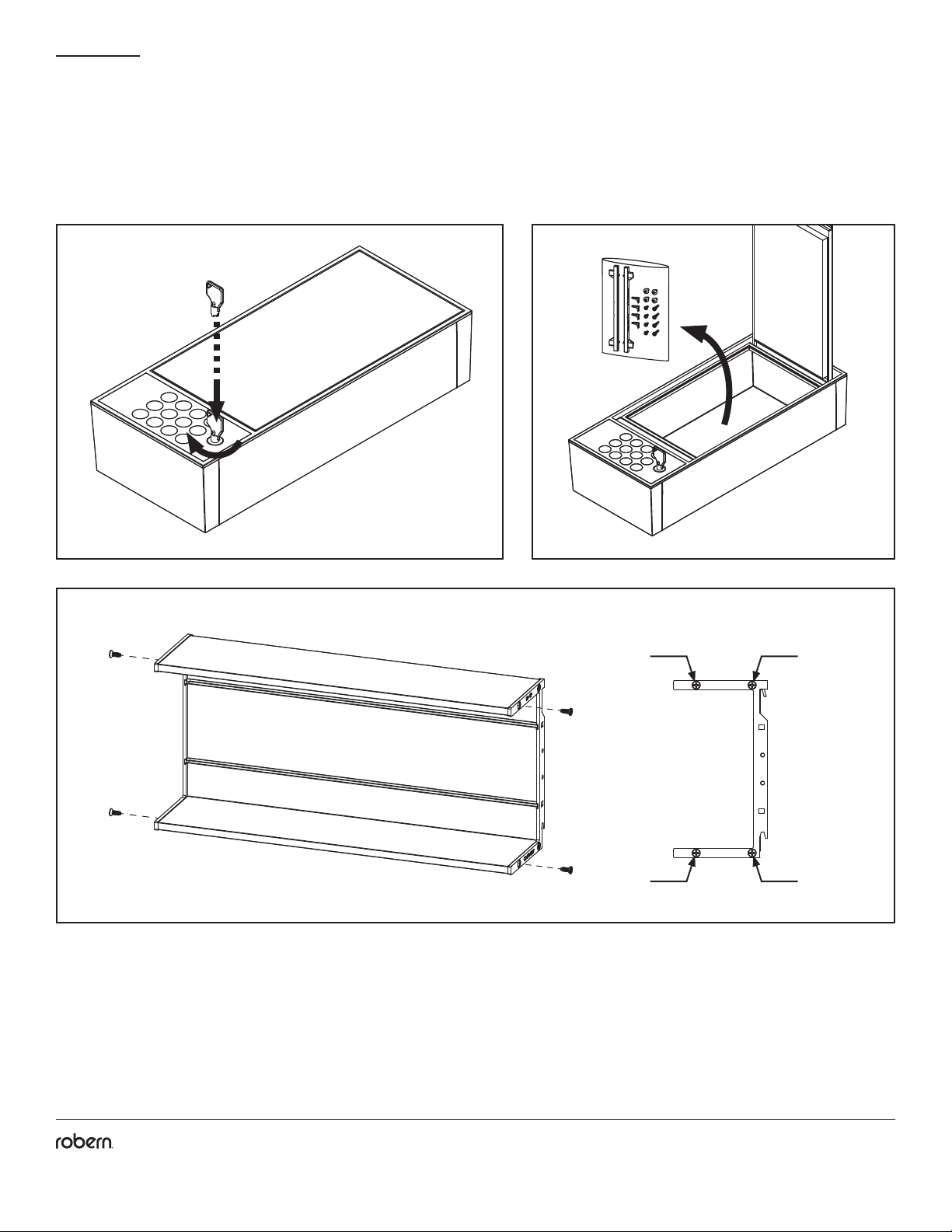

1. Using the key provided, open the digital lock box and remove the hardware bag.
2. R emove two of the four screws from each side of the lock box shelf according to your cabinet depth.
1
2
D4
D4
D6 /D8
D6 / D8

7Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
NEW INSTALLATION: PLM CABINETS
3. Inse rt lock box shelf into cabinet at your preferred height aligning it to the shelf pin holes in the cabinet box.
4. Attach the lock box shelf to the cabinet box using the four #6 x 3/4" screws [SS125] provided.
3D6 / D8D4
D4 D6 / D8
4a 4b
NOTE: Proceed to nal section, FINISH THE INSTALLATION.

8Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
NEW INSTALLATION: R3/ UPLIFT TECH
2a 2b
1
NOTE: Remove door from cabinets before beginning.
1. Using the key provided, open the digital lock box and remove the hardware bag.

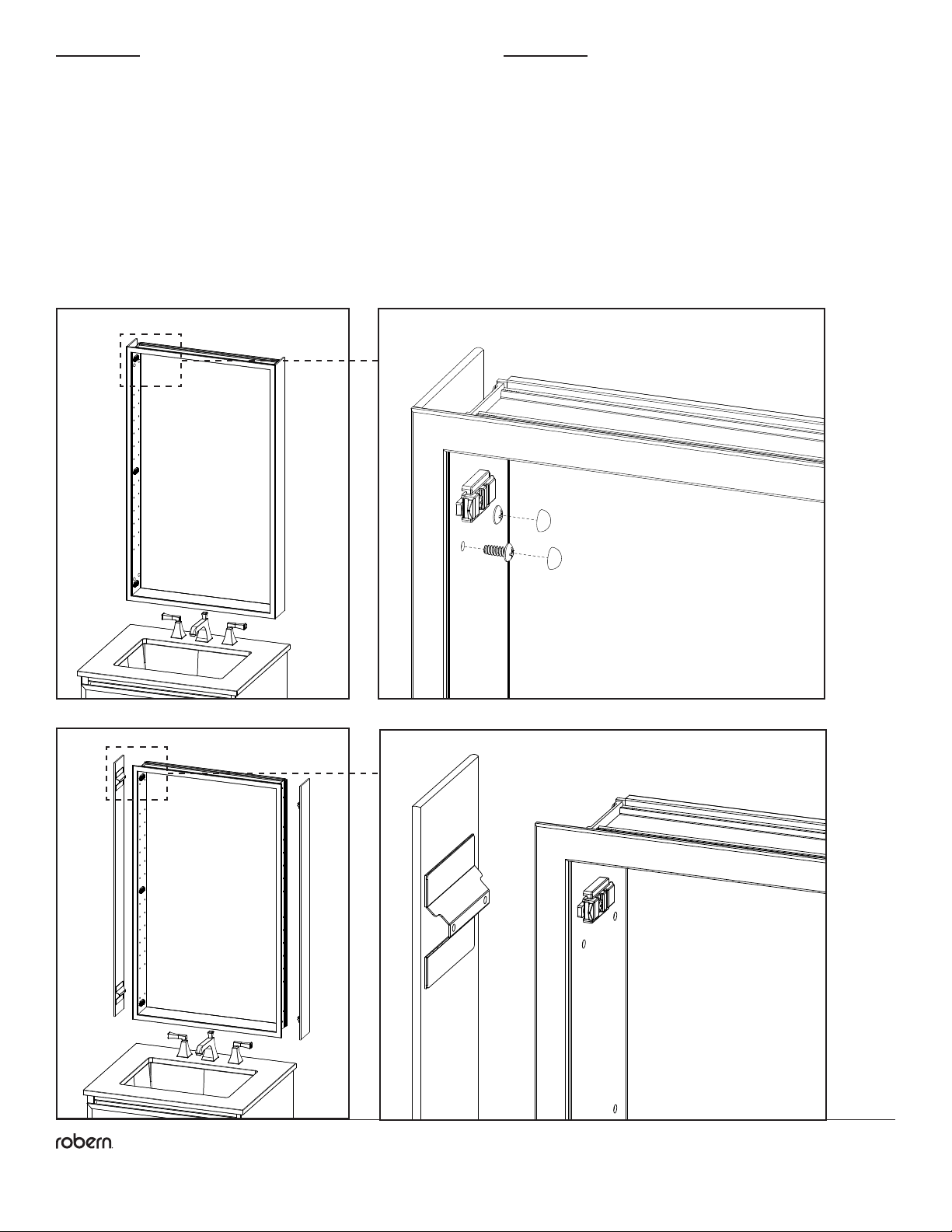

2. Position and insert mounting blocks into each side of the cabinet at your preferred height and secure with two screws [203-1493] in
each mounting block.
NOTE: Arrows on mounting blocks should be pointed toward back of cabinet box.

9Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
3. Insert lock box shelf into cabinet slightly above the mounting blocks. Gently press the shelf against the back of the cabinet box and
then slide down until the shelf engages with the mounting blocks.
4 Insert the four locking pins [211-1328] provided, two pins per side.
3
4
NEW INSTALLATION: R3/ UPLIFT TECH

10 Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
FINISH THE INSTALLATION

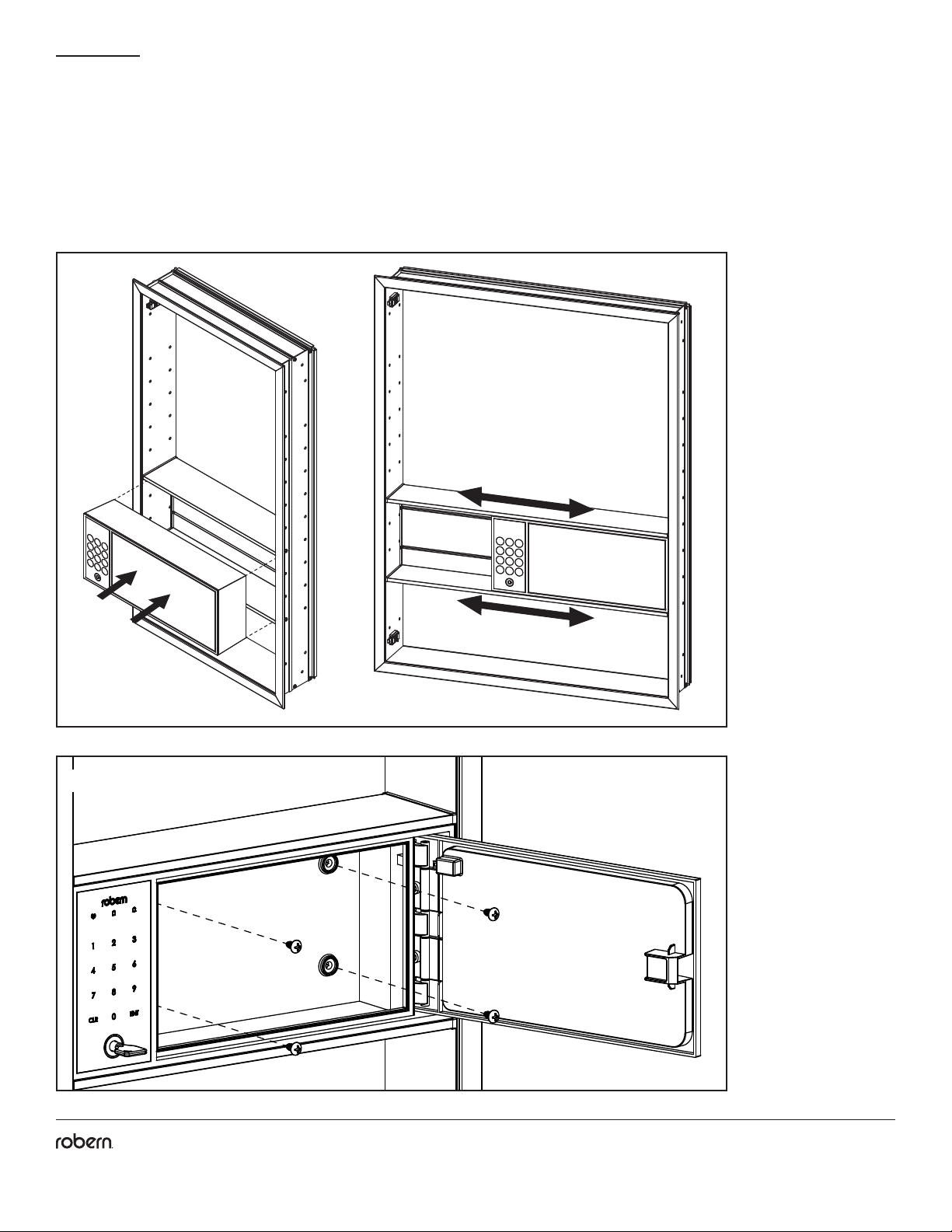

5. Once the shelf is secured, insert the lock box. If your shelf is wider than the lock box, adjust the lock box to your desired position,
side to side, within the cabinet.
6. Secure the lock box into the shelf using the four #10 x 3/8" screws [203-1492] provided.
7. Proceed according to Cabinet's Installation Instructions.
8. To set up and activation of the lock box, refer to the quick start guide.
5
6

11 Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
USE AND MAINTENANCE
CLEANING
Use only a damp cloth to clean. Ammonia or vinegar-based cleaners can damage mirrors.
A 50/50 solution of water and isopropyl alcohol is recommended for cleaning the mirrors.
When cleaning, spray the cloth, not the mirror or surround surfaces. Do not use abrasive cleansers on any part of the cabinet.
Please refer to the IQ Digital Lock Box Quick Start Guide [217-1382] for setup and use instructions.
When ordering replacement keys, have the Serial Number and Security Registration Code available.
This information can be found on the Registration Card and on the label on the rear of the Digital Lock Box.
NOTE: It is strongly recommended that the Registration Card be kept in a safe place for future reference.
No Ammonia
Sans Ammoniac
Sin Amoniaco
No Vinegar
Sans Vinaigre
Sin Vinagre
Limited Warranty One Year Term
Robern warrants to the original purchaser that, it will, at its election repair, replace, or make appropriate adjustment to products made
by this company shown to have signicant defects in material or workmanship which are reported to Robern in writing within one (1)
year from the date of delivery. Robern is not responsible for installation costs. The warranty is void in the event the product is damaged
in transit, or if damage or failure is caused by abuse, misuse, abnormal usage, faulty installation, damage in an accident, improper
maintenance, or any repairs other than those authorized by Robern. At the expiration of the one year warranty period, Robern shall be
under no further obligation under any warranty, expressed or implied, including the implied warranty of merchantability. Robern shall
not be liable for any consequential damages arising out of or in connection with the use or performance of its products. Some states
do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Any liability against Robern under any implied warranty, including
the warranty of merchantability, is expressly limited to the terms of this warranty. Permission to return any merchandise under this
warranty must be authorized by Robern and returned prepaid by the purchaser. Claims under this warranty should be sent directly to
your dealer.
©2020 Robern, Inc.
All rights reserved
WARRANTY

12 Part no. 209-1313 07/23/2020
IQ Digital Lock Box
© 2020 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
RF Exposure Statement
This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated
with a minimum distance of 20cm between the radiator and any part of your body.
FCC Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from that to wh ich the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Industry Canada Statement
This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
COMPLIANCE
