1SERVICE AND INSTALLATION
Installation and Servicing Instructions
THIS APPLIANCE IS FOR USE WITH NATURAL GAS ONLY
IT MUST NOT BE USED WITH ANY OTHER TYPE OF GAS
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE RULES IN FORCE
(Cat I G20 at 20mbar Supply Pressure)
H
For GB & IE only
INSTALLER - PLEASE LEAVE THESE INSTRUCTIONS WITH THE USER
2
RADIANT/CONVECTOR GAS FIRE
BRONZE (G.C. No. 32 689 32)
BLACK (G.C. No. 32 689 33)
FIRECHARM LF ELECTRONIC
987618 Issue 5

Robinson Willey
Firecharm and Sahara Live Fuel Effect Gas Fires
The efficiency of this appliance has been measured as specified in BS 7977-1:2002 and the result is 79.4%. The
gross calorific value of the fuel has been used for this efficiency calculation. The test data from which it has been
calculated has been certified by Notified Body No.0087. The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The above exceeds the minimum rquirement of 63%.

2
INTRODUCTION
The FIRECHARM is a glass fronted radiant/convector fire with live coal effect. The outer case is finished in either black or bronze.
The control and burner systems are designed to give varying decorative flames at different settings. Ignition is by battery spark
generator operated by turning and pressing the control knob. The fire is fitted with combined flame supervision and oxygen
depletion monitoring device. The fire may be hearth or wall mounted and is suitable for installation to brick chimneys, pre-cast
flues or proprietary metal flues/flue boxes conforming to BS 715. The fire is for use on Natural Gas only.
GAS SAFETY (INSTALLATION AND USE) REGULATIONS.
It is the law that all gas appliances are installed by competent persons, i.e. Gas Safe registered Engineer, in accordance with
these installation instructions, all the relevant parts of the local and national Building Regulations and all recommendations of the
following British Standard Codes of Practice:
1. BS 5871 : Part 1
2. BS 5440 : Part 1 (Flues)
3. BS 5440 : Part 2 (Air Supply)
4. BS 715 & BS EN 1856
5. BS 6891
6. BS EN 1858 ( and older pre-cast flues to BS : 1289 : 1975 BS 1289 : Part 1 : 1986 and BS 1289 : Part 2 : 1989
7. The Building Regulations issued by the Department of Environment and the Building Standards (Scotland) (Consolidation)
Regulations issued by the Scottish Development Department.
8. Any other relevant British Standard Code of Practice and/or Local Building Regulations, or in accordance with the rules in
force.
NOTE: Purpose built ventilation is not normally necessary in G.B.. It is required in I.E., where the installation must be in
accordance with IS 813.
, )
This product uses fuel effect pieces containing Refractory Ceramic Fibre (RCF), which are man-made vitreous silicate fibres. Excessive
exposure to these materials may cause temporary irritation to eyes, skin and respiratory tract, consequently, it makes sense to take care
when handling these articles to ensure that the release of dust is kept to a minimum.
To ensure that the release of fibres from these RCF articles is kept to a minimum, during installation and servicing we recommend
cleaning should be carried out in a well-ventilated area or in the open air, by gently brushing with the pieces held away from your face
so that you avoid inhaling the dust. We do not recommend the use of a normal domestic vacuum cleaner, which may blow dust back
into the air. If a vacuum cleaner is recommended for use by your organisation, you must use a HEPA filtered vacuum to remove any dust
and soot accumulated in and around the fire before and after working on the fire. When replacing these articles we recommend that the
replaced items are not broken up, but are sealed within heavy duty polythene bags, clearly labeled as RCF waste. This is not classified
as "hazardous waste" and may be disposed of at a tipping site licensed for the disposal of industrial waste. Protective clothing is not
required when handling the articles, but we recommend you follow the normal hygiene rules of not smoking, eating or drinking in the
work area and always wash your hands before eating or drinking.

3
SPECIFICATIONS
1.0 TECHNICAL DATA

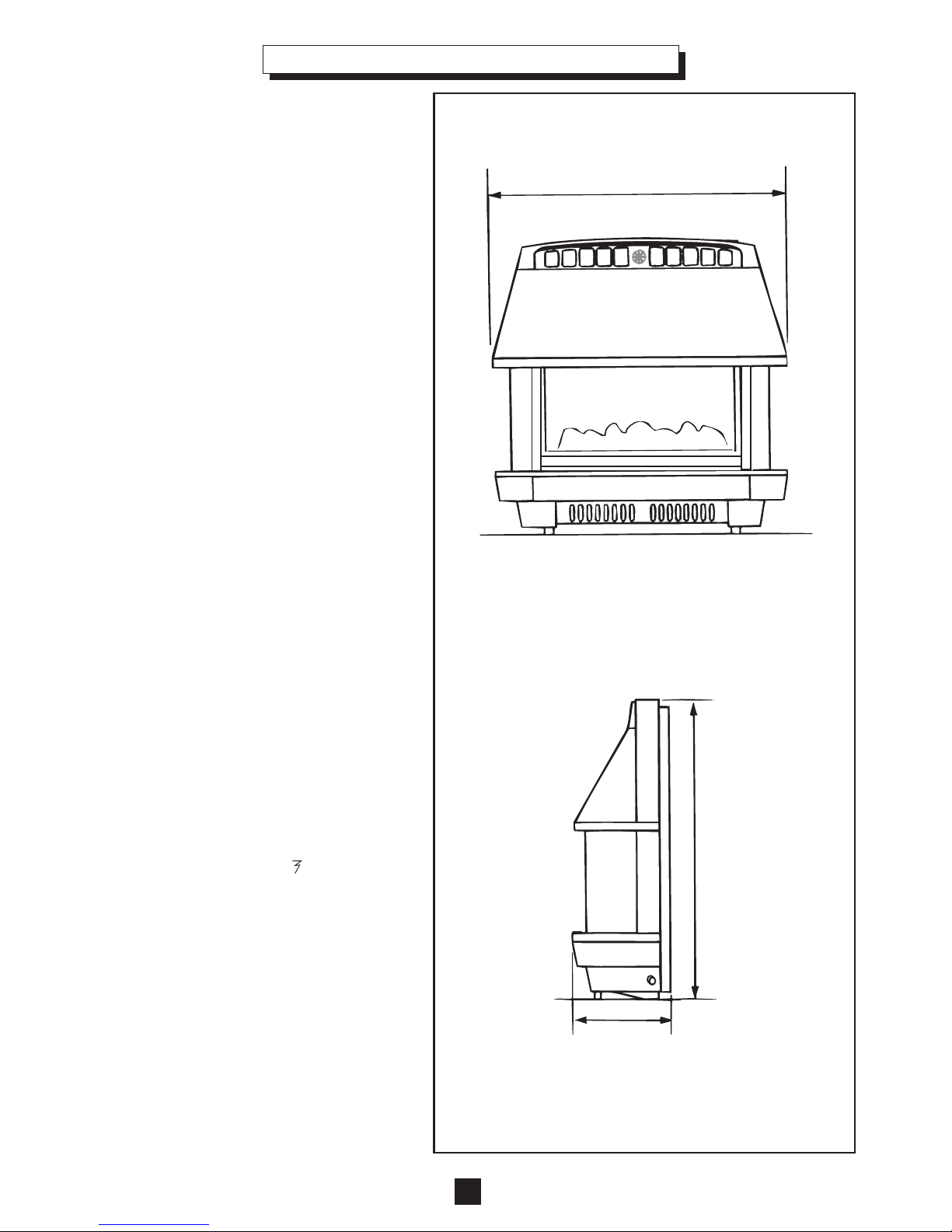

1.1 OVERALL DIMENSIONS (mm)
Height 635
Width 650
Depth 241
Height to top
of flue spigot 495
1.2 HEAT INPUT/OUTPUT (GROSS)
Maximum input 5.57kW 19000 Btu/h
Maximum output 4.4kW 15012 Btu/h
Minimum input 1.55kW 5289 Btu/h
Minimum output 0.83kW 2822 Btu/h
Setting Pressure (Full on)
Cold 17.0 mbar ± 1
6.8in w.g. ± 0.4
Supply Pressure 20 mbar
8in w.g.
1.3 BURNER - Aerated Duplex Burner
Aeration Adjustment - None
Injector (2 off) - Cat 77/200
Ignition - Battery Spark
Generator
Control Tap - RW SP822240
1.4 SETTING - OFF, , 1, 2, 3, AND 4.
1.5 WEIGHT (Packed) - 23.5kg 51.7lb
Fig. 1A
Fig. 1B
650mm
635mm
241mm

SITE REQUIREMENTS
2.0 SITE REQUIREMENTS
2.1 THE FIREPLACE AND SURROUND
The fireplace must be of non-combustible material having an opening size to the dimensions shown in Fig. 3A for Hearth Mounting
and Fig 3B for Wall Mounting respectively. It is IMPORTANT that there is no combustible material or cladding in the vertical flat area
shown in dotted lines in Figs. 3A and 3B. The fire should be installed so that no part of the combustible side wall is less than
508mm (20in) from the radiant source. If this is not possible, the combustible side wall must be suitably protected.
Some curvature of the surround is permissible but should this mean that there would be a gap between the back of the fire and the
surround exceeding 13mm (1/2in) then a flue spigot extension (not supplied) must be used. The maximum projection of the spigot
extension measured from the back of the fire is 150mm (6in).
The fire is suitable for use with lightweight surrounds whose continuous working temperature is not less than 100°C.
A wooden shelf may be fitted above the fire. The underside of any combustible shelf of 150mm (6in) depth must be at least 150mm
(6in) above the top of the fire. For shelves of greater depth allow an increase of 13mm (1/2in) in shelf height for every 25mm (1in) in
shelf depth. A minimum clearance of 75mm (3in) measured from the case side is required at each side for access/servicing, e.g.
changing the battery.
4
Fig. 2
150mm
130mm
75mm

5
SITE REQUIREMENTS
(a) HEARTH MOUNTING (Fig. 3A)
The hearth must be non-combustible material at least
13mm (1/2in) thick and measuring at least 670mm
(263/8in) wide by 300mm (12in) deep with the fireplace
opening central. Its top surface should preferably be
50mm (2in) above the floor level to discourage placing
of rugs or carpets over it. Combustible cladding must
be removed to a height of 600mm (235/8in) and a width
of 400mm (153/4in).
(b) WALL MOUNTING (Fig. 3B)
The fire may be fitted onto a suitable non-combustible
wall so that the top of the spigot opening in the closure
plate is at least 595mm above the finished floor level.
Fig. 3A
Fig. 3B
Vertical Flat Area 400mm
300/457mm
Fireplace
Opening
508mm min
640mm max
600mm
165mm
670mm
13mm
300mm
50mm
NB If a new fireplace
opening is being
constructed, the
dimensions should be
508mm high x 300mm wide.
Vertical Flat Area
400mm
300/457mm
Fireplace
Opening
495mm min
640mm max
600mm
610mm
165mm

6
SITE REQUIREMENTS
2.2 BRICK CHIMNEY
228mm x 228mm (9in x 9in)
A chimney previously used to burn solid fuel must be
swept prior to installation.
The chimney must be inspected to ensure that:-
(a) It serves only one fireplace.
(b) It is properly sealed so that combustion products
do not escape from the flueways into the room.
(c) It is not blocked by paper, rubble etc.
(d) Any restriction such as a damper, register plate
etc. must be removed or secured in the fully open
position.
(e) Any underdraught ventilation or additional air
supply entering the fireplace or on the hearth must
be sealed off.
(f) The cross section area of the flue must not be less
2 2
than 120cm (19in ).
(g) It must have a positive updraught.
(h) It must have at least a 3 metre effective flue height.

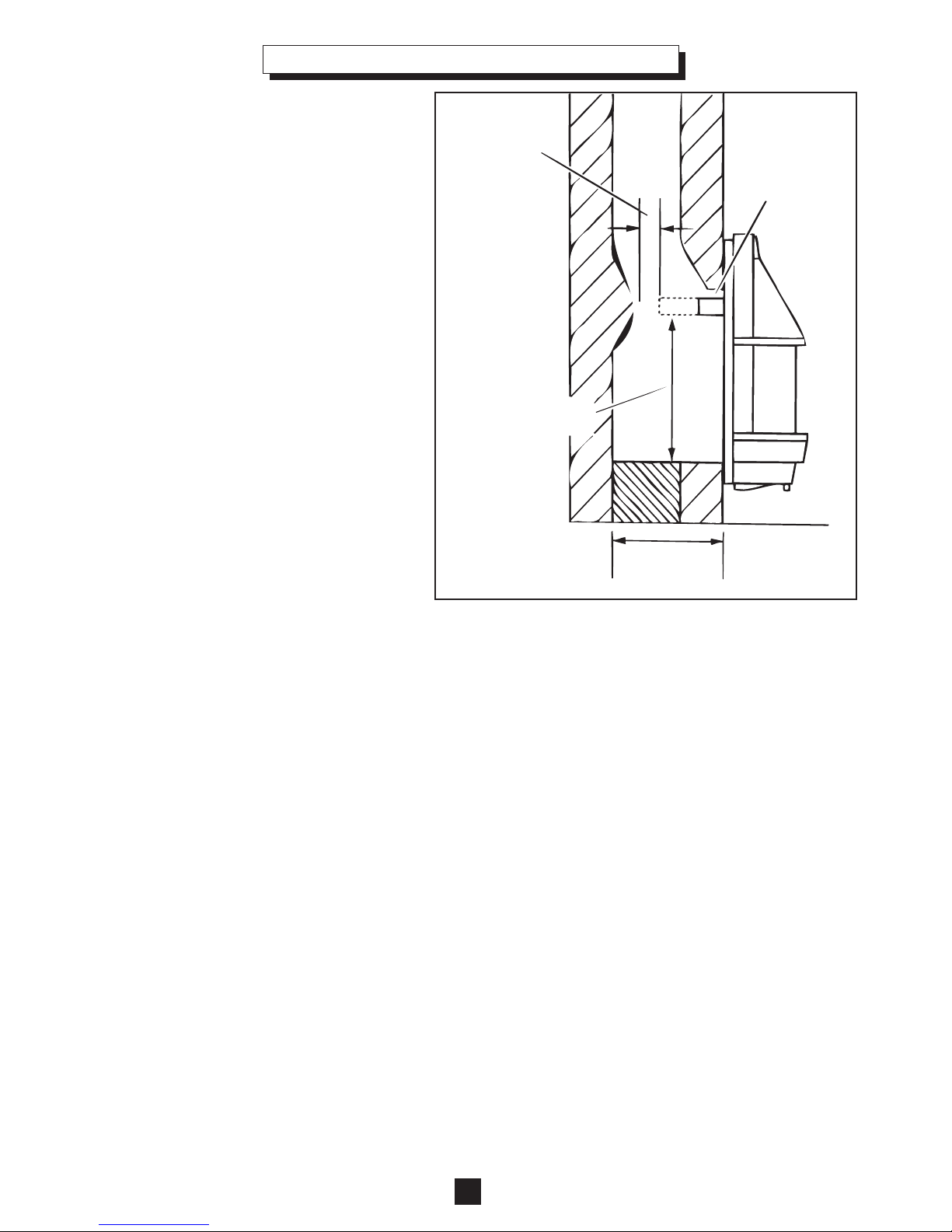

2.2.1 Fireplace Dimensions (Fig. 4)
The dimensions of the catchment space behind the
closure plate must meet the following requirements:-
(a) The flue spigot/spigot extension must pass
through the closure plate by at least 25mm (1in)
and have a minimum clearance of 50mm (2in)
between its open end and the nearest obstruction.
(b) The catchment space below the flue spigot must
be at least 250mm (10in) deep measured from the
bottom of the flue spigot to the top of the
catchment space or any "bricking up" at the
bottom of the fireplace opening.
(c) There must be a minimum clearance of 165mm
(61/2in) between the back of the closure plate and
the fireplace back brick.
(d) The top of the spigot must be at least 13mm (1/2in)
below the top edge of the fireplace opening.
(See Fig. 4).
(e) Ensure that the base of the fireplace is level with or
lower than the hearth.
Well not less than
250mm deep
Minimum
165mm
Minimum
of 50mm
Minimum
of 13mm
Fig. 4

7
SITE REQUIREMENTS
2.3 PRE-CAST FLUE OF MINIMUM CROSS SECTION
198mm x 67mm (73/4in x 25/8in ) (Fig. 5)
The fire is suitable for installation into a properly
constructed pre-cast flue conforming to the standards
listed on page 2, item 6, of at least 3m (10ft) effective
height and having flueways of at least 198mm x 67mm
(73/4in x 25/8in) or equivalent cross sectional area with
no dimension less than 63mm (21/2in)
The fireplace opening width must be between a
maximum of 457mm and a minimum of 300mm. The
opening height must be between a maximum of 650mm
and a minimum of 508mm and a depth of at least
100mm.
Ensure that any mortar fangs between the blocks do not
protrude into the flueways and, if raking blocks are
used, they are fitted according to the manufacturers
instructions and mortar is not allowed to drop down and
accumulate in the raked positions.
2.4 TWIN WALLED FLUES (Fig. 6)
This fire may be installed in a double walled or insulated
metal box with a twin walled or insulated flue built to the
requirements of BS 715 and BS EN 1856 respectively, at
least 125mm (5in) in diameter and a minimum effective
height of 3 metres (10ft). The depth of the opening must
be at least 165mm.
Fig. 5
650mm max
508mm min
457mm max
300mm min
100mm min
125mm ID
598mm
570mm
165mm
300mm max
457mm min
Fig. 6

8
INSTALLATION
3.0 INSTALLATION
3.1 UNPACK THE FIRE AND ACCESSORIES
1. Remove the top fitment.
2. Lift the carton clear of the fire pack.
3. The fire is packed fully assembled except for:-
(i) Closure plate - in the rear cardboard fitment.
(ii) The accessory pack, in the LH base fitment
contains:-
Spigot
Spigot Restrictor
Control knob adaptor
(iii) Coal Bed - in cardboard fitment inside fire.
Check these items and keep in a safe place.
3.2 FIT THE CLOSURE PLATE (Fig. 7)
IMPORTANT NOTES
(a) It is recommended that in the event of the
proprietary closure plate not being available on
site, one should be obtained from British Gas or
your local Supplier.
(b) The top of the closure plate may be trimmed to
prevent sealing tape being seen above the fire
Ensure that there is at least 10mm overlap on the
fireplace opening. When wall mounting, it may be
necessary to trim the bottom of the closure plate to
prevent it showing below the fire.
After trimming a new air relief opening 100mm
wide x 37mm high must be cut in such a position
that it is unobstructed by any brickwork.
(c) If a hole is cut in the closure plate for access to
gas supply pipe, seal the opening between the
gas pipe and the closure plate.
A - 660mm
B - 460mm
C - 498mm
D - 40mm
E - 240mm
F - 100mm
G - 37mm
Fig. 7
G
F
B
E
A
D
C
Closure plate - trim off top and bottom as necessary
whilst ensuring that the fireplace opening is fully
covered. A new air relief opening must be cut in the
closure plate to the required size.

9
INSTALLATION
3.2.1 When Hearth Mounting
Fit the closure plate centrally across the fireplace
opening and seal all four edges
3.2.2 When Wall Mounting
Ensure that the top of the spigot opening is at least
595mm above the finished floor level and at least 13mm
below the top edge of the fireplace opening and that the
air relief opening is unobstructed. Fit and seal the
closure plate as described in Section 3.2.1.
3.3 CHECK THE FLUE PULL
Apply a lighted match, lighted paper or smoke match to
the spigot opening in the closure plate. Observe if there
is any up or down draught and if there is a definite flow
into the spigot opening in the closure plate, proceed
with fitting the fire. Any tendency to downdraught must
be corrected. If no flow is indicated, heat the chimney
with, for example, a roll of burning paper or a blow lamp
for two or three minutes. If there is still no definite flow
into the spigot opening, the chimney may require
attention:
DO NOT FIT THE FIRE - SEEK EXPERT ADVICE
3.4 PREPARATION OF FIRE
3.4.1 Remove Outer Case
Stand the fire upright. Pull off the control knob. The
outer case is held to the backplate by four screws, two
on each side. Undo the four screws. Lift the outer case
to clear the knob spindle, ease it out and put in a safe
place.
3.5 FIT FLUE SPIGOT (Fig. 8)
(and Flue Spigot Restrictor if required)
The flue spigot consists of two identical pieces and is
held to the back of the fire by six screws. The six
screws, are already fitted around the flue outlet. Remove
the top three screws but only loosen the bottom screws.
Loosely secure the upper part of the flue spigot with the
top three screws. Remove the bottom three screws and
fix the other part of the flue spigot, sliding the side
flange up the side of the upper part of the flue spigot.
Tighten all six screws, the spigot restrictor is fitted using
the two screws located immediately below the spigot, so
that it restricts the lower part of the spigot.
If required a flue spigot extension is permissible up to a
maximum projection of 150mm (6in) from the back of
the fire. The spigot restrictor is NOT to be fitted if an
extension is used.
Fig. 8
SPIGOT
SPIGOT
RESTRICTOR

10
INSTALLATION
3.6 FLUE SPIGOT RESTRICTOR (Fig. 8)
(a) Standard 228mm x 228mm (9in x 9in) brick
chimney. The flue spigot restrictor must not be
used if the chimney height is less than 4.3m (14ft)
or if poor draught is suspected. If over 4.3m (14ft)
in height with good draught, the flue spigot
restrictor (Fig. 8) must be fitted.
(b) Pre-Cast Flues.
The flue spigot restrictor must not be used.
(c) 175mm (7in) and 125mm (5in) diameter lined
flues. The requirements in (a) apply.
3.7 FIT GAS FIRE
3.7.1 Hearth Mounting
Place the fire in position against the wall. Levelling
screws are fitted on the front legs and can be adjusted
to take up any irregularities in the hearth. They should
be locked after adjustment using the lock nuts provided.
If the fire is fitted in a well type hearth, ensure that any
kerb on the hearth does not obstruct the air inlet to the
appliance.
3.7.2 Wall Mounting (to a non-combustible wall)
Undo the locknut on each of the levelling screws fitted
to the legs and adjust the screws upwards as far as
possible. It is essential that the minimum clearance from
the floor level as indicated in Fig. 9 is observed. Keyhole
slots and securing holes are provided in the backplate
of the fire. These holes are suitable for size 10 rawplug
fixing, using 50mm (2in) No. 10 round head screws (not
supplied). Drill and plug the wall at four fixing point
positions (Fig. 9). Partially insert the top two screws and
mount the fire to the wall via the keyhole slots. Secure
the fire by fitting the lower two screws and fully
tightening the four screws.
Fig. 9
590mm
C/L spigot
opening
225mm
Minimum distance
between lower
fixing holes
and floor
Closure plate - trim top and bottom as necessary
whilst ensuring that the fireplace opening is fully
covered. A new air relief opening must be cut in the
closure plate to the required size.
240.5mm
Backplate of fire

11
INSTALLATION
4.0 CONNECT TO GAS SUPPLY
NOTE: (i) The appliance must be connected to
gas with rigid or semi rigid tubing.
(ii) The fire is fitted with an ‘isolating inlet
elbow’ for servicing.
(iii) Remove tray for access.
4.1 MAKE GAS CONNECTION
The gas inlet is suitable for right hand, left hand or
concealed connection. Connect the fire to the gas
supply via the union elbow provided. This union elbow
should be fitted to the end of the supply pipe then held
in position under the flare nut whilst this is engaged.
Reach beneath the burner to perform this operation.
Tighten the flare nut with a spanner. The inlet elbow has
a nut and olive supplied, suitable for 8mm supply pipe.
4.2 TEST FOR GAS SOUNDNESS
(Refer to B.S. 6891)
The gas installation, including the meter, should be
inspected and tested for soundness and purged.
4.3 TEST FOR CORRECT SETTING PRESSURE
Temporarily fit the control knob.
Remove the pressure test point sealing screw located in
the control tap and attach a pressure gauge to the test
point. Light the fire and leave on at full rate (Refer to
Users Instructions). Check that the burner pressure is
17.0 mbar (6.8in w.g.) ± 1.0 mbar (0.4in w.g.). If it is not,
take the pressure at the meter to determine if there is a
restriction in the installation pipework, or whether other
appliances served by the same meter are starving the
gas fire. Check that the flames on the outer section of
the burner are blue, and those of the inner section
slightly yellow tipping - as a result of the air shutter fitted
over the top half of the burner aeration port.
Turn off the gas, remove the pressure gauge and
replace the pressure test point sealing screw. Test for
gas soundness around the sealing screw.

12
INSTALLATION
5.0 FIT REMAINING COMPONENTS
5.1 REFIT THE BURNER TRAY
5.2 FIT THE COAL BED
Fit the coal bed into the firebox as shown in Fig. 11
ensuring it is located behind the metal front rail.
5.3 FIT THE GLASS DOOR
Do this by inserting the top into the top clip of the
firebox and guiding the lower holes over the firebox
studs. Retain the glass door using the domed nuts
provided.
5.4 REFIT THE OUTER CASE
This is done by placing it over the fire and refitting the 4
screws. Replace the control knob.
6.0 TEST FOR SPILLAGE
A spillage test must be made before the installed fire is
left with the user. Proceed as follows: after removal of
glass door mask (refer to Users Instructions).
Light the fire and leave on at full rate. Close all doors
and windows in the room and after the fire has been
alight for 5 minutes insert a lighted smoke match held in
a tube under the glass (Fig. 11) from the right or left
side. The tube is positioned against the side panel and
the smoke match must be in the gap at the bottom of
the glass and 25mm from the right (or left) side of the
door. If the smoke is drawn into the fire the installation is
satisfactory. note: the smoke will be drawn in ‘lazily’, as
the fire is fitted with a ‘flue break’ on the back. If the
smoke is not drawn into the fire leave it running for 10
more minutes and repeat the test. If the smoke is still
not drawn in check the sealing of the closure plate and if
this is satisfactory remove the spigot restrictor. If the
spigot restrictor has been removed re-fit the fire and
check again for spillage. If spillage persists DO NOT
LEAVE THE FIRE - SEEK EXPERT ADVICE AND
DISCONNECT THE FIRE.
If there is a fan or fan operated appliance in a nearby
room then repeat the spillage test with the fan running
and inter-connecting doors between the fan and the fire
left open. If the fan and the fire are in the same room
then repeat the spillage test with the fan on and doors
and windows closed.
After the spillage testing has been performed re- fit the
door mask.
Fig. 10
Fig. 11
25mm

13

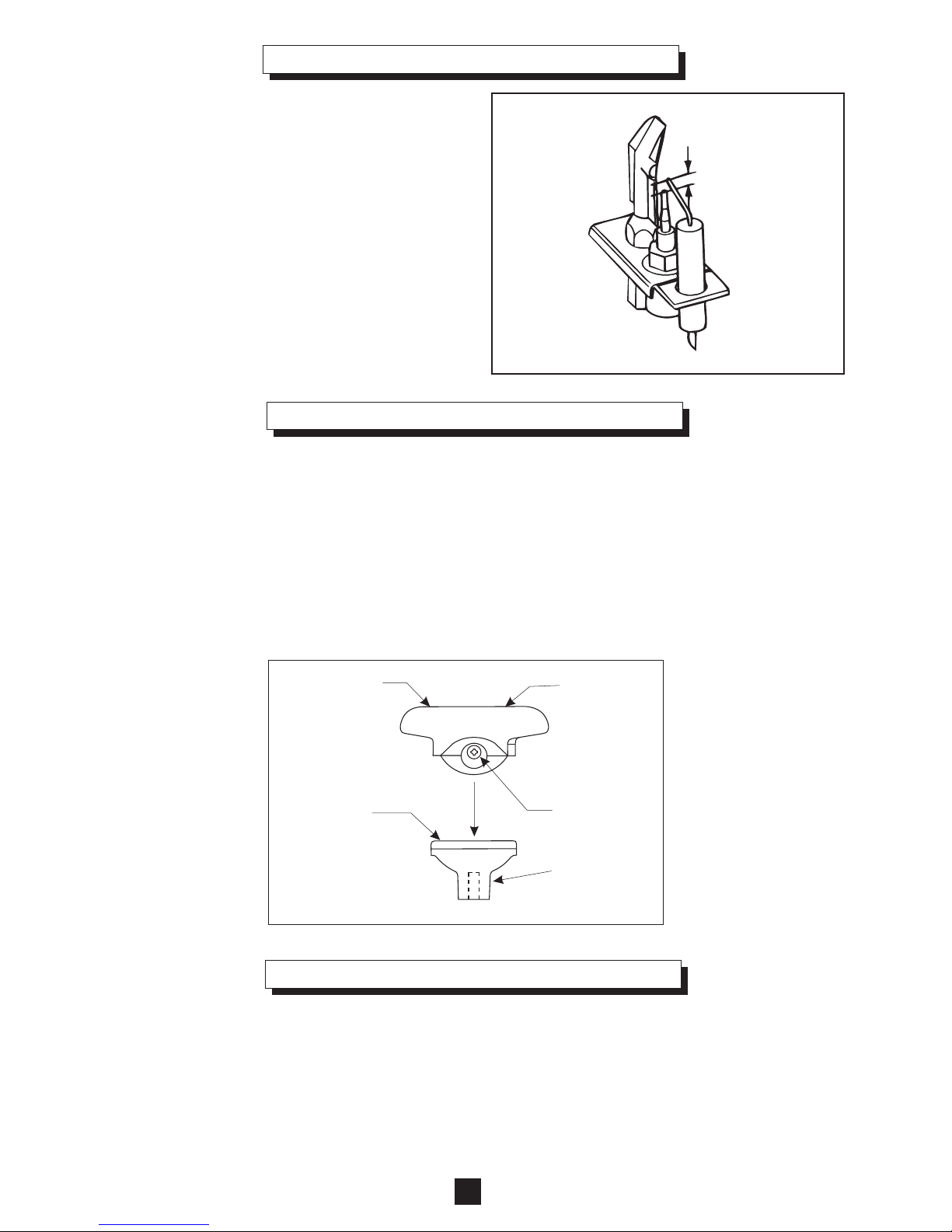

WHITE INDICATOR
DIMPLE TO BE
ABOVE ‘OFF’
MARK ON
CONTROL KNOB
ADAPTOR
SECURING SCREW
CONTROL KNOB
‘OFF’ MARK ON
CONTROL KNOB
Fig. 13
INSTALLATION
INSTRUCT USER
6.1 CHECK IGNITION
Check that ignition of the pilot and the cross-lighting to
the main burner is satisfactory.
N.B. The spark gap between the electrode and
thermocouple tip should be between 3.5 and 5.5mm
(See Fig. 12).
6.2 CHECK OPERATION OF FSD
Leave the fire running on full rate for 5 minutes then turn
off. After 3 minutes turn the gas tap to the full on
position. If the gas has stopped flowing the FSD is
satisfactory.
NOTE: You may hear the FSD valve close within the 3
minute period but always check that the gas has
stopped flowing by turning the gas tap to the full on
position.
7.0 MAKE SURE THE USER KNOWS THAT:
1. The fire has a pilot burner and the control knob must be pressed in before turning to the pilot setting and kept pressed in for
10 seconds at this setting.
2. There are 4 heat settings apart from the pilot setting.
3. The fire can be lit with a taper if necessary as detailed in the users instructions.
4. When the fire is first lit a smell may be noticed but this should pass away after a few hours at the full on setting.
5. The fire should be serviced annually by a competent person i.e.Gas Safe registered Engineer, for continuing efficient and safe
operation.
7. The control knob adaptor may be fitted to assist with the operation of the fire (See Fig. 13). Leave with the User if not fitted.
8.0 IMPORTANT NOTES
TURN OFF MAIN GAS TAP TO THE FIRE.
ALWAYS TEST FOR GAS SOUNDNESS AFTER SERVICING OR EXCHANGING ANY COMPONENT.
REMOVE THE FIRE FROM THE SURROUND AND CHECK FOR BUILD UP OF DEBRIS ON EVERY SERVICE VISIT.
CHECK THE FIRE FOR CLEARANCE OF PRODUCTS ON EVERY SERVICE VISIT.
N.B. To avoid damage to the coal bed and glass during servicing, it is recommended that these components are removed and put
in a safe place.
6. Advise the customer that they should read their Users instructions before operating the fire and always follow the
advice in the Section headed "Cleaning your Fire".
Fig. 12
3.0 - 5.0mm
SERVICING INSTRUCTIONS

14
8.1 REMOVAL OF OUTER COMPONENTS.
Remove the front panel by lifting upward and pulling forward. Pull out the control knob. Remove 4 screws 2 either side securing the
outer case and lift the case away from the fire. Remove the glass door by withdrawing the 2 dome nuts securing it then removing
the door bottom end first. Lift out the coal bed and put in a safe place.
8.2 GAS TAP/FSD ASSEMBLY
Remove the outer components (8.1 above)
(A) Removal: Withdraw the lower spring clip securing the spindle extension to the gas tap spindle and remove. Disconnect the
leads at the switch and the thermocouple nut at the bottom of the tap. Disconnect the tubing nuts on the inlet and outlet
ports on the gas tap and remove the two fixing screws, manoeuvre the tap away from its pipework.
(B) Replacement: ensure the tap is in the off position before re-engaging it on its pipework in the fire. Re-assemble in the reverse
manner ensuring that the spindle extension and knob align in the off position.
NB: Make sure the spindle washer is on the spindle extension when re-assembling.
8.3 INJECTORS
Remove the outer components (8.1 above). Remove the pipes on the main outlets of the gas tap and remove the injectors from the
burner. Replace the injectors and re-assemble in the reverse manner.
8.4 PILOT FILTER
Remove the outer components (8.1 above).
Remove the pipe connecting the pilot to the gas tap (2 nuts). The pilot filter is located in the outlet from the tap, prise it out with a
pin. Insert a new pilot filter (it may be convenient to balance the new filter on the outlet and push home using a matchstick). Re-fit
the pipe, tighten the nuts and check operation.
8.5 PILOT ASSEMBLY
The pilot is an atmosphere sensing device and must be replaced as a complete unit. Repair must not be undertaken.
NOTE: If the fire keeps going out or exhibits signs of nuisance shut off, check the operation of the pilot as follows:-
(a) Inspect the pilot flame.
(b) Check the thermocouple. If faulty replace the pilot assembly.
(c) Check the magnetic unit in the gas tap. If faulty replace the tap.
(d) Check the ventilation in the room. Vitiation may be due to lack of sufficient air supply.
(e) Check for satisfactory clearance of combustion products. Vitiation may be due to spillage of combustion products into the
room.
Remove the outer components (8.1 above). Disconnect the pilot feed tube at the pilot end. Remove the 2 screws securing the pilot
to the main burner, pull the spark lead off the electrode and release the thermocouple nut at the gas tap. Remove the pilot feed
pipe from the gas tap and pre-assemble the new pilot filter and feed pipe to the new pilot before fitting it in the fire. Re-assemble in
the reverse manner.
NOTE: If the thermocouple, the electrode or the pilot itself are faulty, it is necessary to replace the whole pilot assembly. For ease
of access, free the right hand fixing screw of the pilot shield strip.
PILOT LINT FILTER
A lint filter has been fitted to the pilot of this appliance to filter out
any dust or lint which may present in normal household room air.
If you notice that the appliance has a floppy yellow pilot flame
and/or there is difficulty in lighting the appliance then the lint filter
may need cleaning. Cleaning should be carried out by vacuuming
the dust and lint from the filter. If vacuuming alone is not successful
in curing the ignition problem then a Gas Safe registered Engineer
must be called to investigate the problem.
To remove the lint filter for cleaning or to gain access to the aeration
hole simply slide the lint filter downward. Refit by pushing up
against the pilot bracket, ensure it is crimped to hold it in place.
When supplied as a spare part the lint trap must be fitted as shown
and crimped to fix in place, ensuring it is ‘butted up’ to the pilot
bracket.
Lint Filter
ODS PILOT ASSEMBLY WITH LINT FILTER FITTED
To remove slide downward
after disconnecting the
pilot gas supply tube.
To re-fit, push up
against pilot bracket
and crimp here

SHORT LIST OF PARTS
G.C. NUMBER MAKERS PART NUMBER DESCRIPTION
159 584 992495 Pilot Assembly
379 044 822131 Pilot filter
987632 Ignition Lead
987633 Lead - switch/spark generator (2 off)
159 674 991860 Door Assembly
159 698 992318 Coal Bed
822240 Gas Tap Assembly (c/w switch)
991762 Control Knob
15
Robinson Willey
GDC Group Ltd, Millbrook House, Grange Drive,
Hedge End, Southampton, SO30 2DF.
Telephone: [phone]
E-mail: website:
Robinson Willey is a Trading Division of the GDC Group Ltd
[e-mail] www.robinsonwilley.co.uk
