Robinson Willey RIVIERA Release note

Installation & Servicing Instructions
PLEASE LEAVE THESE INSTRUCTIONS WITH THE USER
The Data Badge and Serial Number are located on the left hand side of the base panel.
Cat II G20 at 20mbar convertible to G31 at 37mbar.
2H3P For use in GB and IE.
BELVEDERE
AND
RIVIERA G C No. 32-170-23
G C No. 32-170-24

This product uses fuel effect pieces containing Refractory Ceramic Fibre (RCF), which are man-made
vitreoussilicatefibres. Excessiveexposuretothesematerialsmaycausetemporaryirritationtoeyes,
skin and respiratory tract, consequently, it makes sense to take care when handling these articles to
ensurethatthereleaseofdustiskeptto a minimum.
To ensure that the release of fibres from these RCF articles is kept to a minimum, during installation
and servicing we recommend cleaning should be carried out in a well-ventilated area or in the
open air, by gently brushing with the pieces held away from your face so that you avoid
inhaling the dust. We do not recommend the use of a normal domestic vacuum cleaner,
which may blow dust back into the air. If a vacuum cleaner is recommended for use by your
organisation, you must use a HEPAfiltered vacuum to remove any dust and soot accumulated in and
around the fire before and after working on the fire. When replacing these articles we recommend that
the replaced items are not broken up, but are sealed within heavy duty polythene bags, clearly
labelled as RCF waste. This is not classified as "hazardous waste" and may be disposed of at a tipping
site licensed for the disposal of industrial waste. Protective clothing is not required when handling the
articles, but we recommend you follow the normal hygiene rules of not smoking, eating or drinking in
thework area and always wash yourhands before eating or drinking.
Advise the customer that they should read their Users instructions before operating the fire and
alwaysfollow the advice in the Sectionheaded"Cleaning your Fire".
2 2

INTRODUCTION AND GENERAL INSTALLATION
REQUIREMENTS
TECHNICAL DATA
AVAILABLE FENDERS
AVAILABLE TRIMS
CONTENTS OF SCREW PACK
CONTENTS OF COAL PACK
CONDITIONS OF INSTALLATION
SITING GENERAL
FLUES AND CHIMNEYS
Brick Chimney, 178mm diameter (7 inch)
Stone or Lined Flue and 125mm diameter (5 inch) Flue
Pre-Cast Flue
Rebated Surround Installation
Metal Fluebox 125mm diameter (5 inch) Flues
SHELF HEIGHT AND SIDE CLEARANCES
Combustible Shelf
Non-Combustible Shelf
INSTALLATION OF FIRE
UNPACKING
PREPARATION OF FIRE
Spigot Restrictor
Fender Mask
Burner Tray
METHODS OF INSTALLATION
Fixing by Tension Cable
Fixing Directly to Surround Face
GAS CONNECTION
Concealed Connection
TEST FOR GAS SOUNDNESS
COMMISSIONING
INSTALLFUEL EFFECT COMPONENTS including
FIT TRIM AND FENDER
CHECK GAS PRESSURE
TEST FOR SPILLAGE
CHECK IGNITION
CHECK OPERATION OF FSD
INSTRUCT USER
SERVICING INSTRUCTIONS
REMOVE BURNER TRAY
MAIN BURNER INJECTOR
GAS TAPASSEMBLY
PILOT ASSEMBLY
FUEL EFFECT COMPONENTS
MAIN BURNER
CONTROL KNOB
HINTS ON FAULT FINDING
NOTEPAD
SHORT LIST OF PARTS
PAGE
4
4
5
6
7
7
8
8
8
8
9
9
11
12
12
12
12
12
12
12
13
13
14
14
14
15
15
16
17
17
19
20
20
20
21
21
21
21
21
22
22
22
22
23
24
26
CONTENTS
SECTION
1.0
2.0
2.1
3.0
4.0
5.0
5.1
5.2
5.2.1
5.2.2
5.2.3
5.2.4
5.3
5.3.1
5.3.2
6.0
6.1
6.2
6.2.1
6.2.2
6.2.3
6.3
6.3.1
6.3.2
6.4
6.4.1
6.5
7.0
7.1
7.2
7.3
7.4
7.5
8.0
9.0
9.1
9.2
9.3
9.4
9.5
9.6
9.7
10.0
11.0
12.0
3 3

1.1 DIMENSIONS
(Overall) mm
Height 595
Width 500
Depth 105
ForwardProjection 90
Heightto topof flueaperture 510
Weight 16Kg
1.2 INPUTSANDPRESSURES
NaturalGas Propane Gas
MaximumHeat Input 6.2kW 21,154 Btu/h 5.8kW 19,789 Btu/h
MaximumHeat Output 3.8kW 12,956 Btu/h 3.6kW 12,283 Btu/h
MinimumHeat Input 2.0kW 6,824 Btu/h 3.5kW 11,942 Btu/h
EfficiencyClass II II
SupplyPressure 20.0mbar 8.0 inwg 37.0mbar 14.8 inwg
SettingPressure 12.2mbar ±1 mbar 4.9± 0.4in wg 34.0 mbar± 1mbar 13.6± 0.4in wg
GasRate Adjustment NONE NONE
1.3 BURNERAND CONTROLDETAILS
MainBurner 989559 989559
PilotBurner SIT OPNG9077 SITOP LPG9255
Injector(Main Burner) BrayCat 16/460 Bray Cat10/180
Ignition ControlIntegrated PiezoSpark Ignition
ControlTap Concentric(with FSD)Model NumberTESA 2377
SparkGap 3.0mm to5.0mm
ControlKnob Settings OFF,PILOT/IGNITION, HIGH,MED, LOW,ECON
GENERAL INSTALLATION REQUIREMENTS
NOCOMPONENT OFTHIS FIREIS MANUFACTUREDFROMASBESTOSOR ASBESTOSRELATEDPRODUCTS.
THE BELVEDERE AND RIVIERA are a range of open fronted inset live coal effect gas fires specially designed for Pre-Cast Flue
application and are also suitable for use with Brick Chimneys, twin walled or insulated Metal/Pre-fabricated Flues of 125mm minimum
diameter and Flueboxes conforming to the constructional requirements of BS 715. They are fitted with a combined flame supervision
and oxygen depletion monitoring device. The fire is for hearth mounting only on a non-combustible hearth. If required the fire can be
fitted using a rebated surround if it is to be installed in a pre-cast flue (optional extras are required). The fire is ready for use on Natural
Gasand isconvertible foruse onPropane Gas(LPG) usingkit partnumber 989551.
In your own interest and that of safety, it is the law that all gas appliances are installed by competent persons in accordance with the
currentGas Safety(Installation andUse) Regulations.Failure toinstall appliancescorrectlycouldleadtoprosecution.
The installation MUST be in accordance with these installation instructions, all the relevant parts of the Local and National Building
Regulations or Building Standards (Scotland) (Consolidation) Regulations and the relevant recommendations of the current editions of
thefollowing BritishStandards:
B.S.5871: Part2
B.S.5440: Parts1and 2
B.S.6891
B.S.6461: Parts1and 2
B.S.715
B.S.1251
B.S.1289
B.S.1289: Part1
B.S.1289: Part2
Anyother relevantBritish StandardCode ofPractice and/orLocal BuildingRegulations andin accordancewith therules inforce.
INTRODUCTION
1.0 TECHNICAL DATA
4 4

2.0 AVAILABLE FENDERS
5 5

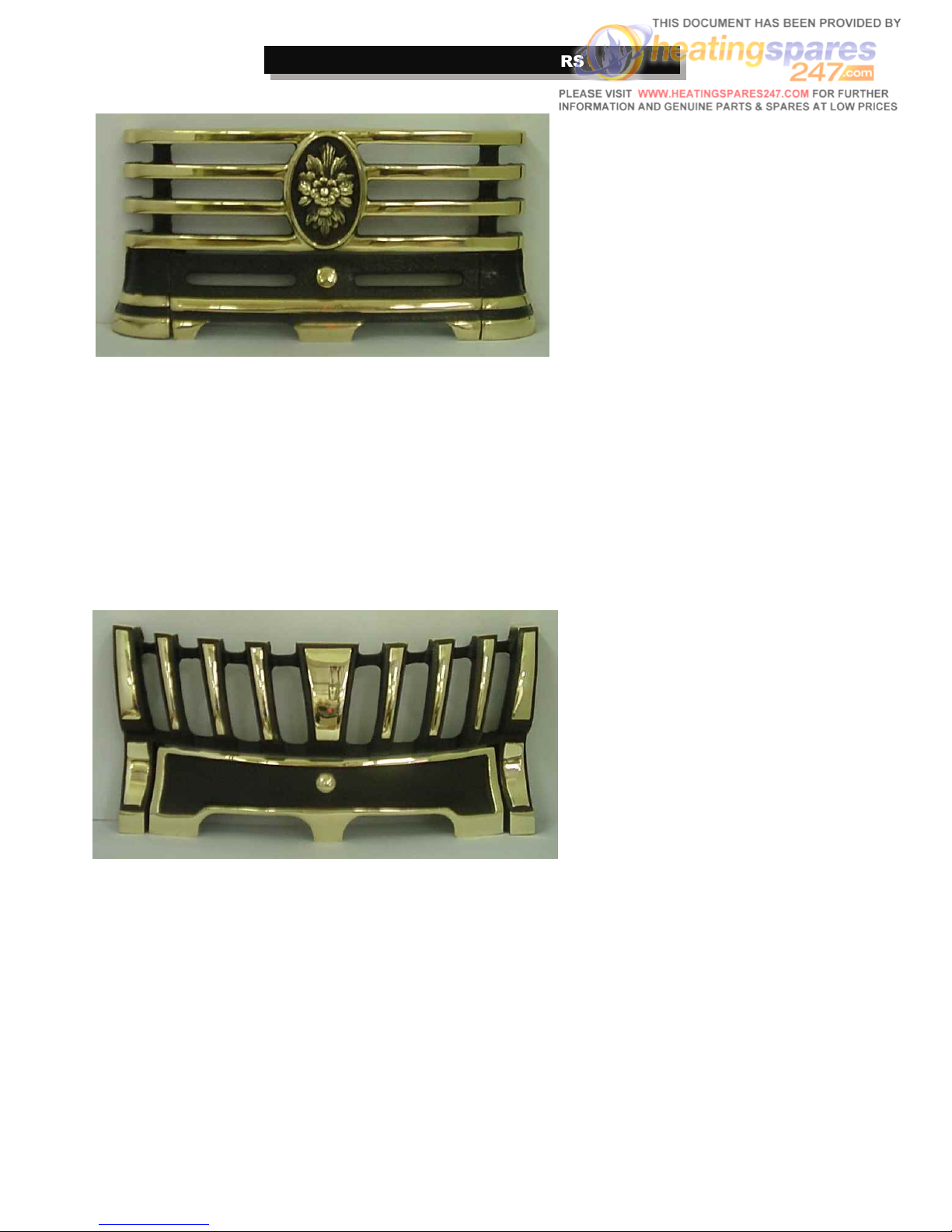

BELVEDERE FENDER AND ASHPAN
RIVIERA FENDER AND ASHPAN

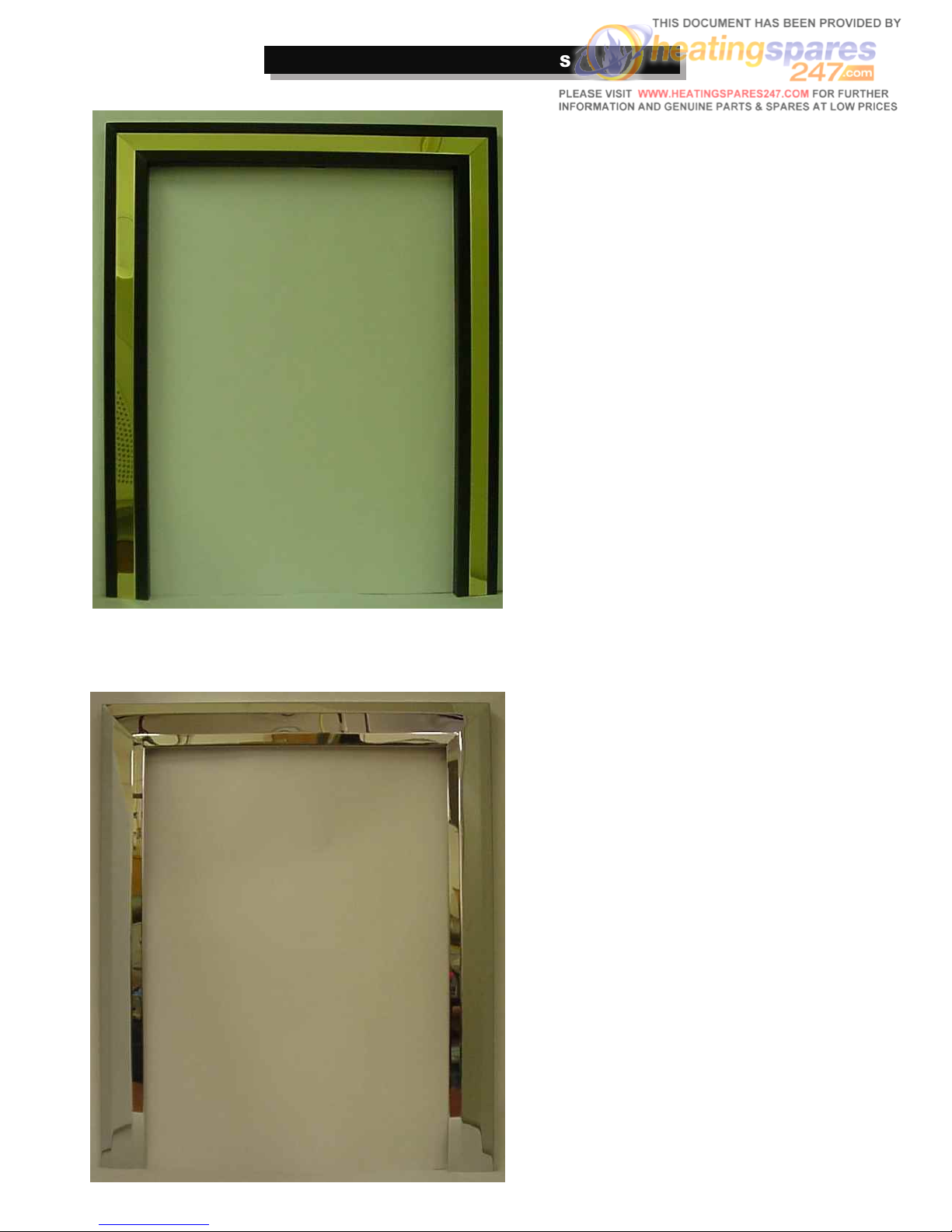

Both the above are available in black/brass or black/chrome effect

6 6
2.1 AVAILABLE TRIMS
BELVEDERE TRIM
RIVIERA TRIM
Available in Black with
Brass or Chrome effect insert
Available in
Brass or Chrome effect

3.0 CONTENTS OF SCREW PACK
4.0 CONTENTS OF COAL PACK
The contents of the screw pack are as follows
(refer to Fig 1.): -
Key Qty Description
A 2 Fixing Cables
B 2 Cable Adaptors
C 2 Grub Screws
D 4 Cable Eyelets
E 4 Wall Plugs
F 4 Fire Fixing Screws
G 4 No 6 Self Tapping Screws
H 1 Restrictor
I 1 Gas Inlet Grommet
J 2 Cable Tensioning Bolts
The contents of the coal pack are as follows
(refer to Fig 2.): -
Key Qty Description
A 1 Base Coal Matrix
B 1 Rear Coal
C 1 Left Hand Side Cheek
D 1 Right Hand Side Cheek
E 7 Rectangular Coals
A
C
D
E
F
G
I
B
A
B
CD
E
Fig 2.
Fig 1.
J
H
7 7

5.1 SITINGGENERAL
This fire is suitable for hearth mounting only on a non-combustible hearth at least 13mm thick and measuring at least 630mm wide by
330mm deep, the periphery of which should preferably be 50mm above the floor level in order to discourage the placing of carpets or
rugs over it. It MUST NOT be fitted directly on a combustible wall. The fire should be installed so that no part of a combustible wall i.e. not
o
part of the fire surround but a full wall at 90 to the fire is less than 500mm from the radiant source. If this is not possible the combustible
sidewall mustbe suitablyprotected.
FIREPLACEOPENING
The front opening of the fireplace must be between 406mm and 457mm wide and between 550mm and 572mm high (see Section 5.2). If
the opening is greater it must be bricked up until the opening is a maximum of 572mm high and 457mm wide, alternatively a non-
combustibleinfill panelmay beused toachieve therequired dimensions.
DONOT USETHE BACKOF AFIRE SURROUNDOR MARBLETOACHIEVE THEABOVE DIMENSIONS.
There must be a minimum flat surface area around the fireplace opening shown by the dotted lines in Fig. 4 to ensure a good seal
between the fireplace and the fire. This area should be sound enough to take the wall plugs and screws supplied for front fixing. Ensure
thatthe baseof thefireplace islevel withthe hearthand reasonablyflat toprevent thefire rocking.
Purpose built ventilation bricks or additional air vents are not normally required in the room in which the fire is fitted unless specified by
therules inforce.
IMPORTANT: When fitting any heating appliance or wallpapering a room in which one is fitted, soft wall coverings such as heat sensitive
wallpapers may become heat damaged or discoloured especially in the area above the fire. Please bear this in mind when installing or
decorating.
5.2 FLUESANDCHIMNEYS
5.2.1SITEREQUIREMENTSFOR228mmBY228mm(9inBY9in)BRICKCHIMNEY/178mm (7in)
STONEOR LINEDCHIMNEY AND125MM (5in)DIAMETER FLUE
The minimum dimensions for the fireplace opening for a brick chimney are as shown in Fig. 3. It will not normally be necessary to remove
anychair brickprovided theminimum depthis obtained.Achimney previouslyused toburn solidfuel mustbe sweptprior toinstallation.
Thechimney mustbe inspectedto ensurethat:
(a) Itserves onlyone fireplace.
(b) Itis properlysealed sothat combustionproducts donot escapefrom theflue intothe room.
(c) Itis notblocked bypaper, rubbleetc.
(d) Anyrestriction suchas damper,register plate,etc. mustbe removedor securedin thefully openposition.
(e) Anyunderdraught ventilationor additionalair supply
enteringthe fireplaceor onthe hearthmust be
sealedoff.
(f) Itmust haveat least3 metreeffective flueheight.
(g) Itmust havea positiveupdraught.
CHECKTHE FLUEFOR GOODDRAUGHT
Applya lightedpaper orsmoke matchto thetop ofthe
openingin thefireplace. Observeif thereis adefinite flow
intothe chimneyand ifso proceedwith fittingthe fire.
Ifno flowis indicated,warm thechimney forseveral minutes
andthen re-check.If downdraughtis observeda suitable
terminalmust befitted andthe chimneyre-checked.
Ifpersistent no-flowor downdraughtcondition isobserved
DONOT FITTHE FIRE,SEEK EXPERTADVICE.
5.0 CONDITIONS OF INSTALLATION
8 8
505 mm MIN
406 mm MIN
457 mm MAX
Fig. 3
210 mm
MIN
550 mm MIN
572 mm MAX
610 mm MIN

5.2.2PRE-CAST FLUEOF MINIMUMSIZE (Fig.4)
Thisfire canbe installedinto aproperly constructedpre-cast
flue conforming to B.S. 1289 : 1975 or B.S. 1289 : Part 1 :
1986 or B.S. 1289 : Part 2 : 1989 of at least 3 metres
effective height and having flueways of at least 198mm by
67mm or equivalent cross-sectional area with no dimension
less than 63mm. The fireplace opening width must be
between a maximum 457mm and a minimum 406mm. The
fireplace opening height must be between a maximum of
572mm and a minimum 550mm and a depth of at least
120mmabove thehearth level.
NOTES:
1. The minimum dimensions for the flat area around the
openingare 610mm highx 505mmwide.
2. Theflue spigotrestrictor MUSTNOT befitted.
Ensure that any mortar fangs between the blocks do not
protrude into the flueways and if raking blocks are used they
are fitted according to the manufacturers instructions and
mortar is not allowed to drop down and accumulate in the
rakedportions.
CHECK THE FLUE FOR GOOD DRAUGHT AS DETAILED
INSECTION 5.2.1.
NOTE:ONLY SUITABLE FORDRY LINEDWALLS
On pre-cast flue installations the walls must be dry lined
over the route of the flue. Dry lining is the use of
plasterboard with an air space between the wall and the
plaster board. Installation must not be made into pre-cast
flues that have plaster applied directly to the surface of the
wall i.e. wet lined, because experience has shown that in
some wet lined installations the lack of heat insulation
provided by plaster can cause the plaster to shrink or crack
and other decoration such as wallpaper to discolour or
detatchfrom the wall.
5.2.3REBATED SURROUNDINSTALLATION
When fitting the fire to a pre-cast flue it is possible to use a
152mm deep rebated surround. Two optional extras are
requiredas follows:-
PartNumber
ClosurePlate 989571
Spigot 989568
Fit the closure plate to the wall ensuring that a good seal is
made between the plate and the wall. The plate has been
designed to sit on the floor behind the rebated surround or
hearth. This will position the spigot opening at the correct
height for the spigot when using a 50mm high hearth. If your
hearthis ofa differentheight repositionaccordingly.
If using a concealed gas connection ensure it is installed
before fitting the closure plate. Knock-outs are provided for
gaspiping.

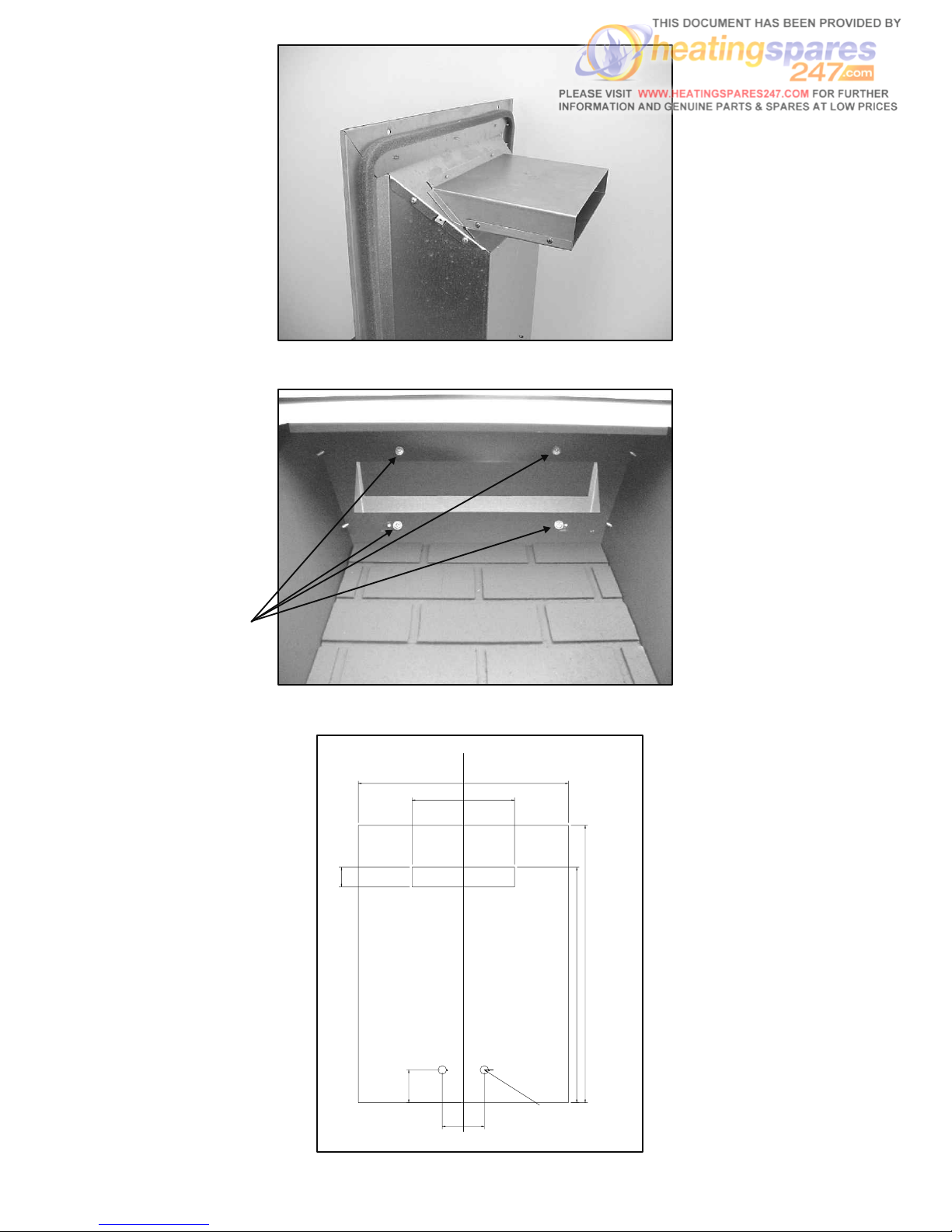

Fit the spigot to the rear of the fire using the four screws
provided in the screw pack. Refer to Figures 5 and 6.
Proceedas follows:-
Positionthe spigoton therear ofthe fire.
Screw from inside the canopy into the spigot. It is easiest to
starteach screwbefore tighteningfully.
DONOTFITTHE RESTRICTOR
PRE-CAST FLUE INSTALLATION
50mm MINIMUM (2in)
3
120mm MINIMUM (4 /i n)
4
9 9
Fig. 4
505 MIN*505 MIN*
572 MAX
550 MIN
572 MAX
550 MIN
457 MAX
406 MIN
457 MAX
406 MIN
120mm
MIN
120mm
MIN
610 MIN*610 MIN*

Fig 5.
Fig 6.
Fig 7.
4 SPIGOT SCREWS
660.0
560.5
500.0
244.0
46.5
100.0
==
GAS SUPPLY PIPE KNOCK OUTS
78.0
10 10

5.2.4METAL FLUEBOX/125mm DIAMETERFLUES
(Figs.8 and9)
This fire may be installed in a double walled or insulated
metal box built to the requirements of B.S. 715 e.g.
Selkirk, Product Code Number 0404805, using our fixing
kit G.C. Number 159 634 Part Number 992137.The box
must be lagged as detailed in Fig. 9 and mounted on a
non-combustible plinth at least 25mm thick. Ensure that
the base of the opening is level with the hearth. A larger
box built to the requirements of B.S. 715 and insulated as
in Fig. 9 may be used. The front opening must be as
shown in Fig. 8. The flue should be twin walled e.g. Selkirk
IL flues, or insulated type of at least 125mm internal
diameter and with a minimum effective height of 3 metres.
Thedepth ofthe openingmust beat least200mm.
NOTES:
1. If the flat area around the front opening of the box is
less than as specified in Fig. 3, it may be necessary to
use additional sealing material to achieve a good
seal.
2. Theflue spigotrestrictor MUSTNOT befitted.
Fig. 9
Refer to the following
illustrations for
configuration.
Cover the top, rear and
sides of the fire housing as
shown with 100mm (4in)loft
insulation material as
shown. If the gap between
the fire housing and any
combustible material is less
than 100mm, squeeze the
insulation material between
thetwo surfaces.
The minimum distance from
any studding or other
combustible material and
the flue pipe or any part of
the fire housing must be
25mm(1in).
Note: The plaster board does not overlap the
edge of the fire housing. Any non-combustible
fire surround material usedoverlaps as shown.
The non-combustible fire surround material
mustbe sealedtothefire housing.
Non-combustiblefire
surroundmaterial
The non-combustible material
must be sealed tothe fire housing
toform anairtightseal allaround.
Non-combustible fire
surround material
Fire housing
Sealant
Fig. 8
FREESTANDING
GAS FLUE BOX
SELKIRK CODE 0404805
125 I/D
98
FLUE
CENTRE
457
610
212
407
560
200
11 11

5.3 SHELFHEIGHT ANDSIDE CLEARANCES
Thefire maybe fittedbeneath ashelf.
5.3.1 COMBUSTIBLESHELF
A shelf may be fitted above the heater provided that it complies with
the dimensions shown in the diagram.
No combustible shelf may be fitted below the minimum of 150mm.
The minimum clearance to combustible sides must comply with the
dimensions in the diagram.
A minimum clearance to adjacent combustible walls, of 500mm,
is required from the side of the fire.
5.3.2 NON-COMBUSTIBLESHELF
The underside of a non-combustible shelf not more than 75mm deep
must be at least 25mm above the top of the fire. This clearance is
necessary for outer case removal. For deeper shelves, allow 13mm in
shelfheight forevery 25mmincrease indepth.
SIDECLEARANCES:
A clearance of at least 25mm must be left on either side of the fire to
facilitateremoval ofthe outercase duringservicing.
FIRESURROUND:
The fire is suitable for purpose-made proprietary hearths/surrounds
o
withtemperature ratingof 150 C.
12 12
6.0 INSTALLATION OF FIRE
Fig 10.
6.1 UNPACKING
The fire is packed with the rear brick board already fitted in position. When unpacking refer to the check list to ensure that all of the
†
components are present and undamaged. Remove the top fitment from the carton. Remove the screw pack and spigot . Lift the carton
†
surround clear of the fire. The closure plate is packed inside the inner sleeve. Remove the coal pack. Remove the trim from the fire, by
lifting it upwards. The top of the trim is hooked over the top of the firebox and is held in place at the bottom by magnets. Lift the fire clear of
thebottom fitmentof thecarton.
PackContents: -
(i) 1 FireAssembly
(ii) 1 CoalPack
(iii) 1 ScrewPack
†
(iv) 1 Spigot †
(v) 1 ClosurePlate
(vi) 1 InstallationInstruction Booklet
(vii) 1 UserInstruction Booklet
†=where supplied
6.2 PREPARATIONOF FIRE
6.2.1 SPIGOTRESTRICTOR
The spigot restrictor is supplied in the screw pack and should be fitted only in the case of installation to a brick chimney, 178mm
diameter stone/lined flue of at least 3 metres effective height, with good draught. DO NOT fit the spigot restrictor if installation is to a
PRE-CASTFLUE ora METALFLUE BOX/ 5INCH FLUE.
Fitthe restrictorwith twoof theself tappingscrews suppliedin thescrew packas shownin Fig10.
2 SPIGOT
RESTRICTOR
FIXING SCREWS
depth 250mm
depth 200mm
depth 150mm
150mm
200mm
250mm
Top of Fire
COMBUSTIBLE SHELF
CLEARANCES
COMBUSTIBLE SIDES
CLEARANCES
200mm
MIN
MAX
200mm
side of fire
MAX
100mm
100mm
MIN

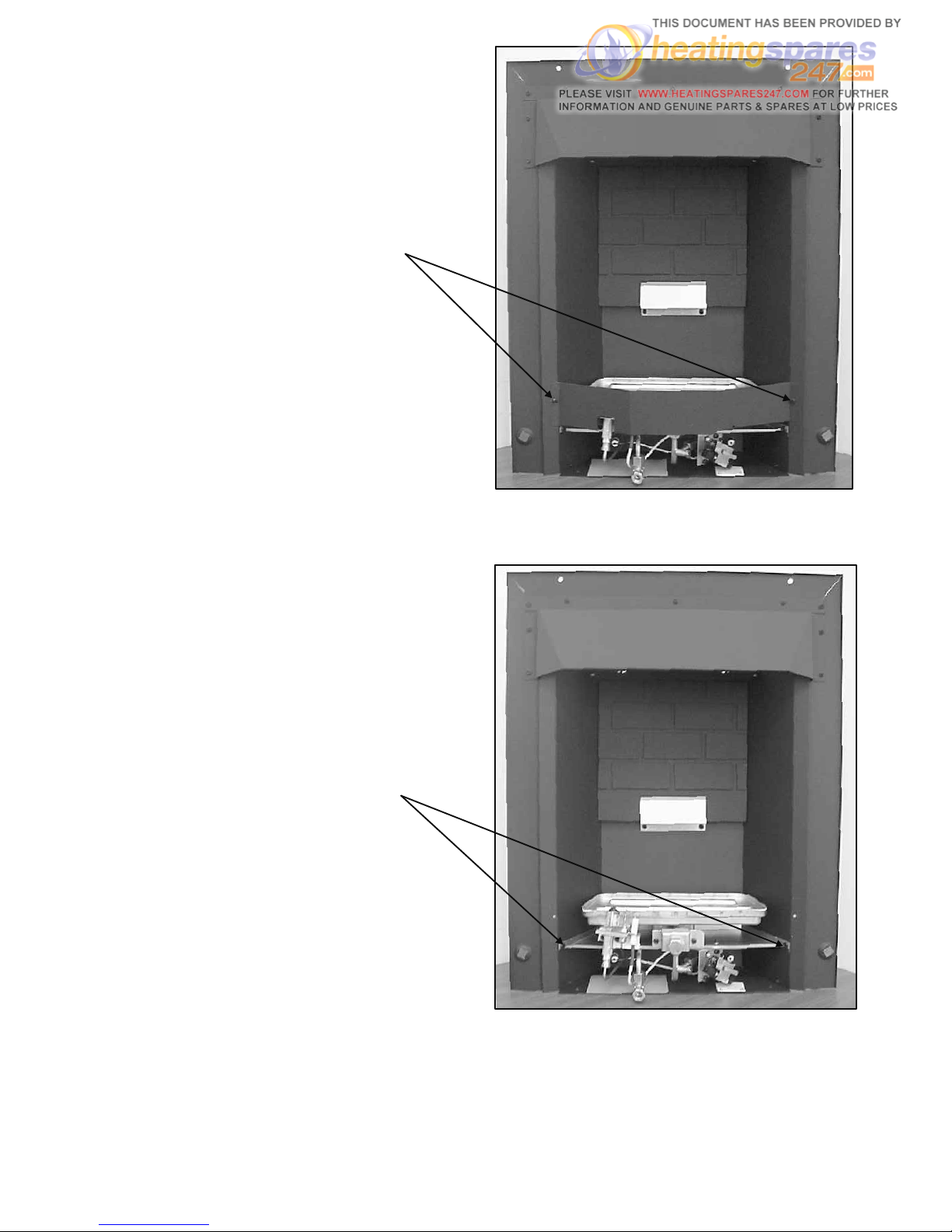

6.2.3 Remove the burner tray by removing the two screws.
Refer to Fig 12.
6.2.2 Remove the fender mask by removing the two screws.
Referto Fig11.
13 13
Fig 11.
Fig 12.

6.3 METHODOF INSTALLATION
Thereare twomethods forsecuring thefire tothe wallwhich are:
(a) Fixingby tensioncable.
(b) Screwingthe firedirectly tothe wall.
It is recommended, where drilling holes in the front face of the fireplace surround is unacceptable or otherwise risky e.g. a marble
surround,that fixingby tensioncable isemployed.
IMPORTANTNOTES
(a) Ifthe surfaceof thefireplace isuneven itis necessaryto preparethe surfaceso thata positiveseal canbe achieved
betweenthe fireand thewall.
(b) Ifthe fireis tobe connectedusing aconcealed gasconnection thenit isnecessary toprepare thepipework priorto fittingthe
fireto thewall. Referto Section6.4.1. (ConcealedConnection).
6.3.1 FIXINGBY TENSIONCABLE
FITMOUNTING EYESCREWS
Mark the position for eye screws in the back of the opening according to the dimensions in Fig. 13. Drill the four 6mm holes and plug the
holeswith thewall plugs.Fix theeye screwsto theholes.
FIXINGTHECABLE
First remove the burner tray (see Section 6.2). Prise the tabs up on each side of the firebox using a screw driver (refer to Fig 14.). Fit the
cable tensioning bolts into the fire from the front, i.e. Hexagon head inside the fire. Insert the free end of each cable through the
respective hole in the firebox and then through the eye screws (refer to Fig. 13). Thread the free ends of the cable through the holes in
the tensioning bolts from the rear. Insert the fire into the opening so that the seal on the back of the fire is compressed against the face of
the fireplace/surround. Any visible gaps indicate a deviation from flatness of the surround face which MUST be corrected. Pull the cable
taut each side of the fire and insert the cable adaptors over the ends of the cable (Fig. 13). While keeping the cable taut slide the adaptor
against the tensioning bolt and tighten the grub screw to lock the cable. Using a spanner unscrew each tensioning bolt by about 20mm to
tension the cable. Prevent the cable adaptors from rotating while unscrewing the tensioning bolts. DO NOT cut the ends of the cables,
butcoil themup insteadas shownin Fig15 tofacilitate refittingof thefire afterservicing.
14 14
6.3.2FIXING DIRECTLYTO SURROUNDFACE
Mark the four positions of the fixing holes, two on the front face of the fireplace surround and two in the floor, using the fire as a template.
Drill 6mm holes and plug the holes with the wall plugs supplied. Insert the fire into the opening in the fireplace until the seal on the back of
the fire is compressed against the surround face at every point. Note that any visible gaps between the surround face and the seal
indicatea deviationfrom flatnesson thesurround faceand MUSTbe rectified.Screw thefire tothe wall.
BACK OF FIREPLACEBACK OF FIREPLACE
FLOORFLOOR
240240
375 mm375 mm
70 mm70 mm
EYEEYE
SCREWSSCREWS
CABLECABLE
CENTRESCENTRES
TENSIONER BOLTTENSIONER BOLT
GRUB SCREWGRUB SCREW CABLECABLE
ADAPTORADAPTOR
Fig13.
Fig14.
Fig15.

6.4 GASCONNECTION
NOTE: The appliance must be connected to gas with rigid or
semi-rigid tubing, from either the right or left hand side, or by
concealed connection (see below). The supply pipe to the fire
should be installed so that it is easy to remove the fire from the
opening during servicing. An isolation inlet elbow is fitted to the
burner assembly for isolation of the fire for servicing at a later
date.
If a concealed connection from within the fireplace is required
then, before the appliance is fitted into the fireplace, it will be
necessary to extend the supply line so that it will project through
the sealed opening situated at the back of the firebox to the
applianceinlet elbow.
6.4.1.CONCEALED CONNECTION
Removethe isolationelbow fromthe burnerassembly. Fig16.
15 15

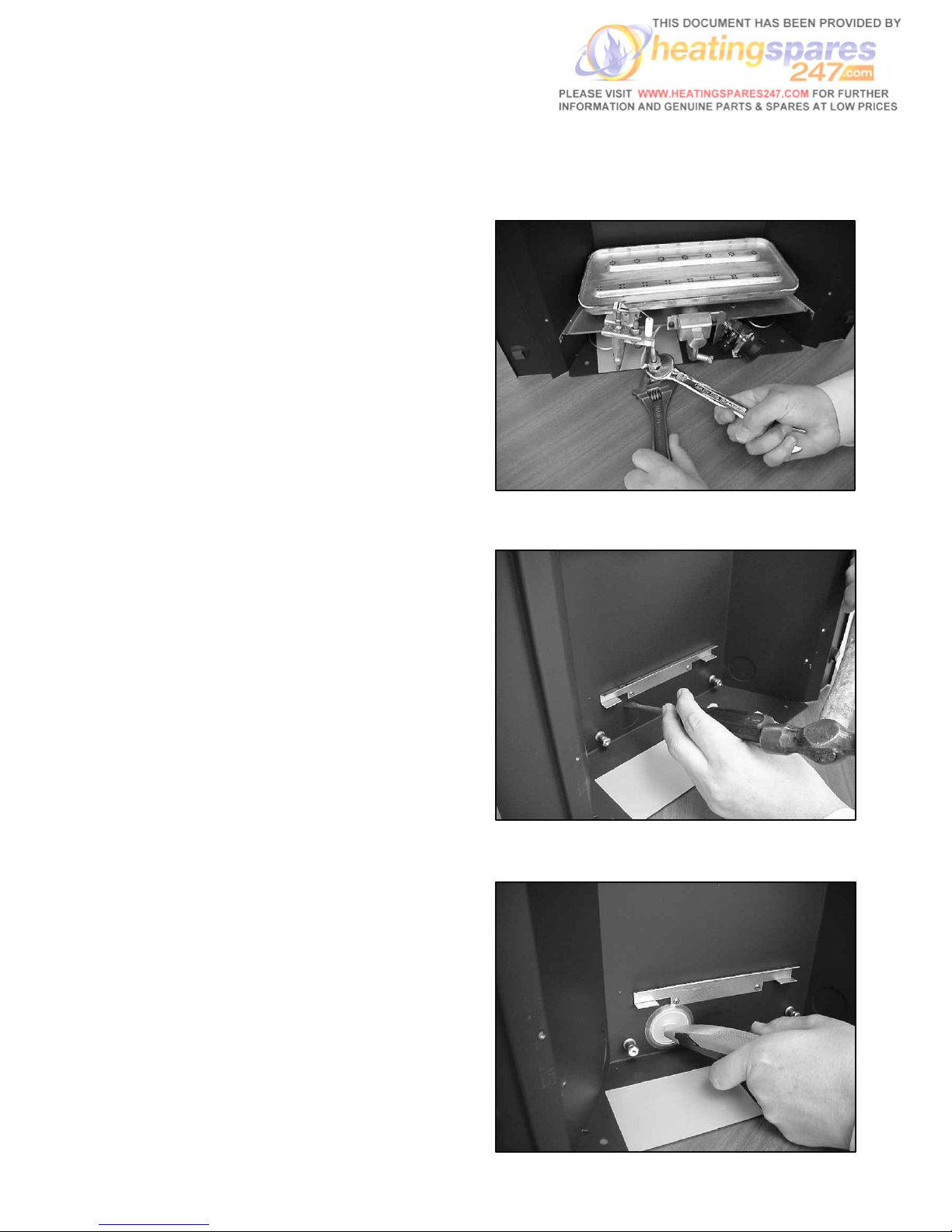

Knock out at the required position using a hammer and
screwdriver to gently but firmly knock out the hole. Refer to Fig
17. Push in the hole the large grommet provided in the screw
pack. If necessary the grommet can be softened by placing it on
topof akettle whilstit isboiling untilsupple.
Cut a cross in the centre of the grommet to suit the size of supply
pipe.Fig 18.
Fig 18.
Fig 16.
Fig 17.

16 16
Push the supply pipe through the hole just created and connect
the isolation elbow removed from the burner assembly. Refer to
Fig 19. The end position is shown in Fig 20.The pipe run from the
supply line up to the rear opening in the firebox must be kept
clear of the area which will be taken by the box when it is
installed.
6.5 TEST FOR GAS SOUNDNESS
The gas installation, including metre, should be inspected and tested for gas soundness and purged.
Refer to B.S. 6891 when performing gas soundness testing.
C
48.0 mm
30.0 mm
FACE OF SURROUND
Fig 20.
Fig 19.

7.1INSTALL FUELEFFECT COMPONENTS
Thefuel effectcomponents comprise:
(a) RearCoal
(b) TwoSide Cheeks
(c) CoalBed
(d) SevenRectangular Coals
TheCoal Bedandthe loosecoals areillustrated inFig 2.The fire
is supplied with the rear brick effect panel already fitted as
illustratedin Fig11.
Unpack the pack containing the coal bed and the loose coals
andcheck thatthese areundamaged.
DO NOT INSTALL THE FIRE WITH BROKEN OR MISSING
COALS.USE ONLYTHE COALSSUPPLIED WITHTHEFIRE.
1. The underside of the coal bed has grooves matching
the raised ports of the burner top. Fit the coal bed by
placingit ontothe burner.Take careto avoid damage as
youinsert itpast thepilot burner(Refer to Fig 21.).Ensure
that it is correctly located in the burner tray by sliding it
sidewaysand frontto back.
2. Insert the side cheeks by sliding them down the side of the
matrix until they touch the rear brick effect panel. (Refer to
Fig22.)
17 17
7.0 COMMISSIONING
3. Lower the rear coal into position at an angle as shown in
Fig23.
4. Ensure that the rear coal drops back towards the rear brick
effect panel and seats correctly into the base coal. (Refer
toFig 24.)
Fig 22.
Fig 24.
Fig 21.
Fig 23.

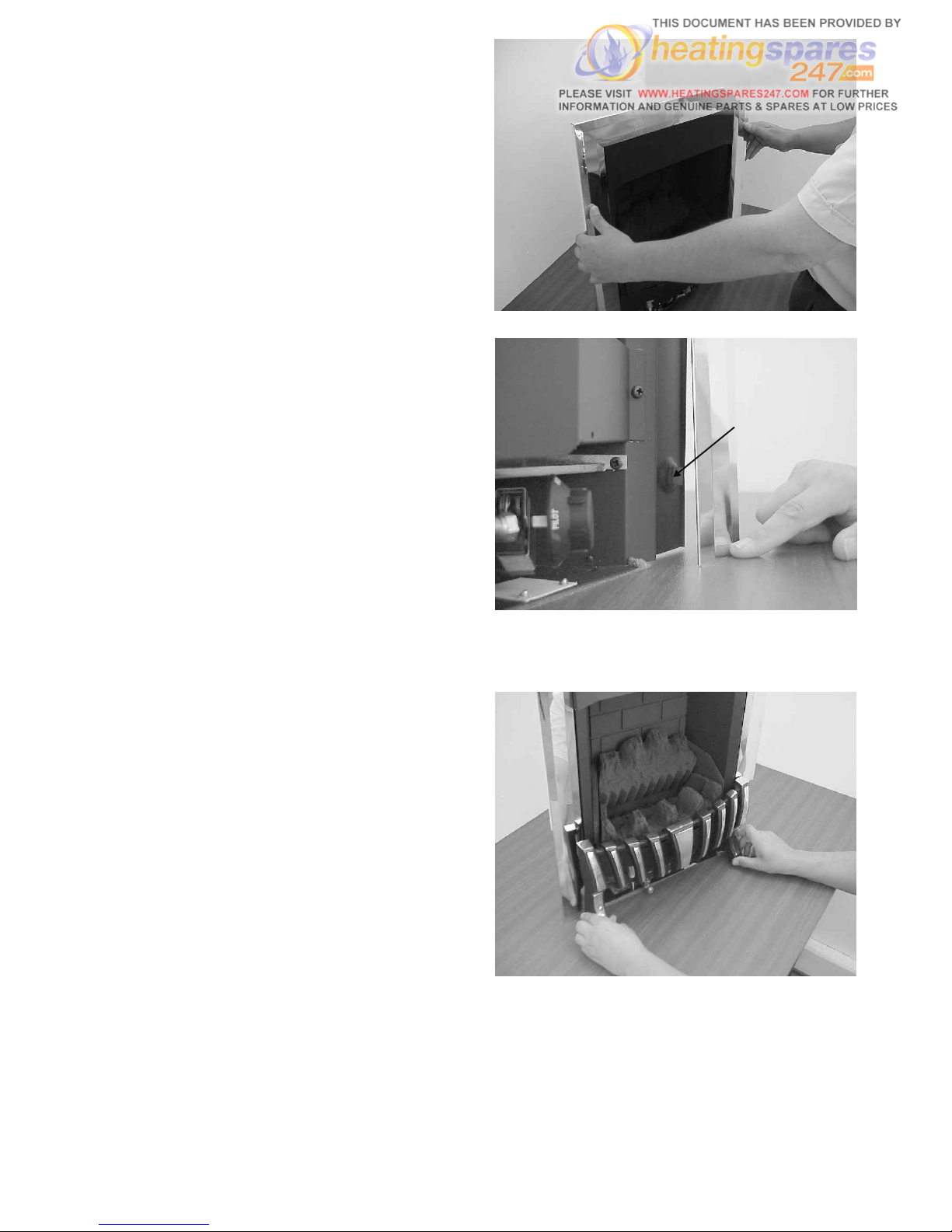

5. Fitthetrim tothe fireby hookingit overthe topof thefirebox
top.Refer toFig 25.
6. The bottom of the trim is held in place with magnets. Push
the bottom of the trim at each side onto the magnets.
NOTE: If the magnet on either side came away with the
trim on removal, transfer it back to the “bump” on the fire
beforere-fitting thetrim. Referto Fig26.
7. Position the fender centrally and slide towards the fire until
ittouches thebase coal.Refer toFig 27.
18 18
Fig 25.
Fig 27.
Fig 26.
TRIM MAGNET

19 19

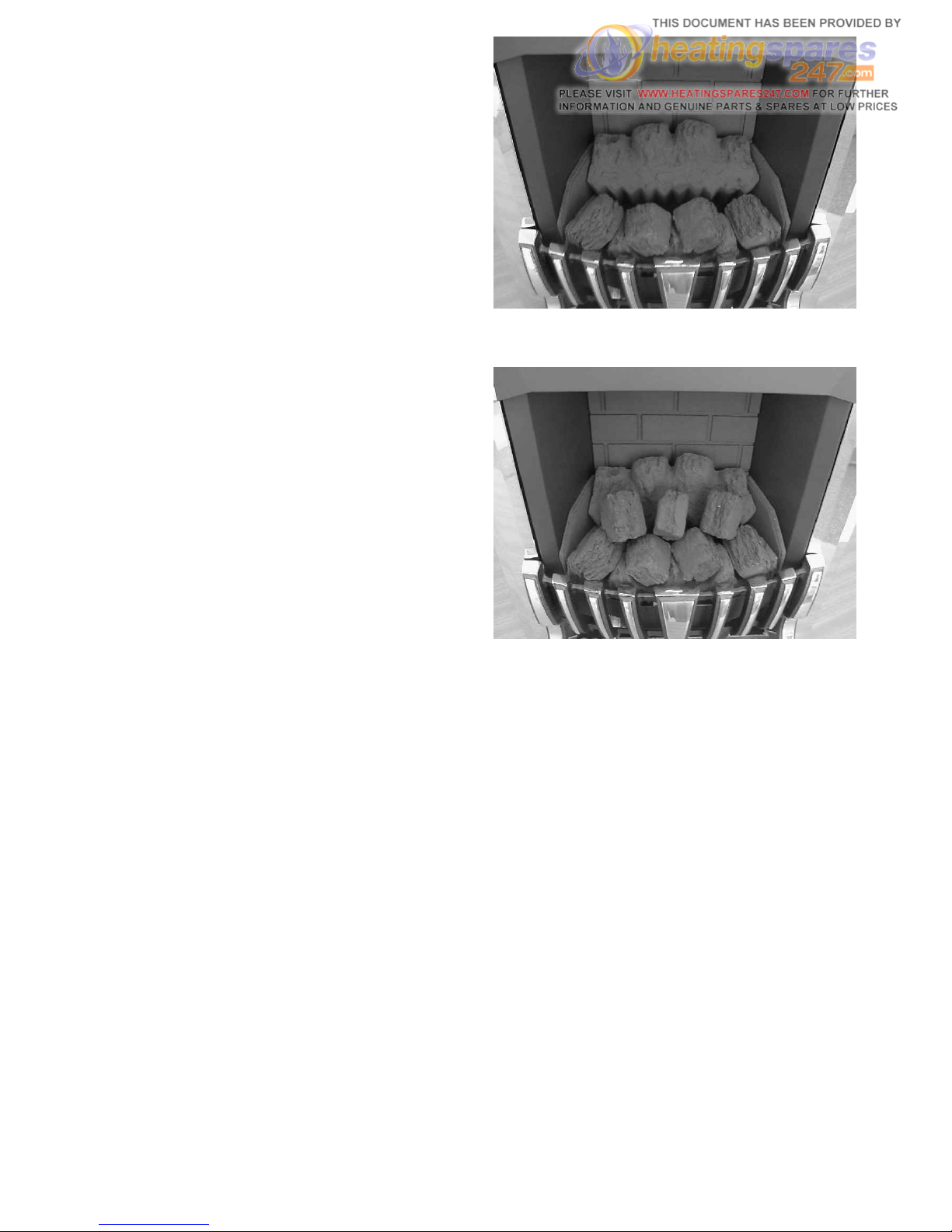

8. Place 4 rectangular coals onto the base coal with their
decorative faces visible. They should have the front end
touching the back of the fender or inline with it. Refer to Fig
28.
9 Place the 3 remaining rectangular coals resting in the `V’ s
just created and leaning back to rest on the rear coal. Refer
toFig 29.
7.2CHECK GASPRESSURE
Remove the pressure test point screw located on the injector feed pipe just left of centre on the fire. Connect a pressure gauge, depress
the control knob and rotate to the PILOT/IGNITION position until the piezo sparks. Keep the knob depressed after the pilot has lit to
activate the FSD and then rotate the knob to the HIGH position. Check that the gas pressure is as specified in Section 1.0 Technical
Data.Turn offthe fireand disconnectthe pressuregauge. Replacethe testpoint screw,relight thefire andtest forgas soundnessaround
thesealing screwusing asuitable leakdetection fluid.
Fig 29.
Fig 28.

7.3TEST FORSPILLAGE
A test for spillage must be made before the installed fire is left with the user. This is carried out in the following manner. Light the fire and
leave at HIGH rate. Close all the doors and windows in the room and after the fire has been alight for five minutes insert a lighted smoke
match into the notch in the canopy in a horizontal direction with the tip 50 mm inside the canopy (See Fig. 30). Hold the match in a metal
tube.If allof thesmoke isdrawn intothe firethe installationis satisfactory.If indoubt, repeatthe testafter afurther tenminutes.
If there is a fan or a fan operated appliance in a connecting room then the spillage test must be repeated with the fan running and all inter-
connecting doors between the fan and the fire left open. If the fan and the fire are in the same room, close all windows and doors
connectedto theroom. Switchon thefan andrepeat thespillage test.
Ifspillage isdetected, inspectthe sealingof thefire tothe surround/ hearth.If thisis satisfactoryproceed asfollows:
If a spigot restrictor was fitted, turn the fire off and remove the spigot restrictor. Re-light the fire and repeat the above spillage test. If there
is still evidence of spillage then there may be a fault with the chimney or insufficient air in the room. If the cause of the spillage cannot be
correctedDISCONNECT THEFIRE ANDSEEK EXPERTADVICE.
7.4 CHECKIGNITION
Check that ignition of the pilot and the cross lighting to the
mainburner issatisfactory.
NB. The spark gap between the electrode and
thermocouple tip should be between 3.0 and 5.0mm (See
Fig31.).
7.5 CHECKOPERATION OFFSD
Leave the fire running on HIGH rate for 5 minutes and then
turn off the gas at the service cock. After 3 minutes turn the
service cock on again. If the gas has stopped flowing the
FSDhas operatedsatisfactorily.
NOTE: You may hear the FSD valve close within the 3
minute period but always check that the gas has stopped
flowing.
1. FIT CASE.
2. LIGHT FIRE AND LEAVE AT FULL RATE
3. CLOSE ALL DOORS AND WINDOWS
4. AFTER 5 MINUTES INSERT SMOKE MATCH AS SHOWN IN THE DIAGRAM.
5. SMOKE WILL BE DRAWN INTOTHE FIRE IF INSTALLATION IS SATISFACTORY.
6. IF SPILLAGE OCCURS, WAIT FOR 10 MINUTESAND REPEAT THE TEST.
7. IF SPILLAGE IS STILL EVIDENT PROCEEDAS IN SECTION 7.3.

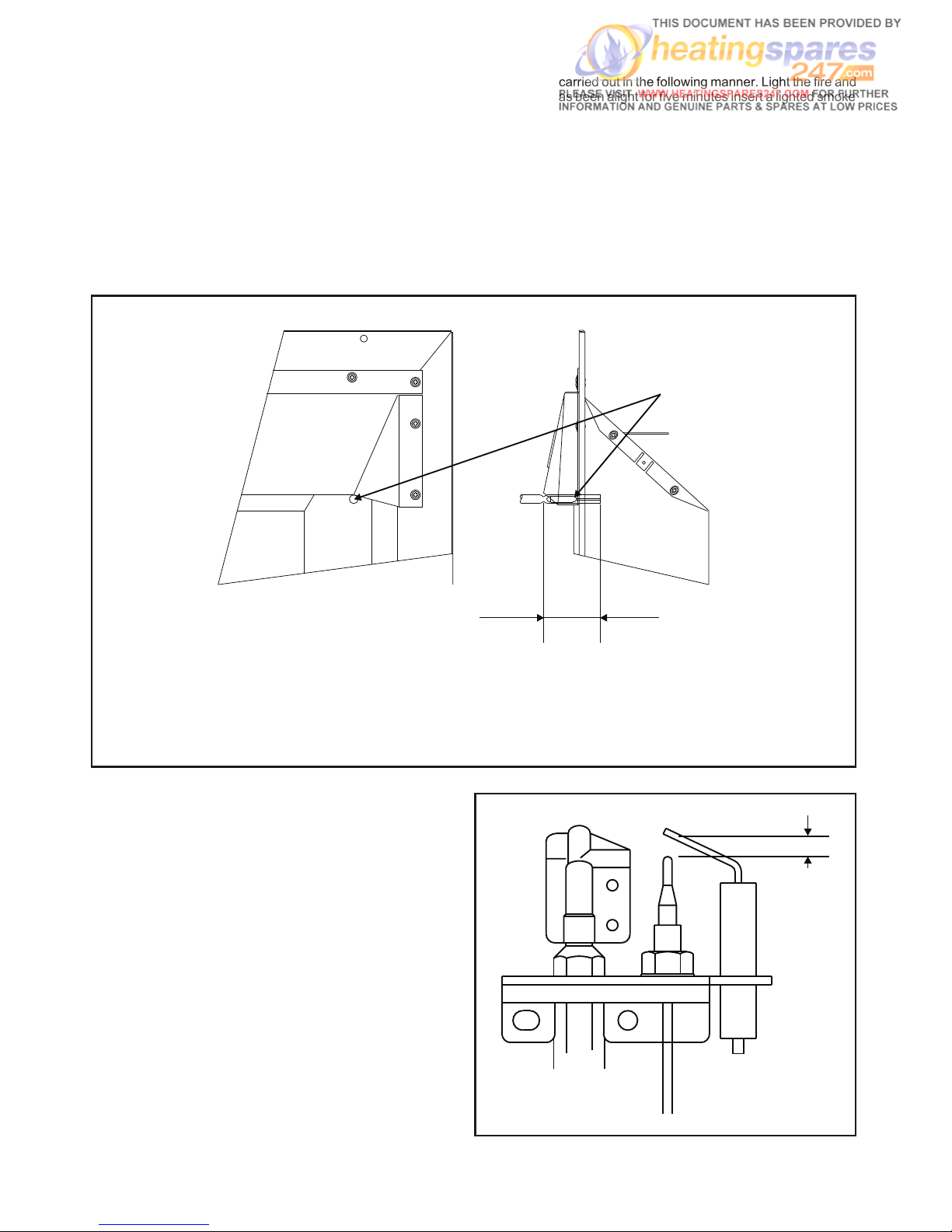

Fig 30.
50 mm
SMOKE MATCH IN TUBE
3.0 - 5.0 mm
Fig. 31.
20 20
