1SERVICE AND INSTALLATION
Installation & Servicing Instructions
G.C. Number 32 170 04 RW Product Code Number A86008
THIS FIRE IS FOR USE ON NATURAL GAS ONLY
Cat I (G20) at 20mbar in GB and IE only
2H
with SAFEGUARD
FIREGEM VISA SUPER DELUXE
ELECTRONIC
LEAVE THESE INSTRUCTIONS AT OR NEAR THE USER'S METER FOR USE ON FUTURE SERVICE CALLS
991039 Issue 8

It is the law that all gas appliances are installed by competent persons , in accordance with the
Gas Safety (Installation and Use) Regulations and the rules in force.
Failure to install correctly could lead to prosecution. It is in your interest and that of safety to ensure that the law is complied with.
The installation must also be in accordance with these installation instructions all the relevant parts of the Building Regulations,
The Building Standards (Scotland) (Consolidation) Regulations, and other relevant Building Regulations and all relevant
recommendations of the following British Standard Codes of practice:
1. BS 5871 : Part 1
2. BS 5440 : Part 1and Part 2
3. BS 6891
N.B. Ensure that any shelf of combustible material will be at least 114mm (4.5in) above the top of the installed fire and that it is not
more than 150mm (6in) deep. Ensure also that there is at least 3mm (1/8in) clearance either side of the fire.
The fire is suitable for use with lightweight surrounds whose continuous working temperature is not less than 100°C.
IMPORTANT: When considering fitting any heating appliance or wallpapering a room in which one is fitted, if blown vinyl or heat
sensitive wallpapers are used near the heat source then they may become heat damaged or discoloured especially just above the
fire.
Purpose built ventilation bricks or additional air vents are not normally required in the room in which the fire is fitted unless
specified by the rules in force.
i.e. ‘Gas Safe’ registered Engineer
2
INTRODUCTION
Firegem Visa Super Deluxe
Hieght: 556mm (22in)* *With levelling screws retracted
Width: 695mm (27.4in)
Depth: 206mm (8.1in)
Weight: 23kg (50.5lb)
Heat Input (gross): Heat Output:
Maximum 6.04kW (20600Btu/h) Maximum 4.87kW (16600Btu/h)
Minimum 1.55kW (5290Btu/h)
Pressure Setting: Cold 17mbar ± 1 (6.8in w.g. ± 0.4) Supply Pressure: 20mbar (8in w.g.)
Injector: Marked RY220 (RW Part No. SP822089)
Burner: Aerated Duplex
Ignition: Electronic Spark Generator
Gas Tap: Duplex Plug Type (with flame supervision device)
Minimum
Fireplace Opening: 438mm (17.25in) high, 305mm (12in) wide
Inlet Connection: Rp1/4 (1/4BSP)
Pilot/ODS: OP NG 9031 or NG 9077
APPLIANCE DATA
The efficiency of this appliance has been measured as specified in BS 7977-1:2002 and the result is 80.6%. The
gross calorific value of the fuel has been used for this efficiency calculation. The test data from which it has been
calculated has been certified by Notified Body No.0086. The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The above exceeds the minimum requirement of 63%.

3
Note that whether the fire is hearth or wall mounted in a conventional chimney, the dimensions of the space behind the closure
plate must meet the following requirements.
(a) The fire flue spigot/spigot extensions must pass through the closure plate and have a minimum clearance of 50mm (2in)
between its open end and the nearest obstruction. There must also be a minimum clearance of 165mm (6.5in) between the
back of the closure plate and the back of the catchment space (See Fig. 1).
NOTE: Where a spigot extension is fitted it may be extended upto 152mm (6in) from the back of the fire. A spigot extended to
this specification is available from Robinson Willey, Part No. 991134. It must be cut down to suit the application.
(b) The catchment space below the flue spigot should be as deep as possible and must not be less than 250mm (10in)
measured from the bottom of the flue spigot to the bottom of the catchment space, or to the top of any "bricking-up" of the
bottom of the fireplace opening, whichever is the least (See Fig. 1).
(c) The front opening must be at least 305mm (12in) wide and 438mm (17.25in) high if hearth mounted and 413mm (16.25in)
height wall mounted. There must be 10mm (3/8in) flat around this opening to ensure the closure plate can be effectively
sealed).
(d) The closure plate air relief must not be obscured by any "bricking-up".
Fig. 1
FIRE PACKAGING
The fire is despatched together with a closure plate, and cooler plate packed behind the fire back. The spigot consists of two
identical pieces and is slotted into the bottom fitment of the pack with the restrictor. The control knob adaptor is also located in the
bottom fitment.
REMOVAL OF FRONT PANEL
Remove the front panel by lifting upwards to clear the lower supports and then pulling forward and downward away from the fire.
REMOVAL OF THE RADIANTS AND PACKING
Remove the cardboard packing retaining the radiants. Remove the radiants by sliding upwards and outwards base first, and place
to one side, in a safe place. Remove the paper packing in the radiant support plate.
PREPARE THE GAS FIRE
NOTE: This fire is suitable for installation directly onto a combustible wall provided an area of 460mm (18in) high and 405mm
(16in) wide of combustible material is removed behind the fire.
CHECK THE CHIMNEY
1. The chimney must be inspected to ensure that:
(a) It serves only one room.
(b) It is not blocked with paper, rubble etc.
(c) The base of the flue is clear of debris.
2. Where another fuel has been used, the chimney must be swept.
3. Any restriction such as damper, register plate, etc. must be removed.
4. Any underdraught ventilation or additional air supply entering the fireplace, or the hearth must be completely sealed off.

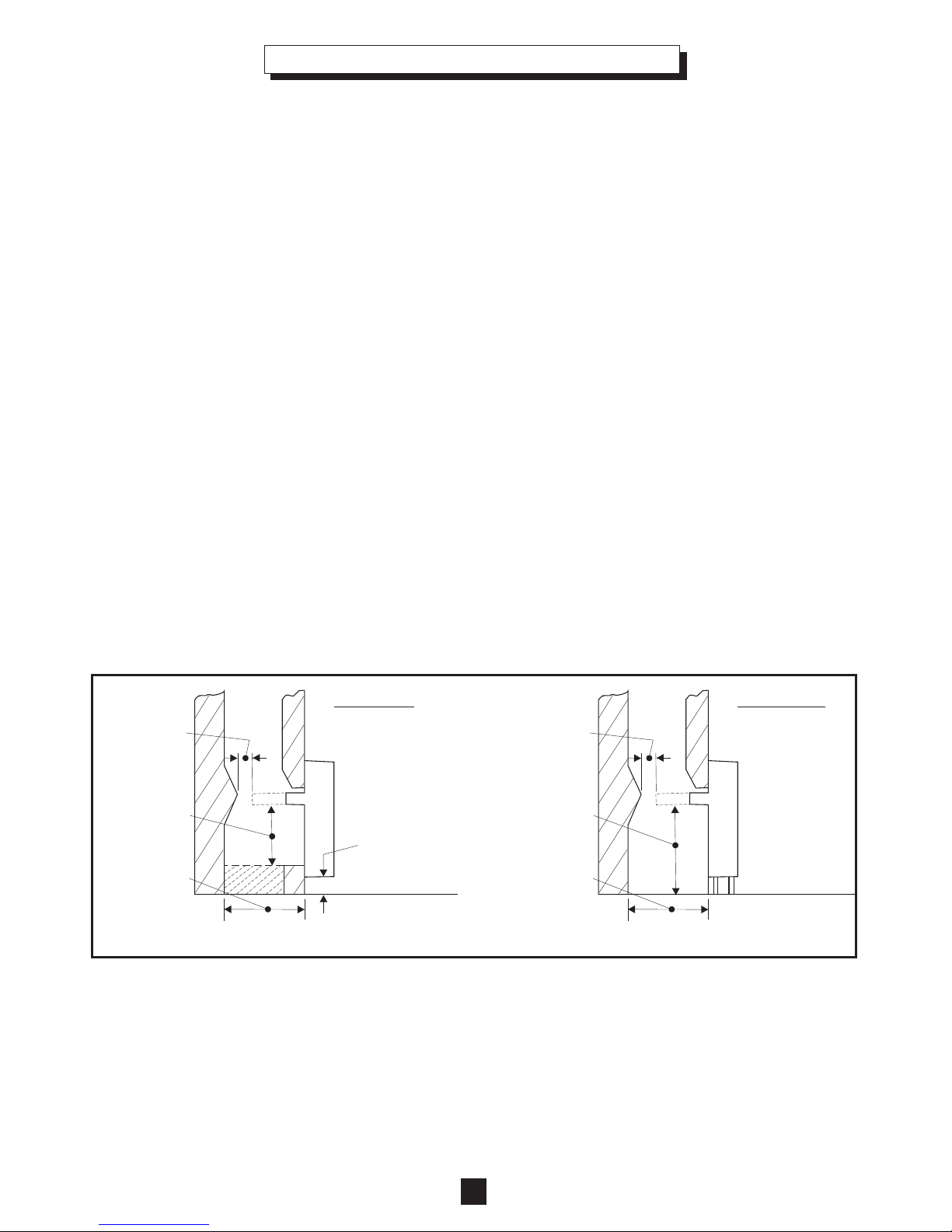

Minimum of
50mm (2in)
Well not less than
250mm (10in) deep
Not less than
165mm (6.5in) Floor of Hearth Level
FLOOR STANDING
Minimum of
50mm (2in)
Well not less than
250mm (10in) deep
Not less than
165mm (6.5in) Floor of Hearth Level
Not less than 150mm (6in)
WALL MOUNTED

4
1. Fit the closure plate and seal to the fire surround along the edges, but ensure that the relief opening is NOT covered. If the
fireplace opening is too large for the closure plate to fit snugly, the closure plate must be extended to suit.
The minimum fireplace opening when wall mounting will have an actual height of 413mm (16.25in), and the top of this
opening must be at least 510mm (20.1in) above the floor.
The closure plate must be fitted but first cut off the bottom 25mm (1in) and cut a new relief opening 50mm (2in) x 38mm
(1.5in) along the bottom edge in the case of a normal brick chimney and 102mm (4in) x 50mm (2in) in the case of a pre-cast
flue installation. (It is sufficient to make two new vertical cuts, and bend back the flap).
2. Apply a lighted match, lighted paper or smoke match to the spigot opening in the closure plate. Observations of up or down
draught may be facilitated by masking off part of the opening to approximately 50mm x 50mm (2in x 2in). Observe if there is
any up or down draught through the spigot opening, if there is a definite flow into the spigot opening, proceed with fitting the
fire. Any tendency to down draught must be corrected. If no flow is indicated, heat the chimney with, for example, a roll of
burning paper or a blow lamp for two or three minutes by pushing through the spigot opening. Then re-check for flow through
the spigot opening. If no definite flow is indicated, the chimney may be blocked. DO NOT FIT THE FIRE, and report to your
supervisor.

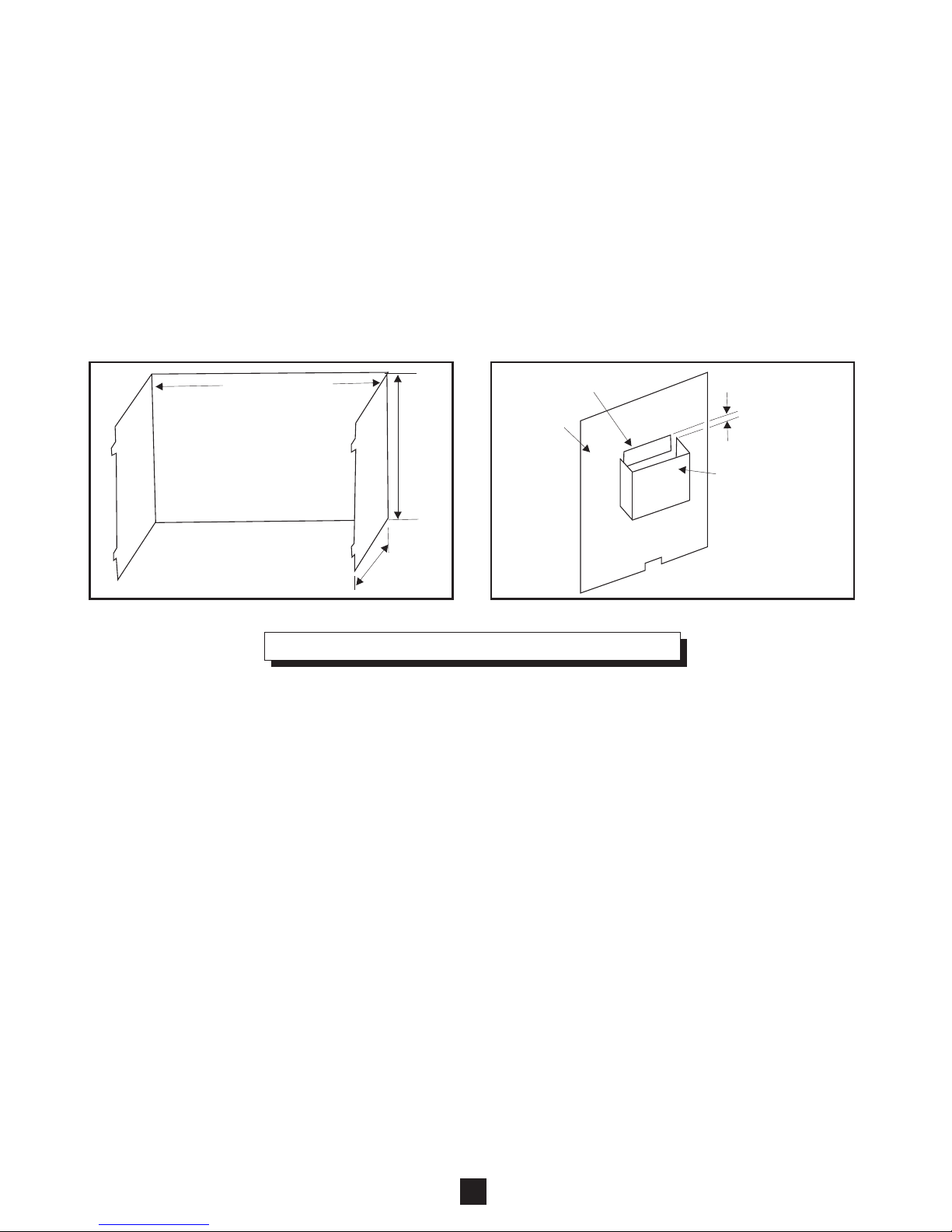

A 460mm (18.1in)
B 660mm (26in)
C 50mm (2in)*
D 38mm (1.5in)*
E 40mm (1.6in)
F 240mm (9.4in)
G 415mm (16.3in)
*For pre-cast flues
C 102mm (4in)
D 50mm (2in)
Fig. 2
STANDARD 228mm x 228mm (9in x 9in) BRICK CHIMNEY
And where fitted, properly installed Flexible Flue Liner of minimum 125mm diameter
The minimum equivalent height for this fire is 3m (10ft) measured from hearth level.
If over 4.3m (14ft) in height, with good draught, the spigot restrictor (Fig. 3) must be fitted as follows:
The four screws for fitting the flue spigot are already fitted around the flue outlet. Remove the two top screws. LOOSEN ONLY the
bottom screws and stand the restrictor on them (with the words "spigot restrictor" uppermost) so that the slots fit over the screw
heads. Fix the spigot restrictor and upper part of the spigot and secure with the top two screws.
Remove the bottom two screws and fix the other part of the spigot, trapping the bottom of the restrictor as the screws are
tightened.
N.B. 1: The spigot restrictor must NOT be used if the fire is to be installed in conjunction with a back boiler.
N.B. 2: The spigot restrictor must NOT be used if the chimney height is less than 4.3m (14ft) or if poor draught is suspected.
FIT THE CLOSURE PLATE
A
B
C
D
E
F
G
FIT FLUE SPIGOT AND ALSO RESTRICTOR IF REQUIRED
56mm
(2.2in)
9mm
(0.35in)
210mm (8.3in)
Fig. 3

PRE-CAST FLUES
(a) The fire is suitable for fitting into properly constructed non-impeded pre-cast flues of cross section 198mm x 67mm or
equivalent cross sectional area with no dimension less than 63mm, which comply with the recommendations of BS 5440:Pt 1
and BS 1289, and have a minimum equivalent height of 3m (10ft).
N.B.: It is emphasised that any mortar fangs between the blocks are not extended into the flueway. If raking blocks are used
they must be fitted according to the manufacturer's instructions and mortar not allowed to drop down and accumulate in the
raked portions.
(b) For ‘wet lined’ flues i.e. where the plaster has been applied directly onto the flue block wall, the air relief opening in the closure
plate must be increased to 102mm x 50mm (4in x 2in) as shown by the indented markings. It is sufficient to make the two
vertical cuts and bend the tag back.
The flue cooler plate, supplied, must be fitted to the back of the closure plate. Bend it along the two lines to form the shape
shown in Fig. 4 and push the tags through the slots in the closure plate. Bend the tags over or twist them to hold the cooler
plate firmly against the back of the closure plate.
N.B.: The top edge of the cooler plate will be 9mm (0.35in) below the top edge of the spigot opening in the closure plate (Fig. 4A).
(c) The spigot restrictor must NOT be used.
Fig. 4 Fig. 4A
HEARTH FITTING
The fire must stand on a non-combustible hearth at least 13mm (½in) thick and measuring at least 305mm (12in) deep and
710mm (28in) wide (with the fireplace opening central). The top surface of the hearth should preferably be 50mm (2in) above floor
level to discourage rugs or carpets being placed over it. Ensure that the fire is stable.
Levelling screws are fitted in the feet and can be adjusted to take up any irregularities in the hearth, but note that they are not to be
used to increase the general height of the fire. The fire must not be fitted directly on a carpet or floor of combustible material. In
such a case, a purpose design non-combustible plinth must be provided.
WALL MOUNTING (to a non-combustible wall)
When required, it is possible to wall mount this fire. For this purpose, keyhole slots are provided in the back of the case on either
side of the flue spigot, together with screw holes in the case ( See Fig. 5). These holes are suitable for size 12 Rawplugs fixing
using 38mm (1.5in) No. 10 round head screws. If the lower right handhole is difficult to access, the slotted hole above it may be
used.
The bottom of the fire must be at least 150mm (6in) from the floor. The legs are held to the bottom of the case by two screws and
should be removed when the fire is wall mounted.
NOTE:
1. When tightening the wall fixing screws, it is not intended that the back of the fire be forced to touch the wall.
2. Ensure that the opening in the wall is large enough to allow chimney refuse to collect behind the closure plate without
obstructing the fire flue spigot, and air relief.
3. In the case of a pre-cast installation, remember to fit the cooler plate to the closure plate.
5
76mm
(3in)
Opening for flue
spigot of fire.
Back face
of closure
plate.
Cooler plate fixed
to closure plate with
its top edge 9mm
(0.35in) below the top
of the spigot opening.
9mm (0.35in)
202mm
(8in)
267mm (10.5in)
INSTALLATION

6
Min. Distance
150mm (6in)
240mm
(9.4in)
620mm (24.4in)
600mm (23.6in)
206mm
(8.1in)
40mm
18mm
(0.7in)
(1.6in)
Closure plate - trim off top and bottom as
necessary whilst ensuring that the fireplace
opening is fully covered. See text for relief opening.
CONNECT TO GAS SUPPLY
1.MAKE GAS CONNECTION
The gas inlet pipe and inlet union are readily accessible under the base of the fire. Provision is made for right hand, left hand
or concealed connections by rotation of the elbow prior to tightening the flared tube and nut connection. The elbow has a
Rp1/4 (1/4in B.S.P.) thread for the supply pipe.
2.TEST FOR GAS SOUNDNESS (BS 6891)
Pressure test the installation for gas soundness.
3.TEST FOR CORRECT BURNER PRESSURE
Remove the pressure test point sealing screw and attach a pressure gauge to the test point. This test point is located on the
gas tap on the right hand side of the appliance. Light the pilot and turn the knob to full rate (refer to Users Instructions).
Check that the pressure is 17mbar (6.8in w.g.) ± 1 (0.4in w.g.). If it is not, take the pressure at the meter to determine if there is a
restriction in the house carcassing, or whether other appliances served by the same meter are starving the gas fire.
With the fire alight test all joints for gas soundness using a suitable soap solution.
Check that the flames are uniform and undistorted. Turn off the gas, remove the pressure gauge and replace the pressure
test point sealing screw. The correct heat input when hot is 6.04kW (20600Btu/h). The injectors are identified RY220.
4.CHECK IGNITION
Depress and release knob at PILOT position several times to ensure that the pilot lights correctly.
N.B.: The spark electrode should be positioned between 3.0mm and 5.0mm above the thermocouple tip on the pilot assembly.
(Refer to Section 5 of Servicing Instructions).
5.REPLACE RADIANTS AND CHECK OPERATION
Replace the radiants, top first, ensuring they locate down behind the upturned flange of the radiant support and then re-check
ignition and cross lighting. Check the operation of the fire at all tap settings. Replace front panel.

7
6. TEST FOR SPILLAGE (See Fig. 6)
Light the fire and leave on at full rate. Close all doors and
windows in the room and after the fire has been alight for five
minutes insert a lighted smoke match tube under the firebox
canopy at either end. If the smoke is drawn into the fire, the
installation is satisfactory. If spillage is absent, installation is
acceptable; if it persists, DISCONNECT THE FIRE AND REPORT
TO YOUR SUPERVISOR.
If there is a fan in the room or in an adjacent room, repeat the
test with the fan running and any door between the fire and the
fan left open
7. TEST OPERATION OF F.S.D.
After the spillage test turn the gas off at the service cock, wait 3
minutes then turn the service cock on again. If the gas has
stopped flowing the F.S.D. is functioning satisfactorily.
NOTE: You may hear the F.S.D. valve close within 3 minutes,
but always check that the gas has stopped flowing.
CANOPY
SMOKE
MATCH
TUBE
RADIANT
Align with inner
edge of canopy
Fig 6
MAKE SURE THE USER KNOWS THAT
WHITE INDICATOR
DIMPLE TO BE
ABOVE WHITE
MARK ON
CONTROL KNOB
ADAPTOR
SECURING SCREW
CONTROL KNOB
WHITE MARK ON
CONTROL KNOB
Fig. 7
1.The front panel is readily removable.
2.The tap must be pressed down before turning anti-clockwise and hold down for 10 seconds.
3.The tap should be turned on slowly, and the spark igniter acts automatically during operation of the tap.
4.The fire can be lit with a match if necessary. To light it, first remove the front panel then light the match and apply to the pilot,
then turn the tap to pilot position holding down for 10 seconds after lighting.
5.That the fire and its installation should be serviced and inspected regularly (i.e. once a year) or as recommended by the local gas
authority for continuing safe operation.
6.Inform the user that lighting instructions are provided in the lift up lid of the bezel.
7.The control knob adaptor may be fitted to assist with the operation of the fire (See Fig. 7). Leave with the User if not fitted.

8
Access to all connections, radiants, injectors etc. is given by removing the front panel. The panel is removed by lifting upwards to
clear the lower supports and then pulling forward and downward away from the fire.
NOTE: For thermocouple or electrode replacement it is necessary to exchange the pilot assembly.
N.B.: For problems with small or no pilot flame always try a new filter first.
IMPORTANT: ALWAYS TEST FOR GAS SOUNDNESS AFTER SERVICING OR EXCHANGING ANY COMPONENT!
1. GAS TAP
Removal:
Turn off the main gas supply to the fire and remove the front panel. Remove the lower spring clip securing the spindle extension.
Disconnect the spark leads at the switch. Undo the nut securing the thermocouple at the bottom of the gas tap and pull out.
Disconnect the union nut at the inlet to the fire and disconnect and remove the pilot pipe. Remove the large nut securing the gas
tap to the burner at the lower injector. Disconnect the inlet pipe clamp and withdraw the tap and inlet pipe.
Servicing:
To gain access to the plug, remove the two screws holding the niting plate assembly to the tap body. When removing the niting
plate, care must be taken not to lose the tap spring or ‘O’ ring and washer (in the top of the plug). The plug can now be removed.
When re-assembling the plug make sure the plug is replaced the right way round and that the tap works correctly. Turn the tap to
the "OFF" position. Note: we recommend that you replace the tap instead of attempting servicing.
Replacing:
If a new tap is being fitted then ensure that the tap is turned "OFF" before fitting and transfer the inlet pipe from the old tap. Secure
the gas tap to the burner with the large nut. Re-connect the pipe clamp and gas inlet. Ensure the indicator pip on the control knob
is facing "OFF" before re-connecting the spindle extension. Re-connect the spark leads at the switch. Re-connect the pilot pipe.
2. REMOVAL OF BURNER
Turn off the main gas supply to the fire and remove the front panel. Remove the lower spring clip securing the spindle extension,
disconnect the union at the inlet to the fire and remove the pipe clamp on the inlet. Remove three nuts, two on the left side of the
firebox which hold the burner in position. Remove the burner and the gas tap as an assembly. Detach the pilot burner from the
main burner. Remove the large nut securing the gas tap to the burner at the lower injector.
3. INJECTORS
Unscrew the injectors from the tap and replace with new injectors.
4. PILOT FILTER
Remove the pipe connecting the pilot to the gas tap (2 nuts). The pilot filter is located in the outlet from the tap, prise it out with a
pin. Insert a new pilot filter (it may be convenient to balance the new filter on the outlet and push home using a matchstick). Re-fit
the pipe, tighten the nuts and check operation.
5. PILOT ASSEMBLY
The pilot is an atmosphere sensing device and must be replace as a complete unit. Repair must not be undertaken.
NOTE: If the fire keeps going out or exhibits signs of nuisance shut off, check the operation of the pilot as follows:-
(a) Inspect the pilot flame, if suspect check gas supply. Clear blockage if necessary, if flame is still suspect replace pilot
assembly.
(b) Check the thermocouple. If faulty replace the pilot assembly.
(c) Check the magnet unit in the gas tap. If faulty replace the tap.
(d) Check the ventilation in the room. Vitiation may be due to lack of sufficient air supply.
(e) Check for satisfactory clearance of combustion products. Vitiation may be due to spillage of combustion products into
the room.
Disconnect the pilot feed pipe at the gas tap and the pilot body at the main burner. Pull off the spark lead at the electrode
and disconnect the thermocouple nut at the gas tap. Withdraw the pilot complete with pipe. Swap the pipe
onto the new pilot. Re-assemble in the fire and make all the connections. Check the operation of the fire.
NOTES ON SERVICING

9
7. PILOT LINT FILTER
A lint filter has been fitted to the pilot of this appliance to filter out any dust or lint which may present in normal household room
air.
If you notice that the appliance has a floppy yellow pilot flame and/or there is difficulty in lighting the appliance then the lint filter may
need cleaning. Cleaning should be carried out by vacuuming the dust and lint from the filter. If vacuuming alone is not successful in
curing the ignition problem then a ‘Gas Safe’ registered Engineer must be called to investigate the problem.
To remove the lint filter for cleaning or to gain access to the aeration hole simply slide the lint filter downward. Refit by pushing up
against the pilot bracket, ensure it is crimped to hold it in place.
When supplied as a spare part the lint trap must be fitted as shown and crimped to fix in place, ensuring it is ‘butted up’ to the pilot
bracket.
Lint Filter
ODS PILOT ASSEMBLY WITH LINT FILTER FITTED
To remove slide downward
after disconnecting the
pilot gas supply tube.
6.REPLACING SPARK GENERATOR
Disconnect all three leads and remove the battery. Remove the fixing screws (2 off) one at the front and one at the right hand side.
Lift out the spark generator complete with mounting bracket. Transfer mounting bracket to the new spark generator. Replace in
reverse order.
NOTE: The lead from the spark electrode connects to the single outlet at the rear of the unit.

10
SHORT LIST OF PARTS
KEY NUMBER G.C. NUMBER PART NUMBER DESCRIPTION
1 144 875 SP997044 Dressguard
2 E37-459 SP987645 Gas Tap Assembly c/w switch
3 144 723 SP998426 Gas Tap Knob
4 154 371 SP995971 Radiant
5 SP822345 Pilot Outlet Filter
6 159 584 SP992495 Pilot Assembly
7 398 319 SP822089 Injector
8 159 581 SP992505 Control Knob Adaptor (see page 7)
1 2 3 4 5 67
Robinson Willey
GDC Group Ltd, Millbrook House, Grange Drive,
Hedge End, Southampton, SO30 2DF.
Telephone: [phone]
E-mail: website:
Robinson Willey is a Trading Division of the GDC Group Ltd
[e-mail] www.robinsonwilley.co.uk
