Robolink CoDrone Pro User manual

http://robolink.co.kr
/download_eng.html
Download (eng)
· CoDrone
· Smart Inventor Board
· Rokit Bluetooth Module (BLE)
· USB cable
· Joystick modules
· Extra propellers
· 4-pin cable
· 3-pin cable
· Battery case
· Battery charger
· Battery
· Feet (Blue board)
· Propeller Replacement tool
· Driver (Screw, Nut)
· Bolts, Nuts, and Supporting beams
· USB Downloader (CP 210)
· CoDrone
· Rokit Bluetooth Module (BLE)
· Batter y, Battery charger
· Extra propellers
· 4-pin cable
· USB cable
· USB Downloader
(CP2102 USB to UART Convertor)
· Propeller Replacement tool

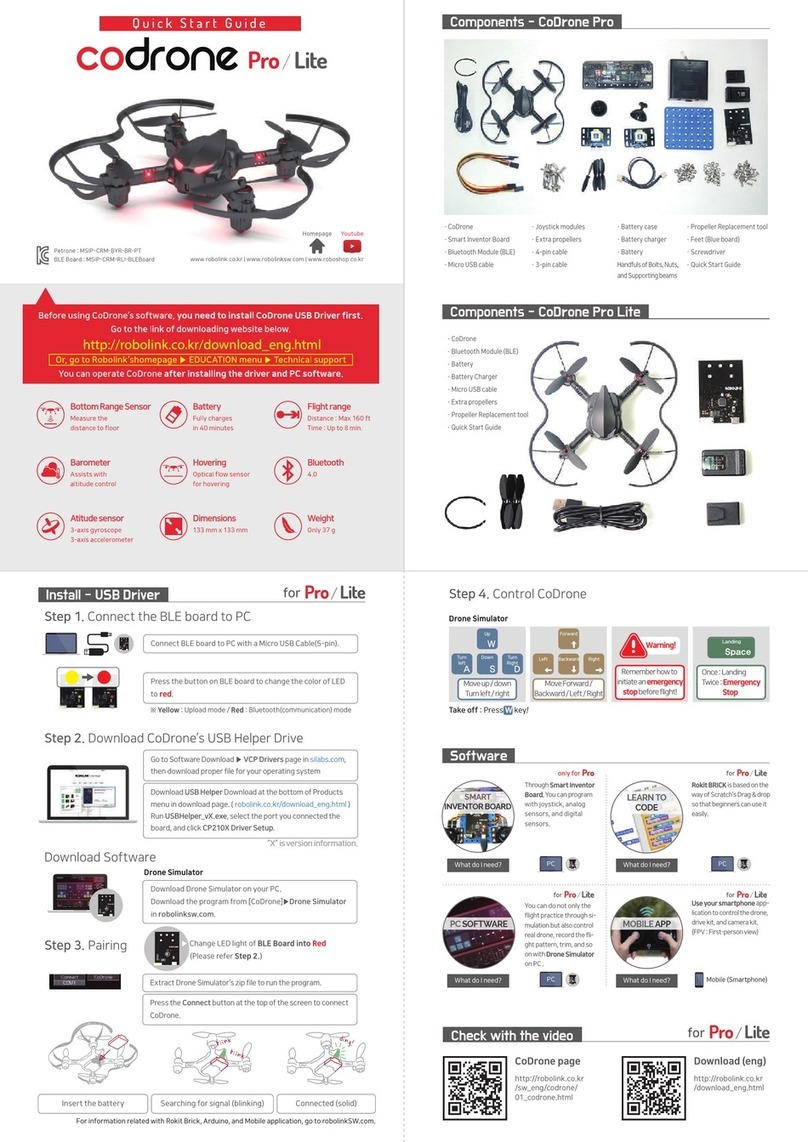

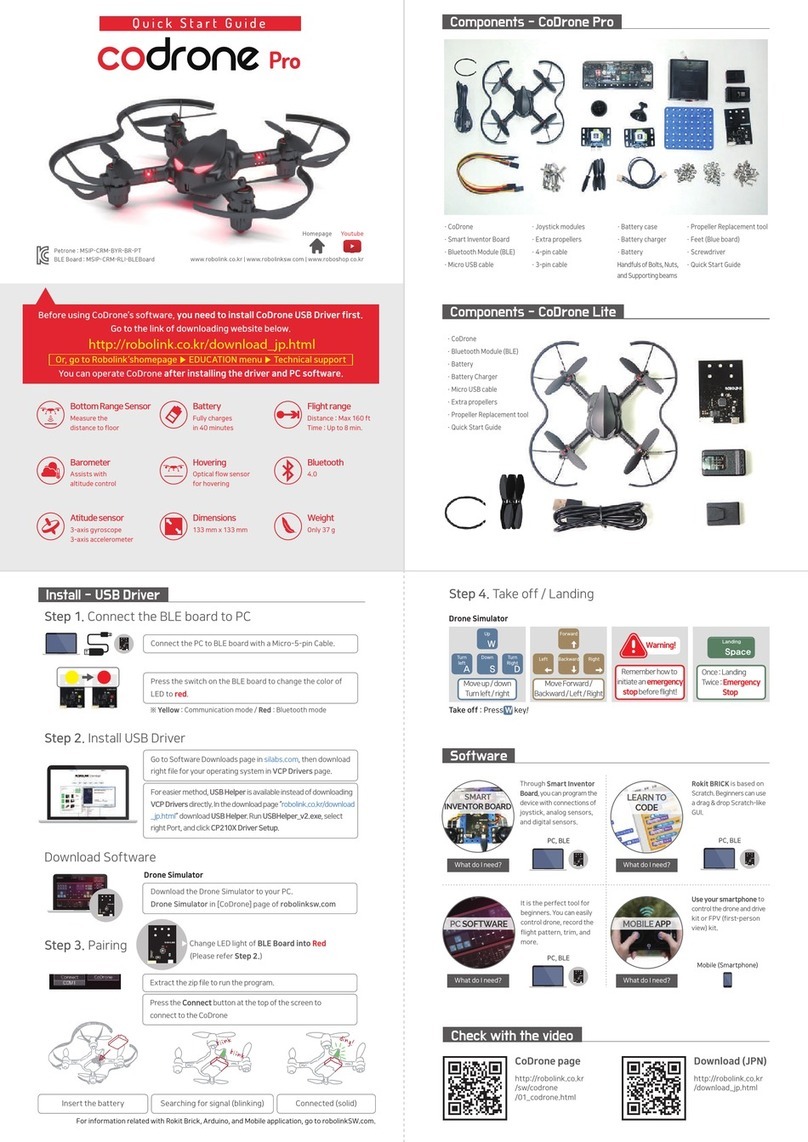

Components - CoDrone Pro
Warning!
Drone Simulator
Take off : Press W key
!
Once : Landing
Twice : Emergency
Stop
Remember how to
initiate an emergency
stop before flight!
Tur n
left
Down Turn
Right
Up
Move up / down
Turn left / right
Left Backward Right
Forward
Move Forward /
Backward / Left / Right
Through Smart Inventor
Board, You can program
with joystick, analog
sensors, and digital
sensors.
What do I need? What do I need?
Rokit BRICK is based on the
way of Scratch’s Drag & drop
so that beginners can use it
easily.
What do I need?
You can do not only the
flight practice through si-
mulation but also control
real drone, record the fli-
ght pattern, trim, and so
on with Drone Simulator
on PC .
What do I need?
Use your smartphone app-
lication to control the drone,
drive kit, and camera kit.
(FPV : First-person view)
Software
LEARN TO
CODE
MOBILE APPPC SOFTWARE
Check with the video
http://robolink.co.kr
/sw_eng/codrone/
01_codrone.html
CoDrone page
for
Drone Simulator
Download the program from [CoDrone]▶Drone Simulator
in robolinksw.com
Select Proper BLE mode, and then press
the Connect button to connect to the PC.
Connect in order PC > USB cable > USB Downloader (CP 210) > 4-pin cable > Rokit Bluetooth Module (BLE)
Red light blinks when connecting the PC to the USB cable.
USB to Serial uploader
Rokit Bluetooth
Module (BLE)
USB cable 4-pin cable
USB Downloader
(CP 210)
PC
new-type BLE
old-type BLE
*Irrelevant to DIP Switch
Components - CoDrone Lite
For information related with Rokit Brick, Arduino, and Mobile application, go to robolinkSW.com.
Insert the battery
blink
blink
Searching for signal (blinking)
ding!
Connected (solid)
Go to Software Download ▶ VCP Drivers page in silabs.com,
then download proper file for your operating system
Download USB Helper Download at the bottom of Products
menu in download page. ( robolink.co.kr/download_eng.html )
Run USBHelper_vX.exe, select the port you connected the
board, and click CP210X Driver Setup.
“X” is version information.
Step 4. Control CoDrone
SMART
INVENTOR BOARD
for
Download Software
Step 2. Download CoDrone’s USB Helper Drive
Step 3. Pairing - Drone Simulator
Step 1. Connect the BLE board to PC
Starting CoDrone
Rokit Bluetooth Module (new BLE) must have the latest version of the software.

Control the drone
with joystick
CoDrone Warranty
Landing
The rightmost
sensor
The leftmost
sensor
Emergency Stop
Up
Down
Turn
Left
Turn
Right
Forward
Backward
Left Right
Play it - Control
Visit us www.robolink.co.kr
Copyright ⓒ Robolink All rights reserved.
Quality Certificate
This certificate ensures protecting rights of consumers who bought CoDrone
Package. Our company will provide paid/free service to our customers, as in
the following details.
1. Warranty Details : Robolink will conduct following guarantees, under the
provision of Consumer Compensation Rules by Item. If manufactural defect
or spontaneous failure occurs before the expiration of the term of guarantee,
you are qualified to receive free services from us.
2. Term of Guarantee : Up to 1 year since the purchase date (Each component
in this package has different policies; read the Range of Assurance below)
3. Determination of Assurance : Will be determined after consultations by
telephone or online services, or by direct discussion in exhibitions.
4. Range of Assurance (Refer the table below)
Component
CoDrone’s Mainboard
Smart Inventor Board
Charger
Battery
Propellers
Propeller’s Guard
Propeller Motors
Term of Guarantee
1 year since
the purchase
Not applied
2 months since the purchase
Guarantee Exclusions
1. Simply because consumers’change of
mind
2. Maintenance/Repair of devices after
term of guarantee
3. Failure or damage caused by customers’
misuse or mistake
4. Failure not caused from the device itself
5. Arbitrary dismantle or action taken by
customers
6. Problems caused by products from
other companies
1) Check if all components are prepared.
1. Turn on CoDrone’s power.
2. Turn on Smart Inventor Board’s power.
3. Wait for the connection.
4. LED lights on the Board move to the center and then stop.
5. CoDrone’s LED stops blinking.
6. All pairing processes complete.
Caution
If CoDrone unexpectedly powered off or pairing failed, repeat the procedures 1~5 above.
2) Assemble the controller with components.
3) Connect the board and cable while
paying attention to cable’s color.
4) Turn on the power of Inventor Board and CoDrone, and then pair each other.
▶ Refer to "Connect CoDrone to Inventor Board" on the next page.
▶ All the channel of DIP Switch is fine.
Build it - Assemble
When CoDrone doesn’t do
hovering and keeps going up,
FAQ
When CoDrone doesn’t fly even
though the propeller is turning,
When CoDrone’s motor doesn’t work,
When the propeller broke,
Check FAQ to solve the problems
Connect CoDrone to Inventor Board
https://goo.gl/CXrTgf
Controller assembly
instruction
Calibrate the drone
Button
^
1. Flip over the drone and press the button on the left for 5 seconds.
2. When the light on the drone flashes, flip the drone over again so
it is upright on the ground.
3. The drone corrects the sensor value while flying, and lands after
the calibration.
Calibration(sensor adjustment)
is required after purchase and before the first flight.
for
Required
- Adjusting the drone’s sensor
* Calibration : Correction of the drone’s sensor value to fit the user’s environment.
* Check the battery before calibrating the drone.
* Demonstration and practice videos are on the CoDrone YouTube channel ▶
