Safety Information 001
Table of Faults 006
Welcome 007
Product Introduction 008
Installation 012
Instructions for Use 014
Routine Maintenance 019
Basic Parameters 022
Troubleshooting 023
FAQs 025
EU Declaration of Conformity 028
Environmental protection description 027
WEEE Information 031
Warranty Information 032

Safety Information
Restrictions
This product is designed for indoor floor cleaning only, do not use it outdoors
(such as on an open-ended terrace), on any surface other than the ground (such
as a sofa), or in any commercial or industrial environment.
Do not use this product on elevated surfaces without barriers such as the floor of
a lo, an open-ended terrace, or on top of furniture.
Do not use the product when the ambient temperature is higher than 104°F (40°C),
lower than 39°F (4°C), or if there are liquids or tacky substances on the floor.
Before using the product, move wires offthe ground or place them to the side to
prevent them being pulled on by the cleaner.
To prevent blocking the product and to avoid damage to valuables, remove light-
weight items (such as plastic bags) and fragile objects (such as vases) from the
floor before cleaning.
Children should be supervised to ensure that they do not play with the appliance.
001

Safety Information
This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the pro-
duct by a person responsible for their safety (CB).
This product can be used by children aged from 8 years and above and persons
with reduced physical,sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the product in a safe way and understand the hazards involved. Children shall not
play with the product. Cleaning and user maintenance shall not be made by
children without supervision (EU).
Keep the main brush cleaning tools out of reach of children.
Do not place any object (including children and pets) on the product, whether it
is in operation or not.
Keep hair, loose clothing, fingers, and all parts of the body away from openings
and moving parts.
002

Safety Information
Do not use the product on burning objects (such as cigaree bus).
Do not use the product on high pile carpets (product effectiveness may also be
reduced on dark carpets).
Do not use the product to clean hard or sharp objects (such as decoration wastes,
glass and nails).
Do not carry the product using the laser scanner cap, main unit cover, or collision
buffer.
The product must be switched offand the plug must be removed from socket-outlet
before cleaning or maintaining the product.
Do not use wet cloth or liquids for cleaning the product.
Do not use the mopping module on carpets.
Use the product according to the manual. Any loss or damage caused from impro-
per use will be borne by the user.
This product contains baeries that are only replaceable by skilled persons.
003

Baery and Charging
WARNING
Safety Information
Do not charge non-rechargeable baeries.
For the purposes of recharging the baery, only use the detachable supply Unit
roborock CDZ10RR provided with this product.
Do not dismantle, repair or modify the baery or charging dock.
Keep the charging dock away from heat (such as heating vents).
The baery must be removed from the appliance before it is scrapped.
The product must be disconnected from the supply mains when removing the
baery.
The baery must be disposed of safely. Do not discard waste baeries. Leave them
with a professional recycling organization.
Do not wipe or clean the charger prongs with wet cloth or wet hands.
If the power cord is damaged, stop using it immediately. It must be replaced by the
manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
004

Safety Information
Make sure the product is powered offbefore shipment.
Use of the original packaging is advised.
If to be leunused for a long period of time, fully charge the product and switch
it offbefore storing it in a cool, dry place.
Charge it at least every three months to avoid over discharging the baery.
To satisfy RF exposure requirements, a separation distance of 20 cm or more
should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
The antenna used for this transmier must not be co-located in conjunction with
any other antenna or transmier.
005

Table of Faults
Item
Main Unit
Charging dock Main unit does not charge.
Main brush, side brush, fan or main wheel issue.
Does not power on.
Functions do not work.
Power cable Charging dock has no power.
Fault
Table of Faults
006

Welcome
Thank you for choosing a Roborock S4 robot vacuum.
This robot vacuum features a precision laser mapping system able to quickly and accurately create maps of your home. Adaptive
routing algorithms then allow it to plan the most effective cleaning route for each room based on the shape of the room and the
obstacles within. Suction is generated by a powerful fan and advanced airflow management. A floating main brush keeps close
to the ground, flicking dust and hair into the suction flow for a more thorough clean.
Through the Roborock app, you can see a map of your home, the location of the robot, and its cleaning path in real-time, set
cleaning schedules and specific cleaning areas, and more, for full remote control. When at home, you can also control your robot
with your voice through a voice assistant.
Roborock S4 was designed to make your life simpler through technology.
Now you can step away from vacuuming and focus on spending time with the people you love. We hope you enjoy your robot.
007

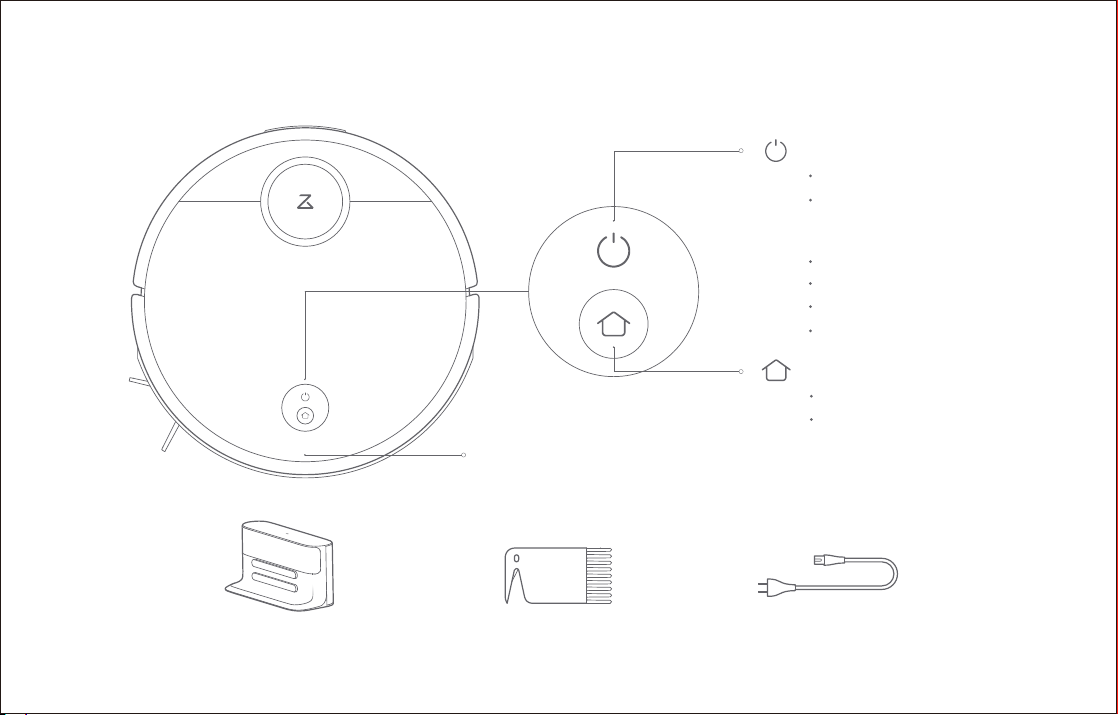

Cover latch
Charging dock Main brush cleaning tool Power cable
Power indicator
White: Baery level ≥20%
Red: Baery level < 20%
Flashing: Charging or starting up
Flashing red: Error
On/Off
Press to start cleaning
Press and hold to power on or off
Note: Press any buon to pause cleanup,
return to the dock, or spot clean.
Dock/spot clean
Press to return to the dock
Press and hold to spot clean
Product introduction
Robot
Parts list
008

WiFi indicator light
System reset buon
Off: WiFi disabled
Slow flashing: Waiting
for connection
Fast flashing: Connecting
Steady: WiFi connected
Product introduction

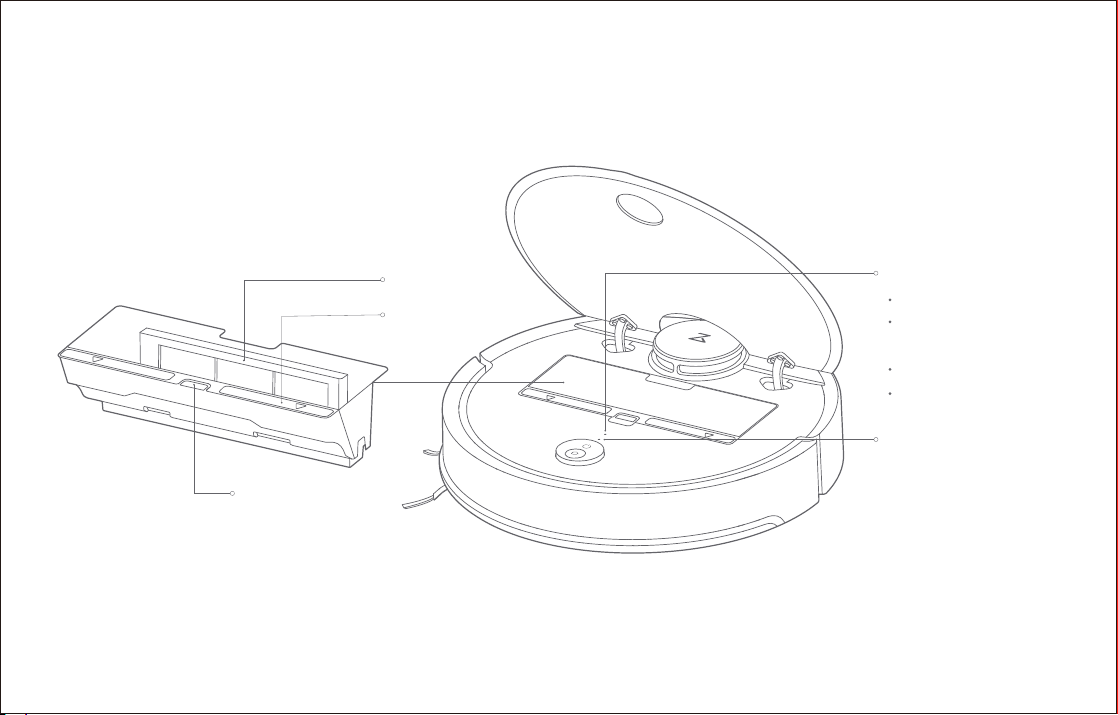

Dustbin Robot
Dustbin cover
Dustbin latch
Air filter
009

Locator beacon
Charging points

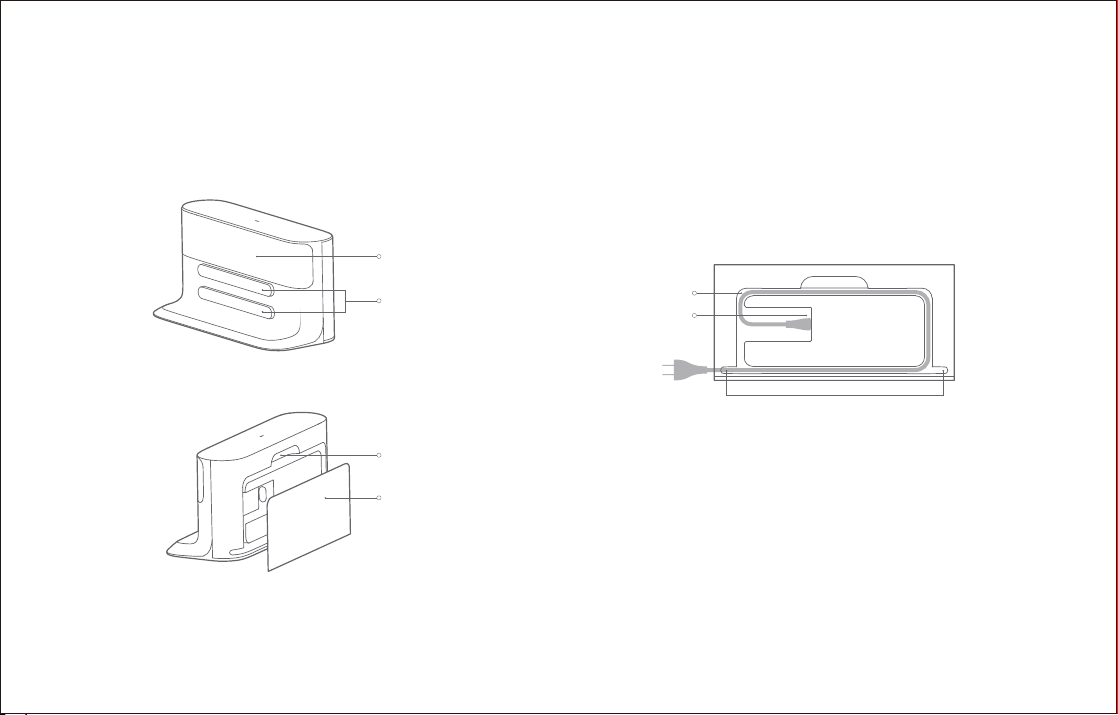

Product introduction
Charging dock
Latch
Cable channel
Power socket
Cable exit points
Rear cover
Note: Cables can exit either the right or leopening.
010

Product introduction

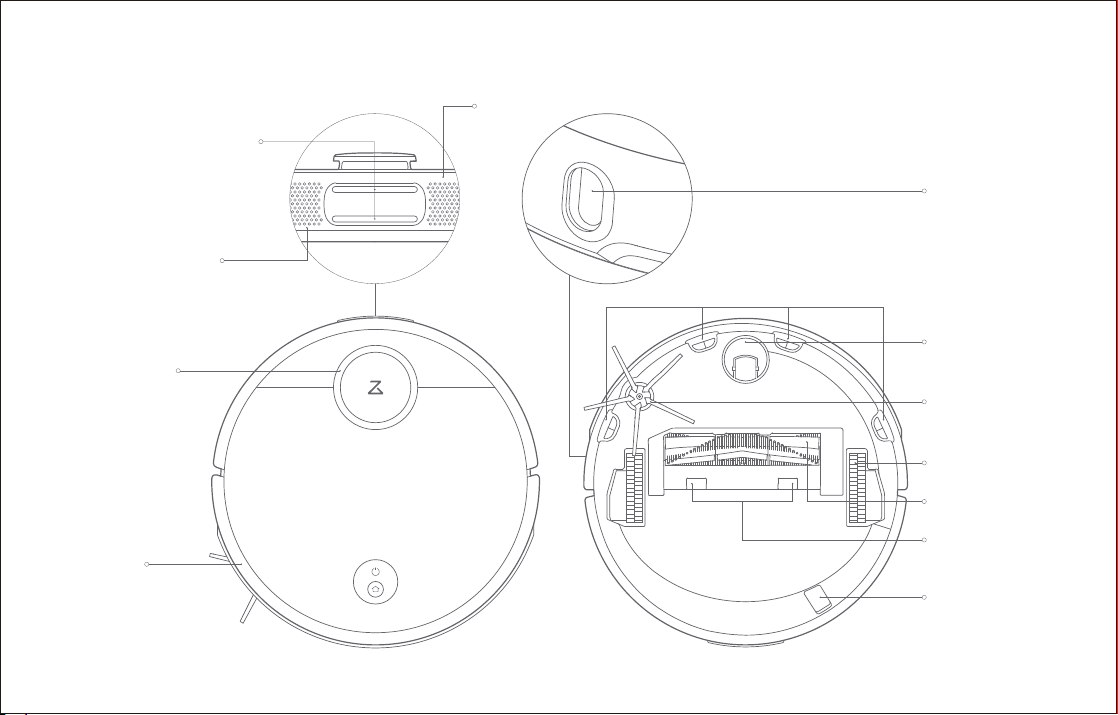

Bumper
Laser distance
sensor
Wall sensor
Side brush
Omnidirectional
wheel
Main brush
Main brush
cover latch
Driving wheels
Cliffsensors
USB debugging port
(for service use only)
Speaker
Air vent
Charging contacts
011

Using the robot
Installation

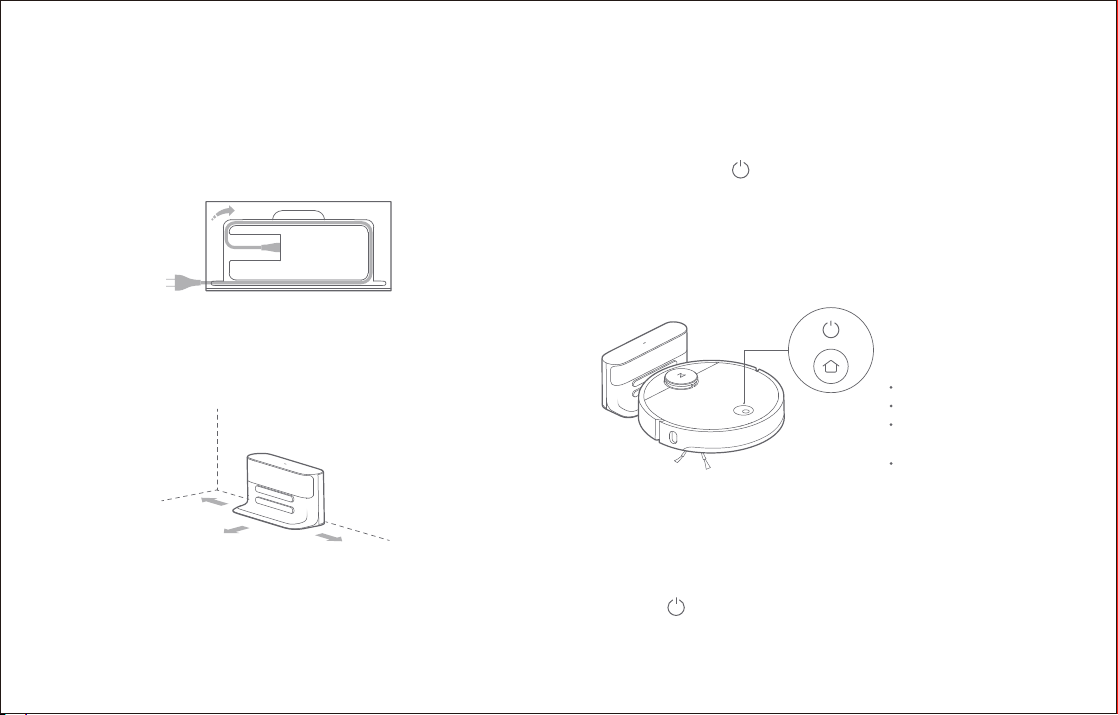

1. Connect the power cable to the charging dock and tidy cables
using the cable channel as necessary.
3. Turn on and charge
2. Place the charging dock against the wall on a flat surface and
plug it into mains power.
4. Connect to the mobile app. (recommended)
5. Start cleanup
When the baery is fully charged, the power indicator will remain lit.
Press the buon or use the app to start a cleanup.
Note: If the power cable is vertical to the ground, it may get dragged by the robot,
causing the charging dock to be disconnected.
Note: The charging dock should have more than 0.5m (1.6) of clearance on each
side, and more than 1m (3.3) in the front.
Note: The robot will not turn on when the baery is low. Place the robot directly onto
the charging dock to begin charging.
White: Baery level ≥20%
Red: Baery level < 20%
Flashing:
Charging or starting up
Flashing red: Error
The color of the power
indicator indicates the
baery level.
More than 0.5m (1.6)
More than 0.5m (1.6)
More than 1m (3.3)
Press and hold the buon to turn on the robot. When the
power indicator lights up, place the robot onto the charging dock
to begin charging. The robot uses a high-performance lithium-ion
rechargeable baery. To maintain peak baery performance,
always keep the robot charged.
012

Installation
Connect to the Mi Home App
This robot is controlled through the Mi Home app. Through the MIUI system, it can be connected to other smart home products.
Note:
Due ongoing Mi Home development, the actual process may differ slightly from the above description. Always follow instructions given in-app.
Only 2.4GHz WiFi is supported.
Download app
1
Search for "Mi Home" in the App Store or Google Play, or scan the QR code below, then download and install the app.
Reset WiFi
2
Note: If you cannot connect your phone to the robot, reset the WiFi, and add your robot
as a new device.
Add device
Open the Mi Home app and click "+" in the top right corner, then follow the instructions in-app. Once your robot has been added,
it will be found in a list on the Mi Home homepage.
3
1. Open the top cover of the robot to reveal the WiFi indicator light.
2. Press and hold the and buon until you hear the "Reset WiFi"
voice alert. When the WiFi indicator light is flashing slowly, the robot
has entered network configuration mode.
WiFi indicator light
Off: WiFi disabled
Slow flashing: Waiting
for connection
Fast flashing: Connecting
Steady: WiFi connected
013

Instructions for use
On/off
Note: The robot cannot be turned offwhen it is charging.
Start cleanup
Note:
When the robot is cleaning, press any buon to pause it.
Then press the buon to continue cleaning or the buon to stop
the cleanup and send it back to the dock.
Pause
Note: Placing a paused robot on the charging dock manually will end the current cleanup.
If the robot is paused for over 10-minutes, it will go to sleep, and its
power indicator will flash slowly. Press any buon to wake it back up.
Sleep
Note:
Zone 1: Clean Zone 2: Clean
Zone 4: Pending Zone 3: Cleaning
Press and hold the buon to turn on the robot. The power
indicator will turn on, and the robot will enter Standby mode. If the
robot is asleep, press and hold the buon to turn it offand end
the current cleanup.
Press the buon to start a cleanup. Once started, the robot will
plan its cleaning route based on its scan of the area. It cleans
along the wall of a zone first and then moves in a Z-shaped
cleaning route to cover the whole area efficiently and thoroughly.
Cleaning cannot start if the baery level is too low. Allow the robot to charge before
restarting cleanup.
Tidy away any cables on the ground (including the power cable of the charging dock)
before cleaning to avoid losing power or damaging either the robot or any connected
devices.
If a cleanup finishes within 10 minutes, cleaning repeats by default.
If the baery runs low before cleanup is complete, the robot will carry out a top-up charge
before resuming cleanup from where it leoff.
The robot will not go to sleep when it is on the charging dock.
The robot will shut down if leasleep for over 12-hours.
014

Instructions for use
If an error occurs while the robot is cleaning, the power indicator
will flash red quickly, and you will hear a voice alert. See
"Troubleshooting" for resolution options.
Error
Charging
Auto: Aer cleanup, the robot will automatically return to the
charging dock to recharge.
Manual: In Pause mode, press the buon to send the robot
back to the charging dock.
The power indicator will flash slowly as the robot charges.
Note:
Note: If the cleanup was started away from the charging dock and the robot could not
return to the dock aer cleanup, it will instead return to its starting point. Place the
robot directly on the dock to start recharging.
Reset WiFi
Note: If the robot is leconnecting to the network for over an hour, its WiFi will be
disabled. Reset WiFi before aempting reconnection.
Spot cleaning
Note: Pressing any buon will cancel the current spot cleanup
1.5m
< <
1.5m
<
<
The robot will go to sleep automatically if lein an Error state for over 10-minutes.
Placing the robot on the charging dock in an error state will stop the current cleanup.
If your phone cannot connect to the robot because you have
changed your router configuration, forgoen your password, or any
other reason, open the top cover to see the WiFi indicator light then
press and hold the buon and buon until you hear the
“Reseing WiFi” voice alert. When the WiFi indicator light flashes
slowly, reset is complete.
In Standby or Pause modes, press and hold the buon to spot
clean. A 1.5m x 1.5m square area centered on the robot will be cleaned.
Aer cleanup, the robot will return to the center of the square.
015

Instructions for use
Use the Mi Home app to set start times and suction levels for
scheduled cleanups. The robot will return to the charging dock
aer each cleanup.
Scheduled cleanup
Use the Mi Home app to set a destination for the robot. It will then go
to that point.
Pin n go

Use the Mi Home app to chose from Quiet, Balanced, Strong, or
MAX modes. The Balanced mode is the default.
Cleaning mode
Virtual no-go zone and barrier
Note:
The Mi Home app can be used to draw virtual no-go zones and barriers
to keep the robot from entering the areas you define.
Virtual barrier
Virtual no-go zone
Note: While cleaning the designated zone, the robot may move outside zone borders.
Make sure that there are no cables or obstacles placed close to the cleanup zone.
Use the Mi Home app to draw a specific zone for the robot to clean.
Zone cleanup
In DND mode, no cleanups will start, no voice alerts will play, and the
power indicator will dim. DND mode is set from 22:00 to 08:00 by
default and can be disabled or modified in the Mi Home app.
"Map Saving Mode" must be turned on in the Mi Home app to use virtual no-go zones.
Virtual no-go zones and barriers should only be used to customize the cleaning area. It
should not be used to isolate hazards.
Moving the robot manually or making significant changes to the home environment may
cause the loss of virtual no-go zones and barriers
016

Instructions for use
More app functions
Note: Functions and details of the Mi Home app may vary slightly due to the continuous app
development and upgrades.
Change cleaning mode
Live map
View cleaning history Change voice pack
Firmware updates
Cleanup records
Remote control mode
View robot status
Robot location
Control other Mi Home devices
017
