Roborock S7 User manual
Roborock S7
Read this user manual carefully before using this product and
store it properly for future reference.
Robotic Vacuum Cleaner User Manual
English 004
Français 045
Español 087
Contents
005 Safety Information
008 FCC IC Statement
010 Battery and Charging
011 Holiday Energy Saving Function
012 Product Overview
018 Installation
023 Connect to the App
025 Instructions
029 Routine Maintenance
039 Basic Parameters
040 Errors
042 Common Issues
005
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Safety Information
When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL IN-
STRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock,
Do not use outdoors or on wet surfaces.
Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
Use only as described in this manual. Use only manufacturer’s recommended attachments.
Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
Do not handle charger, including charger plug, and charger terminals with wet hands.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
Do not use without dust bag.
on invites accidents.
006
Safety Information
measures reduce the risk of starting the appliance accidentally.
Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range
safety of the product is maintained.
care.
Place the cords from other appliances out of the area to be cleaned.
Do not operate the vacuum in a room where an infant or child is sleeping.
Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.
Do not allow children to sit on the vacuum.
007
Safety Information
SAVE THESE INSTRUCTIONS
Household use only.
Laser Safety
FCC IC Statement
Compliance Information
Correspondence of the responsible party in USA
Product Name Robotic Vacuum Cleaner with Dock Charger
Robotic Vacuum Cleaner Model: roborock S7
Dock Charger Model: CDZ11RR or CDZ12RR
This device complies with part 15 of the FCC Rules.
-
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Roborock Technology Co.
support@roborock.com
Product Model
Compliance Statement
Company
Address
Email
Warning
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter-
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
FCC IC Statement
MPE Requirements
antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is
not recommended.
010
Battery and Charging
Keep the charging dock away from heat (such as radiators).
Do not wipe the charging contacts with wet cloth or wet hands.
every three months to prevent the battery over discharging.
Battery pack charging temperature
When stored at 25°C (77°F) the
robot should be recharged every
three months.
-20°C - 60°C (-4°F - 140°F)
@Less than 70% RH
Long Storage (3months)
Long Storage (1year)
Storage (1month)
-20°C - 45°C (-4°F - 113°F)
@Less than 70% RH
@Less than 70% RH
Battery pack using temperature
Battery pack
storage
temperature
011
When the robot is docked, press and hold “Dock” for 10 seconds or until you hear an alert sound. This will activate Holiday mode.
stopping of all non-charging related functions including cleaning, remote control over WiFi, and more.
To deactivate Holiday mode, press and hold “Dock” for 10 seconds until the LED indicator brightens.
Holiday Energy Saving Function
012

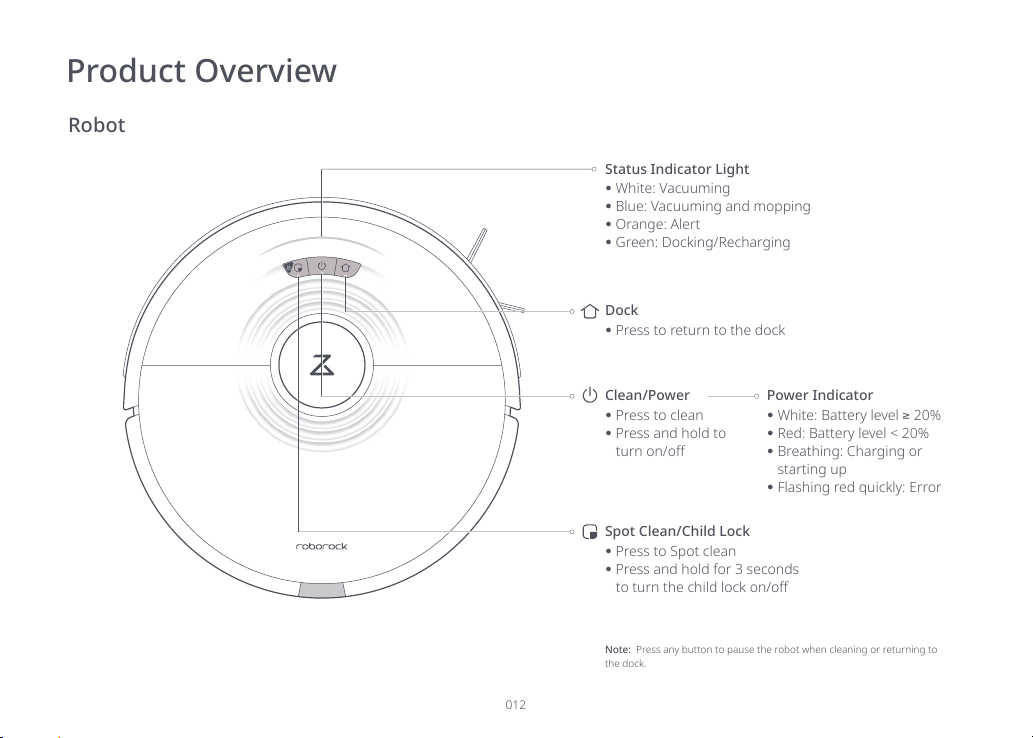

Robot
Clean/Power
Press to clean
Press and hold to
Power Indicator
Dock
Press to return to the dock
Note: Press any button to pause the robot when cleaning or returning to
the dock.
Spot Clean/Child Lock
Press to Spot clean
Press and hold for 3 seconds
White: Vacuuming
Blue: Vacuuming and mopping
Orange: Alert
Status Indicator Light
Product Overview
White: Battery level 20%
Red: Battery level < 20%
Breathing: Charging or
starting up
013
Parts List
Charging Dock VibraRise Mop Cloth Mount
VibraRise Mop ClothPower Cable
Product Overview
014
Robot
System Reset
Air Vent
VibraRise Mop
Cloth Mount
Water Tank
WiFi Indicator
Dustbin
Filter Cover
Dustbin Latch
Washable Filter
Filter Cover Latch
Product Overview
Note: Remove this piece if using
the Roborock Auto-Empty Dock.
Available for purchase separately.
Visit www.roborock.com for
details.
015

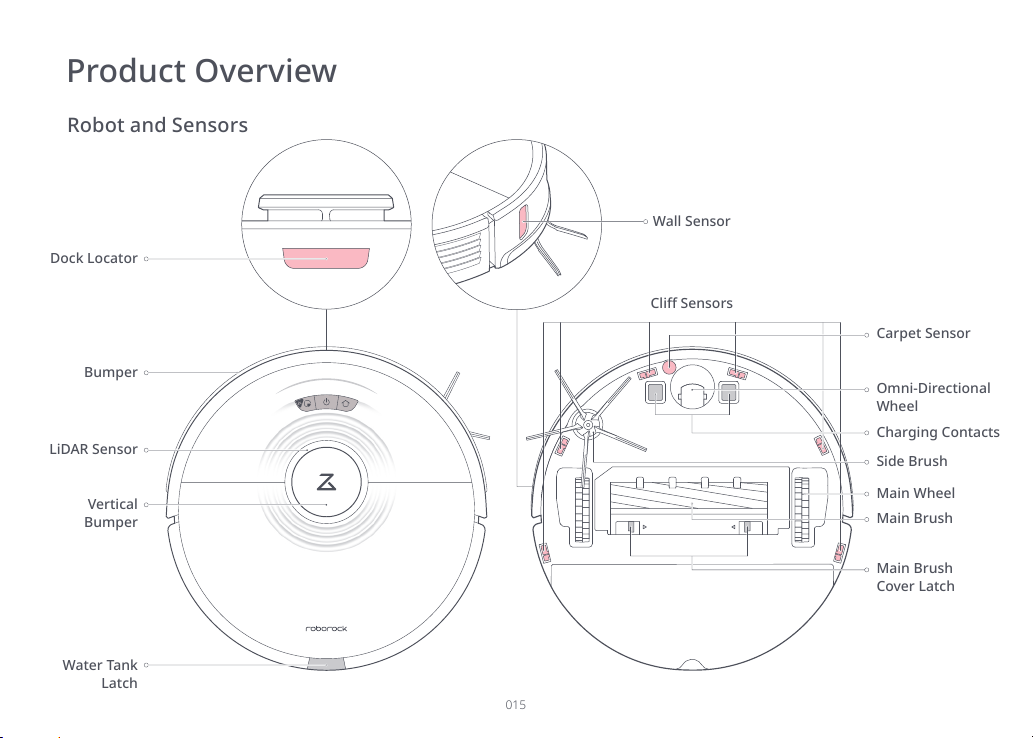

Robot and Sensors
Dock Locator
Bumper
LiDAR Sensor
Vertical
Bumper
Water Tank
Latch
Omni-Directional
Wheel
Wall Sensor
Charging Contacts
Carpet Sensor
Side Brush
Main Wheel
Main Brush
Main Brush
Cover Latch
Product Overview
016
VibraRise Module
Water Tank Stopper
Water Filter
Electric Water Tank
Water Tank Latch
Mop Cloth Attachment Slot
VibraRise Mop Cloth Mount
VibraRise Mop Cloth
Attachment Area
Mop Cloth Mount Latch
Vibration Module
Product Overview
017
Charging Dock
Dock Location Beacon
Power Socket
Charging Dock Power Indicator
Charging Contacts
Electrode Brushes
Product Overview

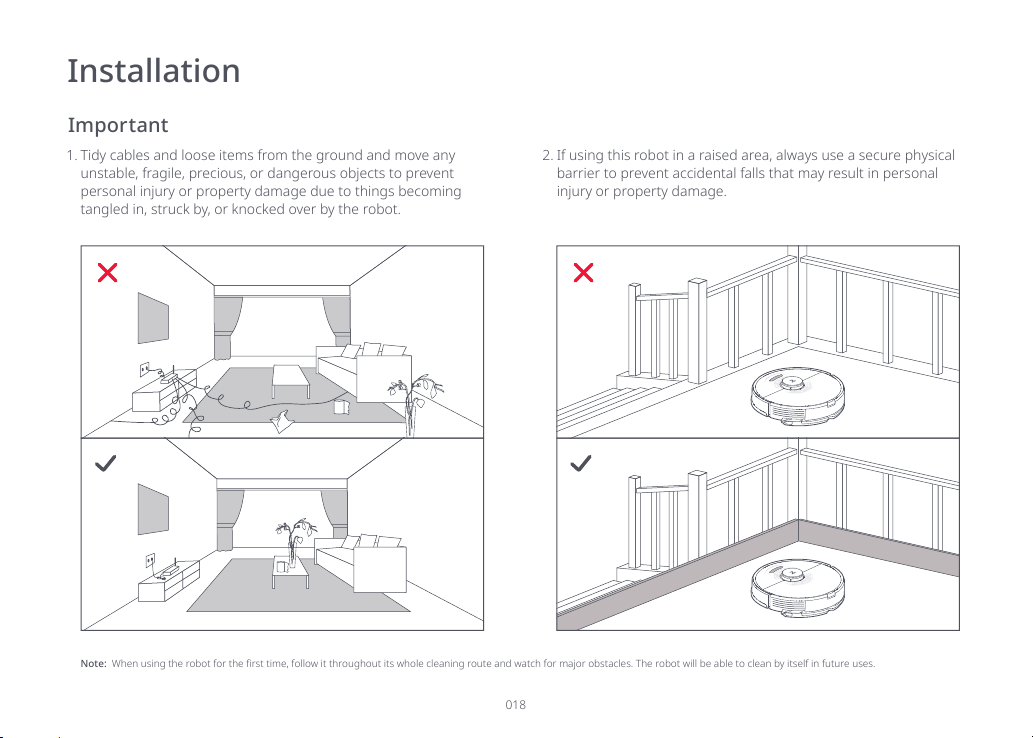

Important
Tidy cables and loose items from the ground and move any
tangled in, struck by, or knocked over by the robot.
1. If using this robot in a raised area, always use a secure physical
barrier to prevent accidental falls that may result in personal
2.
Note:
Installation
More than 0.5m (1.6ft)
More than 0.5m (1.6ft)
More than 1.5m (4.9ft)
Secure the charging dock with the
adhesive tape
placed with a dry cloth, then secure the dock in place using
double-sided tape at the bottom of the dock.
Position the charging dock
Connect the power cable to the Charging Dock and tidy cables
mobile app, place the Charging Dock in an area with good WiFi
coverage.
Note:
front of the Charging Dock.
If the power cable hangs vertical to the ground, it may be caught by the robot, caus-
ing the Charging Dock to be disconnected.
the robot is charging.
not block the Location Beacon. Otherwise the robot may not be able to automatically
return to the Charging Dock.
Use double-sided tape to stick the Charging Dock down.
Note:
Use of the double-sided tape to secure the charging dock is optional.
When necessary, remove the double-sided adhesive tape slowly to reduce residue glue.
Installation
12
020

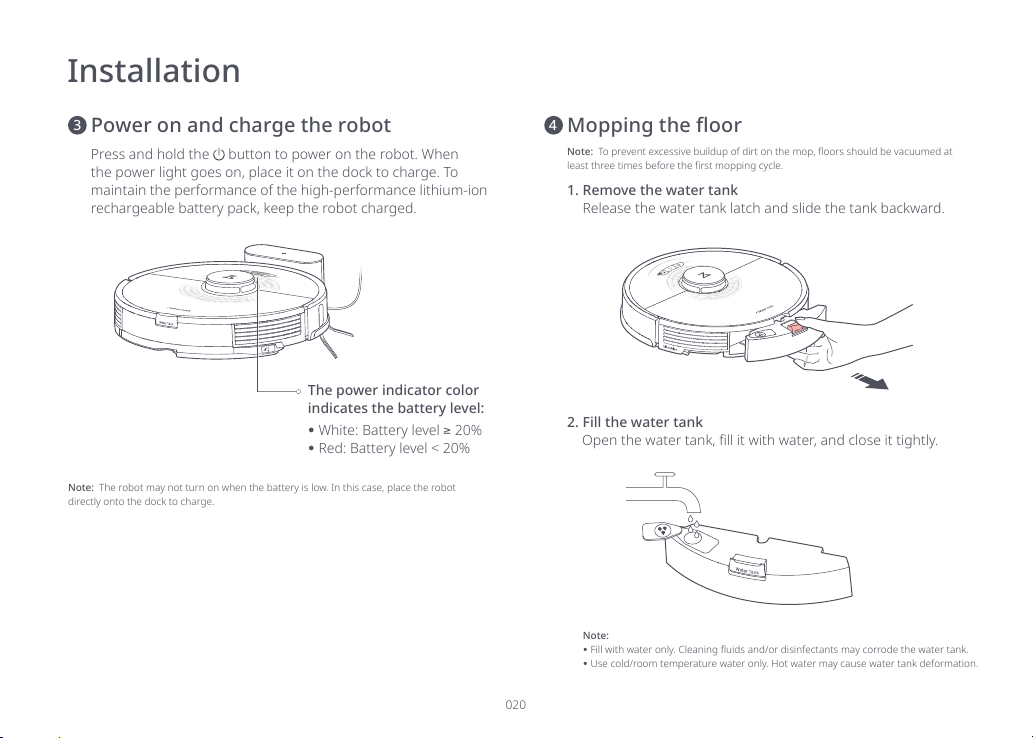

Note:
1. Remove the water tank
2. Fill the water tank
Release the water tank latch and slide the tank backward.
Note:
4
Power on and charge the robot
Press and hold the button to power on the robot. When
the power light goes on, place it on the dock to charge. To
maintain the performance of the high-performance lithium-ion
rechargeable battery pack, keep the robot charged.
Note: The robot may not turn on when the battery is low. In this case, place the robot
directly onto the dock to charge.
3
The power indicator color
indicates the battery level:
White: Battery level 20%
Red: Battery level < 20%
Installation
