Roborock S7 User manual

Roborock S7
Read this user manual carefully before using this product and
store it properly for future reference.
Robotic Vacuum Cleaner User Manual

English 004
Français 049
Deutsch 095
Italiano 141
Español 187
Polski 233
Norsk 279
Svenska 325

004
Contents
005 Safety Information
009 Roborock Robotic Vacuum Cleaner Troubleshooting
010 Product Overview
016 Installation
021 Connect to the App
023 Instructions
027 Routine Maintenance
037 Basic Parameters
038 Errors
040 Common Issues
042 EU Declaration of Conformity
046 WEEE Information
047 Warranty Information

005
Restrictions
•This product is designed for indoor oor cleaning only, do not use it outdoors
(such as on an open-ended terrace), on any surface other than the ground (such
as a sofa), or in any commercial or industrial environment.
•Do not use this product on elevated surfaces without barriers such as the oor
of a loft, an open-ended terrace, or on top of furniture.
•Do not use the product when the ambient temperature is higher than
40°C (104°F), lower than 4°C (39°F).
•Before using the product, move wires o the ground or place them to the side to
prevent them being pulled on by the cleaner.
•To prevent blocking the product and to avoid damage to valuables, remove light-
weight items (such as plastic bags) and fragile objects (such as vases) from the
oor before cleaning.
•Children should be supervised to ensure that they do not play with the appliance.
•This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
product by a person responsible for their safety (CB).
Safety Information

006
Safety Information
•This product can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the product in a safe way and understand the hazards involved. Children shall
not play with the product. Cleaning and user maintenance shall not be made by
children without supervision (EU).
•Keep the main brush cleaning tools out of reach of children.
•Do not place any object (including children and pets) on the product, whether it
is in operation or not.
•Keep hair, loose clothing, ngers, and all parts of the body away from openings
and moving parts.
•Do not use the product on burning objects (such as cigarette butts).
•Do not use the product on high pile carpets (product eectiveness may also be
reduced on dark carpets).
•Do not use the product to clean hard or sharp objects (such as decoration
wastes, glass and nails).
•Do not carry the product using the vertical bumper, upper cover or bumper.
•The product must be switched o and the plug must be removed from socket
outlet before cleaning or maintaining the product.

007
•Do not charge non-rechargeable batteries.
•For the purposes of recharging the battery, only use the detachable supply unit
roborock CDZ11RR or CDZ12RR provided with this product.
•Do not dismantle, repair or modify the battery or charging dock.
•Keep the charging dock away from heat (such as radiators).
•Do not wipe the charging contacts with wet cloth or wet hands.
•If the power cord is damaged, stop using it immediately. It must be replaced by
the manufacturer, its service agent, or similarly qualied persons to avoid a hazard.
•Make sure the product is powered o before shipment.
•Use of the original packaging is advised.
Safety Information
Battery and Charging
WARNING
•Do not use wet cloth or liquids for cleaning the product.
•Do not use the mopping module on carpets.
•Use the product according to the manual. Any loss or damage caused from im-
proper use will be borne by the user.
•This product contains batteries that are only replaceable by skilled persons.

008
•If placing the robot into storage, charge it fully and turn it o before placing it in
a cool dry place. Recharge it at least every three months to prevent the battery
over discharging.
•To satisfy RF exposure requirements, a separation distance of 20 cm or more
should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
•The antenna used for this transmitter must not be co-located in conjunction with
any other antenna or transmitter.
Safety Information

009
Roborock Robotic Vacuum Cleaner Troubleshooting
Name Troubleshooting
Robot
Problem listed in the User Manual
Charging dock
The product cannot be powered on
The main brush, side brush, fan, or main wheels do not work
Power cable
The robot does not receive power
The charging dock cannot be supplied with power

010
Robot
Clean/Power
•Press to clean
•Press and hold to
turn on/o
Power Indicator
Dock
•Press to return to the dock
Note: Press any button to pause the robot when cleaning or returning to
the dock.
Spot Clean/Child Lock
•Press to Spot clean
•Press and hold for 3 seconds
to turn the child lock on/o
•White: Vacuuming
•Blue: Vacuuming and mopping
•Orange: Alert
•Green: Docking/Recharging
Status Indicator Light
Product Overview
•White: Battery level ≥ 20%
•Red: Battery level < 20%
•Breathing: Charging or
starting up
•Flashing red quickly: Error

011
Parts List
Charging Dock VibraRise Mop Cloth Mount
VibraRise Mop ClothPower Cable
Product Overview

012
Robot
System Reset
Air Vent
VibraRise Mop
Cloth Mount
Water Tank
WiFi Indicator
Dustbin
Filter Cover
Dustbin Latch
Washable Filter
Filter Cover Latch
Air inlet
Product Overview
Note: Remove this piece if using
the Roborock Auto-Empty Dock.
Available for purchase separately.
Visit www.roborock.com for
details.

013
Robot and Sensors
Dock Locator
Bumper
LiDAR Sensor
Vertical
Bumper
Water Tank
Latch
Cli Sensors
Omni-Directional
Wheel
Wall Sensor
Charging Contacts
Carpet Sensor
Side Brush
Main Wheel
Main Brush
Main Brush
Cover Latch
Product Overview

014
VibraRise Module
Water Tank Stopper
Water Filter
Electric Water Tank
Water Tank Latch
Mop Cloth Attachment Slot
VibraRise Mop Cloth Mount
VibraRise Mop Cloth
Attachment Area
Mop Cloth Mount Latch
Vibration Module
Product Overview

015
Charging Dock
Dock Location Beacon
Power Socket
Charging Dock Power Indicator
Charging Contacts
Electrode Brushes
Product Overview

016
Important
Tidy cables and loose items from the ground and move any
unstable, fragile, precious, or dangerous objects to prevent
personal injury or property damage due to things becoming
tangled in, struck by, or knocked over by the robot.
1. If using this robot in a raised area, always use a secure physical
barrier to prevent accidental falls that may result in personal
injury or property damage.
2.
Note: When using the robot for the rst time, follow it throughout its whole cleaning route and watch for major obstacles. The robot will be able to clean by itself in future uses.
Installation

017
More than 0.5m (1.6ft)
More than 0.5m (1.6ft)
More than 1.5m (4.9ft)
Secure the charging dock with the
adhesive tape
Wipe the oor of the area where the charging dock will be
placed with a dry cloth, then secure the dock in place using
double-sided tape at the bottom of the dock.
Position the charging dock
Keep the Charging Dock on a level surface, at against a wall.
Connect the power cable to the Charging Dock and tidy cables
from the oor. To ensure a better user experience of the
mobile app, place the Charging Dock in an area with good WiFi
coverage.
Note:
•Allow at least 0.5m (1.6ft) of clearance on each side, and more than 1.5m (4.9ft) in
front of the Charging Dock.
•If the power cable hangs vertical to the ground, it may be caught by the robot, caus-
ing the Charging Dock to be disconnected.
•The Charging Dock indicator is on when the Charging Dock is electried, and o when
the robot is charging.
•Do not place the Charging Dock in places that are directly exposed to sunlight, and do
not block the Location Beacon. Otherwise the robot may not be able to automatically
return to the Charging Dock.
•Use double-sided tape to stick the Charging Dock down.
Note:
•Use of the double-sided tape to secure the charging dock is optional.
•When necessary, remove the double-sided adhesive tape slowly to reduce residue glue.
Installation
12

018
Mopping the oor
Note: To prevent excessive buildup of dirt on the mop, oors should be vacuumed at
least three times before the rst mopping cycle.
1. Remove the water tank
2. Fill the water tank
Release the water tank latch and slide the tank backward.
Open the water tank, ll it with water, and close it tightly.
Note:
•Fill with water only. Cleaning uids and/or disinfectants may corrode the water tank.
•Use cold/room temperature water only. Hot water may cause water tank deformation.
4
Power on and charge the robot
Press and hold the button to power on the robot. When
the power light goes on, place it on the dock to charge. To
maintain the performance of the high-performance lithium-ion
rechargeable battery pack, keep the robot charged.
Note: The robot may not turn on when the battery is low. In this case, place the robot
directly onto the dock to charge.
3
The power indicator color
indicates the battery level:
•White: Battery level ≥ 20%
•Red: Battery level < 20%
Installation

019

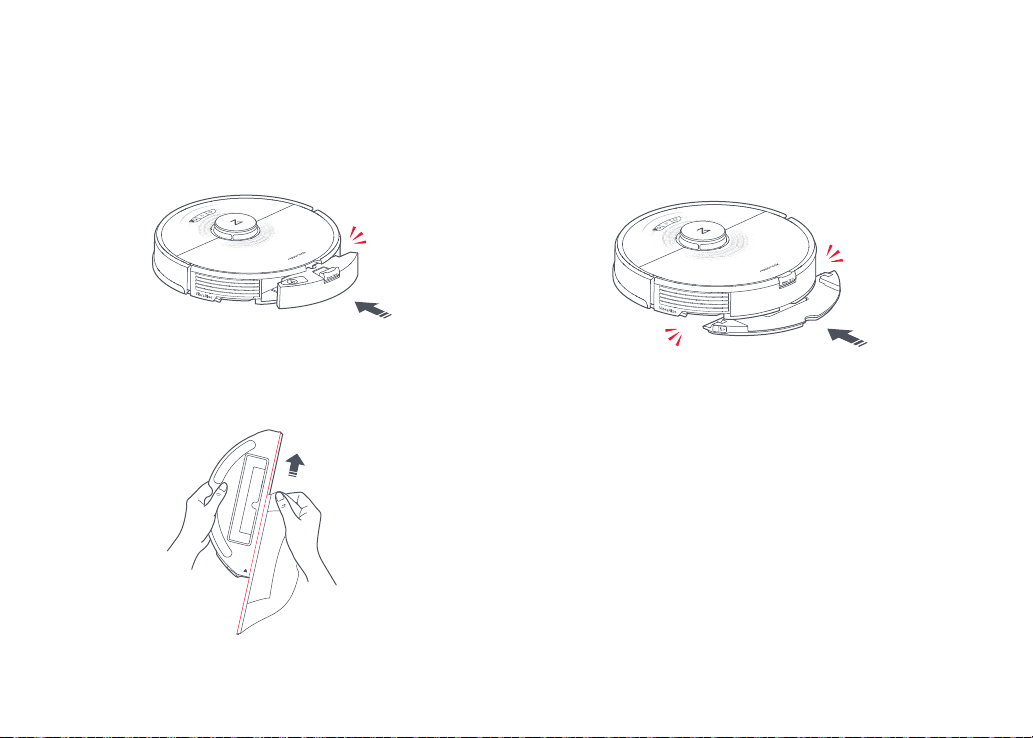

3. Reinstall the water tank
Slide the water tank along the grooves until you hear it click in
place.
4. Install the VibraRise mop cloth
Wet the VibraRise mop cloth and squeeze to remove excess wa-
ter. Slide it along the attachment slot and stick it rmly in place.
Installation
Note: Only use the ocial VibraRise mop cloth with this product.
5. Install the VibraRise mop cloth mount
Slide the VibraRise mop cloth mount along the bottom of the
water tank until you hear it click in place.
Note: Clean the VibraRise mop cloth after 60 minutes of mopping to maintain water ow
and cleaning quality.
Click
Click
Click

020

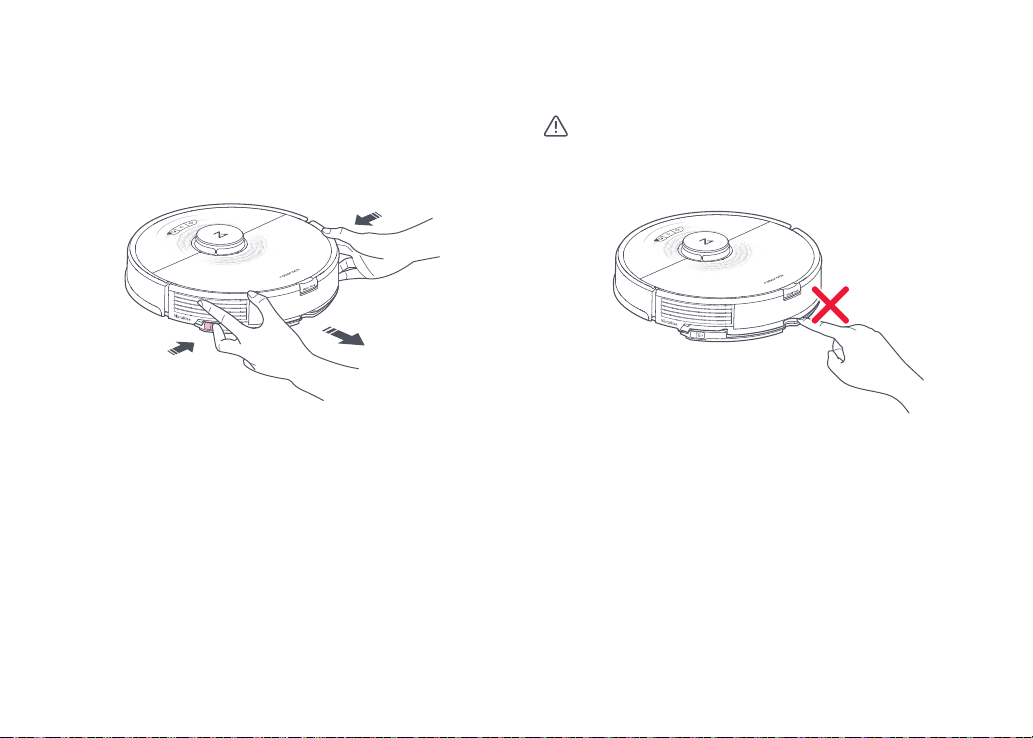

6. Remove the VibraRise mop cloth mount
After returning to the dock, remove the VibraRise mop cloth
mount by pressing both side latches and sliding back.
Note:
•Wash the VibraRise mop cloth after each use, and regularly empty the water tank of
unused water.
•Remove the VibraRise mop cloth mount when not mopping. The water tank can be kept
in place.
Installation
Risk of injury. Do not place your nger between VibraRise mop
cloth mount and water tank.
WARNING
