Roborock E5 User manual

Roborock E5
Read this user manual carefully before using this product and
store it properly for future reference.
Robotic Vacuum Cleaner User Manual

4 English
43 Français
85 Deutsch
129 Italiano
172 Español

Contents
5 Safety Information
9 Roborock Robotic Vacuum Cleaner Troubleshooting
10 Product Overview
16 Installation
21 Instructions for Use
25 Routine Maintenance
30 Basic Parameters
31 Troubleshooting
33 FAQs
36 WIFISpecication
37 EU Declaration of Conformity
41 WEEE Information
42 Warranty Information

5
Restrictions
Safety Information
• This product is designed for indoor oor cleaning only, do not use it outdoors
(such as on an open-ended terrace), on any surface other than the ground (such
as a sofa), or in any commercial or industrial environment.
• Do not use this product on elevated surfaces without barriers such as the oor of
a loft, an open-ended terrace, or on top of furniture.
• Do not use the product when the ambient temperature is higher than 40°C
(104°F) , lower than 4°C (39°F), or if there are liquids or tacky substances on the
oor.
• Before using the product, move wires o the ground or place them to the side to
prevent them being pulled on by the cleaner.
• To prevent blocking the product and to avoid damage to valuables, remove
lightweight items (such as plastic bags) and fragile objects (such as vases) from
the oor before cleaning.
• Children should be supervised to ensure that they do not play with the appliance.
• This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge,unless they have been given supervision or instruction concerning
use of the product by a person responsible for their safety (CB).

6
Safety Information
• This product can be used by children aged from 8 years and above and persons
with reduced physical,sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the product in a safe way and understand the hazards involved. Children shall
not play with the product. Cleaning and user maintenance shall not be made by
children without supervision (EU).
• Keep the main brush cleaning tools out of reach of children.
• Do not place any object (including children and pets) on the product, whether it
is in operation or not.
• Keep hair, loose clothing, ngers, and all parts of the body away from openings
and moving parts.
• Do not use the product on burning objects (such as cigarette butts).
• Do not use the product on high pile carpets (product eectiveness may also be
reduced on dark carpets).
• Do not use the product to clean hard or sharp objects (such as decoration
wastes, glass and nails).
• Do not carry the product using main unit cover, or bumper.
• The product must be switched o and the plug must be removed from socket-
outlet before cleaning or maintaining the product.

7
Safety Information
• Do not use wet cloth or liquids for cleaning the product.
• Do not use the mopping module on carpets.
• Use the product according to the manual. Any loss or damage caused from
improper use will be borne by the user.
• This product contains batteries that are only replaceable by skilled persons.
• Do not charge non-rechargeable batteries.
• For the purposes of recharging the battery, only use the detachable supply unit
roborock CDZ14RR or CDZ15RR provided with this product.
• Do not dismantle, repair or modify the battery or charging dock.
• Keep the charging dock away from heat (such as heating vents).
• Do not wipe or clean the charger prongs with wet cloth or wet hands.
• If the power cord is damaged, stop using it immediately. It must be replaced
by the manufacturer, its service agent, or similarly qualied persons to avoid a
hazard.
• Make sure the product is powered o before shipment.
Battery and Charging
WARNING

8
Safety Information
• Use of the original packaging is advised.
• If to be left unused for a long period of time, fully charge the product and switch
it o before storing it in a cool, dry place.
• Charge it at least every three months to avoid over discharging the battery.
• To satisfy RF exposure requirements, a separation distance of 20 cm or more should
be maintained between this device and persons during device operation. To
ensure compliance, operations at closer than this distance is not recommended.
• The antenna used for this transmitter must not be co-located in conjunction with
any other antenna or transmitter.
• Non-rechargeable batteries are not to be recharged.
• Dierent types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance and safely disposed of.
• If the appliance is to be stored unused for a long period, the batteries should be
removed.
• The supply terminals are not to be short-circuited.
Remote Controller Battery
WARNING

9
Roborock Robotic Vacuum Cleaner Troubleshooting
Roborock robotic vacuum cleaner troubleshooting
Name
Robot
Charging dock
Power cable
Troubleshooting
Problem listed in the User Manual
The product cannot be powered on
The main brush, side brush, fan, or main wheels do not work
The robot does not receive power
The charging dock cannot be supplied with power

10
Robot
Dock/Spot Cleaning
•Press to return to the dock
•Press and hold to spot clean
Note: Press any button to pause cleaning, returning to dock,or spot
cleaning.
Reset WiFi
Press and hold the and buttons until you hear
the “Resetting WiFi” voice alert.
Product Overview
Clean/Power
•Press to start
cleaning
•Press and hold to
power on or o
Power Indicator
•White: Battery level ≥ 20%
•Red: Battery level < 20%
•Breathing: Charging or
starting up
•Flashing red: Error

11
Parts List
Product Overview
Adjustable Water Tank Mop ClothPower Cable
Charging Dock Moisture-Proof Mat Remote Controller
SPOT
CLEAN
POWER
LEVEL
DOCK

12
Robot
Product Overview
Speaker
Air Vent
Dustbin Latch
Filter
WiFi Indicator Light
•O: WiFi disabled
•Slow ashing: Waiting for
connection
•Fast ashing: Connecting
•Steady: WiFi connected

13
Robot and Sensors
Obstacle Sensor
Dock Locator
Bumper
Product Overview
CliSensors
Omni-Directional
Wheel
Charging Contacts
Motion Tracking
Sensor
Side Brush
Main Wheel
Main Brush
Main Brush Cover Latch

14
Charging Dock
Dock Location
Beacon
Power Indicator
Power Cable
Connection
Charging Contacts
Product Overview

15
Overview of Remote Controller
Note：
Install two AAA/LR03 batteries before using the remote controller for the rst time. If the
distance of remote control gets shorter or the indicator light becomes dimmer, please
replace the batteries for proper operation. When using the remote controller to remotely
control the robot vacuum, please aim the remote controller at the robot and make sure
there is no obstacle between them that blocks the infrared signal.
Note：
The vacuum power cannot be adjusted with the Power Level button on the remote controller
during spot cleaning or docking.
IMPORTANT:
Since the infrared beam of the remote controller signal is in a band similar to that of the
charging dock signal, it is normal if there is any signal delay for the robot vacuum when it
gets too close to the charging dock.
Product Overview
The remote controller allows you to remotely control the robot
vacuum to move around in the room or change the cleaning
mode within 4 meters.
Arrow Buttons for Remote Control
Start/Pause
Dock
Power Level
Spot Clean
SPOT
CLEAN
POWER
LEVEL
DOCK
Battery Compartment
AAA 1.5V
AAA 1.5V

16

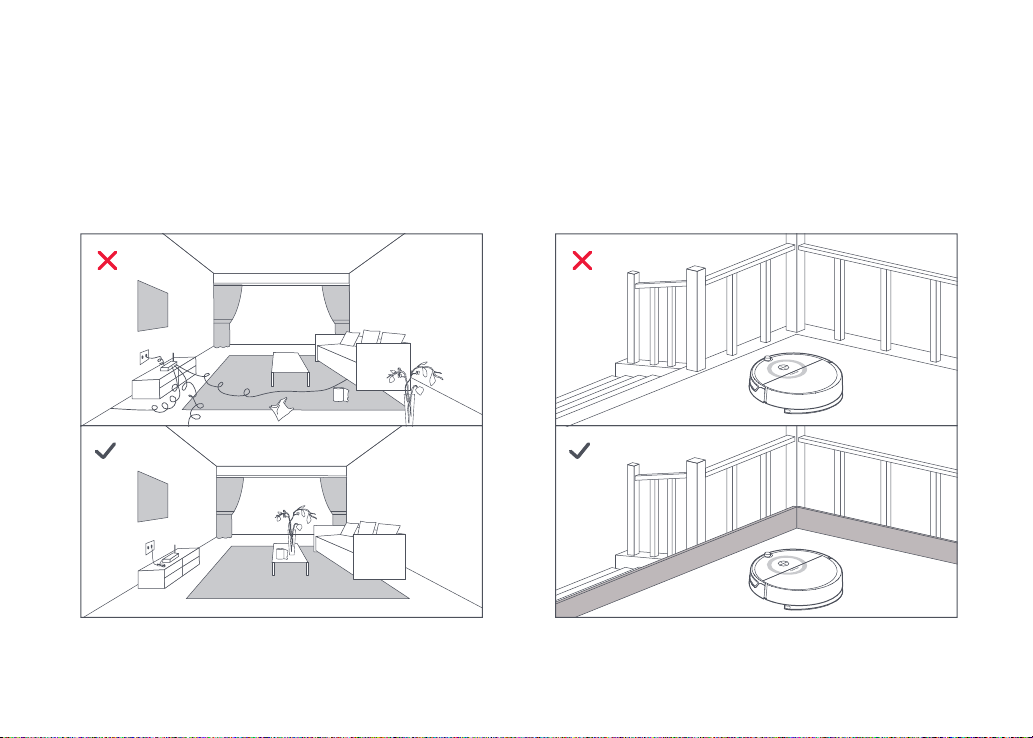

Installation
Important
Tidy cables and loose items from the ground and move any
unstable, fragile, precious, or dangerous objects to prevent
personal injury or property damage due to things becoming
tangled in, struck by, or knocked over by the robot.
1. If using this robot in a raised area, always use a secure physical
barrier to prevent accidental falls that may result in personal
injury or property damage.
2.
Note: When using the robot for the rst time, follow it throughout its whole cleaning route and watch for major obstacles. The robot will be able to clean by itself in future uses.

17
Using the robot
Installation
More than
0.5m (1.6ft)
More than
0.5m (1.6ft)
More than
1.5m (4.9ft)
Position the charging dock
Place the Charging Dock against the wall on a at surface and
plug it into mains power.
Note:
•Ensure that a distance of at least 0.5m (1.6ft) on both sides and 1.5m (4.9ft) in front is
retained around the Charging Dock.
•The Power Cable, when vertical to the oor, may get caught by the robot, disconnecting the
Charging Dock.
•The Power Indicator is on when the Charging Dock is connected to mains power, and o
when the robot is charging.
•For a better app user experience, place the Charging Dock in an area with a strong WiFi signal.
•To avoid problems returning to the dock, do not place the Charging Dock in direct sunlight
or block the Dock Location Beacon.
•Do not place the Charging Dock in passageways or doorways. This may prevent access due
to the safe zone around the dock.
1
Dock Location Beacon

18
Secure the moisture-proof mat
After securing the charging dock, wipe the area where the
moisture-proof mat will be placed with a dry cloth as shown.
Stick the double-sided tape rst to the moisture-proof mat
then in position on the oor.
Note: Always use the moisture-proof mat when placing the charging dock on a wooden
oor.
2
Installation
Power on and charge
Note: The robot cannot be powered on when the battery is low. Place the robot on the
Charging Dock to recharge.
Press and hold the button to power on. When the Power
Indicator is on, place the robot on the Charging Dock to
charge.
This robot is equipped with a high-performance lithium-ion
rechargeable battery pack. To maintain battery performance,
keep the battery charged.
3
Power Indicator color
indicates battery level：
•White: Battery level ≥ 20%
•Red: Battery level < 20%

19
3. Add device
1. Download app
Search for "Xiaomi Home" in the App Store or Google Play or
scan the QR code below, then download and install the app.
Open the Xiaomi Home app and tap the "+" in the top right
corner. Add the robot by following the in-app prompts. After
adding, the robot can be found on the home page.
2. Reset WiFi
a. Open the top cover of the robot to reveal the WiFi
indicator light.
b. Press and hold the and buttons until you hear the
"Resetting WiFi" voice alert. The reset is complete when
the WiFi indicator ashes slowly. The robot will then wait
for a connection.
Note:
•Due to ongoing Xiaomi Home development, the actual process may dier slightly from
the above description. Always follow the instructions given in the app.
•Only 2.4GHz WiFi is supported.
Installation
Connect to the mobile app (recommended)
This robot uses the Xiaomi Home app.
4
•O: WiFi disabled
•Slow ashing: Waiting for
connection
•Fast ashing: Connecting
•Steady: WiFi connected
WiFi indicator light
Note: If you cannot connect your phone to the robot, reset the WiFi, and add your robot
as a new device.

20
1.Adjustowrate
3. Install the mop cloth
4. Install the module
2. Fill the water tank
Toggle the switch to adjust the ow rate according to your
needs.
Low
High
Dampen the mop cloth and squeeze it until it stops dripping.
Insert it into the mounting slot in the water tank.
Slide the mop module in line with the alignment marks on the
rear of the machine until you hear a "click".
Open the water tank, ll it with water, and close it tightly.
Installation
Mopping
5
Note:
•It is recommended that all oors are vacuumed at least three times before the rst
mopping session to reduce excessive dirt buildup on the mop.
•Use barrier tape to prevent mopping carpeted areas, or remove carpets prior to
mopping.
•To prevent corrosion or damage, do not use cleaning uid or disinfectant in the water
tank.
•Cleaning the mop cloth every 60 minutes is recommended to ensure the water ow
rate and cleaning eect.
