Robot Coupe CMP 250 V.V. User manual

01/04/2021
CMP 250 V.V.
CMP 300 V.V.
CMP 350 V.V.
CMP 400 V.V.
CMP 250 Combi
CMP 300 Combi
CMP 250 V.V. CMP 300 CombiCMP 300 V.V. CMP 350 V.V. CMP 400 V.V. CMP 250 Combi
New
Register
your product
on line

www.robot-coupe.com
Register your product on line

2
01/04/2021
EU Declaration of Conformity
• the provisions of the following harmonized European standards and the
standards specifying the safety and hygiene requirements:
- EN ISO 12100:2010 Safety of machinery – General principles for design,
- EN 60204-1:2006 Safety of machinery – Electrical equipment of machines,
- EN 60529 Degrees of protection provided by enclosures (IP Code):
- IP 55 for the electric controls,
- IP 34 for the other parts of the machine,
• and according to the category of the apparatus, with the provisions of
the following harmonized European standards specifying the safety and
hygiene requirements:
- EN 454 ............................... Planetary Mixers,
- EN 1678 ............................ Vegetable Cutting Machines (and Juice Extractors),
- EN 12852 ......................... Food Processors and Blenders,
- EN 12853 ......................... Hand-Held Blenders and Whisks (Power Mixers),
- EN 13208 ......................... Vegetable Peelers,
- EN 13621 ......................... Salad Dryers,
- EN 14655 ......................... Baguette Slicers.
"R019"
Robot-Coupe®SNC declares that all the machines subject of these original
instructions, as well as their accessories and their packaging, comply with:
• the essential requirements of the following European directives and with
the corresponding national regulations :
- Directive "Machinery" 2006/42/EC,
- Directive "Low Voltage" 2014/35/EU,
- Directive "Electromagnetic Compatibility" 2014/30/EU,
- Directive "Reduction of Hazardous Substances in Electrical Equipment"
(RoHS) 2011/65/EU,
- Directive "Waste Electrical and Electronic Equipment" (WEEE)
2012/19/EU,
• Regulation (EC) No 1907/2006 (latest consolidated version)
"concerning the Registration, Evaluation, Authorisation and Restriction
of Chemicals (REACH)" and as such, no product, accessory and their
packaging sold by Robot-Coupe® SNC, contains any substance on the
European Chemical Agency (ECHA) candidate list and considered of
very high concern.
• Regulation (EC) No 1935/2004 "Materials and articles intended to come
into contact with food" modified by regulation (EC) No 596/2009.
• Regulation (EC) No 2023/2006 "Good manufacturing practice for
materials and articles intended to come into contact with food".
• Regulation (EU) No 10/2011 "Plastic materials and articles intended to
come into contact with food", as well as all relevant (EU) regulations
which modify, correct and/or rectify it, as at the date of this declaration,
the regulations (EU) No 1282/2011, 1183/2012, 202/2014,
865/2014, 2015/174, 2016/1416, 2017/752, 2018/79,
2018/213, 2018/831 and 2019/37.
Montceau-en-Bourgogne, on March 1st, 2019
Jean-Marie LOZANO
Director of Industrial Operations
Robot-Coupe® SNC - 12 avenue du Maréchal Leclerc – BP 134 – 71305 Montceau-en-Bourgogne Cedex - France

3
01/04/2021
WARRANTY
IMPORTANT WARNING
INTRODUCTION TO YOUR
NEW POWER MIXER
SWITCHING ON THE APPLIANCE
• Advice on electrical connections
OPERATING THE APPLIANCE
• Starting and stopping the power mixer
• Continuous operation
• Variable-speed operation
• Power cord
WORKING POSITION
• Blade function
• Whisk function
ASSEMBLING & DISMANTLING
•Blade function
•Whisk function
USES & EXAMPLES
PAN SUPPORT
• Universal support
• Adjustable support
HYGIENE
CLEANING
• Motor unit
• Foot and bell
• Blades
• Whisk holder
• Whisks
MAINTENANCE
• Blades
• Whisks
• Power cord
• Foot seal
• Seal ring
TECHNICAL SPECIFICATIONS
• Weight
• Dimensions
• Working height
• Noise level
• Electrical data
SAFETY
PROBLEMS
STANDARDS

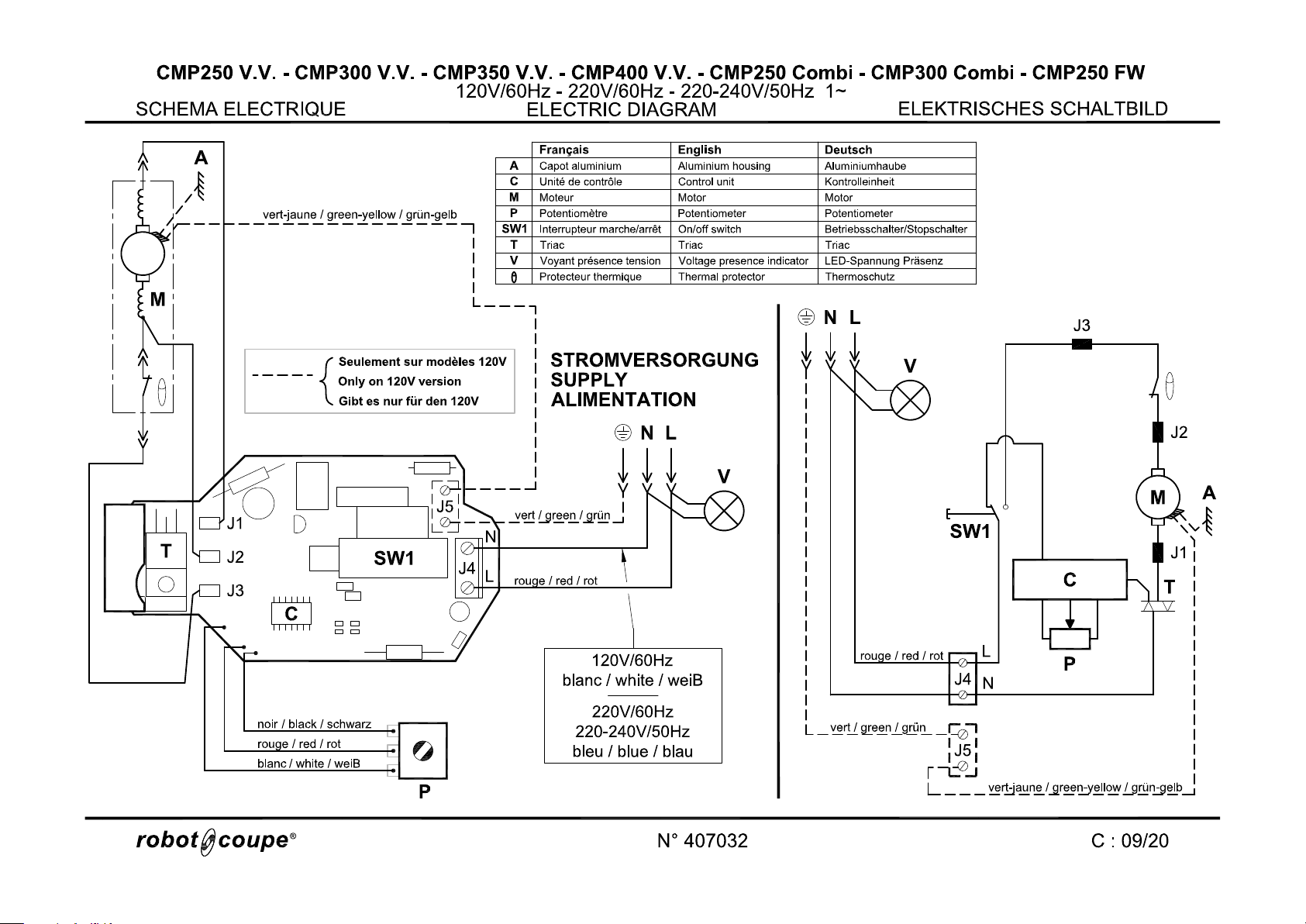

TECHNICAL DATA
• Electric and wiring diagrams
SUMMARY

4
01/04/2021
ROBOT-COUPE S.N.C., LIMITED WARRANTY
Your new ROBOT-COUPE appliance is war-
ranted to the original buyer for a period
of one year from the date of sale if you
bought it from ROBOT-COUPE S.N.C.
If you bought your ROBOT-COUPE product
from a distributor your product is cove-
red by your distributor’s warranty (Please
check with your distributor terms and
conditions of the warranty).
The ROBOT-COUPE S.N.C.limited warranty
is against defects in material and/or work-
manship.
The ROBOT-COUPE S.N.C.warranty is
given expressly and in lieu of all other
warranties, expressed or implied, for
merchantability and for fitness toward a
particular purpose and constitutes the only
warranty made by ROBOT-COUPE S.N.C.
France.
THE FOLLOWING ARE NOT COVERED
BY THE ROBOT-COUPE S.N.C.
WARRANTY:
1 - Damage caused by abuse, misuse,
dropping, or other similar damage caused by or
resulting from failure to follow assembly, ope-
rating, cleaning, user maintenance or storage
instructions.
2 - Labour to sharpen and/ or replacements
for blades which have become blunt, chipped or
worn after a normal or excessive period of use.
3 - Materials or labour to replace or repair
scratch ed, stained, chipped, pitted, dented or
discoloured surfaces, blades, knives, attachments
or accessories.
4 - Any alteration, addition or repair that
has not been carried out by the company or an
approved service agency.
5 - Transportation of the appliance to or from
an approved service agency.
6 - Labour charges to install or test new
attachments or accessories (i.e., bowls, discs,
blades, attachments) which have been arbitrarily
replaced.
7 - The cost of changing direction-of-rotation
of electric motors (Installer is responsible).
8 - SHIPPING DAMAGES. Visible and latent
defects are the responsibility of the freight
carrier. The consignee must inform the carrier
and consignor immediately, or upon discovery in
the case of latent defects.
KEEP ALL ORIGINAL CONTAINERS AND
PACKING MATERIALS FOR CARRIER
INSPECTION.
Neither ROBOT-COUPE S.N.C. nor its affiliated
companies or any of its distributors, directors,
agents, employees, or insurers will be liable for
indirect damage, losses, or expenses linked to
the appliance or the inability to use it.

5
01/04/2021
UNPACKING
• WARNING - some of the tools are very sharp e.g.
blades, etc..
INSTALLATION
• We recommend that you install your appliance on
its wall frame.
CONNECTION
• Always check that your mains supply corresponds
to that indicated on the identification plate on the
motor unit and that it can withstand the amperage.
• Never plug your appliance into the mains supply
before placing it inside the preparation bowl.
HANDLING
• Always take care when handling the blades, as
they are extremely sharp.
ASSEMBLY PROCEDURES
• Follow the various assembly procedures carefully
(see page 7) and make sure that all the attachments
are correctly positioned.
USE
• Never try to override the safety systems.
• Never insert an object into the preparation.
• Never switch the appliance on unless it has been
placed in the preparation bowl.
• Before dismantling the foot, bell or whisk always
check that the power mixer is unplugged.
• We recommend that you tilt the appliance at
a slight angle to prevent the bell from touching the
bottom of the container.
CLEANING
• As a precaution, always unplug your appliance
before cleaning it.
• Always clean the appliance and its attachments at
the end of each cycle.
• Never immerse the motor unit in water.
• For parts made from aluminum, use cleaning fluids
intended for aluminum.
• For plastic parts , do not use detergents that are too
alkaline (e.g., containing too much caustic soda or
ammonia).
• Robot-Coupe can in no way be held responsible for
the user’s failure to follow the basic rules of cleaning
and hygiene.
MAINTENANCE
• Before opening the motor housing, it is absolutely
vital to unplug the appliance.
• Check the seals and washers regularly and ensure
that the safety devices are in good working order.
• It is particularly important to maintain and check
the attachments since certain ingredients contain
corrosive agents, e.g. citric acid.
• Never operate the appliance if the power cord
or plug has been damaged or if the appliance fails
to work properly or has been damaged in any way.
• Do not hesitate to contact your local Maintenance
Service if something appears to be wrong.
WARNING
Procedure to follow if the stick blender is
accidentally immersed during use.
1) Do not touch either the power mixer, the
bowl or the work surface.
2) Unplug the mixer’s power cord from the
wall socket.
3)
Remove the power mixer from the
preparation.
4) Tilt the power mixer to drain off as much
liquid as possible.
5) Do not switch the power mixer back on, as
there is still a risk of electrocution.
6) Send the power mixer to a Robot-Coupe
approved after-sales service to have the
electrical components cleaned and dried.
WARNING: In order to limit accidents such as electric shocks or personal injury, and in order to limit material damage due to misuse of the
appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your
appliance and enable you to use the equipment correctly. Please read these instructions in their entirety and make sure that anyone else who
may use the appliance also reads them beforehand. Our equipment is designed for professional use and must not be used by children under
any circumstances.
IMPORTANT WARNING WARNING
KEEP THESE INSTRUCTIONS IN A SAFE PLACE

6
01/04/2021
INTRODUCTION TO YOUR
NEW POWER MIXER
Robot-Coupe has developed a whole range of
power mixer. Their technical characteristics are
shown in the table below.
The simple design of these appliances allows the
assembly and dismantling of the moving parts in no
time at all, to ease maintenance and cleaning.
These instructions contain important information
that will enable you to extract the greatest return on
your investment.
We therefore strongly advise you to read these
instructions carefully before using the appliance.
SWITCHING ON
THE APPLIANCE
• ADVICE ON ELECTRICAL CONNECTIONS
This class II appliance (double insulation) requires
a single-phase alternating current but does not
need an earthed socket. The universal-type motor
is fitted with an interference suppressor.
The power supply must be protected by a
differential circuit breaker and a 10 A fuse.
Check that you have a standard 10/16 A single-
phase socket.
Make sure that the voltage of your power supply
matches that shown on the identification plate of
your appliance.
These models are working tools that are perfectly
suited to the needs of their users. The mixer
function will allow you to make soups, vegetable
purées and pulps without any problem, while you
will find that the whisk function is ideal for making
pancake batter, mayonnaise, beaten egg whites,
chocolate mousse, butter sauces, whipped cream or
smooth fromage frais.
The whisk attachment is equipped with a metallic
gear box with a plastic body, even more resistant
when processing preparations such as pan cakes.
The variable-speed function will enable you to
adjust the speed to suit each preparation and to
start the processing at a lower speed in order to
reduce splashing.
Each power mixer is supplied with a wall support
for easy storage.
Models Speed
variation
Mixer

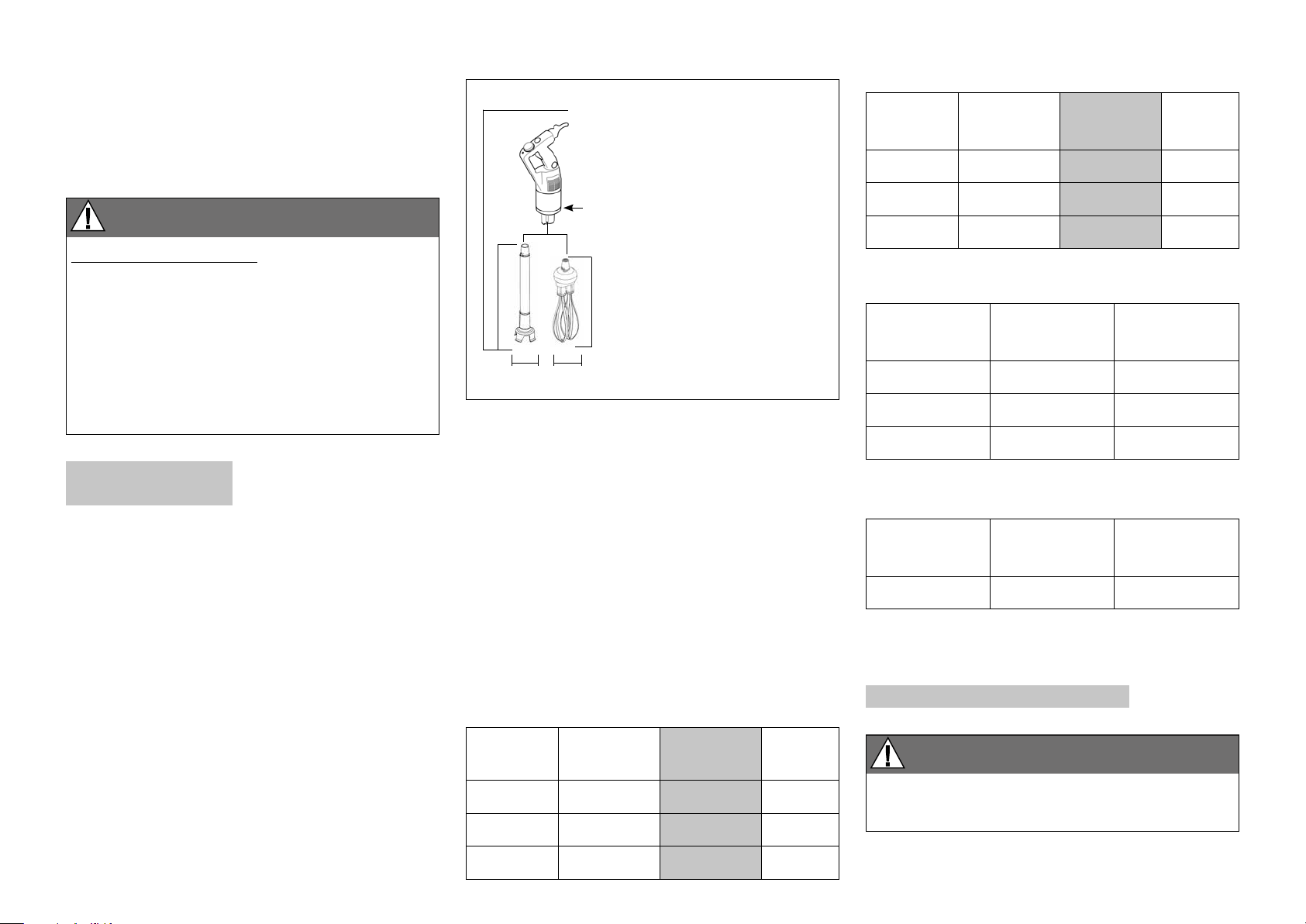

attachment
Whisk
attachment
Capacity
Litres
CMP 250 V.V. •250 mm 15
CMP 300 V.V. •300 mm 30
CMP 350 V.V. •350 mm 45
CMP 400 V.V. •400 mm 73
CMP 250 Combi •250 mm 220 mm 15
CMP 300 Combi •300 mm 220 mm 30
CMP 250 FW •220 mm 15
In blade function
Thanks to an extremely powerful motor, they can
process quantities of 15 litres to 73 litres according
to the model. Their rapidity and the quality of the
finished product are beyond reproach.
In whisk function
In the whisk function, all three models can process:
2 to 35 egg whites
1 to 30 kg purée.
Robot-Coupe supplies these models with different
types of motors: 230 V/50 Hz for power supplies of
220 V to 240 V.
120 V / 60 Hz.
220 V / 60 Hz.
The power mixer is supplied with a single-phase
plug connected to a power cord.
OPERATING THE APPLIANCE
• STARTING AND STOPPING THE POWER MIXER
1. Check that the control
button (CB) is in the re-
leased position.
2. Connect the power
mixer to the power supply.
3. Insert the foot into the
preparation.
4. Press and hold down the
safety button (SB).
5. Press the control button
(CB), and the power mixer
will start up.
6. Release the safety
button (SB).
7. To stop the power mixer, release the control
button (CB).
• CONTINUOUS OPERATION
Follow steps 1 to 6 above, then:
7. While the control button (CB) is in the depressed
position, press the locking button (LB)
8. Release the control button (CB).
9. Release the locking button (LB), and the power
mixer will function continuously.
SB
VB CB
LB

7
01/04/2021
• WHISK FUNCTION
You can also hold the
appliance by the handle with
one hand, leaving the other
hand free to hold the bowl, if
necessary.
While you process the preparation, we recommend
that you move the whisks around in the bowl,
in order to ensure that the mixture is completely
homogeneous.
We strongly advise you to
keep the whisks from touching
the sides of the bowl. For
maximum efficiency, at least
one-fifth of the whisk length
should be immersed. We also
strongly advise you to start the
processing at a low speed.
ASSEMBLING & DISMANTLING
• BLADE FUNCTION
Attaching the tube to the motor unit.
(only for CMP Combi)
- Check that the appliance is not plugged in.
- Align the flat side of A the conical part C of the
tube with catch B into the aluminium casing.
- Insert the whole of the conical part C of the tube
into the aluminium casing.
10. To stop the power mixer, press and release the
control button (CB).
• VARIABLE-SPEED OPERATION
Follow steps 1 to 6 above, then:
7. Change the speed of the motor by turning the
variable speed button (VB) towards the maximum or
minimum as required.
Whisk function: speed between 500 and 1,800 rpm.
Mixer function: speed between 2,300 and 9,600 rpm.
It is advisable to start at a low speed when using the
whisk.
With the self-regulating speed system, once you
have selected a speed, it will remain constant, even
if the consistency of your mixture changes.
• POWER CORD
After cleaning the machine, wind
the cord around the specially
designed lugs, without stretching
it too much. This will prolong its
lifespan.
WORKING POSITION
• BLADE FUNCTION
For greater control, we
recommend that you hold the
power mixer by the handle
and the bottom of motor unit.
Furthermore, we recommend
that you tilt the power mixer
at a slight angle to prevent the
bell from touching the bottom
of the container.
The power mixer can equally
be rested against the rim of the
container, but must be tilted,
and the bell must not touch the
bottom of the container.
In this case, it is best to place
your free hand on the handle
guard (or at least as far
away as possible from any
moving and cutting parts).
If using a support on top
of the pan, ensure that the
power mixer is positioned in
the centre of the support, that
it is at a slight angle, and
that the bell is not touching
the bottom of the container.
Always make sure that the bell is sufficiently
immersed to avoid splashing and that the air vents
of the motor unit does not come into contact with
any liquid.
For optimum efficiency, two thirds of the foot should
be immersed in the preparation.
POWER MIXER ON ITS PAN SUPPORT
WARNING
To ensure maximum safety regardless of your
working position, we strongly recommend
positioning both hands as indicated below and
always as far as possible from any moving
and cutting parts.

8
01/04/2021

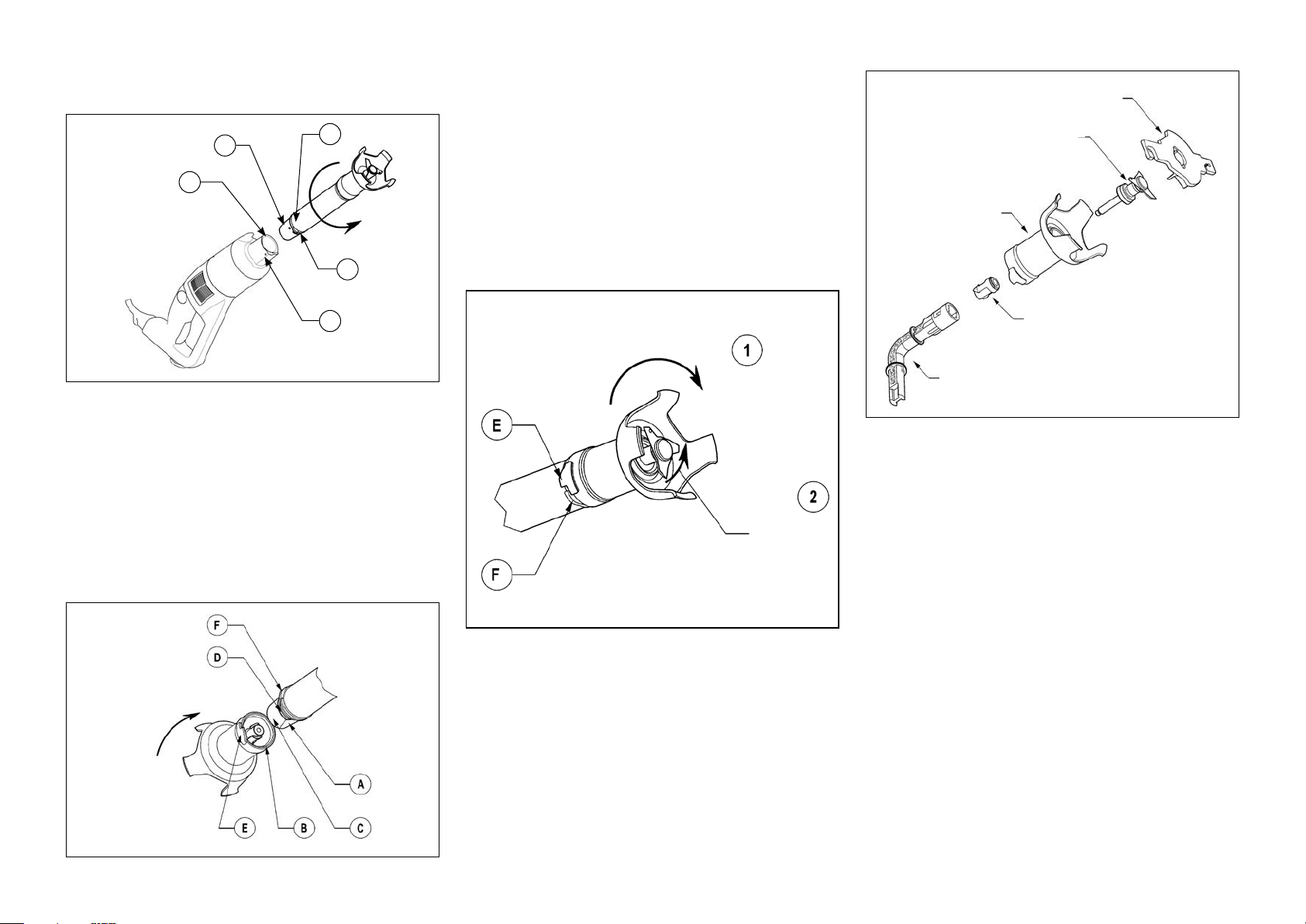

- Turn the tube in the direction of the arrow (see
figure) until it is locked into place moderately
tightly.
- Check that the machine is not plugged in.
- Align the flat side of A the conical part of the tube
with catch B he inside of the bell.
- Insert the conical part C into the bell. With the
washer touching the tube seal D, turn the bell
in the direction of the arrow (see above figure)
to lock the bell lug E and tube lug F together
moderately tightly.
Removing the bell from the tube
Removing the blade
- Check that the machine is not plugged in.
- Turn the bell in the direction of arrow 1 (see
nextfigure) to separate the bell lug E from the tube
lug F. Remove the bell.
If jammed, turn the blades inside the bell in the
direction of arrow 2 to disengage them from the
drive shaft.
- To remove the blade safely, hold them with the
tool provided or an oven glove or a thick cloth.
- Using the removal tool, unscrew the drive
coupling.
- As soon as the drive coupling has been
unscrewed, the blade can be removed for
cleaning.

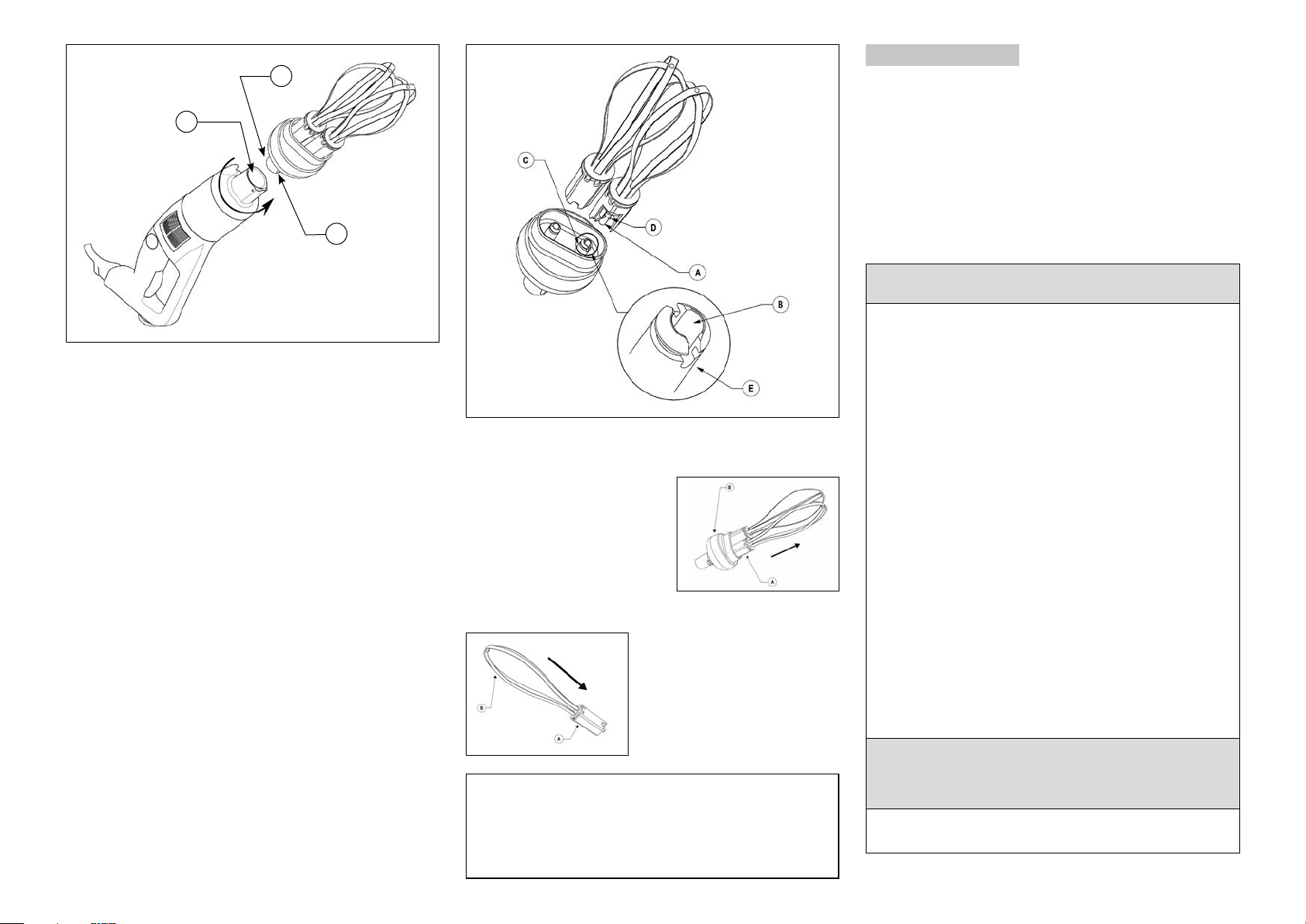

• WHISK FUNCTION (CMP Combi)
Attaching the whisk holder to the motor unit.
- Check that the machine is not plugged in.
- Align the flat side A of the conical part C of the
whisk holder with the catch B on the inside of the
aluminium casing.
- Insert the whole of the conical part C of the whisk
holder into the aluminium casing.
- Turn the whisk holder in the direction of the arrow
(see figure) until it is locked into place moderately
tightly.
BLADE LOCKING
BLADES WITH WATERTIGHT SEALS
BELL
DRIVE COUPLING
BLADE REMOVAL
TURN TO REMOVE BELL
TURN
TO DISENGAGE
BLADES
TURN TO
ATTACH BELL
CE
A
D
B
Removing the tube from the motor unit
(only for CMP Combi)
- Check that the appliance is unplugged.
- Turn the tube in the opposite direction to that used
when attaching it.
- When it will go no further, remove the tube of the
aluminium casing.
Attaching the bell from the tube

9
01/04/2021
Removing the whisks from the whisk holder
Pull the ejector A in
direction to the arrow,
gripping the ejector in one
hand and the holder B in
the other.
Removing the ejector
- Hold the whisk by the
wires B in one hand.
- With the other hand,
pull the ejector A in the
direction of the arrow
(see figure).
Removing the casing
- Check that the machine is not plugged in.
- Turn the whisk holder in the opposite direction to
that used when attaching it.
- When it will go no further, remove the whisk
holder from the aluminium casing.
Fitting the whisks into the whisk holder
- Grasp the holder in one hand.
- With the other hand, take the first whisk and
insert the shaft A into the bore B of the whisk
holder drive shaft. Make sure the drive lugs D are
properly aligned with the notches.
- As you push the whisk into the whisk holder drive
shaft C, rotate it slightly in order to slot the drive
lugs into the notches E of the drive shaft C, thereby
locking the whisk into place inside the shaft.
- To check that the whisk is properly fixed inside the
shaft C, gently tug the metal wires.
- Repeat this procedure with the second whisk. If
you cannot push it in properly, remove it, rotate it
90° and start again.
C
A
B
The foot, the blades and the whisks can be
entirely dismantled, (Robot-Coupe’s exclusive
patented system), thereby ensuring easy cleaning,
perfect hygiene and simple maintenance.
USES & EXAMPLES
The mixer function makes it possible to carry out all
types of processing in the minimum of time, while
the whisk function enables you to whisk and mix
the preparation. We thus recommend that you
supervise all food preparations carefully in order to
obtain the best results.
CATERING AND RESTAURANT WORK
Blade Function
• Soups
• Vegetable purees : carrots, spinach, celery, turnips,
French beans, etc.
• Mousses : vegetable, fish...
• Fruit compotes
• Sauces : green, rouille, remoulade, cream emulsions,
tomato or parsley...
• Bisques : langoustines and shellfish...
• Pancake batter
Whisk function
• Mashed potatoes (fresh or instant).
• Pancake batter
• Mayonnaise
• Beaten egg whites
• Chocolate mousse
• Butter sauces
• Whipped cream
• Smooth fromage frais
• Mashed potato (fresh or instant)
CHEMICAL & PHARMACEUTICAL
LABORATORY WORK
• Mixing : making ointments, creams, paste…, emulsions.
