Robotouch VibraSlim Plus Body Shaper With Watch-Pink User manual

W W NN
THREE KINDS OF MOVEMENTS
OWalkingmode OJoggingmode ORunningmod€
SAVE THESE INSTRUCTIONS
Products refer to the actual product, without prior notice. Operation lnstructions
VibraSlim Plus Body Shaper With Watch-Pink
Operation Instructions
VibraSlim Plus Body Shaper With Watch-Pink

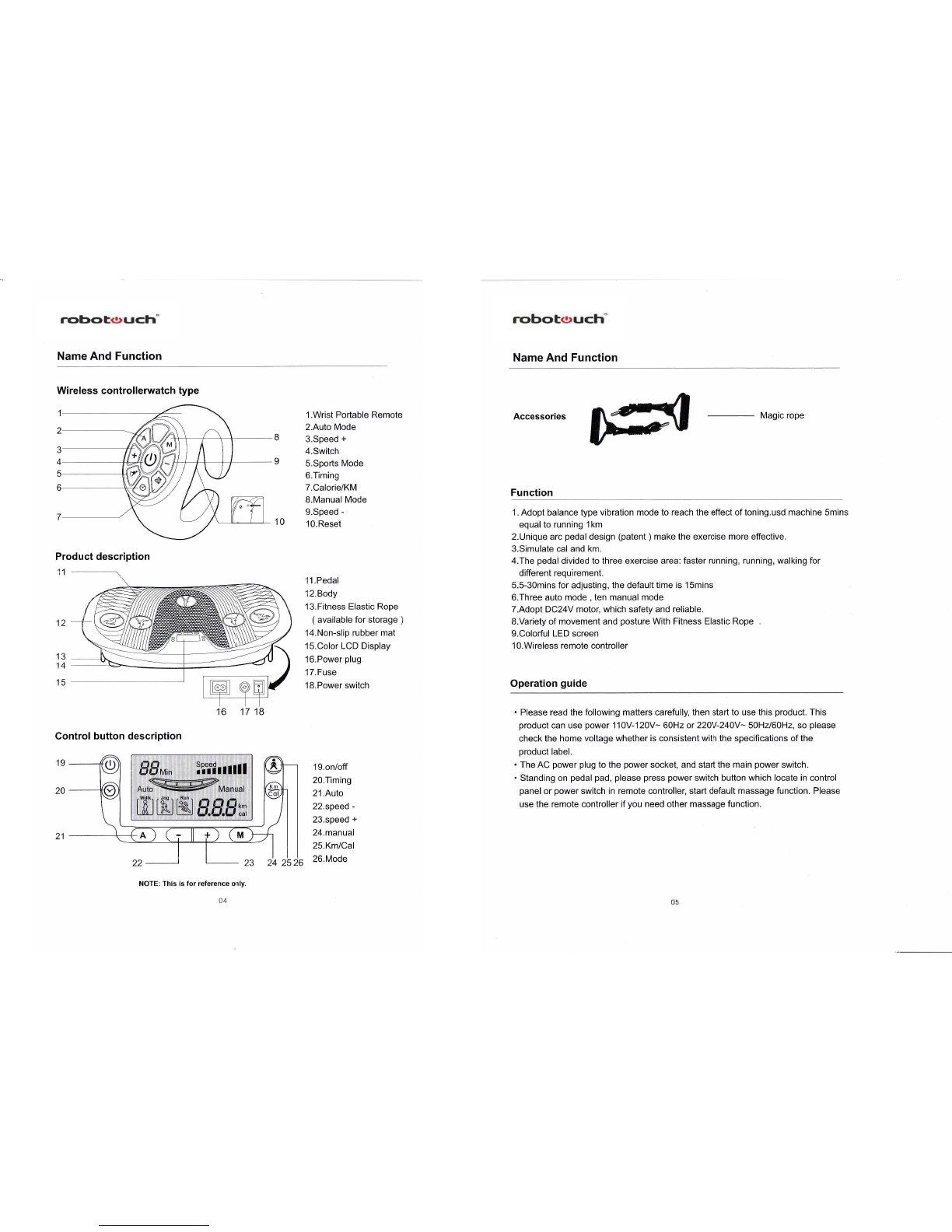

Name And Function
Wireless controllenvatch type
Gontrol button description
13
14
15
l.Wiist Portable Remote
2.Auto Mode
3.Speed +
4.Switch
S.Sports Mode
6.Timing
T.Calorie/KM
S.Manual Mode
9.Speed -
'10.Reset
11.Pedal
12.Body
l3,Fitness Elastic Rope
( available for storage )
14.Non-slip rubber mat
1S.Color LCD Display
16.Power plug
1 7.Fuse
18.Power switch
19.on/off
20.Timing
21.Auto
22.speed -
23.speed +
24.manual
25.KmlCal
26.Mode
19
2A
NOTE: Thls ls for roforencs only.
a4
Product description
Name And Function
Accessories Magic rope
Function
1. Adopt balance type vibration mode to reach the effect of toning.usd machine 5mins
equal to running 1km
2.Unique arc pedal design (patent ) make the exercise more effective.
3.Simulate cal and km.
4.The pedal divided to three exercise area: faster running, running, walking for
different requirement.
5.5-30mins for adjusting, the default time is 1Smins
6.Three auto mode , ten manual mode
T.Adopt DC24V motor, which safety and reliable.
S.Variety of movement and posture With Fitness Elastic Rope .
9.Colorful LED screen
1 0.Wireless remote controller
Operation guide
. Please read the following matters carefully, then start to use this product. This
product can use power '1 1 0V-1 20V- 60Hz or 22OV-240V- 50Hz/60H2, so please
check the home voltage whether is consistent with the specifications of the
product Iabel.
. The AC power plug to the power socket, and start the main power switch.
. Standing on pedal pad, please press power switch button which locate in control
panel or power switch in remote controller, start default massage function. Please
use the remote controller if you need other massage function.

Operation guide Operation guide
Wireless remote controllerwrist watch band type
On /off : start with auto( ffi )mode , jogging , working time 1Smins
Auto mode:three level( iA 6l A] I
At manual mode: these two buttons have ten turns to be selected
Auto mode : three modes : high( K] ), middle( [h]), row( ffi ; t'ut n"
adjusted by speed +and speed -
Manual model: with ten(:'"j'. . . 11r' :li*.. ' . :3ir. :r.fi :1"ji'r, ' :lii'ilr : :sii'ilr :
:ffiiilr :ffi'ilril)manual modes that be adjusted by speed + and speed -
Timing : 5-30mins for choose. Smins increase each time by press the
button.
Exercise method: walking , jogging , running , which must according to
exercise area, otherwise it has a tolerance of the cal and km .
On /off : start with auto( [K] )mode , jogging ,
working time 15mins
Exercise method: walking , jogging , running , which
must according to exercise area, otherwise it has a
tolerance of the cal and km .
Parameter : cal display or nol
Parameter : km display or not
Auto mode : three modes : nign( [S] ), middle( [fr] ),
low( ffi ) that be adjusted by speed +and speed -
Manual model: with ten( r"""' :r" i'i :3iT
lliif igiltr if#rn - l9iihrr., :3i11ilr1' :gii'rillll )manual modes
that be adjusted by speed + and speed -
Timing : 5-30mins for choose. Smins increase each
time by press the button.
Auto mode:ttrree tevet(l-ff] tE] tNi
Manual mode : ten level
[,
I
KM /Calorie
KM/Calorie in30 minutes
Ir
ll
(Cal)
300
250
200
150
100
50

The method of usage
Three kinds of different ways of movement (different auxiliary equipment can
be selected during sports, such as magic pull rope, dumbbell)
Walking Jogging Run
. Walking mode: low amount of movement, help to relax the leg muscles, promote the
blood circulation in the legs.
. Jogging mode: middle amount of movement, alleviate the leg muscles and nerves,
and achieve fitness effect at the same time.
. Run mode: high amount of movement, whole body exercise, consume more energy,
promote blood circulation.
Natural movement pattern (walking, iogging,
choose) run three grades can be free to
. Standing way (standing on the machine) relaxes the
leg muscle, promote leg blood circulation.
. Lying way (Adopt elbow support, abdominal hard
straight, back, buttocks and feet in a line) shaping
healthy body curve, to prevent subcutaneous fat
ptosis.
. Sittingand standing stretch movement (Sitting in
the machine, the arm stretch upward, hands in the
head.) Yoga,movement, directly to the abdomen,
buttocks fat, slim waist, lift the hips.
. Relax shoulder movement (Sitting in the shaping
machine, both hands backward) alleviate the
shoulder and neck rnuscles, ease the discomfort
of per arthritis of shoulder and shoulder back, very
suitable for white-collar.
. Relax leg movement (Sitting in a chair, feet on
the shaping machine naturally) Can quickly
promote the leg blood circulation, relieve leg
varicose veins, very suitable for the elderly.
The method of usage
Magic pull rope movement pattern (walking, jogging,
be free to choose)
. Balance pulling way (clenched magic rope with your hands,
arms flat, standing in run district)high frequency vibration in
the arms, hips and legs, effectively lose inside ihe arm fat,
improve the periarthritis of shoulder and neck soreness,
coordination and balance.
. Left and right stretch way (clenched magic rope with your
hands, left / right arm held flat to the opposite direction
traction)vibration in the leg and traction body from Ieft /
right, effective stretching meridians, consumption of the
body on both sides of abdominal fat, shaping healthy body.
. Crouch way( left leg or right leg fonruard arch, right leg
or left leg backward, both hands to lift the magic rope)
to exercise the leg muscles and knee, increasing bone
density in the leg, contribute to the cardiorespiratory
exercise.
. Crouch pulling way (the legs slightly bent, hands along
the back pull rope to lift the magic.)increase the
pressure of the calf and knee, hip joint exercise,
stretching back channels, improve the "computer arm
,mouse hand "
. Standingway (standing in jogginglrun district, to pull
magic rope with your hands)exercise the arm joints
and muscles, promote cervical vertebra corrective and
systemic blood circulation; relieve muscle soreness of
shoulder and back.
. During the moving, must be pulled out all the power
cord, then raise the side of shaping machine, reach to
a certain angle (when thecenter of gravity falls on the
pulley), then forward or backward pull (push) move,
move the body shaping machine back to normal angle.
run with three grade can
In the magic rope mode of motionalso can use dumbbell substitution (as follow chart)
@w@ ffi
@_l
Note:The above movement is not unique, different people according to their own
needs, choose a different movement pattern.
,ffi
,lsry
ry.sl L-
Ytafl

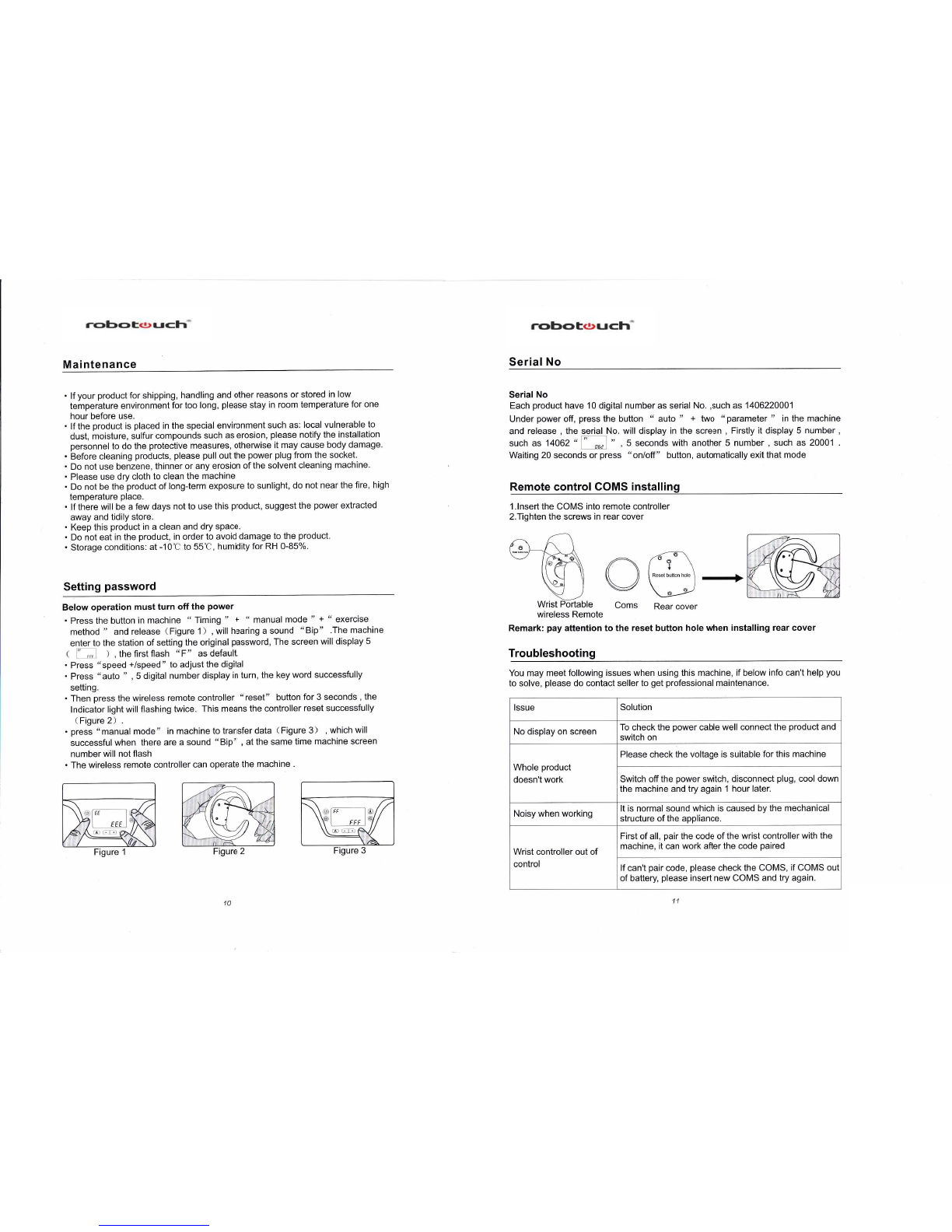

Maintenance
. lfyour product for shipping, handling and other reasons or stored in low
temperature environment for too long, please stay in room temperature for one
hour before use.
. lf the product is placed in the special environment such as: local vulnerable to
dust, moisture, sulfur compounds such as erosion, please notify the installation
personnel to do the protective measures, othenrvise it may cause body damage'
. Before cleaning products, please pull out the power plug from the socket.
. Do not use benzene, thinner or any erosion of the solvent cleaning machine.
. Please use dry cloth to clean the machine.
. Do not be the product of long{erm exposure to sunlight, do not near the fire, high
temperature place.
. lf there will be a few days not io use this product, suggest the power extracted
away and tidily store.
. Keep this product in a clean and dry space.
. Do not eat in the product, in order to avoid damage to the product.
. Storage conditions: at -10C to 55C, humidity for RH 0-85%'
Setting password
Below operation must turn off the power
'Pressthebuttoninmachine "Timing " + " manual mode " + "exercise
method " and release (Figure 1) , will hearing a sound "Bip" .The machine
enter to the station of setting the original password, The screen will display 5
( l" ,,, ] ) , the first flash " F " as default.
. Press " speed +/speed " to adjust the digital
. Press "auto " , 5 digital number display in turn, the key word successfully
setting.
. Then press the wireless remote controller "reset" button for 3 seconds , ihe
lndicator light will flashing twice. This means the controller reset successfully
(Figure 2) .
. press "manual mode" in machine to transfer daia (Figure 3) , which will
successful when there are a sound "Bip" , at the same time machine screen
number will not flash
. The wireless remote controller can operate the machine .
Serial No
Serial No
Each product have 10 digital number as serial No. ,such as 1406220001
Underpoweroff, pressthe button " auto " + two "parameter " in the machine
and release , the serial No. will display in the screen , Firstly it display 5 number ,
such as 14062"1- ,r.)" , 5 seconds with another 5 number, such as 20001 .
Waiting 20 seconds or press " onloff " button, automatically exit that mode
Remote control COMS installing
l.lnsert the COMS into remote controller
2.Tighten the screws in rear cover
f-t-;\
Ir\
L-l
Rear cover
wireless Remote
Remark: pay attention to the reset button hole when installing rear cover
Troubleshooting
You may meet following issues when using this machine, if below info can't help you
to solve, please do contact seller to get professional maintenance.
lssue Solution
No display on screen To check the power cable well connect the product and
switch on
Whole producl
doesn't work
Please check the voltage is suitable for this machine
Switch off the power switch, disconnect plug, cool down
the machine and try again t hour later.
Noisy when working It is normal sound which is caused by the mechanical
structure of the appliance.
Wrist controller out of
First of all, pair the code of the wrist controller with the
machine, it can work after the code paired
control lf can't pair code, please check the COMS, if COMS out
of battery, please insert new COMS and try again.
Figure '1

Specification
Name: Body show shaping machine( II )
Configure: 01
Rated voltage: 220V-240V- 50Hz/60H2 =
,,.
Rated power: 95W
Maximum load: 120k9
Rated time: 5-30 minutes
Noise: S55dB
Safety Design:@
vibraslim plus body shaper with watch-pink
